Bioscrypt VSMRTAHR Users Manual

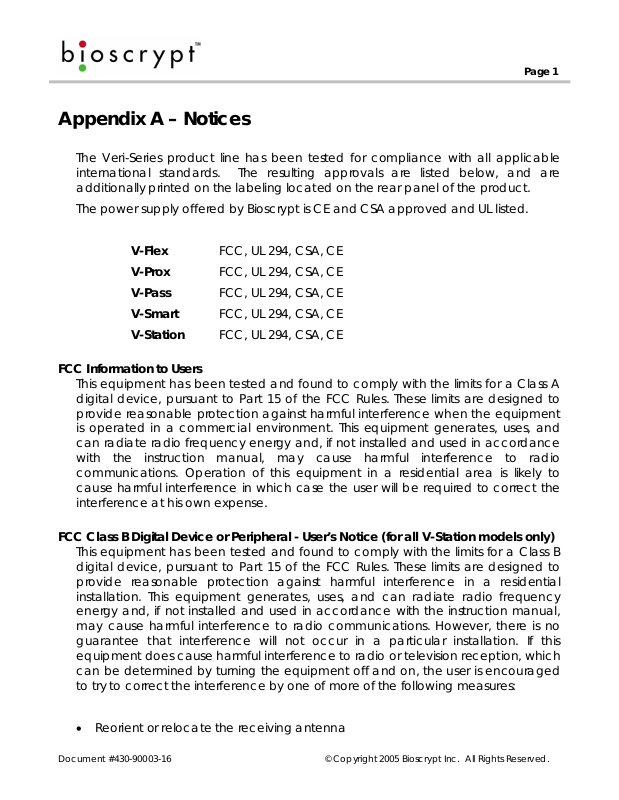

Page 1

Appendix A – Notices

The Veri-Series product line has been tested for compliance with all applicable
international standards. The resulting approvals are listed below, and are
additionally printed on the labeling located on the rear panel of the product.

The power supply offered by Bioscrypt is CE and CSA approved and UL listed.

V-Flex FCC, UL 294, CSA, CE
V-Prox FCC, UL 294, CSA, CE
V-Pass FCC, UL 294, CSA, CE
V-Smart FCC, UL 294, CSA, CE
V-Station FCC, UL 294, CSA, CE

FCC Information to Users

This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.

FCC Class B Digital Device or Peripheral - User’s Notice (for all V-Station models only)

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one of more of the following measures:

• Reorient or relocate the receiving antenna

Document #430-90003-16 © Copyright 2005 Bioscrypt Inc. All Rights Reserved.

Page 2

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

CE Information to Users

All Veri-Series devices have the CE mark, for compliance with CISPR22 /EN 55022
requirements. For European Union (EU) countries, V-Prox, V-Smart, and V-Station
(models V-Station A, P, V-Station A, G, and V-Station A, H) are compliant with CE
under the R&TTE Directive, related to the radio transceivers that are part of their
design. More information can be found regarding the CE R&TTE directive online
at the European Union web site:

http://www.europa.eu.int/comm/enterprise/rtte/index.htm

The V-Prox and V-Smart are compliant with this directive if, and only if, the user
installs the Bioscrypt specified R&TTE Installation Kit (Bioscrypt part number 832-

00103-00). This filter kit should be included with any V-Prox or V-Smart product if it
was shipped to a country within the EU.

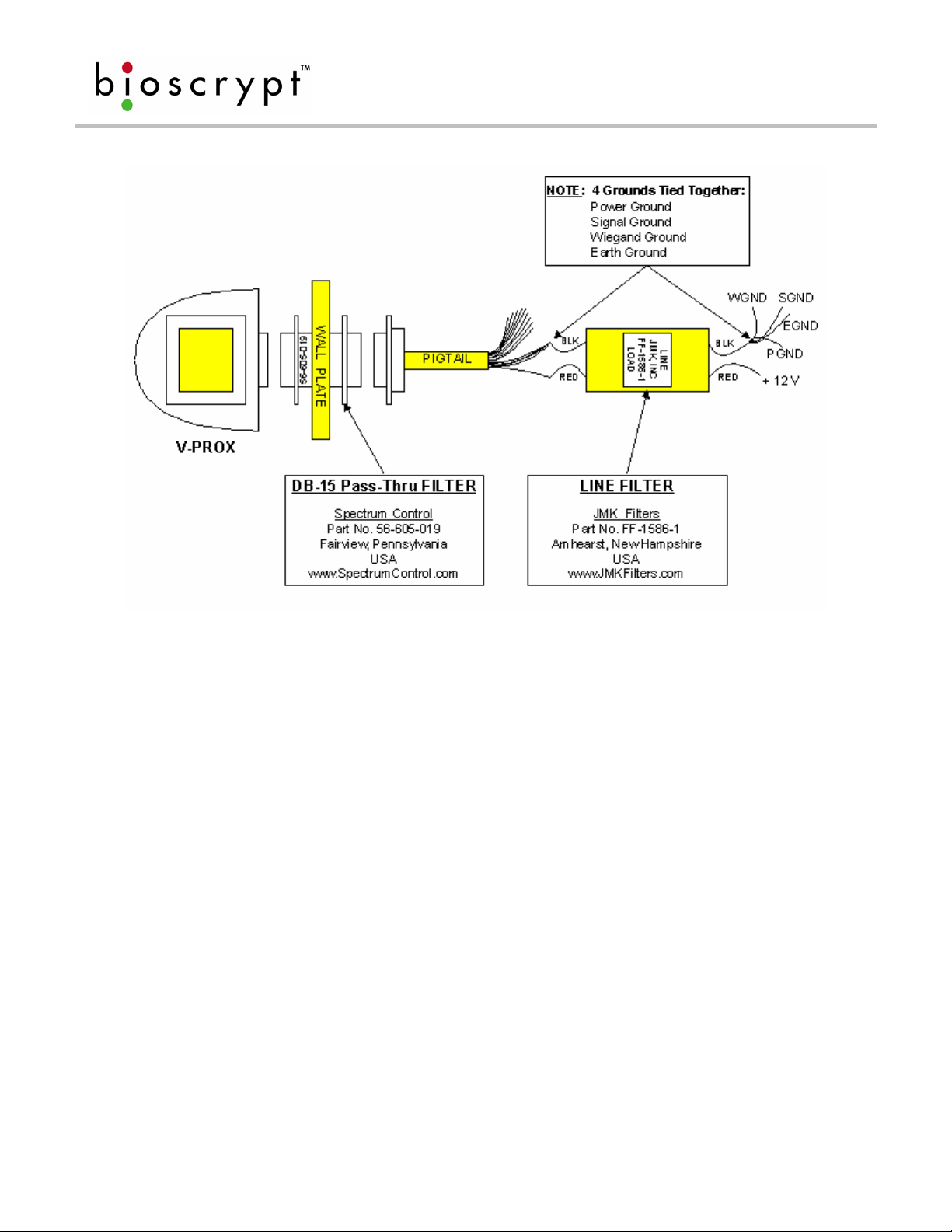

The R&TTE Installation Kit consists of two filters: a line filter used to minimize
conducted emissions from power supply lead lengths greater than 3 meters and a
DB-15 “Pass-Thru” filter used to minimize radiated emissions.

Line Filter: Manufacturer: JMK Filters
Amhearst, New Hampshire

USA, 03031

Part Number: FF-1586-1
Pass-Thru Filter: Manufacturer: Spectrum Control
Fairview, Pennsylvania

www.JMKFilters.com

USA, 16415

Part Number: 56-605-019

Document #430-90003-16 © Copyright 2005 Bioscrypt Inc. All Rights Reserved.

www.SpectrumControl.com

Page 3

If the filters were not included with the product or if they are desired separately,
they may be ordered from Bioscrypt (part number 832-00103-00) or the distributor
from which the product was purchased. Please see Appendix C for details on
proper installation of these filters.

NOTE: The installation of these filters is mandatory for the registered CE mark, and
associated R&TTE directive compliance to be valid within the European Union.
Failure to do so will render the CE mark and consequent right to operate the
equipment null and void.

Warning to Users

Warning
could void the user’s authority to operate the equipment.

V-Prox, A, H Information for Users*

The V-Prox, A, H includes a HID contact-less proximity reader. This device has the
following characteristics:

: Changes or modifications not expressly approved by Bioscrypt Inc.

Transmit Frequency: 125 KHz

Excite Frequency: 125 KHz

V-Smart, A Information for Users

The V-Smart, A includes a contact-less smart card reader (GemEasyLink680SL). This
is a radio-transceiver with the following characteristics:

Operating Frequency Range: 13.553-13.567 MHz
RF Power Rating: 0.0 Watts
RF Output Impedance: 50 Ohms

V-Smart, A, H Information for Users

The V-Smart, A, H includes a contact-less smart card reader (HID iCLASS™ OEM
100/RS232). This is a radio-transceiver with the following characteristics:

Operating Frequency Range: 13.553-13.567 MHz
RF Power Rating: 0.0 Watts
RF Output Impedance: 50 Ohms

Document #430-90003-16 © Copyright 2005 Bioscrypt Inc. All Rights Reserved.

Page 4

V-Station, A, G Information for Users

The V-Station, A, G includes a contact-less smart card reader (GemEasyLink680SL).
This is a radio-transceiver with the following characteristics:

Operating Frequency Range: 13.553-13.567 MHz
RF Power Rating: 0.0 Watts
RF Output Impedance: 50 Ohms

V-Station, A, H Information for Users

The V-Station, A, H includes a contact-less smart card reader (HID iCLASS™ OEM
100/RS232). This is a radio-transceiver with the following characteristics:

Operating Frequency Range: 13.553-13.567 MHz
RF Power Rating: 0.0 Watts
RF Output Impedance: 50 Ohms

V-Station, A, P Information for Users*

The V-Station, A, P includes a HID contact-less proximity reader. This device has
the following characteristics:

Transmit Frequency: 125 KHz

Excite Frequency: 125 KHz

*Warning to Users

Within the European Community, use of the 125 kHz band is not
harmonized. Therefore this product requires notification to the Nationa l

Regulatory Body and requires product registration for a particular
country. If you intend to move this device within the EU, please contact your
distributor first in order to check if this device is approved for use in that parti cular
country.

Document #430-90003-16 © Copyright 2005 Bioscrypt Inc. All Rights Reserved.

Page 5

Appendix B – European Certification Documentation

This appendix contains data related to the Veri-Series product line regarding the
test procedures and Declarations of Conformity as required under the R&TTE
directive by the European Union for all devices containing radio transmitters. The
following Bioscrypt products contain radio transmitters:

Name Model Number

V-Prox V-Prox, A, H
V-Smart / MIFARE V-Smart, A
V-Smart / iCLASS V-Smart, A, H
V-Station / Prox V-Station, A, P
V-Station / MIFARE V-Station, A, G
V-Station / iCLASS V-Station, A, H

Hereby, Bioscrypt, declares that the V-Prox, V-Smart/MIFARE, and V-Smart/iCLASS
are in compliance with the essential requirements and other relevant prov isions o f
Directive 1999/5/EC.

Restrictions of Use

Bioscrypt has notified the following EU countries and gained approval to sell the ­Prox, V-Smart/MIFARE, and V-Smart/iCLASS products:

• Belgium

• France

• Germany

• Nederland

• Spain

There are no restrictions of use for any of these products within those countries.
V-Station/Prox, V-Station/MIFARE, and V-Station/iCLASS individual country

approval is pending. For latest product approval status and updates, please refer
to the Bioscrypt web page at:

http://www.bioscrypt.com

Declaration of Conformity

For each product, Declarations of Conformity are listed on the following pages for:

• R&TTE Directive 1999/5/EC

• EMC Directive 89/336/EEC

• Low Voltage Safety Directive 73/23/EEC

Document #430-90003-16 © Copyright 2005 Bioscrypt Inc. All Rights Reserved.

Page 6

i

DECLARATION OF CONFORMITY

FOR THE R&TTE DIRECTIVE 1999/5/EC

Manufacturer’s Name/Address:
Address: 505 Cochrane Drive

Contact Person: Mr. Shiraz Kapadia, Vice President of Opera tions

Equipment Type: Radio Communications Equipment
Product Name: V-Prox, A
Model No.: V-Prox, A, H

RF Output Power:
Transmitter Operating Frequency

Range:

Bioscrypt Inc.

Markham Ontario
Canada, L3R 8E3

Phone #: [phone]
Fax #: [phone]
Email Address: [e-mail]

-6.9 dBuA/m 10 meters

125 kHz

Emission Designation: 5K7N0N
Duty Cycle: 18.8%

Year of manufacture: 2003
Country Of Manufacture: Canada

The above product has been
tested by UltraTech Engineering
Labs Inc., and found to comply
with:

Test Laboratories: UltraTech EMC Labs Inc.

I, the undersigned, hereby declare that the equipment as tested is representative within manufacturing tolerance to un

Manufacturer Legal Representative in Europe

European Telecommunications Standards Institute (ETSI)
EN 300 330-1 V1.3.1 (2001-06) & EN 300 330-2 V1.1.1 (2001-06)

Radio Equipment and Systems; Short Range Devices (SRD);
Technical Characteristics and Test Meth ods for Radio Equipment
in the Frequency Range 9 kHz to 25 MHz and Inductive Loop
Systems in the Frequency Range 9 kHz to 30 MHz, Parts 1 and 2.

3000 Bristol Circle
Oakville, Ontario, Canada, L6H 6G4

Shiraz Kapadia Neil McDonald
Vice President, Operations Director of Sales, EMEA
Markham, ON, Canada High Wycombe, England
September 9, 2003 November 25, 2002

Document #430-90003-16 © Copyright 2005 Bioscrypt Inc. All Rights Reserved.

.

FOR THE EMC DIRECTIVE 89/336/EEC

Manufacturer’s Name/Address:
Address:

Contact Person:

Equipment Type:
Product Name:
Model No.:

RF Output Power:
Transmitter Operating Frequency

Range:

Page 7

DECLARATION OF CONFORMITY

Bioscrypt Inc.
505 Cochrane Drive

Markham Ontario
Canada, L3R 8E3
Mr. Shiraz Kapadia, Vice President of Operations
Phone #: [phone]
Fax #: [phone]
Email Address: [e-mail]

Radio Communications Equipment
V-Prox, A
V-Prox, A, H

-6.9 dBuA/m 10 meters

125 kHz

Emission Designation:

Duty Cycle:
Year of manufacture:
Country Of Manufacture:

The above product has been
tested by
UltraTech Engineering Labs Inc.,
and found to comply with:

Test Laboratories:

I, the undersigned, hereby declare that the equipment as tested is representative within manufacturing tolerance to units

Manufacturer Legal Representative in Europe

5K7N0N

18.8%
2003
Canada

European Telecommunications Standards
Institute (ETSI)

EN 301 489-1 V1.4.1 (2002-04) & EN 301 489-3 V1.4.1 (2002-08) –
Electromagnetic Compatibility and Spectrum Matters (ERM);
Electromagnetic Compatibility (EMC) Standard for Radio Equipment
and Services, Parts 1 and 3.

UltraTech EMC Labs Inc.
3000 Bristol Circle
Oakville, Ontario, Canada, L6H 6G4

Shiraz Kapadia Neil McDonald
Vice President, Operations Director of Sales, EMEA
Markham, ON, Canada High Wycombe, England
September 9, 2003 November 25, 2002

Document #430-90003-16 © Copyright 2005 Bioscrypt Inc. All Rights Reserved.

.

FOR THE LOW VOLTAGE SAFETY DIRECTIVE 73/23/EEC

Manufacturer’s Name/Address:
Address:

Contact Person:

Equipment Type:
Product Name:
Model No.:

RF Output Power:
Transmitter Operating Frequency

Range:

Page 8

DECLARATION OF CONFORMITY

Bioscrypt Inc.
505 Cochrane Drive

Markham Ontario
Canada, L3R 8E3
Mr. Shiraz Kapadia, Vice President of Operations
Phone #: [phone]
Fax #: [phone]
Email Address: [e-mail]

Radio Communications Equipment
V-Prox, A
V-Prox, A, H

-6.9 dBuA/m 10 meters

125 kHz

Emission Designation:

Duty Cycle:
Year of manufacture:
Country Of Manufacture:

The above product has been
tested by

UltraTech Engineering Labs Inc.,

and found to comply with:

Test Laboratories:

I, the undersigned, hereby declare that the equipment as tested is representative within manufacturing tolerance to units

Manufacturer Legal Representative in Europe

5K7N0N

18.8%
2003
Canada

EN 60215:1996 +A1:1996 - Safety Requirements for Radio
Transmitting Equipment

UltraTech EMC Labs Inc.
3000 Bristol Circle
Oakville, Ontario, Canada, L6H 6G4

Shiraz Kapadia Neil McDonald
Vice President, Operations Director of Sales, EMEA
Markham, ON, Canada High Wycombe, England
September 9, 2003 November 25, 2002

Document #430-90003-16 © Copyright 2005 Bioscrypt Inc. All Rights Reserved.

Page 9

DECLARATION OF CONFORMITY

FOR THE R&TTE DIRECTIVE 1999/5/EC

Manufacturer’s Name/Address:
Address:

Contact Person: Mr. Shiraz Kapadia, Vice President of Opera tions

Equipment Type: Radio Communications Equipment
Product Name: V-Smart
Model No.: V-Smart, A

RF Output Power:
Transmitter & Receiver Operating

Frequency Range:

Bioscrypt Inc.

505 Cochrane Drive
Markham Ontario
Canada, L3R 8E3

Phone #: [phone]
Fax #: [phone]

Email Address: [e-mail]

-19.3 dBuA/m 10 meters

13.553-13.567 MHz

Emission Designation: 3K0D1D
Duty Cycle: 100%

Year of manufacture: 2003
Country Of Manufacture: Canada

The above product has been
tested by UltraTech Engineering

Labs Inc.,
and found to comply with:

Test Laboratories: UltraTech EMC Labs Inc.

I, the undersigned, hereby declare that the equipment as tested is representative within manufacturing tolerance to units.

Manufacturer

Legal Representative in Europe

European Telecommunications Standards Institute (ETSI)
EN 300 330-1 V1.3.1 (2001-06) & EN 300 330-2 V1.1.1 (2001-06)

Radio Equipment and Systems; Short Range Devices (SRD);
Technical Characteristics and Test Meth ods for Radio Equipment
in the Frequency Range 9 kHz to 25 MHz and Inductive Loop
Systems in the Frequency Range 9 kHz to 30 MHz, Parts 1 and 2.

3000 Bristol Circle
Oakville, Ontario, Canada, L6H 6G4

Shiraz Kapadia Neil McDonald
Vice President, Operations Director of Sales, EMEA
Markham, ON, Canada High Wycombe, England
September 9, 2003 November 25, 2002

Document #430-90003-16 © Copyright 2005 Bioscrypt Inc. All Rights Reserved.

Manufacturer’s Name/Address:
Address:

Contact Person:

Equipment Type:
Product Name:
Model No.:

RF Output Power:
Transmitter & Receiver Operating

Frequency Range:

Page 10

DECLARATION OF CONFORMITY

FOR THE EMC DIRECTIVE 89/336/EEC

Bioscrypt Inc.
505 Cochrane Drive

Markham Ontario
Canada, L3R 8E3
Mr. Shiraz Kapadia, Vice President of Operations
Phone #: [phone]
Fax #: [phone]
Email Address: [e-mail]

Radio Communications Equipment
V-Smart
V-Smart, A

-19.3 dBuA/m 10 meters

13.553-13.567 MHz

Emission Designation:

Duty Cycle:
Year of manufacture:
Country Of Manufacture:

The above product has been
tested by

UltraTech Engineering Labs Inc.,

and found to comply with:

Test Laboratories:

I, the undersigned, hereby declare that the equipment as tested is representative within manufacturing tolerance to units.

Manufacturer

Legal Representative in Europe

3K0D1D
100%

2003
Canada

European Telecommunications Standards
Institute (ETSI)

EN 301 489-1 V1.4.1 (2002-04) & EN 301 489-3 V1.4.1 (2002-08) –
Electromagnetic Compatibility and Spectrum Matters (ERM);
Electromagnetic Compatibility (EMC) Standard for Radio Equipment
and Services, Parts 1 and 3.

UltraTech EMC Labs Inc.
3000 Bristol Circle
Oakville, Ontario, Canada, L6H 6G4

Shiraz Kapadia Neil McDonald
Vice President, Operations Director of Sales, EMEA
Markham, ON, Canada High Wycombe, England
September 9, 2003 November 25, 2002

Document #430-90003-16 © Copyright 2005 Bioscrypt Inc. All Rights Reserved.

FOR THE LOW VOLTAGE SAFETY DIRECTIVE 73/23/EEC

Manufacturer’s Name/Address:
Address:

Contact Person:

Equipment Type:
Product Name:
Model No.:

RF Output Power:
Transmitter & Receiver Operating

Frequency Range:

Page 11

DECLARATION OF CONFORMITY

Bioscrypt Inc.
505 Cochrane Drive

Markham Ontario
Canada, L3R 8E3
Mr. Shiraz Kapadia, Vice President of Operations
Phone #: [phone]
Fax #: [phone]
Email Address: [e-mail]

Radio Communications Equipment
V-Smart
V-Smart, A

-19.3 dBuA/m 10 meters

13.553-13.567 MHz

Emission Designation:

Duty Cycle:
Year of manufacture:
Country Of Manufacture:

The above product has been
tested by UltraTech Engineering
Labs Inc., and found to comply
with:

Test Laboratories:

I, the undersigned, hereby declare that the equipment as tested is representative within manufacturing tolerance to units.

Manufacturer

Legal Representative in Europe

3K0D1D
100%

2003
Canada

EN 60215:1996 +A1:1996 - Safety Requirements for Radio
Transmitting Equipment

UltraTech EMC Labs Inc.
3000 Bristol Circle
Oakville, Ontario, Canada, L6H 6G4

Shiraz Kapadia Neil McDonald
Vice President, Operations Director of Sales, EMEA
Markham, ON, Canada High Wycombe, England
September 9, 2003 November 25, 2002

Document #430-90003-16 © Copyright 2005 Bioscrypt Inc. All Rights Reserved.

Manufacturer’s Name/Address:
Address:

Contact Person:

Equipment Type:
Product Name:
Model No.:

RF Output Power:
Transmitter & Receiver Operating

Frequency Range:

Page 12

DECLARATION OF CONFORMITY

FOR THE R&TTE DIRECTIVE 1999/5/EC

Bioscrypt Inc.
505 Cochrane Drive

Markham Ontario
Canada, L3R 8E3
Mr. Shiraz Kapadia, Vice President of Operations
Phone #: [phone]
Fax #: [phone]
Email Address: [e-mail]

Radio Communications Equipment
V-Smart
V-Smart, A, H

4.6 dBuA/m 10 meters

13.553-13.567 MHz

Emission Designation:

Duty Cycle:
Year of manufacture:
Country Of Manufacture:

The above product has been
tested by UltraTech Engineering
Labs Inc., and found to comply
with:

Test Laboratories:

I, the undersigned, hereby declare that the equipment as tested is representative within manufacturing tolerance to units.

Manufacturer

Legal Representative in Europe

3K0D1D
100%

2003
Canada

European Telecommunications Standards Institute (ETSI)
EN 300 330-1 V1.3.1 (2001-06) & EN 300 330-2 V1.1.1 (2001-06)

Radio Equipment and Systems; Short Range Devices (SRD);
Technical Characteristics and Test Meth ods for Radio Equipment
in the Frequency Range 9 kHz to 25 MHz and Inductive Loop
Systems in the Frequency Range 9 kHz to 30 MHz, Parts 1 and 2.

UltraTech EMC Labs Inc.
3000 Bristol Circle
Oakville, Ontario, Canada, L6H 6G4

Shiraz Kapadia Neil McDonald
Vice President, Operations Director of Sales, EMEA
Markham, ON, Canada High Wycombe, England
September 9, 2003 November 25, 2002

Document #430-90003-16 © Copyright 2005 Bioscrypt Inc. All Rights Reserved.

Manufacturer’s Name/Address:
Address:

Contact Person:

Equipment Type:
Product Name:
Model No.:

RF Output Power:
Transmitter & Receiver Operating

Frequency Range:

Page 13

DECLARATION OF CONFORMITY

FOR THE EMC DIRECTIVE 89/336/EEC

Bioscrypt Inc.
505 Cochrane Drive

Markham Ontario
Canada, L3R 8E3
Mr. Shiraz Kapadia, Vice President of Operations
Phone #: [phone]
Fax #: [phone]
Email Address: [e-mail]

Radio Communications Equipment
V-Smart
V-Smart, A, H

4.6 dBuA/m 10 meters

13.553-15.567 MHz

Emission Designation:

Duty Cycle:
Year of manufacture:
Country Of Manufacture:

The above product has been
tested by UltraTech Engineering
Labs Inc., and found to comply
with:

Test Laboratories:

I, the undersigned, hereby declare that the equipment as tested is representative within manufacturing tolerance to units.

Manufacturer

Legal Representative in Europe

3K0D1D
100%

2003
Canada

European Telecommunications Standards
Institute (ETSI)

EN 301 489-1 V1.4.1 (2002-04) & EN 301 489-3 V1.4.1 (2002-08) –
Electromagnetic Compatibility and Spectrum Matters (ERM);
Electromagnetic Compatibility (EMC) Standard for Radio Equipment
and Services, Parts 1 and 3.

UltraTech EMC Labs Inc.
3000 Bristol Circle
Oakville, Ontario, Canada, L6H 6G4

Shiraz Kapadia Neil McDonald
Vice President, Operations Director of Sales, EMEA
Markham, ON, Canada High Wycombe, England
September 9, 2003 November 25, 2002

Document #430-90003-16 © Copyright 2005 Bioscrypt Inc. All Rights Reserved.

FOR THE LOW VOLTAGE SAFETY DIRECTIVE 73/23/EEC

Manufacturer’s Name/Address:
Address:

Contact Person:

Equipment Type:
Product Name:
Model No.:

RF Output Power:
Transmitter & Receiver Operating

Frequency Range:

Page 14

DECLARATION OF CONFORMITY

Bioscrypt Inc.
505 Cochrane Drive

Markham Ontario
Canada, L3R 8E3
Mr. Shiraz Kapadia, Vice President of Operations
Phone #: [phone]
Fax #: [phone]
Email Address: [e-mail]

Radio Communications Equipment
V-Smart
V-Smart, A, H

4.6 dBuA/m 10 meters

13.553-13.567 MHz

Emission Designation:

Duty Cycle:
Year of manufacture:
Country Of Manufacture:

The above product has been
tested by UltraTech Engineering
Labs Inc., and found to comply
with:

Test Laboratories:

I, the undersigned, hereby declare that the equipment as tested is representative within manufacturing tolerance to units.

Manufacturer

Legal Representative in Europe

3K0D1D
100%

2003
Canada

EN 60215:1996 +A1:1996 - Safety Requirements for Radio
Transmitting Equipment

UltraTech EMC Labs Inc.
3000 Bristol Circle
Oakville, Ontario, Canada, L6H 6G4

Shiraz Kapadia Neil McDonald
Vice President, Operations Director of Sales, EMEA
Markham, ON, Canada High Wycombe, England
September 9, 2003 November 25, 2002

Document #430-90003-16 © Copyright 2005 Bioscrypt Inc. All Rights Reserved.

Page 15

DECLARATION OF CONFORMITY

FOR THE R&TTE DIRECTIVE 1999/5/EC

Manufacturer’s Name/Address:
Address:

Contact Person:

Equipment Type: Radio Communications Equipment
Product Name: V-Station
Model No.: V-Station, A, P

RF Output Power:
Transmitter Operating Frequency

Range:

Bioscrypt Inc.

505 Cochrane Drive
Markham Ontario
Canada, L3R 8E3

Mr. Shiraz Kapadia, Vice President of Operations
Phone #: [phone]
Fax #: [phone]

Email Address: [e-mail]

3.2 dBuA/m 10 meters

120.45– 129.45 kHz

Emission Designation:

Duty Cycle:
Year of manufacture: 2003
Country Of Manufacture: Canada

The above product has been
tested by UltraTech Engineering
Labs Inc., and found to comply
with:

Test Laboratories: UltraTech EMC Labs Inc.

I, the undersigned, hereby declare that the equipment as tested is representative within manufacturing tolerance to units.

Manufacturer

Legal Representative in Europe

4K6N0N

19.9%

European Telecommunications Standards Institute (ETSI)
EN 300 330-1 V1.3.1 (2001-06) & EN 300 330-2 V1.1.1 (2001-06)

Radio Equipment and Systems; Short Range Devices (SRD);
Technical Characteristics and Test Meth ods for Radio Equipment
in the Frequency Range 9 kHz to 25 MHz and Inductive Loop
Systems in the Frequency Range 9 kHz to 30 MHz, Parts 1 and 2.

3000 Bristol Circle
Oakville, Ontario, Canada, L6H 6G4

Shiraz Kapadia Neil McDonald
Vice President, Operations Director of Sales, EMEA
Markham, ON, Canada High Wycombe, England
September 9, 2003 January 6, 2003

Document #430-90003-16 © Copyright 2005 Bioscrypt Inc. All Rights Reserved.

Manufacturer’s Name/Address:
Address:

Contact Person:

Equipment Type:
Product Name:
Model No.:

RF Output Power:
Transmitter Operating Frequency

Range:

Page 16

DECLARATION OF CONFORMITY

FOR THE EMC DIRECTIVE 89/336/EEC

Bioscrypt Inc.
505 Cochrane Drive

Markham Ontario
Canada, L3R 8E3
Mr. Shiraz Kapadia, Vice President of Operations
Phone #: [phone]
Fax #: [phone]

Email Address: [e-mail]

Radio Communications Equipment
V-Station
V-Station, A, P

3.2 dBuA/m 10 meters

120.45– 129.45 kHz

Emission Designation:

Duty Cycle:
Year of manufacture:
Country Of Manufacture:

The above product has been
tested by
UltraTech Engineering Labs Inc.,
and found to comply with:

Test Laboratories:

I, the undersigned, hereby declare that the equipment as tested is representative within manufacturing tolerance to units.

Manufacturer

Legal Representative in Europe

4K6N0N

19.9%
2003
Canada

European Telecommunications Standards
Institute (ETSI)

EN 301 489-1 V1.4.1 (2002-04) & EN 301 489-3 V1.4.1 (2002-08) –
Electromagnetic Compatibility and Spectrum Matters (ERM);
Electromagnetic Compatibility (EMC) Standard for Radio Equipment
and Services, Parts 1 and 3.

UltraTech EMC Labs Inc.
3000 Bristol Circle
Oakville, Ontario, Canada, L6H 6G4

Shiraz Kapadia Neil McDonald
Vice President, Operations Director of Sales, EMEA
Markham, ON, Canada High Wycombe, England
September 9, 2003 January 6, 2003

Document #430-90003-16 © Copyright 2005 Bioscrypt Inc. All Rights Reserved.

FOR THE LOW VOLTAGE SAFETY DIRECTIVE 73/23/EEC

Manufacturer’s Name/Address:
Address:

Contact Person:

Equipment Type:
Product Name:
Model No.:

RF Output Power:
Transmitter Operating Frequency

Range:

Page 17

DECLARATION OF CONFORMITY

Bioscrypt Inc.
505 Cochrane Drive

Markham Ontario
Canada, L3R 8E3
Mr. Shiraz Kapadia, Vice President of Operations
Phone #: [phone]
Fax #: [phone]
Email Address: [e-mail]

Radio Communications Equipment
V-Station
V-Station, A, P

3.2 dBuA/m 10 meters

120.45– 129.45 kHz

Emission Designation:

Duty Cycle:
Year of manufacture:
Country Of Manufacture:

The above product has been
tested by

UltraTech Engineering Labs Inc.,

and found to comply with:

Test Laboratories:

I, the undersigned, hereby declare that the equipment as tested is representative within manufacturing tolerance to units.

Manufacturer

Legal Representative in Europe

4K6N0N

19.9%
2003
Canada

EN 60215:1996 +A1:1996 - Safety Requirements for Radio
Transmitting Equipment

UltraTech EMC Labs Inc.
3000 Bristol Circle
Oakville, Ontario, Canada, L6H 6G4

Shiraz Kapadia Neil McDonald
Vice President, Operations Director of Sales, EMEA
Markham, ON, Canada High Wycombe, England
September 9, 2003 January 6, 2003

Document #430-90003-16 © Copyright 2005 Bioscrypt Inc. All Rights Reserved.

Page 18

DECLARATION OF CONFORMITY

FOR THE R&TTE DIRECTIVE 1999/5/EC

Manufacturer’s Name/Address:
Address:

Contact Person:

Equipment Type: Radio Communications Equipment
Product Name: V-Station
Model No.: V-Statio n, A,G

RF Output Power:
Transmitter & Receiver Operating

Frequency Range:

Bioscrypt Inc.

505 Cochrane Drive
Markham Ontario
Canada, L3R 8E3

Mr. Shiraz Kapadia, Vice President of Operations
Phone #: [phone]
Fax #: [phone]

Email Address: [e-mail]

-10.6 dBuA/m 10 meters

13.553-13.567 MHz

Emission Designation:
Duty Cycle: 100%

Year of manufacture: 2003
Country Of Manufacture: Canada

The above product has been
tested by UltraTech Engineering

Labs Inc.,
and found to comply with:

Test Laboratories: UltraTech EMC Labs Inc.

I, the undersigned, hereby declare that the equipment as tested is representative within manufacturing tolerance to units.

Manufacturer

Legal Representative in Europe

421K3D1D

European Telecommunications Standards Institute (ETSI)
EN 300 330-1 V1.3.1 (2001-06) & EN 300 330-2 V1.1.1 (2001-06)

Radio Equipment and Systems; Short Range Devices (SRD);
Technical Characteristics and Test Meth ods for Radio Equipment
in the Frequency Range 9 kHz to 25 MHz and Inductive Loop
Systems in the Frequency Range 9 kHz to 30 MHz, Parts 1 and 2.

3000 Bristol Circle
Oakville, Ontario, Canada, L6H 6G4

Shiraz Kapadia Neil McDonald
Vice President, Operations Director of Sales, EMEA
Markham, ON, Canada High Wycombe, England
September 9, 2003 January 6, 2003

Document #430-90003-16 © Copyright 2005 Bioscrypt Inc. All Rights Reserved.

Manufacturer’s Name/Address:
Address:

Contact Person:

Equipment Type:
Product Name:
Model No.:

RF Output Power:
Transmitter & Receiver Operating

Frequency Range:

Page 19

DECLARATION OF CONFORMITY

FOR THE EMC DIRECTIVE 89/336/EEC

Bioscrypt Inc.
505 Cochrane Drive

Markham Ontario
Canada, L3R 8E3
Mr. Shiraz Kapadia, Vice President of Operations
Phone #: [phone]
Fax #: [phone]

Email Address: [e-mail]

Radio Communications Equipment
V-Station
V-Station, A, G

-10.6 dBuA/m 10 meters

13.553-13.567 MHz

Emission Designation:

Duty Cycle:
Year of manufacture:
Country Of Manufacture:

The above product has been
tested by

UltraTech Engineering Labs Inc.,

and found to comply with:

Test Laboratories:

I, the undersigned, hereby declare that the equipment as tested is representative within manufacturing tolerance to units.

Manufacturer

Legal Representative in Europe

421K3D1D
100%

2003
Canada

European Telecommunications Standards
Institute (ETSI)

EN 301 489-1 V1.4.1 (2002-04) & EN 301 489-3 V1.4.1 (2002-08) –
Electromagnetic Compatibility and Spectrum Matters (ERM);
Electromagnetic Compatibility (EMC) Standard for Radio Equipment
and Services, Parts 1 and 3.

UltraTech EMC Labs Inc.
3000 Bristol Circle
Oakville, Ontario, Canada, L6H 6G4

Shiraz Kapadia Neil McDonald
Vice President, Operations Director of Sales, EMEA
Markham, ON, Canada High Wycombe, England
September 9, 2003 January 6, 2003

Document #430-90003-16 © Copyright 2005 Bioscrypt Inc. All Rights Reserved.

FOR THE LOW VOLTAGE SAFETY DIRECTIVE 73/23/EEC

Manufacturer’s Name/Address:
Address:

Contact Person:

Equipment Type:
Product Name:
Model No.:

RF Output Power:
Transmitter & Receiver Operating

Frequency Range:

Page 20

DECLARATION OF CONFORMITY

Bioscrypt Inc.
505 Cochrane Drive

Markham Ontario
Canada, L3R 8E3
Mr. Shiraz Kapadia, Vice President of Operations
Phone #: [phone]
Fax #: [phone]
Email Address: [e-mail]

Radio Communications Equipment
V-Station
V-Station, A, G

-10.6 dBuA/m 10 meters

13.553-13.567 MHz

Emission Designation:

Duty Cycle:
Year of manufacture:
Country Of Manufacture:

The above product has been
tested by UltraTech Engineering
Labs Inc., and found to comply
with:

Test Laboratories:

I, the undersigned, hereby declare that the equipment as tested is representative within manufacturing tolerance to units.

Manufacturer

Legal Representative in Europe

421K3D1D
100%

2003
Canada

EN 60215:1996 +A1:1996 - Safety Requirements for Radio
Transmitting Equipment

UltraTech EMC Labs Inc.
3000 Bristol Circle
Oakville, Ontario, Canada, L6H 6G4

Shiraz Kapadia Neil McDonald
Vice President, Operations Director of Sales, EMEA
Markham, ON, Canada High Wycombe, England
September 9, 2003 January 6, 2003

Document #430-90003-16 © Copyright 2005 Bioscrypt Inc. All Rights Reserved.

Manufacturer’s Name/Address:
Address:

Contact Person:

Equipment Type:
Product Name:
Model No.:

RF Output Power:
Transmitter & Receiver Operating

Frequency Range:

Page 21

DECLARATION OF CONFORMITY

FOR THE R&TTE DIRECTIVE 1999/5/EC

Bioscrypt Inc.
505 Cochrane Drive

Markham Ontario
Canada, L3R 8E3
Mr. Shiraz Kapadia, Vice President of Operations
Phone #: [phone]
Fax #: [phone]
Email Address: [e-mail]

Radio Communications Equipment
V-Station
V-Station, A, H

-6.4 dBuA/m 10 meters

13.553-13.567 MHz

Emission Designation:

Duty Cycle:
Year of manufacture:
Country Of Manufacture:

The above product has been
tested by UltraTech Engineering
Labs Inc., and found to comply
with:

Test Laboratories:

I, the undersigned, hereby declare that the equipment as tested is representative within manufacturing tolerance to units.

Manufacturer

Legal Representative in Europe

20K0D1D
100%

2003
Canada

European Telecommunications Standards Institute (ETSI)
EN 300 330-1 V1.3.1 (2001-06) & EN 300 330-2 V1.1.1 (2001-06)

Radio Equipment and Systems; Short Range Devices (SRD);
Technical Characteristics and Test Meth ods for Radio Equipment
in the Frequency Range 9 kHz to 25 MHz and Inductive Loop
Systems in the Frequency Range 9 kHz to 30 MHz, Parts 1 and 2.

UltraTech EMC Labs Inc.
3000 Bristol Circle
Oakville, Ontario, Canada, L6H 6G4

Shiraz Kapadia Neil McDonald
Vice President, Operations Director of Sales, EMEA
Markham, ON, Canada High Wycombe, England
September 9, 2003 January 6, 2003

Document #430-90003-16 © Copyright 2005 Bioscrypt Inc. All Rights Reserved.

Manufacturer’s Name/Address:
Address:

Contact Person:

Equipment Type:
Product Name:
Model No.:

RF Output Power:
Transmitter & Receiver Operating

Frequency Range:

Page 22

DECLARATION OF CONFORMITY

FOR THE EMC DIRECTIVE 89/336/EEC

Bioscrypt Inc.
505 Cochrane Drive

Markham Ontario
Canada, L3R 8E3
Mr. Shiraz Kapadia, Vice President of Operations
Phone #: [phone]
Fax #: [phone]
Email Address: [e-mail]

Radio Communications Equipment
V-Station
V-Station, A, H

-6.4 dBuA/m 10 meters

13.553-13.567 MHz

Emission Designation:

Duty Cycle:
Year of manufacture:
Country Of Manufacture:

The above product has been
tested by

UltraTech Engineering Labs Inc.,

and found to comply with:

Test Laboratories:

I, the undersigned, hereby declare that the equipment as tested is representative within manufacturing tolerance to units.

Manufacturer

Legal Representative in Europe

20K0D1D
100%

2003
Canada

European Telecommunications Standards
Institute (ETSI)

EN 301 489-1 V1.4.1 (2002-04) & EN 301 489-3 V1.4.1 (2002-08) –
Electromagnetic Compatibility and Spectrum Matters (ERM);
Electromagnetic Compatibility (EMC) Standard for Radio Equipment
and Services, Parts 1 and 3.

UltraTech EMC Labs Inc.
3000 Bristol Circle
Oakville, Ontario, Canada, L6H 6G4

Shiraz Kapadia Neil McDonald
Vice President, Operations Director of Sales, EMEA
Markham, ON, Canada High Wycombe, England
September 9, 2003 January 6, 2003

Document #430-90003-16 © Copyright 2005 Bioscrypt Inc. All Rights Reserved.
