Contents
1. Safety precautions ........................................................................................ 4
2. General information. ..................................................................................... 5
3. Getting started .............................................................................................. 6
4. Operation ...................................................................................................... 7
5. Specification ................................................................................................. 8
6. Maintenance ................................................................................................. 9
7. Warranty and Claims .................................................................................. 10
8. Declaration of conformity ............................................................................ 11
4
1. Safety precautions
The following symbols mean:
Caution! Make sure you have fully read and understood the present
Manual before using the equipment. Please pay special attention to sections marked by this symbol.
Attention! Magnetism! Effects of a strong magnetic field on the biological
systems have to be taken in to account. Magnetic fields can
affect heart pace - maker, data carriers, etc.
GENERAL SAFETY
Use only as specified in the Operating Manual provided.
The unit should be saved from shocks or falling.
After transportation or storage keep the unit under room temperature for 2-
3hrs before connecting to electric circuit.
Use only cleaning and decontamination methods recommended by the
manufacturer.
Do not make modifications to the design of the unit.
ELECTRICAL SAFETY
Connect only to the external power supply unit with voltage corresponding to
that on the serial number label.
Use only the external power supply unit provided with this product.
Ensure that the switch and external power supply unit are easily accessible
during use.
Disconnect the external power supply unit from electric circuit before moving
the unit.
If liquid penetrates into the unit, disconnect it from the external power supply
unit and have it checked by a repair and maintenance technician.
Do not operate the unit in premises where condensation can form. Operating
conditions of the unit are defined in the Specifications section.
5
DURING OPERATION
Do not start operation at maximum speed.
Do not operate the unit in environments with aggressive or explosive chemi-
cal mixtures. Please contact manufacturer for possible operation of the unit
in specific atmospheres.
Do not operate the unit if it is faulty or has been installed incorrectly.
Do not use outside laboratory rooms.
BIOLOGICAL SAFETY
It is the user’s responsibility to carry out appropriate decontamination if
hazardous material is spilt on or penetrates into the equipment.
2. General information.
MS-3000/MMS-3000 magnetic stirrer is designed for effective stirring of dif-
ferent viscosity liquids.
MS-3000/MMS-3000 is a compact magnetic stirrer with the stainless steel
working surface. It provides liquid stirring with the magnetic element rotation speed
up to 3000 rpm (max. speed depends on the magnetic element size, stirred volume,
viscosity, glassware shape, etc.).
The unit is designed for operation with different size magnetic stirring elements (20-50 mm long for MS-3000 and 20-70 mm long for MMS-3000). Other size
magnetic elements may not provide appropriate operation.
MMS-3000 is equipped with an attachable stand that allows inserting different sensors (temperature, pH etc.) inside the liquid.
Application fields:
chemistry: stirring reaction ingredients during the fine organic synthesis,
research in the organic catalysis field, different viscosity
chemical reagents dissolving.
biochemistry: solutions preparation, dialyze, salt and alcohol sedimentation
of macromolecules, gradient forming in the column chromatography, etc.
soil science: biological and chemical substances and samples extraction,
research of the soil and ground chemical and biochemical
compounds.
biotechnology: using as a minireactor in the micro-organism cells cultivation,
culture medium preparation, titration, etc.
6
3. Getting started
3.1. Unpacking.
Remove packing materials carefully and retain them for future shipment or
storage of the unit.
Examine the unit carefully for any damage incurred during transit. The
warranty does not cover in-transit damage.
3.2. Complete set. Package contents:
MS-3000
- MS-3000 Magnetic Stirrer ..................................................................... 1 pce
- magnetic stirring element* ..................................................................... 1 pce
- external power supply unit ..................................................................... 1 pce
- Operating Manual; Certificate ............................................................. 1 copy
MMS-3000
- MMS-3000 Magnetic Stirrer .................................................................. 1 pce
- magnetic stirring element* ..................................................................... 1 pce
- SR-1 attachable stand .......................................................................... 1 pce
- external power supply unit ..................................................................... 1 pce
- Operating Manual; Certificate ............................................................. 1 copy
3.3. Set up:
place the unit on the horizontal even working surface;
plug the external power supply unit into the 12 V socket at the rear side of
the unit.

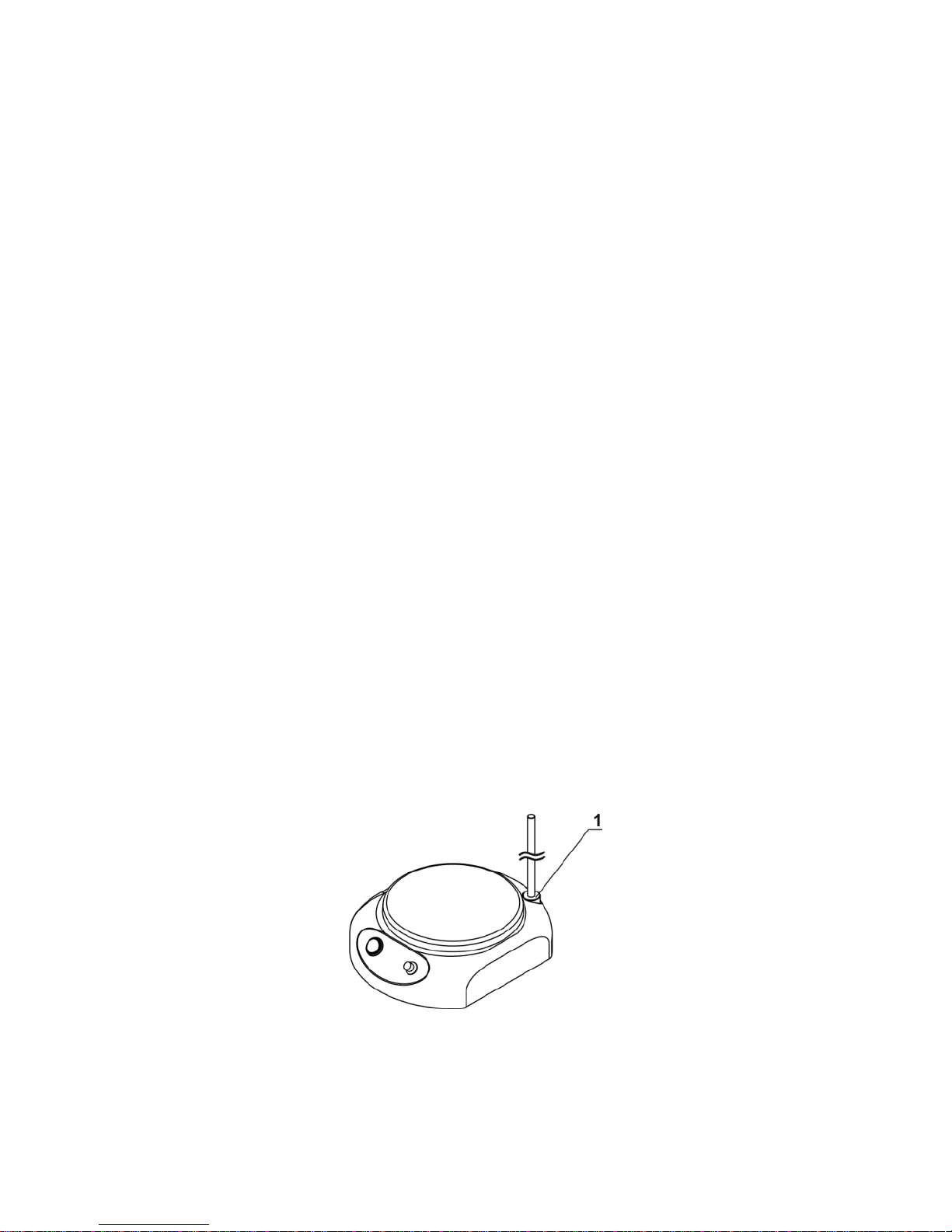

3.4. MMS-3000 stand installation. Remove the screw on the fixing socket at the
stirrer back (fig.1/1) and retain for future. Screw the part of the stand with the
counter-nut into the fixing socket and secure with the counter-nut. Screw in
the second part of the stand into the attached first part.
Fig. 1. MMS-3000 stand
7
4. Operation
4.1. Plug the external power supply unit to electric circuit.
4.2. Place a glass or another chemical vessel with liquid with magnetic stirrer bar
in it at the centre of the working plate.
4.3. Turn the Power switch (Fig. 2/1 or 2/3) into the position I (On).
4.4. Set the required speed using the Speed knob (fig. 2/2 or 2/4). Increase the
speed smoothly.
4.5. After finishing the operation decrease the rotation speed to the minimum and
turn the Power switch into position O (Off).
4.6. Unplug the external power supply unit from electric circuit.
MS-3000
MMS-3000

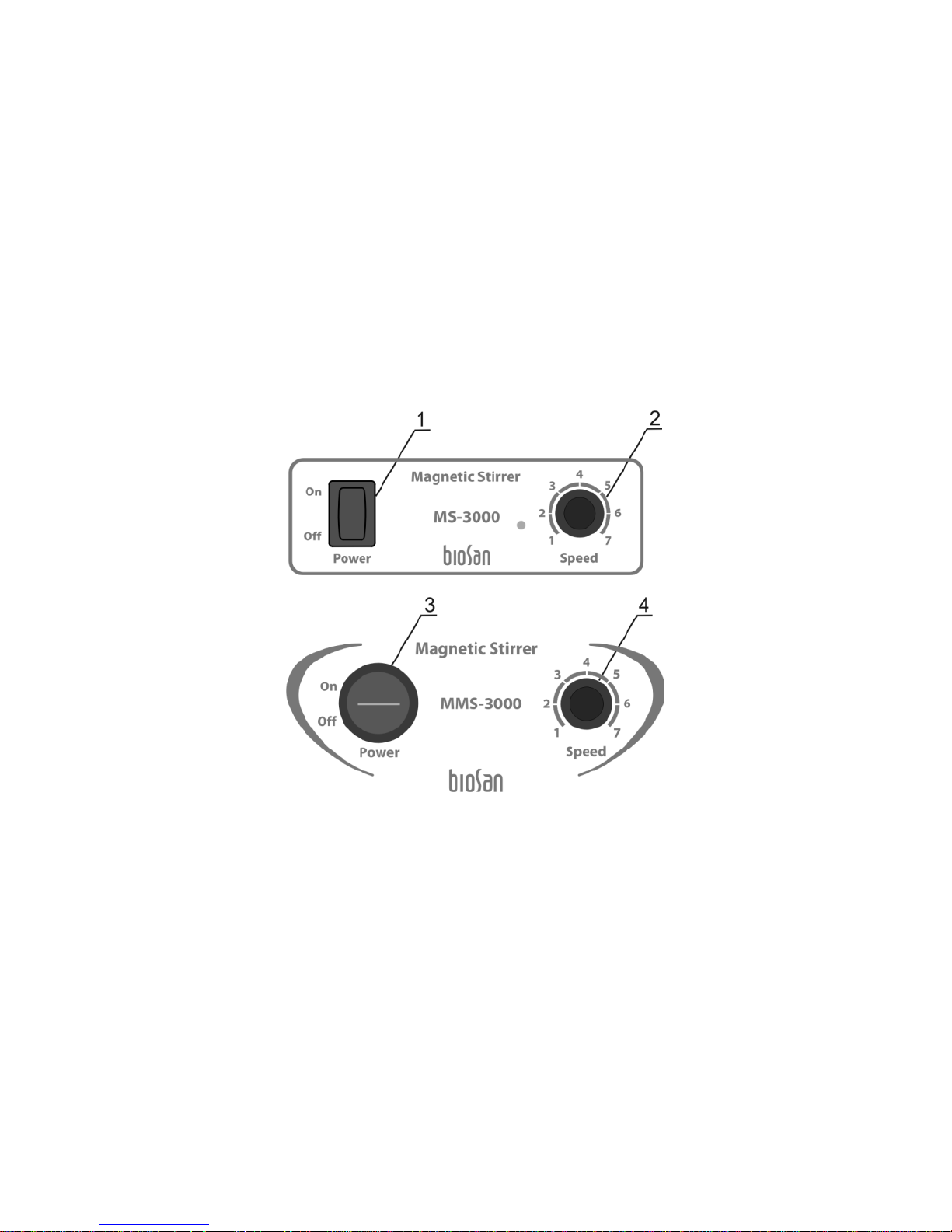

Fig. 2. Control panel
8
5. Specification
The unit is designed for operation in cold rooms, incubators and closed laboratory rooms at ambient temperature from +4°C to +40°C in a non-condensing
atmosphere and maximum relative humidity 80% for temperatures up to 31°C
decreasing linearly to 50% relative humidity at 40°C.
MS-3000
MMS-3000
Speed range
0—3000 rpm
Maximum stirring volume (H2O)
5 l
20 l
Working surface dimensions
110x110 mm
Ø160 mm
Working surface material
Stainless steel
SR-1 detachable stand size
—
Ø8x320 mm
Maximum length of magnetic stirring
element
50 mm
70 mm
Maximum stirred liquid viscosity
Up to 1170 mPa*s
Continuous operation time
Not more than 12 hours
Internal current / power consumption
220 mA / 2.6 W
250 mA / 3 W
External power supply
input AC 100-240 V, 50/60 Hz,
output DC 12 V
Weight*
0.8 kg
1.5 kg
Dimensions
120x150x65 mm
185x230x75 mm
MS-3000 and MMS-3000 maximal speed
Magnetic
element
size
H2O volume 2 l
H2O volume 5 l
H2O volume 15 l
H2O volume 20 l
MS-3000
MMS-3000
MS-3000
MMS-3000
MS-3000
MMS-3000
MS-3000
MMS-3000
25 mm
3000
3000
2400
2800
-
2650
-
2600
50 mm
700
1700
700
1500
-
1300
-
1250
70 mm
-
620
-
530
-
440
-
360
Replacement parts
Description
Catalogue number
SR-1
Detachable stand for MMS-3000
BS-010302-AK
Magnetic stirring
element
Cylindrical shape (6x25 mm) and PTFE
encapsulated
BS-010302-S12
Biosan is committed to a continuous programme of improvement and reserves the right to alter design and specifications of the equipment without additional notice.
* Accurate within ±10%.
9
6. Maintenance
6.1. If the unit requires maintenance, disconnect the unit from electric circuit and
contact Biosan or your local Biosan representative.
6.2. All maintenance and repair operations must be performed only by qualified
and specially trained personnel.
6.3. Standard ethanol 75% or other cleaning agents recommended for cleaning
of laboratory equipment can be used for cleaning and decontamination of
the unit.
6.4. Improper magnetic stirring elements storage (storing several elements
together, which causes unpredictable magnetic domain disorientation) is one
of the reasons of the magnetic properties deterioration of the element. The
other reason is working at temperatures close to Curie point temperature of
these elements, which is 200°C. Place the element on the unit working sur-
face exactly in the centre and in conformity with the poles and leave for 8-12
hours to have it regained its initial characteristics.
10
7. Warranty and Claims
7.1. The Manufacturer guarantees the compliance of unit with the requirements
of Specifications, provided the Customer follows the operation, storage and
transportation instructions.
7.2. The warranted service life of unit from date of delivery to the Customer is 24
months. Contact your local distributor to check availability of extended war-
ranty.
7.3. If any manufacturing defects are discovered by the Customer, an unsatisfac-
tory equipment claim shall be compiled, certified and sent to the local distrib-
utor address. Please visit www.biosan.lv, Technical support section to obtain
the claim form.
7.4. The following information will be required in the event that warranty or post-
warranty service comes necessary. Complete the table below and retain for
your records.
Model
MS-3000 / MMS-3000 Magnetic stirrers
Serial number
Date of sale
11

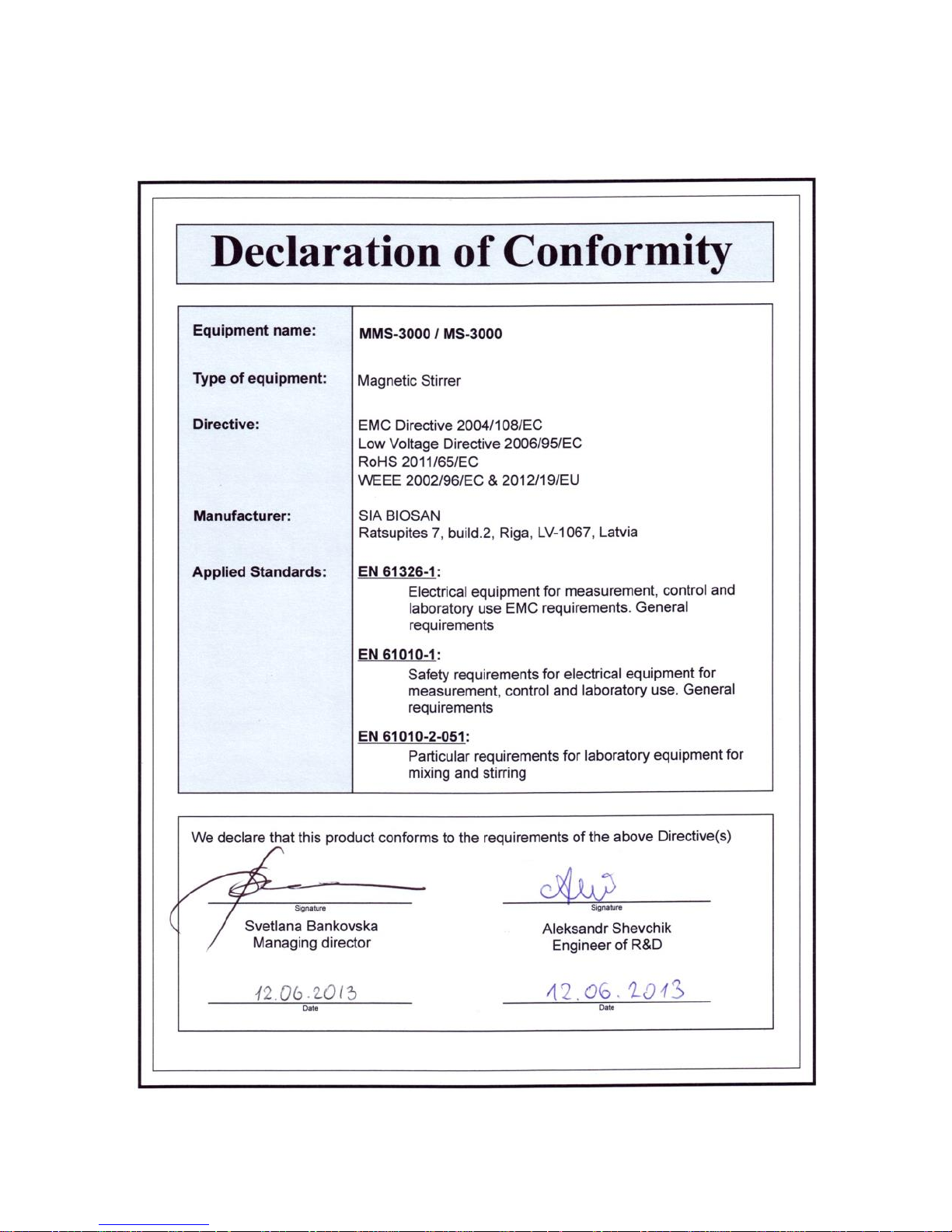

8. Declaration of conformity
12
Biosan SIA
Ratsupites 7, build. 2, Riga, LV-1067, Latvia
Phone: +371 6742 6137
Fax: +371 6742 8101
http://www.biosan.lv
Edition 1.-2.05 – January 2016
