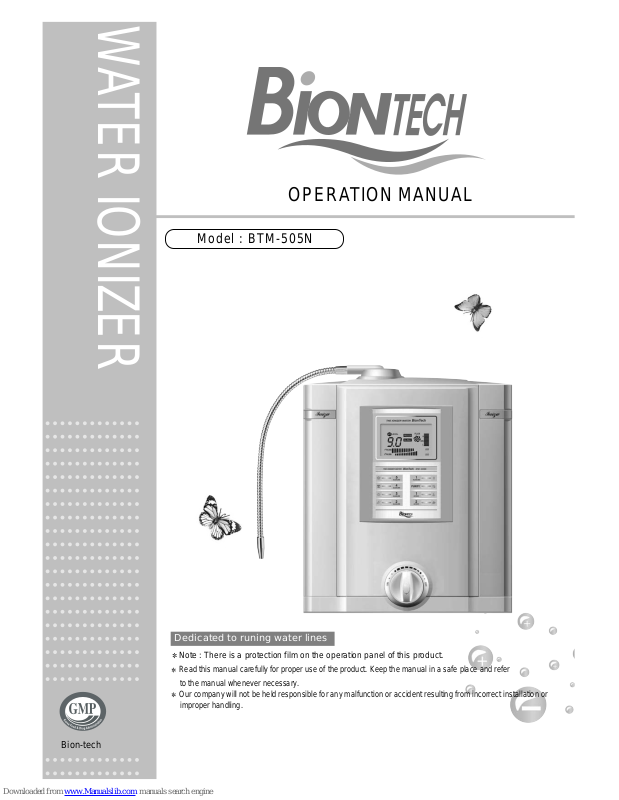

Page 1

WATER IONIZER

Read this manual carefully for proper use of the product. Keep the manual in a safe place and refer

to the manual whenever necessary.

Our company will not be held responsible for any malfunction or accident resulting from incorrect installation or

improper handling.

Note : There is a protection film on the operation panel of this product.

Bion-tech

OPERATION MANUAL

Model : BTM-505N

Dedicated to runing water lines

Page 2

Table of contents

Use this manual to install the product correctly.

Make sure that all plumbing and electric work comply with the regulations of your residence.

Discontinue and seek for professional help if you inspect a water leakage. The performance of the unit will depend on the quality of water source.

Please check water condition before the installation of this product.

Biontech Co., Ltd. will not be held resposible. Please keep this manual and other documents for future reference.

Table of contents

1. Name and description of each part of the product 4

2. Safety preparations

3. How to install

Installation precautions 8 How to install 9

4. Before using the product 13

Precautions for using the product 13 Using the product appropriately for each purpose 14 How to store and manage the product after it is used. Precautions for using it

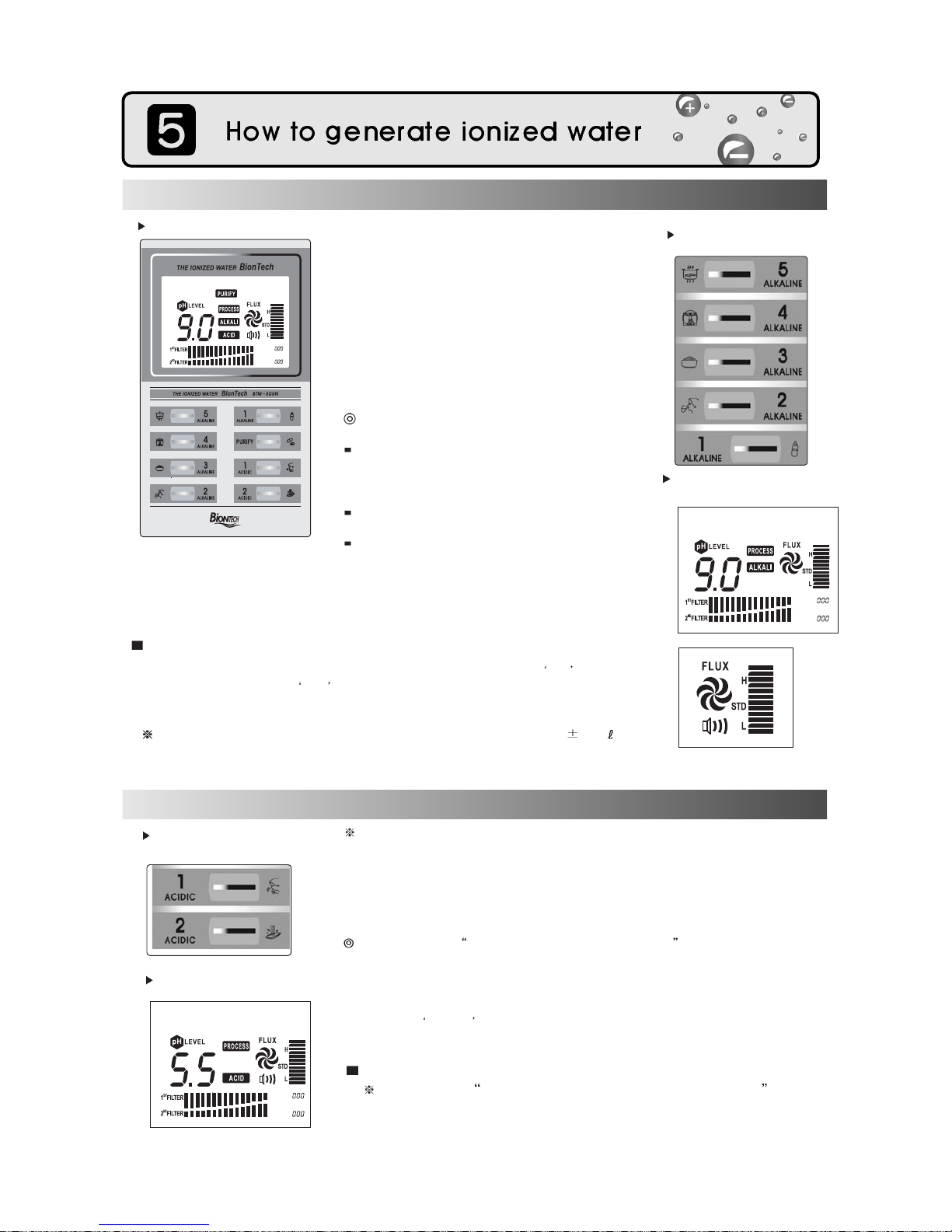

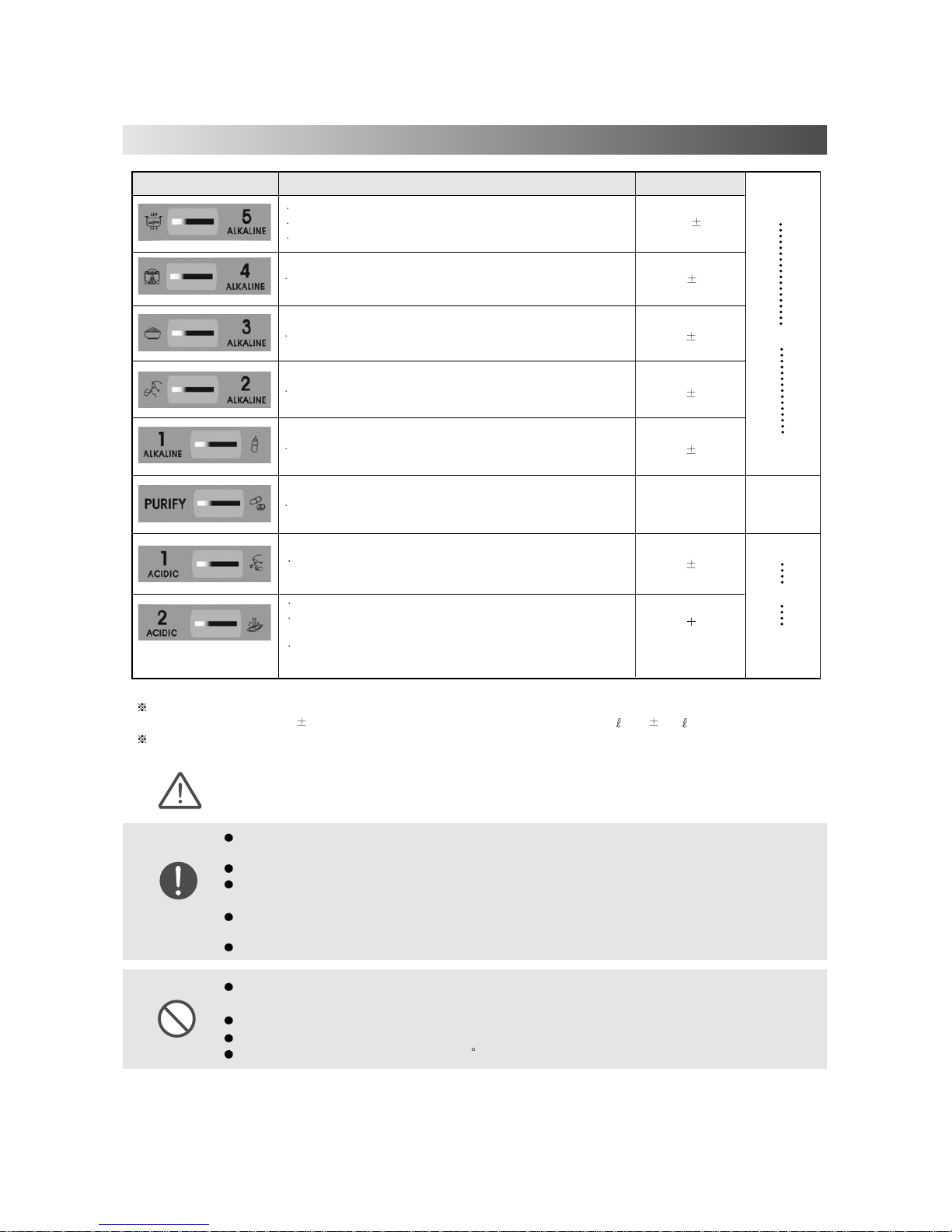

5. How to generate ionized water 17

Selecting the alkaline ionized water 17 Selecting the acidic ionized water 17 Selecting the purified water 18 How to measure the pH value 19

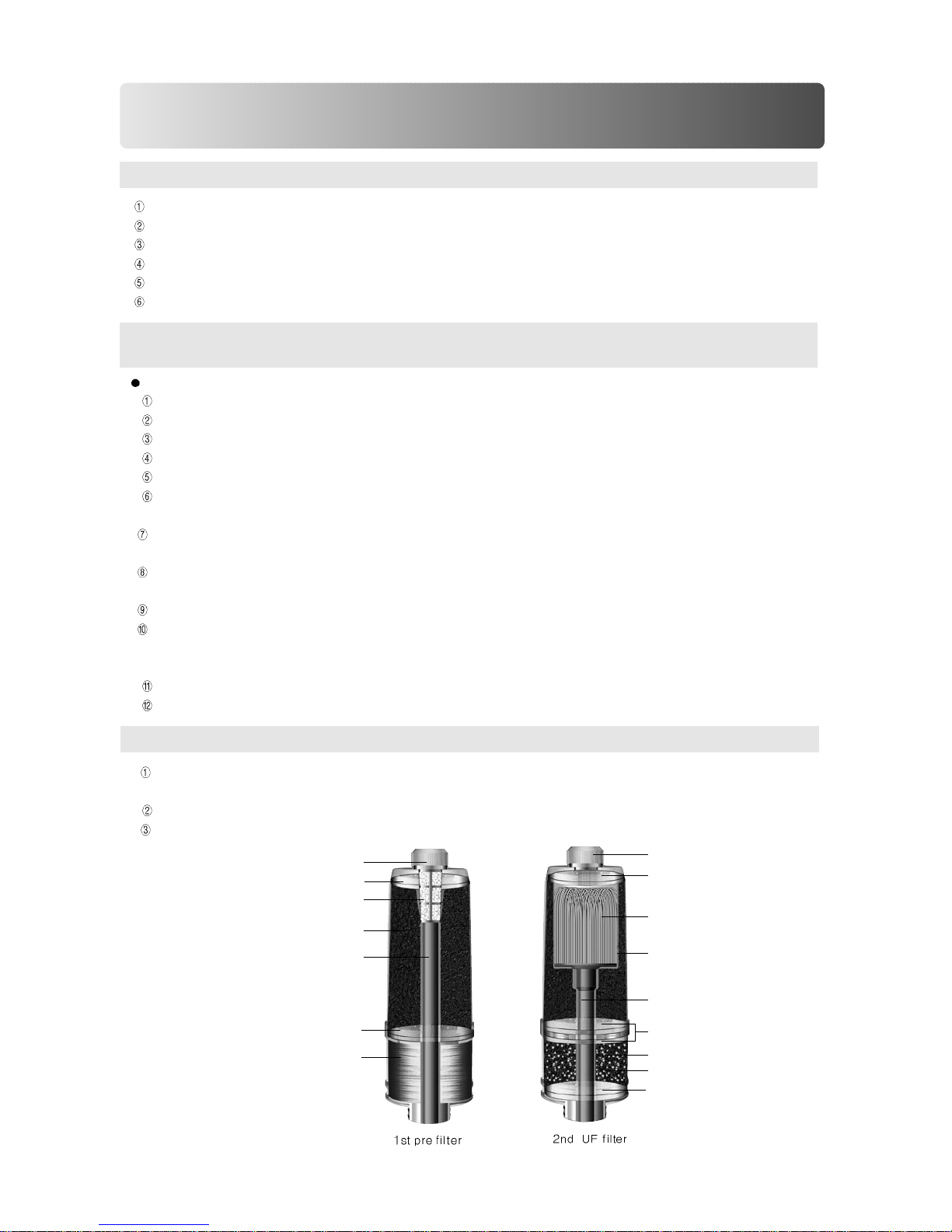

6. When and How to replace the filter 19

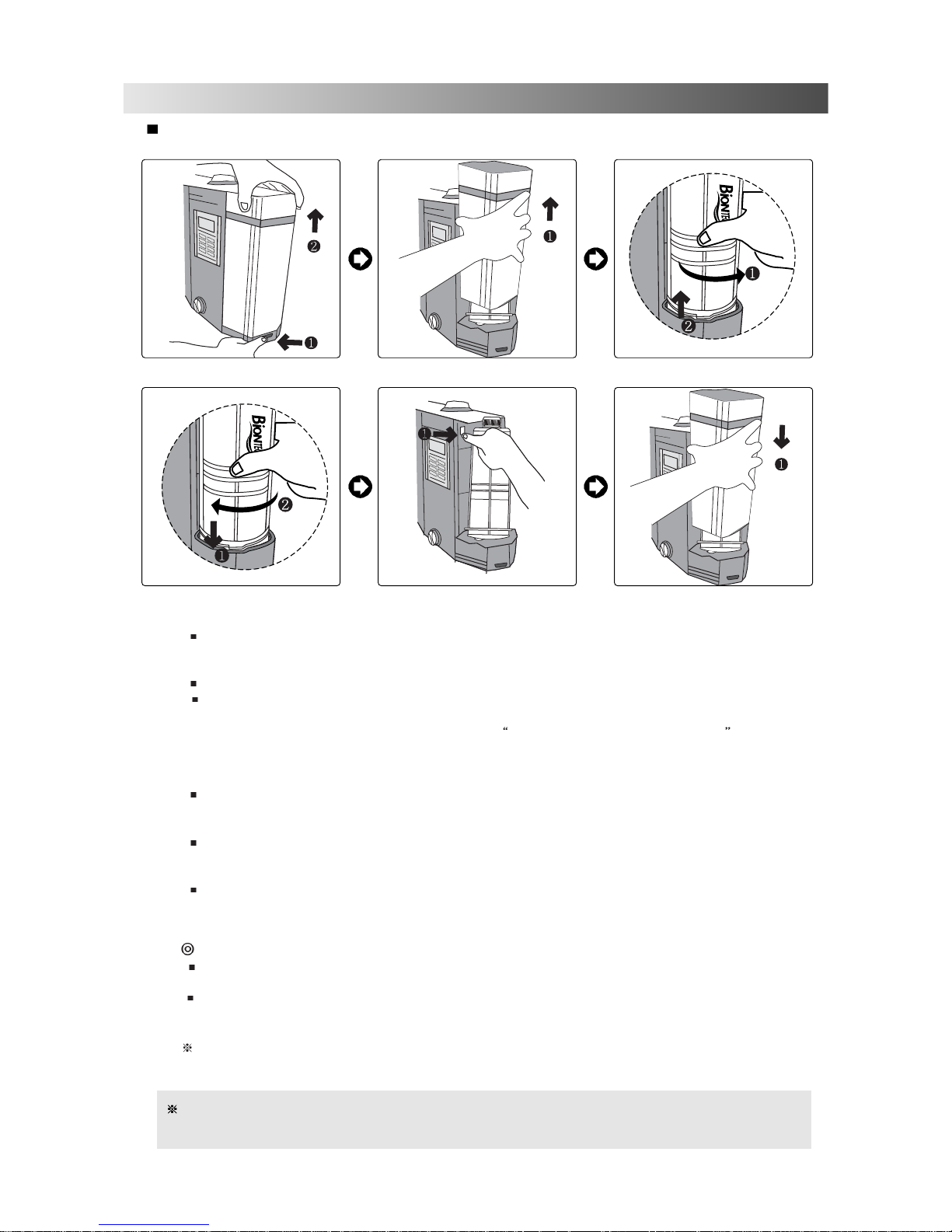

When to replace the filter 18 How to replace the filter 20 Cleaning Filter 21

How to use cleaning filter 22

7. How to use ionized water 23

8. Before you think the system is malfunctioning

Questions and Answers (Q&A) 25 About after service (A/S) 27

9. Product Specifications 31

Page 3

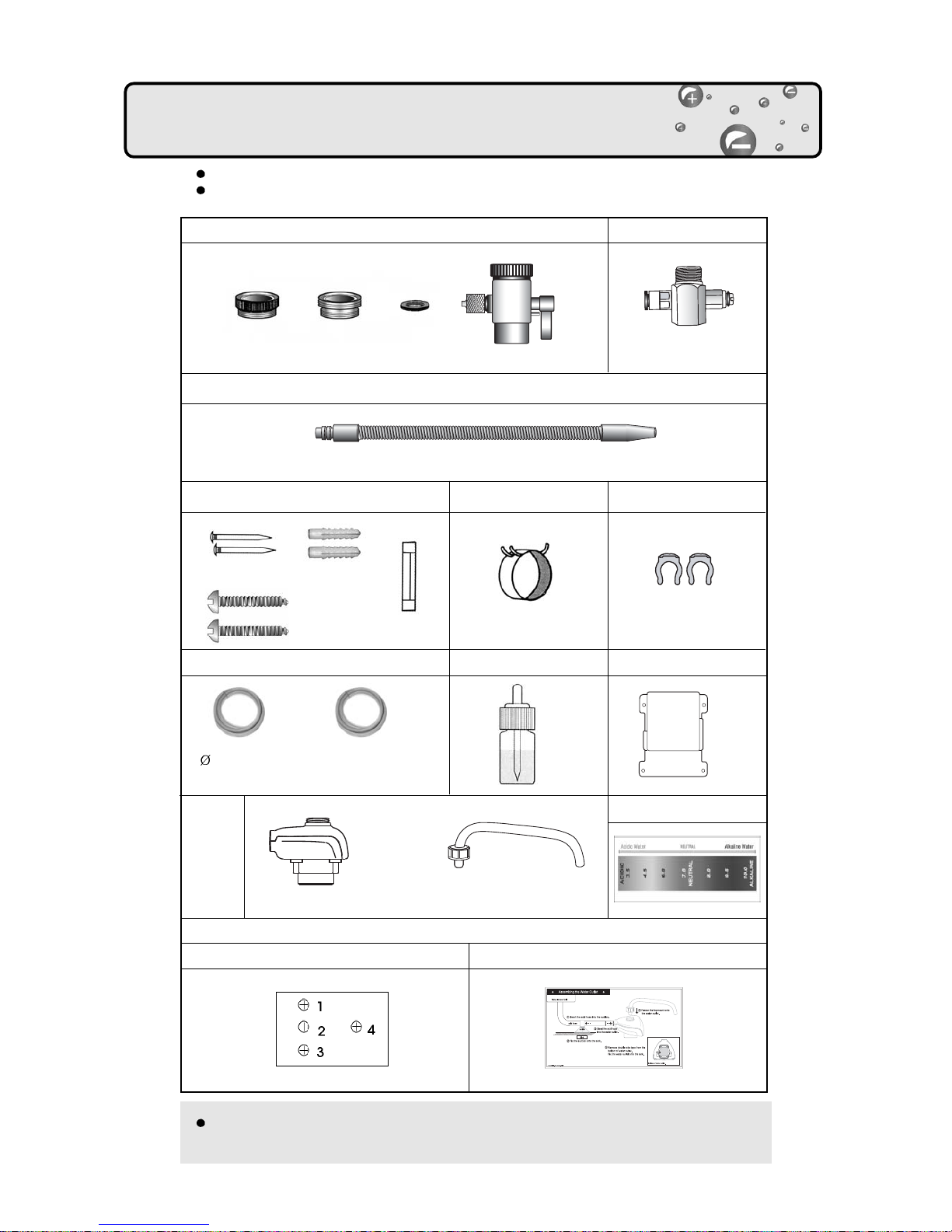

Components

The following components need to be checked before installation. The illustration shows basic components, their shapes may appear different

from the actual components.

If malfunctioning is generated because genuine components designated by the

company are not used, the warranty service will not be provided.

Components

Wall-hanging Nails and Fuse

Hose

pH Comparison Sheet

Flexible Alkaline Faucet

Hose Band

pH Test Solution

7x9 PVC hoses: 70cm

1/4" standard hose: 2m (PE reinforced hose)

1 Fuse

2 Nails

2 Screws

2 Anchor Bolts

For Water Outlet

Installation Drawing

Safety Pins

For Mounted Wall

For Water Outlet

(Optional)

Valve Cover

Adaptor(Optional)

Water Supply Control Valve Set

x1 x1 x2 x1

Water outlet

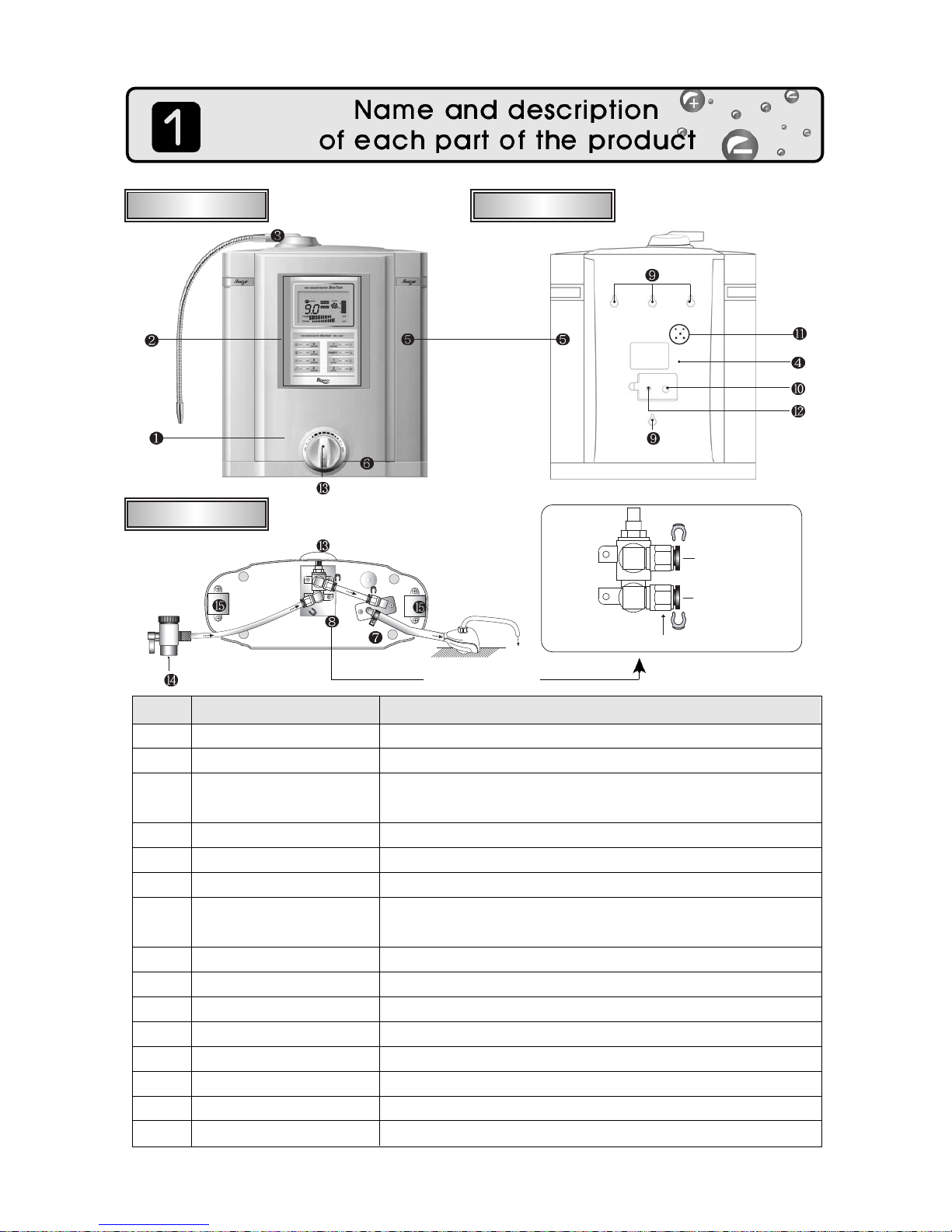

Page 4

Front Side

Source water inlet

Source water outlet

Number Name Function

1 Front Plate Where the circuit systems and devices are fixed 2 Operating Panel Operation and display of functions 3 Flexible Alkaline Faucet Outlet pipe from which the alkaline ionized water flows out

(Acidic ionized water flows out when the acidity is chosen) 4 Back Plate Protective cover for the internal circuits and components 5 Filter Cover Protective cover for the filter 6 Bottom Plate Where the transformer, electrical cords and devices are fixed 7 Acidic Water Outlet Outlet pipe from which the acidic ion0ized water flows out

(Alkaline ionized water flows out when the acidity is chosen)

8 Inlet Supplys the source water to the product

9 Wall-hanging Hole Hangs the product on the wall using nails

10 Fuse Holder Safety system (Rated fuse : According to the area’s electric power condition) 11 Speaker For voice guidance and buzzer sounds 12 Volume Adjustment Adjusts the volume of the voice guidance 13 Water Supply Adjustment Valve Controls the operation of the product and the volume of water 14

Water Supply Control Valve

Ionizer operation and water flow adjustment (on/off)

15 Fliter cover locking device Place where the fiter cover is safely locked

Rear Side

Bottom Side

Safety pin

Water supply valve one-touch fitting

Water supply valve

(One-touch)

[Inlet detailed picture]

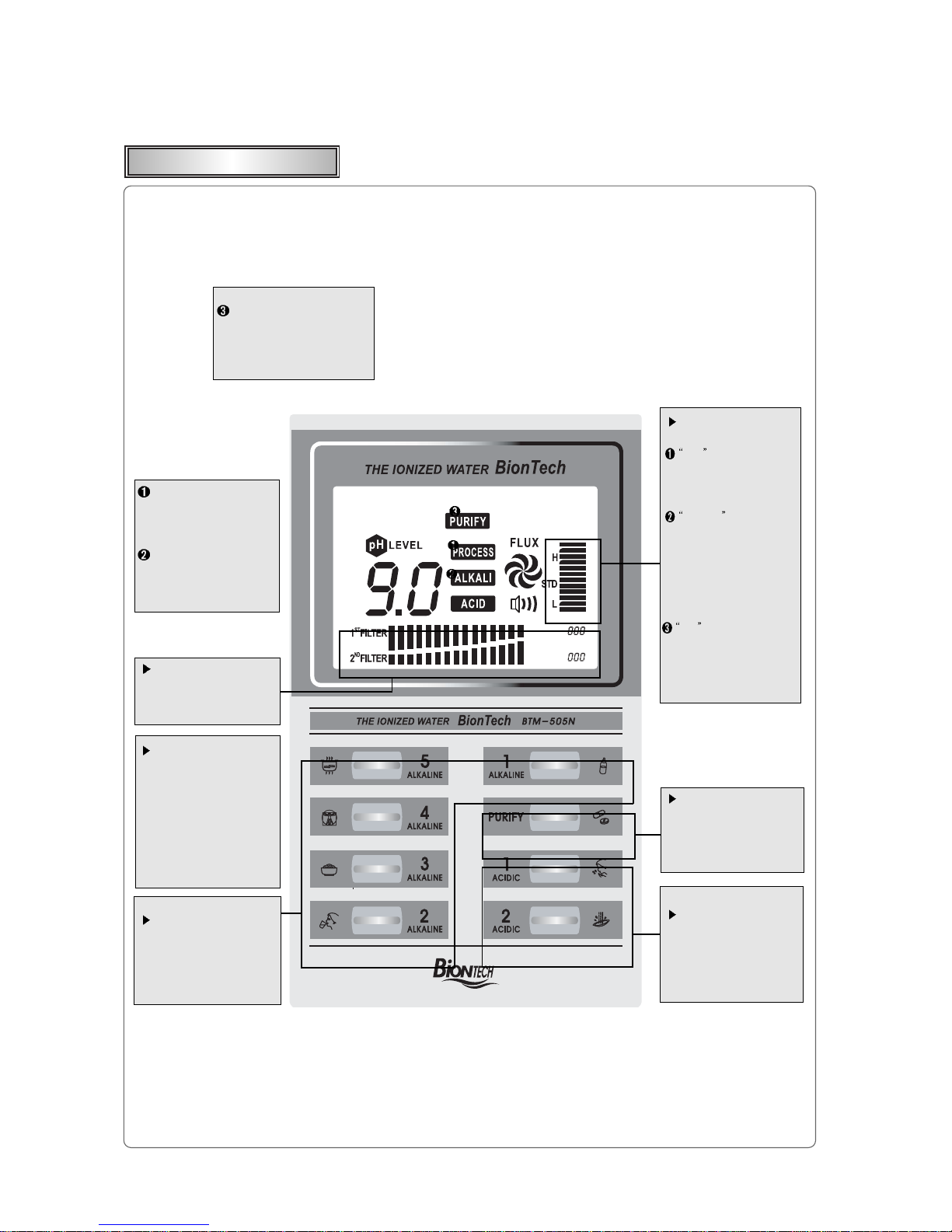

Page 5

Indication light for

purified water To be turned on when purified water is chosen

Operating Panel

Indication light for

alkaline ionized water.

To be turned on when alkaline

water is chosen

Indication light for

acidic ionized water. To be turned on when the acidic water is chosen

[Acidic ionized water] selection button.

Button for selecting the acidic ionized water

[Purified water] selection button. Button for selecting the water purification function only

[Alkaline ionized water] selection button. Button for selecting the alkaline ionized water

Indicating the errors for

- Overheated electrolytic bath

- Failed self-cleaning

- Excessive water cleaning flow Colume

- Not approved filter

Indicating the filter

usage status.

The usage status of the filter

Indication light for flow volume.

High indication light. Indicating when the flow volume is higher than the appropriate level

Standard indication

light Indicating when the flow volume is normal, and the indication level is varies depending on the flow volume

Low indication light.

Indicating when the flow volume is lower than the appropriate level

Page 6

- Caution - You should read the documents marked with the following symbols.

- Instruction

- Prohibition

Indicates the possibility of the product causing electric shocks if it is disassembled.

Indicates that deadly effect can be caused to the body if you use the product wrongly because of your disregard for the items.

The following describes the precautionary items that can prevent the potential damage to the body or the property. The cases of misapplication and resultant risks are divided into Warning and Caution items. You are required to read thoroughly and comply with the descriptions considering they are related to your safety.

Description of the symbol marks

Warning

Indicates that injury to the body or damage to the property can be caused. if you use the product wrongly because of your disregard for the items.

Caution

Disassembly to

be prohibited

Indicates the possibility of the product causing electric shocks due to electric

leakage if it is submerged.

Showering to be

prohibited

Indicates the possibility of the product or components catching fires due to external

sources of fire.

Fire sources to

be prohibited

Indicates the general items to be prohibited.

General items to

be prohibited

Marks

Classification

Description

The plug needs to be disconnected from the wall socket if there is a possibility of malfunctioning or lightening.

Disconnecting the plug from the

wall socket.

Items related to the general behaviors of users.General

Marks Classification Description

Page 7

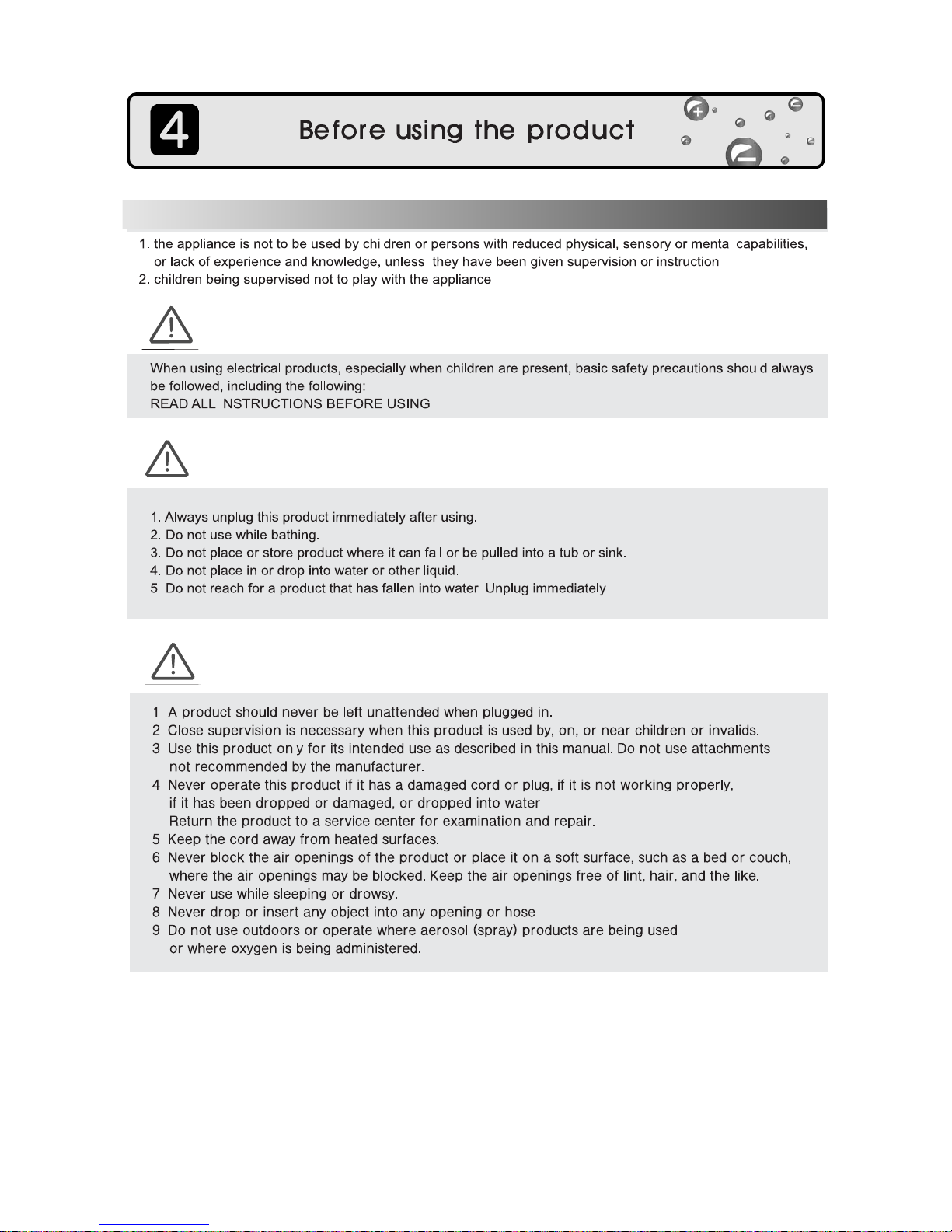

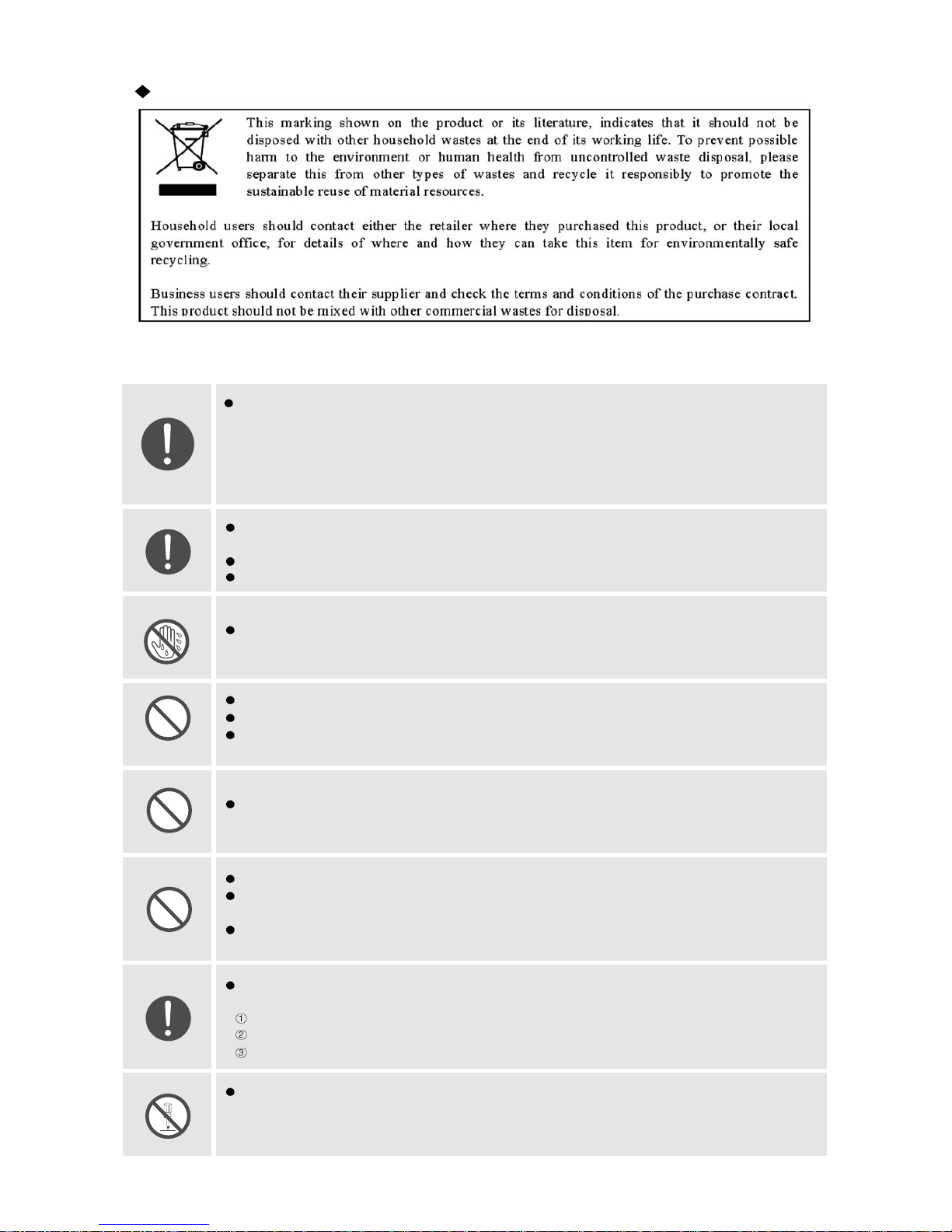

This application can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Warning - Should be followed for your safety.

Do not apply any different power voltage other than the indicated power voltage.

If not followed, fires or electric shocks can be caused. The fuse capacity of the product is 3A. Do not use any other fuse with different capacity. Stop using the product immediately when any malfunctioning is found.

Do not handle the electric plug or operate the power button with wet hands.

If not followed, electrical shocks can be caused.

Should hold the electric plug when inserting it into the wall socket or removing it from the socket. Damage to the electric cord, fires or electrical shocks can be caused when if the cord is pulled. Clean the wall socket after removing the electric plug.

- When there are lots of dusts settled on it, fire can be caused.

Do not connect multiple cords to one single wall socket.

When a wall socket is shared, abnormal heat can be generated, possibly causing a fire.

Electrical shocks, short-circuiting, ignition of fires can be caused if a damaged electric cord or plug is used Do not damage, process or forcibly wind or pull the electric cord.

- The cord can be damaged, possible leading to fires or electric shocks.

Do not fix the electric cord by using a stapler.

- The cord can be damaged, possible leading to fires or electric shocks.

Should not arbitrarily modify, disassemble or repair the product.

If not followed, fires and electric shocks can be caused. The company will not be held responsible for any accidents generated from such activities.

Electric shocks can be caused if the product is dropped into water by mistake.

The following measures need to be taken.

Remove the electric plug from the wall socket. Recover the product from the water. Contact the sales shop or the main office for advice.

WEEE Directive

Page 8

Installation Precautions

Do not install the product in a place where the sunlight comes in directly or the temperature goes below zero.

If not followed, the case can be transformed or broken due to freezing.

Precautions for connecting the acidic water hose.

Install the acidic water hose lower than the main case.

If the hose is longer than necessary or higher

than the main case, the ion generation can be affected, possibly leading to a change in the taste of water.

Should connect the product to the cool water pipe (If connected to the warm water pipe, the purification filter and the electrolytic bath can be damaged)

If not followed, the life span of the filter will

be shortened.

Avoid any place where heat of fire can be directly contacted

If not followed, the case can be transformed,

possibly leading to water leakage

Do not modify the product arbitrarily.

Do not use the product in a place full of moisture or dusts

If not followed, damage to the product or risk to

your safety can be caused.

If not followed, damage to the product or risk to

your safety can be caused.

Should hold the bottom plate of the main case.

It will be safe to move the product by holding the product at the bottom plate.

Do not place any other objects on the product. Do not install the product in the areas described as the following.

Caution

If the product is dropped, electric shocks can be caused due to the internal malfunction following the

impact from the dropping. The product needs to be taken to the sales shop or the main office in

order for you to request an inspection. The purification filter can be broken due to freezing if the product is used in a place where it is freezing cold, requiring the product, if not used, to be stored in a place where the breaking due to freezing can be prevented, but after the purification filter is removed first.

Caution - Malfunction or accidents can be occured.

No warm water

Requiring you to check the rated voltage before connecting the electric cord.

Page 9

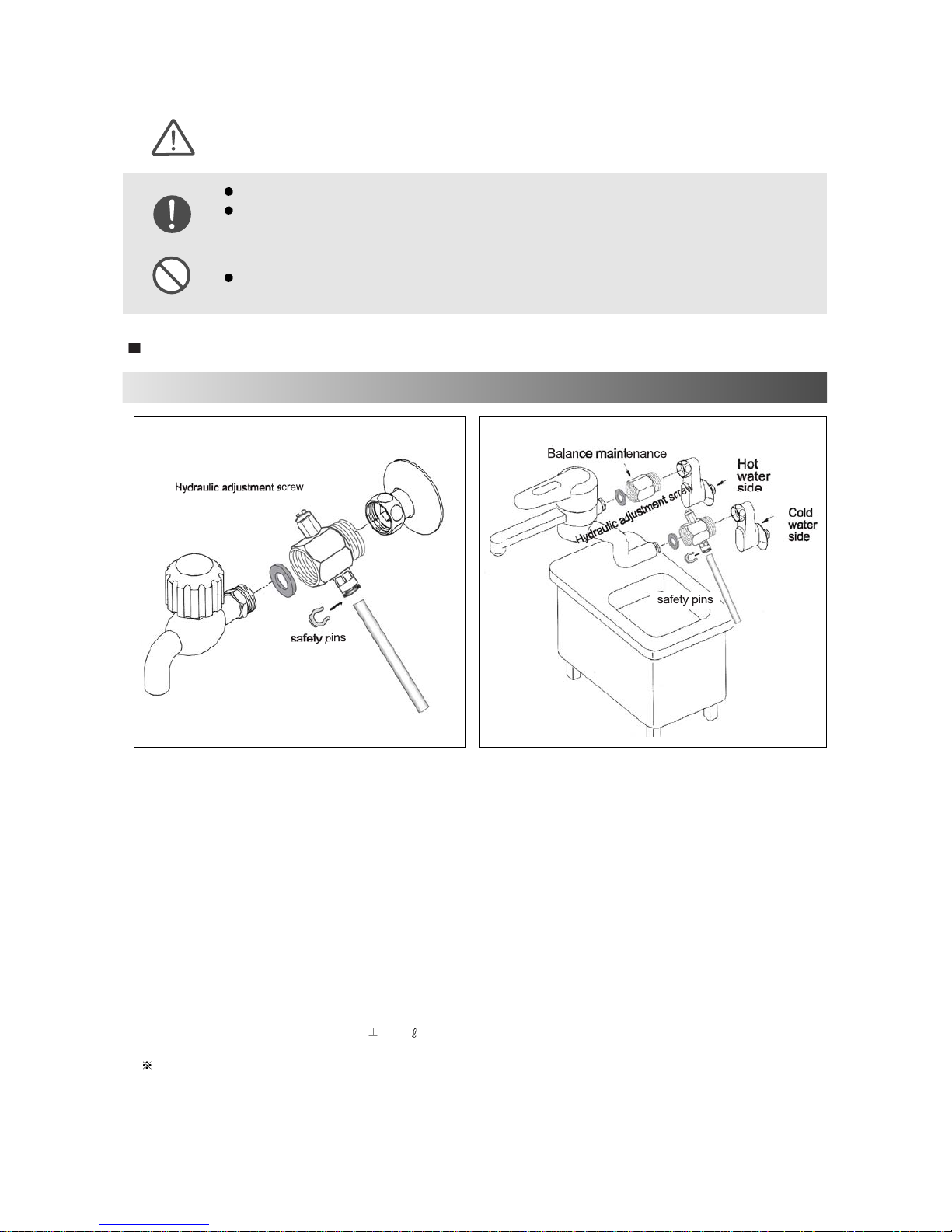

How to install

1. Wall mounted water tap

Caution

Check whether the components to be installed at the water tap are appropriate.

Should use the standard hose (1/4"), supplied by the company for the connection.

Use the one- touch adapter to fasten the hose before fixing the safety pin as illustrated in Page 3.

- If the standard hose is not used, damage due to water pressure can be caused, possibly leading to water leakage

Do not connect the product to a warm water pipe.

- Degradation of purification capacity and malfunctioning can be caused.

1. Disconnect the water tap from the water pipe.

2. Rotating the adapter into the water pipe. (Single-water tap)

3. Assemble the water tap back into the adapter. (Single-water tap)

4. Install the standard compliant adapter Included (Select between large and medium, small, 3/8” ) between the water pipe and the water branch pipe. Then install the adapter which needs to be connected to the water ionizer to the cold water pipe, while connecting the balancing adapter to the warm water pipe. (Water taps for cold and warm water)

5. Place the rubber gaskets between the water pipes, water tap, and adapter, and should apply the Teflon tape to the connection parts to assemble them.

6. Insert the inlet hose into the one-touch fitting installed to the adapter and then fasten the safety pin.

7. Adjust the water pressure control screw to a appropriate level. (Alkaline water flow standard: 1.5

0.5 /min)

Should use the standard inlet hose (1/4") and fix the valve cover in the direction of the hose to prevent the hose from being bent or the fastening nut from being loosened.

Page 10

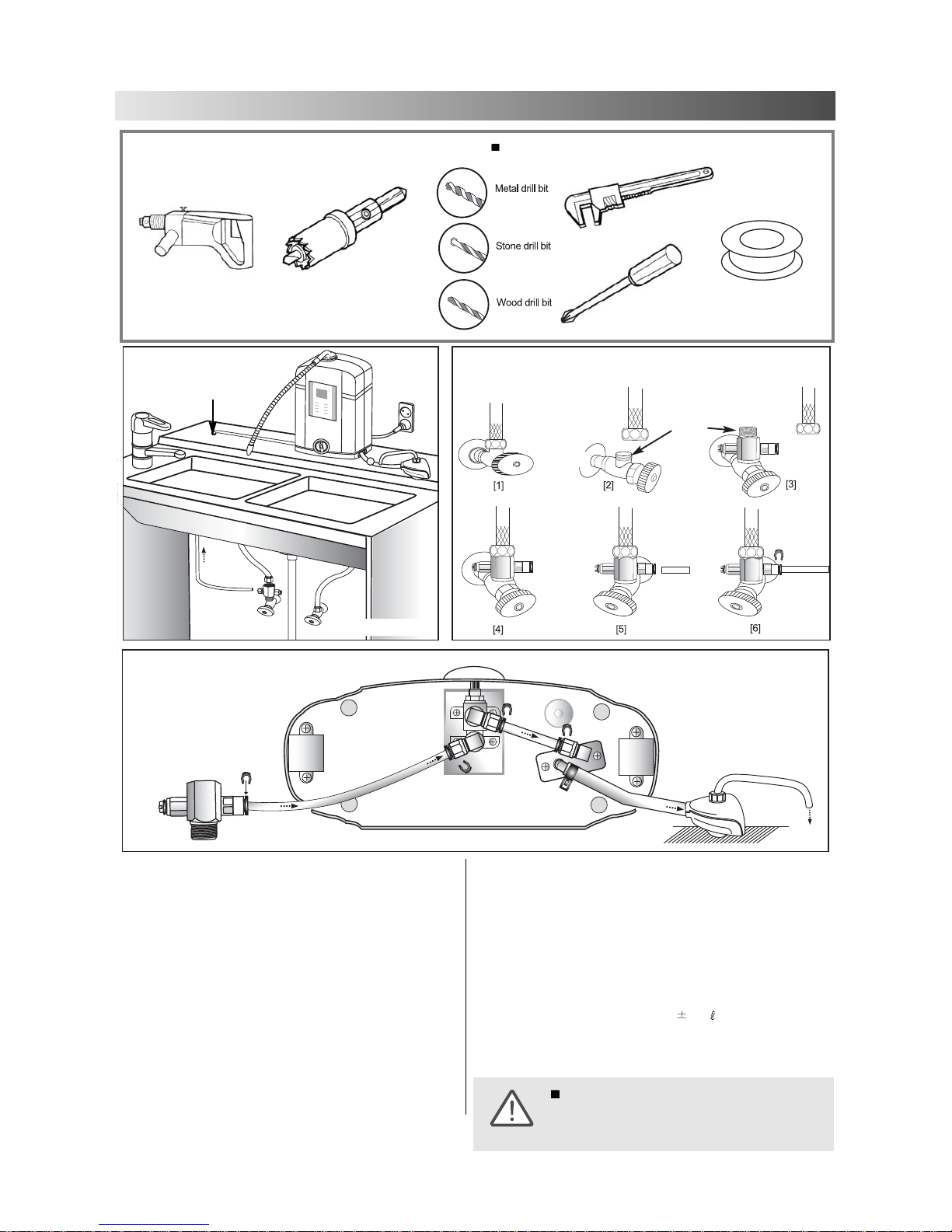

2. Deck type sink mounted water tap

The following fools ate necessary for installation work

[Drawing 1]

Electric drill

Hole cutter

Size: Diameter1/4”

Pipe wrench or spanner

General screwdriver

1. Prepare the tools for installation as drawing : Electric drill, Hole cutter, Pipe wrench or spanner, General screwdriver, Teflon tape 1pc (Drawing 1.)

2. Turn off the water valves before installation under the sinkdeck.

3. Disconnet the water tap from the cold water pipe.

4. Drill a hole for the 1/4" hose appropriate place somewhere in sinkdeck and make the connection to the inlet of the product

5. Find the cold water pipe inside the sink deck and connect the adapter to the cold water pipe (Drawing 2.)

[Drawing 2]

[Drawing 3]

[Drawing 4]

6. Connect the standard connection hose (1/4") to the adapter installed with one touch fitting of union. (Drawing 3~4) Insert the inlet hose deepest into the one touch fitting and insert the safety pin as in drawing. ( Pls check if the hose has been securely fitted to the end of one thouch fitting. if not, it causes water leakage for water pressure )

7. After the connection, adjust the water pressure control screw to an appropriate level (Alkaline water flow standard1.5

0.5 /min )

8. Check any possible water leakage at the connection parts after the installation

Should use the standard inlet hose (1/4") and fix the valve cover in the direction of the hose to prevent the hose from being bent or fastening

nut from being loosened.

Water valve of Cold water

Water pipe

Steel Hose

Ring nut

Groove

Cold water side

Hot water side

Water pressure

adjustment screw (Spindle)

Running water line

connection

Adaptor(small)

Place of hole drilled

Teflon tape

Acidic Water Outlet

Page 11

Hose Connected Method

After finishing of connection, assemble the valve cover with screws completely

Nut

Tap water

Hose

Safety pin

valve cover

Hose

Acidic Water Outlet

3. Water Supply Control Valve

How to assemble the valve to the faucet

Assembly method of valve for Deck-sink water tap

Take the little screen out

Cold water inlet Nut

Cold water inlet Nut Cold water inlet Nut

Tighten the screws with screw driver, after inserting the rubber seal

Water flows into ionizer when the lever is turned to side Water flows down ward when the lever is turned to down

Screw The Adapter

Tighten the screws with screw

driver, after inserting the rubber seal

Tighten the screws with screw driver, after inserting the rubber seal

Water Supply Control Valve

Page 12

6. How to install in different places

In case of power failures.

Turn off the water branch pipe in case of power failures.

(When letting water flow through, purified water will come out)

Use the product normally when the power is recovered.

In case of suspension of water supply.

Do not use the product. Stop the water from flowing through when the water supply is suspended in the middle of using the product.

7. In case of power failures or suspension of water supply

When the water supplied is resumed, let the water flow sufficiently for direct water supply or showering in order to help the inside air and other materials come out. Without going through such steps, the water still can be used normally, but with the risk of drastic decrease of the life span of the filter when allowing air or other materials flow through the main body.

A) When installing the product onto the wall

Apply water to the installation drawing and place it onto the wall while

keeping the horizontality

Of those nailing positions at the width (1~3) or the height (2 ~4), choose the convenient ones for driving 2 nails

Place the hanging holes of the product onto the nails

: Positions of nails

B) When placing the product on the sink deck and its supports.

- Place the main case of the product on an appropriate position. When the above steps are finished, use the hose to connect the valve cock

of the adapter to the inlet pipe at the bottom of the main case of the water ionizer.

First of all, assembling the flexible pipe to the half-moon shaped alkaline water outlet at the

upper part by turning it clockwise.

1. Measure the distance between the place for installation and the adapter installed to the water tap and then cut the hose with an extra length.

2. Cut the PVC hose for the acidic water into the length of 50~70cm and place it lower than the product.

The product can be used conveniently by placing it on any place by applying the wall mounting or stand type

(Turn table) depending on the place of installation.

After installation, connect the product to the AC120V power line.

When the water flows through the product, the power will be turned on automatically. Then, select Purified Water menu to enable the water branch pipe to open and close repeatedly to allow the water to flow for 2~3 minutes freely. Then push the pH button to set the desired concentration and compare it with pH comparison sheet. The black water that will come out is the filter dusts flowing with water, not dangerous to the body. (Refer to How to measure the pH value in Page 18)

5. Steps for assembling the component before installing them

Should use the standard inlet hose (1/4") and fix the valve cover in the direction of the hose to prevent the hose from being bent or the fastening nut from being loosened. The safety pin needs to be inserted before using the water.

Caution

Do not install the product in the following areas:

- If not followed, malfunctioning can be caused.

You are required to contact the sales shop or the specialized installer for queries when you attach the product to the wall.

Improper mounting may result in the product falling of, accident or mal-function.

If vibration and impact can be felt If direct sunlight comes in If there are lots of moisture or dusts lf heat of fire can be felt

If horizontality can not be acquired If bathroom is installed or winds and rains can affect If there is a risk of breaking due to freezing lf damage can be caused to the product

Page 13

Danger - To reduce the risk of electrocutions.

Precautions for use

Warning - To reduce the risk of burns, electrocution, fire, or injury to persons.

Important safeguards

Page 14

Precautions for using the product

Do not hold up the main case while holding the outlet flexible pipe. (Cause for breakage) Do not operate the strong alkaline ionized water (Stage 5) continuously for a long period of time. If you use the

product in such manner, the system protective circuit (Temperature sensor) may be started, depending on the quality of water, and the electrolysis can be suspended.

When using the product in a place where the water hardness is high.

Before using the water initially daily, push the acidic water button to allow the acidic water to flow

through for about 1 minute.

In case of tap water, in places where the water is used a lot. You need to push the acidic water button one time

daily to allow the water to flow through for the manual rinsing. (By selecting the acidic water button).

In places where the water hardness is high or compounds of calcium are abundant, there can be white

sedimentation inside the case, requiring additional purifying system to be used depending the level of the

sedimentation.

Use tap water only.

- This machine is manufactured for drinking water based on standard tap water. Do not use the following water, as problems may arise:

Turbid and contaminated water Water with high hardness

Very salty water Water with high concentration of red rust

Caution

Do not fill the calcium container with no other substances than the designated.

- Glycerin acid calcium (Electrolysis facilitating calcium) or calcium sulfite (Removal of chloride).

Should turn off the water pipe when filling the calcium.

- If not followed, water leakage can be caused.

Check where the calcium container cap is surely fastened.

- If not fastened surely, water leakage can be caused when the water flows through.

Page 15

High

Alkaline

Low

Acidity

High

Use the product appropriately for each purpose

The pH value instructed is acquired by taking into consideration the source water based or Seoul, Korea

concentration of pH 7.0

0.5 based on the Alkaline water flow standard of 1.5 /m ( 0.5 ).

The pH values of the alkaline and acidic ionized water may not fall into the range of the pH value instructed of the

table above depending on the water quality and water flow volume.

Caution - Usage of the product

Do not use flammable materials like benzene or sprays for the product.

- Malfunctioning can be caused. Sufficient attention needs to be paid when a child of young age uses the product. Use the water initially daily after letting the water flow through for 10 ~ 15 seconds by opening the water tap completely. Use the water after letting the water flow through for more than 30 seconds when using the product after not using it for a few days. Contact the sales shop or the main office for advice when the generated water smells.

Do not drop the product or apply strong impact to it.

- Dropping or impact can cause malfunctioning. Do not block the water outlet. If blocked, water leakage or malfunctioning can be caused. Should place the outlet hose (Acidic water outlet) below the main case. Do not use the water which is above 30 C If not followed, malfunctioning can be caused.

pH level selection

pH value instructed

Indicated

10.5 0.5

9.5

1.0

9.0

1.0

9.5

1.0

7.5

1.0

5.5

1.0

3.5

1.0

When infusing vegetables to remove their bitter taste When washing soak vegetables

to eliminating Agricultral chemical.

Use it for drinking after consulting the doctor

Recommended for skin care an astringent

For washing dishes Strong acidic sanitary or rinsing water can come

out when the water volume is adjusted

Rising with Acid water to elimininating Viruses Bacilli and

wash with Alkali water.

Recommendable for medical and culinary usage

Recommendable for drinking and cooking

Recommendable for daily drinking

Recommendable for initial drinking or dissolving powdered milk

Purify

Page 16

How to store and manage the product after it is used. Precautions for using it

1. How to store and manage the product after using it. Turn off the power before moving the product

Do not let water come inside the main body. Do not block the outlet nozzle or the drainage hose arbitrarily. Do not bend or twist the hose arbitrarily. Turn off the source water supply valve when the system will not be used for a long period of time. Disconnect the electric cord from the wall socket when the system will not be used for a long period of time. Clean the surface of the main body with soft cloth soaked with soap water.

2. Precautions for using it. (1) Precautions to be taken when using the Alkal Life.

Pay attention to the following items when drinking the alkaline ionized water generated through the electrolysis.

Consult a doctor before drinking the strong alkaline water of stage 5. Those people with achlorhydria need to take the advice from a doctor for drinking the treated water Do not use any type of water that can not meet the water quality requirements for the drinking water The product is designed exclusively for the water of normal temperature, so warm water should not be used. Do not drink the alkaline ionized water together with medicine. Those people who just started using the water need to begin with small amount of nearly pH neutral water. They need to consult a doctor for drinking the strong alkaline water.

Stop drinking the water and consult a doctor if you feel abnormality after drinking the water, or if there is no alleviation

of symptoms felt in the stomach even after continuously drinking the water. Those people who currently go through medical treatment by a doctor, especially because of problems with the kidney or the body, need to consult a doctor before drinking the water. Those people with problems with the kidney, such as renal failure, calcium excretion failure, should not drink the water. Those people who drink the alkaline ionized water need to check, once a month since after the initial drinking, whether

the pH value is still within the range for drinking, through utilizing a glass electrode type pH device or colorimetry

before they continue to drink the water.

Drink after let the initial alkaline water flow through.

Avoid any metal container if possible and drink the water within a day while keeping it cold.

(2) Pay attention to the following items regarding the use environment and conditions.

Should keep the water flow volume at an appropriate level in order to prevent the alkaline ionized water from being generated with difference in the pH value compared with the set pH value due to the difference in the water flow volume.

Do not use the product in a place, like a bathroom, where temperature or moisture is high.

Use the product in a place where there is no slope.

Cap Non-woven fabric

UF Membrane Filter

General activated carbon

Calcium sulfite

Water Outlet

Non-woven fabric

General activated carbon

Special Fiber Pad

Non-woven fabric

Calcium Container(Optional)

General activated carbon

Water Outlet

Non-woven fabric

Sediment

Calcium Container cap

Page 17

Selecting alkaline ionized water

Selecting acidic ionized water

1. Open the water supply control valve to let the water flow in.

2. Use the pH button to select a stage.

- The value of selected pH stage is indicated.

- In case of “Alkaline”, any value between stage 1~5 will be indicated.

- When normally started, the system provides the alkaline ionized water with previously set alkaline value.

3. The product is ready to be used. Voice guidance: “Alkaline Ionized Water on process.”

When the water supply control valve is turned off after

selecting and using “Strong” “alkaline”, the setting will be restored back to the previously set value of “Alkaline”.

Do not use the product in the “Strong alkaline” state

for a long period of time.

The power can be turned off due to the operation of

the system protective circuit depending on the quality of water.

Indication light for water inflow.

When the tap water flows in, the water inflow indication light indicates Low when the

water pressure is low and

High when it is high.

You are required to adjust and keep the water pressure to make the indication light stay

on at the center of the standard level.

When the indication light stays on at the standard level, about 1.5 0.5 /Min.

of water will flow through.

Operation indication panel

Alkaline pH

indication button

When the acidity pH selection button for the operation is pushed, the acidic

ionized water will flow through the alkaline ionized water outlet.

1. Open the water supply control valve to let the water flow in.

2. Use the acidity pH selection button for selecting.

(Melody comes out while the product is being used)

Voice guidance: Acidic Ionized Water on process.

3. Push the pH selection button to select the 1st stage or 2nd stage to obtain

the water. When the water supply control valve is turned off in the middle of the water being used, the setting will be restored back to the previously set value of

Alkaline . In order to stop the operation in the middle of the use,

other selection buttons need to be pushed to select other functions.

Indication light for water inflow.

Refer to the Selecting the alkaline ionized water.

Acidity pH indication

button

Indication of operation

in progress

Indication of operation

in progress

Page 18

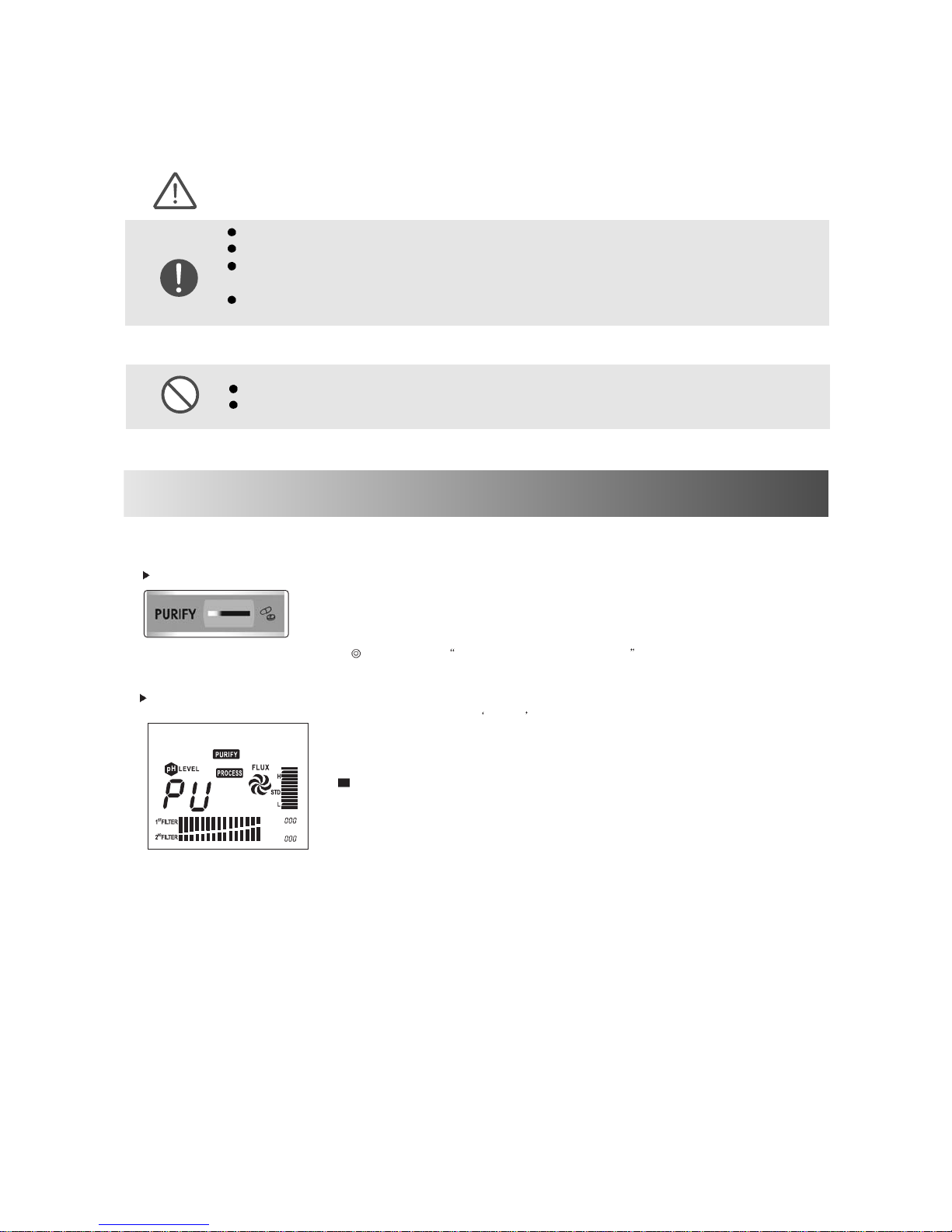

Selecting purified water -

Only processed through purification treatment, the water will go through the electrolysis process.

Indication of operation in progress

Purified water indicating button

1. Open the water supply control valve to let the water flow in to generate the alkaline ionized water of the set value.

2. Push the purified water indicating button.

- Indication light for purified water selection Voice guidance: Crystal clear water on production.

3. Use the purified water.

4. When the water supply control valve is turned off in the middle of the water being used, the selection of the purified water is called off and the setting will be restored back to the previously set value of

Alkaline . In order to stop the operation in the middle of the use,

other selection buttons need to be pushed to select other functions.

When the indication light for the purified water is turned off.

When there is a change in the water pressure leading to the lowering of the water level, the indication light will be turned off and the setting will be restored back to the previously set value of ‘Alkaline’. Use the product by setting the value again after adjusting the water pressure.

Caution

Acidic ionized water is not for drinking, so do not drink it. Use the water after letting the water flow through for about 5 seconds right after the generation is initiated. Use the water initially daily after letting the water flow through for 10 ~ 15 seconds by opening the water tap completely. Use the water after letting the water flow through for more than 30 seconds when using the product

after not using it for a few days.

Should not remove the purification filter when letting the water flow through the main case. Do not drink the drained water following the automatic Self-Cleaning, and the acidic water.

Page 19

When to replace the filter

When the water tastes changes or the water flow volume decreases dramatically, you need to check whether the life span is overdue.

When the filter usage status indicating number becomes 999 , it will blink.

It is recommended to replace the filter even before the end of life span is reached, if the water smells or the water

flow volume decreases, considering the life span can be different depending on the quality of water in individual areas

How to measure the pH value (Ion concentration)

Do not let the pH regent contact the eyes and do not drink it.

- In case of drinking it by mistake, you need to drink lots of water. In case of the test solution contacting the eyes, you need to clean your eyes with sufficient water and then consult a doctor.

Do not place it near any heat of fire. If not followed, fire can be caused. Do not store the regent in a place where it can be reached easily be children. Avoid any place where the temperature or moisture level is high.

The pH test solution is an expendable item. It can be purchased at the sales shop or the main office.

Caution

The pH values (Ion concentration) of the generated alkaline or acidic ionized water can be measured.

Check the generated water after adjusting the water pressure to meet the standard water flow volume (1.5

0.5 /Min.) according to the ionized water generation method. (The pH values can varies depending on the quality of water and the flow volume)

Materials to be prepared: The pH Regent - components How to measure

1. Let the generated water (Alkaline or Acidic ionized water) flow through for about 10 seconds.

2. After filling a transparent glass water cup 1/3 with the water, drop 2~3 droppings of the pH Regent into the

water and shake it.

3. Compare it with the pH colorimetry.

Items that require your understanding

The color of the test solution will change as time goes by.

(Compare the color of the test solution with the pH colorimetry before too much time passes by after dropping the

test solution into the water)

When disposing of the undiluted test solution, you need mix it with water to make it light before letting it flow out.

When the pH concentration is measured, the color of the test solution can come out differently compared with the pH colorimetry due to the effect of various substances dissolved in the water such as carbonic acid gas. The pH color of the alkaline or acidic ionized varies depending on the pH level.

In the following cases, the replacement period can be shortened drastically:

When there is rusty water due to aged pipes Lots of impurities in the water for a short period of time If the product is used in a place where the water pressure is low.

Caution - Precautions for the pH test.

Page 20

Do not disconnect the electric plug.

(When the plug is disconnected, the system can be restored when the reset button is pushed)

How to replace the filter

1.Open the cover and remove the filter. (Picutre1~3) Be careful of the possible water coming out of the filter. (It is not leakage)

2.Replace with a new filter. (Picture 4)

Should remove the sealing sticker of the filter.

Check whether the O-ring is attached well at the bottom of the new filter first. Then, place the filter

into the hole securely and turn it clockwise to insert it into the connection part. If a unbranded filter is installed, there will be a voice guidance saying

Filter rejected, mount correct one. , and the

power will be turned off after 20 seconds.

3.Let the water flow through after selecting the purified water function.

Let the water flow through for about 2~3 minutes.

(Dusts of activated carbon which is the filtering medium may flow mixed together with water during

the initial flow after the filter is replaced.)

Check whether there is any water leakage at the installation section of the filter.

4. Push the reset button. (Picture 5) Check whether the filter usage status indicating number becomes. [000]

5. Close the cover. (Picture 6)

Items that require your understanding

When you get the alkaline ionized water in a cup after the filter is replaced, there can be white bubbles.. That is not abnormal. The ion concentration (pH value) can become slightly higher after the filter is replaced (For about 1 week). That is not abnormal.

Follow the steps mentioned above even when replacing the filter earlier than the time for the replacement.

The filter without our company logo is not a genuine product. When a genuine filter is not used, the quality

cannot be guaranteed and the normal after sales service(A/S) will not be available.

(Picutre 1)

(Picutre 2)

(Picutre 3)

(Picutre 4)

(Picutre 5)

(Picutre 6)

Page 21

Cleaning Filter

Calcium scale in electrodes may cause…. The reason for the calcium scale on the alkaline side of the water ionizer is because the high

pH of the water causes the minerals in the water to precipitate out of the water and become displaced.

Calcium scale on the electrodes causes the pH data of Ionized water decrease because the source water is not coming in contact with the electrodes. once your water ionizer is cleaned using this metod, the pH of the ionized water will be resume higher because the water is now coming in direct contact with the cleaned electrodes

Symptom of calcium scale when whitish floating substances are found in the alkalized water

when the water output declines significantly when the pH of alkalized water drops significantly

Use of Cleaning Filter Cleaning filter will eliminate most Calcium scale on the plates and inside the chamber of your

ionizer allowing for longer life and better performance. Cleaning filter provides the way to keep your water ionizer. insures that the platinum/titanium plates remain clean and free of calcium.

Page 22

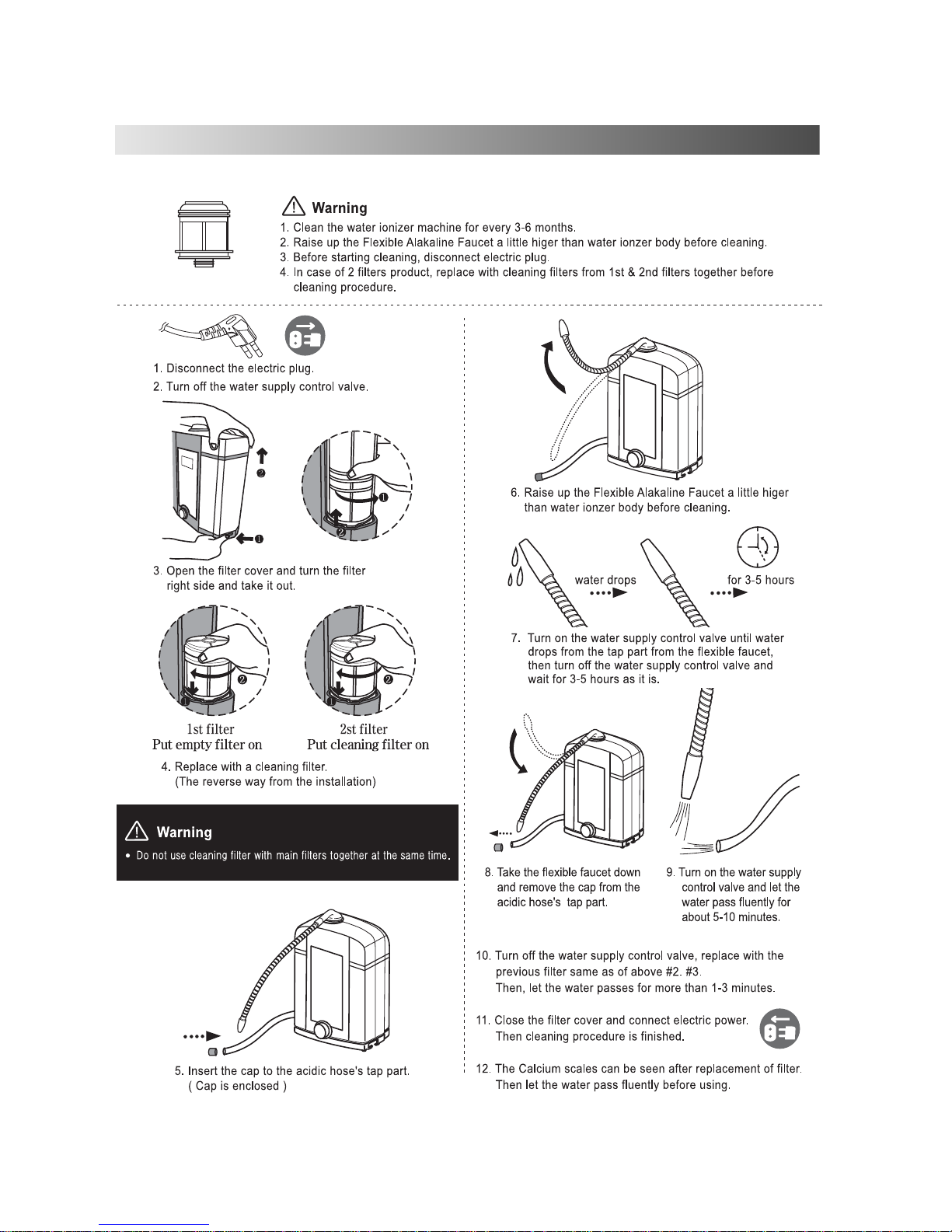

How to use cleansing filter

Page 23

It will be good for your health if you drink it on an empty stomach in the morning or before going to bed.

Set the alkaline water at the stage 1~2 and try to drink 1~2 cups of water daily for a week (7~14days). If you do not have any problems after the trials, it will be good for your health to set the stage of ionized water at the level suitable for you body.

2. How to use alkaline ionized water for the general purposes

Do not use the water for raising fishes such as goldfish or tropical fish Do not use any aluminum made container vulnerable to the alkaline ionized water.

Do not use any copper made container vulnerable to the acidic ionized water.

Do not store the alkaline ionized water for a long period of time.

Those people who just started using the water need to begin with small amount of nearly pH neutral

water, and then adjust the pH level gradually for drinking the water. (Stage 1 of the alkaline ionized water is for the initial stage drinking)

1. How to use alkaline ionized water

Caution

Should follow the items for your safety.

Do not use the following type of water

Acidic water. Water drained after self cleaning. Water tested with the pH reagent. Water collected at the start of production. (About 1 ~ 2 cups of water)

Be careful about the following items when drinking the alkaline ionized water.

Do not drink the alkaline ionized water together with medicine. Those people with achlorhydria should not drink the water

When cooking rice

Try to cook rice after soaking the rice in the alkaline water for 30 ~ 60 minutes in advance. When cooking rice with the alkaline water, the rice will be glossy like glutinous rice, tasty, stored well and kept fresh for a long period of time.

Coffee, black tea and others

Help remove the bitter taste of coffee and the puckery taste of black tea as well as enriching the faint taste and fragrance peculiar to black tea.

Heavy drinking and hangover

It will be good for your health if you drink it before going to bed or drink it on the empty stomach in the morning.

3. How to use alkaline ionized water for the special purposes

For the initial 7~14days When using it daily

Stage 1

Children Adults Remarks Children Adults Remarks

Alkaline ionized

water

Stage 1~2

Stage 2~3

2~3 cups a

day

Page 24

Various dishes

When cooking bamboo shoots, tree shoots, taro and seaweed with the alkaline water, the biting taste and the souring taste will be gone while the natural taste will enriched. When using it as the water for cooking fish, the fishy smell will be eliminated, making the fish taste better.

Liquors, cocktails

The liquors will be made highly mild and soft. When making an ice cocktail using the alkaline water, the taste will be better.

Plants

If seeds are soaked in the alkaline water before being sowed, the germination rate will be enhanced. Even in case of stem cutting or grafting, plants will take root better. When the water is applied for ornamental plants, the growth of roots will be facilitated. The alkaline water will neutralize the acid soil and effectively facilitate the growth of plants.

Vegetables, fruits

If vegetables or fruits which are to be stored are washed using the alkaline water, they can be kept fresh for a longer period of time. Soaking Vegetable to eliminating Agricultral chemical.

Vegetables with unpleasant odors

When cooked after being soaked in the alkaline water for about 20~30 minutes, oder will be reduced, making vegetables more soft and tastier

Powdered milk for infants

When mixed with the alkaline water, the powdered milk will be healthier food for infants to eat.

4. How to use the acidic ionized water for special purposes

Bathing, washing of the face, washing of feet

When used for bathing, the acidic water can be a beauty solution good for your skin. The acidic water is astringent helpful in making the skin soft and elastic (Skin is mildly acidic). When the acidic water is used as rinse for the hair just shampooed, it will neutralize the alkalinity of the soap, helpful in keeping the hair glossy. When the acidic water is used as sanitary or astringent solution for the skin just shaved, it can replace the skin toner or skin lotion.

Floral arrangement

When the acidic water diluted 1:2 is applied to the cut part of the flowers, it will keep the flowers fresh for a longer period of time.

Water for parboiling noodles

When the acidic ionized water is used for parboiling noodles, it will keep them glutinous, chewy and tastier (Thicker noodles for spaghetti, for example, may not be well parboiled with the acidic ionized water, then the alkaline ionized water can be used).

Washing or processing of fruits and vegetables which contains anthocyanin

When peaches, grapes, strawberries, red cabbages, beans and Asparagus are washed and processed with the acidic water, their natural colors can be kept without a change. Rising with Acid water to elimininating Viruses Bacilli and wash with Alkali water.

When preparing fried dishes

When the acidic ionized water is used for preparing fried dishes, the foods will be crispy and tastier.

When boiling eggs

When the acidic ionized water is used for boiling eggs, the eggs will peel off easily and taste better a lot.

When cleaning

When the acidic ionized water is used for cleaning corridors, and tiled floors, the dusts of every nook and corner can be easily removed. The acidic ionized water is also fast in drying, so it is not sticky.

When cleaning glass

When glass, mirrors and glasses are washed with the acidic ionized water, dusts or filth can be easily eliminated and the gloss will be made better. Try to clean household items such as washbowls and chairs and they will be made surprisingly clean.

When deposits are formed at a kettle or a pot is incrusted due to burning

When deposits are formed at the kettles, or pots are incrusted due to burning, try to place them in the acidic ionized water for overnight, and then they will be made clean.

As the bathing water or for the cleaning of the bathtub

When the acidic water is mixed and boiled together with the bathing water, the combined water can be easily boiling due to the high thermal conductivity of the acidi water. The bathtub can be kept clean because the slime in the water does not build up easily.

Page 25

Caution - Should the following items for your safety.

Do not spray water onto the product for cleaning. If not followed, electric shocks can be caused.

Do not use benzene, thinner or insecticidal sprays for cleaning the product.

If not followed, the outer shape and main body can be transformed or cracks can be caused.

Contact the sales shop or the main office for advice when you try to use the product which has not

been used for a long period of time.

Answers to questions

Q (Questions) A (Answers)

Can we use the underground water ?

Yes, the ground water can be used

But, the designated pH concentration

level may not achieve depending on areas

and quality of water. Before installing the

system, you need to check whether the

requirements for the drinking water can be met. [Contact the sales shop or the main office for more detailed information]

How to handle the product when we will not use for a long period time (More than 10 days) ?

The filter needs to be disconnected from

the main body, packed into a vinylpackage

and stored in a refrigerator.

Disconnect the electric plug.

When you start to use the system newly after the period you need to replace the filter. Then you need to use water after letting the water flow through for about 3

minutes.

What temperature the flowing water is allowed to keep ?

Only the water temperatures that is below 30

C can be used within the water unit.

For the use of the system

When cleaning the chopping board

When you use the chopping board continuously for a long time, it will be full of knife scars. Then filthy impurities can be stuck in those knife scars. Use the acidic ionized water to clean and sanitize the chopping board completely.

When cleaning the tableware

Considering that the acidic ionized water has the cleaning as well as sterilizing power, it can be used for cleaning the tableware.

When washing the floors

The floorcloth, which is constantly kept wet, is the hotbed for molds. When the acidic ionized water is used for washing the floorcloth, filthy odor can be removed and also the sterilizing effect can be enjoyed. The same goes for the dishcloth.

Page 26

Q (Questions) A (Answers)

When we get the alkaline ionized water in a container, there are white substances forming, or depositing on the bottom. What are those?

This is a rare phenomenon that occurs in purification. If the water contains mineral substances or carboxyl group (CO

), they may become more activated with

electrolysis-ionization, and it may become serious. Adjust the pH level to meet the characteristics of the water.

The white substances are generated

because the alkaline ionized water contains

lots of mineral calcium. Especially when

the carboxyl group

(CO3)

is abundant, it is

bonded with calcium, leading to the precipitation of

calcium carbonate (CaCO

). It shows that the

electrolysis is surely working.

Even though there should be no problems with drinking the water, you need to clean the container.

Fill the water container with the diluted household vinegar and leave it for one hour. Then shake the container for cleaning.

How about cooking rice using the alkaline ionized water ?

Rice can be sticky depending on the

volume of water, kinds of rice and kinds of r

ice cooking appliance.

Use the water after setting the appropriate

stage of ionized water.

Which water would you recommend for the infants?

It is recommended that the infants are fed

low alkaline ionized water. (Alkaline ionized water Stage 1.) (See page 20.)

The red lamp is turned on at

Strong Alkaline

Stage 5

. Is it OK when we use the water for soaking out the puckery or bitter tastes of vegetables or washing them?

There should be no problems with using the water for soaking out the puckery or

bitter tastes of vegetables or washing

them.

Do not use the water for daily drinking.

When we get the alkaline ionized water in a cup, there are white bubbles. What are those bubbles?

The bubbles are generated because, while ions

are generated, the molecules of alkaline ionized water are so tiny and the dissolved hydrogen is

sufficiently available.

The bubbles can be generated highly right after

the installation, or the replacement of the filter.

There should be no problems using the product.

About the alkaline ionized water

Page 27

You need to check the following items before requesting the repair work if you think the system is

malfunctioning :

You should not try to disassemble and repair the system. Contact the sales shop or the main office when the

system is malfunctioning.

When there are abnormalities with the system because of your mishandling of the system, the electric plug

needs to be disconnected. Afterwards, restart the system. The system will be restored to normal operation.

When the following lamps are indicated.

About After Sales Service

Symptoms Causes and actions

The power can not be turned on, or is turned off in the middle of the use.

The power is turned off inadvertently in the middle of the use (Periodically On/Off repeatedly)

Once after [Strong alkaline], [Acidic] and [Purified water] is used, the indication will change into [Alkaline].

Is the water flow volume insufficient?

(At least 0.5

/Min. is required)

=> Open the water branch pipe and adjust the water flow

volume.

Is the electric cord appropriately inserted?

=> Insert the cord into the wall socket correctly.

Is the fuse cut off?

Check the fuse(Rated fuse 250V/3A)

After inserting the electric cord into the wall

socket, you need to check whether a

beeping

sound is generated when pushing the button

lightly.

=> The beeping sound means that there are no

problems with the fuse.

It is because of the bimetallic safety system for the overheating inside the system in case of long

hours of operation. When the temperature goes

down after the water supply control value is

turned off, you can turn on the valve for the use.

When the water supply control valve is turned off once after [Strong alkaline], [Acidic] and [Purified water] is used, the setting will be restored to the

previously set value of [Alkaline] automatically.

=> Not malfunctioning.

Q (Questions) A (Answers)

What is the pH of the acidic water coming out of the acidic water outlet in the middle of the alkaline ionized water being used?

About the acidic ionized water

What kind of impact can the acidic water might have on the skin?

The human skin is mildly alkaline to pH

5.5. The alkaline water not only help keep the acidity of the skin at an appropriate level, but also can help the contraction of skin pores to help keep the skin constantly elastic and moisturized.

Eliminate the fishy smell after cooking fish

Clean the tableware

pH4.0

0.5

pH4.5

1.0

pH5.0

1.0

pH6.0

1.0

Strong alkaline

pH10.0

0.5

Selection stage Purpose

Acidic water

pH value

Alkaline

The pH value can be varied depending on the quality of water and the water flow volume.

Drinking, culinary

pH9.5

1.0

Drinking, Cook

pH9.0

1.0

Initial drinking

pH8.0

1.0

Page 28

Symptoms Causes and actions

1) ERROR MODE: Error indication by ERR 3 (For overheating of electrolysis cell)

2) ERROR MODE: Error indication by ERR OF (For excessive water flow volume)

3) ERROR MODE: Error indication by ERR 8 (For a fake filter)

Even after the filter is replaced, the [000] value is not

acquired

The filter usage status indication is not turned on

All lamps of the main body are turned on. (Still turned on even after the water flow is stopped)

No melody plays, even during the Acidic function.

Filthy odors, weird tastes and murky substances are not eliminated.

1) Indication for the overheating of electrolysis cell.

2) Indication for water flow volume exceeding 3.3

/Min.

3) Indication for a fake filter

- Need to replace with a genuine filter designated by the company

Is the reset button pushed?

=> Push the reset button while the water flows

through or the system is suspended.

Is the reset button pushed while the electric plug

is disconnected?

=> Reconnect the electric plug and push the reset

button.

Check whether the filter is a genuine one made

by the company.

=>If a unbranded filter is installed, there will be a voice

guidance saying

Filter rejected, mount correet one

and the power will be turned off after 20 seconds.

Is the water flow suspended?

=> When the water flows through, the indication will be

turned on. When it stops, the indication will be turned off.

Is the electric plug disconnected?

=> Reconnect the plug.

The system is malfunctioning.

=> After disconnecting the electric plug, you need to

contact the sales shop for advice.

The power will not be turned on when the water

flow can not be detected due to the lower water

pressure. (Pressure of the tap water is less than 0.6 )

The system is malfunctioning.

=> After disconnecting the electric plug, you need to

contact the sales shop and request repair work.

Check that the Acidic button has been selected.

Allow water to flow and press the Acidic button.

The filter performance is degraded.

=> Replace the filter.

Is the water pressure low?

=> Open the water branch pipe for adjusting

(Contact the sales shop or the main office when the

problem is not solved even after the widest opening of the water branch pipe)

Is the water flow volume too high?

=> Adjust by the water supply control valve.

Page 29

Symptoms Causes and actions

The outflow water volume is low or there is no outflow.

The life span of the filter can be shortened when it is blocked due to the sever pollution of the source water.

The water becomes warm when it flows through the main frame.

The pH of the acidic water is indicated as neutral.

Water leaks from the bottom of the main body.

No water comes out of the acidic water outlet while [Alkaline] or [Strong Alkaline] is used.

Is the life span of the filter overdue?

(Need to check the filter usage status number)

=> Replace the filter.

Is the filter wrongly fixed?

=> Fix it right.

Is the water supply suspended?

=> Wait until the water supply is resumed.

Is the hose bent or crushed?

=> Set it right.

When the water flows through initially, the

water can become warm due to the room temperature or the heat inside the main body.

=> Not malfunctioning. Use the water after let the

water flow through.

For about one week after the new filter is

installed, the pH value of the acidic water

may not fall into the range of the

colorimetry (Due to the effect of the activated carbon)

=> Not malfunctioning. Check again one

week later.

If the pH value of the acidic water is 6.5, the value may be not compatible with the samples of the pH measurement sheet.

Dew condensation can occur inside the

main body due to the conditions of temperature

and moisture.

=> Not malfunctioning.

If the situation is not temporary and the

water leakage volume is high, then it

means the system is malfunctioning.

=> Contact for requesting after sales service.

Is the acidic water drainage hose bent or

crushed?

(The water may not taste good)

=> Set it right

Page 30

Symptoms Causes and actions

Water keeps [dripping] from the outlets (Especially the acidic water outlet) even after the water supply control valve is turned off.

When tested with the pH test solution, it is yellow for the acidic water, but in case of the alkaline water, the color becomes neutral momentarily.

Water smells disinfectants * Various causes can lead to the symptom. If the problem is not solved by replacing the filter, the water purification process needs to be selected to check the problem. When there is still nothing found about the problem, the items on the right side need to be checked.

The power is not turned off when the water supply control valve is turned off.

Water leakage at the water purifier. (Filter socket)

The remaining water inside the outset can

comes out

=> Not malfunctioning.

The rinsing operation is in progress.

=> Not malfunctioning.

(See page 18. )

It is due to the effect of the carbonic acid in the

water.

(Severe in case of the ground water)

=> Use the water after adjusting the stage of

the alkaline ionized water to Stage 5. Considering that the alkaline reaction and

the acidic reaction occur in an opposite way, so it is understood that the alkaline ionized water is generated also if there is acidic reaction taking place.

We can simply say that the symptom is the

result of the vaporization of the test solution

due to the chemical reaction involving the

carbonic acid in the water.

Check whether the storage container is cleaned.

=> Wash the storage container cleanly.

The life span of the filter can be shortened due

to pollution depending on the condition of the water supply.

=> Replace the filter (Refer to Page 18).

The ionized water has less crusts of water,

meaning that the water is highly active for reaction. Extremely low volume of impurities, when spread throughout the water, can cause the water to be activated together and, possibly, the water to smell.

=> Use the water by adjusting the alkaline level

down by 1~2 stages.

Check whether the acidic water hose is higher

than the main body.

=> Install the hose 50~70cm below the level

of the main body.

The system is malfunctioning.

=> After disconnecting the electric cord, you need

to contact the sales shop or the main office for requesting the repair work.

Check whether the filter is appropriately

fastened into the filter socket.

=> After checking the filter packing, you need

to fasten it to the filter base appropriately.

Page 31

Water Ionizer BTM-505N Class 2, Type B equipment

120V 220V 230V 240V / 50Hz 60Hz

To tap water 320x340x140 (WxHxD) mm About 6.5 70~500 kgf/ 5 ~ 30 °C Built-in temp. sensors: 2 sensors (automatic restoration)

Continuous electrolysis

Standard 1.5 /min 0.5 (0.4gal/min 0.1gal) Max 3.3 /min (0.8gal/min)

Alkaline / Acidic : 5 steps / 2 steps

Double Automatic Reverse Cleaning and manual cleaning

Platinum-titanium electrodes Cartridge type (2Stage) 1st: Approx. 3000 2st: Approx. 4000 Lifespan indication by LCD LCD character

Nonwoven fabric, Granular activated carbon, calcium sulphite, Sediment (Pre filter), and UF membrane filter

KFDA Manufacturing Registered No. 889 No. 07-171

“ Including alkaline and

acidic ionized water ”

Page 32

Type of consumer damage

Defect or

malfunction in

performance and

function that

occurred during

normal operation

Defect or malfunction as a result of consumer s negligence or error

Malfunction as a result of an act of God (fire, salt damage, gas, earthquake, wind or flood)

Normal consumption of a consumable Problem due to consumer not using a consumable or optional item as designated Any other problem as a result of external causes.

Problem that occurred due to product serviced by an

unauthorized person

If repair is necessary within a month after purchase due to manufacturing defect.

If a replaced product requires major repair within a month of replacement.

Reparable

Not reparable If repair is impossible due to lack of parts.

(The company should carry parts for 5 years.) If a product handed over for repair was

lost by the company. Damage during transit

Reparable

Not reparable

If defect occurs. If the same defect reoccurs

after repair (more than four times).

Replacement

after amount

deduction

Replacement

Free service

Charged service

Charged

service

Charged

service

Replacement after totaling repair cost

Separate criteria

Indemnification

Within warranty After warranty

Charged

service

Charged

service

Charged

service

Charged

service

Page 33

This product has passed a thorough quality compliance test administered by our technical team and authorized institutions. It is produced under the Korea Food and Drug Administration (KFDA) Manufacturing Permit No. 889. In the event of any defect or product malfunction, take this warranty to your distributor, purchase retailer or our head office, and we will repair your product in accordance with the product warranty.

Request for service

If you wish to get your product serviced, contact the retailer you purchased the product from or our customer service center and present the product warranty with the date of purchase.

1. This product is subject to one year free warranty service.

2. The free service period begins from the date of purchase. Please write down the date of purchase on the warranty. (If the date of purchase cannot be confirmed, free service is not provided.)

3. This warranty is not reissued. Keep it in a safe place together with the operation manual.

4. Responsibility and indemnification

If the retailer has closed business or incurred bankruptcy, the manufacturer will warrant the product.

5. The following are warranty exceptional cases for which service cost will be charged:

A. Warranty period has expired. B. Defect or malfunction as a result of an act of God. C. Malfunction as a result of the user s failure to follow the instructions in the manual. D. Defect or malfunction as a result of shock or disassembly of the product. E. A consumable has been consumed. F. Customer s failure to present the product warranty.

Warranty

Model

Mfg. No. Customer TEL Address Sold by Branch Distributor TEL

Product

Date of Purchase: (Day) (Month) (Year)

BTM-505N

Page 34
