Quick Setup Guide
Delight Your Patients, Faster.
5400578 Rev A
®
For detailed instructions always refer to the User Manual
SYSTEM PARTS LIST
The laser system includes the following:
1. Laser Console (lithium ion battery
pack already installed)
2. Screen Protectors (Peel-off clear
screen cover - qty. 30)
3. Deliver y System (installed)
4. Assorted Surgical Tips
5. Surgical Handpieces (2)
6. Three (3) pairs of protective laser
eyewear
7. DC power supply and power cord (one
(1) US and one (1) International)
8. Welcome Kit (Welcome Letter, User
Manual, BIOLASE store information,
Quick Setup Guide, Guide to Online
Training & Product Registration Card,
Limited Warranty Information)
9. Laser Warning Sign
10. Tip Initiation Kit
11. Remote Interlock cable
12. Philips-head screwdriver (for installing
Footswitch batteries)
13. Footswitch
14. AAA batteries (2)
CAUTION: Federal Law restricts this device to sale by or on the order of a dentist or
physician or other licensed medical practitioner.
5400578 Rev. A
The Laser Console
SECTIONS 2.3, 2.5
The Handpiece and Tips
SECTIONS 2.6, 2.8
F iber Shaft Protective Cap
Handpiece
Surgical Handpiece Fully Assembled Disconnect the Handpiece
Insert Fiber Tip after assembling the handpiece (turn clockwise)
Seating the Fiber Tip into the Handpiece
Bending the Tip
Amber > STANDBY
LED Indicator
LED Indicator
Control Button
Handpiece Holder
The Laser Console arrives with the fiber already
inserted into the optical access port.
Fiber Storage Channel
Green > READY
Blinking Green > Lasing
Blinking Blue > Pairing Active
When the aiming beam is not present or
has a significantly asymmetrical shape:
►For tips that require initiation:
change the tip.
►For tips that do not require initiation:
change the tip; press
initiati on re qui re ment.
to bypass
5400578 Rev. A
Power On
Password
Touch Screen Display
SECTIONS 4.2, 4.11
2
Power Switch
3
Wireless Signal
Strength
Laser Console
Battery Strength
Settings
Enter 888
1
NOTE: Before initial use, you must charge the battery!
SECTIONS 4.1, 4.2
5400578 Rev. A

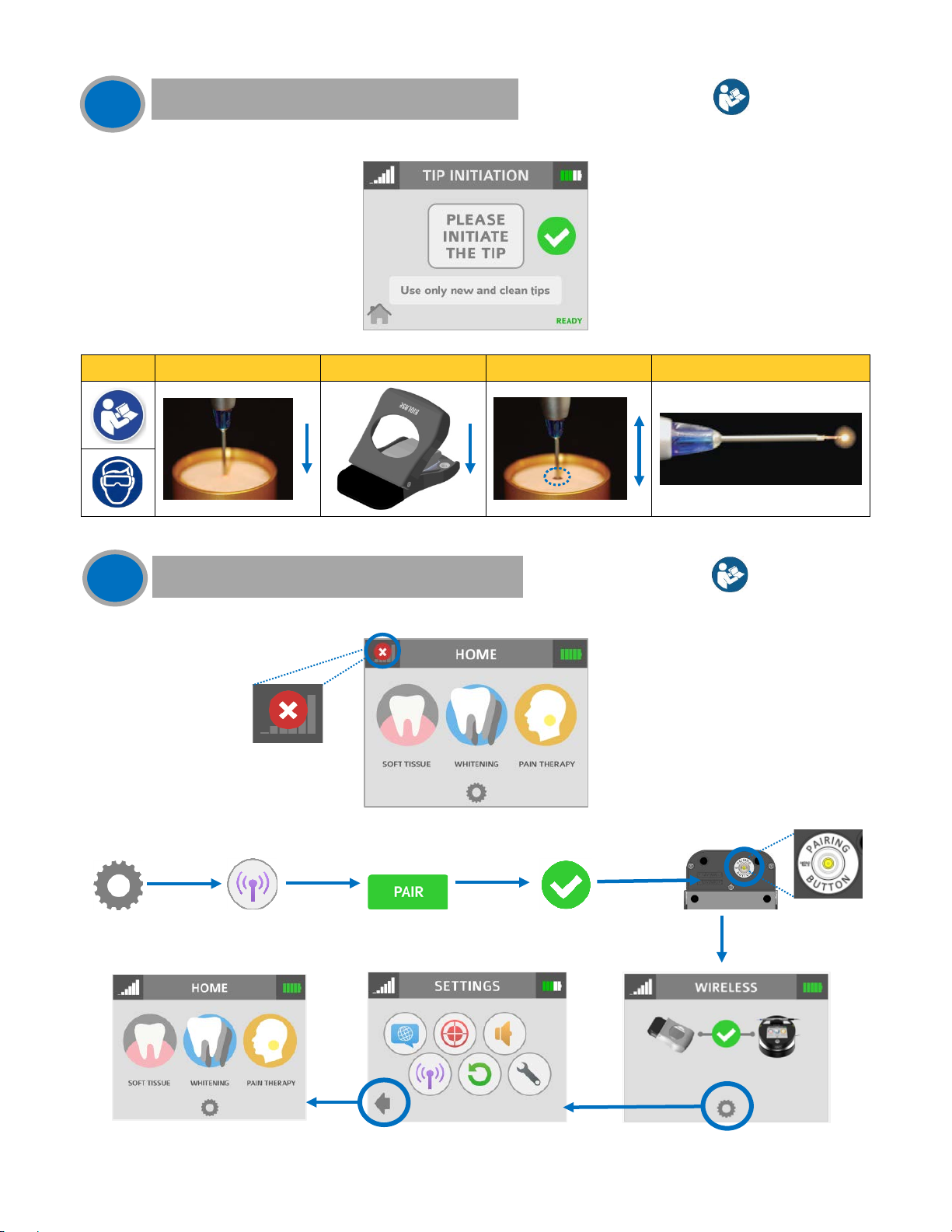

Initiate the Tip
SECTION 7.3
1 2 3 4 5
Pairing (if necessary)
SECTION 4.4
5
4
(If not paired)
1 2 3 4
5400578 Rev. A
SECTION 11
Message
PRESSED OR IS DAMAGED
BIOLASE SERVICE
TO IMPROVE COMMUNICATION
CRITICALLY LOW
5-10
COOL DOWN
IS LOW
LASE
MODE
PROCEDURE SCREEN
Reason
Fix
ERROR 1
ERROR 2
ERROR 3
ERROR 4
ERROR 5
ERROR 6
ERROR 7
ERROR 8
ERROR 9
ERROR 10
THERMISTOR OPEN THERMISTOR OPEN
CALL BIOLASE SERVICE
THERMISTOR SHORTED THERMISTOR SHORTED
SHUTDOWN TEMPERATURE SYSTEM TOO HOT
LASER CURRENT HIGH/LOW OUTPUT IS OUT OF SPECS CALL BIOLASE SERVICE
FOOTSWITCH SHORTED IN STANDBY
ON/OFF BUTTON STUCK KEY STUCK PRESS FRONT KEY
FLASH CORRUPTED MEMORY CORRUPTED CALL BIOLASE SERVICE
NO FIBER FIBER NOT INSERTED PLUG IN TRUNK FIBER
LOST FOOTSWITCH COMMUNICATION WIRELESS INTERFERENCE
EMERGENCY SWITCH E-SWITCH PRESSED PRESS E-SWITCH AGAIN
FOOTSWITCH IS PARTIALLY
ALLOW 5-10 MINUTES FOR LASER TO
COOL DOWN
PRESS/RELEASE FOOTSWITCH OR CALL
REPOSITION CONSOLE OR FOOTSWITCH
ERROR 11
ERROR 12
ERROR 13
ERROR 14
WARNING 1
WARNING 2
WARNING 3
WARNING 4
WARNING 5
ALERT 1
REMOTE INTERLOCK REMOTE INTERLOCK OPEN CHECK REMOTE INTERLOCK CLOSED
BATTERY CRITICALLY LOW BATTERY CRITICALLY LOW PLUG IN DC SUPPLY
INTERNAL ERROR INTERNAL ERROR OCCURRED RESTART UNIT
FOOTSWITCH BATTERY
TEMP HIGH SYSTEM IS HOT
BATTERY LOW BATTERY IS LOW PLUG IN DC SUPPLY
BATTERY NOT CONNECTED BATTERY NOT CONNECTED PLUG IN BATTERY
FOOTSWITCH BATTERY LOW
FOOTSWITCH FOOTSWITCH HELD RELEASE FOOTSWITCH
WIRELESS NOT PAIRED NO WIRELESS CONNECT RE-ESTABLISH PAIRING (SEE SEC 4)
FOOTSWITCH BATTERY
BATTERY ON THE FOOTSWITCH
REPLACE FOOTSWITCH BATTERY
ALLOW
REPLACE FOOTSWITCH BATTERY
MINUTES FOR LASER TO
ALERT 2
SYSTEM MUST BE IN READY MODE TO
SYSTEM IS NOT IN READY
PRESS THE CONTROL BUTTON IN ANY
5400578 Rev. A
BIOLASE, Inc.
4 Cromwell
Irvine, CA 92618 USA
949.361.120 0
888.424.6527
biolase.com
MT Promedt Consulting GmbH
Altenhofstrasse 80
D-66386 St. Ingbert/Germany
+49 6894 581020
mt-procons.com
Rx Only.
Made in the USA
©2014 BIOL ASE, Inc. All rights reserved. Subject to change without notice.
