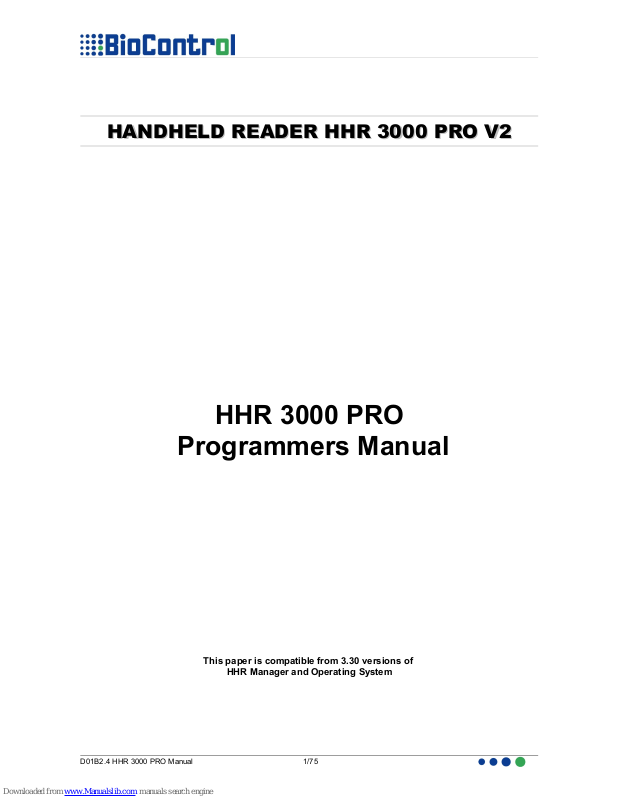

HANDHELD READER HHR 3000 PRO V2
HANDHELD READER HHR 3000 PRO V2
HHR 3000 PRO
Programmers Manual
This paper is compatible from 3.30 versions of
HHR Manager and Operating System
D01B2.4 HHR 3000 PRO Manual 1/75
CONTENTS
Compliance with FCC Rules and Regulations.......................................................................4
DESCRIPTION.......................................................................................................................5
How it works.......................................................................................................................5
INSTALLATION AND ESTABLISHING CONNECTION........................................................7
Establishing Connection with PC:......................................................................................7
Load New Application Menu..........................................................................................8
MANAGING HHR 3000 PRO ................................................................................................8
Programming Your HHR with HHR Operating System (HHR OS)....................................8
Code Pages...................................................................................................................9
Command Line Mode....................................................................................................9
OPERATING THE HHR Manager .......................................................................................10
Sending an Application Project........................................................................................10
Receive a User output database.....................................................................................11
HDS – HHR Development Script Language........................................................................12
General information.........................................................................................................12
Sections...........................................................................................................................13
HEADER Section.............................................................................................................17
Communication Possibilities........................................................................................19
Frames Structures.......................................................................................................20
HEADER example:......................................................................................................21
TABLE Section.................................................................................................................22
Data type.....................................................................................................................25
GLOBAL Section..............................................................................................................28
MESSAGE Section..........................................................................................................30
Managing Leds and Sound Signal..........................................................................30
GSM Section....................................................................................................................32
Usage in Application Program.....................................................................................33
MACRO Section...............................................................................................................34
Keyboard.....................................................................................................................38
The keyboard rules:................................................................................................38
Creating a Macro and user functionality......................................................................40
MENU Section.................................................................................................................42
START SCREEN Section................................................................................................44
WARNING Section..........................................................................................................46
Appendix A : Quick Reference.............................................................................................49
Appendix B : Function List...................................................................................................52
Appendix C : Log..................................................................................................................55
The Log Rules..................................................................................................................58
Using Log.........................................................................................................................59
Appendix D : Bluetooth Mode..............................................................................................61
Bluetooth Frame Structure...............................................................................................63
Establishing Connection HHR-PC...................................................................................64
Connecting HHR to PC with Bluetooth........................................................................64
Appendix E : Scales.............................................................................................................70
D01B2.4 HHR 3000 PRO Manual 2/75
RS232 Port......................................................................................................................70
Hardware details of RS232 cable................................................................................71
Tru-Test Scales................................................................................................................71
Hardware.....................................................................................................................71
Software.......................................................................................................................72
Iconix Scales....................................................................................................................72
Hardware.....................................................................................................................72
Software.......................................................................................................................73
Appendix F: HHR-China code page character set..............................................................74
List of non-ASCII chars....................................................................................................74
List of ASCII chars included in HHR-China:....................................................................75
D01B2.4 HHR 3000 PRO Manual 3/75
Compliance with FCC Rules and Regulations
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Changes or modifications to the equipment not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installations. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on , the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.
The reader must be kept 20cm away from the persons body when the GPRS is active.
HHR 3000 PRO v2 can work with following antennas:
• 50007 Loose exchangeable or fixed long antenna, length 60 cm
• 50008 Loose exchangeable or fixed short antena, length 8,5 cm
• 50009 Loose exchangeable medium antenna, length 34 cm
• 50010 Loose exchangeable XXL antenna, length 115cm
D01B2.4 HHR 3000 PRO Manual 4/75
DESCRIPTION
HHR 3000 PRO enables customization functionality by writing user Application
Project. It contains definition of:
● Database (table with animal data) stored in HHR memory
● HHR menu items,
● HHR screens which would operate on user database.
HHR Manager PC program enables application project transfer between HHR and
PC.
How it works
The Application Development System contains:
● HHR 3000 PRO reader
● Application Project
● HHR Manager PC program,
Application Project is based on Application Program written in simple HDS (Hhr
Development Script) language and user input database. Those 2 files combined
(compiled) by HHR Manager are Application Project.
The core of Application Program are macros defining LCD screens. Application
Program includes 8 sections – see chapter Sections.
HHR Manager is a PC program which combines Application Program and User
Database to Application Project. It is used also to transfer data between HHR and
PC.
Database definition in Application Program must match User database. It can be
empty at start, it is not obligatory to include it to Application Project.
Database can be filled during work with animals.
The structure of Application Development System.
D01B2.4 HHR 3000 PRO Manual 5/75
User output Database is a file containing User input database modified during work
with HHR 3000 PRO.
Input and output database files are text files with columns isolated by separator
defined in Application Program. Database programs (MS Access, MS Excel, Calc,
Base, etc.) enables to import text files with separators and convert it to workable table.
There is a possibility to include Log table to Application Project. Log is another
table which records are created during user-defined events (birth, death).
The structure of Log is defined in Application Program. Log is loaded from HHR to
PC together with modified database and will appear as a database text file.
Log example:
VID Event
name
Event
value
Date of event
1123456 Treat Med_1 2007/02/12;
8:00am
D01B2.4 HHR 3000 PRO Manual 6/75
User input Database
HHR Manager
HHR
3000 PRO
Application Program
Application
Project
Log File
(optional)
User output
Database
INSTALLATION AND ESTABLISHING CONNECTION
Installation of all needed software and drivers can be done by selecting 'Install' from
window appearing when user will insert HHR software CD into drive.
All needed software(HHR Manager and HHR Program Loader) are accessible from
Start->Programs->HHR 3000 PRO V2. You can find there also Manuals, Uninstaller
and Driver Repairing Tool.
The Driver Repairing Tool is PC application that fixes all problems with HHR drivers on
any PC; this tool is accessible from:
Start->Programs->HHR 3000 PRO V2/Repair HHR drivers
Please use it if you have any problems with establishing connection between HHR and
PC.
Driver Repairing Tool will appear in a DOS-styled window, please DO NOT CLOSE
THE WINDOW, it will close itself when all operation will be finished.
Driver Repairing Tool is also accessible from CD provided with HHR, user can run this
Tool by selecting appropriate button in window.
Establishing Connection with PC:
Before connecting HHR to PC all software must be installed on PC.
● USB – To connect HHR and PC with USB interface simply connect HHR
and PC with included cable,
● Bluetooth – To connect HHR to PC with Bluetooth interface, you have to
find HHR as a Bluetooth Serial Port and pair HHR and PC. More detailed
description can be found in this document, Appendix D.
D01B2.4 HHR 3000 PRO Manual 7/75
! Connection Rules:
● For connection HHR with USB interface please use included HHR-USB cable;
● For connection HHR with RS232 interface please use included HHR-RS232
cable;
● Please DO NOT use standard RS232 cable for connection HHR-RS232, with
standard cable you will not connect HHR to any device with RS232 interface
and won't send any data.
To connect HHR to PC with USB cable please remember
to use included cable and turn off RS232 and BlueTooth
modules with RSOnOff and SetBTOnOff functions.
● RS232 - To connect HHR to any device with RS232 interface, you have to
connect included RS232 cable to device and turn on RS232 module with
RSOnOff() function. Remember to turn RS232 module before connecting
HHR to PC with USB interface.
Load New Application Menu
Load New Application Menu allows user to select interface with which Master
Device will communicate with HHR. USB and BlueTooth interface are available,
default interface is USB.
This menu has main usage with cooperation with PDA, where BlueTooth is one of
communication option. There is no possibility to communicate with HHR from PC
with BlueTooth.
MANAGING HHR 3000 PRO
HHR 3000 PRO is equipped with newest HHR OS (operating system) which
enables to run the Application Program on HHR. Very important is to use
compatible version of HHR Manager and HHR OS. It is possible to update HHR
OS with a newer version of HHR Program Loader.
Programming Your HHR with HHR Operating System (HHR OS).
1. Run newest version of HHR Program Loader with “HHR Program
Loader .exe”, Important: HHR Manager and HHR Program Loader can't be
in the same catalog.
2. Connect HHR to USB port using included cable
3. Select appropriate Code page(language) and click Start Button.
4. Wait until “Programming succeed” appear in Programming Status field.
5. Disconnect Your HHR from USB port.
D01B2.4 HHR 3000 PRO Manual 8/75
Code Pages
The Code Page is set of characters using in some area of world,
It is possible to use 3 code pages for HHR:
● win1250 – Central Europe and English,
● win1252 – Western Europe and English,
● win1253 – Greek and English.
● HHR China – HHR-China char set includes 169 characters from non ASCII
region, for more details please look at Appendix F.
You can select one of those code pages and use it in HHR.
Command Line Mode
It is possible to run HHR Program Loader from Command Line and update HHR
with hex file.
The syntax of command line takes only one parameter: the code page name or hex
file name. Hex file is a release of HHR OS released before May 1 2008.
Syntax:<path to Program Loader> <space> <program name>\<code page name or
hex file name>
Example:
“C:\HHR Program Loader.exe” \win1250
“C:\HHR Program Loader.exe” D:\Project\loader\HHR_PRO_3_nn.hex
D01B2.4 HHR 3000 PRO Manual 9/75
OPERATING THE HHR Manager
Sending an Application Project
1. Run newest version of HHR Manager,
2. Turn on HHR and connect it to PC with included USB cable, make sure
that both RS232 and Bluetooth modules are turned off.
3. Select the Application Program by pressing the Browse button beneath “A”
field,
4. Select Table file by pressing the Browse button beneath “B” field,
5. If App Program can operate on Log, you can send Log file by selecting
'Sending LOG' check box. If this check box is selected before compiling a
window will appear where user can select Log file.
6. Press the “E” button to connect(compile) selected files to Application
Project and send it to your HHR,
7. If definition of database in Application Program match User input database
and Application Program hasn't got any errors the compilation will be
successful and Application Project will be send to your HHR.
8. Wait until transmit of data ends and close HHR Manager.
Selecting the User input database isn't required, if you don't select it an empty
database will be sent to your HHR.
If compilation fails (point 4) errors will appear in Output Messages field (“C” field),
you can try to debug the Application Program at indicated line.
D01B2.4 HHR 3000 PRO Manual 10/75
Receive a User output database
1. Press the “D” button to receive the database,
2. Select the file(modify an old file, or create a new one) where User output
database will be written,
3. Select the User output database file type, and press Save,
4. When the receiving will be finished, User output database will be available
at location given in Output Message field (field “C”).
When user double clicks for .csv file MS Excel will open it and analyze data basing
on content of column. The problem with default recognition of data is that if any
number in MS Excel takes more then 12 chars it is displayed in exponential format.
To prevent it we have added a possibility to put a char before transponder number
which is classical example of numbers taking more then 12 chars.
To set this option you have to select Option->Settings; there user can turn on/off
this option and set the char which will be placed before every transponder number
which will be placed in Table or Log. As a default this option is turned off.
The matching definition of database and User input database term is a little bit
complicated. If you are not familiar with HDS rules, the most important is to make
the same amounts of lines in TABLE section and columns in User input database.
Remaining rules will be explained in HDS description.
D01B2.4 HHR 3000 PRO Manual 11/75
! Converting the MS Excel file to cvs or txt file is very simple, you have to use the
operation File->Save as and there select the appropriate for you option (csv or txt) with
specified separator, it is important to declare the same separator in Application Program.
Converting from other programs like OpenOffice's Calc or SQL-based programs is
similar.
To import the csv type User output database file you have to double-click on file to import
it to MS EXCEL, if the file type is txt you have to use operation File->Open and there select
appropriate for you type (txt) and use import wizard.
Importing User output database to other programs like OpenOffice's Calc or SQL-based
programs is similar.
HDS – HHR Development Script Language
General information
HDS has been developed especially for customizing your HHR in easy way with
wide range of possibilities.
Application Program written in HDS contains 9 sections, all of those sections are
necessary, but if you don't need any you can left it empty
Example, section with values:
GLOBAL
0:global1
1:global2
END
Example, an empty section:
GLOBAL
END
HDS allows you to put comments and empty lines in Application Program.
Comment are sign for HHR Manager that this line is a user-line and won't be taken
into account during compilation (connecting Application Program and User input
database).
The comment sign is double slash (//).
Example:
GLOBAL
1:global2
//2:global3
END
Empty line between script line and any white-characters (tabulator, spaces) at the
beginning of line are allowed.
IMPORTANT: white-characters aren't allowed between characters in line.
For example:
GLOBAL
0:global1
1:global2
//2:global3
2:global4
3:global2
4:global2
END
D01B2.4 HHR 3000 PRO Manual 12/75
Sections
Application Program contains 10 sections:
● HEADER – the section where you declare general information about Application
Project, like project name, date/time format, loading date and time, etc
This section must be placed in every Application Program
● TABLE – the section where you declare database column by column which will
be used in Application Project. Each line contains 7 parameters describing one
database column.
Amount of lines in TABLE section must be equal to amount of columns in User
input database. Type of column (date, transponder no, etc) is defined, this type
must agree to data in User input database.
● LOG – this section describes a LOG table, syntax is analogical to TABLE section.
● GLOBAL – this section contains global constants for Application Program, you can
use those “Globals” to save memory by placing a number of Global instead of long
value (farm number or veterinary number etc.) in database. In this way more data
can be stored in your HHR.
● MESSAGE – this section contains messages that you want to appear on LCD at
specified time during work with HHR, user can define the time when messages will
be shown on screen. Messages, can be saved in database in similar way like
Globals, the number of message is saved in database instead of any long value.
In this way more data can be saved in your HHR. Messages can also be used for
driving LEDs and Sound signal in HHR V2.
● GSM - This section contains SMS structures that will be send from HHR.
● MACRO – this section is the core of Application Project. User defines here how
HHR should behave after entering to specified menu item. You can write as many
macro as you want but you must remember that every macro takes space in
memory and there is one memory for Application Program and User input
database.
● MENU – the section where user declares menu, sub-menu, etc.
HHR functionality for each menu(sub-menu) is related macro.
● START SCREEN – this section describes what will be displayed on HHR's LCD
just after turning on.
● WARNING – this section contains standards warnings(messages) like “Turn on”,
“Please wait”, or “Stored”, user can use standard warnings or define his own.
Globals, basing on parameter in HEADER section, can be loaded from file or it will
be included in Application Program.
If you choose to load Globals from file you have to place a “global in.txt” file in the
same catalog with Application Program.
During receiving database globals will be automatically loaded from a HHR
to “global out.txt” this file will be placed in the same catalog with User
Output Database.
GL_file indicates that globals will be loaded from a text file, and
GL_section points that globals will be included to Application Program
(HHR App will not be looking for any file containing globals)
D01B2.4 HHR 3000 PRO Manual 13/75
An example of Application Program with all sections:
// application: EXAMPLE
/////////////////////////////////////
HEADER
xxxxxx 01
09/02/2007
10:34:59
dd/mm/yyyy
hh:mm:ss
,
LOG_false
.
BT_false
GL_section
END
TABLE
MOTHEREID;R;1;1;1;0000 0000 0000;;
MOTHERVID;S;1;1;1;&&&&&;;
DATE;D;0;1;1;0000000000;;
GOAT1;S;0;1;1;&&&&&;;
GOAT2;S;0;1;1;&&&&&;;
MALE1;S;0;1;1;&&&&&;;
END
GLOBAL
0:001234144423223
1:001141423412331
END
MESSAGE
0:value not valid
1:reenter it
END
MACRO
begin_macro:LAMBING
begin_action_area
ReadNew(MOTHEREID)
FillExp(DATE,date())
end_action_area
begin_screen
PrintExp(46,0,0,count(*))
PrintText(115,0,0,"1.1")
DrawLine(0,6,127,6)
end_screen
begin_control_area
end_control_area
end_macro
END
MENU
M0:{Lambing,M1};{Settings,M2}
M1:LAMBING
M2:SETTING
END
START_SCREEN
begin_screen
PrintText(0,0,0,"TABLE:
EXAMPLE")
PrintText(30,20,5,"I D & T")
PrintVersion(20,55,0)
end_screen
END
WARNING
w_WAIT:Please/wait!
END
D01B2.4 HHR 3000 PRO Manual 14/75
D01B2.4 HHR 3000 PRO Manual 15/75
Following sections must be included in application program:
● Header
● Table
● Macro
● Menu
● Start Screen
Rest of the sections might be omitted in Application Program. If you don't want to
include any in above 5 sections left it empty.
Example:
START_SCREEN
END
IMPORTANT !
Sections must be placed in program in the order mentioned in the flow-chart
above. Every section in Application Program starts with section name (in
capital letters) and ends with END (also capital letters).
D01B2.4 HHR 3000 PRO Manual 16/75
HEADER Section
Header has general information about Application Project.
There are max 11 parameters in a header:
1. Name - Application Project name, it's used only for a user for project
identification, it takes 12 characters max.
2. Date – Project creation date, this parameter is also used for a user, it takes
12 characters max.
3. Time - Project creation time, used for a user, it takes 10 characters max.
4. Date Format – defines way of interpreting the Date type column and way
of displaying Date on LCD. It is important to define the same type of date in
User input database or User output database. Example: dd/mm/yyyy
5. Time Format – this parameter is analogical to “Date format”,
example : hh:mm:ss.
6. Database Columns Separator – defines character for separating columns
in User input database. If you don't include User input database to
Application Project “Database Separator” will be used in User output
database received from HHR. It can be comma, semicolon, tabulator(\t),
space(\s),...
7. LOG – defines whereas Log Table is used or not in the Application;
LOG_true indicates that Log Table will be used in application and
LOG_false that Log Table won't be used.
The size of characters in this parameter has got meaning.
8. Decimal Point – defines the decimal point used to separate integer part
from fractional part in User input database, it is used also during receiving
User output database.
9. Bluetooth – this parameters defines if Bluetooth in application program is
used or not. If enabled (BT_true) then HHR after every transponder read,
sends information through Bluetooth protocol to master device with
transponder number, date and time of reading.
Before reading (and sending) the Bluetooth connection must be made.
Other option of using Bluetooth is sending information from HHR 3000
PRO to master device at user's command, to use this property user have
to disable(BT_false) Bluetooth in HEADER section. Bluetooth essentials
are explained in Appendix D.
BT_true – Bluetooth enabled;
BT_false – Bluetooth disabled.
10. Global – this parameter defines whereas globals will be loaded from file or
it will be included in Application Program.
If you choose to load Globals from file you have to place a “global in.txt”
file in the same catalog with Application Program.
During receiving database globals will be automatically loaded from a HHR
to “global out.txt” this file will be placed in the same catalog with User
Output Database.
GL_file indicates that globals will be loaded from a text file, and
D01B2.4 HHR 3000 PRO Manual 17/75
GL_section points that globals will be included to Application Program
(HHR App will not be looking for any file containing globals)
The structure of “global in.txt” file
11. Animal Transponder – this parameter defines whereas only animal
transponder will be read by HHR, in other case a warning will appear on
HHR LCD. animal_true indicated that only animal transponders will be
read, animal_false indicates that HHR won't be checking whenever just
read transponder is an animal one.
12. Speed Mode – HHR is able to move to the next(previous) record when
user press down(up) arrow during editing a value in field. This option can
be enabled by SM_true, or disabled by SM_false.
The idea of Speed Mode is to change currently using record to another
one. The order on which records are changed is defined in
Sorting(col_name) function. So if you want to switch records by date, you
have to use Sorting(DATE) in Action Area.
13. Outgoing Frame Structure – HHR is able to send data(EID optionally with
date/time stamp), through RS232, Bluetooth or USB. Data is send when
transponder is read with Read() function.
Available frames:
● BioControl Frame: label in HEADER: BioControl_frame
● ISO frame consisting EID: label in HEADER: ISO_EID_frame
● ISO frame consisting EID and Data Time Stamp: label in
HEADER: ISO_EID_DT_frame
If you are using Speed Mode you must be aware that none icons are available to
put in Screens, the functions which aren't allowed to use are:
● IconDelete
● IconAddRec
● IconFindCol
● IconConfirm
● AddRecConf
Parameters 1-8 must be placed in HEADER section, rest of parameters are
optional, if you don't define it, a default value will be used.
D01B2.4 HHR 3000 PRO Manual 18/75
0:global_1
1:vet_1
..
Communication Possibilities
HHR can send Transponder Number and DT stamp according to frames defined in
HEADER Section. The interfaces that are possible to use are:
● RS232
● USB
● BlueTooth
For RS232 and BlueTooth piggy-back modules are necessary. For sending data
over USB no external hardware is necessary but please keep in mind that the
device to which HHR will be connected must have USB Host(not every PDA has
UBS Host despite fact that it has USB.)
HHR will send transponder number and DT stamp according to frame structure
defined in HEADER if user use one of following functions:
● Read()
● Continue()
● ReadNew()
● EditReadNew()
● ReadSeek()
● EditReadSeek()
For details of connection between PC and HHR with BT please refer to Appendix
D.
If using USB interface, you must use HyperTerminal or similar software for
capturing messages send by HHR. To connect to HHR you must know the Virtual
Com Port Number(VCP), which HHR is using, to check it please right click on “My
Computer” and select “Properties”.
Next please go bookmark named “Hardware”, please select “Device Driver” button.
Please find and select “Ports (COM and LPT)” , click to '+' icon and find there
BioControl HHR Reader, Com port number will be in quotation marks. Please use
this com port number for configuration of HyperTerminal.
For assistance with handling HyperTerminal please refer to Appendix D.
The settings for VCP are: Speed - 115200, Data bits - 8, Parity - None,
Stop bit - 1, Handshaking - None.
If you are using RS232 interface please use HyperTerminal or similar to it software,
the default settings for configuration of port are the same as for USB. It can be
changed with SetRS functions.
D01B2.4 HHR 3000 PRO Manual 19/75
! To enable sending transponder number and DT stamp with HHR you must put
BT_true in HEADER Section
Frames Structures
1. BioControl frame(BioControl_frame) - consist 3 values: transponder number,
current date, current time;
● First character - “|”
● Transponder number which take 23 characters.
● Table separator declared in header section
● Current Date
● Table separator declared in header section
● Current Time
● End line characters, at C/C++ language it is “\r\n” (it take two characters
0x0D and 0x0A)
Frame Example:
|12345678901234567890123;2007-02-06;23:59:59\r\n
2. ISO frame(ISO_EID_frame), sending only EID number according to ISO/
WD 24631-6
Syntax of frame:
3. ISO frame(ISO_EID_DT_frame), sending EID number and Date/Time
stamp according to ISO/WD 24631-6
Syntax of frame:
D01B2.4 HHR 3000 PRO Manual 20/75
Default values for HEADER Settings:
BT_true
GL_section
animal_false
SM_false
BioControl_frame
HEADER example:
HEADER
EXAMPLE 01
09/02/2007
10:34:59
dd/mm/yyyy
hh:mm:ss
,
LOG_true
.
BT_false
GL_section
ISO_EID_frame
END
As it was shown in the example the decimal point is . (point) and column separator
is , (comma). It is important to declare the same decimal point and database
column separator in HEADER section and use those in User input database.
According to HEADER definition above the example of User input database is:
10000000982000035423300,230.00,09/02/2007
10000000982000035423301,231.23,09/02/2007
Date format and Time format parameters can contain only special characters like
d,m,h (for Date format) and h,m,s (for Time format). As a separator between days
and months or hours and minutes user can use any chars from 32 to 127 number
from ASCII table.
For writing first applications in HDS scripts we recommend you to set LOG_false in
HEADER section. LOG_true forces more advanced function parameters which are
described in appendix C.
Header definition starts with section name HEADER in capital letters and ends with
END word in capital letters.
D01B2.4 HHR 3000 PRO Manual 21/75
TABLE Section
In this section user defines Table used in ADS, User defines column by column in
each line, each definition takes 7 parameters.
1. Column name – Name of column in table, this name will be used MACRO
section for table operation. Column name takes 12 characters max. The
name can't consist characters , (comma) ; (semicolon) .(point).
2. Column type – Type of data in defining column, ADS allows to use 10
types:
Type Description
R Transponder read
O Option
M Message
G Global
S String
D Date
T Time
A Any Type
H Hex format
Z Leading Zero
The meaning of each type will be explained below.
3. Unique value – this parameter defines if the value can be repeated in
column in other record or it can't; “non unique” indicates that it can,
“unique” indicates that value can't be repeated in whole column. This
parameter will be useful for Log users because the Unique value defines
the key(index) column in User input/output database.
Unique value takes only one char - “0” if column isn't unique or “1” if data
in column is unique.
4. Editable value – this parameter defines whereas the column is constant or
in can be modified after loading or entering from HHR's keyboard.
Editable value takes only one char - “0” if column isn't editable or - “1” if
data in column has to be editable.
5. Null value – this parameter defines if values in columns might take null
value, it all comes to left a field empty during adding a new record from
HHR's keyboard, or sending User input database to HHR 3000 PRO.
Null value takes only one char - “0” if column can't be null or “1” if column
can be null.
D01B2.4 HHR 3000 PRO Manual 22/75
6. Mask value – The mask defines the way of saving data in memory and
displaying it in HHR's LCD. Mask consist of all alpha-numerical
characters(0-127 ASCII range), we can distinguish special characters and
standard characters; Special characters are &,0,#,_,/; characters &,0,#
work as a “boxes” for data from field. That “box” is a place in LCD where
data from memory(database) is placed.
Maximum mask length takes 25 characters.
● & - displays any character, but if there is nothing to display(field is
empty or, all data from field was displayed) nothing won't be
displayed,
● 0 - displays numerical characters, but if there is nothing to
display(field is empty, all data from field was displayed, data isn't an
numerical character) 0 will be displayed,
● # - displays numerical characters(and comma), but if there is nothing
to display(field is empty, all data from field was displayed, data isn't
an numerical character) nothing won't be displayed,
● $ - displays numerical characters(without comma), but if there is
nothing to display(field is empty, all data from field was displayed,
data isn't an numerical character) nothing won't be displayed,
● _ - this character is used to display special characters(&,0,$,#,/,_)
● / - this character is used to make a break-line on LCD (enter-key
function).
Standard characters are all characters from ASCII table
(range:32-127), standard characters aren't saved in but it is
displayed according to mask definition, so that we save memory.
Example:
Mask
000aa##_0
Memory
102a131
Display
102aaa10
Mask example 1.
In example 1 according to mask definition first 3 characters are digits, next
it will be 'a' char twice, those 'aa' doesn't have any connection to database it
is simply mask definition. After that is a any-character twice, in display 'a1'
appears according to database 4th and 5th character. The last character at
display comes from “_0” mask definition which means – print special char 0.
D01B2.4 HHR 3000 PRO Manual 23/75
! NULL Property consequences
Please pay attention that if NULL property has been used,
leaving macro is impossible without fulfilling the NULL property
column. Please use it this property with respect, and use default
value for column when possible.
Mask
0.00kg _##
Memory
102F
Display
1.02kg #F
Mask example 2.
In example 2 according to mask definition first char on display will be a digit
from memory, next will be decimal point. Third and fourth character on
display will be two digits from memory “02”, after that according to mask “kg
#” will appear on display, # comes from “_#” mask definition which means –
print special char #, and the last character is any character from memory,
but if there isn't any don't display anything, in our case “F” will be displayed.
7. Default value – this parameter defines default value after creating a new
record. For Date and Time, now() default value can be used, for those
types it will put date/time when record is created.
Example of Table section:
TABLE
MOTHEREID;R;1;1;1;0000 0000 0000;;
MOTHERVID;S;1;1;1;&&&&&;;
NRFEMAL;S;0;1;1;#;0;
NRMALE;S;0;1;1;#;0;
NRDEAD;S;0;1;1;#;0;
GOAT1;S;0;1;1;&&&&&;;
END
Example of appropriate User Input Database
10000000982000035423300,W6W6W,2,3,0,9WWWW
10000000982000022145678,ABC6W,2,0,1,G6J6T
The separator between parameters defining column is “;”
(semi-colon).
D01B2.4 HHR 3000 PRO Manual 24/75
! The maximums
45 columns in database declaration.
25 characters mask length.
20 special characters in mask declaration.
12 character column name.
Data type
As it was already mentioned we can distinguish 10 types of data.
Type Description
R Transponder read
O Option
M Message
G Global
S String
D Date
T Time
A Any Type
Z Leading Zero
H Hex Format
● Transponder read – R – this type indicates that in column will be a
transponder number, such field take 23 characters in memory,
● Message – M – this type indicates that column will be fulfilled with
numbers of messages declared in MESSAGE section, such field take 2
characters in memory and mask will take 2 “0”, user don't have to declare
mask it will be declared automatically,
● Global – G – this type indicates that column will be fulfilled with numbers
of constants(globals) declared in GLOBAL section, such field take 2
characters in memory and mask will take 2 “0”, user don't have to declare
mask it will be declared automatically,
● String – S – this type allows user to use his own alpha-numerical string,
user declares length of field by defining mask,
● Date – D – this type indicates that column will contain date, user don't have
to declare the mask for this field, ADS will use date format declaration from
HEADER section, the length for this type of field is constant and take 10
characters.
● Time – T – this type indicates that column will contain time, user don't have
to declare the mask for this field, ADS will use time format declaration from
HEADER section, the length for this type of field is constant and take 8
characters.
● Any Type – A – this type indicates that column will contain transponder
numbers, the difference between “A” and “R” type is that in “A” type user
define the amount of saved digits by mask, for example:
EID;A;1;1;1;#### ####;;
Above, “A” column has been defined, only 8 last digits from transponder
number will be saved i memory.
D01B2.4 HHR 3000 PRO Manual 25/75
1 0 0 0 0 0 0 0 9 8 2 0 0 0 0 3 5 4 2 3 3 0 0
Only digits with gray background will be saved in memory.
● Leading Zero – Z – Using this type HHR will remove leading zeros from
column in current record. This type of column can be used for both storing
Transponder number(read with Read Transponder Number Key) or
keyboard input.
● Hex Format – H – This type indicates that column consist transponder
number stored in HEX format(ASCII style), instead of saving 23 bytes(the
R column type) H type needs 16 bytes to save the same information.
The 64 bit Transponder number will be converted to Hex format, but each
of 8 Hex format digit will be saved in ASCII format, so each of them will
take 2 bytes, in consequence of this Transponder number saved in Hex
format will be saved on 16 bytes. For H type of data mask must consist
only '&' chars. The target mask for H type is: &&&&&&&&&&&&&&&&
Example:
Transponder number in Hex format: 0x8012AC3F08C21CA0;
Data saved in column of H type: 8012AC3F08C21CA0
● Option – O – this type indicates that column has predefined list of values
and user of HHR can't write his own, he can only select one of defined
values. As option has limited way of values displayed in LCD, the mask is
pointless, so that user declares values of the list separating it by comma
(“,”), each option takes 10 characters max, and 20 values is max for one
option field;
Example:
OPTION_3;O;0;1;1;WWWWWWWWWW,1WWWWWWWWW,2WWWWWWW
WW,3WWWWWWWWW,4WWWWWWWWW,5WWWWWWWWW,6WWWWWWWWW,
7WWWWWWWWW,8WWWWWWWWW,9WWWWWWWWW;WWWWWWWWWW;
In this example column TRANSP_3 is Option type, instead of mask list of
values is placed(list of values is underlined in example) user will be able to
select one of them during work with HHR, move over you can put default
value of field.
User can define 20 options max in one field, the maximum length of each
option is 10 characters.
Example of column definition:
MOTHEREID;R;1;1;1;0000 0000 0000;;
Above, column MOTHERID has been declared, the type of this column is
D01B2.4 HHR 3000 PRO Manual 26/75
! The syntax of any line in TABLE section.
<col_name max 12ch>;<col_type 1ch>;<unique 1ch>;<edit 1ch>;
<null 1ch>;<col_mask max 25ch>;<default_val max 25ch>;
It is important to make default value match declared mask.
transponder read, this column is unique (values in column can't be repeated – you
can't read the same transponder twice), this column is editable and it can be null.
After that mask is declared, mask consist of 3 groups of digits separated with
space, there is no default value declared.
Example of TABLE section:
TABLE
MOTHEREID;R;1;1;1;0000 0000 0000;;
MOTHERVID;S;1;1;1;&&&&&;;
NRFEMAL;S;0;1;1;#;0;
NRMALE;S;0;1;1;#;0;
NRDEAD;S;0;1;1;#;0;
GOAT1;S;0;1;1;&&&&&;;
END
Example of appropriate User input database
10000000982000035423300,W6W6W,2,3,0,9WWWW
10000000982000022145678,ABC6W,2,0,1,G6J6T
D01B2.4 HHR 3000 PRO Manual 27/75
GLOBAL Section
Globals are constants, to which you have access during work with HHR 3000
PRO.
GLOBALS were developed to save space in HHR memory. If you want to place for
instance word Veterinary12345 in database field you can place only number 1
instead of long character string. Numbers and corresponding character string are
defined in section Global. Short numbers are stored in memory and corresponding
value (character string) is displayed on LCD screen.
User declares Globals by placing number of global, a colon and value of Global;
maximum length of each global is 23 characters. The maximum amount of globals
in Application Program is 99.
Global definition starts with section name in capital letters and ends with END word
in capital letters.
Example of Global section:
GLOBAL
0:FarmDolySheep
1:Veterinary12345
END
D01B2.4 HHR 3000 PRO Manual 28/75
! The syntax of GLOBAL section.
0:FarmDolySheep
1:Veterinary12345
2:AnimalGroup10
Database
... AnimGroup ...
1
2
3
2
Application Program
GLOBAL
0:AnimalGroup7
1:AnimalGroup8
2:AnimalGroup9
3:AnimalGroup10
END
Display
AnimalGroup8
AnimalGroup9
AnimalGroup10
AnimalGroup9
AnimGroup column has Global type. User can display Global field from column
using macros. Using PrintGlobal function with appropriate number you will see
results like in Display window above.
PutGlobal function, enables to write a number of global.
After receiving database from HHR numbers of globals can be easily converted
with global values.
HDS allows you to load Globals from text file during compilation and save Globals
to text file during receiving User Output Database. Those text files are “global in.txt”
and “global out.txt”. The file “global in.txt” has to be placed in the same directory
where Application Program is, “global out.txt” will be placed in the directory where
Output Database will be.
The structure of files “global in.txt” and “global out.txt”.
D01B2.4 HHR 3000 PRO Manual 29/75
global_1
vet_1
..
MESSAGE Section
Messages, are small information which informs user about some event. User can
define this event, or time when such message appears. Messages, similar to
Globals are saved in memory as a number. Messages can have maximum 30
characters and maximal number of messages is 99.
Message definition starts with section name in capital letters and ends with END
word in capital letters.
Message section syntax is analogical to Global section, the only difference is the
length of Message, it can take 30 character.
Example of Message section:
MESSAGE
0:For sale
1:Treat
2:Separate
END
Managing Leds and Sound Signal
Messages can also be used for driving Leds and Sound signal in HHR V2.
For driving LEDs and Sound signal we have three key-chars: R(Red), G(Green),
S(Sound signal); Those chars can be used in any combination as you like, for
example RGS, RS, G etc..
To define it you have to put combination of letters in the beginning of message and
separate the definition from message with '^' char.
Example:
MESSAGE
0:RGS^message_1
1:RG^message_2
2:RS^message_3
END
HHR is also driving LEDs and Sound Signal as a constant service for events:
D01B2.4 HHR 3000 PRO Manual 30/75
! The syntax of MESSAGE section.
0:For sale
1:Treat
2:Separate
● Power On - HHR turns on R(Red LED), G(Green LED) and S(Sound
Signal) for 0.5s, after that HHR turns it off;
● Reading Tag
− when HHR is reading a tag - G is blinking(0.25s On, 0.25s Off) until tag
is read or 2 seconds time for reading tag is finished
− when HHR has read tag - G is On for 3s. and S is On for 0.5s
− when HHR hasn't read tag - R is On for 3s. and S is On for 0.5s
− when HHR has read tag and some attention(warning) has appeared
e.g.: New record created - G is On for 3s. and R and S are blinking
( 0.25s On, 0.25sOff) for 3s.
D01B2.4 HHR 3000 PRO Manual 31/75
GSM Section
HHR can cooperate with external modules produced by BioControl A/S. One of
those modules is GSM. Using GSM module, user can send SMS definable in
Application Program. The content of SMS may have fields from current record from
Table or Log and static text.
GSM Section is introduced, it contain SMS definition. Each line consist of SMS
identifier and SMS structure. Length of identifier has to be shorter then 12 chars;
HHR will send up to 100 chars according to definition of SMS, HHR will share the
SMS content to 130 char groups and send it as concatenated SMS. If amount of
chars to send is smaller then 130 chars, only one SMS will be sent.
User can put constant text or data from column in the SMS definition. SMS
identifier and SMS definition is separated with colon. Placing field from memory in
SMS is done by putting column name between “<” ”>” chars.
Example of section:
GSM
new_anim:new animal;<EID>;<VID>;<DOB>;<SEX>;<BREEDING>;<WEIGHT>;
att:attentions;<EID>;<VID>;<ATT1>;<ATT2>;<ATT3>;<FLAG1>;<FLAG2>;<FLAG3
>;<FLAG4>;
bol_del:bolus deleted;<EID>;<VID>;
found_anim:foundanimal;<EID>;<VID>;<DOB>;<SEX>;
<BREEDING>;<WEIGHT>;
END
Every char that is after “:” and isn't between “<” “>” is constant char which will be
send in every SMS regardless of data in TABLE or LOG. Strings placed between
“<” and “>” are column names, data from those columns(current record) will be
send using SMS.
SMS can be send from HHR when user enter SMS Icon in HHR screen.
D01B2.4 HHR 3000 PRO Manual 32/75
! The syntax of GSM section.
sms_iden:free_text<column_name> free text
Usage in Application Program
Three functions was introduced to handle GSM module:
● SetGPRSOnOff(x,y,font)
● SetSIMCardPin(x,y,font)
● IconSendSMS(x,y,global_number,sms_identifier,'next')
All of those functions are screen functions, SetSIMCardPIN is used to put PIN of
just inserted SIM card. PIN for SIM card is necessary for logging to GSM network.
SetGPRSOnOff turns off and on module and logs to GSM network. After that User
is able to send SMS by selecting SMS Icon created by using IconSendSMS
function in Application Program.
Parameters for IconSendSMS are x and y which responses to coordination of the
icon in the screen, global number where SMS receiver telephone number is, SMS
name identifier and 'next' parameter which is analogical in IconDelete or
IconFindCol.
Please remember to put telephone number with country code but without “+” char
at the beginning.
Please refer to example Application Program(EXAMPLE APP 07 GSM.txt) if
necessary.
D01B2.4 HHR 3000 PRO Manual 33/75
MACRO Section
From the user's point of view macro is a set of screens, with database fields
values, which require to be individually completed in order to manage the
database.
Macros are the core of Application Program. Organize working of HHR after
entering menu. User can create as many macros as he want, but very important is
that HHR 3000 PRO has 256kB EEPROM memory for V1 and 512kB EEPROM
memory for V2, where application program and user database are placed.
Application Project can't oversize 256kB for V1 and 512kB for V2 .
Macro definition starts with section name in capital letters and ends with END word
in capital letters.
Each macro starts with begin_macro:macro_name and ends with end_macro,
macro name is used to identify macros at MENU section. Each macro consist of 3
sections, Action area, Control area and Screens.
Action area consists of function carried out when Special Screen functions are
performed or Transponder Read button is pressed(other options available), it
depends on definitions included in Action Area.
Action area starts with begin_action_area and ends with end_action_area,
Control area starts with begin_control_area and ends with
end_control_area.
Action area and Control area(each of them) can maximally consist of 25 functions.
Only 25 database fields can be modified(edited) in each macro.
Action area and Control area are concerned when current record number changes,
current record number is simply a number of record on which a user is working at
specified time, a number of record can be changed by functions at screens. When
Special Screen Function changes a record number Control area runs, and after
that Action area. It is very important you to understand that Action Area and Control
Area runs only if record is changed by Special Screen Function, it is possible to
show it to you as if-clause (decision block).
There are also Special Action Area functions which define HHR to move to Control
D01B2.4 HHR 3000 PRO Manual 34/75
area and after that to Active area; for example when user press the Transponder
Read button.
The Special Action Functions are ReadNew, ReadSeek, AddRec, Read. The
Special Screen Functions are EditReadNew, EditReadSeek, IconAddRec,
EditNewField, IconConfirm, EditSeekField. Those Special functions will be
described after general macro description.
Flow chart 1
Description of each point on flow chart 1.
1. User enters macro, HHR is checking whenever a Special Action Function
is in Action Area, if it is, HHR sets its registers to know where call-back if:
● Special Screen Functions would be performed,
● Transponder Read button would be pressed(TR button must be
predefined to work in Action Area with one of Special Action
Functions).
Only one Special Action Function is allowed to be in the Action Area, if you
put more then one last of listed will be regarded.
D01B2.4 HHR 3000 PRO Manual 35/75
At point 1 when user enters macro no functions are performed, HHR is
only checking if a Special Action function is in Action Area and after thats
goes to first screen.
1. HHR perform all Screen functions included in Screen 1
2. HHR perform all Screen functions 1 from Screen 2, after that HHR run into
Special Screen functions then HHR move to Control Area and perform its
functions, after that HHR move to Action area and perform its functions.
Next HHR returns to Screen 2 and perform Screen functions 2
3. HHR perform all Screen functions in any screen only if there is less then 10
screens in each macro
4. HHR moves to next screen and perform its functions.
As it was already mentioned after entering the macro(and action area) HHR only
check if Special Action Area function is in code, if it is HHR sets its registers, if
there isn't any nothings happens, next HHR move to screens and run first screen.
Flow chart 2
The Special Screen functions or using defined Transponder Read button make
HHR behave the same way. HHR moves from current screen to Control Area and
performs functions assigned there, after that HHR moves to Action Area and
perform functions and at the end HHR comes back to screen that user was before.
To give you more detailed look let's assume that Transponder Read button is
defined by Special Action Area function, then HHR will be working according to
points below(based on flow charts)
● move from current screen(screen 2) to Control Area
● perform all Control Area functions and move to Action Area (3b
D01B2.4 HHR 3000 PRO Manual 36/75
point at flow chart 2)
● Perform Special Action Area function and Action Area function 2,
you may think that Special Action Area function has only one
purpose(ex: defining TR button) but those function take many
action at one time for example: reading transponder; looking for it
in Table, creating a new record and more. For more detailed
information refer to Special Action Area functions chapter.
● move from Action Area to screen where HHR was before
pressing the Transponder Read button (3c on flow charts).
Example of macro section:
MACRO
begin_macro:SETTING
begin_action_area
ReadNew(MOTHERID)
end_action_area
begin_screen
PrintText(0,0,0,"RECORDS:")
PrintExp(46,0,0,count(*))
PrintText(115,0,0,"2.1")
DrawLine(0,6,127,6)
PrintText(0,10,1,"Time:")
SetTime(40,9,1)
PrintText(0,25,1,"Date:")
SetDate(40,24,1)
DrawLine(0,63,127,63)
end_screen
begin_control_area
Copy(table)
end_control_area
end_macro
END
The Special Action function and Special Screen function were mentioned in this
chapter many times, those function have the key-role in creating macro.
IMPORTANT :
The Special Action Functions are ReadNew, ReadSeek, AddRec, Read.
The Special Screen Functions are EditReadNew, EditReadSeek, IconAddRec,
EditNewField, IconConfirm, EditSeekField.
D01B2.4 HHR 3000 PRO Manual 37/75
Keyboard
Keyboard buttons have predefined functionality and there is no possibility to
change this functions by the user. These functions are defined in HHR Operating
System.
The keyboard rules:
To move from one data field to the next on HHR's LCD use the Enter key or
Down/Up Arrows. Rectangle around data field is a cursor. The important issue
about Enter Key is that skip all icons except IconConfirm, if user wants to access
Icons he has to do it with Up/Down Arrows.
To enter edit-mode at current cursor position user have to press a button from
numerical keyboard (from 0 to 9), after it HHR will clear the consistence of frame
and allow user to set a new value with numerical keyboard. User can use the
backspace button(back arrow) to fix the value or finish editing with Enter key.
HHR enables to use Speed Mode, which allows user to finish editing with a Up or
Down Arrow and move to next/previous record. The mode can be turned off/on for
whole App program in HEADER section.
If user wants to cancel editing and return to the last value he will have to make a
long press of backspace button(back arrow).
If the cursor is placed on transponder number database field, user can put this
value by Read Transponder button.
To move to the next screen use Power On/Off, screens are changing in a loop if
HHR reaches the last screen HHR moves to the first screen.
User can move to next or previous record with Up and Down Arrow buttons
Long Press.
If you are using Speed Mode you must be aware that none icons are available to
put in Screens, the functions which aren't allowed to use are:
● IconDelete
● IconAddRec
● IconFindCol
● IconConfirm
● AddRecConf
D01B2.4 HHR 3000 PRO Manual 38/75
Keyboard Rules
The Key Speed Mode Normal Mode
Enter Key Moves cursor to the next operation input box(skip icons except Icon Confirm); finish
editing a value in input box; enter to icon function.
Back Space Short press: out of macro, menu, delete last character when editing a value in input
box.
Long press: out of editing a value in input box without changing it.
0..9 If the cursor is in field(input box) starts editing a value in field(input box)
Transponder Read Depending on App Program reads transponder number.
Power On/Off Moves to the next screen, if HHR reaches last screen move to the 1st one.
Arrow keys Save current record in memory and
moves to the previous record (down
arrow), or next record (up arrow).
Short press: move to the next field (input
box) and icon (+ ; - ; search ; confirm)
Long press: Move to the previous (Down
arrow) or next (Up arrow) record.
When user is editing a value in field(input
box) moves between characters.
D01B2.4 HHR 3000 PRO Manual 39/75
Creating a Macro and user functionality
Summary of available functions in HHR OS are in Appendix B
Second part of Programmers Manual “HHR 3000 Pro Functions”
describes in detail all functions which could be used in macro.
We can make automatic fulfilling a current or new record in database. We can
define when such action will be taken - when user press transponder read button,
or enter manually a transponder number to selected transponder field, or click on
“+” icon to add new record.
The key element in each macro is special screen functions and special action
functions.
Special action functions define a position below each action function will be
performed. Look at macro NEW_REC placed in example at the end of “HHR 3000
Pro Functions”.
Only functions which are below ReadNew function will be performed if user
press Read button (ReadNew function call and go to action area). If you
would put anything before ReadNew function in action area it wouldn't be
performed.
According to example, ReadNew function defines a transponder read button to
work in whole macro, so after pressing it a functions from action area placed below
ReadNew function will be performed. In that case HHR's user after pressing the
button will add a new record fulfill it automatically with defined in App Program
data, and return to screen where user was at the beginning. User won't even see
any changes on the screen everything will be done in “background”, the only
change that will be performed is that current record might be changed and data in
the fields will change.
There is also a control area where you can put a Copy function which will copy
current record to a buffer, to paste the data to new record. You can use a Paste
function in Action area. Control area will be performed by Special Screen Function,
but you should do it wisely because HHR will copy and paste any value without
controlling consistence of it.
There is only a slice difference between ReadSeek and ReadNew (EditReadSeek
and EditReadNew) but you can use it to make a read-only mode or write and
update mode. It is possible because ReadSeek (EditReadSeek) seek for
transponder number in database. If HHR doesn't find one, nothing happens, HHR
comes back to the screen.
ReadNew (EditReadNew) seek for transponder number in database and if
HHR doesn't find it HHR will create a new record, perform all Action functions
and put a transponder number to indicated column.
Another very important issue in each macro is understanding the sense of action
performed by function for instance:
IconDelete deletes current record and set a first record in database as
current record.
IconFindCol displays a new window on HHR's LCD where user can select a
value(and automatically a record), after selecting a value by user, current record
D01B2.4 HHR 3000 PRO Manual 40/75
number will change to the selected one.
There is also Sorting function in Action area which define after which column HHR
will sort data, this function also changes current record number according
parameters.
All those functions are sort of database manage functions, thanks to them user can
handle database by erasing, adding or modifying records.
The main advantages of HHR script language are:
● Automation – the structure of macros allow to perform set of functions on
an event, which may be caused by pressing transponder read button or
performing special screen function. HHR allows for automatic fulfilling (part
or whole) new record. User can automatically add a information about new
record to Log and register there newly read transponder, weight or health
status.
● User interface – HHR by its functions like DrawLine, DrawRec and
PrintText makes the opportunity to create friendly user interface. The same
functions might be used to design a start screen for HHR, such start
screen helps to identify the application program that HHR is programmed
with.
● Data validation - masks give an opportunity to control entering data. There
is no possibility that HHR will allow to put a values incompatible with mask.
If you want to close the list of values which will be placed in a column you
can use a global type or option type where is no possibility to put
inadequate value.
● Log – Log enables user to save information in Log table freely definable,
this is useful in registering any animal events, Log is received from HHR to
PC the same like Table but it allows to analyze data in shorter time.
Those are the main advantages of HDS, if you want to use maximum abilities of
HHR think of using those points in yours programs.
D01B2.4 HHR 3000 PRO Manual 41/75
! Read function rule.
If any of Read function (ReadNew, ReadSeek) has been used in Action Area,
any of Read function(EditReadNew, EditReadSeek) can't be used in Screens in
the same Macro.
It is extremely important you to follow this rule, otherwise Application
Program won't be compiled by HHR Manager.
MENU Section
Designing menu is very simple, a menu schema is similar to the tree in some way.
A menu definition example
MENU
M0:{New Animal,M2};{View/Edit DB,M3};{Farm & Vet,M4};{Settings,M1}
M1:{BlueTooth,M6};{Date/Time,M5}
M2:NEW_REC
M3:VIEW
M4:GLOBAL
M5:DATE
M6:BLUETOOTH
END
The lines are enumerated with M<menu_element_number>: to help you better
organize your menu, with enumeration you don't have to define the same menu
many times if you want to refer to it more than one time.
The M0 level is a trunk of menu design, its main menu, the first menu that is shown
on the screen, just after a start screen. The menu design syntax is following: just
after enumeration and colon you define list of menu elements in curly brackets,
each menu element is in bracket. Brackets are separated each other with
semicolon, last menu element isn't followed by any char.
Every curly bracket contain two parameters:
1. Menu value which will be displayed on HHR screen,
2. Menu identifier that current menu element refer to, after entering a menu
item a sub-menu identified by menu identifier will run.
Each menu or sub-menu item has to be finished with macro, you can connect
macro with menu identifier in following way: after menu enumeration and colon you
have to enter a macro name defined in macro section, the size of letters is
important.
D01B2.4 HHR 3000 PRO Manual 42/75
According to the example above we can present this menu like a flow-chart.
The flow-chart presents the menu structure, we have a main menu(M0 level) and
one sub-menu(M1 level), the elements in rectangles are macros – the final step for
each element in menu or sub-menu.
You can put maximum 10 elements in each menu or sub-menu. The maximum
length of menu value which displays on the screen is 12 characters. The maximum
level of menu is 4, so the longest way to get to the macro is 4 steps.
D01B2.4 HHR 3000 PRO Manual 43/75
M0:
New Animal
View Edit DB
Farm & Vet Settings
M1:
BlueTooth
Date / Time
M3: VIEW
M2: NEW_REC
M5: DATE
M6: BLUETOOTH
M4: GLOBAL
START SCREEN Section
This section allows you to define a screen which will appear on HHR's LCD just
after turning on a HHR. User can close this screen (move to menu) by pressing any
button or screen close itself after a few (5) seconds.
The functions which might help you defining a Start Screen are:
PrintText(x,y,font,text)
PrintText functions simply prints text on HHR's LCD, the parameters:
● x – describe horizontal position of text. X can't take more then 127 (LCD
dimensions).
● y – describe vertical position of text. Y can't take more then 63 (LCD
dimensions).
● font – describe font size, there are 6 font sizes, you can select a one by
choosing a digit from 0 to 5 where 0 is the smallest size and 5 the biggest.
● text – the text which you want to appear on HHR's LCD, according to
function syntax you have to take the text in quotation marks.
Example:
PrintText(0,0,0,"TABLE: ESPANA 01BT")
PrintVersion(x,y,font)
PrintVersion functions prints a number of HHR OS, the parameters:
● x – describe horizontal position of text. X can't take more then 127 (LCD
dimensions).
● y – describe vertical position of text. Y can't take more then 63 (LCD
dimensions).
● font – describe font size, there are 6 font sizes, you can select a one by
choosing a digit from 0 to 5 where 0 is the smallest size and 5 the biggest.
● text – the text which you want to appear on HHR's LCD, according to
function syntax you have to take the text in quotation marks.
Example:
PrintVersion(25,25,2)
DrawLine(x1,y1,x2,y2)
DrawLine function draws a line on HHR's LCD according to coordinates given in
parameters where x1 and y1 is first point and x2, y2 is the second point.
Example:
DrawLine(12,32,12,45)
DrawRec(x1,y1,x2,y2)
D01B2.4 HHR 3000 PRO Manual 44/75
DrawRec function draws a rectangle on HHR's LCD according to coordinates given
in parameters where x1 and y1 is first corner and x2, y2 is the opposite corner.
Example:
DrawRec(12,32,12,45)
Start Screen Example:
START_SCREEN
begin_screen
PrintText(0,0,0,"TABLE: PRACTISE 02")
DrawLine(0,6,127,6)
PrintText(33,20,5,"MY_COMPANY")
DrawLine(0,56,127,56)
PrintText(0,58,0,"HHR:")
PrintVersion(21,58,0)
end_screen
END
D01B2.4 HHR 3000 PRO Manual 45/75
WARNING Section
Warning section allows you to customize standard messages (warnings) which
appear on HHR's LCD. Time of displaying warning is definable you can set it from
0sec to 9 sec. We can share all the messages to:
● HHR OS control messages.
● User Messages.
● Data entering messages.
If you wish to change time of displaying warning(turn it off) please put one
digit(time), after that '^' char and content of warning. You must be aware that those
2 chars are taken into account as warning content, so you can define not 30 chars
but 28.
Syntax:
<warning_name>:<warning_time>^<warning_value>
Example:
w_TAGEXIST:0^Transponder/already exist!
That line would turn off w_TAGEXIST warning in HHR, so it would be never
displayed in HHR.
Below a list of standard warning is presented, during creating Application Program
you don't have to declare all the warning, those which you left undeclared will take
a standard value, moreover during creation you don't have to put warnings in
sequence(as it is in table), you can put it whatever you like.
List of standard warnings
Name Standard value
w_WAIT Please/wait!
w_UNIQUE This value/must be unique!
w_NOEDIT This value/is NOT editable!
w_NOTNULL This value/must be not null!
D01B2.4 HHR 3000 PRO Manual 46/75
! Warning Rules
Maximum length of warning(value) is 30 characters.
Character “/” are signal for break-line HHR. Maximum amount of breakline in each warning is 3.
The warning syntax is following:
<warning_name>:<warning_value>
Name Standard value
w_LOWBATTERY Low battery!
w_CHARGEBATTERY Battery/charging!
w_NOT_FREE_MEMORY No free memory!
w_NOT_STORED NOT STORED!
w_STORED STORED!
w_DATE_GOOD Date changed.
w_DATE_NO_CHANGE Date not/changed.
w_DATE_NOT_GOOD Wrong date!
w_TIME_GOOD Time changed.
w_TIME_NO_CHANGE Time not/changed.
w_TIME_NOT_GOOD Wrong time!
w_NOTAG No Tag.
w_READING Reading transp.
w_SHUTOFF See you!
w_USBCONNECTED USB/connected!
w_NEW_REC Creating/new record!
w_CHOICE Choice:
w_FIND Find:
w_TAGNOTFIND Transponder/number not find!
w_TAGEXIST Transponder/already exist!
w_YES YES
w_NOT NOT
w_ADD_REC Do you want add the new rec.?
w_DEL_REC Do you want del current rec.?
w_UNKNOWN_MES Unknown Message
w_VALEXIST This value/already exist!
w_BTACTIVE BlueTooth/is activated
w_BTNOACTIVE BlueTooth/is closed
w_ON Turn on.
w_OFF Turn off
w_MEMORY FREE MEMORY
w_RECSTORE New record/stored!
w_RECNOSTORE New record/not stored!
w_NOFIND Value/not find!
w_NOANIMAL No animal code!
D01B2.4 HHR 3000 PRO Manual 47/75
Name Standard value
w_COUNTRY Wrong country code!
w_DEL_LOG Do you want to/DEL whole LOG?
w_NEW_LOG New log/rec created!
w_DELR Do you want to/DEL rel rec?
w_RSACTIVE RS232/is activated
w_RSNOACTIVE RS232/is closed
w_GSMACTIVE GSM/is activated
w_GSMNOACTIVE GSM/is closed
Example:
WARNING
w_NOTAG:Tag missing.
w_WAIT:Wait!
w_UNIQUE:This value/isn't unique!
w_NOEDIT:You can't edit this value
w_TIME_NO_CHANGE:Accepted
w_TIME_NOT_GOOD:Time Error
END
D01B2.4 HHR 3000 PRO Manual 48/75
Appendix A : Quick Reference
To help you get into the subject or quickly modify already existing Application
Program use this quick reference. If anything would be unclear or not precise
enough refer to specific chapter in a manual.
The quick reference is going to be build on a program example, explaining all
sections according to required order.
● HEADER Section
HEADER
Quick_Ref
2007/04/15
18:34:59
dd/mm/yyyy
hh:mm:ss
;
LOG_false
.
BT_false
GL_section
END
Header section defines standard and constant settings for HDS, like date
format(line no. 5), time format(line no. 6), current date and time(lines no. 2 and 3) if
you need more information concerning HEADER Section refer to its chapter.
● TABLE Section
TABLE
C_ID_ELEC;R;1;1;1;0000 0000 0000;;
BREED;S;0;1;1;00;00;
SEX;O;0;1;1;H,M,;M;
END
Table section is used to declare main table in HHR. It's simply a description of all
the columns in Table. First parameter is a column name, by this name you refer to
column in macros, second one is type, HDS allows you to use several types of
column (types of data stored in HHR's memory), the sixth parameter in column
definition is a mask definition. It is very important because this value decides how
the data will be displayed on HHR's LCD. If you need more information concerning
HEADER Section refer to its chapter.
● GLOBAL Section
GLOBAL
0:FarmDolySheep
1:Veterinary0123
END
D01B2.4 HHR 3000 PRO Manual 49/75
Globals are sort of user standard values, equivalent of its in programming
languages are variables, only a number of a global is saved in HHR data table (not
the value), so that we are saving free space in HHR's memory. Maximum length of
global is 23, you can declare maximum 30 globals.
● MESSAGE Section
MESSAGE
0:Treat
1:ForSale
2:RS^message
END
Messages are small notes displayed on HHR screen that notify user about
something. You can add the messages to database and include it in records(ex:
“Treat”, “Lambing”), messages like globals aren't saved in database it is defined in
Application Program and only a number of message is stored in memory.
Whenever you would like to change a message value in App program don't
hesitate, the only restriction is that message has to be shorter then 30 characters.
You can define actions of LEDs and Sound signal by R,G and S.
● MACRO Section
MACRO
begin_macro:LAMBING
begin_entry_area
ReadNew(MOTHEREID)
FillExp(DATE,date())
end_entry_area
begin_screen
PrintExp(46,0,0,count(*))
PrintText(115,0,0,"1.1")
DrawLine(0,6,127,6)
PrintField(0,25,1,MOTHEREID)
end_screen
begin_exit_area
end_exit_area
end_macro
END
Macros are the core of Application Program and Project, if you aren't common with
macros, we suggest you not to make any changes, because even if program will
compile there might be a logic errors like pasting data without copying it and many
others.
● MENU Section
MENU
M0:{New Animal,M2};{Settings,M1}
M1:{BlueTooth,M3}
M2:NEW_REC
D01B2.4 HHR 3000 PRO Manual 50/75
M3:BLUETOOTH
END
The designing menu is very simple with comparison to creating/modifying a macro,
you can freely change the menu values(labels) which will appear on the screen, the
only restriction is that in can not be longer then 12 characters. The menu
values(labels) you can find in each curly bracket as first parameters, it is separated
of menu identifier, which is very important and you shouldn't change it without
referring to Menu reference.
● START SCREEN Section
START_SCREEN
begin_screen
PrintText(0,0,0,"TABLE: PRACTISE 02")
PrintVersion(21,58,0)
end_screen
END
Start Screen according to the name is a screen which appear just after HHR is turn
on, Start Screen section has a few function, mainly a text function so you can
change the text displayed on the screen by changing characters strings in
quotation marks in each function. Although to make it easier for you we suggest
you to refer to Start Screen chapter in manual.
● WARNIG Section
WARNING
w_NOTAG:Tag missing.
w_WAIT:Wait!
END
Warnings are standard messages which appear on HHR screen the list of events
and standard values is placed in Warning chapter of this manual, you can change a
standard warning value by modifying a string(not more than 30 characters) after
colon in each line in warning section.
D01B2.4 HHR 3000 PRO Manual 51/75
Appendix B : Function List
Function syntax Description
Screen Function
PrintText(x,y,font,text) Prints text on HHR's LCD
PrintField(x,y,font,col_name) Prints consistence of field on HHR's LCD
PrintExp(x,y,font,expression) Prints an expression on HHR's LCD
PrintAnimalMark(x,y,font,col_name) Prints 1st digit from Transponder number on LCD
PrintRetagging(x,y,font,col_name) Prints 2nd digit from Transponder number on LCD
PrintUserInfo(x,y,font,col_name) Prints 3-4 digits from Transponder number on LCD
PrintReserved(x,y,font,col_name) Prints 5-6 digits from Transponder number on LCD
PrintAddInfo(x,y,font,col_name) Prints 7th digit from Transponder number on LCD
PrintCountryNumber(x,y,font,col_name) Prints 8-11 digits from Transponder number on LCD
PrintAnimalNo(x,y,font,col_name) Prints 12-23 digits from Transponder number on LCD
PrintCountryCode(x,y,font,col_name) Prints country code on HHR's LCD
PrintCountryName(x,y,font,col_name) Prints country name on HHR's LCD
PrintGlobal(x,y,font,global_no) Prints global on HHR's LCD
DrawLine(x1,y1,w,h) Draws a line
DrawRec(x1,y1,w,h) Draws a rectangle
EditMaskedField(x,y,font,col_name)
EditReadField(x,y,font,col_name)
EditChoiceField(x,y,font,col_name)
EditChoiceFast(x,y,font,col_name)
EditGlobalField(x,y,font,col_name)
EditDataField(x,y,font,col_name)
EditTimeField(x,y,font,col_name)
Each of this function enables to edit a value in
pointed column at current record; during creating
Application Program you must remember to match
function with column type.
EditGlobal((x,y,font,gl_no,gl_mask) Edit Global according to given mask
EditCounter(x,y,font,gl_no,count_no) Edit value of counter.
EditSeekField(x,y,font,col_name) Find value entered from keyboard, move to its record.
IconDelete(x,y,db_ident,oper_el) Place icon deleting a record
IconDeleteRel(x,y,db_ident,oper_el) Place icon deleting a record, and records related to it.
IconFindCol(x,y,col_name,oper_el) Place icon 'finding a record in table'
EditCounter(x,y,font,counter_no) Set the maximum value for counter
SetDate(x,y,font) Set Date
SetTime(x,y,font) Set Time
SetPin(x,y,font) Set Pin
SetBTName(x,y,font) Set device name in Blue Tooth
SetBTOnOff(x,y,font) Turn Off/On Blue Tooth
D01B2.4 HHR 3000 PRO Manual 52/75
Function syntax Description
SetBTPin(x,y,font) Set a pin for Blue Tooth
IconBT(x,y) Put a icon of Blue tooth
IconRS(x,y) Put a icon of Blue tooth
IconGSM(x,y) Put a icon of Blue tooth
ArrowUp(x,y) Draws Up Arrow
ArrowDown(x,y) Draws Down Arrow
DelLog() Deletes a Log
Continue(c_param) Turns on continue reading.
RSOnOff(x,y,font) Turns on/off RS232 module
SetRSSpeed(x,y,font)
SetRSDataBits(x,y,font)
SetRSParity(x,y,font)
SetRSStopBits(x,y,font)
Enable user to change hardware parameters of
RS232 in time of using HHR.
TTWeight(x,y,font,col_name) Receives current weight from TT scales
TTAVG(x,y,font,col_name) Receives AVG weight from TT scale
IconixWeight(x,y,font,col_name) Receives weight from Iconix scale
SetGPRSOnOff(x,y,font) Turns on/off GPRS module
SetSimCardPin(x,y,font) Saves SIM Card Pin in Memory of HHR
IconSendSMS(x,y,glo_no,sms,oper_el) Sends SMS according to SMS frame(param: sms)
Special Screen Functions
EditReadNew(x,y,font,col_name) Gets transponder number by TR button
EditReadSeek(x,y,font,col_name) Gets transponder number by TR button
IconAddRec(x,y,font,db_ident,oper_el) Place icon creating a record
EditNewField(x,y,font,col_name) Creates a new record with placed value
IconConfirm(x,y,operation_el) Place confirmation icon for creating record.
Control Function
Copy(db_ident) Copies current record to memory
Action Function
FillExp(col_name,expression) Place a value of expression to pointed column
FillExp_p(col_name,expression) Place a value of expression to empty field in DB,
ShowMessage(col_name) Prints message on HHR's LCD
Paste(col_name) Pastes a value to field (required copy in control area)
Paste_p(col_name) Pastes a value to empty field
PutGlobal(col_name,gl_no) Place a global in field
Sorting(col_name) Define sorting column at current macro
Join(t_col_name,l_col_name) Creates a relation between Log and Table
FillAddRec(db_ident) Creates a record at pointed table
Beep(col_name,counter_no) “Beep” when amount of values in col > value counter
Empty() Sets the empty record at entering macro
D01B2.4 HHR 3000 PRO Manual 53/75
Function syntax Description
AddRecConf(db_ident) Creates a record which needs confirmation
IncPaste(col_name)
IncPaste_p(col_name)
Put value from last record, increments it and put to
current record. For IncPaste_p only for empty field.
Special Action Functions
ReadNew(col_name) Define Transponder read button
ReadSeek(col_name) Define Transponder read button
AddRec(db_ident) Creates new record
Read() Read transponder number and place it in buffer
Expression
count(col_name|db_ident.*) Value of non-empty record at given column
incCount(col_name) Value of non-empty record at given column
date() Current date
time() Current time
noofrec(db_ident) Number of records in Table or Log
mFull() The amount of full memory
mEmpty() The amount of free memory
“free text” The user defined text, up to 23 chars or mask length.
amountRecJoined() Amount of joined records, only for PrintExp
numberRecJoined() Number of joined record, only for PrintExp
Parameters description:
● x – the horizontal coordinate on the screen, take values 0 – 127.
● y – the vertical coordinate on the screen, take values 0 – 63.
● col_name – name of column declared in TABLE or LOG section.
● font – size of font used to present data, take values 0 – 5.
● db_ident – identifier of database on which you want to operate.
● gl_no – number of global on which you want to operate.
● oper_el – a value defining where frame should move after performing a
function. 0 - stay on function operation element; 1 – move to previous
operation element; 2 - move to next operation element
● gl_mask – define mask of entering global, mask declared according to
mask rules in TABLE section.
● t_col_name – name of column declared in TABLE section.
● l_col_name – name of column declared in LOG section.
● text – a text which you want to be displayed.
● expression – sort of function which return value, list of expressions is
included in table above.
● x1, y1 – top-left point of line or rectangle, x1 - 0..127 y1 - 0..63
● w, h – width and height of line or rectangle, it can take
w – 0..127, h – 0..63
D01B2.4 HHR 3000 PRO Manual 54/75
Appendix C : Log
Log is a 2nd table which user can use to save information in database about events,
or make space-saving records which contain small amount of information.
Log is freely definable similarly to Table it takes 7 parameters, the way to define
column in Log is analogical to defining columns in Table, refer to Table Section
chapter.
The idea of log has been found to help you operate on information about
events(user-defined) concerning one specified column in TABLE section (ex.
Transponder number). In the other words you are able to see one record from
TABLE and appropriate record from LOG, there is a possibility to display next or
previous records from LOG concerning selected record in TABLE. If you are
familiar with database technique Table and Log are related by 1 to ∞.
Creating relation between columns in Table and Log is managed by Join function
described in Function Assembly.
HHR enables you to display all the data from Log according to relation(Join
function), you can manage displaying process by Sorting function, the function is
described in Function Assembly.
D01B2.4 HHR 3000 PRO Manual 55/75
! The syntax of any line in LOG section.
<col_name max 12ch>;<col_type 1ch>;<unique 1ch>;<edit 1ch>;
<null 1ch>;<col_mask max 25ch>;<default_val max 25ch>;
It is important to make default value match declared mask.
Flow chart 1.
Table and Log definition for Flow chart 1.
TABLE
MOTHEREID;R;1;1;1;0000 0000 0000;;
DATE;D;0;1;1;0000000000;;
SEX;S;0;1;1;######;;
END
LOG
MOTHEREID;R;1;1;1;0000 0000 0000;;
DATE;D;0;1;1;00000000000;;
EVENT;S;0;1;1;#######;;
VALUE;S;0;1;1;####;;
END
The relations are defined by Join function in Action Area, there can only be one
Join function in each macro.
The syntax:
Join(table.col_name,log.col_name)
Join function connects column from Table to column from Log, this connection will
D01B2.4 HHR 3000 PRO Manual 56/75
be used by HHR to compare the values and operate on records with equal value in
indicated columns. The columns given as parameters must agree with type
according to the flow chart 1:
● A relation: both columns are transponder read type (R)
● B relation: both columns are date type.
Example:
Join(table.MOTHEREID,log.MOTHEREID)
Join(table.DATE,log.DATE)
Join function automatically update Joining column at current record, for example if
we would get a transponder number and place it in table
(ReadSeek(table.col_name) after that jointed Table and Log with Join Function,
and created a new record in Log(FillAddRec(log)) then new record in Log would
appear with just read transponder number.
Example:
ReadSeek(table.EID)
Join(table.EID,log.LEID)
Sorting(log.*)
FillAddRec(log)
//now column LEID in Log in current record number
//is fulfill with transponder number read by
//ReadSeek function
PutGlobal(log.EVENT,1)
FillExp(log.DATE,date())
FillExp(log.TIME,time())
According to example above ONLY AFTER JOIN function we can automatically
put data to Log.
Of course you can use different types of columns in Join function but this variant is
used only for very specific needs, and its narrow-range usable. Remember that you
must consider all the values which may appear in columns and sense of
connecting column in such case.
You can organize way of displaying data from Log by Sorting function, this function
defines way of using Up Arrow and Down Arrow buttons.
Function syntax:
Sorting(col_name)
This function sort displayed data according to alphabetical(ASCII) order, pressing
Down Arrow will make HHR move to bigger value(ASCII order) in indicated column,
and Up Arrow will make HHR move to smaller value(ASCII value).
Example:
D01B2.4 HHR 3000 PRO Manual 57/75
Sorting(log.DATE)
Sorting(log.EVENT)
Sorting(log.*)
At first example of Sorting function the first record from Log that user will see will
be containing the smallest data, by smallest I mean that 2007/01/12 is smaller than
2007/01/14, because “2”(last digit) is smaller in ACSII enumeration then “4”. During
comparing values the first character is the most important. In second example first
will be displayed columns with “Treat” value and after that records with ”Weight”.
If you want to display data in order like it is in memory put a “*” instead of column
name.
Function Sorting may be used without Log, this function define actions taken when
buttons are pressed and it is usable even if user is operating only on Table.
The Log Rules
To enable Log in HHR:
1. Place “Log_true” in HEADER section.
2. Place LOG section with column definition.
3. In every function requiring column name place database identifier, a “.” and
column name.
Example:
HEADER
EXAMPLE 01a
2007/01/29
18.34.59
dd/mm/yyyy
hh:mm:ss
;
LOG_true
,
BT_false
END
TABLE
EID;A;1;1;1;#### ####;;
END
LOG
LEID;A;0;1;1;#### ####;;
EVENT;G;0;1;1;00;;
VALUE;S;0;1;1;##;;
TIME;T;0;1;1;000000000;;
DATE;D;0;1;1;0000000000;;
END
MACRO
begin_macro:VIEWLOG
begin_action_area
ReadSeek(table.EID)
D01B2.4 HHR 3000 PRO Manual 58/75
Sorting(log.*)
Join(table.EID,log.LEID)
end_action_area
begin_screen
PrintText(0,0,0,"LOG:")
PrintExp(21,0,0,noofrec(log))
PrintText(105,0,0,"3.2.1")
PrintText(53,0,0,"OF:")
PrintExp(69,0,0,count(log.*))
DrawLine(0,6,127,6)
PrintText(0,7,2,"TEID:")
PrintField(40,7,2,table.EID)
IconFindCol(75,50,table.EID,0)
PrintText(0,17,2,"LEID:")
PrintField(40,17,2,log.LEID)
PrintText(0,27,2,"Event:")
EditGlobalField(40,27,2,log.EVENT)
PrintText(0,37,2,"Value:")
EditMaskedField(40,37,2,log.VALUE)
PrintText(0,47,2,"Time:")
EditTimeField(40,47,2,log.TIME)
IconDelete(100,50,log,0)
IconAddRec(53,50,log,0)
DrawLine(0,63,127,63)
end_screen
begin_control_area
end_control_area
end_macro
END
Using Log
You can manage Log on HHR by two functions:
● Sorting
● Join
Join function defines relation between Table and Log, if you change a current
record number in Table, current record number in Log will change too.
If you create a new record in Table and fulfill column given as parameter in Join
function,
Without using this function displayed data form Log wouldn't have been connected
with current record from Table.
Function Sorting organize way of displaying data on HHR's LCD by this function we
can display all records from Log (according to Join function) by switching records
with Up and Down Arrow buttons. Or otherwise we can display all records from
Table with Up and Down Arrow buttons.
D01B2.4 HHR 3000 PRO Manual 59/75
The first circumstance of using Sorting function is presented in example above and
to make second one work it is enough to change parameters in Sorting function to :
Sorting(table.*)
To help you better understand Log and Table integration look back at the Flow
chart 1 at the begging of this appendix.
The “A” relation connects two R-type columns, the Sorting function will organize
sequence of displaying records from Log. For the “B” relation two D-type columns
are connected and again displaying date will be organized by Sorting function.
For each of relation above Sorting after some column in Table is available, then
you could change current record number in table without changing current record
number in Log.
Example:
MACRO
begin_macro:VIEWLOG
begin_action_area
ReadSeek(log.MOTHEREID)
Sorting(log.*)
Join(table.MOTHEREID,log.MOTHEREID)
end_action_area
begin_screen
PrintText(0,0,0,"LOG:")
PrintExp(21,0,0,noofrec(log))
PrintText(105,0,0,"3.2.1")
PrintText(53,0,0,"OF:")
PrintExp(69,0,0,count(log.*))
DrawLine(0,6,127,6)
PrintText(0,7,2,"Table EID:")
PrintField(40,7,2,table.MOTHEREID)
IconFindCol(75,50,table.MOTHEREID,0)
PrintText(0,17,2,"Log EID:")
PrintField(40,17,2,log.MOTHEREID)
PrintText(0,27,2,"Event:")
EditGlobalField(40,27,2,log.EVENT)
PrintText(0,37,2,"Value:")
EditMaskedField(40,37,2,log.VALUE)
PrintText(0,47,2,"Time:")
EditTimeField(40,47,2,log.DATE)
IconDelete(100,50,log,0)
IconAddRec(53,50,log,0)
DrawLine(0,63,127,63)
end_screen
begin_control_area
end_control_area
end_macro
END
D01B2.4 HHR 3000 PRO Manual 60/75
Appendix D : Bluetooth Mode
HHR is able to use Bluetooth Mode to send a frame containing just read
transponder number, current date and time. To enable Bluetooth mode it is
necessary to:
● BT_true – set BT_true flag in HEADER section,
● BT functions - use BT function in macro to send data with Bluetooth
protocol. The BT functions are:
1. Read;
2. ReadNew;
3. ReadSeek;
4. EditReadNew;
5. EditReadSeek;
6. Continue().
● Activation - before sending any data through Bluetooth you must activate
a Bluetooth in HHR with SetBTOnOff()
The most important, if you want to use Bluetooth mode, is to set BT_true and use
BT functions, because only this function sends a frame containing transponder
number, current date and time.
The BT function is special action function and special screen function each of those
define Transponder Read button to work, so there if there is BT_true in Header and
Bluetooth is activated HHR will send a frame containing information about just
read transponder number. More detailed information about function used with BT
you can find in HHR 3000 PRO Functions Assembly.
The activation of Bluetooth is essential for HHR to send data through Bluetooth, if
user won't activate it the same data will be send through USB protocol on
programming connector. Therefore it is the best to make a small menu containing
the function which will activate Bluetooth. Apart from it you can define HHR BT
name or BT Pin or HHR icon. The functions which enable making it are:
● SetBTOnOff;
● SetBTName;
● SetBTPin;
● IconBT.
If you are interested in detailed reference to those function refer to Function
Assembly document.
Below, a fragments of code enabling Bluetooth will be presented
D01B2.4 HHR 3000 PRO Manual 61/75
Example:
HEADER
EXAMPLE APP 02BT
2007/02/28
10:34:59
dd/mm/yyyy
hh:mm:ss
;
LOG_false
.
BT_true
GL_section
END
.
.
MACRO
begin_macro:SENDBYBT
begin_action_area
Read()
end_action_area
begin_screen
PrintText(0,0,1,"ID National:")
PrintCountryNumber(100,0,1,#)
PrintAnimalNo(2,9,4,#)
DrawLine(0,23,127,23)
PrintText(0,25,1,"Retagging:")
PrintRetagging(117,25,1,#)
end_screen
begin_control_area
end_control_area
end_macro
begin_macro:BLUETOOTH
begin_action_area
end_action_area
begin_screen
PrintText(0,0,0,"RECORDS:")
PrintExp(46,0,0,count(*))
PrintText(115,0,0,"2.1")
DrawLine(0,6,127,6)
PrintText(0,10,2,"BlueTooth:")
SetBTOnOff(67,9,2)
PrintText(0,26,2,"Name:")
SetBTName(43,26,2)
PrintText(0,42,2,"Pin code:")
SetBTPin(55,42,2)
DrawLine(0,63,127,63)
end_screen
begin_control_area
end_control_area
end_macro
END
.
.
D01B2.4 HHR 3000 PRO Manual 62/75
MENU
M0:{New Animal,M1};{Attentions,M2};{Ins.
Bolus,M3};{View/Edit DB,M4};{ReadAndSend,M5};
{Settings,M6}
M1:NEW_REC
M2:ATT
M3:INSBOLUS
M4:VIEW
M5:SENDBYBT
M6:{Bluetooth,M7};{Date/Time,M8};{Farm & Vet,M9}
M7:BLUETOOTH
M8:DATE
M9:GLOBAL
END
The example above is a fragment from an example Application Project “EXAMPLE
APP 02BT.txt”.
The most interesting for use are BLUETOOTH Macro and SENDBYBT, which are
presented in example, SENDBYBT simply send just read transponder number,
BLUETOOTH Macro enables to activate Bluetooth, set a name for HHR in
Bluetooth network and BT Pin. Those Macros has been placed in MENU section,
the menu elements important for us has been made bold.
Bluetooth Frame Structure
Bluetooth frame consist 3 values: transponder number, current date, current time;
● First character - “|”
● Transponder number which take 23 characters.
● Table separator declared in header section
● Current Date
● Table separator declared in header section
● Current Time
● End line characters, at C/C++ language it is “\r\n” (it take two characters
0x0D and 0x0A)
Frame Example:
|12345678901234567890123;2007-02-06;23:59:59\r\n
D01B2.4 HHR 3000 PRO Manual 63/75
Establishing Connection HHR-PC
To establish connection HHR-PC, initialize Bluetooth device connected to PC(PC is
a host device), check on which virtual COM port Bluetooth has mounted itself, next
connect with Hyper Terminal to HHR on Bluetooth COM port.
The Settings: 115200 baud, 8 data bit, 1 stop bit, No parity, Hardware Flow
Control Enabled.
Connecting HHR to PC with Bluetooth
1. HHR Settings - Turn on Bluetooth in HHR, set Name and Pin in Bluetooth
Communication.
2. Find device at PC - Right click to BT icon in try-bar(near the clock) to find
BT Serial Port Devices
3. Connect - Initialize connection between HHR and PC. Click Connect if
your PC has found HHR
D01B2.4 HHR 3000 PRO Manual 64/75
4. Put Pin - Enter PIN Code needed for establishing connection, PIN can be
defined by End-User by SetBTPin function; this function has to be included
in one of Screens.
When motion appears, click to it and enter PIN
5. COM Port Number - After HHR connects to PC, a COM port will be open,
you will have to use this COM port for further communication with HHR.
D01B2.4 HHR 3000 PRO Manual 65/75
Please write down COM port from this window because it will be necessary for
further configuration of Hyper Terminal.
6. Run Hyper Terminal and establish connection - After HHR has
successfully connected to PC, you have to run Hyper Terminal(or similar to
it PC program), define port and set communication parameters.
Series of pictures that may help end-user to configure Hyper Terminal.
Please click to buttons pointed with cursor.
D01B2.4 HHR 3000 PRO Manual 66/75
D01B2.4 HHR 3000 PRO Manual 67/75
The appropriate COM Port has to be selected in upper window, the information
about used COM port was presented in point 5.
The setting for COM port has to be set as upper.
D01B2.4 HHR 3000 PRO Manual 68/75
This is part of Hyper Terminal window, this should be displayed if connection has
been established successfully and user has read a transponder.
D01B2.4 HHR 3000 PRO Manual 69/75
Appendix E : Scales
HHR 3000 PRO is able to operate with different scales, by getting from it weight
and saving it in TABLE or LOG.
HHR can cooperate with scales listed below:
● Tru-Test 2000 Series,
● Iconix FX 41 and 21.
If using any of those scales with HHR, appropriate functions has to be used in
Application Program.
For Tru-Test scales there are 2 functions: TTWeight and TTAVG; for Iconix there is
one function IconixWeight. Please remember to open RS232 port before using any
of those function – see below.
RS232 Port
RS232 Port has to be turned on with SetRSOnOff function before using.
Parameters of RS port can be modified with functions:
● SetRSSpeed,
● SetRSDataBits
● SetRSParity
● SetRSStopBits
Please take special care to configure RS232 port according to description of scale
producer. If user change value of any of those parameters, it will be automatically
D01B2.4 HHR 3000 PRO Manual 70/75
saved in HHR non-volatile memory. So HHR will use this parameter in RS232
connection with any device until the parameter is changed once again.
The default parameters are:
● Baud Rate: 115200
● Data Bits: 8
● Parity: None
● Stop Bits:1
● Handshaking: None
Handshaking is fixed to None and it can't be changed in any way.
Detail information about RS232 functions you can find in “D01B1.9 HHR 3000 PRO
Functions.pdf”.
Hardware details of RS232 cable.
The end of cable which will be connected to PC or Trutest scale.
2 – RS232 TxD
3 – RS232 RxD
5 – GND
1,4,6,7,8,9 – no connection
You can use our RS232 cable (part 55007 or cable from 55008) to connect directly
to any PC RS232 socket.
Tru-Test Scales
HHR can cooperate with Tru-Test series 2000 scales. As mentioned upper, special
functions must be used to be able to connect HHR to Tru-Test. Please refer to
sections below.
Hardware
To connect HHR to Tru-Test scale please use supplied HHR-RS232 cable
(Biocontrol part 55007).
Connect gray plug with sticker “CONNECT TO HHR” to HHR and opposite
end of cable to Tru-Test scale.
Please set transmission parameters according documentation of scale with
functions provided by HHR OS.
D01B2.4 HHR 3000 PRO Manual 71/75
This plug
to HHR3000
This plug
to TruTest
scale or PC
Software
HHR can send request to scale, and after receiving answer with weight, HHR will
put it into the field, or HHR can wait for message send by scale while user press
AVG button.
“TTWeight” function sends request to scale to receive weight, when HHR receive it,
it will be displayed in field on the screen, then user can accept it with Enter Key and
save in Memory. Every time user puts frame (cursor) on HHR LCD to the field
generated by TTWeight a request will be send.
TTAVG function waits to AVG message from scale. If user put frame (cursor) on
field generated by TTAVG, HHR waits for AVG message from Tru-Test scale,
when HHR receives that message, it will save it in memory and move to next field
on the screen.
Both of those function are screen functions, so to activate it, user has to put frame
(screen cursor), when HHR receives message from scale it will save it in DB and
HHR will move to next data field on the screen.
Iconix Scales
HHR can cooperate with Iconix FX21 and FX41 scales. As mentioned upper,
special functions must be used to be able to connect HHR to Iconix. Please refer to
sections below.
Hardware
Please configure scale to use 'Computer' settings in RS232 connection, and
connect HHR with supplied HHR-RS232 cable set (Biocontrol part 55008) and use
null modem RS232 adapter .
Connect gray plug with sticker “CONNECT TO HHR” to HHR and use null
modem adapter on another end of cable to connect to Iconix scale.
D01B2.4 HHR 3000 PRO Manual 72/75
This plug
to HHR3000
This adapter
to Iconix scale
Software
Please set transmission parameters according documentation of scale.
Please set “Computer On-Line” mode in Set-up menu of Iconix.
To receive weight from scale with RS232 connection please use IconixWeight
function. This function will wait until scale send message with weight.
IconixWeight function just as Tru-Test functions is screen function so to activate it
user has to put a frame on it. When HHR receives message with weight it will save
it in DB and HHR will move to next function on screen.
To be more familiar with using functions for scales please look at our
example applications.
D01B2.4 HHR 3000 PRO Manual 73/75
Appendix F: HHR-China code page character set.
HHR-China char set includes 169 characters from non ASCII region which are
representing Chinese chars, above that HHR-China includes alphanumerical chars
(both low and upper case) and elementary punctuation chars.
To use this char set special OS(HHR-China) has to be loaded to HHR with
Program Loader.
Please use UTF-16LE or UTF-16BE standard for both User Application
Program and DB files.
List of non-ASCII chars
Odd columns represent Unicode number of char, and even its graphical symbol.
D01B2.4 HHR 3000 PRO Manual 74/75
List of ASCII chars included in HHR-China:
Odd columns represent ASCII number of char, and even its graphical symbol.
Please use UTF-16LE or UTF-16BE standard for User Application Program
and DB files.
D01B2.4 HHR 3000 PRO Manual 75/75
Loading...
