PREFACE
Thank you for purchasing the BioAxxis® BD-1
fingerprint deadbolt.
Please read the documentation carefully before
installation & use. The manual details all
installation procedures and operation steps.
Manufacturer and/or Distributors of the BioAxxis®
BD1 will not be responsible for any damages caused
by incorrect installation or mishandling of the lock.
Any such damages will void manufacturer’s
warranty.
BioAxxis® BD1
1
http://www.BioAxxis.com
Table of Contents
Preface………………………………………………………………1
Installation Manual
1. Parts ........................................................................................ 3
2. Required Tools........................................................................ 4
3. Pre-installation ........................................................................ 5
3.1 Mark and bore holes on the door .................................. 5
3.2 Deadbolt Latch Selection.............................................. 9
4. Installation ............................................................................ 10
4.1 Installation of Deadbolt .............................................. 10
4.2 Installing Strike and Strike Lining Box (on the door
jamb) ................................................................................. 11
4.3 Sizing Tail Piece (to the right length)......................... 12
4.4 Installation of the Outdoor Unit.................................. 14
4.5 Installation of the Indoor Unit .................................... 16
5. Trouble Shooting ..................................................................23
Operation Manual ..................................................................... 25
Section I - Enrolling Administrators (First 2 Fingerprint
Users):............................................................................... 28
Section II - Enrolling Fingerprint Users 3 thru 30:........... 33
Section III – Deleting Individual Fingerprint Users: ........ 36
Section IV – Deleting ALL Fingerprint Users: ................ 39
Section V – Unlocking the BioAxxis® BD1 from outside:
.......................................................................................... 41
Section VI – Locking the BioAxxis® BD1 from Outside:
.......................................................................................... 43
Section VII – Locking and Unlocking the BioAxxis® BD1
from Inside:....................................................................... 44
USER ENROLLMENT TABLE: ..................................... 45
BioAxxis® BD1
2
http://www.BioAxxis.com
1. Parts
Please familiarize yourself with all the parts in the packaging box of
the BioAxxis® BD1. If any part is missing or damaged, contact our
service center or your local dealer.
Outdoor Unit
Outdoor Rubber Gasket
eadbolt Latch
2 ¾” backset (70mm)
Indoor Unit
Strike Plate
D
Deadbolt Latch
2 3/8” backset (60mm)
Strike Lining Box
Keys
Screws (82 mm)
BioAxxis® BD1
3
http://www.BioAxxis.com
Screws
(2 x 40 mm & 1 x 29mm)
Wooden & Metal
Screws
Alkaline
Batteries
2. Required Tools
① Electric or battery operated Drill ② One 3/8” Diameter Drill Bit
③ One 1” Diameter Drill bit
⑤ A Carpenter Chisel
⑦ A pair of scissors
⑨ Philips & flat head screw drivers
11) Marker
④ One 2 1/8” Diameter Drill Bit
⑥ A Hammer
⑧⑧⑧⑧ Vise-Grip
⑩⑩⑩⑩
Metal Cutters or Hacksaw
BioAxxis® BD1
4
http://www.BioAxxis.com
3. Pre-installation
3.1 Mark and bore holes on the door
3.11 Mark holes on door
For doors with existing deadbolt lock with 2 1/8” diameter hole:
1) Remove existing cylindrical deadbolt .
BioAxxis® BD1
2) Please be sure to use the installation
template when installing the
BioAxxis® BD1 on a door with an
existing deadbolt.
5
http://www.BioAxxis.com
3) Cut out the two, 3/8” holes on the
Installation Template that correspond
to your existing backset (2 3/8” or 2
¾”).
4) Rest the installation template on the
front of the door, on top of the
existing 2 1/8” hole, making sure that
it is aligned properly for the door’s
existing 2 3/8” or 2 ¾” backset.
BioAxxis® BD1
5) Mark the two, 3/8” holes that you cut
out of the installation template on the
door (with a magic marker).
6
http://www.BioAxxis.com
6) Bore the two, 3/8” holes into the door
(using a 3/8” drill bit), making sure
that the holes fully penetrate through
the door.
7) Go to Section 4.3 in the User Manual
BioAxxis® BD1
7
http://www.BioAxxis.com
For doors that do not have a cylindrical deadbolt lock or a hole for
the cylindrical deadbolt lock:
A. Start approximately 46” from
floor. Select the appropriate
installation template
according to the length of the
backset. Fold and apply the
template to the edge of the
door bevel. Mark the center
point of the cylinder hole on
the door face, and then mark
the center point of the
deadbolt hole on door edge,
as indicated on the template.
B. For installation of
combination set (door handle
and deadbolt), it is
recommended that the
distance is 5 ½” between the
two center points.
C. Mark the center points of the
two small holes on the door
face for the two upper fixing
posts mounted on the top
plate of the outdoor unit, as
indicated on the installation
template.
BioAxxis® BD1
8
http://www.BioAxxis.com
3.12 Bore holes
A. Bore a 2 1/8” diameter hole in the
center of door face for chassis. (It is
recommended to bore this hole from
both sides of the door to avoid
splintering.)
B. Bore a 1” diameter hole in the center
of door edge for deadbolt.
C. Bore two separate 3/8” diameter
holes for the upper fixing posts.
3.2 Deadbolt Latch Selection
There are two deadbolt latches in each box, one with a 2 3/8”
(60mm) backset and the other with a 2 ¾” (70mm) backset. Make
sure which length you will need and select the right one before
installation.
BioAxxis® BD1
9
http://www.BioAxxis.com
4. Installation
4.1 Installation of Deadbolt

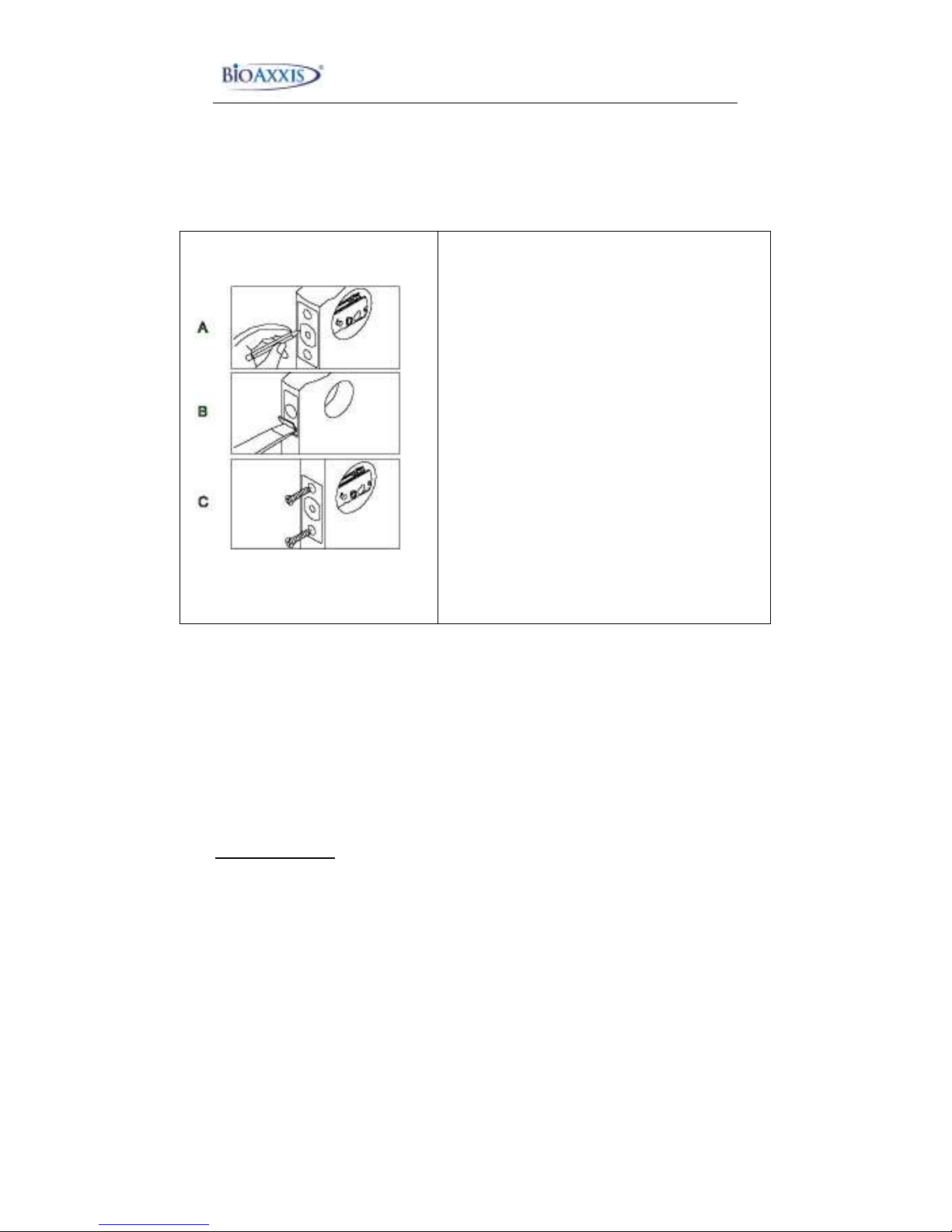

A. Insert the deadbolt latch into the hole
in the edge of the door (follow the UP
sign), keeping it parallel to the face of
the door. Mark the outline of the face
plate and remove the deadbolt.
B. Then chisel 1/8” deep rectangular
shape, per your marking (or until the
faceplate is flush with the door edge).
C. Insert the deadbolt latch; make sure
the deadbolt UP sign is facing
upwards. Then fasten the screws.
BioAxxis® BD1
10
http://www.BioAxxis.com
4.2 Installing Strike and Strike Lining Box
(on the door jamb)
A.
(1) Close the door until the
deadbolt touches the door
jamb along the face plate
to mark the horizontal
center lines.
(2) Measure one half of the
door thickness from one
side of the door jamb,
and then mark the
vertical center lines.
(3) Extend the vertical center
line and the horizontal
line to mark the drill
center point for the strike.
B. Bore a 1” diameter and 1”
deep hole in the door jamb at
the center point for strike. To
ensure the proper deadbolt
function, this hole must be
drilled at least 1” deep.
C. Chisel the door jamb at 1/16”
deep for the strike plate which
must fit flush with the door
jamb.
D. Insert the strike lining box
and then fasten screws to the
plate.
BioAxxis® BD1
11
http://www.BioAxxis.com
4.3 Sizing Tail Piece (to the right length)
The BioAxxis® BD1 is designed to fit door thicknesses of 1 3/8” to
2”.

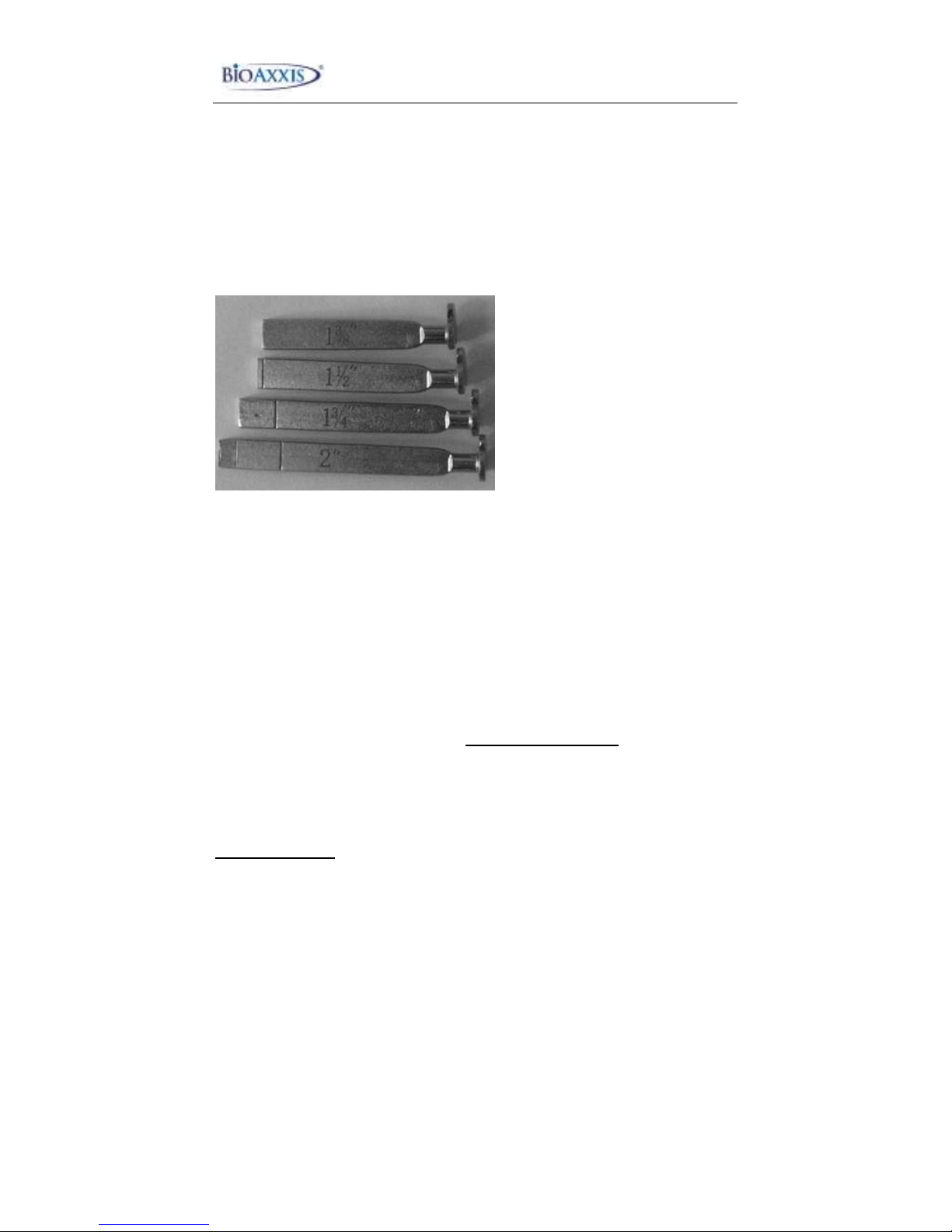

Four pre-sized tailpieces are included with the BioAxxis® BD1 for 1
3/8”, 1 ½”, 1 ¾” and 2” thick doors.
Your door thickness and length of the tailpiece being used must
match exactly. EX: If your door is 1 ¾” thick, then you must use the
1 ¾” long tailpiece.
The BioAxxis® BD1 comes with the 1 ¾” tailpiece pre-installed. If
your door is not 1 ¾” thick, but the thickness matches one of the
other pre-cut tailpieces included with the lock, then you must swap
out the tailpiece.
For video directions on how to swap the tailpiece, go to the
BioAxxis® BD1 product page at www.BioAxxis.com and click on
the Support Material section on the bottom of the page for links to
the instructional videos.
BioAxxis® BD1
12
http://www.BioAxxis.com
IF YOUR DOOR THICKNESS DOES NOT EXACTLY
MATCH ANY OF THE PRE-CUT TAILPIECES LENGTHS,
THEN YOU MUST TRIM THE PRE-INSTALLED TAIL
PIECE TO MATCH YOUR EXACT DOOR THICKNESS
.
If you need to trim the tailpiece, be sure to measure the exact
thickness of your door, mark the tailpiece (with a marker) where it
needs to be cut and trim the tail piece accordingly per the exact
thickness of your door, with a hacksaw or metal cutters.
Notes:
The motor could be dislodged if the tailpiece is not cut properly and
is too long, due to excessive pressure.
this occurs.
Warranty will be voided if
BioAxxis® BD1
13
http://www.BioAxxis.com
4.4 Installation of the Outdoor Unit
1) Attach
of the outdoor unit.
th
e rubber gasket to the back
BioAxxis® BD1
2) Make sure the tail piece is vertical.
14
BioAxxis® BD1
http://www.BioAxxis.com
3) Make sure the deadbolt is engaged.
4) Insert tail piece through the cross slot
of the latch.

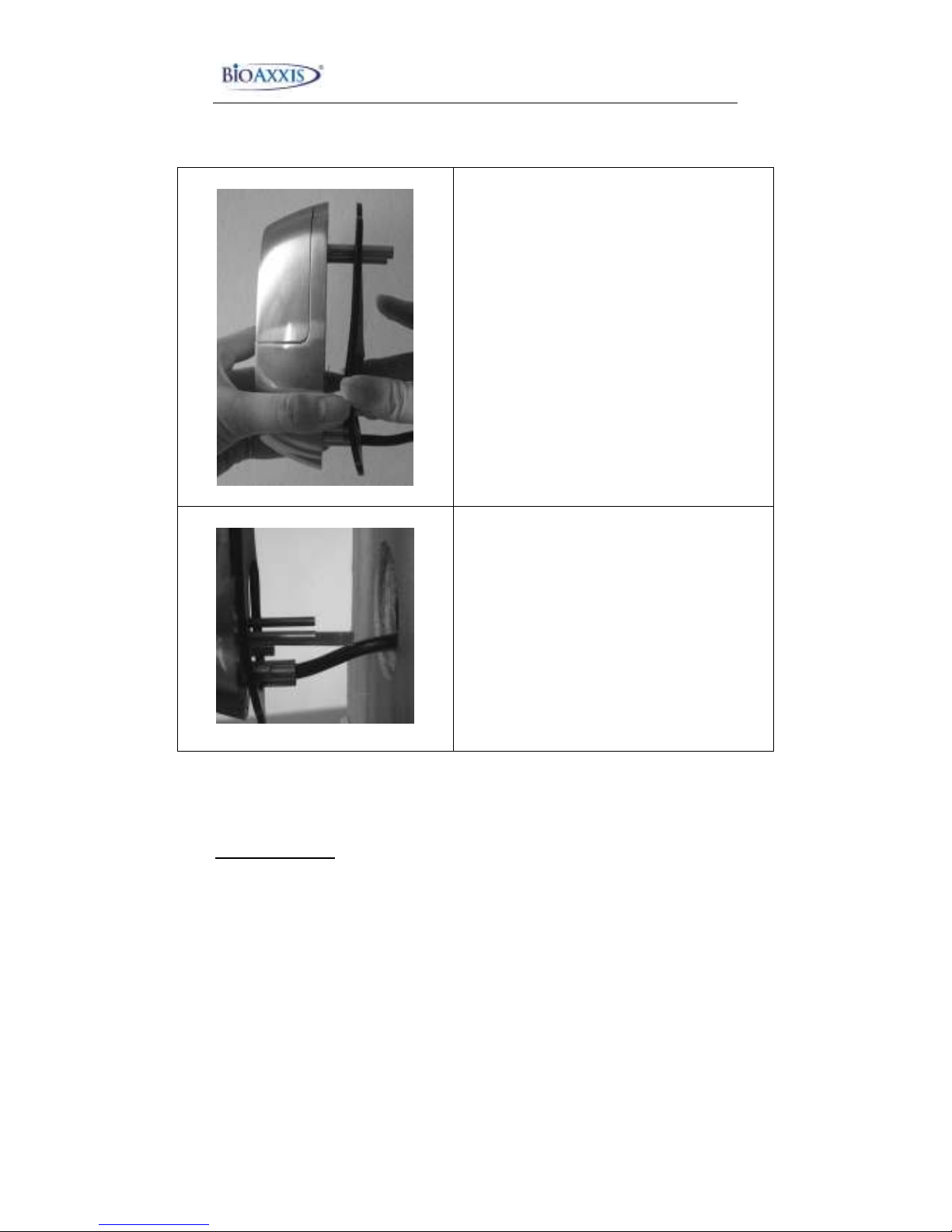

5) Insert the connector and wire through
the cylinder hole below the deadbolt
latch.
6) Insert the two upper fixing posts
through the small upper holes on the
door (the newly drilled holes).
15
http://www.BioAxxis.com
4.5 Installation of the Indoor Unit
1) Select the proper door opening
orientation on the back plate of the
Indoor Unit. If the door is left
handed, please push the orientation
selector switch to “L” position; if it’s
right handed, switch the selector to
“R” position.
2) Left handed doors are defined as
hinge on the left when you are
entering the home from outside. The
opposite is true for right handed
doors.
Right Handed/Left Handed
BioAxxis® BD1
16
http://www.BioAxxis.com
3) Plug wire set into circuit board,
making sure all prongs are firmly
seated.
4) Press sheathing of wire casing into the
wire holder clamp.
BioAxxis® BD1
17
http://www.BioAxxis.com
5) Turn the manual turn knob to the
vertical position, facing downward.
BioAxxis® BD1
18
http://www.BioAxxis.com
6) Insert the tail piece into the vertical
retaining slot of the indoor unit.
7) Gently finish joining the outdoor and
indoor units together, ensuring all
fixing posts are aligned properly.
8) Fasten the two shorter screws
through the upper fixing post holes on
the upper section of the inside unit.
BioAxxis® BD1
19
BioAxxis® BD1
http://www.BioAxxis.com
9) Fasten the two long screws through
the bottom fixing post holes on the
inside unit.
10) Move the manual turn knob back
and forth to ensure that deadbolt
opens and closes mechanically.
20
http://www.BioAxxis.com
11) Insert 4 high-quality AA batteries
BioAxxis® BD1
21
http://www.BioAxxis.com
12) Press the electronic open/close
button to ensure that the deadbolt
opens and closes electronically.
4.6 Final inspection/adjustment prior to enrollment
Note: After installation and prior to using the unit, make sure
you read and follow the steps below:
①
Turn the inside knob to the horizontal position; next turn it to the
vertical position (locked position). It should turn freely. If and
when the inside and outside locks are attached securely and the
inside knob doesn’t turn freely, see the trouble shooting table
below for possible solution. If the knob turns freely, continue
with the next step.
②
Try to lock and unlock from outside by fully opening and closing
the sliding cover.
③
Try to lock and unlock from inside by pressing the Open/Close
button to ensure it works well electronically.
IMPORTANT SECURITY NOTE: WITHOUT ANY
FINGERPRINTS ENROLLED, THE BD1 WILL LOCK AND
UNLOCK BY FULLY OPENING AND FULLY CLOSING THE
SLIDING COVER.
BioAxxis® BD1
22
http://www.BioAxxis.com
5. Trouble Shooting
PROBLEMS POSSIBLE REASONS SOLUTIONS
Indoor turn knob does
not turn or turns very
sluggishly
Indoor turn knob turns
but nothing happens.
1. Incorrect
installation
2. Incorrect tailpiece
length
1. The tail piece did
not go through the
cross slot of the
deadbolt;
2. Tail piece was
trimmed too short
and does not
penetrate the slot of
the indoor unit;
1. Make sure the tail piece
was inserted vertically
through the cross slot
of the deadbolt and slot
of the indoor unit while
the turn knob was
vertical (facing down).
2. Measure the door
thickness and swap or
trim the tail piece per
section 4.3 of the
installation manual
1. Remove and reinstall
the outdoor unit. Then
insert the tail piece
through the cross slot
of the deadbolt and slot
of the indoor unit while
the turn knob is in
vertical position (facing
down).
2. Contact the BioAxxis®
BD1 dealer that you
purchased to lock from
OR Contact us
at:
info@bioaxxis.com
BioAxxis® BD1
23
http://www.BioAxxis.com
The sliding cover is
fully lifted to power
on without any
fingerprint enrolled
inside, the deadbolt
does not disengage or
four alert beeps are
heard.
When the sliding
cover is fully lifted
and immediately put
down to engage the
deadbolt, but the
deadbolt does not
fully engage, or four
alert beeps are heard.
When the sliding
cover is lifted up
during daily use,
nothing happens
(fingerprint scanner
does not blink)
Six beeps are heard
when any function is
performed.
1. Right & left hand
door configurations
is set incorrectly;
2. The tail piece was
not set properly
1. Correctly configure the
unit for left or right
hand door swing per
section 4.5.
2. Uninstall the outdoor
unit and keep the UP
sign side of the tail
piece up and insert the
tail vertically through
the cross slot of the
deadbolt while the turn
knob is in vertical
position.
1. Improper
positioning of the
strike and strike
lining box. It may
be deflecting the
deadbolt.
1. Batteries not
inserted correctly;
2. Wires not
connected properly
1. Check the position of
the strike and the strike
lining box.
1. Remove & reinsert the
batteries following “+”
and “—“ signs in the
battery house.
2. Check the connections
and make sure wires
are fully plugged in.
Low Voltage Change the batteries
BioAxxis® BD1
24
http://www.BioAxxis.com
Operation Manual
Operation Manual
(Please read before attempting to program the BioAxxis® BD1):
Please be sure to physically leave your door open until you have
successfully enrolled the first user (ADMINISTRATOR) into the
BioAxxis® BD1 and have successfully verified the new user’s
fingerprint to unlock the door.
Helpful Hints
With no fingerprints enrolled in the BioAxxis® BD1, the
deadbolt will engage/disengage when the sliding cover is fully
opened and immediately closed.
Definitions of Indication Beeps:
Single, Short Beep –
begun
OR
seconds.
Single, Long Beep
successful
Short, Double Beep –
deletion sequence has begun.
Long Double Beep –
successful
Four Beeps
verification attempt
(see Installation Guide).
Six, Short Beeps –
OR
that the door has been successfully locked or unlocked
that the sliding cover has been left open for more than ten
– Indicates unsuccessful enrollment/unsuccessful
Indicates that
– Indicates that programming operation was
Indicates that individual fingerprint user
Indicates that Delete All programming was
OR
BioAxxis® BD1 was improperly installed
Low battery alert, change batteries
any
operations sequence has
BioAxxis® BD1
25
http://www.BioAxxis.com
Common definitions of terms used when using the BioAxxis®
BD1:
Fingerprint Enrollment:
Process of adding fingerprints to the BioAxxis® BD1.
Enrolled Fingerprints:
Fingerprints that have been successfully added into the BioAxxis®
BD1.
Verifying Fingerprints:
Process of authentication by scanning enrolled fingerprints to:
A) Unlock the door
B) Authenticate Administrators enrolled fingerprints to program the
BioAxxis® BD1.
Before enrolling and verifying fingerprints, make sure to
read the following helpful hints for Fingerprint
Enrollment and Verification:
Generally, the center of the vortex (swirl) of the fingerprint pattern is the
key data point; ideally, it is placed in the center of the small glass
window in a consistent way. Your finger should be flat, motionless and
held with light pressure in the same way each time. See the picture
below for some guiding drawings.
Light pressure when placing the finger on the scanner gives the best image,
but the finger must not move during scanning.
Moist fingers give better images than dry ones. If on cold, dry days you
have difficulty, for example, try moistening your finger with your breath or
a little lotion.
Very dry, dirty or scarred fingers are obviously not recommended, since
they will obscure the fingerprint.
BioAxxis® BD1
26
http://www.BioAxxis.com
The pointer finger is, by far, the best fingerprint to enroll. The thumb
is the second best digit.
If the pointer finger is difficult to enroll or verify, try enrolling the same
NON ADMIN fingerprint 2 or 3 times at slightly different angles. EX:
Enroll same pointer finger as users 3, 4 and 5.
Always wait until the fingerprint scanner turns on to place your finger on
the scanning window. This is true for both fingerprint enrollment AND
verification.
When trying to enroll or verify fingerprints in direct sunlight, be sure to
shade the sensor with your shadow, so sunlight will not reflect off of the
mirror in the sensor.
BioAxxis® BD1
27
http://www.BioAxxis.com
Important Programming Notes:
When
must be fully lifted within 8 seconds
button, or the BD1 will power off. If this occurs, simply
sliding cover
sliding cover immediately to restart the programming sequence.
The first two fingerprint users enrolled will automatically be
programmed as
ADMINISTRATORS can apply all programming functions as well
as verify their fingerprints to unlock the door.
The 3rd thru 30th fingerprint users enrolled (Users 3 thru 30) are
automatically programmed at the
fingerprints can only be used to unlock the door, not to program the
lock.
Section I - Enrolling Administrators (First 2 Fingerprint Users):
Adding
, press the
or
Deleting
Fingerprints, the closed sliding cover
ADD
or
DEL
ADMINISTRATORS
USER
after
pressing the
ADD
or
close the
button again and fully lift the
(Users 1 and 2).
level. USER level
DEL
Sliding cover must be closed before any programming sequence can
begin.
As noted in the Helpful Hints section, the first two users that enroll
their fingerprints into the BioAxxis® BD1 will automatically be
programmed as
ADMINISTRATORS
(Users 1 and 2).
ADMINISTRATORS can apply all programming functions as well
as verify their fingerprints to unlock the door.
BioAxxis® BD1
28
http://www.BioAxxis.com
•
•
Please use the following steps to enroll the first fingerprint user
(ADMINISTRATOR1/USER 1):
Remove the battery cover
from the indoor unit
•
Press the “
ADD
” button
located on the indoor unit
•
Single beep will be heard
Fully open the sliding cover
located on the outdoor unit
immediately
•
Sensor will flicker for less than
one second
BioAxxis® BD1
29
http://www.BioAxxis.com
•
•
A single short beep will be heard and the
fingerprint sensor will power on
•
After the fingerprint sensor powers on ,
rest your pointer finger on the sensor
window during the first of three scans
•
Keep your pointer finger on the scanning
window thru all three scans.
•
After the scanning is completed you will
hear one of the following:
o Single, long beep
indicating that
the operation was successful
OR
o Four beeps
indicating that your
fingerprint was not successfully
enrolled. If you hear four beeps,
please start the enrollment
process over from the beginning
BioAxxis® BD1
Close the sliding cover
30
http://www.BioAxxis.com
•
•
Please use the following steps to enroll the second fingerprint
user
(ADMINISTRATOR2 /USER 2):
Remove the battery cover from
the indoor unit
•
Press the “
ADD
” button located
on the indoor unit
•
Single beep will be heard
BioAxxis® BD1
Fully open the sliding cover
located on the outdoor unit
immediately
•
Sensor will flicker for less
than one second
31
http://www.BioAxxis.com
•
•
process over from the beginning
A single short beep will be heard and
the fingerprint sensor will power on
•
After the fingerprint sensor powers on,
rest the
ADMINISTRATOR’S
FIRST ENROLLED
finger on the
sensor window to verify that they are
an Administrator
•
When the first Administrator’s
fingerprint is successfully
verified
, the
sensor will briefly turn off (for less than
one second)
• Immediately
ADMINSTRATOR’S finger
remove the
A single short beep will be heard and the
fingerprint sensor will power on
•
Rest the new
2nd ADMINISTRATOR’S
pointer finger on the sensor window
during the first of three scans
•
Keep your pointer finger on the scanning
window thru all three scans
•
After the scanning is completed you will
hear one of the following:
o Single, long beep
indicating that
the operation was successful
OR
fingerprint was not successfully
o Four beeps
indicating that your
enrolled. If you hear four beeps,
please start the enrollment
BioAxxis® BD1
32
http://www.BioAxxis.com
•
Close the sliding cover
Section II - Enrolling Fingerprint Users 3 thru 30:
Sliding cover must be closed before any programming sequence can
begin.
As noted in the Helpful Hints section, the third thru thirtieth
fingerprint users enrolled (Users 3 thru 30) are automatically
programmed at the
USER
level. USER level fingerprints can only be
used to unlock the door, not to program the lock.
Please use the following steps to enroll additional fingerprint
users (Users 3 thru 30):
BioAxxis® BD1
33
http://www.BioAxxis.com
•
•
Remove the battery cover
from the indoor unit
•
Press the “
ADD
” button
located on the indoor unit
•
Single beep will be heard
Fully open the sliding
cover located on the
outdoor unit immediately
•
Sensor will flicker for less
than one second
BioAxxis® BD1
34
http://www.BioAxxis.com
•
•
BioAxxis® BD1
A single short beep will be heard
and the fingerprint sensor will
power on
• After the fingerprint sensor powers
on, rest an ADMINISTRATOR’S
finger on the sensor window to
verify that they are an
Administrator
• When the first Administrator’s
fingerprint is successfully verified,
the sensor will briefly turn off (for
less than one second)
• Immediately remove the
ADMINSTRATOR’S finger
A single short beep will be heard and
the fingerprint sensor will power on
• Rest the new user’s pointer finger on
the sensor window during the first of
three scans
• Keep your pointer finger on the
scanning window thru all three
scans.
• After the scanning is completed you
will hear one of the following:
o Single, long beep indicating
that the operation was
successful
OR
35
o Four beeps indicating that
your fingerprint was not
successfully enrolled. If you
hear four beeps, please start
the enrollment process over
http://www.BioAxxis.com
•
Close the sliding cover
•
Repeat steps from the beginning of
Section II to enroll additional
fingerprint users.
Section III – Deleting Individual Fingerprint Users:
Sliding cover must be closed before any programming sequence can
begin.
The Individual Fingerprint User Deletion programming function
deletes fingerprint users from the most recent fingerprint user
enrolled to the earliest fingerprint user enrolled.
Please use the following steps to delete individual fingerprint
users:
BioAxxis® BD1
36
http://www.BioAxxis.com
•
•
With the battery cover removed,
press the “
DEL
” button located on
the indoor unit
•
Short, Double Beep will be heard
Fully open the sliding cover located
on the outdoor unit immediately
•
Sensor will flicker for less than one
second
BioAxxis® BD1
37
http://www.BioAxxis.com
•
of Section III
•
A single short beep will be heard and
the fingerprint sensor will power on
• Rest an Administrator’s
fingerprint
•
When the Administrator’s fingerprint
is successfully
on the scanning window
verified
, a single, long
beep will be heard indicating that the
most recently enrolled fingerprint
user has been deleted
o
If you hear four beeps, this
indicates that the verification
Close the sliding cover
•
Repeat steps from the beginning of
Section III to delete the
of the Administrator’s
fingerprint was not successful.
Begin again from the first step
next
most
recently enrolled fingerprint user.
BioAxxis® BD1
38
http://www.BioAxxis.com
•
Section IV – Deleting ALL Fingerprint Users:
Sliding cover must be closed before any programming sequence can
begin.
Deleting ALL enrolled fingerprint users will reset the lock and all
users (including Administrators fingerprints) will be deleted.
With no fingerprints enrolled in the BioAxxis® BD1, the deadbolt
will engage/disengage when the sliding cover is fully opened and
immediately closed.
Please use the following steps to delete ALL fingerprint users:
With the battery cover removed,
“
DEL
” and then
button.
•
While still pressing and holding the “
“
OPEN/CLOSE
BioAxxis® BD1
cover located on the outdoor unit.
press and hold
press and hold
the “
OPEN/CLOSE
DEL
” and
the
”
” buttons, fully open the closed sliding
39
http://www.BioAxxis.com
•
•
A single, long beep will be heard
•
Sensor will flicker for less than one
second
•
Short beep will be heard and sensor will
power on.
• Rest an Administrator’s fingerprint
on
the scanning window
•
When the Administrator’s fingerprint is
successfully
verified
, two long beeps
will be heard, indicating that ALL
enrolled fingerprint users have been
deleted
o
If you hear four beeps, this
indicates that the verification of
the Administrator’s fingerprint
was not successful. Begin again
from the first step of Section IV
Close the sliding cover
IMPORTANT SECURITY NOTE:
WITHOUT ANY FINGERPRINTS
ENROLLED, THE BD1 WILL
LOCK AND UNLOCK BY FULLY
OPENING AND FULLY
CLOSING THE SLIDING COVER.
BioAxxis® BD1
40
http://www.BioAxxis.com
•
Section V – Unlocking the BioAxxis® BD1 from outside:
In case of emergency, override keys can be used to disengage the
deadbolt.
Please use the following steps to unlock the BioAxxis® BD1 from
outside, with your enrolled fingerprint:
Fully lift the sliding cover located on
the outdoor unit.
BioAxxis® BD1
41
http://www.BioAxxis.com
•
•

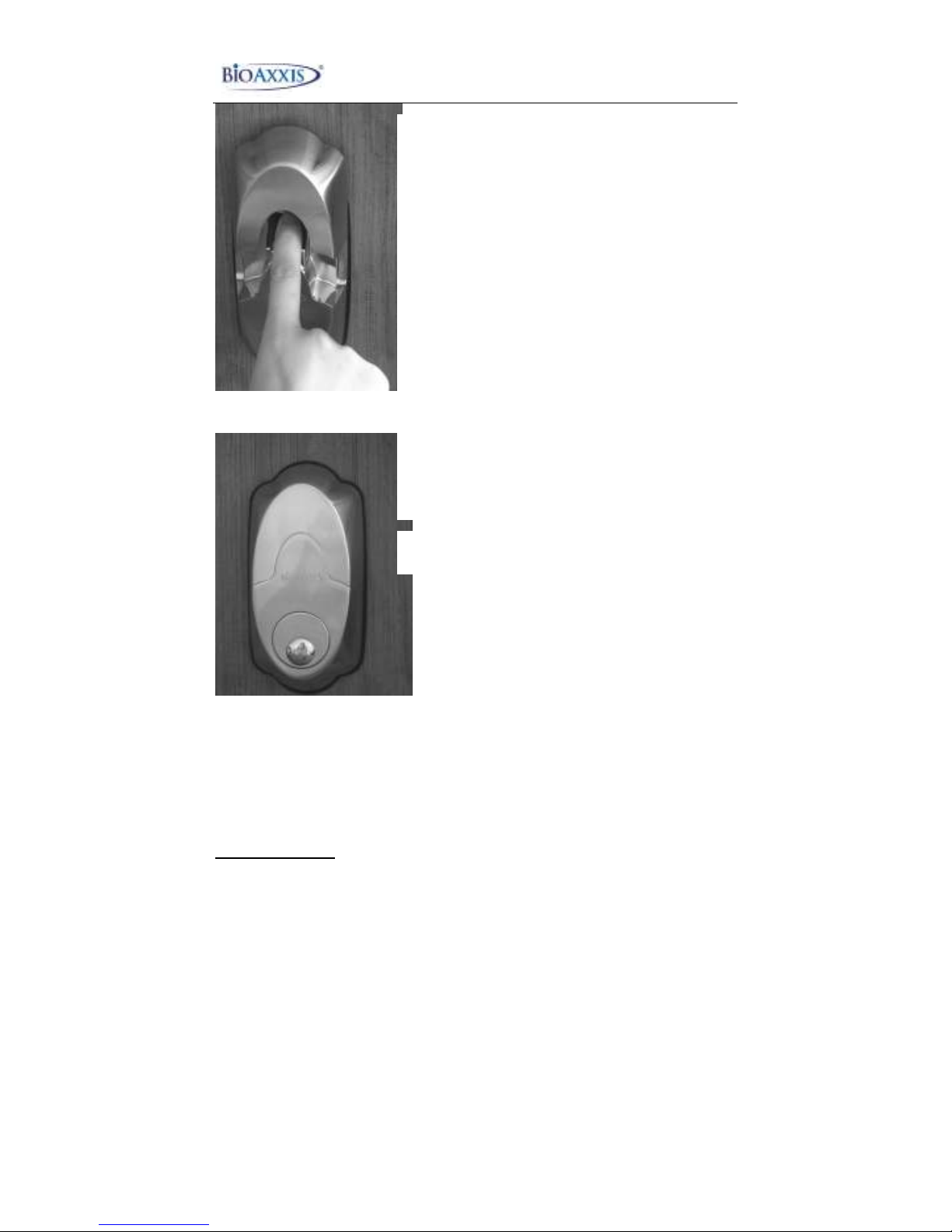

A single short beep will be heard and the
fingerprint sensor will power on
• After the fingerprint sensor powers on, rest
any enrolled fingerprint on the sensor
window to verify.
If fingerprint verification is successful,
the deadbolt will disengage and a
single, short beep will be heard;
If
verification of enrolled fingerprint was
not successful, then 4 short beeps will
be heard. If this happens, the
fingerprint scanner will still turn on
two additional times enabling users to
try more. If all the two additional
verification attempts still fail, please
start the unlocking process over again,
from the beginning of this section.
BioAxxis® BD1
Close the sliding cover
42
http://www.BioAxxis.com
•
hear
d
Section VI – Locking the BioAxxis® BD1 from Outside:
In case of emergency, override keys can be used to engage the
deadbolt.
Please use the following steps to lock the BioAxxis® BD1 from
outside (when leaving):
Make sure your door is closed
•
Open and immediately close the sliding cover
•
Deadbolt will engage and a single, short beep will be
BioAxxis® BD1
43
http://www.BioAxxis.com
•
Section VII – Locking and Unlocking the BioAxxis® BD1 from
Inside:
In case of emergency, manual turn knob can be used to disengage the
deadbolt.
Please use the following steps to lock and unlock the BioAxxis®
BD1 from inside:
Press the ”
OPEN/CLOSE
button (located between the
ADD and DEL buttons)
•
Deadbolt will
engage/disengage and single,
short beep will be heard.
”
Support:
Contact the BioAxxis® BD1 dealer that you purchased the lock from
OR
Contact us at:
info@bioaxxis.com
for additional support
BioAxxis® BD1
44
http://www.BioAxxis.com
USER ENROLLMENT TABLE:
Number Hand (R or
Finger Used
L)
BioAxxis® BD1
45
Name
http://www.BioAxxis.com
BioAxxis® BD1
46
Loading...
