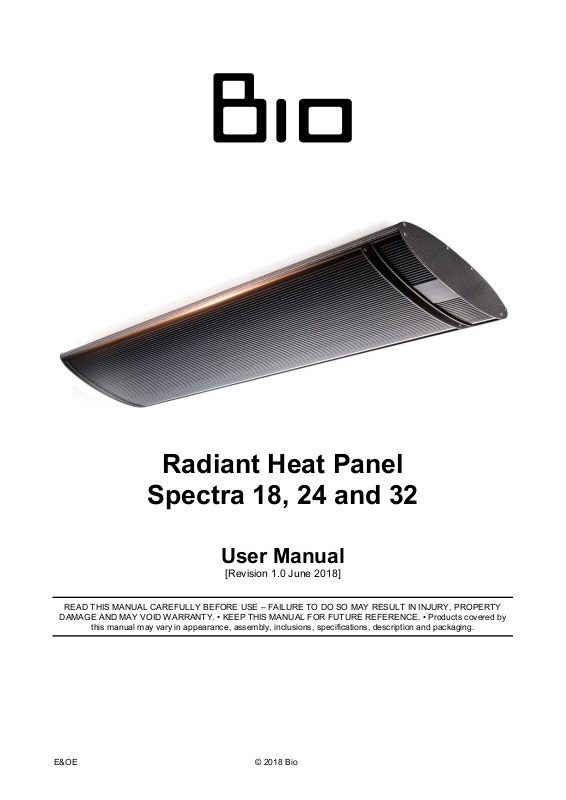

Radiant Heat Panel
Spectra 18, 24 and 32
User Manual
[Revision 1.0 June 2018]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY
DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by
this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
E&OE © 2018 Bio
Radiant Heat Panel – Spectra 18, 24 and 32
Safety
Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or
equipment or property damage if not understood or followed. Safety messages have the following symbols:
You WILL be KILLED or
SERIOUSLY INJURED if you
do not follow instructions.
It is vital that you read and understand
this user manual before using the product,
including safety warnings, and any
assembly and operating instructions.
Keep the manual for future reference.
Safety precautions and recommendations
detailed here must be fully understood
and followed to reduce the risk of injury,
fire, explosion, electrical hazard, and/or
property damage.
Safety information presented here is
generic in nature – some advice may not
be applicable to every product. The term
"equipment" refers to the product, be it
electrical mains powered, battery powered
or combustion engine powered.
• Before Use - If you are not familiar with
the safe operation/handling of the
equipment, or are in any way unsure of
any aspect of suitability or correct use
for your application, you should
complete training conducted by a
person or organization qualified in safe
use and operation of this equipment,
including fuel/electrical handling and
safety.
• Do NOT operate the equipment in
flammable or explosive environments,
such as in the presence of flammable
liquids, gases or dust. The equipment
may create sparks or heat that may
ignite flammable substances.
• Keep clear of moving parts.
• Equipment may be a potential source of
electric shock or injury if misused.
• Do NOT operate the equipment if it is
damaged, malfunctioning or is in an
excessively worn state.
• Do NOT allow others to use the
equipment unless they have read this
manual and are adequately trained.
• Keep packaging away from children risk of suffocation! Operators must use
the equipment correctly. When using
the equipment, consider conditions and
pay due care to persons and property.
General Work Area Safety
• Work areas should be clean and well it.
• Do not operate the equipment if
bystanders, animals etc are within
operating range of the equipment or the
general work area.
• If devices are provided for connecting
dust extraction / collection facilit ies,
ensure these are connected and used
properly. Dust collection can reduce
dust-related hazards.
You CAN be KILLED or
SERIOUSLY INJURED if you
do not follow instructions.
General Personal Safety
• Wear appropriate protective equipment
when operating, servicing, or when in
the operating area of the equipment to
help protect from eye and ear injury,
poisoning, burns, cutting and crush
injuries. Protective equipment such as
safety goggles, respirators, non-slip
safety footwear, hard hat, hearing
protection etc should be used for
appropriate equipment / conditions.
Other people nearby should also wear
appropriate personal protective
equipment. Do not wear loose clothing
or jewellery, which can be caught in
moving parts. Keep hair and clothing
away from the equipment.
• Stay alert and use common sense
when operating the equipment. Do not
over-reach. Always maintain secure
footing and balance.
• Do not use the equipment if tired or
under the influence of drugs, alcohol or
medication.
• This equipment is not intended for use
by persons with reduced physical,
sensory or mental capabilities.
General Fuel Safety
• Petrol/fuel/gasoline is extremely
flammable – keep clear of naked
flames or other ignition sources.
• Do not spill fuel. If you spill fuel, wipe it
off the equipment immediately – if fuel
gets on your clothing, change clothing.
• Do NOT smoke near fuel or when
refuelling.
• Always shut off the engine before
refuelling.
• Do NOT ref uel a hot engine.
• Open the fuel cap carefully to allow any
pressure build-up in the tank to release
slowly.
• Always refuel in well ventilated areas.
• Always check for fuel leakage. If fuel
leakage is found, do not start or run the
engine until all leaks are fixed.
General Carbon-Monoxide Safety
• Using a combustion engine indoors
CAN K ILL IN MINUTES. Engine
exhaust contains carbon-monoxide – a
poison you cannot smell or see.
• Use combustion engines OUTSIDE
only, and far away from windows, doors
and vents.
You CAN be INJURED if you
do not follow instructions or
equipment damage may occur.
General Equipment Use and Care
• The equipment is designed for
domestic use only.
• Handle the equipment safely and
carefully.
• Before use, inspect the equipment for
misalignment or binding of moving
parts, loose components, damage or
any other condition that may affect its
operation. If damaged, have the
equipment repaired by an authorised
service centre or technician before use.
• Prevent unintentional starting of the
equipment - ensure equipment and
power switches are in the OFF position
before connecting or moving
equipment. Do not carry equipment
with hands or fingers touching any
controls. Remove any tools or other
items that are not a part of the
equipment from it before starting or
switching on.
• Do not force the equipment. Use the
correct equipment for your application.
Equipment will perform better and be
safer when used within its design and
usage parameters.
• Use the equipment and accessories
etc. in accordance with these
instructions, considering working
conditions and the work to be
performed. Using the equipment for
operations different from those
intended could result in hazardous
situations.
• Always keep equipment components
(engines, hoses, handles, controls,
frames, housings, guards etc) and
accessories (cutting tools, nozzles, bits
etc) properly maintained. Keep the
equipment clean and, where applicable,
properly lubricated.
• Store the equipment out of reach of
children or untrained persons. To avoid
burns or fire hazards, let the equipment
cool completely before transporting or
storing. Never place or store the
equipment near flammable materials,
combustible gases or liquids etc.
• The equipment is not weather-proof,
and should not be stored in direct
sunlight, at high ambient temperatures
or locations that are damp or humid.
• Do not clean equipment with solvents,
flammable liquids or harsh abrasives.
• For specific equipment safety use and
care, see Equipment Safety.
E&OE © 2018 Bio 2
Radiant Heat Panel – Spectra 18, 24 and 32
General Electrical Safety
• Inspect electrical equipment, extension
cords, power bars, and electrical fittings
for damage or wear before each use.
Repair or replace damaged equipment
immediately.
• Ensure all power sources conform to
equipment voltage requirements and
are disconnected before connecting or
disconnecting equipment.
• When wiring electrically powered
equipment, follow all electrical and
safety code s.
• W herever possible, use a residual
current device (RCD).
• High voltage / high current power lines
may be present. Use extreme caution
to avoid contact or interference with
power lines. Electrical shock can be
fatal.
Beware of Children and Pets
• Children should not be allowed to touch
or operate heaters or touch extension
cords, if used. All heaters should be
kept out of reach of children, preferably
stored or locked in a secure cabinet or
room when not in use.
Do Not Abuse the Power Cord
• Never yank or pull on the power cord to
disconnect it from the mains supply
socket. Never carry your heater by its’
power cord. Keep the power cord away
from heat, oil, solvents and sharp
edges. Check the power cord regularly
for any damage and if the power cord
becomes damaged have it replaced by
an authorised service facility.
Extension Cords and Reels
• This heater is NOT designed to run off
an extension cord. If you require an
additional power point, please have one
installed by a qualified electrician.
• The use of extension cords may cause
power voltage loss which will result in
damage to the appliance this will NOT
be covered under warranty.
General Electrical Safety
• Electrically grounded equipment must
have an approved cord and plug and
be connected to a grounded electrical
outlet.
• Do NOT bypass the ON/OFF switch
and operate equipment by connecting
and disconnecting the electrical cord.
• Do NOT use equipment that has
exposed wiring, damaged switches,
covers or guards.
• Do NOT use electrical equipment in wet
conditions or in damp locations.
• Do NOT use electrical cords to lift,
move or carry equipment.
• Do NOT coil or knot electrical cords,
and ensure electrical cords are not trip
hazards.
Installation
• Always ensure you select the correct
fixing accessories which suit the
wall/ceiling material you are attaching
to, if in doubt please discuss with your
local retailer or local hardware store.
This heater is not designed for use
within 1m or above a water source. All
installations must meet the
requirements of Australia Standard
AS/NZS 3000:2007.
• Ensure that the heater is not positioned
directly above, below or in front of a
power point or switch.
• This heater is not designed to be used
with 3rd party timer or programmable
system.
FOR YOUR SAFETY
• WARNING: Fire risk exists if this heater
is covered by or positioned close to
curtains or other combustible materials.
• NOTE: If using this heater outside
ensure that it is connected directly to an
outdoor power point.
• The electrical system of this heater
must be connected with an automatic
30mA circuit breaker and/or residual
current device (RCD).
• If uncertain, have a qualified electrician
check your electrical system before
installation and/or use.
• All electrical connections are made in a
dry area.
• Outdoor power points must be
weatherproof and installed by a
qualified electrician.
• We are not responsible for incorrectly
chosen fixing accessories or any
damage which may be caused by an
incorrectly fitted wall heater.
• If required 15AMP power points must
be installed by a qualified electrician.
General Service Information
• The equipment must be serviced or
repaired at authorised service centres
by qualified personnel only.
• Replacement parts must be original
equipment manufacturer (OEM) to
ensure equipment safety is maintained.
• Do NOT attempt any maintenance or
repair work not described in this
manual.
• After use, the equipment and
components may still be hot – allow the
equipment to cool and disconnect spark
plugs and/or electrical power sources
and/or batteries from it before making
adjustments, changing accessories or
performing repair or maintenance.
• Do NOT make adjustments while the
equipment is running.
• Perform service related activities in
suitable conditions, such as a
workshop.
• Replace worn, damaged or missing
warning/safety labels immediately.
E&OE © 2018 Bio 3
Radiant Heat Panel – Spectra 18, 24 and 32
Specific Safety Instructions
Do not use the heater in areas where there is a risk of explosion or fire from flammable
gases. Ensure that the heating area is kept clear of combustible materials. Do not use the
heater in damp areas, without suitable ventilation. This heater is not designed for use within 1m or above a
water source. Do not place within one metre (1m) of any water source. Do not place directly in front of, below
or above any power points or switches. Fire risk exists if this heater is covered by or positioned close to
curtains or other combustible materials.
•
This heater is intended for domestic/household use only.
•
Always ensure that this heater is installed as per the requirements noted in Australian Standard AS/NZS
3000:2007.
•
Always keep heater at least one metre (1m) from combustible materials.
•
DO NOT locate this heater directly below, above or in front of the power supply socket or switch.
•
DO NOT use this heater within 1 metre or above any water source.
•
DO NOT use this heater in either the bathroom or ensuite without suitable ventilation.
•
DO NOT use a 3rd party timer, or programmable system with this heater.
•
DO NOT clean the heater while the heater is on or plugged into the mains power supply.
•
DO NOT touch any part of the heater while on, hot surfaces may burn.
•
DO NOT use the wall heater as a dryer.
•
DO NOT attempt to modify the heater, power cord, power plug or the supplied accessories in any way.
•
DO NOT expose the heater to rain, water, or use in damp wet conditions.
•
NEVER cover this heater.
•
NEVER carry the heater by its power supply cord.
•
NEVER use with the power cord coiled, bundled up or tied up. Always extend fully before use.
•
NEVER use the heater if any part of it is damaged.
•
Ensure that the heater is disconnected from the mains supply when installing, cleaning or
removing/installing.
•
Ensure this heater is not left on when unattended.
•
Ensure the heater is not used in areas where flammable gases are present, e.g. paint, petrol etc.
•
Always turn the heater OFF at the unit switch and the power point switch when not in use for extended
periods of time.
•
Always allow the heater to cool, about one (1) hour after the heater has been turned off, before cleaning
the heater.
•
Always ensure that the power cord is fully extended and NOT in contact with any part of the heater.
•
Always ensure that the heater is kept clean and free from dust.
•
Only use this heater when securely attached to the wall/ceiling.
Electrical Data
This product is fitted with a sealed electrical connection plug that is compatible with the heater, the
mains supply for Australia and meets the requirements of international standards. This heater must
be connected to a supply voltage that is equal to that stated on the rating label. If the mains connection plug
or power cord becomes damaged it must be replaced with a complete assembly that is identical to the
original, and this must be replaced by an authorised service centre. Always follow the Australian
requirements for connection to the mains supply. If in doubt always consult a qualified electrician. Note:
(3200W) requires installation of a 15AMP socket by a qualified electrician before use.
E&OE © 2018 Bio 4
Radiant Heat Panel – Spectra 18, 24 and 32
Safety Symbols
The product may have safety warning labels attached to it, explained below. Understand the symbols on
your product and their meanings. If any stickers become unreadable, unattached etc, replace them.
Flammable Material Hazard
Flammable liquids, gases or
substances etc may present.
Avoid ignition sources and
open flames. Danger of fire.
Electrocution / Electrical
Shock Hazard
High voltage or high current
electricity may be present or
required by the product. Take
due care when handling
electrical products, cables,
plugs and leads. Electrical
shock can be fatal.
Crush Hazard
The product may have blades,
edges or mechanical devices
that can cause severe crush
injury to fingers, limbs etc.
Take due care when handling
and using the product.
Read User Manual
Read and fully understand
product safety warnings,
operation, procedures etc
before using the product.
Toxic Fumes / Dust Hazard
Using the product or by-
products from use may
produce fumes, smoke or
particles that could be harmful
if inhaled. Wear appropriate
breathing protection and have
adequate ventilation.
Single Operator Only
The product must be operated
by a single person only. More
than one person operating the
product may introduce
additional hazards.
Use Hand Protection
Wear appropriate hand
protection and take due care
as the product or use of the
product may present hand
hazards.
Explosive Material Hazard
Combustible liquids, gases or
substances etc may be
present. Avoid ignition sources
and open flames. Danger of
explosion.
Use Face Protection
Wear appropriate f ull-face
protection and take due care
as the product or use of the
product may present face and
eye hazards.
Carbon-Monoxide Hazard
Do not use the product in
confined areas or without
adequate ventilation. Carbon-
monoxide poisoning can be
fatal.
Cutting / Amputation Hazard
The product may have blades,
edges or mechanical devices
that can cause severe cut
injury to fingers, limbs etc.
Take due care when handling
and using the product.
Use Foot Protection
Wear appropriate foot
protection and take due care
as the product or use of the
product may present foot
hazards.
Use Eye / Ear / Head
Protection
Wear appropriate eye and / or
ear and / or head protection
and take due care as the
product or use of the product
may present eye, hearing and
head hazards.
Skin Penetration / Puncture
Hazard
The product may produce
pressure, emit liquids or
objects that can cause severe
injury to fingers, limbs, blood
etc. Take due care when
handling and using the
product.
Running Hazard
Do not run on or near the
product as doing so may
present a fall hazard.
Hot Surface Hazard
Be aware that the product may
produce high temperatures
and hot surfaces that can
cause burn injuries.
Diving Hazard
Do not dive into the product as
doing so may present a neck /
head injury hazard.
Flying Debris Hazard
Be aware that the product or
use of the product may
present hazards produced by
flying debris. Wear appropriate
clothing and protectiove
devices.
Adult Super vision Required
Always supervise children and
other users of a product to
prevent drowning or injury.
Moving Parts Hazard
Be aware that the product
contains or uses mechanical
devices that move or rotate.
Always wait for moving parts
to stop fully before handling
the product, adjusting,
maintenence etc.
E&OE © 2018 Bio 5
Radiant Heat Panel – Spectra 18, 24 and 32
Carbon-Monoxide Hazard
Do not use the product in
confined areas or without
adequate ventilation. Carbon-
monoxide poisoning can be
fatal.
devices that can pull in objects
and can cause severe injury to
care when handling and using
Pull Hazard
Be aware that the product
contains or uses mechanical
fingers, limbs etc. Take due
the product.
Slope / Fall Injury Hazard
Be aware that using the
product on sloping surfaces or
in slippery conditions may
present additional dangers
from falls and contact with
blades, moving parts, hot
surfaces etc.
"Slam Dunk" Warning
Do NOT attempt "slam dunk"
maneouvres as this may result
in severe injury due to falling,
product breakage or collapse
etc.
Electrocution / Electrical
Shock Hazard - Outdoor
High voltage or high current
electricity may be present or
required by the product. Do
NOT use in rain, damp or wet
conditions. E lectric al shock
can be fatal.
Winch Operator Position
Hazard
Do NOT stand between winch
and load. Do NOT use winch
to move people.
Winch Hook Hazard
Carry hook to load – do NOT
throw or run.
Electrocution / Electrical
Shock Hazard - Disconnect
High voltage or high current
electricity may be present or
required by the product.
Always disconnect the product
from the electrical supply
before handling the product,
adjusting, maintenence etc.
Winch Lift Hazard
Do NOT LIFT load vertically.
Use machine to PULL only.
Flash / Blinding Hazard
Wear appropriate eye
protection for welding. Dorect
exposure to weld arcs may
cause permanent eye injury.
Power Line Electrocution
Hazard
High voltage / high current
power lines may be present.
Use extreme caution to avoid
contact or interference with
power lines. Electrical shock
can be fatal.
Cable Hazard
Ensure that load bearing cable
is not kinked or knotted.
Laser Hazard
Laser may be in use – do NOT
look directly at laser, or allow
others to.
"Kick-Back" Hazard
High level of "kick-back"
hazard that can cause the
machine to suddenly rotate
towards operator. K ick-back
injury can be fatal.
Winch Cable Hazard
Ensure that there is a
minimum number of cable
coils on winching mechanism.
E&OE © 2018 Bio 6
Radiant Heat Panel – Spectra 18, 24 and 32
Table of Contents
Safety ................................................................................................................................................... 2
Specific Safety Instructions ........................................................................................................................ 4
Electrical Data ............................................................................................................................................ 4
Safety Symbols .......................................................................................................................................... 5
Assembly ............................................................................................................................................ 8
Heater Head ............................................................................................................................................... 8
Mounting Heater ........................................................................................................................................ 8
General Mounting Suggestions ........................................................................................................... 8
Wall/Ceiling Bracket Assembly ............................................................................................................ 8
Adjusting the Bracket Position ................................................................................................................... 9
Tilting the Head .......................................................................................................................................... 9
Heater Positioning .................................................................................................................................... 10
Operation .......................................................................................................................................... 11
Maintenance ..................................................................................................................................... 11
Specifications ................................................................................................................................... 12
Spectra 18 ................................................................................................................................................ 12
Spectra 24 ................................................................................................................................................ 12
Spectra 32 ................................................................................................................................................ 12
E&OE © 2018 Bio 7
Radiant Heat Panel – Spectra 18, 24 and 32
Assembly
Heater Head
Attach the heater rear bracket (B) to the heater body (A) using bolts, washers and nuts. You can either
mount side or lengthways depending on the mounting surface.
Mounting Heater
General Mounting Suggestions
If unsure, please discuss with your local hardware store.
•
Ensure the fixing screws are at least suitable for 10Kg each.
•
If fitting to a stud wall or ceiling, ensure all fixing screws are into timber. Plasterboard IS NOT suitable by
itself.
•
If no timber stud/joists are available we would suggest installing a timber batten to attach to.
Wall/Ceiling Bracket Assembly
1. The bottom of the heater body should be 1.8m above the floor, see Heater Positioning.
2. Do not position the heater directly above or below a power point or switch. Do not position heater in front
of a power point.
3. Mark and drill 2 mounting holes for bracket (C).
4. Using 2 suitable screws (not supplied) attach the bracket to the wall or ceiling.
Note: If unsure what screws to use, please discuss with your local hardware store.
5. Using the nuts and bolts join the bracket (C) to the heater bracket (B) and tighten fully.
6. Heater is now mounted and ready for use. Check the safety distance between the heater body and
flammable surface when wall or corner mounted. Do not mount the heater in the ceiling, always mount to
the ceiling, see Heater Positioning.
E&OE © 2018 Bio 8
Radiant Heat Panel – Spectra 18, 24 and 32
Adjusting the Bracket Position
Tilting the Head
Always ensure that the heater is
switched off, disconnected from the
mains power supply and is cold to touch. If
heater has been recently used, please leave the
wall heater one (1) hour to cool before tilting
head.
1. Loosen the locking bolt and remove.
2. Loosen the head tilt bolt, do not remove.
3. Head can be tilted through 30°.
4. Tighten the head tilt bolt when the desired
angle is achieved.
5. Insert and tighten the locking bolt if possible
to stop any unintentional movement of the
heater.
Note: If locking bolt cannot be fitted, ensure
the head tilt bolt is very tight.
E&OE © 2018 Bio 9
Radiant Heat Panel – Spectra 18, 24 and 32
Heater Positioning
1. Position heater at least 200mm from the eave lining or ceiling or wall at 90° to heater.
2. Position heater at least 1.8m above the floor.
3. Never position in front, above or below a power point.
4. If heater is facing another vertical surface, e.g. a wall, the gap must be at least 1 metre.
5. Never mount heater within 1 metre of a water source, e.g. a tap.
Never mount heater into the wall or ceiling. Only mount to the surface.
E&OE © 2018 Bio 10
Radiant Heat Panel – Spectra 18, 24 and 32
Operation
1. Plug into a 240V AC wall socket.
2. To turn ON – switch the wall socket on.
3. Turn OFF – switch the wall socket off.
4. Unplug lead from wall socket when not in use.
The heater (3200W) is a 15AMP electric heater. This requires a special 15AMP power socket to be
installed by a qualified electrician before being able to use.
Maintenance
Always ensure that the wall heater has been left for one (1) hour to cool before cleaning.
1. Turn off and disconnect from mains power, allow to cool.
2. Wipe unit over with a damp, clean, soft lint-free cloth.
3. For stubborn marks, you can use a mild dish washing solution on a damp, clean, soft, lint-free cloth.
NEVER allow water or a mild dish washing solution to enter or drip onto the wall heater.
NEVER use solvents, e.g. Petrol, Toluene, Methylated Spirits etc. to clean the floor heater, as these
will damage the surface finish and may cause a fire when unit is next used.
E&OE © 2018 Bio 11
Radiant Heat Panel – Spectra 18, 24 and 32
Specifications
Spectra 18
Power
Material
Input Voltage
IPx4 rated
Cord Length
Plug Standard
Power Plug
Spectra 24
Power
Material
Input Voltage
IPx4 rated
Cord Length
Plug Standard
1800W
Anodised Aluminium
240V AC
Splash Resistant
1.5m
3 pin 15 Amp
Australian Standard
2400W
Anodised Aluminium
240V AC
Splash Resistant
1.5m
3 pin 15 Amp
Power Plug
Australian Standard
Spectra 32
Power
Material
Input Voltage
IPx4 rated
Cord Length
Plug Standard
Power Plug
NOTE: The 3200W Bio Electric Radiant Strip Heater requires installation by a licensed electrician to a 15A
circuit
3200W
Anodised Aluminium
240V AC
Splash Resistant
1.5m
3 pin 15 Amp
Australian Standard
E&OE © 2018 Bio 12
Radiant Heat Panel – Spectra 18, 24 and 32
Some experts believe that the incorrect or prolonged use of almost any
product may cause serious injury or death. To help reduce your risk of
serious injury or death, refer to the information below. For more information,
see www.datastreamserver.com/safety
Consult all documentation, packaging
and product labelling before use. Note
that some products feature
documentation available online. It is
recommended to print and retain the
documentation.
Before each use, check the product for
loose/broken/damaged/missing parts,
wear or leaks (if applicable). Never use a
product with
loose/broken/damaged/missing parts,
wear or leaks.
Products must be inspected and serviced
(if applicable) by a qualified technician
every 6 months. This is based on
average residential use by persons of
average size and strength, and on a
property of average metropolitan size.
Use beyond these recommendations may
require more frequent
inspections/servicing.
Ensure that all users of the product have
completed a suitable industry recognised
training course before being allowed
access to the product.
The product has been supplied by a general merchandise
retailer that may not be familiar with your specific
application or description of application. Be sure to attain
third-party approval from a qualified specialist for your
application before use, regardless of any assurances from
the retailer or its representatives.
This product is not intended for use where fail-safe
operation is required. As with any product (for example,
automobile, computer, toaster), there is the possibility of
technical issues that may require the repair or
replacement of parts, or the product itself. If the possibility
of such failure and the associated time it may take to
rectify could in any way inconvenience the user, business
or employee, or financially affect the user, business or
employee, then the product is not suitable for your
requirements. This product is not intended for use where
incorrect operation or a failure of any kind, including but
not limited to, a condition requiring product return,
replacement, parts replacement or service by a technician
may cause financial loss, loss of employee time or an
inconvenience requiring compensation.
If this product has been purchased in error when
considering the information presented here, contact the
retailer directly for details of their returns policy, if
required.
©2018 Bio. All rights reserved. No part of this document, including descriptive content, concepts, ideas,
diagrams or images may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,
without express permission or consent from the publisher.
E&OE © 2018 Bio 13
Loading...
