Smart Sonic
Ultrasonic Transmitters
925-0156 Rev 1
Instruction Manual
SmartSonic 2
Table of Contents
Contact Information……...…………………………….……..3
General Specifications……………………………………….4
Operation………………………………………………………5
Wiring…………………………………………………………..6
Calibration………………………………….…………………7
Mounting………………… …..……………………………….8
Technical Specifications……………………………………..9
2
Contact Information
SmartSonic 3
Customer Service and
Technical Support Personnel
Robin Kozisek
Customer Service/Order Entry
Matt Virgillito
Application Specialist
Nathan Grube
Application Specialist
Todd Peterson
Sales Manager
Dave Etherton
Technical Support
Customer Service Hotline
Call or Fax one of the following numbers if you have
installation or application questions.
1-800-278-4241 8:00 am — 5:00 pm CST
(402) 434-9102 Voice
(402) 434– 9133 Fax
www.binmaster.com
PO Box 29709 / Lincoln, NE 68529 / 7201 North 98th St. / Lincoln, NE 68507
Phone: 800-278-4241 or 402-434-9102 / Fax: 402-434-9133
Division of Garner Industries
3
General Specifications
SmartSonic 4
Conduit Entry:
Enclosure:
Enclosure Rating:
Temperature: -40 to +140° F (-40 to 60° C)
Pressure:
Approvals: Entela—CSA/UL
Accuracy:
Beam Angle:
Loss of Echo: Hold 30 seconds, 22 mA
1/2” NPT (PVC conduit only)
PVC-94VO
NEMA 4X(IP65)
1 bar
+/- 0.25% of maximum range
6°-12° conical at –3dB
Temperature Compensation:
Temperature Sensor failure: 23 mA
Calibration: Push-button or programmable via optional communication port
Diagnostics:
Power AC: AC units 115 VAC 60Hz or 230 VAC 50Hz, 1.7 VA
Power DC 3 Wire:
DC 2 Wire Loop Powered:
Output:
4 to 20 mA Max. Loop Resistance 110 VAC @ 750 Ohms (isolated)
Continuous in transducer
Via communication port (echo profile, echo stability, operation errors)
DC units 12 to 30 VDC, 0.07 A max @ 24 VDC
DC Loop Powered units, 12 to 28 VDC, 0.025 A max @ 24 VDC
4-20 mA, optional RS-232, RS-485, or Modbus
12 VDC @ 250 Ohms
24 VDC @ 750 Ohms
4
Operation
SmartSonic 5
The new SmartSonic transmitter features high efficiency, narrow beam design technology using a wide frequency bandwidth
to enhance operation in difficult applications. The transmitter performs particularly well in harsh environments where vessel
temperatures vary. SmartSonic uses smart signal processing to eliminate unwanted echoes from tank walls, standpipes,
and other tank structures that often cause error readings by other ultrasonic devices. The unit’s transducer uses a built -in,
self-cleaning operation to eliminate buildup or condensation. SmartSonic’s sensor probes are designed to adapt to the
internal tank conditions, automatically adjusting power and receiver sensitivity to any distance and reflecting surface. This
technology ensures the same echo is maintained over the entire operating range which enhances measurement accuracy.
The transmitter can be programmed to simply send a 4-20 mA analog output signal directly to an existing control system or
send data by RS-232 or RS-485 to a PC running SmartSonic’s calibration/data logging software program.
5

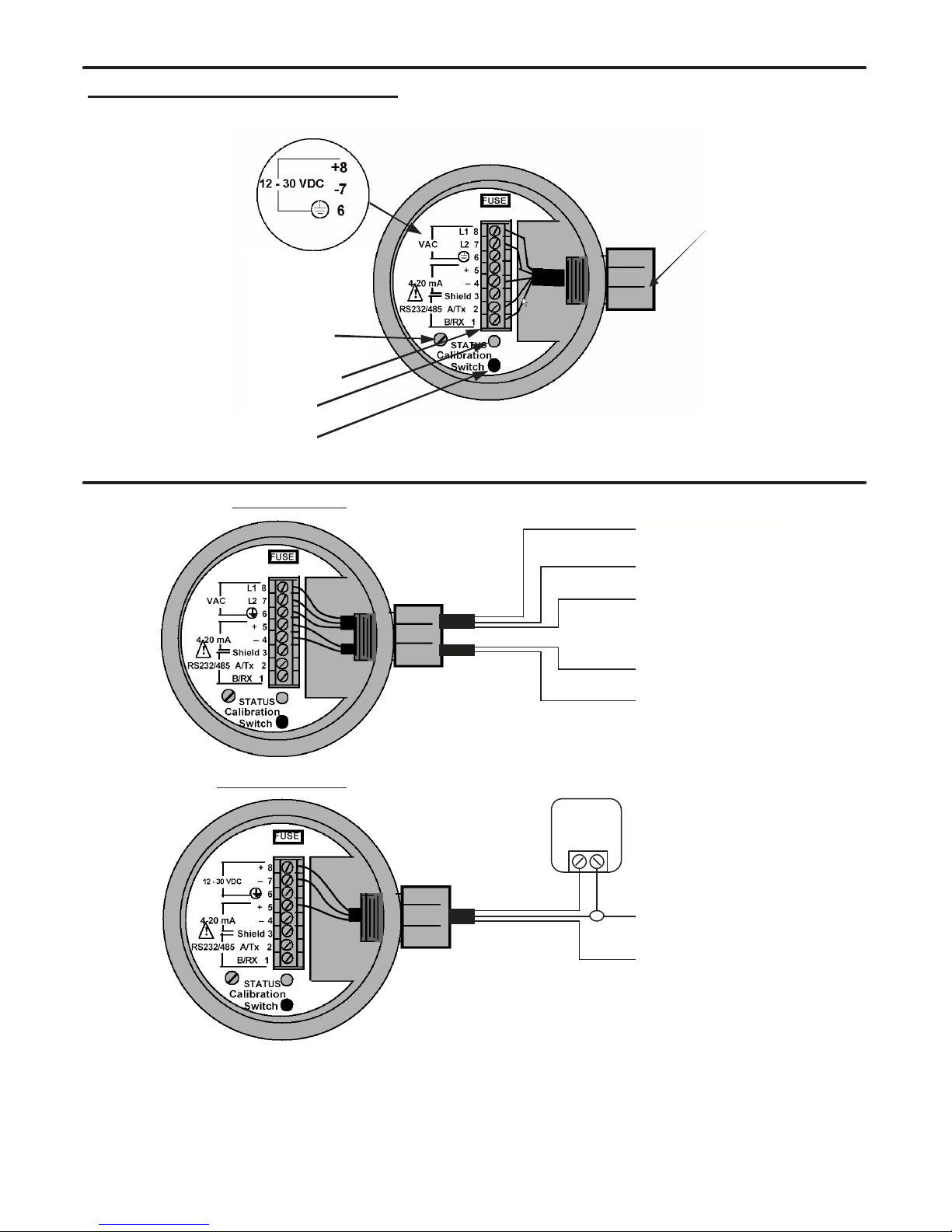

Interconnecting Wire Diagram
DC Power input
Note—TB #7 is
Connected to TB #4
Control Panel
Fastening Screw
Terminal Block
Status LED
Calibration
Pushbutton
AC Wire Diagram
SmartSonic 6
1/2” Conduit NPT
Conduit Connection
NOTE: When installing the SmartSonic in
locations where moisture or moist air could
enter the enclosure through the electrical
conduit, use a duct seal compound to seal
the conduit opening.
DC 3 Wire Diagram
8
DC Power
Supply
12—30 VDC
+
L1 120 VAC
L2 Neutral
Ground
4 to 20 mA +
4 to 20 mA -
-
4 to 20 mA -
4 to 20 mA +
115/230 VAC…………..3 wire unshielded, 22AWG (7X30), 300V
4-20 mA………………..1 pair shielded, 24AWG (7X32), 300V
Wire/Cable Recommendation for 3—Wire DC Units
24 VDC + 4-20 mA…….3 wire shielded, 24AWG (7X32), 300V
Wire/Cable for AC Units
6

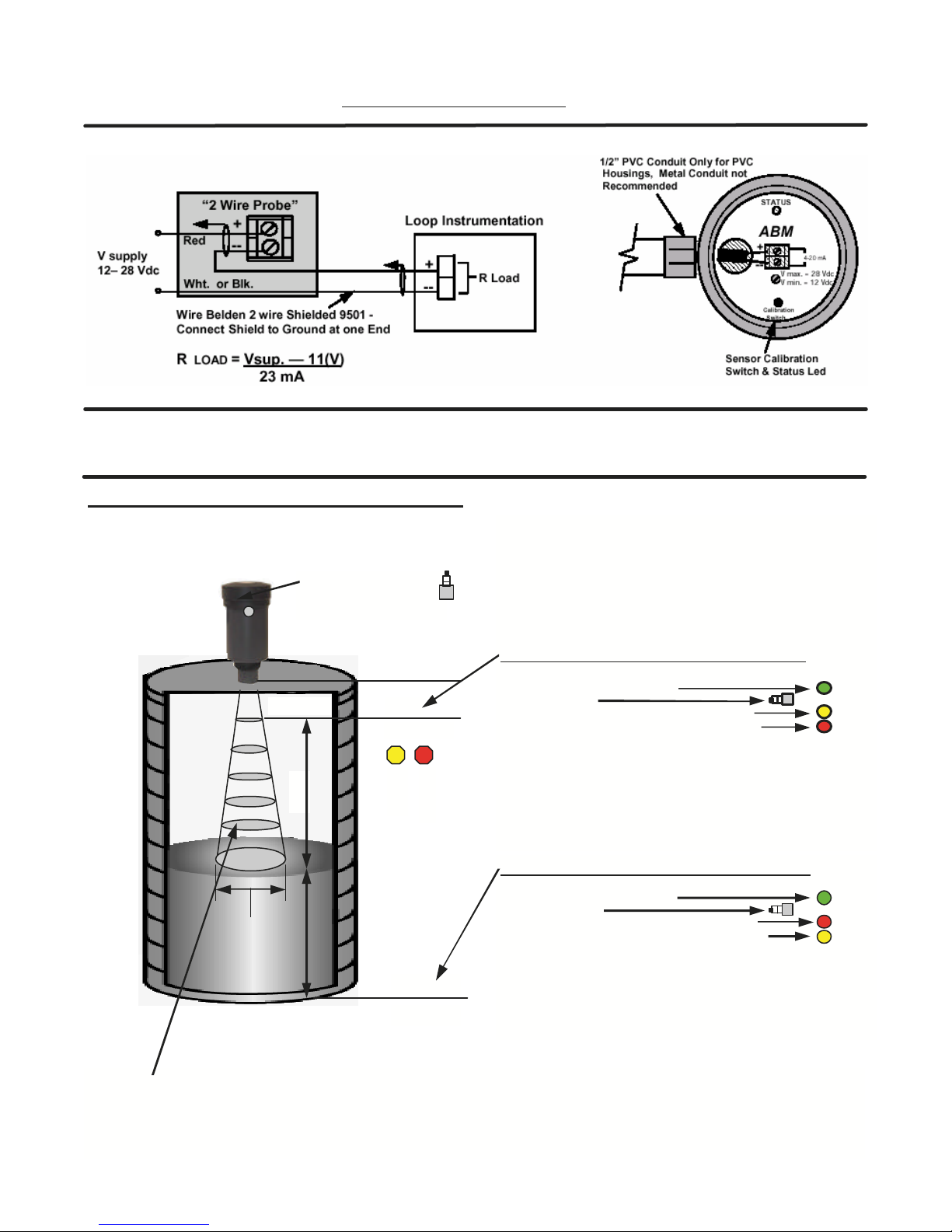

2 Wire DC 4/20 mA Loop Powered
Calibration—4- 20 or 20-4 mA Output
SmartSonic 7
Calibration Pushbutton/ LED
Indicator for 4—20 mA (750
ohm max.) Output
Deadzone FULL
Span Material Level
6° to 12°
20 or 4 mA
Yellow
Red
EMPTY
4 or 20 mA
Full—Calibration 20 mA or 4 mA (set near target)
1. Calibration mode LED color
2. Push button
Hold for 3 seconds (20 mA) until LED turns
or hold for 7 seconds (4 mA) until LED turns
3. Release button, observe, LED flashes to
acknowledge
Empty—Calibration 4 mA or 20 mA (set far target)
1. Calibration mode LED color
2. Push Button
Hold for 7 seconds (4 mA) until LED turns
or hold for 3 seconds (20 mA) until LED turns
3. Release button, observe, LED flashes to
Green
Yellow
Red
Green
Red
Yellow
Operation—An acoustic pulse is transmitted from the SmartSonics sensor face. The pulse travels to the surface being
monitored and is reflected off this surface back to the sensor face. The time of flight is divided by 2 and converted to an
output signal directly proportional to the material level.
7
Mounting
SmartSonic 8
Mounting:
Mounting the SmartSonic Transmitter is critical to the
proper operation of the unit. The unit can be directly
mounted by simply threading the sensor directly into a
metal or plastic mounting flange. If an extended standpipe
is used for mounting, please consult the factory for
assistance. The thread size of the unit is dependent upon
the specific model (see specifications).
Threaded Mounting Flange (1”, 1 1/2”, 2”, or 3” NPT)

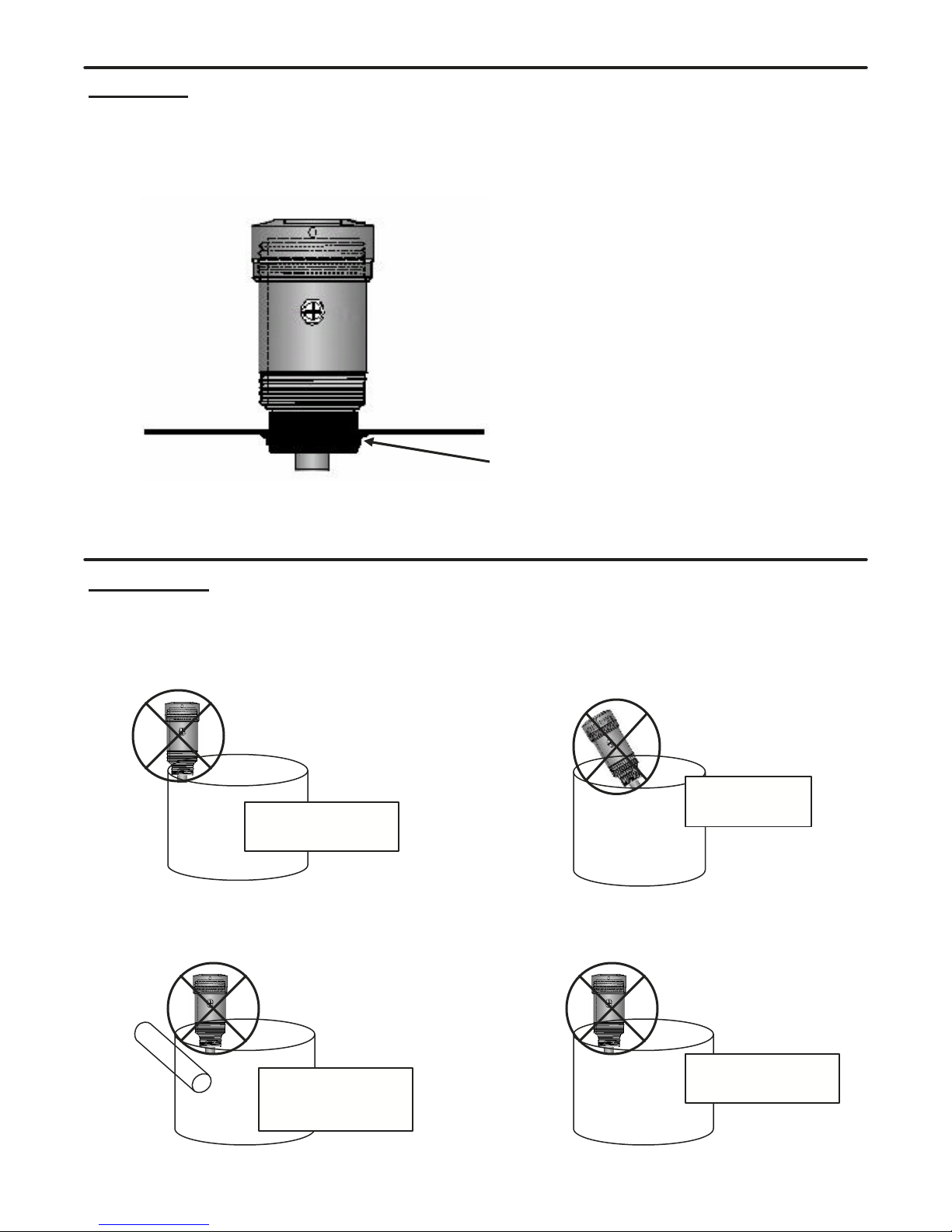

Positioning
Avoid interference
from side of vessel
Do not install at
an angle
Avoid interference
from obstructions in
vessel
Will not operate in a
vacuum
Vacuum
8

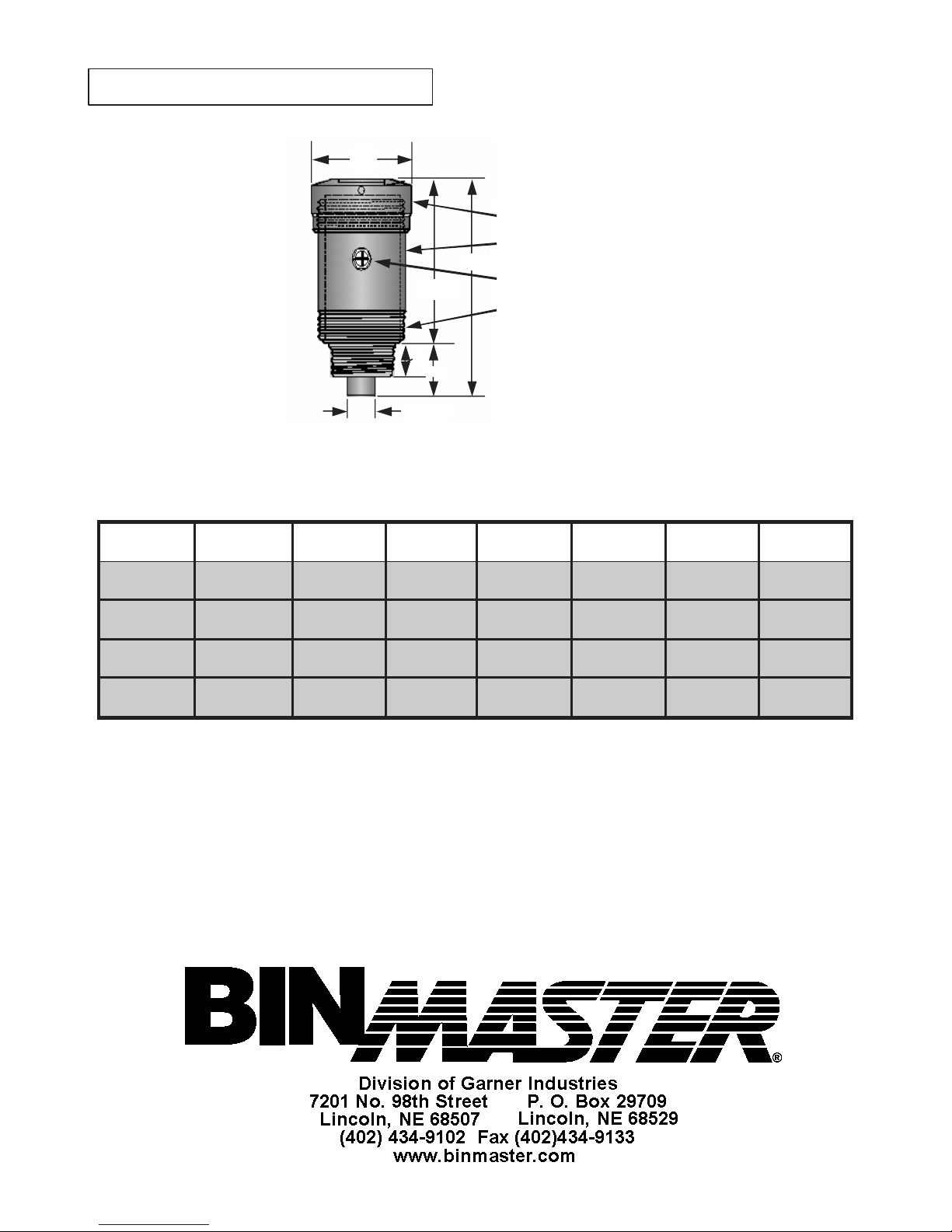

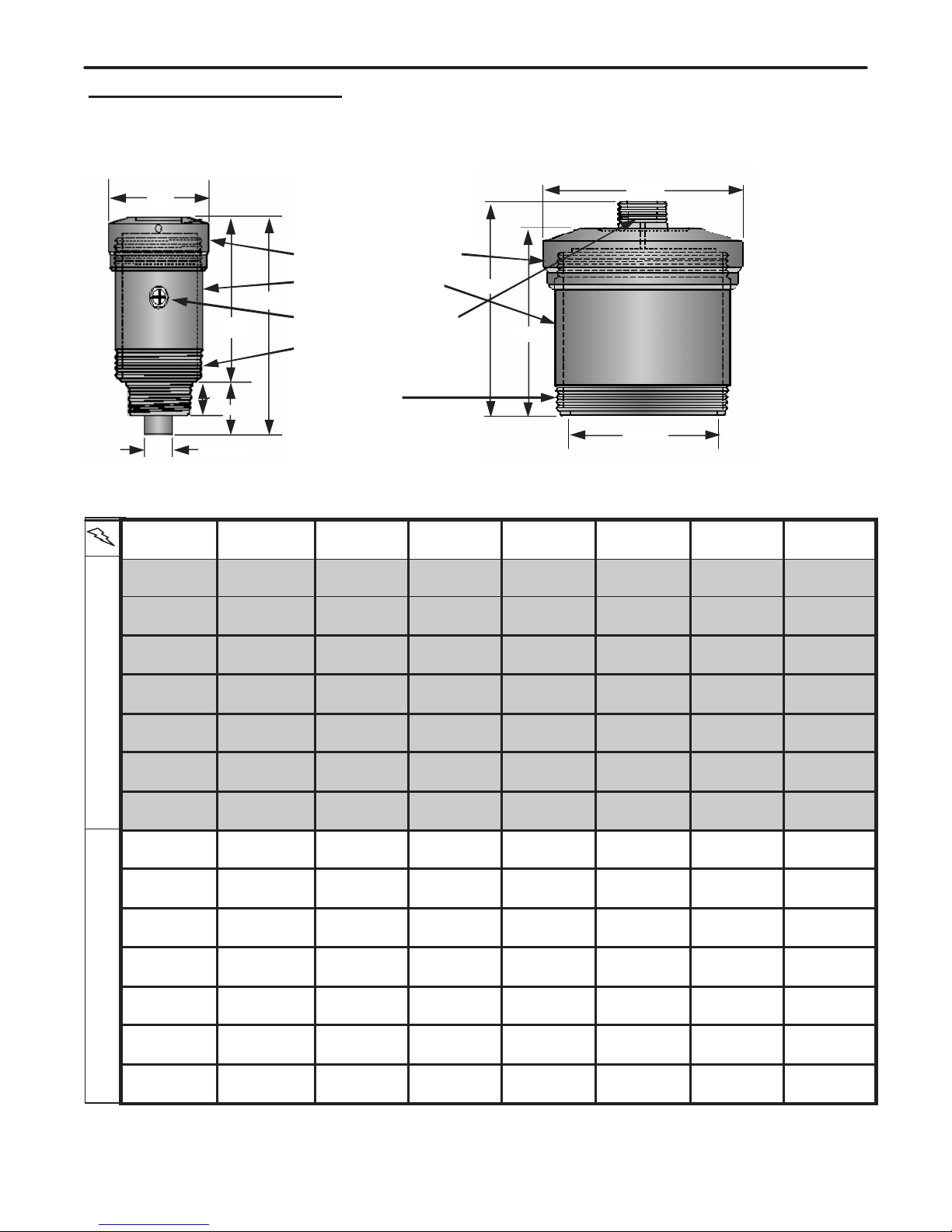

Technical Specifications
