Specification
Feature Unit
Flow at 60 cycles/min
7.2 US Gal. /min.
26.4 Litres/min.
Flow per cycle
0.12 US Gallons
0.440 Litres
Recommended intermittent cycle rate 25 cycles/min
Pump Stroke
5”
127 mm
Ratio 30:1
Maximum Fluid Pressure
3045 PSI
210 BAR

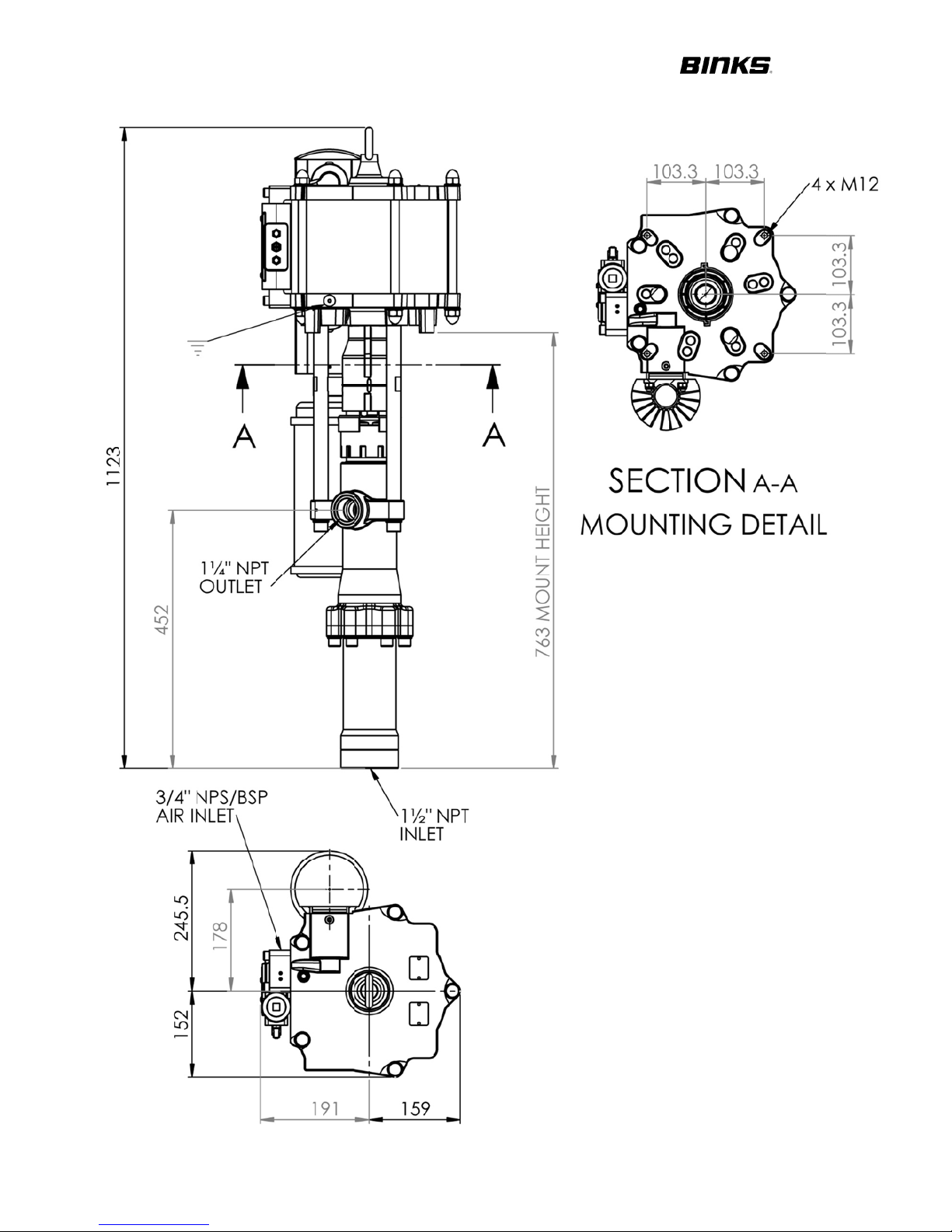

Fluid Inlet
Fluid Outlet
1½” NPT
1¼” NPT
Weight
165 Pounds
75 KG
Rod Upper Packing Seal PTFE + UHMWPE
Rod Lower Packing Seal PTFE + UHMWPE
Air Inlet
¾” NPS/BSP
Air Quality ISO 8573.1 Class 3.3.2
Dirt 5 microns
Water -20ºC@7bar (0.1g/m³)
Oil 0.1mg/m³

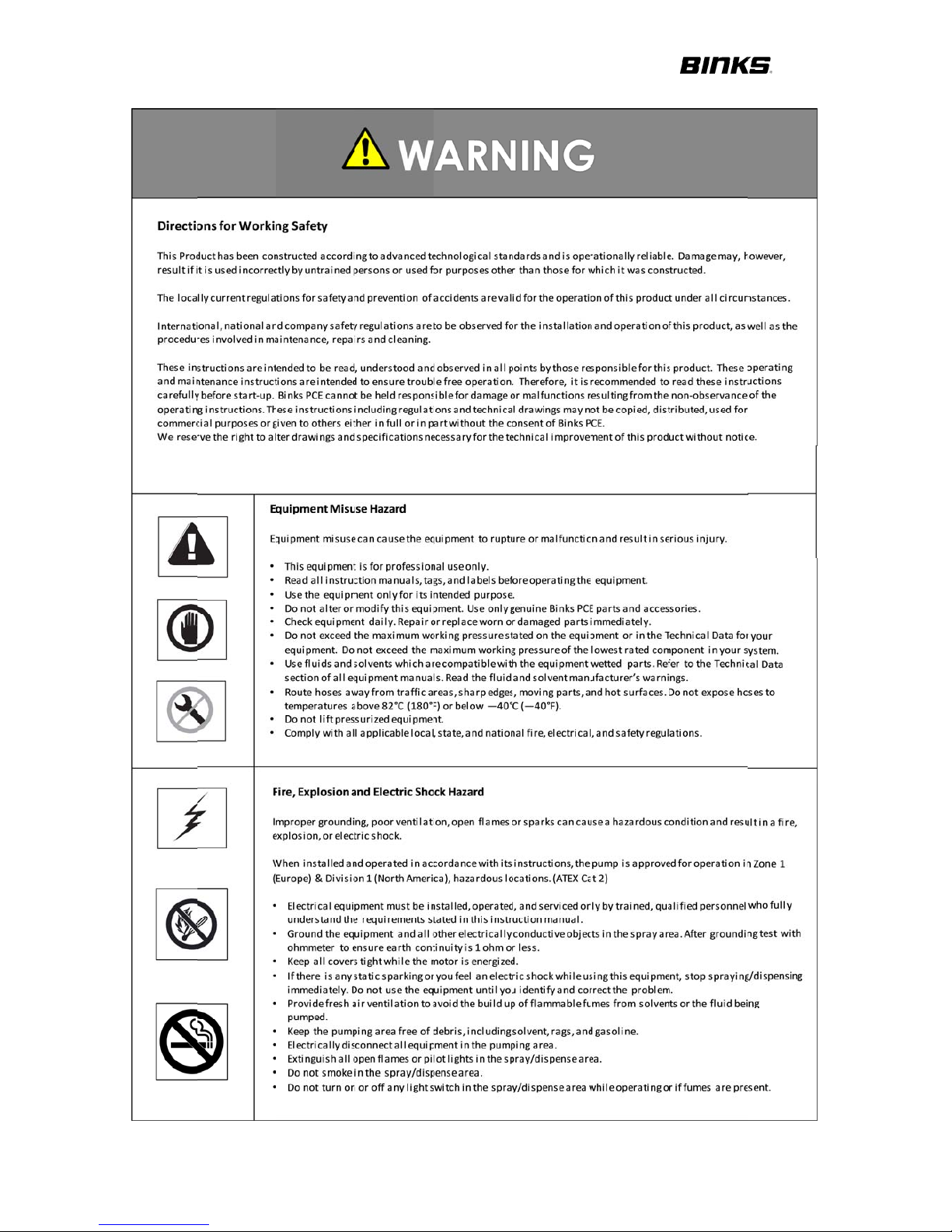

Ins
t
ruction Manual
P
age 4 of 12 Issue: 1.0

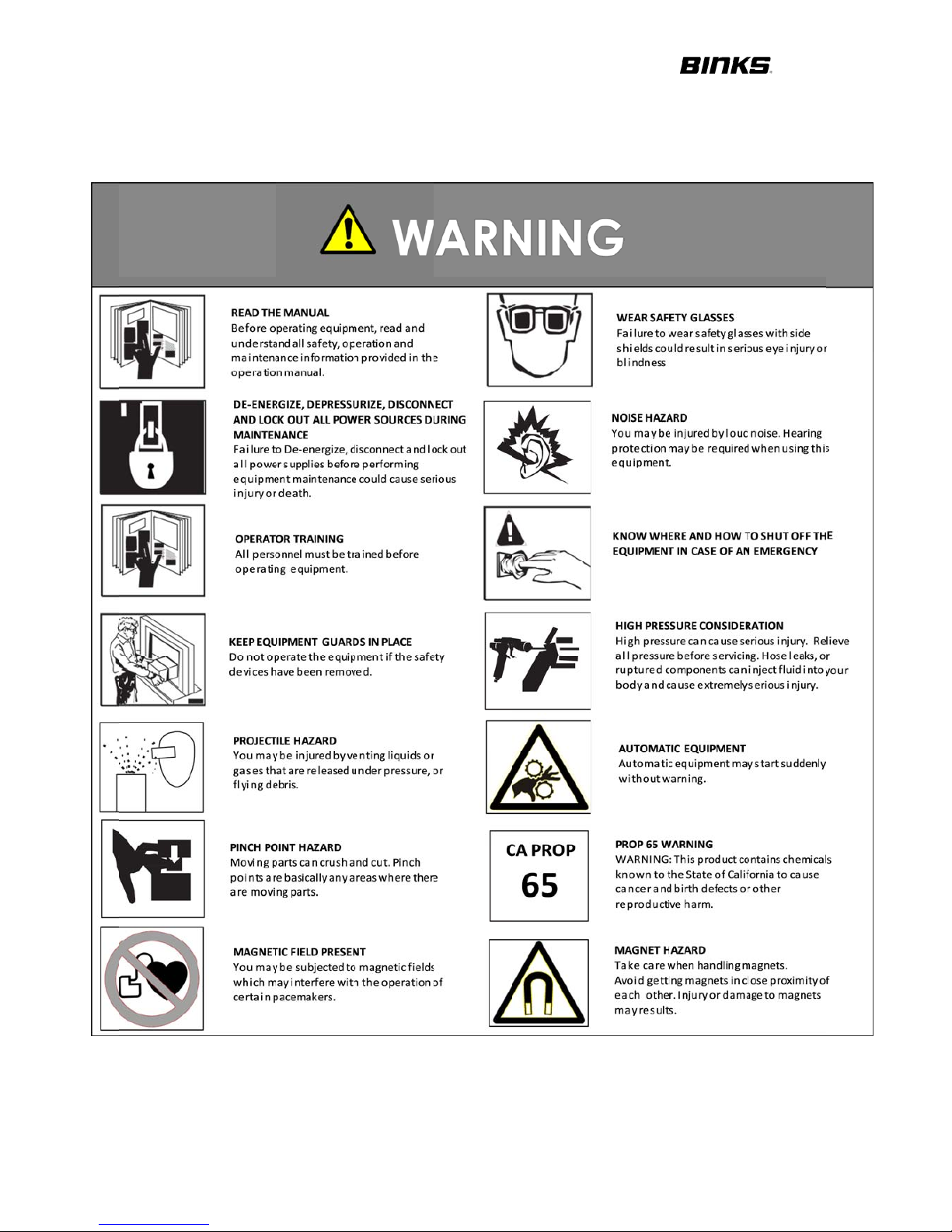

Ins
t
ruction Manual
P
age 5 of 12 Issue: 1.0

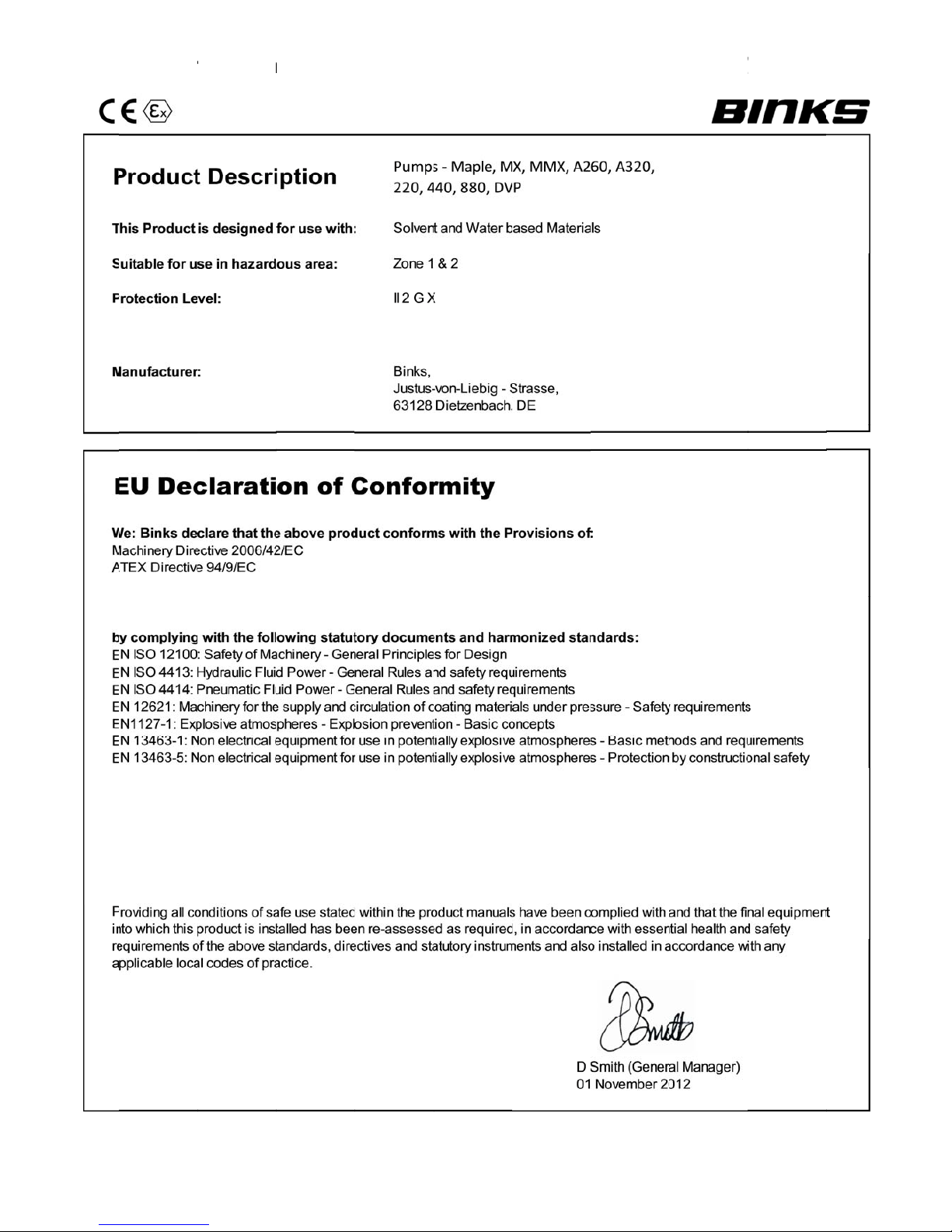

Ins
t
ruction Manual
P
age 6 of 12 Issue: 1.0
Instruction Manual
Page 7 of 12 Issue: 1.0

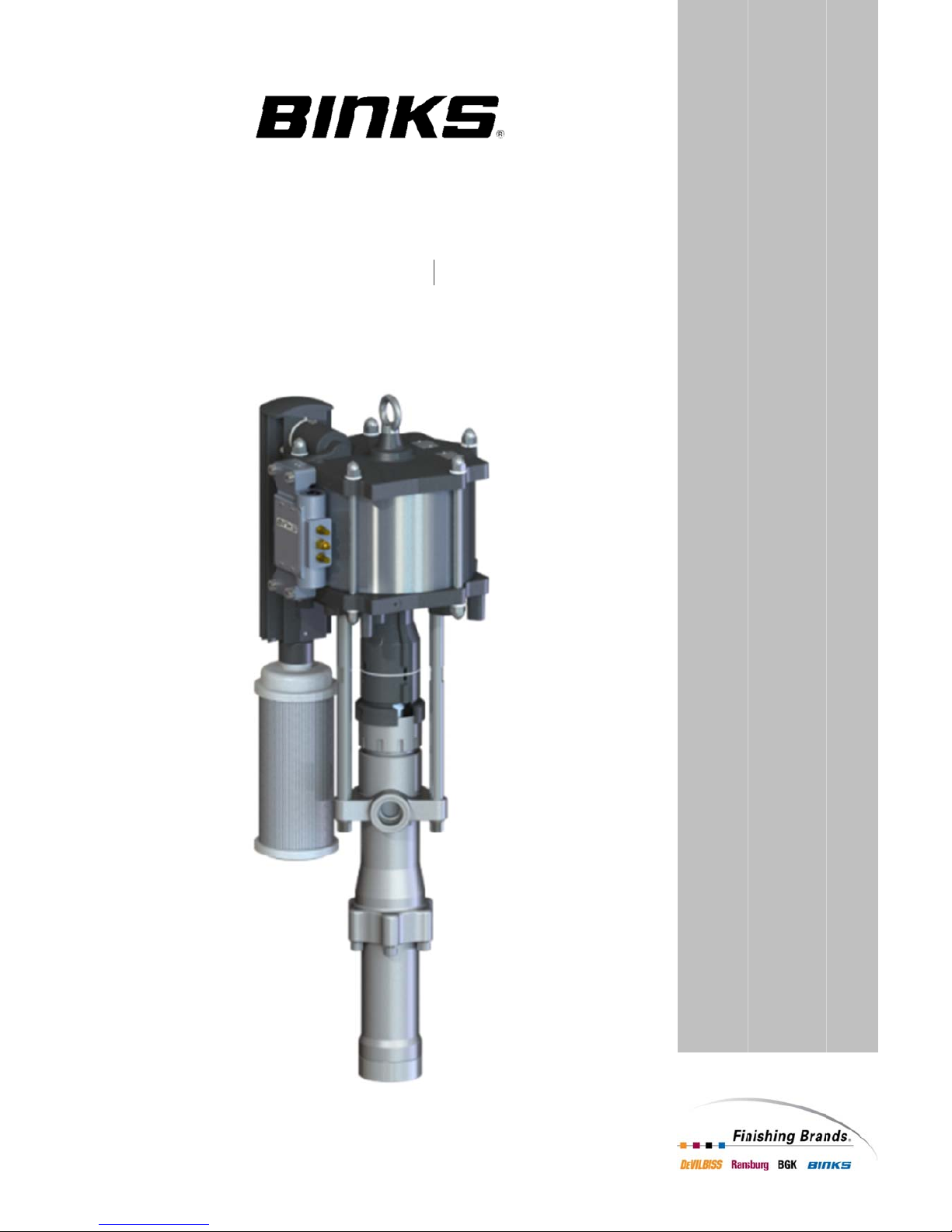

General Description
The MX44030PU-XXX fluid paint pump is designed for pumping High Viscosity
materials such as Mastic, PVC, Underseals, Sound deadeners and other similar
materials.
The fluid section is a ‘ROD’ type design which means the rod displaces the
material and is the only wear contact with the packings. A two-ball check valve
system ensures precise, smooth volume output. Tungsten Carbide ball seats
ensure maximum operating life between servicing.
The interior design maintains high flow capacity with minimum pressure drop
ensuring high efficiency; special surface treatments provide a smooth micro
surface making cleaning and flushing easier.
The piston and rod seals are the chevron type, which can be adjusted by means of
a gland nut, should wear occur, a preloaded wave spring is employed to adjust
and maintain the lower chevron packing preload when wear occurs. A built in
Solvent cup cleans and lubricates the pump rod and seals to prolong working life.
The air motor also utilises the Binks quick exhaust technology to prevent air valve
freezing conditions when high cycle speeds are employed.
The air motor is furnished with an exhaust muffler to control air exhaust noise
emission. An adapter kit is also available to facilitate connection to a piped
exhaust system if required.
Installation
This pump should be flushed with a suitable compatible solvent prior to use.
It is recommended that a propriety 1/2" BSP Filter / Regulator is used to provide
final control of the compressed air to the air motor.
Mount the pump securely and position the pump at a convenient height to allow
for maintenance, visual observation, and periodic inspection.
The Pump Assembly must be connected to a suitable earth ground to ensure that
there is no possibility of static build up.
Attach suitable pipework or flexible hoses designed to meet the working pressure
of the pump assembly (dependent on pump ratio) to the inlet and outlet
connections, e.g. 1½” Inlet and 1¼” Outlet.
Set the pump speed to a slow cycle rate and start the pump to remove any air
from the fluid circuit. Inspect for any air or fluid leaks.

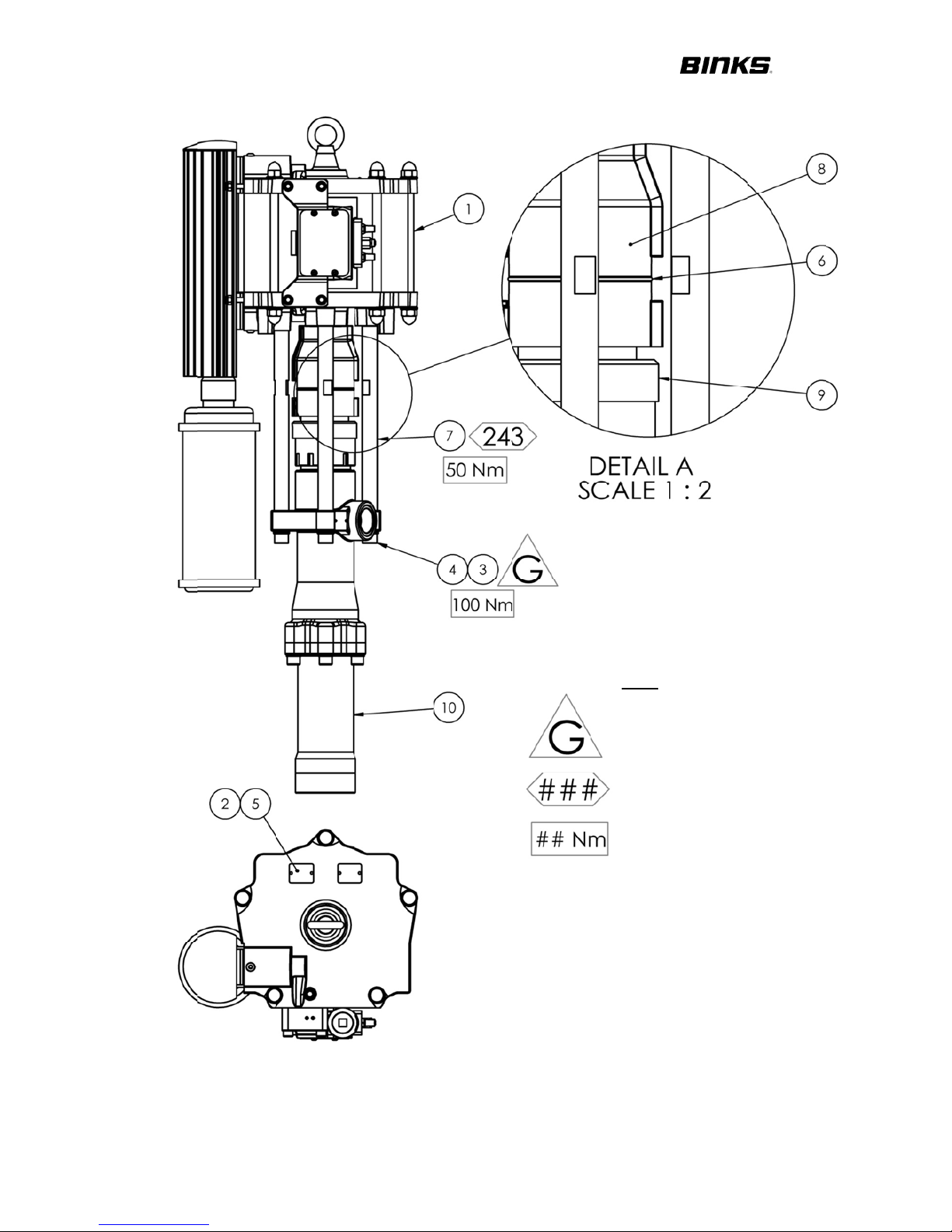

Ins
t
ruction Manual
P
age 8 of 12
KEY
= G
R
= LO
= TO
Issue:
EASE (A
G
CTITE
RQUE
1.0
MD-010)
Instruction Manual
Page 9 of 12 Issue: 1.0
Parts List – ‘MX44030PU-CMH/SMH Pump Assembly’
ITEM PART No DESCRIPTION QTY REMARKS
1
104037 A260 AIR MOTOR 1
2
164838 RIVET 2
3
165100 M16 SPRING WASHER 3
4
165594 M16 x 60 SOCKET CAPSCREW 3
5
193540 LABEL 1
6
193543 COVER CLIP 1
7
193616 TIE ROD 3
8
193938 FX440 HAND GUARD 2
9
193940 FX440 GUARD ADAPTOR 1
10
FX440PU-CMH FX440PU-CMH FLUID SECTION 1
10
FX440PU-SMH FX440PU-SMH FLUID SECTION 1
Replacement Spares Kits
No. Part No. Description Remarks
1
250645 Air Motor Overhaul Kit
Air Piston Seal
Shaft seals and bearing
All O-rings
QEV cups
Pilot Valves inc O-rings
2
250647 Air Motor Control Valve Kit Main Spool Valve inc. O-rings
3
250696 Fluid Section Seal Kit
All O-rings
All Packings
Check Main Parts List in Air Motor & Fluid Section Manuals for details of individual Kit
Contents
Instruction Manual
Page 10 of 12 Issue: 1.0
Pump Accessories
PART No DESCRIPTION REMARKS
192506
Exhaust Tube Adapter
(1½” NB hose)
For piped exhaust
0114-014178 Earth Wire
MXA-C13ALM5-H34 Air Control Including Hose Air Filter Regulator (0.5m Hose)
AGMD-010
Kluber Isoflex Topas NB 52
(Grease type #)
50 ml Tube
Preventative Maintenance
Check daily to ensure that there is the correct type of lubricant material present in the solvent cup; this should
be compatible with the material being pumped. Confirmation from the material supplier should be sought to
ensure compatibility to prevent the risk of contamination.
Check daily for excessive material leaks into the solvent cup
A universal lubricant is available - Wet Sol ‘Plus’ Binks Part Number 863009
Instruction Manual
Page 11 of 12 Issue: 1.0
Fault Finding
Symptom Possible Cause Remedy
Motor will not run a. No Air supply
b. Air piston seal worn.
c. Pilot valve assemblies
inoperable.
d. Main air valve inoperable
e. QE valve defective
a. Check air and fluid supply ball valves and
supply hoses.
b. Replace Piston seal
c. Switch/interchange pilot valves to isolate
faulty pilot valve and clean/replace.
d. Check clean/replace Air valve.
e. Check for constant exhaust air when pump
is not in a stalled condition. Check/replace
QE cups
Pump runs but has
excessive pulsation
a. Worn piston seal.
b. Worn/failed shaft seals.
c. Damaged Exhaust Valve
d. Damaged Pilot Valve
e. Air exhaust restricted.
a. Replace seal
b. Replace shaft bearing / seal housing.
c. Inspect / clean and replace as required
d. Inspect / clean and replace as required
e. Inspect / clean and replace as required
Leak from rod seal
packings
Seal wear or damage to
packing material
Stop the pump and relieve all material
pressure. Tighten the gland nut until the
resistance of the packings clamping the shaft
can be felt. Do not over-tighten. Ensure solvent
cup has the correct lubricant for the material
being pumped present at all times.
Damaged rod Replace
Low material
flowrate, pump
running fast or will
not stall (stalling - 1
stroke should not
occur in less than 30
seconds)
Contaminates trapped
between ball and seat
Strip and clean pump.
Check for damage
Worn or damaged balls/seats Check for wear; replace balls and / or seats.
Worn bottom rod seals
Replace
Air entering system Loose joint on suction side Check and reseal fittings
