Binks Agitators for Pressure SERVICE MANUAL

SERVICE MANUAL
EN
AIR MOTOR DRIVES AND AGITATORS FOR PRESSURE FEED TANKS
77-3138-R4 (11/2020) 1 / 12 www.carlisleft.com
EN
In this part sheet, the words WARNING, CAUTION and NOTE are used to
emphasize important safety information as follows:
!
WARNING
Hazards or unsafe practices which
could result in severe personal
injury, death or substantial property
damage.
Read the following warnings before using this equipment.
READ THE MANUAL
Before operating finishing equipment, read and understand all safety, operation and maintenance information provided in the operation manual.
OPERATOR TRAINING All personnel must be trained before operating finishing equipment.
EQUIPMENT MISUSE HAZARD Equipment misuse can cause the equipment to rupture, malfunction, or start unexpectedly and result in serious injury.
LOCK OUT / TAG-OUT
Failure to de-energize, disconnect, lock out and tag-out all power sources before performing equipment maintenance could cause serious injury or death.
AUTOMATIC EQUIPMENT
Automatic equipment may start suddenly without warning.
!
CAUTION
Hazards or unsafe practices which
could result in minor personal injury,
product or property damage.
!
WARNING
PROJECTILE HAZARD
You may be injured by venting liquids or gases that are released under pressure, or flying debris.
PINCH POINT HAZARD Moving parts can crush and cut. Pinch points are basically any areas where there are moving parts.
STATIC CHARGE Fluid may develop a static charge that must be dissipated through proper grounding of the equipment, objects to be sprayed and all other electrically conductive objects in the dispensing area. Improper grounding or sparks can cause a hazardous condition and result in fire, explosion or electric shock and other serious injury.
WEAR RESPIRATOR Toxic fumes can cause serious injury or death if inhaled. Wear a respirator as recommended by the fluid and solvent manufacturer’s Safety Data Sheet.
NOTE
Important installation, operation or
maintenance information.
PRESSURE RELIEF PROCEDURE
Always follow the pressure relief procedure in the equipment instruction manual.
KEEP EQUIPMENT GUARDS IN PLACE Do not operate the equipment if the safety devices have been removed.
KNOW WHERE AND HOW TO SHUT OFF THE EQUIPMENT IN CASE OF AN EMERGENCY
WEAR SAFETY GLASSES
Failure to wear safety glasses with side shields could result in serious eye injury or blindness.
INSPECT THE EQUIPMENT DAILY Inspect the equipment for worn or broken parts on a daily basis. Do not operate the equipment if you are uncertain about its condition.
NEVER MODIFY THE EQUIPMENT Do not modify the equipment unless the manufacturer provides written approval.
NOISE HAZARD You may be injured by loud noise. Hearing protection may be required when using this equipment.
TOXIC FLUID & FUMES Hazardous fluid or toxic fumes can cause serious injury or death if splashed in the eyes or on the skin, inhaled, injected or swallowed. LEARN and KNOW the specific hazards or the fluids you are using.
FIRE AND EXPLOSION HAZARD Improper equipment grounding, poor ventilation, open flame or sparks can cause a hazardous condition and result in fire or explosion and serious injury.
MEDICAL ALERT Any injury caused by high pressure liquid can be serious. If you are injured or even suspect an injury:
• Go to an emergency room immediately.
• Tell the doctor you suspect an injection injury.
• Show the doctor this medical information or the medical alert card provided with your airless spray equipment.
• Tell the doctor what kind of fluid you were spraying or dispensing.
GET IMMEDIATE MEDICAL ATTENTION To prevent contact with the fluid, please note the following:
• Never point the gun/valve at anyone or any part of the body.
• Never put hand or fingers over the spray tip.
• Never attempt to stop or deflect fluid leaks with your hand, body, glove or rag.
• Always have the tip guard on the spray gun before spraying.
• Always ensure that the gun trigger safety operates before spraying.
IT IS THE RESPONSIBILITY OF THE EMPLOYER TO PROVIDE THIS INFORMATION TO THE OPERATOR OF THE EQUIPMENT.
FOR FURTHER SAFETY INFORMATION REGARDING THIS EQUIPMENT, SEE THE GENERAL EQUIPMENT SAFETY BOOKLET (77-5300).
77-3138-R4 (11/2020)2 / 12www.carlisleft.com
DESCRIPTION
This manual covers the following gear reduced drive models:
EN
This manual covers the following direct drive models:
31-452 Air motor drive with 15:1 gear reduction. Includes air
adjusting valve for speed control with hose and fittings for tank regulator connection.
QMG-417, 418, 419, and 420 Plated steel agitators for use with 31-452 Drive Units (15:1 gear reduction) on all galvanized tank models.
QMS-431, 432, 433, and 434 Stainless steel agitators for use with 31-452 Drive Units (15:1 gear reduction) on all
QMG-416 Direct Drive Agitator. Used on 183G-211, 221, 231, and 241 Galvanized Pressure Feed tanks. Includes air adjusting valve for speed control with hose and fittings for tank regulator connection.
QMS-430 Direct Drive Agitator. Used on 183S-211, 221, 231, and 241 Stainless Steel Pressure Feed tanks. Includes air adjusting valve for speed control with hose and fittings for tank regulator connection.
stainless steel tank models.
These Agitators are designed for use with Pressure Tanks. Read all the information contained in this
bulletin and the pressure feed tank bulletin before attempting installation.

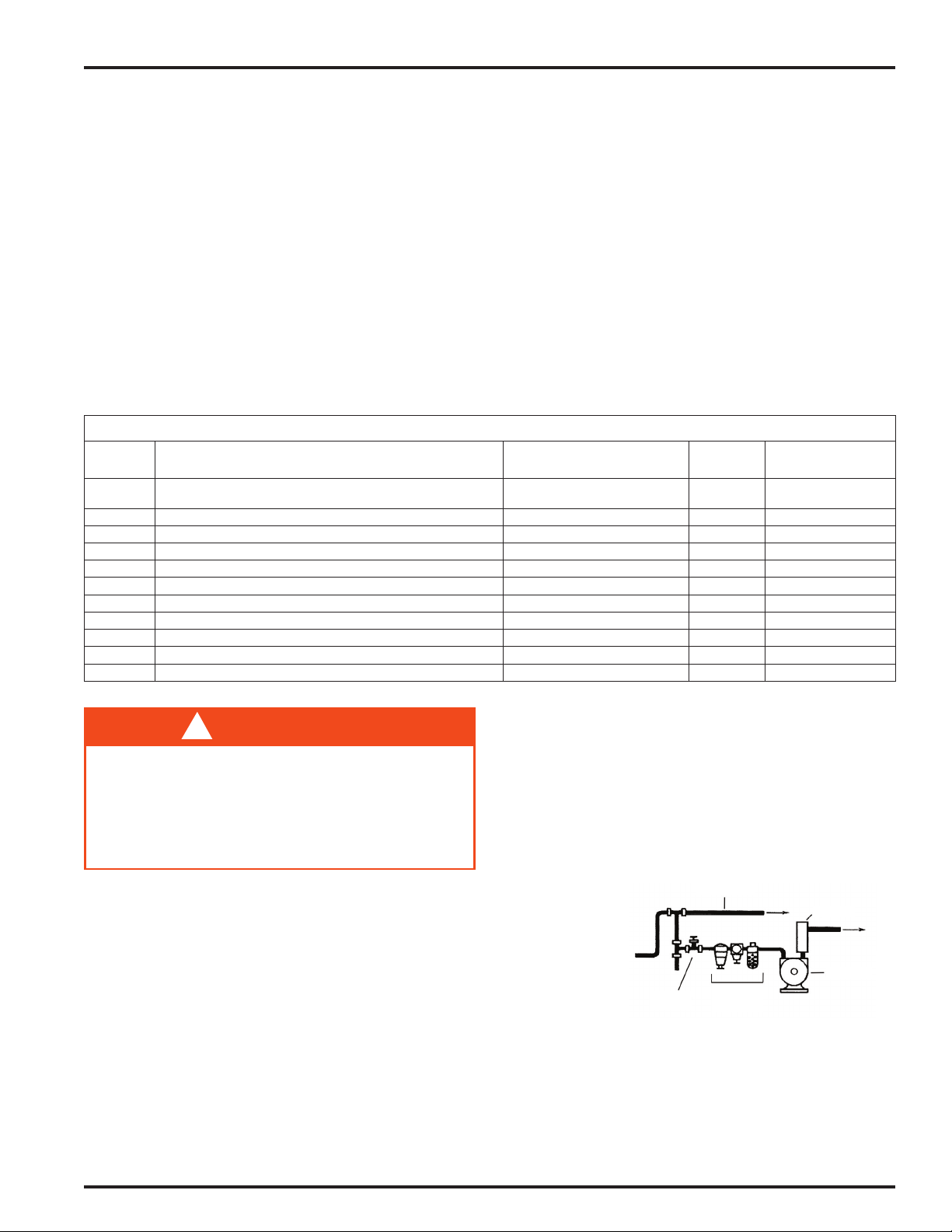

AGITATOR CROSS REFERENCE CHART
Agitator Part No.
31-452 Indirect Geared Drive Agitator & motor
QMG-417 Agitator only (less drive) for 2-gallon ASME galvanized tanks 183G-213 100 60-80
QMG-418 Agitator only (less drive) for 5 gallon ASME galvanized tanks 183G-513 100 60-80
QMG-419 Agitator only (less drive) for 10 gallon ASME galvanized tanks 183G-1013 100 60-80
QMG-420 Agitator only (less drive) for 15 gallon ASME galvanized tanks 183G-1513 100 60-80
QMS-431 Agitator only (less drive) for 2-gallon ASME SS tanks 183S-213 100 60-80
QMS-432 Agitator only (less drive) for 5 gallon ASME SS tanks 183S-513 100 60-80
QMS-433 Agitator only (less drive) for 10 gallon ASME SS tanks 183S-1013 100 60-80
QMS-434 Agitator only (less drive) for 15 gallon ASME SS tanks 183S-1513 100 60-80
QMG-416 Direct Drive (plated steel shaft) 183G-211, 221, 231, & 241 3000 Up to 1000 RPM Max
QMS-430 Direct Drive (SS shaft) 183S-211, 221, 231, & 241 3000 Up to 1000 RPM Max
Type of Agitation Used with: Max rpm Typical rpm
QMG-417, 418, 419, & 420 &
QMS-431, 432, 433, & 434
100 60-80
!
WARNING
Before attempting any installation of agitators onto pressure feed tanks, the tanks must be relieved of pressure as high pressure can cause a serious injury. Pressure is maintained in a pressure tank after the system has been shut down. Before attempting removal of cover, fill cap, or center plug, pressure must be relieved using the following steps:
PRESSURE RELIEF PROCEDURE
1. Turn off the main air supply to the tank.
2. Close air inlet valve located on tank air manifold. Remove air inlet hose.
3. Bleed off air in the tank by turning the air relief valve thumb screw counter-clockwise. Wait until all the air has escaped through the valve before removing the pressure tank cover, fill cap, or center plug.
4. Leave the air relief valve open until you have reinstalled the cover, fill cap, or center plug.
AIR SUPPLY
Air supplies (compressors etc.) shall be sited in a non­hazardous area with a filter on the air intake system to prevent the ingress of dust or similar foreign materials into the parts where compression takes place.
OPTIONAL AIR MOTOR LUBRICATION
(Lubrication will extend the life of the motor)
An automatic air line filter/lubricator should be installed in the air supply line no more than 18” from the air motor. A 5 micron filter is recommended. Install the lubricator level with or above the motor so the oil mist will blow directly into or down into the motor (see Fig. 1).
Fill the oil reservoir with SAE 10W motor oil.
Adjust lubricator to feed 1 drop of oil for every 50 cfm of air or 1 drop per minute of continuous running.
The unit may also be lubricated manually by adding 10-20 drops of oil SAE 10 weight oil into the air inlet fitting at the start of each shift.
Periodically—Remove air adjusting valve and air strainer and flush motor with a clean suitable solvent. Remove trapped particles from screen and clean air strainer felt.
Fig 1 MAIN AIR LINE
ISOLATOR VALVE
FILTER REGULATOR LUBRICATOR
MUFFLER
AIR MOTOR
77-3138-R4 (11/2020) 3 / 12 www.carlisleft.com
7 6
9
6
8
2
1
3
4
12
13
14
13
15
11
6
7
5
4
2
1
3
4D
4C
4E
4B
4G
4F
6
7
5
4
EN

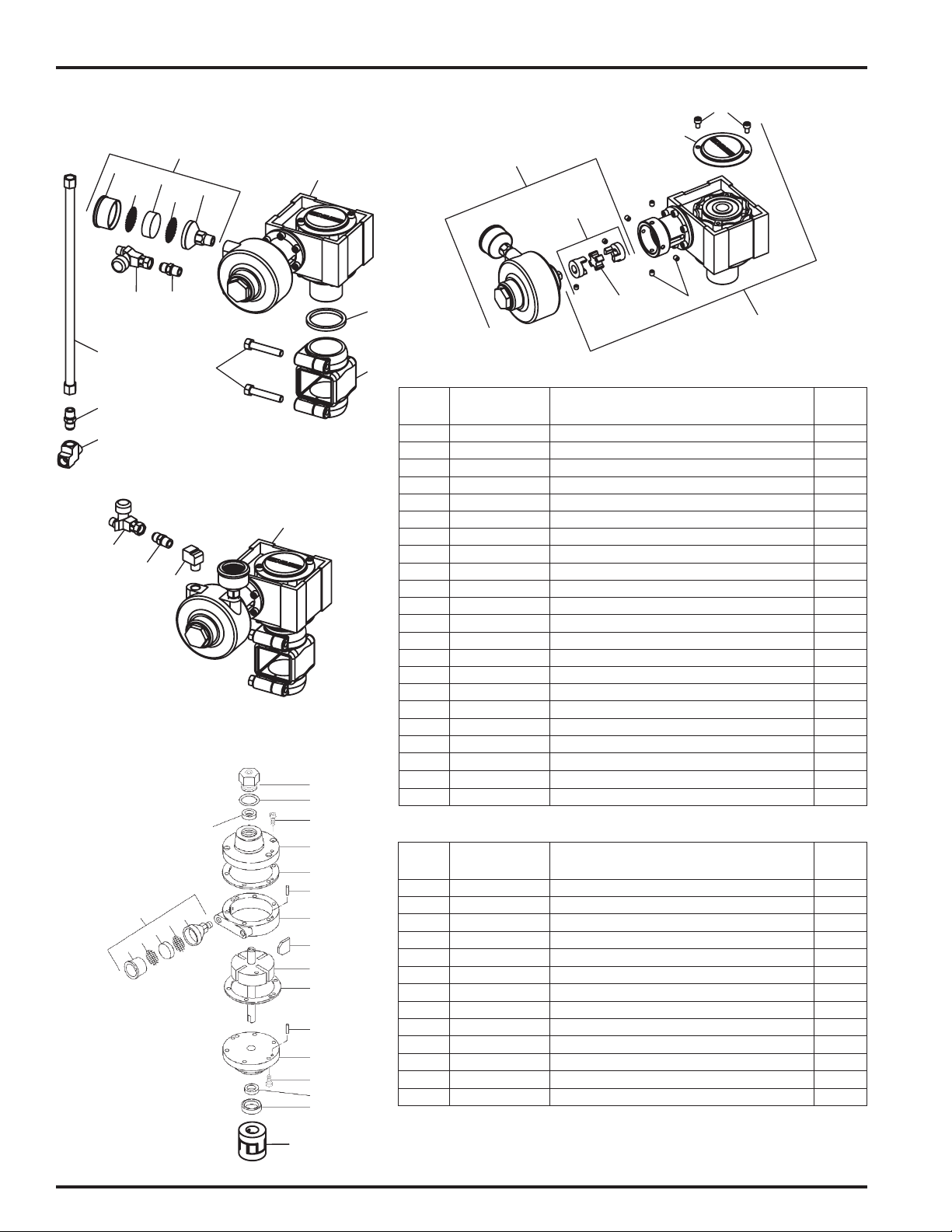

31-452 GEAR REDUCTION DRIVE
5, 10, & 15 GALLON CONFIGURATIONS
13
14
13
11
15
2
12
7 6
8
6
9
2 GALLON CONFIGURATION
7
6
12
11
13
5
18
15
13
14
31-434 GEAR REDUCTION DRIVE
4D
4C
4
3
1
31-452 15:1 GEAR REDUCTION DRIVE ASSEMBLY
ITEM
NO.
1 QMS-35 AIR MOTOR SUPPORT 1
2 Purchase Locally HEX HEAD CAP SCREW, 3/8-16 X 2" 2
3 32243-133 WASHER 1
4 31-434 AGITATOR DRIVE 1
4A 31-437-K AIR MOTOR WITH COUPLING (INCL W/ 31-434) 1
4
16 17
19
20
21
22
23
24
25
21
22
26
19 18 27
4F
4B 31-435-K 15:1 REDUCER WITH COUPLING (INCL W/ 31-434) 1
4C 31-422 COVER PLATE (INCL W/ 31-435-K) 1
4D Purchase Locally CAP HEAD SCREW, M6 X 10mm 2
4E Purchase Locally SET SCREW, 1/4-20 X 5/16" 4
4F 20-6990 COUPLING ASSEMBLY 1
4G 20-1068 COUPLING SPIDER 1
5 SSP-1917-NI STREET ELBOW, 1/4" NPT M X F 1
6 H-2008 ADAPTER, 1/4 NPSM X NPT PLATED BRASS 2
7 HAV-500 ADJUSTING VALVE 1
8 HA-57011 AIR HOSE 1
9 23425-282 STREET TEE, 1/4" NPT F X F X M 1
10
11 350-401 MUFFLER & AIR STRAINER ASSEMBLY 1
12 STRAINER CAP 1
13
14
15 STRAINER BODY 1
31-437-K AIR MOTOR & COUPLING ASSEMBLY
ITEM
NO.
4F 20-6990 COUPLING ASSEMBLY 1
16 QS-190 END CAP 1
17
18 PT-58 BEARING 2
19 Purchase Locally MACHINE SCREW, 1/4-28 X 1/2" 12
20 FRONT PLATE 1
21
22 QS-189-1-K10 DOWEL PIN 4
23 BODY 1
24
25 ROTOR ASSEMBLY 1
26 END PLATE 1
27 37-90 SEAL 1
Parts are included within the following packing kits:
l KK-5001-1A AIR MOTOR REPAIR KITKK-5006 STRAINER SCREEN AND FILTER KIT
4A
4F
4G
4E
4B
PART NO. DESCRIPTION QTY.
▲l
SCREEN 2
FELT 1
PART NO. DESCRIPTION QTY.
l
END CAP GASKET 1
PT-59-1-K10 l
l
END PLATE SPACER KIT 2
VANE 4
Refer to page 10 for rebuild instructions.
77-3138-R4 (11/2020)4 / 12www.carlisleft.com
INSTALLATION—DRIVE UNIT 31-452
!
WARNING
Before attempting any installation of agitators onto
pressure feed tanks, the tanks must be relieved of
pressure as high pressure can cause a serious injury.
Pressure is maintained in a pressure tank after the
system has been shut down. Before attempting
removal of cover, fill cap, or center plug, pressure
must be relieved using the steps on page 3.
!
CAUTION
Failure to properly lubricate the air motor will result in
premature motor failure and will void the warranty. See
Using a 9/16 wrench, loosen the lower cap screw (2).
lubrication instructions on page 3.
EN
Rotate the drive unit to the desired position. Then tighten the cap screws (2) Use 9/16 wrench.
After the drive unit is positioned connect the air hose (8) from the regulator to the air motor as shown.
Install drive unit over the bearing assembly. Make sure that the square drive of the shaft engages the drive socket of the gearbox. Rotate the unit as necessary to align the shaft and the socket.
OPERATION
1. Lubricate air motor. Follow the lubrication instructions on page 3.
2. Open the valve to the main air line and slowly open the air adjusting valve (7) until the agitator turns.
Typical 5/10/15 Gallon ASME Tank Conguration
Typical 2 Gallon ASME Tank Conguration
3. Adjust speed of the agitator with the air adjustment valve (7). Do not run at excessive speeds. Typical speeds are 50 to 70 RPM.
77-3138-R4 (11/2020) 5 / 12 www.carlisleft.com
EN
Plug
Tank Cover
GEAR DRIVEN AGITATOR ASSEMBLIES
!
32
35
33
34
36
36
31
Before attempting any installation of agitators onto pressure feed tanks, the tanks must be relieved of pressure as high pressure can cause a serious injury. Pressure is maintained in a pressure tank after the system has been shut down. Before attempting removal of fill plug or cover, pressure must be relieved using the steps on page 3.
37
INSTALLATION—AGITATOR ASSEMBLY
QMG-417, 418, 419, & 420 (PLATED STEEL)
38
QMS-431, 432, 433, & 434 (STAINLESS STEEL)
1. Unscrew the center plug from the tank cover.
2. Remove the paddle(s) (41) from the shaft by loosening the paddle clamp screw (43).
3. Make sure the O-ring (38) is located correctly in the housing (37). Screw housing into the center hole in the tank lid. Fully tighten with a wrench (1.875”).
4. Refit the paddles (41) in the position as shown. The curved
39A
39
39B
edge of the paddle should be at the bottom. The upper paddle is used on 15 gallon QMG-420 and QMS-434 only.
WARNING
37
38
39A
Shaft Seal (39A) detail
drawing. Open end of seal
faces down (into tank).
Note: Retainer (39B)
required only if tank is used
for vacuum operation.
41
4243
Top Paddle
13-3/4”
2-7/16”
Fluid pick-up tube (ref)
40
31
5. 10 and 15 Gallon Tanks Only: Assemble stationary paddle (44) to the fluid pick-up tube with a hexagon socket head cap screw (31) so that the paddle is located 6-3/8 inches from the bottom of the fluid pick-up tube as shown.
(15 Gal. Tanks Only)
Bottom Paddle
6
3
"
8
77-3138-R4 (11/2020)6 / 12www.carlisleft.com
PARTS LIST—GEAR DRIVEN AGITATOR ASSEMBLIES
Ref.
No.
39A ---- SHAFT SEAL 1
39B ---- RETAINER 1
Replacement
Part No.
31 QMG-417
QMG-418
QMG-419
QMG-420
QMS-431
QMS-432
QMS-433
QMS-434
32 QMS-46 RETAINING NUT 1
33 QMS-447 THRUST COLLAR KIT (Includes items 34 & 35) 1
34 ---- THRUST COLLAR 1
35 ---- SET SCREW (5/16" -18 X 3/8") 1
36 KK-5049 THRUST WASHER KIT (Includes 2 washers) 1
37 QMG-409 BEARING ASSEMBLY, GALVANIZED TANKS
QMS-407 BEARING ASSEMBLY, STAINLESS STEEL TANKS 1
38 SSG-8184-K2 O-RING (Kit of 2) 1
39 KK-5042 SHAFT SEAL KIT (Includes items 39A & 39B) 2
40 QMS-5 AGITATOR SHAFT for 2 Gallon Tanks 1
QMS-6 AGITATOR SHAFT for 5 Gallon Tanks 1
QMS-7 AGITATOR SHAFT for 10 Gallon Tanks 1
QMS-8 AGITATOR SHAFT for 15 Gallon Tanks 1
41 QMS-449
QMS-444-CE
42 ---- AGITATOR PADDLE 1
43
44 QMS-445-CE
45 ---- STATIONARY PADDLE 1
Purchase
Locally
AGIT ASS'Y (Includes items 32 to 43)
AGIT ASS'Y (Includes items 32 to 43)
AGIT ASS'Y (Includes items 32 to 45)
AGIT ASS'Y (Includes items 32 to 45)
AGIT ASS'Y (Includes items 32 to 43)
AGIT ASS'Y (Includes items 32 to 43)
AGIT ASS'Y (Includes items 32 to 45)
10 gallon tank; Stainless Steel
AGIT ASS'Y (Includes items 32 to 45)
15 gallon tank; Stainless Steel
AGITATOR PADDLE KIT for 2 Gallon Tanks
AGITATOR PADDLE KIT for 5, 10, & 15 Gal Tanks
(Includes items 42 & 43; 15 gal tanks have two)
HEX SOCKET HEAD CAP SCREW
(5/16"" x 1-1/4"", Stainless Steel)
(Includes items 43 & 45 for 10 & 15 Gal Tanks only)
Description
2 gallon tank; Galvanized
5 gallon tank; Galvanized
10 gallon tank; Galvanized
15 gallon tank; Galvanized
2 gallon tank; Stainless Steel
5 gallon tank; Stainless Steel
(Includes items 42 & 43)
STATIONARY PADDLE KIT
Ind.
Parts
Req'd.
1 or 2
1/Kit
EN
1
1
1
1
1
1
1
1
1
1
77-3138-R4 (11/2020) 7 / 12 www.carlisleft.com
EN
DIRECT DRIVE AGITATOR ASSEMBLIES & AIR MOTORS
DIRECT DRIVE AGITATOR ASSEMBLIES
FOR ASME 2-GALLON TANKS
QMG-416, PLATED STEEL
QMS-430, STAINLESS STEEL
46
47
51
Tank Cover
52
53
54
!
WARNING
Before attempting any installation of agitators onto pressure feed tanks, the tanks must be relieved of pressure as high pressure can cause a serious injury. Pressure is maintained in a pressure tank after the system has been shut down. Before attempting
50
removal of fill plug or cover, pressure must be relieved using the steps on page 3.
49
INSTALLATION—QMG-416 & QMS-430
48
53
Plug
1. Unscrew the center plug from the tank cover. Clean the sealing surface around the port.
2. Loosen the propeller screw (61) and remove the propeller (60).
3. Make sure the o-ring (54) is fully seated in the groove in the adapter (52). Insert the agitator through the port and screw in until fully tightened.
4. If required, loosen the screw (53) in the adaptor to rotate the motor body to align the hose connection to the required position. Re-tighten the screw (53).
5. Replace the propeller (60) onto the shaft (58). Make sure the screw (61) is aligned with the flat on the shaft and tighten the screw.
6. Connect agitator to air supply regulator with air hose (62).
Shaft Seal (55A) detail
drawing. Open end of seal
faces down (into tank).
Note: Retainer (55B)
required only if tank is used
for vacuum operation.
55A
55
55B
56
51
57
Failure to properly lubricate the air
motor will result in premature motor
failure and will void the warranty. See
58
60
59
61
62
Connect the agitator to the
air supply as shown using
hose HA-57011.
lubrication instructions on page 3.
DIRECT DRIVE AIR MOTORS FOR ASME 2-GALLON TANKS QMG-429, PLATED STEEL QMS-428, STAINLESS STEEL
!
CAUTION
75
77
79
76
77
78
63
64
65
66
67
68
69
70
71
72
68
69
73
66
65
74
77-3138-R4 (11/2020)8 / 12www.carlisleft.com
EN
QMG-416 PLATED STEEL
DIRECT DRIVE AGITATOR
PARTS LIST
Ref. No.
Replacement
Part No.
46 QN-97 CARRYING HANDLE 1
47 QMG-429 AIR MOTOR ASS'Y 1
48
49 H-2008 NIPPLE, 1/4 NPT (m) X 1/4 NPS (m) 1
50 HAV-500 AIR ADJUSTING VALVE 1
51 KK-4990
#52 ----- ADPATER 1
#53 ----- SET SCREW (1/4-20 x 1/4) 2
54 SSG-8184-K2 O-RING (Kit of 2) 1
55 KK-5041 SHAFT SEAL KIT 1
55A ----- SHAFT SEAL 1
55B ----- RETAINER 1
51 KK-4990
#56 ----- Shaft Coupling 1
#57 -----
58 QMG-56 AGITATOR SHAFT 1
59 QMS-448
60 ----- AGITATOR PROPELLER 1
61 -----
62 HA-57011 AIR HOSE ASSEMBLY 1
Purchase
Locally
Description
STREET ELBOW,
1/4 NPT (M) X 1/4 NPT (F)
ADAPTER KIT
(Includes Items 52, 53, 56, 57)
SEAL RETANIER KIT
(Includes Items 52, 53, 56, 57)
SET SCREW (1/4-20 x 1/4)
Purchase locally
AGITATOR PROPELLER KIT
(Includes Items 60, 61)
SET SCREW (1/4-20 x 3/8, S.S.)
Purchase Locally
Ind.
Parts
Req'd.
1
1
1
2
1
1
QMS-430 STAINLESS STEEL
DIRECT DRIVE AGITATOR
PARTS LIST
Ref. No.
Replacement
Part No.
46 QN-97 CARRYING HANDLE 1
47 QMS-428 AIR MOTOR ASS'Y 1
48
49 H-2008 NIPPLE, 1/4 NPS (m) X 1/4 NPT (m) 1
50 HAV-500 AIR ADJUSTING VALVE 1
51 KK-4991
#52 ----- ADPATER 1
#53 ----- SET SCREW (1/4-20 x 1/4) 2
54 SSG-8184-K2 O-RING (Kit of 2) 1
55 KK-5041 SHAFT SEAL KIT 1
55A ----- SHAFT SEAL 1
55B ----- RETAINER 1
51 KK-4991
#56 ----- Shaft Coupling 1
#57 -----
58 QMS-73 AGITATOR SHAFT 1
59 QMS-448
60 ----- AGITATOR PROPELLER 1
61 -----
62 HA-57011 AIR HOSE ASSEMBLY 1
Purchase
Locally
Description
SERVICE TEE, 1/4" Galv. 1
ADAPTER KIT
(Includes Items 52, 53, 56, 57)
SEAL RETANIER KIT
(Includes Items 52, 53, 56, 57)
SET SCREW (1/4-20 x 1/4)
Purchase locally
AGITATOR PROPELLER KIT
(Includes Items 60, 61)
SET SCREW (1/4-20 x 3/8, S.S.)
Purchase Locally
Ind.
Parts
Req'd.
1
1
2
1
1
QMG-429 AIR MOTOR (REF. QMG-416) & QMS-428 AIR MOTOR (REF. QMS-430)
PARTS LIST
63 QMG-18 END CAP 1
l 64
65 PT-58 BEARING 1
66
67 ----- FRONT PLATE 1
l 68
69 QS-189-1-K10 DOWEL PIN (Kit of 10) 4
70 ----- BODY 1
l 71
72
l Parts included in KK-5001-1A Air Motor Repair Kit. # Order KK-4990 for QMG models. Order KK-4991 for QMS models Order KK-5006 Strainer Screen and Felt Kit.
---- END CAP GASKET 1
Purchase
Locally
PT-59-1-K10 END PLATE SPACER KIT (Kit of 10) 2
----- VANE 4
PT-57 ROTOR ASSEMBLY FOR QMG-429 1
-----
MACHINE SCREW (1/4-28 x 1/2") 12
ROTOR ASSEMBLY FOR QMS-428
NOT AVAILABLE SEPARATELY.
ORDER QMS-428
Ref. No.
77
l▲ 78
Replacement
Part No.
73 ----- END PLATE 1
74 37-90 SEAL 1
75 350-401 MUFFLER / STRAINER 1
76 ----- MUFFLER BODY 1
----- SCREEN 2
----- FELT 1
79 ----- MUFFLER CAP 1
Description
Ind.
Parts
Req'd.
77-3138-R4 (11/2020) 9 / 12 www.carlisleft.com
EN
AIR MOTOR DRIVE SERVICE CHECKS
Air motor mufer (11) is clogged.
Air motor needs lubrication or cleaning.
Air motor sluggish or inefcient.
Motor vanes need replacing or contaminants present in
Air motor bearing (18 or 28) worn
AIR MOTOR REBUILD
(SEE EXPLODED VIEW OF 31-437-K ON PAGE 4.)
Do not pry dead end plate (20) or drive end plate (26) from air motor body (23) with a screwdriver. This will dent the surface of the body and plates and causing leaks. A puller tool should be used to remove the plate from the motor body while maintaining the positions of the shaft.
Always install new gaskets (21) when re-assembling air motor.
Assemble the end plates to the body using an arbor press with a pusher acting on both races of the bearing while rigidly supporting the opposite (drive) end of the shaft.
motor chamber.
.
Clean or replace the felt (14).
Replace mufer (11) if necessary.
Lubricate (see "Air Motor Lubrication" section). Disassemble and clean per parts replacement instructions.
Disassemble, clean motor per parts replacement instructions. Replace worn vanes.
Replace bearings per parts replacement instructions
.
GEAR BOX OIL
The gearbox (4B), page 4, contains a special high quality gear oil, made specifically for worm drive gearboxes. The oil that was installed at the factory should be sufficient for the life of the gearbox. If oil should ever be required, drain the gearbox completely. Then add 80mL [2.7 oz] of 31-439 gear oil.
!
WARNING
Do not substitute another gear oil or it may result in damage
to your equipment.
77-3138-R4 (11/2020)10 / 12www.carlisleft.com

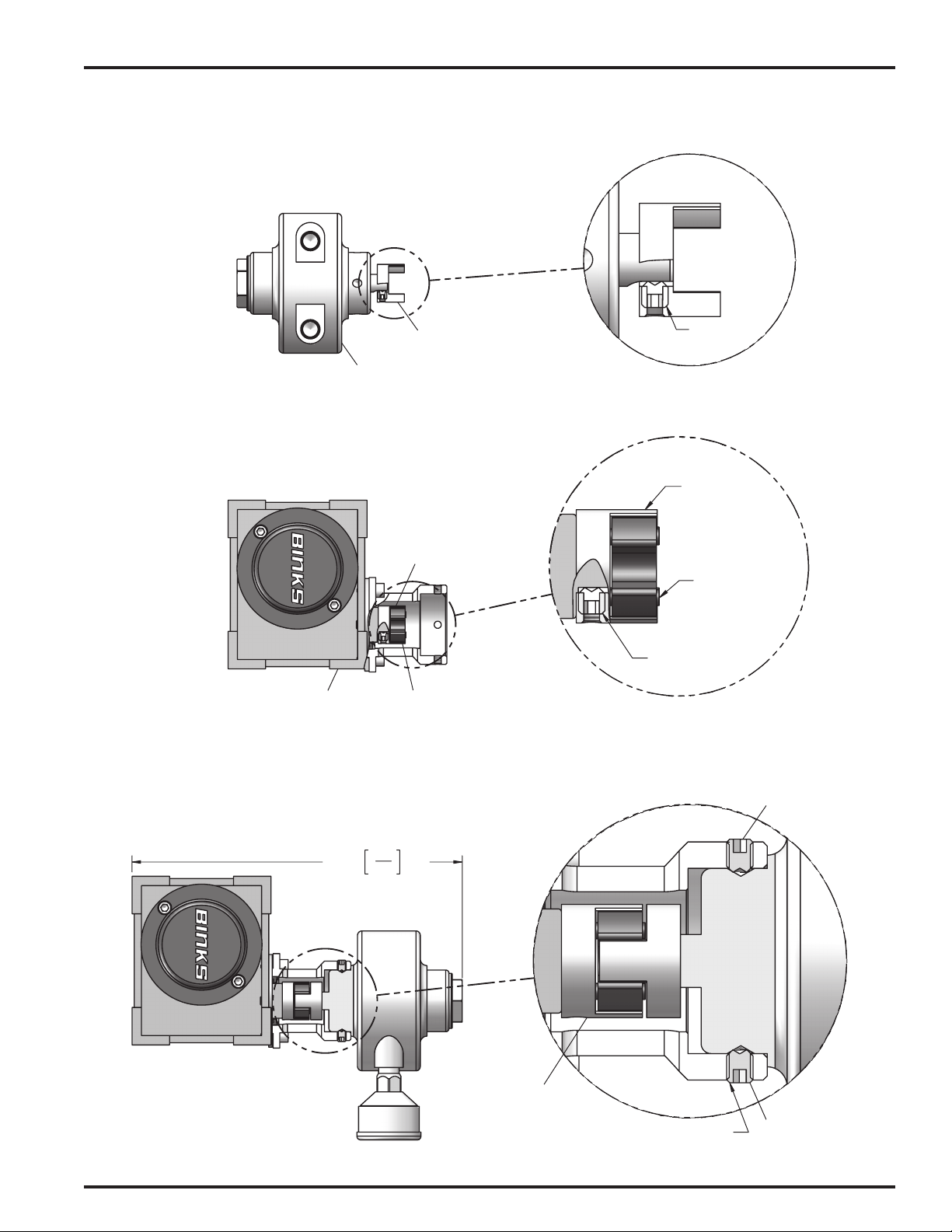

15:1 AGITATOR DRIVE FLEX COUPLING INSTALLATION
Assemble one coupling jaw from the coupling assembly (4f) onto the air motor
shaft (4a). Make sure to keep the coupling face ush with the end of the motor
shaft as shown. Apply Loctite 243 (or equivalent) to set screw threads. Align the
set screw to motor shaft at and tighten.
EN
4F
4A
Assemble one coupling jaw to the gearbox shaft. Apply Loctite 243 (or equivalent)
to set screw threads. Align set screw to at and tighten the shaft should rotate
freely after the coupling jaw is installed.
4F
4B
4G
After assembling the coupling jaws and spider as shown above, align the coupling jaws of the air motor (4a) to the spider and jaws of the gearbox coupling (4b), and insert the air motor into the coupling guard. Align the set screw holes on the coupling guard to the drill points on the air motor hub. Orient the air motor as required. Apply Loctite 243 (blue) to the four set screws (4e) and tighten securely.
SET SCREW
1/8" HEX
COUPLING JAW
COUPLING SPIDER (4G)
SET SCREW 1/8" HEX
4E
11
"
238mm
REF
9
32
4F
SET SCREW 1/8" HEX
4E
77-3138-R4 (11/2020) 11 / 12 www.carlisleft.com
EN
WARRANTY POLICY
This product is covered by Carlisle Fluid Technologies’ materials and workmanship limited warranty.
The use of any parts or accessories, from a source other than Carlisle Fluid Technologies,
will void all warranties. Failure to reasonably follow any maintenance guidance provided
may invalidate any warranty.
For specic warranty information please contact Carlisle Fluid Technologies.
For technical assistance or to locate an authorized distributor,
contact one of our international sales and customer support locations.
Region Industrial/Automotive Automotive Renishing
Americas
Tel: 1-800-992-4657 Tel: 1-800-445-3988
Fax: 1-888-246-5732 Fax: 1-800-445-6643
Europe, Africa,
Middle East, India
Tel: +44 (0)1202 571 111
Fax: +44 (0)1202 573 488
Tel: +8621-3373 0108
China
Fax: +8621-3373 0308
Tel: +81 45 785 6421
Japan
Fax: +81 45 785 6517
Tel: +61 (0) 2 8525 7555
Australia
Fax: +61 (0) 2 8525 7575
For the latest information about our products, visit www.carlisleft.com
Carlisle Fluid Technologies is a global leader in innovative nishing technologies.
Carlisle Fluid Technologies reserves the right to modify equipment specications without prior notice.
BGK™, Binks
®
, DeVilbiss®, Hosco®, MS®, and Ransburg®
are all registered trademarks of Carlisle Fluid Technologies, Inc.
©2020 Carlisle Fluid Technologies, Inc.
All rights reserved.
77-3138-R4 (11/2020)12 / 12www.carlisleft.com
Loading...
