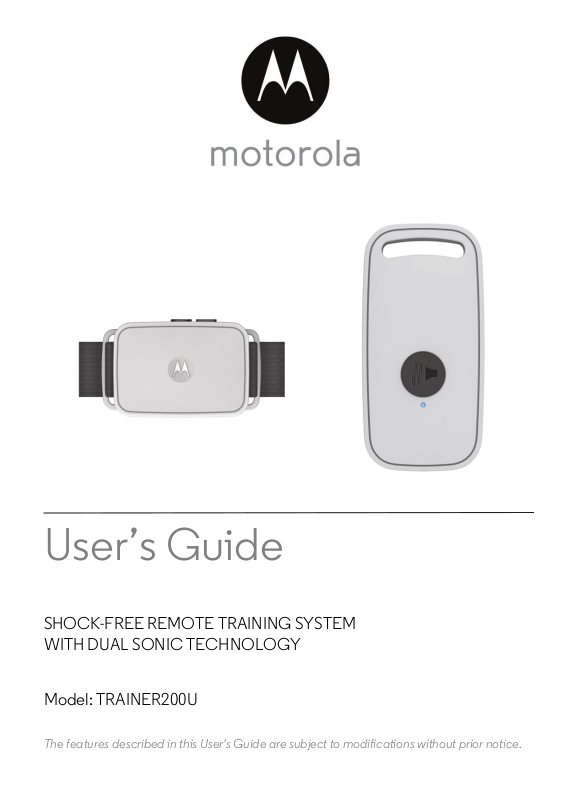

User’s Guide
SHOCK-FREE REMOTE TRAINING SYSTEM
WITH DUAL SONIC TECHNOLOGY
Model: TRAINER200U
The features described in this User's Guide are subject to modifications without prior notice.
Welcome...
to your new Motorola Shock-Free Remote Training
System with Dual Sonic Technology!
Thank you for purchasing the Motorola TRAINER200U. By emitting an
ultrasonic sound that can be heard by your dog, yet inaudible to the human
ear, your new Remote Training System provides a quick and effective means
of solving common problem behaviors and reinforcing basic obedience
commands your dog already knows. You can choose from three different
training modes - Audible Tone only, Vibration + Mild Ultrasonic Sound or
Strong Ultrasonic Sound to match your dog's personality.
Please retain your original dated sales receipt for your records.
For warranty service of your Motorola product, you will need to provide a
copy of your dated sales receipt to confirm warra nty status. Registration is
not required for warranty coverage.
For product related questions, please call:
US and Canada 1-888-331-3383
Email: support@motorolamonitors.com
This User's Guide provides you with all the information you need to get the
most from the product.
Please read and follow the instructions in this User’s Guide along with the
Safety Instructions on page 7 before you using this product.
Got everything?
• 1 x Pet Collar Unit (with CR2450 battery installed)
• 1 x Nylon Collar Strap
• 1 x Remote Trainer Unit (with CR2032 battery installed)
Overview of the Pet Collar Unit
1 2 3
4
5
1. Indicator LED
Lights up in green for 3 seconds
when the unit is powered on and
flashes slowly during standby.
Lights up in red when battery is low.
Flashes quickly in green and red
when delivering correction.
2. Power Key
Press and hold to power the unit
On/Off.
Indicator LED lights up in green for
3 seconds when the unit is powered
on.
3. Level Setting Key
Press and hold to enter Correction
Level setting.
There are 3 correction levels:
Level 1: Audible Tone only
(Green LED)
Level 2: Vibration + Mild Ultrasonic
Sound (Amber LED)
Level 3: Strong Ultrasonic Sound
(Red LED)
4. Speakers
Delivers audible tone and ultrasonic
sound.
5. Battery Cover
Overview of the Remote Trainer Unit
1
2
3
1. Correction Key
Press to deliver correction to the Pet
Collar Unit.
There are 3 correction levels:
Level 1: Audible Tone only
(Green LED)
Level 2: Vibration + Mild Ultrasonic
Sound (Amber LED)
Level 3: Strong Ultrasonic Sound
(Red LED)
2. Indicator LED
Lights up in Green when delivering
correction to the Pet Collar Unit.
3. Battery Compartment Cover
How the Shock-Free Remote Training System works
The Remote Training System comes with a Remote Trainer Unit that is paired
with the Pet Collar Unit. When you press CORRECTION KEY on the Remote
Trainer Unit, a signal is sent to the Pet Collar Unit, which delivers correction to
your dog to assist you with shaping and modifying its behavior. Your Remote
Training System provides 3 levels of correction (Level 1 - Audible Tone only,
Level 2 - Vibration + Mild Ultrasonic Sound and Lev el 3 - Strong Ultrasonic Sound)
to match your dog's personality.
Important guidelines when using the Shock-Free Remote Training
System
• Proper fit of the Pet Collar Unit is critical to the performance and
effectiveness of the Remote Training System. If the fit is too loose, your dog
will not be able to feel the vibration of the Pet Collar Unit. If the fit is too tight,
it will irritate your dog’s skin.
• Tighten the collar high on your dog’s neck, tight enough that you can get
two fingers between the collar strap and your dog. It should not be able to
rotate around the neck.
• Do not make your dog wear the Pet Collar Unit for more than 12 hours
continuously to avoid skin irritation.
• Do not connect a leash to the Pet Collar Unit.
Table of contents
1. Safety Instructions ....................................................................................7
2. Getting Started..........................................................................................8
2.1 Remote Trainer Unit Battery Installation .................................................... 8
2.2 Attach the Adjustable Strap to the Pet Collar Unit .................................... 9
2.3 Replace the Battery in the Pet Collar Unit ................................................. 9
2.4 Fit the Pet Collar Unit on your Dog’s Neck .............................................. 11
2.5 Trim Away Excess Strap Length .............................................................. 12
3. Using the Pet Collar Unit ........................................................................ 13
3.1 Powering On/Off the Pet Collar Unit ...................................................... 13
4. Training Your Dog with the Remote Training System .......................... 14
4.1 Deliver Correction................................................................................... 14
4.2 Select Correction Level or Training Mode.............................................. 14
4.3 When to Increase Correction Level ........................................................ 15
5. Disposal of the Device (Environment) ................................................... 16
6. Cleaning and Care ..................................................................................17
7. Frequently Asked Questions ..................................................................18
8. Troubleshooting .....................................................................................20
9. General Information ............................................................................... 21
6
1. Safety Instructions
WARNING:
As with any electrical device, supervision of your pet’s usage should be
exercised until your pet is acclimated to the product.
If you r p et i s p ron e t o ch ew ing , w e st ro ngl y r eco mm end yo u ke ep t hi s an d
all other electrical devices out of its reach. This collar should not be worn
by your pet for more than 12 hours a day.
WARNING
The Remote Training System is suitable for use on healthy, non-aggressive dogs to
correct their behavior when used as described in this User's Guide. Therefore,
always read the instructions in this User's Guide carefully before using the product.
• DO NOT USE ON AGGRESSIVE DOGS - This product is not for use on aggressive
dogs. If you are not sure if this product is suitable for your dog, please consult a
certified trainer or your veterinarian.
• This product is not a toy. Do not allow children to play with it.
• This product is not a substitute for responsible supervision of your dog.
• This product should only be used with dogs that are over 6 months of age.
• Do not leave the unit unattended as your dog may chew on it and the product
can get damaged.
• Other dogs within the hearing range may be affected by the ultrasonic sound.
• Power off the unit when it is not in use.
• Test this product and all its functions so that you are familiar with it prior to actual
use.
• Only use batteries of the same type. The Pet Control Collar uses a CR2450
replaceable battery and the Remote Trainer Unit uses a CR2032 replaceable
battery.
• Keep this User's Guide for future reference.
CAUTION
There is danger of explosion if the battery is replaced by an incorrect type.
Dispose of used batteries according to their instructions.
Safety Instructions 7
ENGLISH
2. Getting Started
Small cross-head
screwdriver.
Positive pole (+) of
the CR2032 battery
should be facing
upwards.
+
2.1 Remote Trainer Unit Battery Installation
The Remote Trainer Unit uses a CR2032 replaceable battery.
1. Use a small cross-head screwdriver to unscrew the battery compartment
cover as shown above.
2. Place the battery with positive pole (+) facing upwards in the
compartment.
3. Close the battery compartment cover and gently tighten the screw in a
clockwise direction using a small cross-head screwdriver.
4. The Remote Trainer Unit goes into standby mode automatically once the
battery is installed.
8 Getting Started
2.2 Attach the Adjustable Nylon Strap to the Pet Collar Unit
Slot 1
Slot 3
Slot 2
Unlock
1. With the front side of the buckle facing up, thread the strap through Slot 1,
moving it upwards towards Slot 2.
2. Continue to thread through Slot 2 horizontally and then move downwards
towards Slot 3.
3. Continue to thread through Slot 3.
2.3 Replace the Battery in the Pet Collar Unit
The Pet Collar Unit uses a replaceable battery (CR2450).
1. Turn the battery compartment cover to the unlock position as shown
above to release and remove the cover.
ENGLISH
Getting Started 9
