Binatone Electronics SP015 User Manual



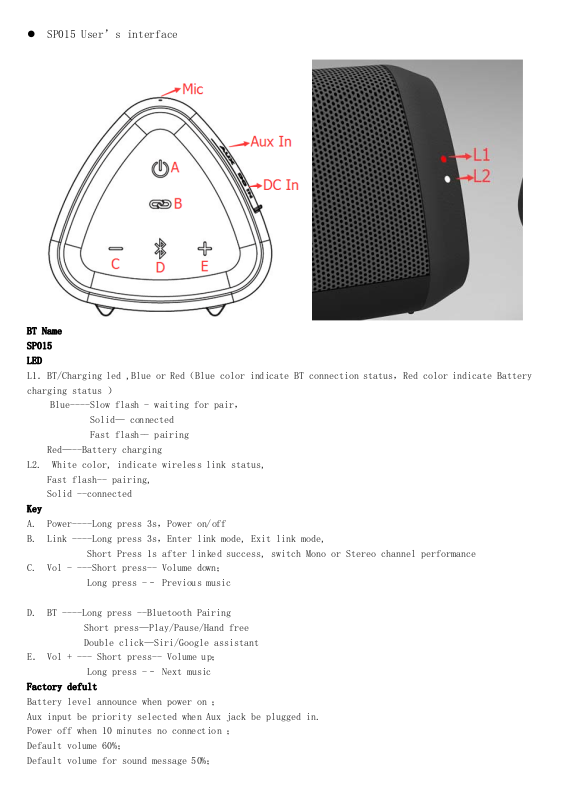

SP015 User’s interface

BT Name
SP015
LED
L1．BT/Charging led ,Blue or Red（Blue color indicate BT connection status，Red color indicate Battery
charging status ）

Blue----Slow flash - waiting for pair，

Solid— connected
Fast flash-- pairing

Red—--Battery charging

L2. White color, indicate wireless link status,

Fast flash-- pairing,

Solid --connected
Key
A. Power----Long press 3s，Power on/off
B. Link ----Long press 3s，Enter link mode, Exit link mode,

Short Press 1s after linked success, switch Mono or Stereo channel performance

C. Vol - ---Short press-- Volume down；

Long press -– Previous music

D. BT ----Long press --Bluetooth Pairing

Short press—Play/Pause/Hand free
Double click—Siri/Google assistant

E． Vol + --- Short press-- Volume up；

Long press -– Next music
Factory defult
Battery level announce when power on ；
Aux input be priority selected when Aux jack be plugged in.
Power off when 10 minutes no connection ；
Default volume 60%；
Default volume for sound message 50%；

Sound message：
Power on hello Max volume 500Hz tone

Phone call ring BT disconnected disconnected
Paring pairing Battery low Low battery
Enter link mode sharing Bt connected connected

Link disconnected disconnected Link success connected
Battery in mudium battery medium Battery full Battery Full
Power off goodbye

FCC Statement

Any Changes or modifications not expressly approved by the partyresponsiblefor compliance could void the user's authority to
operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
