EN

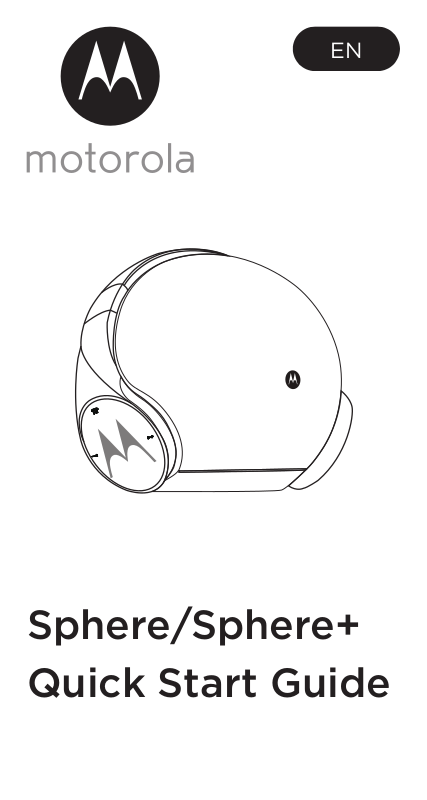

Sphere/Sphere+
Quick Start Guide
MODELS:
SPHERE / SPHERE+
Frequency Band:
2.402 – 2.480 GHz
Maximum RF power:
6 dBm
Working temperature:
0°C~45°C
1. At a Glance
Product ID: SP003
Bluetooth ID:
D036169
FCC ID: VLJ-SP003
IC: 4522A-SP003
2
1
3
4
6
5
7
98
1
Mode (change between Bluetooth & Aux-in input)
Play/Pause
2
3
LED Indicator (Bluetooth)
Microphone
4
Volume Down/Last Track
5
Volume Up/Next Track
6
7
Charging Indicator (Headphones)
8
Aux-in Port
9
Power Port
Power switch
Aux-in
Charge
(micro USB)
MIC
Status
Light
Volume
Down
Play/
Pause
Volume
Up
2. Pairing
1.
Plug in power supply to the
speaker power port
2.
Speaker will enter into pairing
mode automatically with LED
1
2
3
flashes blue and red.
3.
Pair your phone with the
speaker
4.
Select “Sphere” / “Sphere+”
from the list
1.
Take out the headphones
from the speaker dock
2.
The headphones will
enter into pairing mode
automatically with LED
flashes blue and red.
3.
Pair your phone with the
speaker
4.
Select “Sphere Headphones”
/ “Sphere+ Headphones”
from the list
•
The pairing is now successful.
You may listen to the music
either from the speaker or the
headphones
3. Audio Transfer
You may enjoy seamless audio transfer when
you listen to music between the headphones
and speaker. Make sure your phone can
support simultaneously Bluetooth connection
with two Bluetooth devices by checking your
phone Bluetooth “paired list”. If both Speaker
and Headphones are shown “connected” from
the list, it means it is supported.
1
1.
Place the headphones to the speaker
2.
Music will stop playing from headphones and
it will be charged by the speaker. Make sure
the headphones is placed properly onto the
speaker dock, the LED will show orange when
it is successfully charged
3.
Speaker will automatically connect with the
phone*
4.
Press Play once, music will automatically play
from the speaker without the need of any
operation from your phone.
2
1.
Take out the headphones from the speaker
2.
Music will stop playing from the speaker
3.
The headphones will automatically connect
with the phone*
4.
Press Play once, music will automatically play
from the headphones without the need of any
operation from your phone.
* The reconnection time varies from phone to phone
4. Buttons Operation
Speaker & Headphones
Music
Play/Pause Press
Volume Down/Up Press - / +
Next Track Long Press +
Previous Track Long Press -
Calls
Answer/ end call Press
Reject a call
Mute during call Long Press –
Re-dial last call Double press
Call waiting
Receive incoming call and
end ongoing call
Receive incoming and on
hold ongoing call
Pair
Enter pairing mode
(first time)
Enter pairing mode Long Press
Voice
To issue a voice command
during idle mode, then say
the command
Long Press
Press
Long Press
Press
Double Press +
5. LED Indicators
Speaker
Pairing Red-blue flash
Standby Blue flash
Charging (Headphones) Orange steady
Headphones
Pairing Red-blue flash
Standby Blue flash
Charging Red steady
Fully charged Blue steady
Battery low Red flash
General information
Safety, Regulatory & Legal
If your product is not working properly, read
this Quick Start Guide or the User’s Guide of
one of the models listed on page 1.
Contact Customer Service:
US and Canada 1-888-331-3383
Email: support@motorolahome.com
On the Web: www.motorolahome.com/support
Consumer Products and Accessories Limited
Warranty (“Warranty”)
Thank you for purchasing this Motorola
branded product manufactured under license
by Binatone Electronics International LTD
(“BINATONE”).
What Does this Warranty Cover?
Subject to the exclusions contained below,
BINATONE warrants that this Motorola branded
product (“Product”) or certified accessory
(“Accessory”) sold for use with this product
that it manufactured to be free from defects
in materials and workmanship under normal
consumer usage for the period outlined below.
This Warranty is your exclusive warranty and is
not transferable.
Who is covered?
This Warranty extends only to the first
consumer purchaser, and is not transferable.
What will BINATONE do?
BINATONE or its authorized distributor at its
option and within a commercially reasonable
time, will at no charge repair or replace any
Products or Accessories that does not conform
to this Warranty. We may use functionally
equivalent reconditioned / refurbished / preowned or new Products, Accessories or parts.
What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING
WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE,
SHALL BE LIMITED TO THE DURATION OF
THIS LIMITED WARRANTY, OTHERWISE THE
REPAIR OR REPLACEMENT PROVIDED UNDER
THIS EXPRESS LIMITED WARRANTY IS THE
EXCLUSIVE REMEDY OF THE CONSUMER,
AND IS PROVIDED IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. IN NO
EVENT SHALL MOTOROLA OR BINATONE BE
LIABLE, WHETHER IN CONTRACT OR TORT
(INCLUDING NEGLIGENCE) FOR DAMAGES
IN EXCESS OF THE PURCHASE PRICE OF
THE PRODUCT OR ACCESSORY, OR FOR
ANY INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND,
OR LOSS OF REVENUE OR PROFITS, LOSS
OF BUSINESS, LOSS OF INFORMATION OR
OTHER FINANCIAL LOSS ARISING OUT OF
OR IN CONNECTION WITH THE ABILITY
OR INABILITY TO USE THE PRODUCTS OR
ACCESSORIES TO THE FULL EXTENT THESE
DAMAGES MAY BE DISCLAIMED BY LAW.
Some jurisdictions do not allow the limitation
or exclusion of incidental or consequential
damages, or limitation on the length of an
implied warranty, so the above limitations or
exclusions may not apply to you. This Warranty
gives you specific legal rights, and you may also
have other rights that vary from one jurisdiction
to another.
Consumer
Products
Consumer
Accessories
Consumer
Accessories
that are
Repaired or
Replaced
Exclusions. Normal Wear and Tear. Periodic
maintenance, repair and replacement of parts
due to normal wear and tear are excluded from
coverage. Batteries. Only batteries whose fully
charged capacity falls below 80% of their rated
One (1) year from the date
of the products original
purchase by the first consumer
purchaser of the product
Ninety (90) days from the
date of the accessories original
purchase by the first consumer
purchaser of the product
The balance of the original
warranty or for Ninety (90)
days from the date returned
to the consumer, whichever
is longer.
capacity and batteries that leak are covered by
this Warranty.
Abuse & Misuse. Defects or damage that
result from: (a) improper operation, storage,
misuse or abuse, accident or neglect, such
as physical damage (cracks, scratches, etc.)
to the surface of the product resulting from
misuse; (b) contact with liquid, water, rain,
extreme humidity or heavy perspiration,
sand, dirt or the like, extreme heat, or food;
(c) use of the Products or Accessories for
commercial purposes or subjecting the Product
or Accessory to abnormal usage or conditions;
or (d) other acts which are not the fault of
MOTOROLA or BINATONE, are excluded from
coverage.
Use of Non-Motorola branded Products and
Accessories. Defects or damage that result
from the use of Non-Motorola branded or
certified Products or Accessories or other
peripheral equipment are excluded from
coverage.
Unauthorized Service or Modification.
Defects or damages resulting from service,
testing, adjustment, installation, maintenance,
alteration, or modification in any way by
someone other than MOTOROLA, BINATONE
or its authorized service centers, are excluded
from coverage.
Altered Products. Products or Accessories with
(a) serial numbers or date tags that have been
removed, altered or obliterated; (b) broken
seals or that show evidence of tampering;
(c) mismatched board serial numbers; or (d)
nonconforming or non-Motorola branded
housings, or parts, are excluded from coverage.
Communication Services. Defects, damages,
or the failure of Products or Accessories due
to any communication service or signal you
may subscribe to or use with the Products or
Accessories is excluded from coverage. How to
Obtain Warranty Service or Other Information?
To obtain service or information, please call: US
and Canada 1-888-331-3383 Email: support@
motorolahome.com On the Web: www.
motorolahome.com/support You will receive
instructions on how to ship the Products or
Accessories at your expense and risk, to a
BINATONE Authorized Repair Center. To obtain
service, you must include: (a) the Product or
Accessory; (b) the original proof of purchase
(receipt) which includes the date, place and
seller of the Product;(c) if a warranty card was
included in your box, a completed warranty
card showing the serial number of the Product;
(d) a written description of the problem;
and, most importantly; (e) your address and
telephone number.
European Union Directives Conformance
Statement
The following CE compliance information is
applicable to Motorola products that carry one
of the following CE marks:
Hereby, Binatone declares that this product is in
compliance with:
• The essential requirements and other relevant
provisions of Directive 1999/5/EC
• All other relevant EU Directives
• The Declaration of Conformity can be
obtained from the full user guide at www.
motorolahome.com
FCC Notice to Users
The following statement applies to all products
that bear the FCC logo and/or FCC ID on the
product label.
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
See 47 CFR Sec. 15.105(b). These limits are
designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses
and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment o and on, the user is encouraged
to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and the receiver.
• Connect the equipment to an outlet on a
circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation. See 47 CFR Sec. 15.19(a)(3). Motorola
has not approved any changes or modications
to this device by the user. changes or
modifications not expressly approved by the
party responsible for compliance could void the
user’s authority to operate the equipment. See
47 CFR Sec. 15.21.
Industry Canada Notice to Users
This device complies with Industry Canada
license-exempt RSS standard(s). Operation
is subject to the following two conditions: (1)
This device may not cause interference and
(2) This device must accept any interference,
including interference that may cause undesired
operation of the device. See RSS-Gen, Section
8.4. This device complies with ICES-003
requirements for Class B ITE (Information
Technology Equipment). CAN ICES-3 (B)/
NMB-3(B)
This device meets the IC requirements.
Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
This equipment complies with FCC/IC RSS-102 radiation
exposure limits set forth for an uncontrolled environment.
This eqipment should be installed and operated with
minimum distance 20cm between the radiator & your
body.
ce matériel est conforme aux limites de dose d'exposition
aux rayonnements, fac / ic rss-102 énoncée dans un
autre environnement.cette eqipment devrait être installé
et exploité avec distance minimale de 20 entre le
radiateur et votre corps.
Manufactured, distributed, or sold by Binatone
Electronics International LTD., ocial licensee
for this product. MOTOROLA and the
Stylized M Logo are trademarks or registered
trademarks of Motorola Trademark Holdings,
LLC. and are used under license. Apple logo
is a trademark of Apple Inc., registered in
the U.S. and other countries. App Store is a
service mark of Apple Inc. Google Play and
Android are trademarks of Google Inc. All other
trademarks are the property of their respective
owners. ©2017Motorola Mobility LLC. All rights
reserved.
EN_US Version 1.0
Printed in China
Loading...
