USER’S GUIDE

Model: SCOUT1500

DIGITAL VIDEO PET MONITOR

INDOOR & OUTDOOR PET UNITS

USER’S GU

The features described in this User's Guide are

subject to modifications without prior notice.

IDE

with

Welcome...

to your new Motorola Digital Video Pet Monitor with Indoor & Outdoor Pet Units!

Thank you for purchasing your new Digital Video Pet Monitor with Indoor and Outdoor pet units. If you have always wondered what your pet is up to when you are away, wonder no more. Now you can monitor your pet’s activities from another room. With the outdoor pet unit, you can also see what your pet(s) is doing in the backyard.

Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.

For product related questions, please call:

US and Canada 1-888-331-3383

This User's Guide provides you with all the information you need to get the most out of your product.

Before you can use your new Digital Video Pet Monitor, we recommend that you fully charge the battery of the digital video pet monitor by inserting it in the owner unit. This will allow it to continue to work even if you disconnect it from the power supply to carry it to another location. Please read the Safety Instructions

Got everything?

• 1 x Owner Unit

• 1 x Indoor Pet Unit

• 1 x Outdoor Pet Unit

• 1 x Rechargeable Ni-MH Battery Pack for the Owner Unit

• 1 x Power adapter for the Owner Unit

• 1 x Power adapter for the Indoor Pet Unit

• 1 x Power adapter with connector for the Outdoor Pet Unit

• 4 x Mounting Screws and Dry Wall Plugs

• 1 x Tamper-proof Screw

• 1 x Metal Bracket

• 1 x Wrench Key In multi-camera packs, you will find one or more additional pet units with

power adapter units.

On the Web: www.motorola.com

on page 6 before installation.

Overview of the Owner Unit

10 12

1. Display (LCD screen)

2. Up Key +

Normal Mode: Tilt Up Menu Mode: Up

3. Down Key Normal Mode: Tilt Down Menu Mode: Down

4. Left Key Normal Mode: Pan Left Menu Mode: Left

5. Right Key Normal Mode: Pan Right Menu Mode: Right

6. Menu Key Press to open the Menu

options

7. OK Key O

8. Quick Scan key

Press to double the

video pan and tilt speed. Press again to return to normal speed.

9. Talk Key Press and hold to talk to

your pet

10. Power Adapter / Battery LED

RED when battery low.

11. Unit ON/OFF LED (Green)

12. Audio Level LED (Green,

13. Microphone

14. Power / Video ON-OFF key

Press and Hold to turn the unit

15. Antenna Lift the antenna for optimal

16. Battery cover

17. Stand

18. Speaker

19. USB connector

Connection to AV output

20. Power Adapter connector

EWOP

BLUE when mains adapter power on.

Orange, Red, Red)

ON/OFF Press once to turn ON and OFF the LCD display

reception

* AV Cable (Optional accessory, purchased separately)

Owner unit menu icons

1 N T

H J K L * & m Z A C

Signal Level (5 Levels) Night Vision Mode (Screen changes to Black/White) Ta lk Mode

Battery Level Control (4 Levels) Pan Left Pan Right Tilt Up Tilt Down

Volu me Level Control (8 Levels) Brightness Level Control (8 Levels) Soothing Pet Music Control (5 Song Selections) Zoom Level Control (1X, 2X) Alarm Setting (6h, 4h, 2h, OFF) Cam Control (scan, view, add, del) Temperature Reading (HH oC / oF or LL oC / oF)

Icon & readings turn RED > 29oC / 84oF, and reading display HH oC / oF > 36oC / 97oF) Icon & readings turn RED < 14oC / 57oF, and reading display LL oC / oF < 1oC / 34oF)

Overview of Indoor Pet Unit

1. Photo Sensor (Night Vision Mode)

2. Camera Lens

3. Infared LEDs

4. Power LED

5. Microphone

6. Speaker

7. ON/OFF Switch

8. Power Adapter Connector

9. Antenna

10. Temperature Sensor

11. Pair Key

Overview of Outdoor Pet Unit

1. Camera Lens

2. Infared LEDs

Important guidelines for installing your digital video pet monitor

• To use your Pet Units and Owner Unit together, you must be able to establish a radio link between them, and the range will be affected by environmental conditions.

• Any large metal object, like a refrigerator, a mirror, a filing cabinet, metallic doors or reinforced concrete between the Camera and Owner Unit may block the radio signal.

• The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TVs, computers, cordless or mobile phones, fluorescent lights or dimmer switches.

• Use of other 2.4GHz products, such as wireless networks Wi-Fi routers), Bluetooth interference with this product, so keep the monitor at least 5ft (1.5m) away from these products, or turn them off if they appear to be causing interference.

• If the signal is weak, try moving the Monitor and/or the Pet Units to different positions in the rooms or outdoor area.

systems, or microwave ovens, may cause

3. Pair Key

4. Antenna

Table of contents

1. Safety Instructions ......................................................................... 7

2. Getting Started .............................................................................. 12

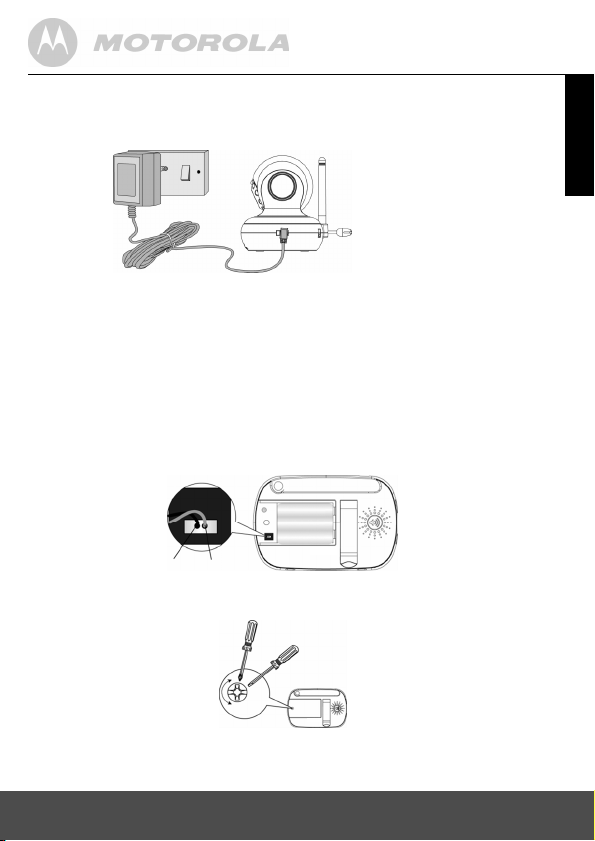

2.1 Indoor Pet Unit Power Supply ...................................................... 12

2.2 Owner Unit Battery Installation ..................................................... 12

2.3 Owner Unit Power Supply ............................................................ 13

2.4 Outdoor Pet Unit Installation ........................................................ 14

2.4.1 Mounting the Outdoor Pet Unit ......................................... 15

2.5 Registration (Pairing) .................................................................... 17

2.6 View Video Through TV ............................................................... 17

3. Using the Digital Video Pet Monitor ............................................ 18

3.1 Setup ............................................................................................ 18

3.2 Pan and Tilt .................................................................................. 18

3.3 Night Vision Mode ........................................................................ 18

3.4 Talk Mode (Not applicable for Outdoor Pet Unit) .......................... 18

3.5 Video ON/OFF ............................................................................. 19

3.6 Temperature Display (HH ºC / ºF or LL ºC / ºF)

(Not applicable for Outdoor Pet Unit) ........................................... 19

4. Owner Unit Menu Options ............................................................ 20

4.1 Volume (Not applicable for Outdoor Pet Unit) .............................. 20

4.2 Brightness .................................................................................... 20

4.3 Soothing Pet Music (Not applicable for Outdoor Pet Unit)............ 20

4.4 Zoom ............................................................................................ 20

4.5 Alarm ............................................................................................ 21

4.6 Camera Control ............................................................................ 21

4.6.1 Add (pair) a camera .......................................................... 21

4.6.2 View a camera .................................................................. 21

4.6.3 Delete a camera ................................................................ 22

4.6.4 Scan cameras ................................................................... 22

4.7 Temperature (Not applicable for Outdoor Pet Unit) ...................... 22

5. Disposal of The Device (environment) ........................................ 23

6. Cleaning ......................................................................................... 23

7. Help ................................................................................................ 24

8. General Information ...................................................................... 26

ENGLISH

Table of contents

1. Safety Instructions

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.

This symbol indicates that there are important operating and maintenance (servicing) instructions in the literature accompanying the unit.

WARNING: VOLTAGES IN THIS UNIT ARE HAZARDOUS TO LIFE. DO NOT REMOVE COVERS. THERE IS NO USER SERVICEABLE PARTS INSIDE.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH THE WIDE BLADE OF THE PLUG TO THE WIDE SLOT

WARNING:

STRANGULATION HAZARD – In case this unit is being used to monitor infants or children, keep the unit and adapter cord more than 3 feet from the crib and out of their reach. Never place camera or cords within a crib or near a bed. Secure the cord away from children’s reach. Never use extension cords with AC Adapters. Only use the AC Adapters provided.

As with any electrical device, supervision of your pet's usage should be exercised until your pet is acclimated to the product. If your pet is prone to chewing, we strongly recommend you keep this and all other electrical devices out of its reach.

CAMERA SET UP & USE:

• Determine a location for the CAMERA that will provide the best view of your pet in its area of activity.

• Place the CAMERA on a flat surface, such as a dresser, desk or shelf.

Safety Instructions

WARNING

This digital video pet monitor regarding electromagnetic fields and is, when handled as described in the User's Guide, safe to use. Therefore, always read the instructions in this User's Guide carefully before using the device.

• Adult assembly is required. Keep small parts away from children and pet(s) when assembling.

• This product is not a toy. Do not allow children or pet(s) to play with it.

• This digital video pet monitor is not a substitute for responsible

supervision and interaction.

• Keep this User's Guide for future reference.

• Do not place the Indoor Pet Unit or cables in the cot / crib or within

reach of the pet (the unit should be at least 3 feet away).

• Keep the cords out of reach of children and pet(s).

• Do not cover the digital video pet monitor with

• Never use extension cords with power adapters. Only use the power

adapters provided.

• Test this monitor and all its functions so that you are familiar with it prior to actual use.

• Do not use the digital video pet monitor near water.

• Do not install the digital video pet monitor

• Only use the chargers and power adapters provided. Do not use other

chargers or power adapters as this may damage the device and battery pack.

• Only insert a battery pack of the same type.

• Do not touch the plug contacts with sharp or metal objects.

CAUTION

There is a risk of explosion if battery is replaced by an incorrect type. Please dispose of used batteries according to the instructions.

is compliant with all relevant standards

a towel or blanket.

near a heat source.

ENGLISH

Safety Instructions

Important instructions:

• Read and Follow Instructions - Please read all the safety and

operating instructions before operating the product. Follow all operating instructions.

• Retain Instructions - The safety and operating instructions should be retained for future reference.

• Heed Warnings - Comply with all warnings on the product and in the operating instructions.

• Polarization - Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the supplied plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

• Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your location, consult your camera dealer or local power company. For products intended to operate from battery power, or other sources, please refer to the operating instructions

• Overloading - Do not overload wall outlets or extension cords as this can result in the risk of fire or electric shock. Overloaded AC outlets, extension cords, frayed power cords, damaged or cracked wire insulation, and broken plugs are dangerous. They may result in a shock or fire hazard. Periodically examine the cord, and if its appearance indicates damage or deteriorated insulation, have it replaced by your service technician.

• Power-Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

Safety Instructions

• Surge Protectors - It is highly recommended that the camera equipment be connected to a surge protector. Doing so will protect the equipment from damage caused by power surges. Surge protectors should bear the UL listing mark or CSA certification mark.

• Uninterruptible Power Supplies (UPS) - Because this product is designed for continuous, 24/7 operation, it is recommended that you connect the product to an uninterruptible power supply. An uninterruptible power supply has an internal battery that will keep the product running in the event of a power outage. Uninterruptible power supplies should bear the UL listing mark or CSA certification mark. CAUTION: Maintain electrical safety. Power line operated equipment or accessories connected to this product should bear the UL listing mark or CSA certification mark on the accessory itself and should not be modified so as to defeat the safety features. This will help avoid any potential hazard from electrical shock or fire. If in doubt, contact qualified service personnel.

• Ventilation - Slots and openings on the case are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the camera equipment on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and the product manufacturer’s instructions have been followed.

• Attachments - Do not use attachments unless recommended by the product manufacturer, as they may cause a hazard.

• Water and Moisture - Do not use receivers or video monitors near water - for example, near a bath tub, sink or laundry tub, in a wet basement, near a swimming pool, etc.

• Heat - The product should be located away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

ENGLISH

Safety Instructions

• Accessories - Do not place this camera equipment on cart, stand, tripod, or table. The camera equipment may fall, causing serious damage to the product. Use this product only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product. Any mounting of according to the manufacturer’s accessory recommended by

• Camera Extension Cables - Check the rating of your extension cable to verify its compliance prior to installation.

• Mounting - The cameras provided with this system should be mounted only as instructed in this guide or the instructions that came with your cameras, using the supplied mounting brackets.

• Camera Installation - Cameras are not intended for submersion in water. Not all cameras can be installed outdoors. Check your camera environmental rating to confirm if they can be installed outdoors. When installing cameras outdoors, installation in a sheltered area is required.

the product

instructions and

the

manufacturer.

use a mounting

unstable

should be

Safety Instructions
