Binatone Electronics RM50PU, RM50BU Users Manual

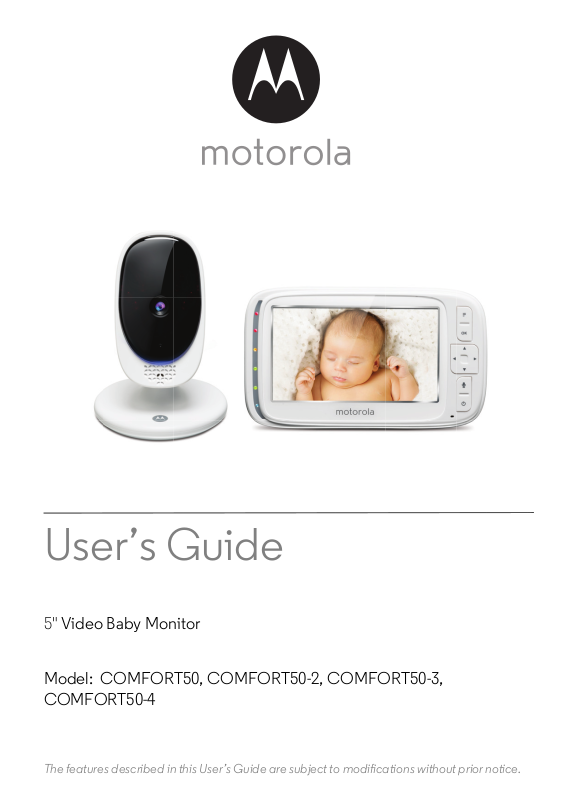

User’s Guide

Video Baby Monitor

Model: COMFORT50, COMFORT50-2, COMFORT50-3, COMFORT50-4

The features described in this User’s Guide are subject to modifications without prior notice.

Welcome...

to your new Motorola Digital Video Baby Monitor!

Thank you for purchasing the Digital Video Baby Monitor. Now you can see and hear your baby sleeping in another room or you can monitor your older children in their playroom.

Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.

For product related questions, please call:

US and Canada 1-888-331-3383

E-mail: support@motorolahome.com

On the Web: www.motorolahome.com/support

This User's Guide provides you with all the information you need to get the most from your product.

Before you can use the baby monitor, we recommend you insert and fully charge the battery in the Parent Unit, so that it continues to work if you disconnect it from the power supply to carry it to another location. Please read the Safety Instructions on pages 7 - 9 before you install the units.

Got everything?

• 1 x Parent Unit (with built-in Li-ion battery)

• 1 x Baby Unit (Camera)

• 1 x Power adapter for the Parent Unit (Output 5V -- 1000mA)

• 1 x Power adapter for the Baby Unit (Output 5V -- 600mA)

In multi-camera packs, you will find one or more additional baby units with power adapter units.

Overview of the Parent Unit

3 4

6 7

1. Display (LCD screen)

2. Battery status, Power, Sound level,

Pairing indicators

a) Lights up in blue when the Parent Unit’s battery is being charged. b) Lights up in green when the Parent Unit is switched on. c) Green-Orange-Red-Red Show the sound level detected by the Baby Unit - the louder the sound detected, the more LEDs light up. Flashes rapidly in green when the Parent Unit is searching for the Baby Unit, or is in pairing mode.

3. Main menu button M

Press to enter/exit menu mode.

4. O button

When in a menu, press to choose an item, or save a setting.

5. Control key panel

UP / VOLUME+ +

Press to increase speaker volume in camera viewing mode. When in a menu, press to scroll up. When viewing a zoomed image, press to pan up.

DOWN / VOLUME - -

Press to decrease speaker volume in camera viewing mode. When in a menu, press to scroll down. When viewing a zoomed image, press to pan down.

LEFT

When in a menu, press to scroll left. When viewing a zoomed image, press to pan left.

RIGHT >

When in a menu, press to scroll right. When viewing a zoomed image, press to pan right.

6. TALK BACK T

Hold down to talk back to the baby unit.

7. Power button 0

Press and hold to switch the unit On/ Off Press to turn the video screen Off/ On

8. Power socket

Parent Unit display icons



Signal Strength

Camera Power Mode - AC or Battery

Camera Patrol Mode

Camera Identification Number

Speaker on / off

Lullabies menu / mode

Zoom menu / mode

Night vision

Alarm timer

Parent unit battery status

Speaker volume

Video on timer

Add camera

Delete camera

View camera

Tal k b ac k f un ct io n

Overview of Your Baby Unit (Camera)

1. Camera Lens

2. Microphone

3. Power indicator

Lights up in blue when the Baby Unit is switched on and linked to the Parent Unit. Off when the Baby Unit is switched off.

4. Power ON/OF F switch

Slide to switch the Baby Unit on or off.

5. Power Adap ter Socket

6. Light Sensor (Night Vision

Mode)

7. Pair Key

Press and hold to pair with the Parent Unit.

Important guidelines for installing your Baby Monitor

• To use your Video Monitor Baby and the Parent Unit together, you must be able to establish a radio link between them, and the range may be affected by environmental conditions.

• Any large metal object, like a refrigerator, a mirror, a filing cabinet, metallic doors or reinforced concrete between the Baby and Parent Units may block the radio signal.

• The signal strength may also be reduced by other solid structures, like walls or electrical equipment, such as radios, TVs, computers, cordless or mobile phones, fluorescent lights or dimmer switches.

• Use of other 2.4 GHz products, such as wireless networks (Wi-Fi Bluetooth product, so keep the Baby Monitor at least 5 feet from these types of products, or turn them off if they appear to be causing interference.

• If the signal is weak, try moving the Parent and/or the Baby Unit to different positions in the rooms.

systems, or microwave ovens, may cause interference with this

routers),

Table of contents

1. Safety Instructions..................................................................................... 7

2. Getting Started........................................................................................10

2.1 Power up the Baby Unit.............................................................................10

2.2 Charge the Parent Unit .............................................................................11

3. Using the Baby Monitor........................................................................... 12

3.1 Setting Up..................................................................................................12

3.2 Power On or Off the Baby Unit .................................................................12

3.3 Power On or Off the Parent Unit...............................................................12

3.4 Night Vision Mode.....................................................................................13

4. Parent Unit Menu Options.......................................................................14

4.1 Adjust Speaker Volume.............................................................................14

4.2 Set the Screen Brightness .........................................................................14

4.3 Adjust Settings...........................................................................................14

5. Disposal of the Device (environment)....................................................18

6. Cleaning .................................................................................................. 19

7. Troubleshooting ......................................................................................20

8. General Information ................................................................................22

9. Technical Specifications .........................................................................28

ENGLISH

Table of contents 6

1. Safety Instructions

WARNING

Strangulation Hazard: Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 3ft away). Do not remove this tag. Never use extension cords with AC Adapters. Only use the AC Adapters provided.

ENGLISH

Safety Instructions 7

WARNING

BABY UNIT SET UP & USE:

• Determine a location for the Baby Unit that will provide the best view of your baby in his/her cot.

• Place the Baby Unit on a flat surface, such as a dresser, bureau, or shelf or mount the Unit to a wall securely using the keyhole slots in the underside of the stand.

• NEVER place the Baby Unit or cords within the cot.

This Baby Monitor is compliant with all relevant standards regarding electromagnetic fields and is, when handled as described in the User's Guide, safe to use. Therefore, always read th e instructions in this User's Guide carefully before using the device.

• Adult assembly is required. Keep small parts away from children when assembling.

• This product is not a toy. Do not allow children to play with it.

• This Baby Monitor is not a substitute for responsible adult supervision.

• Keep this User's Guide for future reference.

• Do not place the Baby Unit or cords in the cot or within reach of the baby (the Unit and cords should be more than 3 feet away).

• Keep the cords out of reach of children.

• Do not cover the Baby Monitor with a towel or blanket.

• Test this monitor and all its functions so that you are familiar with it prior to actual use.

• Do not use the Baby Monitor in damp areas or close to water.

• Only use the chargers and power adapters provided. Do not use other chargers or power adapters as this may damage the device and battery pack.

• Only insert a battery pack of the same type.

8 Safety Instructions

• Do not touch the plug contacts with sharp or metal objects.

• Connect the power adapters to easily accessible electrical outlets.

CAUTION

The P

arent Unit includes a built-in, lithium-ion rechargeable battery pack, which is not a user-accessible item. If you think the battery needs replacing, please contact the helpline. Do not try to replace it yourself.

Risk of explosion if battery is replaced by an unapproved battery type.

Dispose of used batteries according to their instructions.

The Unit should be set up and used so that parts of the user's body other than the hands are maintained at a distance of approximately 8 inches (20 cm) or more.

L’appareil

doit être installé et utilisé de sorte que les parties du corps autres que les

mains soient à une distance d'environ 20 cm (8 pouces) ou plus.

ENGLISH

Safety Instructions 9
