User’s Guide

Motorola Halo+ Over-the-Crib Wi-Fi® monitor and sleep companion

odel: MBP944CONNECT

The features described in this User’s Guide are subject to modifications without prior notice.

Welcome...

to your new Motorola Halo+!

Thank you for purchasing Motorola Halo+. Now you can see and hear your baby sleeping in another room or you can monitor your older children in their play room.

Please keep your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.

For product-related questions, please call:

US and Canada 1-888-331-3383

Email: support@motorolastore.com

On the Web: www.motorolastore.com

This User’s Guide has all the information you need to make the most out of your product.

Please read the Safety Instructions on pages 5 before you install the unit.

Inside the Box

• 1 x Baby Unit (Camera)

• 1 x Parent Unit

•

1 x Crib Mount Kit

• 2 x Power Adapters (Baby Unit and Parent Unit)

• 1 x Quick Start Guide

ENGLISH

Overview of Crib Mounting Kit and Baby Unit

Crib Mounting Kit

1. Night Light Ring

2. Baby Unit

3. Baby Unit Release Button

4. Lightshow Projector ON/OFF/

Pair

5. Night Light Switch

Light Show Projector window

7. Top Pole Release Button

8. Securing Knob

9. Telescopic Leg

10. Mounting Knob

11. Adjustive Plate

12. Power Port

12 3

Baby Unit

13. High Sense Microphone

14. Photo Sensor (Night Vision

de)

15. Camera Lens

16. Power ON/OFF Switch

17. Speaker

18. Antenna

19. PA I R butto n

20. Power Socket

Overview of the Parent Unit

DC 5V

1. Display (LCD screen)

2. Sleep Activity button

3. TAL K butto n T

ess and hold to speak to

13 14 15 16

your baby.

4. RESET button (recessed -

use small pin)

5. UP button +

Move Up menu options.

6. DOWN button -

Move Down menu options.

7. MENU button M

Press to op Menu o

8. OK button O

9. Power Socket

10. LEFT button <

Move Le options

11. RIGHT button >

Move Right along me options

12. Charging LED:

en / close the

ptions.

ft along menu

BLUE when mains powe co

nnected.

13. Parent Unit ON/OFF LED

(

Green)

14. Audio Level LEDs (Green,

mber, Red, Red)

15. Vol u me butt o ns

Press -/+ to decrease/ increase Volume level on Parent Unit

16. Power button 0

Press and Hold to turn the Parent Unit ON/OFF VIDEO ON/OFF button V Toggle to turn the LC

een ON/OFF (Note:

scr is m

aintained.)

17. Microphone

18. Stand

19. Speaker

20. Antenna

audio

ENGLISH

Parent Unit menu icons

Signal Level Indication (4 Levels)

Night Vision Mode (Video also changes to Black/White)

Tal k M o d e O n

Indicates the screen off timer is set

Volume Level Control (8 Levels)

No Baby Unit detected

Sleep activity monitoring.

Battery Level Indication (4 Levels)

Night Light is ON

Night Light Brightness Control with 3 levels of selection

Night Light Colour Control with 7 colour options

Night Light Colour Loop with 7 colours

Zoom Level Control (1X, 2X)

LCD Brightness Level Control (8 Levels)

Audio Playlist selection - Lullaby/Soothing Sounds ,

Audio Book

Alarm Setting (6h, 4h, 2h, OFF) On status bar, indicates alarm set, and when flashing, that alarm time has been reached or missed.

Temperature scale select (oC / oF) Readings display in BLUE, but turn RED if > 29ºC / 84ºF, or < 14ºC / 57ºF

Displays HH Displays LL

Camera Control (scan , view , add , delete X)

Set Screen Off Timer (Off X, 5 min, 30 min, 60 min)

View multiple cameras on screen. Available when you have more than 1 Baby Unit (Camera).

Light Show Projector is on.

C / oF if >36oC / 97oF.

C / oF if < 1oC / 34oF.

ENGLISH

Table of contents

1. Safety Instructions ................................................................................8

2. Getting Started ..................................................................................... 11

2.1 Setting up the Baby Unit with Crib Mount Kit .........................11

2.2 Setting Up Baby Unit at Desk Mode ...........................................14

2.3 Parent Unit Power Supply ..............................................................15

2.4 Registration (Pairing) .......................................................................16

3. Using the Motorola Halo+ .................................................................. 17

3.1 Set Night Light .................................................................................... 17

3.2 Set Lightshow Projector .................................................................. 17

3.3 Night Vision Mode ............................................................................. 17

3.4 Talk Mode .............................................................................................. 17

3.5 Adjust Parent Unit volume ............................................................. 17

3.6 Video ON/OFF ....................................................................................17

3.7 Sleep activity monitor ...................................................................... 18

3.8 Temperature Display (HH °C / °F or LL °C / °F) ................... 18

4. Parent Unit Menu Options ................................................................. 19

4.1 Set Night Light ....................................................................................19

4.1.1 Night Light Brightness control ......................................19

4.1.2 Night Light Color control ................................................ 19

4.2 Zoom ....................................................................................................... 19

4.3 LCD Display Brightness ................................................................. 20

4.4 Audio Playlist ..................................................................................... 20

4.4.1 Lullaby/Soothing Sounds Playback .......................... 20

4.4.2 Audio Book (English only) Playback ........................ 20

4.4.3 Stop Playback ...................................................................... 21

4.5 Alarm .......................................................................................................21

4.6 Camera Control ..................................................................................22

4.6.1 Add (pair) a camera ......................................................... 22

4.6.2 View a camera ....................................................................23

4.6.3 Delete a camera .................................................................23

4.6.4 Scan cameras ......................................................................24

4.7 Temperature format .........................................................................24

4.8 Power Saving Mode .........................................................................24

4.9 View multiple cameras on screen ...............................................25

4.10 Lightshow Projector Setting ......................................................... 25

5. Wi-Fi® Internet Viewing .................................................................... 26

5.1 Minimum System Requirements ..................................................26

6 Table of contents

5.2 Getting Started - Connecting Devices ......................................27

5.2.1 Setup .......................................................................................27

5.3 User Account and Camera Setup on Android™ Devices ...28

5.3.1 Download Hubble for Motorola Monitors App .......28

5.3.2 Create a new Hubble for Motorola Monitors

account ................................................................................. 29

5.3.3 Add the Camera to your account .............................. 30

5.4 User Account and Camera Setup on iPhone®/iPad® ........... 34

5.4.1 Download Hubble for Motorola Monitors App ...... 34

5.4.2 Create a new Hubble for Motorola Monitors

account ..................................................................................35

5.4.3 Add the Camera to your account .............................. 36

5.5 Procedure for Resetting the Camera .......................................40

6. Disposal of the Device (Environment) ...........................................41

7. Cleaning ................................................................................................ 42

8. Help ........................................................................................................ 43

9. General Information ............................................................................ 51

10. Technical Specifications ....................................................................55

ENGLISH

Table of contents 7

1. Safety Instructions

WARNING

Strangulation Hazard: Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 1m (3ft) away). Never use extension cords with AC Adapters. Only use the AC Adapters provided. Stop using the crib mount when baby begins to push up on hands and knees.

8 Safety Instructions

WARNING

This digital video Baby Monitor is compliant with all relevant standards regarding electromagnetic fields and is, when handled as described in the User's Guide, safe to use. Therefore, always read the instructions in this User's Guide carefully before using the device.

Adult assembly is required. Keep small parts away fr

•

om children when assembling. This product is not a toy. Do not allow children to play with it.

•

• This Baby Monitor is not a substitute for responsible adult supervision.

•

Keep this User Guide for future reference. Do not place the

•

Baby Unit or cords in the crib or within reach of the baby (the unit and cords should be more than 1 metre (3 ft) away)

• Keep the cords out of reach of children.

• Do not cover the Baby Monitor with a towel or blanket.

• Never use extension cords with power adapters. Only use the power adapters provided.

• Test this monitor and all its functions so that you are familiar with it prior to actual use.

• Do not use the Baby Monitor near water.

• Do not place the Baby Monitor near a heat source.

• Only use the chargers and power adapters provided. Do not use other chargers or power adapters as this may damage the device and battery pack.

• Do not touch the plug contacts with sharp or metal objects.

ENGLISH

Safety Instructions 9

CAUTION

The Parent Unit includes a built-in, lithium-ion rechargeable battery pack, which is not a user-accessible item. If you think the battery needs replacing, please contact the helpline. Do not try to replace it yourself.

Risk of explosion if battery is replaced by an unapproved battery type.

Dispose of used batteries according to their instructions.

Important guidelines for installing your Baby Monitor

• To use your Video Monitor Baby and Parent Units together, you must be able to establish a radio link between them, and the range will be affected by environmental conditions.

• Any large metal object, like a refrigerator, a mirror, a filing cabinet, metallic doors or reinforced concrete between the Baby and Parent Unit may block the radio signal.

• The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TVs, computers, cordless or mobile phones, fluorescent lights or dimmer switches.

• Use of other 2.4 GHz products, such as wireless networks

routers), Bluetooth™ systems, or microwave ovens,

(Wi-Fi may cause interference with this product, so keep the Baby Monitor at least 5 feet away from these types of products, or turn them off if they appear to be causing interference.

• If the signal is weak, try moving the Parent and/or the Baby Unit to different positions in the room(s).

10 Safety Instructions

2. Getting Started

2.1 Setting up the Baby Unit with Crib Mount Kit

Step 1: Fasten the round adaptive plate on the screw thread of

the Crib Mount Stand (see note).

Step 2: Place the mount stand against the crib with the screw thread going through the crib bars.

Step 3: Secure the mounting knob on to the screw thread.

ENGLISH

Getting Started 11

Step 4: Keep the stand parallel and tighten the mounting knob so

Note: Ensure the

telescopic leg is extended so the foot sits tight against the floor.

that the

crib mount stand is secured to the crib bars.

Note: the adaptive plate if the top rail of your crib is too thick for the bracket.

Only use

Step 5: Extend the telescopic leg of

the crib stand so the foot

is secured to the floor.

Step 6: Tighten the securing knob to lock the telescopic leg in place.

12 Getting Started

Step 7: Insert the

Top Pole (with night light ring) into the

crib mount stand. It will lock into place with a 'click'.

Step 8: Dock the baby unit into the top pole (with night light ring) as shown in the picture below.

Note: Before removing the camera from the top pole. Rotate the top p

ole outside the crib area to avoid the possibility of the camera

falling into the crib.

Step 9: Plug the Power Adapter (DC5V / 1.5A) into the socket on Crib Mount Stand

and the other end to a suitable electrical

outlet.

ENGLISH

Getting Started 13

Please mount the camera on the long s

ide of the crib for optimal

view.

2.2 Setting Up Baby Unit For Desk Mode

When your child is older, the baby unit (camera) can be removed Mode'. Connect the power supply directly into the Baby Unit (camera) when using in desk mode.

NOTE

Only use the enclosed Power Adapter (5V DC / 1500mA).

1. Slide the POWER ON/OFF switch to the ON position to

2. Slide the POWER ON/OFF switch to the OFF position to turn

and used without the crib mounting kit. This is 'Desk

Connect the DC plug of the power adapter to the Baby Unit (camera) and the other end to a suitable mains power socket.

turn

the Baby Unit on.

the Baby Unit off.

14 Getting Started

2.3 Parent Unit Power Supply

1. Connect the DC plug of the power adapter (5V DC /

1500mA) t electrical

o the Parent Unit and the other end to a suitab

outlet. Press and hold the POWER button on

the top of the Parent Unit to turn it ON.

NOTE

A rechargeable battery (Lithium ion battery 2000mAh) inside the Parent Unit allows you to move it without losing the link and picture from the Baby Unit. The battery gives up to 5 hours operation for the Parent Unit. We recommend you charge it for at least 16 hours before first use, or when the Parent Unit indicates the battery is low.

ENGLISH

Getting Started 15

2.4 Registration (Pairing)

___

The Baby Monitor is pre-registered to your Parent Unit. You do not need to register it again unless the Baby Unit loses its link with the Parent Unit.

To re-register your Baby Unit, or register a new Baby Unit, follow the procedures below:

1. Press the M button of the Parent Unit an

p up.

2. Press the < LEFT button or > RIGHT button until is

highlighted, and the will pop up

3. Pr

ess the + UP button or - DOWN button to

and press the O button to co

4. Cam

era will pop up, press the + UP button or -

del/ add/ view/ scan

nfirm.

DOWN button to select the desired Camera, and pres O butt

on to start searching for a camera unit, with "press

PAI R on c a m" shown.

Note: If a camera is currently paired with the Parent Unit, its camera location (with a * against it) cannot be selected for a new registration.

5. Press and hold the PAIR button on the underside of the Baby

Unit until the Parent Unit finds the camera, beeps and PAIR OK appears on the screen. The video from the camera then app

ear.

NOTE

If a particular Baby Unit was registered previously, registering this current Baby Unit again will cancel its old registration.

d the menu bar will

select

add

s the

will

16 Getting Started

3. Using the Motorola Halo+

Please read these instructions carefully and be aware that this product is only intended as an aid. It is not a substitute for responsible, correct parental supervision.

3.1 Set Night Light

The nightlight feature provides a soft glow to help soothe your baby to sleep and help keep them calm throughout the night. Press 7 colour options. The light has 3 levels of brightness available.

3.2 Set Lightshow Projector

Toggle button to switch Light Show Project on or off.

3.3 Night Vision Mode

The Baby Unit has 8 high-intensity infrared LEDs for picking up clear images in the dark. When the built-in photo sensor on the front of the Unit detects a low level of ambient light, the LEDs will automatically activate and the screen on the Parent Unit will display in black and white. The icon will be displayed at the top of the screen.

3.4 Talk Mode

Press and hold the TALK button T on the parent unit to talk to your lovely baby through the baby unit’s loudspeaker.

3.5 Adjust Parent Unit volume

There are 8 volume levels on Parent unit, including volume off. Press < to increase or > to decrease the volume of Parent Unit.

3.6 Video ON/OFF

When it is at standby mode, toggle VIDEO On/Off button to turn the LCD screen on or off, whilst still leaving the audio monitor on.

button once to switch Night Light on, tap again to select

ENGLISH

Using the Motorola Halo+ 17

3.7 Sleep activity monitor

Press to review the sleep activity graph of your baby recorded by the camera.

3.8 Temperature Display (HH °C / °F or LL °C / °F)

The temperature reading from the temperature sensor at the back of the Baby Unit will be displayed at the top of the LCD screen in °C or °F (see Section 4.7 “Temperature” for how to change). The readings will turn RED if the temperature goes above 29°C / 84°F or below 14°C / 57°F. The reading will change to HH °C / °F if the temperature goes above 36°C / 97°F. The reading will change to LL °C / °F if the temperature goes below 1°C / 34°F.

18 Using the Motorola Halo+

4. Parent Unit Menu Options

4.1 Set Night Light

1. Press the M button and the menu bar will pop up.

2. Ta p o n M button then Scroll Left/Right to

the menu bar.

3. Press + UP button or - DOWN button to select ON and OF s

tatus then confirm with O button.

4.1.1 Night Light Brightness control

• When ON is selected, you can scroll up/down to select and

confirm with O button. There are 3 brightness levels for selection.

ess M to exit and confirm.

• Pr

4.1.2 Night Light Color control

• When ON is selected, you can scroll up/down to select and

nfirm with O button.

•

Scroll up and down to select one of the 7 colour looping.

• Pr

ess M button to exit and confirm.

Note: The Night Light function is not available when the Baby Unit is in Desk mode.

4.2 Zoom

1. Press the M button and the menu bar will pop up with

ighlighted.

2. Press the + UP button or - DOWN button to select

oom. (The default setting is

select

s or

option at

auto

ENGLISH

Parent Unit Menu Options 19

4.3 LCD Display Brightness

1. Press the M button and the menu bar will pop up.

ess the < LEFT button or > RIGHT butt

2. Pr highlight

3. Pr desired brightness from level 1 ~ 8. (The default brightness is level 4.)

ed.

ess the + UP button or - DOWN button to select the

on until

4.4 Audio Playlist

You can playback audio content - Lullabies, Soothing Sounds and Audio Book (English only) on the Baby Unit. The audio content can be downloaded and stored in the Baby Unit via Hubble App. You have 10 preloaded lullabies/soothing sounds and 10 audio books in the Baby Unit.

4.4.1 Lullaby/Soothing Sounds Playback

• Tap on M button then Scroll Left/Right to select option at

the menu bar.

•

Scroll Up or Down to

ess + UP button or - DOWN button to view the desire

• Pr

y/Soothing Sounds. The song names appear on the

Lullab screen.

ess O button to play

4.4.2 Audio Book (English only) Playback

• Tap on M button then Scroll Left/Right to select option at

the menu bar.

•

Scroll Up or Down to

ess + UP button or - DOWN button to view the desire

• Pr

udio Book. The book titles appear on the screen.

• Pr

ess O button to play the selection.

select

the selection.

select

then confirm with O button.

20 Parent Unit Menu Options

4.4.3 Stop Playback

• Tap on M button then Scroll Left/Right to select option at

the menu bar. Scroll Up or Down to

•

button.

• Pr

ess + UP button or - DOWN button until "Press OK to stop playing" appears on screen then confirm with O button to stop.

ess M button to exit.

• Pr

select

or then confirm with O

4.5 Alarm

1. Press the M button and the menu bar will pop up.

2. Pr

ess the < LEFT button or > RIGHT button until is

highlight

3. Pr a

larm time (

setting is Alarm

4. If an alarm time is selected, the Parent Unit will beep for about 1 minute after every 6, 4 or 2 hour period, and th

ed.

ess the + UP button or - DOWN button to

6h, 4h, 2h

sh. Press any button to stop the alarm.

will fla

), and the will turn on. (The default

OFF

select the

ENGLISH

Parent Unit Menu Options 21

4.6 Camera Control

___

4.6.1 Add (pair) a camera

1. Press the M button and the menu bar will pop up.

2. Pr

ess the < LEFT button or > RIGHT button until is highlighted, and the will pop up

3. Pr

ess the + UP button or - DOWN button to

and press the O button to co

4. Cam

era will pop up, press the + UP button or -

del/ add/ view/ scan

select

nfirm.

DOWN button to select the desired Camera, and pres O butt

on to start searching for a camera unit.

Note: If a camera is currently paired with the Parent Unit, it came

ra location (with a * against it) cannot be selected fo

w registration.

5. Press and hold the PAIR button on the underside of the Baby Unit until the Parent Unit finds the camera, beeps and PAIR OK appears on the screen. The video from the camera then app

ear.

NOTE

A camera can only be registered to one Parent Unit at any one time.

add

s the

r a

will

22 Parent Unit Menu Options

4.6.2 View a camera

___

, , , ,

___

1. Press the M button and the menu bar will pop up.

ess the < LEFT button or > RIGHT button until

2. Pr

ighlighted, and the

will pop up

ess the + UP button or - DOWN button to select

3. Pr

del/ add/ view/ scan

view

and press the O button to confirm.

4. Camera will pop up. Press the + UP button or -

DOWN button to select the desired camera, and pres O butt

on to view the picture from that camera.

s the

Note: Only camera locations with a * can be selected.

TIP

Quick Method to View Cameras instead of entering into the menu bar.

Directly press the O button repeatedly to select the available Camera options from .

4.6.3 Delete a camera

1. Press the M button and the menu bar will pop up.

2. Pr

ess the < LEFT button or > RIGHT button until

ighlighted, and the

will pop up

3. Pr

ess the + UP button or - DOWN button to

del/ add/ view/ scan

select

and press the O button to confirm.

4. Camera will pop up, press the + UP button or -

DOWN button to select the desired Camera, and press the O button.

5. Press the + UP button or - DOWN button to select

ess the O button to delete that registra

tion.

NOTE

ou are not allowed to delete the camera if there is only one

Y registered camera in the system.

del

, then

ENGLISH

Parent Unit Menu Options 23

4.6.4 Scan cameras

___

, , , ,

This function is only available when you have more than 1 Baby Unit (Camera).

1. Press the M button and the menu bar will pop up

2. Press the < LEFT button or > RIGHT button until is

highlighted, and the will pop up.

3. Press the + UP button or - DOWN button to select and pr

4. T

Quick Method to View Cameras instead of entering into the menu bar.

Directly press the O button repeatedly to select the available Camera options from .

ess the O button to co

he screen will then display images from different register

eras in a loop of Camera , changing

cam approximately every 12 seco

del/ add/ view/ scan

nfirm.

nds.

scan

4.7 Temperature format

1. Press the M button and the menu bar will pop up.

ess the < LEFT button or > RIGHT butt

2. Pr highlight

3. Pr

ed.

ess the + UP button or - DOWN button to select

on until

°C

or °F.

4.8 Power Saving Mode

1. Press the M button and the menu bar will pop up.

2. Pr

ess the < LEFT button or > RIGHT button until is

highlight

3. Pr video off afte 5 mins

NOTE

The audio will remain and you can press any key to switch the video back on.

ed.

ess the + UP button or - DOWN button to select auto

, 30 mins or 60 mins if operating on batteries only.

24 Parent Unit Menu Options

4.9 View multiple cameras on screen

This function is only available when you have more than 1 Baby Unit (Camera). When the Split Screen function is On, you can view multiple cameras on the screen, although only hear audio from one screen at a time.

1. Press the M button and the menu bar will pop up

2. Pr

ess the < LEFT button or > RIGHT button untilis

highlight

3. Pr

Scr

4. When the Split Screen function is On, you can press the <

LEFT button or > RIGHT button/ + UP button or - DO butt the sele

Note:

When in multi-screen mode the TALK button operates with the selected camera. If you want to play a lullaby sound through a camera, you must set this before selecting the multi-screen mode.

Zoom does not work in multi-screen mode.

ed.

ess the + UP button or - DOWN button to

een On / Off .

on to switch between cameras to hear the audio fr

cted camera, indicated by the red frame.

select Split

4.10 Lightshow Projector Setting

1. Press the M button and the menu bar will pop up.

ess the < LEFT button or > RIGHT button to select .

2. Pr

3. Scroll Up or Down to confirm ON/OFF. If it is ON

on will appear on the screen status bar.

, the

ENGLISH

Parent Unit Menu Options 25

5. Wi-Fi® Internet Viewing

5.1 Minimum System Requirements

Web Port al

• W

• Mac OS

• Chr

• I

nternet Explorer

• Safari

• Java™ 7

• F

irefox

• A

dobe

Android™ System

Version 4.2 or above

•

iPhone

•

Version 7.0 or abov

igh Speed (Wi-Fi

•

At least 0.6 Mbps upload bandwidth per camera (you can test your internet speed on this site: http://www.speedtest.net

10.7

indows

ome™ 24

18.0

Flash® Player 15.0

/iPad® iOS

) Internet

)

26 Wi-Fi® Internet Viewing

5.2 Getting Started - Connecting Devices

MBP944CONNECT

Camera

Wi-Fi Router

Hubble Service

Access your Camera

V ie w y o ur Ca m er a f r om any compatible device remotely.

How does it work?

5.2.1 Setup

• Power on the Baby Unit (Camera).

• The Camera Unit must be within range of the Wi-Fi

with which you want to connect. Make sure that you have pa

ssword of the router for the setup process.

Behavior of the status Indicator LED:

Pairing and setting up Flashes slowly in red and blue

Unconnected Flashes slowly in blue

Connected Lights up in blue

Ready for connection Flashes slowly in blue

Note

You can only setup via a compatible smartphone or tablet, but not via a PC.

router

ENGLISH

the

Wi-Fi® Internet Viewing 27

5.3 User Account and Camera Setup on Android™

Devices

What you need

• Baby Unit (Camera)

Crib Mounting Kit (for Dock mode only)

•

• Power adapter

• Device with Android™

5.3.1 Download Hubble for Motorola Monitors App

• Go to Google Play™ Store to search for "Hubble for Motorola

Monitors" or scan the QR code to download Hubble for Motorola Monitors App from Google Play™ Store.

• Install Hubble for Motorola Monitors App on your Android™

device.

system version 4.2 and above

28 Wi-Fi® Internet Viewing

5.3.2 Create a new Hubble for Motorola Monitors

account

• Ensure that your Android™ device is connected to your Wi-Fi

uter.

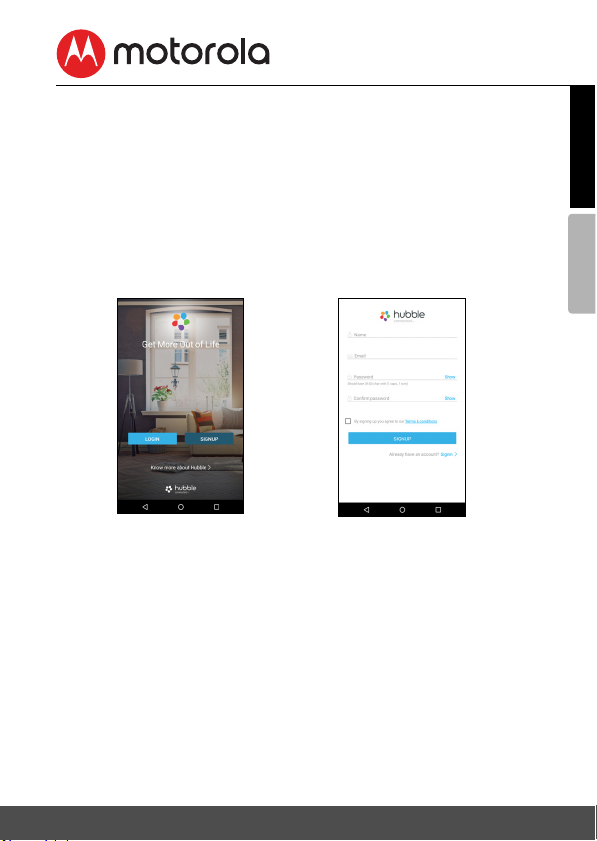

Run the "Hubble for Motorola Monitors" App on yo

•

ndroid™ device, tap SIGNUP to create new Hubble acco

A (Pictur

e A1).

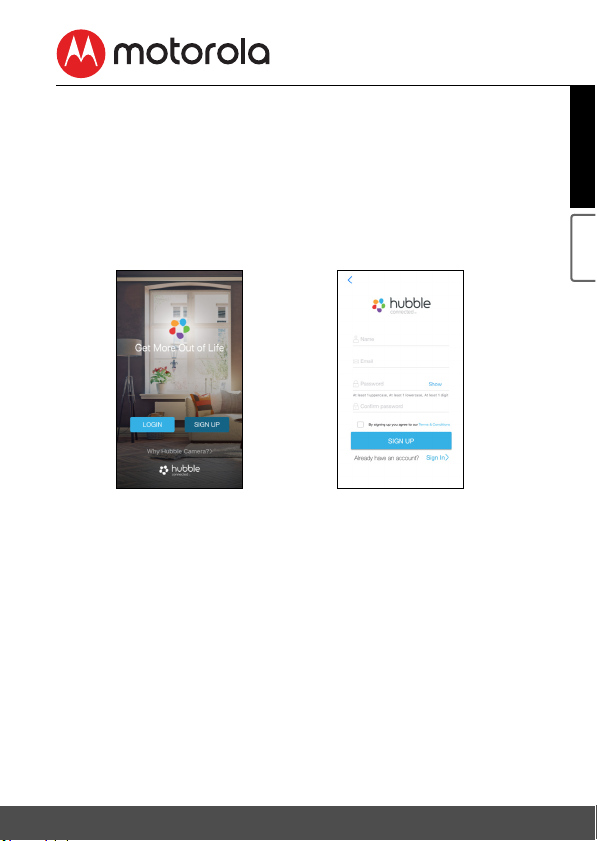

Enter user’s information, read through the Terms an

•

onditions, by signing up you agree to our Terms an

onditions (Pictures

If you already have an account, please tap LOGIN to go to

Note:

A2).

the next step.

unt

ENGLISH

Android

Wi-Fi® Internet Viewing 29

5.3.3 Add the Camera to your account

A3A4A5

• Sign in to your Hubble account by entering User Name and

assword (Picture A3).

Tap on Add butt

•

Camera (Picture A4).

• T

ap Halo Camera to add the Camera (Picture A5).

Choose the mode (Dock mode or Desk mode) you want to

•

setup your Camera (Picture A6).

at the bottom of the screen to add

30 Wi-Fi® Internet Viewing

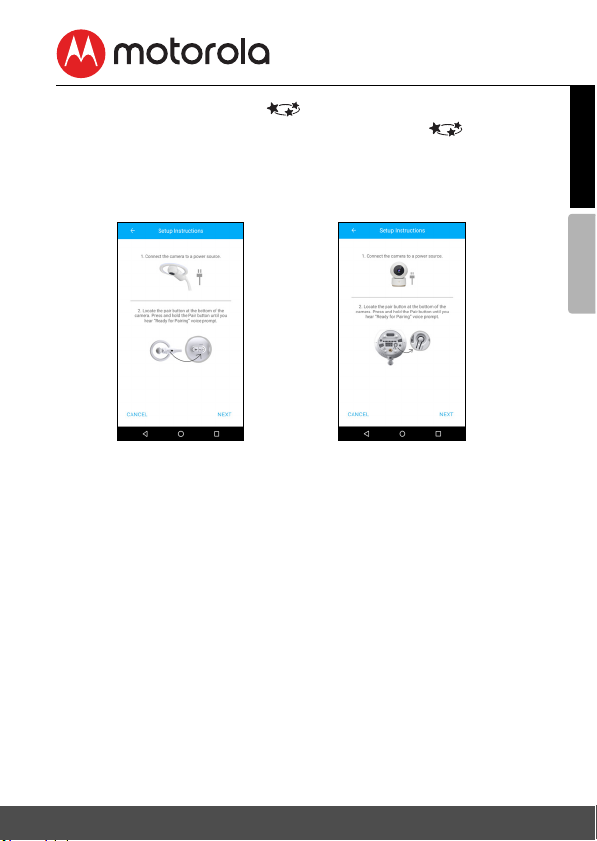

• Locate the PAIR button

on the Crib Mounting Kit for

Dock mode, press and hold the PAIR button until you hear “Ready for Pairing” voice prompt (Picture A7).

• Or locate the PA I R button at the bottom of Camera for Desk

mode, press and hold the PAIR button until you hear “Ready for Pairing” voice prompt (Picture A8).

ENGLISH

Android

Wi-Fi® Internet Viewing 31

• Tap Continue on the screen, your Android™ device will detect

A10

A11

A12

the C

amera, this might take a minute, the Camera SSID

appea

r on your Android™ device (Picture A9

Confirm by tapping the SSID and the Camera is detect

•

suc

cessfully (Picture A10)

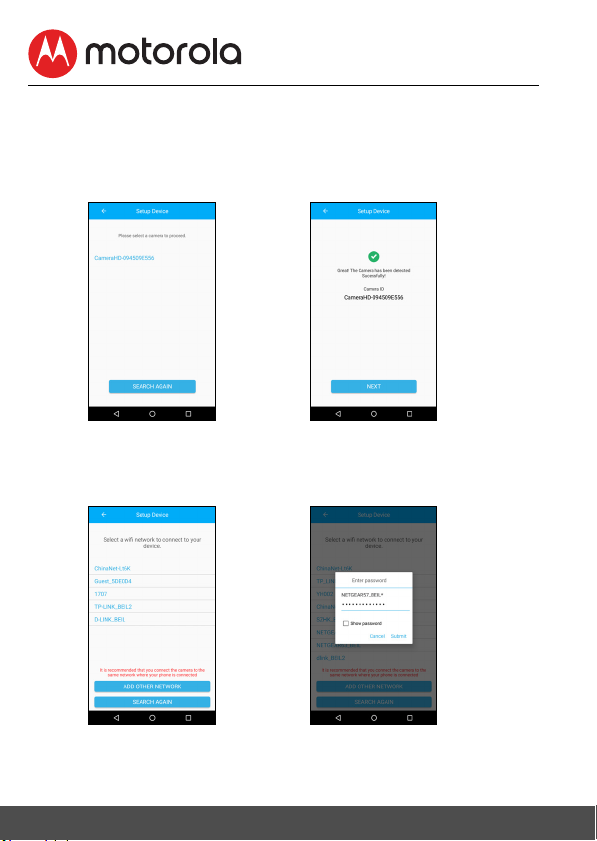

ap NEXT to search Wi-Fi® network, select your Wi

• T

ork from the list and tap Search (Picture A11).

netw

will

-Fi®

• Enter Wi-Fi®password and tap OK (Picture A12).

32 Wi-Fi® Internet Viewing

• It will take a few minutes for the device to connect to the Wi-

A13

A14

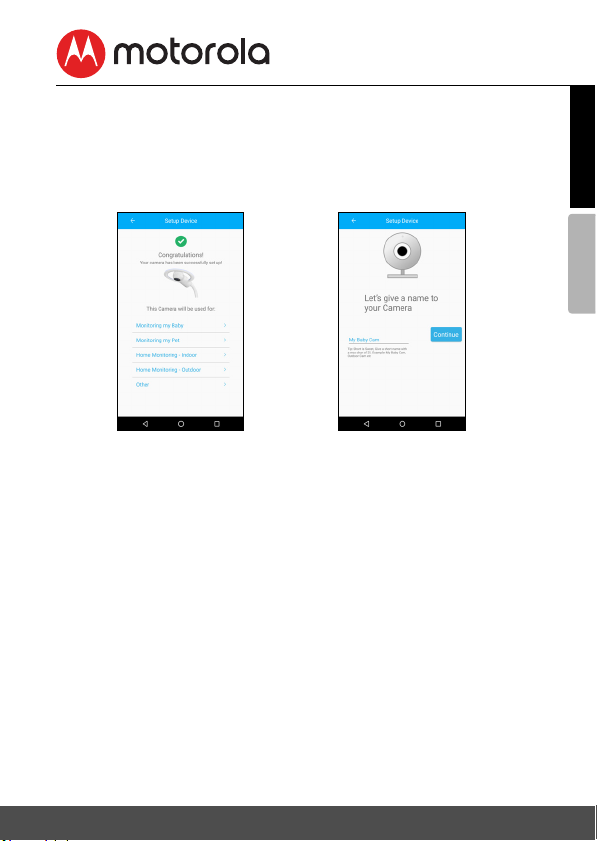

Fi® network, the device is successfully registered to yo Hubble f The Camera can be used for Baby, Pet or Home monito

•

select one of purp (Pictur

or Motorola Monitors account (Picture A13)

ose and name your Camera as referenc

e A14).

ring,

Note: If connection fails, please tap Retry and repeat the steps starting from 5.3.3.

ENGLISH

Android

Wi-Fi® Internet Viewing 33

5.4 User Account and Camera Setup on iPhone®/iPad

What you need

• Baby Unit (Camera)

Crib Mounting Kit (for Dock mode only)

•

• Power adapter

• iPhone

/ iPad® with iOS version 7.0 and above

5.4.1 Download Hubble for Motorola Monitors App

• Go to App Store to search for "Hubble for Motorola Monitors".

• Download "Hubble for Motorola Monitors" App and install it on

your iPhone®/iPad®.

• Or scan the QR code to download Hubble for Motorola

Monitors from App store.

34 Wi-Fi® Internet Viewing

5.4.2 Create a new Hubble for Motorola Monitors

account

• Ensure that your iOS® device is connected to your Wi-Fi® Ro

uter.

• Run the "Hubble for Motorola Monitors" App on iPhone®/iPad®, tap SIGNUP to create new Hubble account (Picture i1).

• Enter user’s information, read through the Te C

onditions, by signing up you agree to our Terms onditions (Pictures i2).

NOTE: If you already have an account, please tap LOGIN to go to the next step.

rms and

and

ENGLISH

iOS

Wi-Fi® Internet Viewing 35

5.4.3 Add the Camera to your account

i3i4i5

• Sign in to your Hubble account by entering User Name and P

assword (Picture i3).

Tap on Add butt

• Camera (Picture i4)

• T

ap Halo Camera to add the Camera (Picture i5).

Choose the mode (Dock mode or Desk mode) you want to

• setup your Camera (Picture i6).

at the bottom of the screen to add

36 Wi-Fi® Internet Viewing

• Locate the PAIR button

on the Crib Mounting Kit for

Dock mode, press and hold the PAI R button until you hear “Ready for Pairing” voice prompt (Picture i7).

• Or locate the PAIR button at the bottom of Camera for Desk mode, press and hold the PAIR button until you hear “Ready for Pairing” voice prompt (Picture i8).

ENGLISH

iOS

Wi-Fi® Internet Viewing 37

• Tap Continue on the screen, your iOS®device is detecting the

i10

i11

i12

Camer

a, this might take a minute, the Camera SSID will appear on your iOS® device (Picture Confirm by tapping the SSID and the Camera is detect

• suc

cessfully (Picture i10)

ap NEXT to search Wi-Fi® network, select your Wi

• T

ork from the list and tap Search (Picture i11).

netw

i9).

-Fi®

• Enter Wi-Fi® password and tap OK (Picture i12).

38 Wi-Fi® Internet Viewing

• It will take a few minutes for the device to connect to the

i13

i14

i-Fi® network, the device is successfully registered to yo

ubble for Motorola Monitors account (Picture i13)

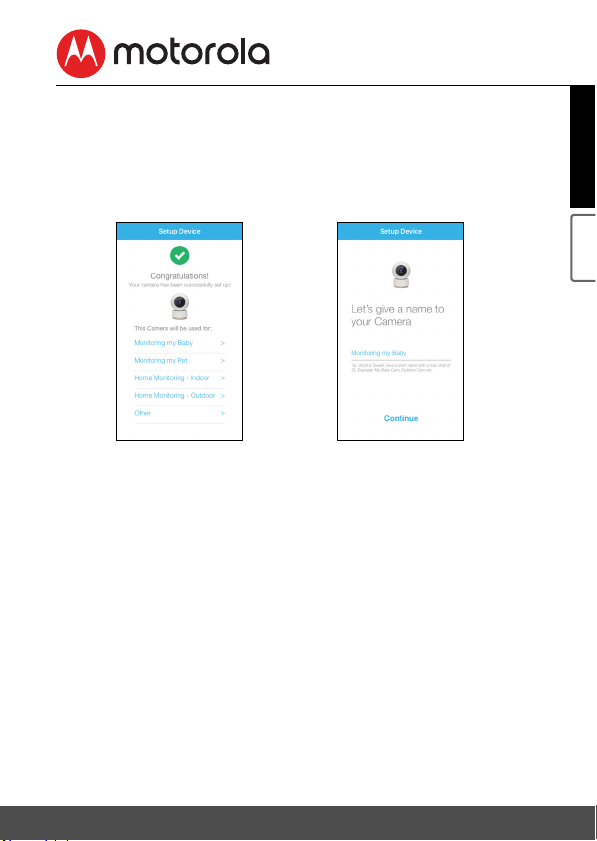

The Camera can be used for Baby, Pet or Home monito

• sele

ct one of purpose and name your Camera as referenc

(Pictur

e i14)

ring,

NOTE: If connection fails, please tap Retry and repeat the steps starting from 5.4.3.

ENGLISH

iOS

Wi-Fi® Internet Viewing 39

5.5 Procedure for Resetting the Camera

Note: If your Camera is moved from one router (e.g. home) to another (e.g. office) or you have Camera setup issues, then the Camera must be reset. Please reset the Camera with the following procedures:

1. Slide the ON/OFF switch to OFF.

2. Press and hold the PAIR button, then slide the ON/OFF switch

to ON.

3. Release the PAI R button when you hear a confirma and w

ait for the Camera Unit to complete an internal res

ocedure. The LED indicator will turn red and flash slow

when the Camer

ou can add your Camera again by following the steps

4. Y s

ection 5.3.3 for Android™ devices or in section 5.4.3 for iOS

vices.

a Unit is reset successfully

tion beep

40 Wi-Fi® Internet Viewing

6. Disposal of the Device

(Environment)

At the end of the product life cycle, you should not dispose of this product with normal household waste. Take this product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user's guide and/or box indicates this.

Some of the product materials can be re-used if you take them to a recycling point. By reusing some parts or raw materials from used products you make an important contribution to the protection of the environment.

Please contact your local authorities in case you need more information on the collection points in your area.

ENGLISH

Disposal of the Device (Environment) 41

7. Cleaning

Clean your Digital Video Baby Monitor with a slightly damp cloth or with an anti-static cloth. Never use cleaning agents or abrasive solvents.

Cleaning and care

• Do not clean any part of the Digital Video Baby Monitor with

thinners or other sol permanent damage to the product which is not covered by the warranty.

•

Keep your Digital Video Baby Monitor away from

eas or strong sunlight, and do not let it get wet.

•

Every effort has been made to ensure high standard

eliability of your Digital Video Baby Monitor. However, if

r something does go wrong, please do not try to repair it yourself - contact Customer Service for assistance.

IMPORTANT

Always switch off and disconnect the power adapter before cleaning your Digital Video Baby Monitor.

vents and chemicals - this may cause

hot, humid

s of

42 Cleaning

8. Help

Display

No display

•

Try recharging or replacing the battery pa Reset the Units. Disconnect the battery pack of the Pare

•

Unit and unplu them back in. Is the Unit switched on?

•

Press and hold the ON/OFF button 0 on the Parent Unit to switch it ON Is the correct camera selected? Change the camera number, if

•

necessary.

•

Is the video display turned on? Press the VIDEO ON/O bu

tton V

• When operating using batteries only, the display will go blank after

5 minutes or 30 minutes or 60 minutes to save power (depen on

video settings). The Unit is still active and will give you

erts. You can reactivate the screen by pressing any button

Registration

If the Baby Unit has lost its link with the Parent Unit

•

Try recharging or replacing the battery pa If the Baby Unit is too far away it may be going out of range,

•

so move the Baby Unit closer to the Pare Reset the Units by disconnecting them from electrical power.

•

Wait about 15 seconds before reconnecting. Allow up to minu

te for the Baby Unit and the Parent Unit to synchronise.

See 2.4 “Registration (Pairing)” , if there is a need to

•

re-register the Units.

Interference

Noise interference on your Parent Unit

•

Your Baby and Parent Units may be too close. Move them further apart.

g both the Units' electrical power,

to turn it ON.

ck.

then plug

ding

audio

ck.

nt Unit.

one

ENGLISH

Help 43

Make sure there is at least 3ft to 6ft between the 2 Units to

•

avoid audio feedback.

• lf the Baby Unit is too far away, it may be out of range. Move

the Baby Unit closer to the Parent Unit.

• Make sure that the Baby and Parent Units are not near other

electrical equipment, such as a television, computer or cordless/mobile telephone.

• Use of other 2.4 GHz products, such as wireless networks

(Wi-Fi

routers), Bluetooth™ systems, or microwave ovens, may cause interference with this product. Keep the Baby Monitor at least 1.5m away from these types of products, or switch them off if they appear to be causing interference.

• If the signal is weak, try moving the Parent and/or Baby Unit to different positions in the rooms.

Noise interference on your device

• To avoid background noise or echoes, ensure that there is enough distance between your device and the Wi-Fi

Camera Unit.

• Use of other 2.4 GHz products, such as Bluetooth™ systems or microwave ovens, may cause interference with this

product. Keep the Wi-Fi® Camera Unit at least 5ft away

om these types of products, or switch them off if they

fr appear to be causing interference.

Lost connection

• Check your Wi-Fi Ensure that the Wi-Fi minutes to make the connection with the Wi-Fi

settings. If necessary, reconnect your Wi-Fi®.

Camera Unit is switched ON. Wait a few

system.

If you forgot your password

• If you do not remember your password, tap

Forgot Password

and submit your e-mail address. A new password will be sent to your e-mail address immediately.

44 Help

Troubleshooting for Wi-Fi® Internet Viewing

Category Problem

Description / Error

Account I am unable to login

even after

Please check your user name and password.

registration.

Account I receive an error

message saying: "Email ID is not

Please ensure that you have registered with us. Tap Create Account to create an account.

registered".

Account What do I do if I

forget my password?

Click on the "Forgot Password" link on https:// app.hubbleconnected.com/ #lostpassword OR on your Android™ or iOS application. An email will be sent to your registered email address.

Account I am unable to

receive a new password although I have used the "Forgot password" option.

1. The e-mail might have been sent to your Junk Mail Folder. Please check your Junk Mail Folder.

2. There might be a delay in getting your e-mail. Please wait a few minutes and refresh your email account.

Connectivity Issues

I get a message: We are having problems accessing your Camera. This could be due to the lack of an internet connection. Please wait and try again later.

1. Please try again in a few minutes. This could be because of any issue with your internet connection.

2. If the problem remains, please restart your Camera to check if this fixes the problem.

3. Please restart your Wireless Router.

Solution

ENGLISH

Help 45

Viewing Camera

When I am in "remote mode", the video stops after 5 minutes. How do I view for longer?

Features The sound alert

setting threshold is not right.

Setting Up While I am adding a

new Camera to my account, I am not able to find any Cameras to add.

General What are the

supported browsers for accessing from my PC/Mac?

When you are accessing your Camera via a network different from your home network (over the internet) your video times out after 5 minutes.

You can click on the Camera again from the Android™/iOS application to start streaming again. If you are accessing from your web-browser, then you can press on the Reload button to start viewing your Camera video stream again.

You can Adjust Sound Sensitivity to trigger notifications under Camera Setting menu.

If you are trying to add a Camera which has previously been added into your account or another account, you will first have to reset the Camera. This can be done by pressing and holding the PAIR button at the bottom of the Camera for 5 seconds.

We recommend using Google Chrome 24 or above. However the following browsers are also supported: Internet Explorer 9.0 or above (for PC), Safari 6.0 or above (for Mac) or Firefox 18.0 or above (both PC or Mac).

46 Help

General What is the

significance of LED flashing?

Connectivity Issues

I am not able to access my Camera.

Setting Up During setup on

devices for Android™ and iOS, I am not able to find my Camera during the last step and the setup fails.

A flashing LED indicates the following status:

Slow flashing: 1. Your Camera is in setup mode. You can add the Camera to your account in this mode. Out of the box, the Camera is in Setup mode. To reset to Setup mode, press and hold the PAIR button on the bottom of the Camera untill you hear a beep. Slow flashing: 2. The Camera is either connecting to the router or has lost the link to the router. Please ensure that the Camera is in the Wi-Fi® signal range.

LED is stable: The Camera is connected to the Wi-Fi® network.

Please check if the Camera is within Wi-Fi® range. If the LED on your Camera is flashing slowly, please try to move the Camera closer to the router for better Wi-Fi® connectivity and try again.

Please reset the Camera to setup mode and try again. Press and hold the PAIR button on the bottom of the Camera untill you hear a beep. Wait for a minute for the Camera to restart. When the Camera LED is flashing, this indicates that it is in setup mode. Now restart the setup from your smartphone again.

ENGLISH

Help 47

Connectivity Issues

Even though I am accessing my Camera from the same Wi-Fi® network, I still find my Camera is shown as remote. I can only access it for 5 minutes at a time.

Camera When I try to view

the Camera, I get a prompt for Camera firmware upgrade. What should I do?

General Which platforms are

supported for accessing my Camera?

General I do not hear any

sound when I am accessing a remote Camera.

Please check your wireless router settings. For example, for Buffalo brand routers there is an option called Wireless Isolation. Please disable this option.

Please upgrade your firmware. This takes around 5 minutes. We push upgrades from time to time to improve Camera features.

Minimum requirement: Windows® 7* *Java browser plug-in needed Mac OS® version 10.7 Chrome™ version 24 Internet Explorer® version 9 Safari® version 6 Java™ version 7 Firefox® version 18.0 Adobe® Flash® Player 15.0 Android™ 4.2 iPhone® /iPad® iOS version 7.0

You can tap on the speaker icon in the video stream screen to hear audio. By default the audio is not ON when you are accessing a remote Camera.

48 Help

General What is the meaning

of "Local Camera" and "Remote Camera"?

General How do I download

the App for Android™ and iOS devices?

Setting up When the video is

cut off, the application attempts to reconnect and this results in lost sound and choppy video.

When you are accessing your Camera from the same wireless network (Home) in which it is configured, it is a Local Camera. When you are accessing your Camera away from your home it is a Remote Camera. You may be using 3G, 4G or 4G LTE or a Wi-Fi® connection outside of your home.

Android™:

- Open the Google Play Store on your Android™ device.

- Select Search

- Type in "Hubble for Motorola

Monitors"

- The results will show the Hubble App

- Select to install it

iOS Device:

- Open the App Store

- Select Search

- Type in "Hubble for Motorola

Monitors"

- The results will show the Hubble App

- Select to install it

You will need to turn off the Auto Lock function of your device to ensure continuous video/audio streaming.

ENGLISH

Help 49

Features How many users can

access the Camera at one time?

Connectivity Issues

I found interference caused by my other webcam devices.

If you are accessing in Local Mode, two users are supported, after two users all streaming will go through the remote server. This allows for unlimited user access to a single Camera at one time.

Video streaming performance is related to internet bandwidth, especially if you have 2 or more video streaming devices that are working through the same router.

50 Help

9. General Information

If your product is not working properly...

1. Read this User's Guide or the Quick Start Guide.

2. Contact Customer Service at

US and Canada 1-888-331-3383

Email: support@motorolastore.com

If you think you need a battery replacement, please contact customer service.

Consumer Products and Accessories Limited Warranty ("Warranty")

Thank you for purchasing this Motorola branded product manufactured under license by Binatone Electronics International LTD ("BINATONE")

What Does this Warranty Cover?

Subject to the exclusions contained below, BINATONE warrants that this Motorola branded product ("Product") or certified accessory ("Accessory") sold for use with this product is manufactured to be free from defects in materials and workmanship under normal consumer usage for the period outlined below. This Warranty is your exclusive warranty and is not transferable.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY BY STATE, PROVINCE OR COUNTRY. FOR CONSUMERS WHO ARE COVERED BY CONSUMER PROTECTION LAWS OR REGULATIONS IN THEIR COUNTRY OF PURCHASE OR, IF DIFFERENT, THEIR COUNTRY OF RESIDENCE, THE BENEFITS CONFERRED BY THIS LIMITED WARRANTY ARE IN ADDITION TO ALL RIGHTS AND REMEDIES CONVEYED BY SUCH CONSUMER PROTECTION LAWS AND REGULATIONS. FOR A FULL UNDERSTANDING OF YOUR RIGHTS YOU SHOULD CONSULT THE LAWS OF YOUR COUNTRY, PROVINCE OR STATE.

ENGLISH

General Information

Who is covered?

This Warranty extends only to the first consumer purchaser, and is not transferable.

What will BINATONE do?

BINATONE or its authorized distributor at its option and within a commercially reasonable time, will at no charge repair or replace any Products or Accessories that do not conform to this Warranty. We may use functionally equivalent reconditioned/ refurbished/ pre-owned or new Products, Accessories or parts.

What Other Limitations Are There?

ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE REPAIR OR REPLACEMENT PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA OR BINATONE BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT OR ACCESSORY, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS OR ACCESSORIES TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.

Some jurisdictions do not allow the limitation or exclusion of incidental or consequential damages, or limitation on the length of an implied warranty, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may also have other rights that vary from one jurisdiction to another.

General Information

Products Covered Length of Coverage

Consumer Products One (1) year from the date of the products

original purchase by the first consumer purchaser of the product.

Consumer Accessories Ninety (90) days from the date of the

accessories original purchase by the first consumer purchaser of the product.

Consumer Products and Accessories that are Repaired or Replaced

The balance of the original warranty or for ninety (90) days from the date returned to

the consumer, whichever is longer.

Exclusions

Normal Wear and Tear. Periodic maintenance, repair and replacement

of parts due to normal wear and tear are excluded from coverage. Batteries. Only batteries whose fully charged capacity falls below 80% of their rated capacity and/or batteries that leak are covered by

this Warranty. Abuse & Misuse. Defects or damage that result from: (a) improper

operation, storage, misuse or abuse, accident or neglect, such as physical damage (cracks, scratches, etc.) to the surface of the product resulting from misuse; (b) contact with liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the like, extreme heat, or food; (c) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of MOTOROLA or BINATONE, are excluded from coverage. Use of Non-Motorola branded Products and Accessories. Defects or damage that result from the use of Non-Motorola branded or certified Products or Accessories or other peripheral equipment are excluded from coverage. Unauthorized Service or Modification. Defects or damages resulting from service, testing, adjustment, installation, maintenance, alteration, or modification in any way by someone other than MOTOROLA, BINATONE or its authorized service centers, are excluded from coverage.

ENGLISH

General Information

Altered Products. Products or Accessories with (a) serial numbers or date tags that have been removed, altered or obliterated; (b) broken seals or that show evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming or non-Motorola branded housings, or parts, are excluded from coverage.

Communication Services. Defects, damages, or the failure of Products or Accessories due to any communication service or signal you may subscribe to or use with the Products or Accessories is excluded from coverage.

How to Obtain Warranty Service or Other Information?

To obtain service or information, please call:

US and Canada 1-888-331-3383

Email: support@motorolastore.com

You will receive instructions on how to ship the Products or Accessories at your expense and risk, to a BINATONE Authorized Repair center.

To obtain service, you must include: (a) the Product or Accessory; (b) the original proof of purchase (receipt) which includes the date, place and seller of the Product; (c) if a Warranty card was included in your box, a completed Warranty card showing the serial number of the Product; (d) a written description of the problem; and, most importantly; (e) your address and telephone number.

These terms and conditions constitute the complete warranty agreement between you and BINATONE regarding the Products or Accessories purchased by you, and supersede any prior agreement or representations, including representations made in any literature publications or promotional materials issued by BINATONE or representations made by any agent, employee or staff of BINATONE, that may have been made in connection with the said purchase.

General Information

FCC and IC regulations

FCC Part l5 NOTE: This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this device.

To ensure safety of users, the FCC has established criteria for the amount of radio frequency energy that can be safely absorbed by a user or bystander according to the intended usage of the product. This product has been tested and found to comply with the FCC criteria. The Baby Unit shall be installed and used such that parts of the user’s body other than the hands are maintained at a distance of approximately 8 inches (20 cm) or more. This Class B digital apparatus complies with Canadian ICES-003.

ENGLISH

General Information

WARNING

Changes or modifications, to this equipment not expressively approved by the party respo user’s authority to operate the equipment.

Industry Canada

This device complies with Industry Canada licence-exempt RSS standard(s): Operation is subject to the following Two conditions:(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The term "IC: " before the certification/registration number only signifies that the Industry Canada technical specifications were met. This product meets the applicable Industry Canada technical specifications. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

FCC RF Radiation Exposure Statement Caution: This Transmitter must be installed to provide a separation distance of at least 20 cm from all persons. IC Radiation Déclaration d'exposition Attention: Cet émetteur doit être installé pour fournir une distance de séparation d'au moins 20 cm de toute personne.

nsible for compliance could void the

General Information

10. Technical Specifications

BABY UNIT

Frequency

Operating Temperature

Power Adapter

Battery (built-in)

WiFi 802.11b/g/n (2.4 GHz) FHSS GFSK 2.4 GHz

C - 45oC

- 2.4835 GHz

Ten Pao International Ltd. S012BEU0500150 Input: 100-240V AC, 50/60Hz, 500mA; Output: 5.0V DC, 1500mA

WARNING

Use only with supplied power supply.

MTOGL66

3.8V, 1255mAh Lithium-Ion Polymer, rechargeable battery pack.

WARNING

Do not attempt to replace the battery, but contact Customer Service if it needs replacing.

ENGLISH

Technical Specifications

PARENT UNIT

Frequency

2.4 GHz to 2.4835 GHz

Display 4.3" diagonal TFT LCD

Operating

C - 45oC

Temperature

Brightness Control 8 steps Volume Control 8 steps + Off Power Adapter

Ten Pao International Ltd. S012BEU0500150 Input: 100-240V AC, 50 Output: 5.0V DC, 1500mA

WARNING

Use only with provided power supply.

/60Hz, 500mA;

Battery (built-in)

Lenovo Corporation (BL253)

3.8V, 2000mAh Lithium-Ion Polymer, rechargeable battery pack (gives

up to 3

hours operation)

WARNING

Do not attempt to replace the battery, but contact Customer Service if it needs replacing.

Technical Specifications

Manufactured, distributed or sold by Binatone Electronics International LTD., official licensee for this product. MOTOROLA and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. Apple logo is trademark of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Apple logo is trademark are trademarks of Google Inc. Wi-Fi is a trademark of the Wi-Fi Alliance. All other trademarks are the property of their respective owners. © 2018 Motorola Mobility LLC. All rights reserved.

US_EN Version 1.0 Pri

nted in China

Binatone Electronics MBP99, MBP944PU Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
