USER’S GUIDE
Smart Nursery
ert Sensor
Al
Model: MBP81SN, MBP81SN-2, MBP81SN-3, MBP81SN-4
The features described in this guide are subject to modifications without prior notice.
Welcome...
to your new Motorola Alert Sensor!
Thank you for purchasing your new Motorola Alert Sensor.
The Alert Sensor is intended for use in monito ring w indow s. It is des igned to wo rk
with most windows. With the Alert Sensor, you can check whether a window is
open while you are out of the house. It notifies you on your Android™ or iOS
device when it detects that a window has opened. If you have always wondered
what happens when you are away, wonder no more. Now you can monitor your
property with this easy to use device.
Please keep your original dated sales receipt for your records. For warranty
service of your Motorola product, you will need to provide a copy of your dated
sales receipt to confirm warranty status. Registration is not required for warranty
coverage.
For product related questions, please call:
US and Canada 1-888-331-3383
E-mail: support@motorolahome.com
On the Web: www.motorolahome.com/support
This User’s Guide has all the information you need to make the most out of your
product.
Please read the Safety Instructions on page 5 before you install the unit.
Inside the Box
• 1 x Smart Nursery Alert Sensor Unit
• 1 x Magnet Unit
• 2 x AAA Batteries (LR03)
• 6 x Spacer (3 for the sensor and 3 for the magnet)
• 1 x Quick Start Guide
®
Overview of the Alert Sensor
1. Battery Cover
2. Sensor Unit
3. Reset Button
Press and hold for 7 seconds to reset the Sensor Unit and enter
pairing mode.
4. Status LED
Lights up in Red when the Alert Sensor is on.
5. Magnet Unit
Table of contents
1. Safety Instructions..................................................................................... 5
2. How it works ..............................................................................................6
3. System Requirements ...............................................................................7
4. Getting Started..........................................................................................8
4.1 Installing and Replacing Batteries...............................................................8
5. Connecting Devices.................................................................................. 9
5.1 Setup............................................................................................................9
5.2 User Account and Sensor Setup on Android™ Devices ......................... 10
5.3 Download Hubble Connect for Smart Nursery App................................ 10
5.4 Run Hubble Connect for Smart Nursery App on Android™ device /
iPhone®/ iPad®......................................................................................... 10
5.5 Add Alert Sensor to your Smart Nursery account .................................... 11
6. Reset the Alert Sensor .............................................................................14
7. Overview of Hubble App ........................................................................14
8. General Information ................................................................................15
9. Technical Specifications .........................................................................21
4 Table of contents
1. Safety Instructions
WARNING
This product is compliant with all relevant electromagnetic field standards and
is, when handled as described in the User’s Guide, safe to use. Therefore,
always read the instructions in this User’s Guide carefully before using the
device.
• Adult assembly is required due to small parts. Keep all small parts away from
children.
• This product is not a toy. Do not allow children to play with it.
• This product is not a substitute for responsible adult supervision.
• Keep this User’s Guide for future reference.
• Test the product and all its functions so that you are familiar with it prior to
use.
• Do not install the product near a heat source.
• Only use a battery of the same type. This product uses replaceable battery
(AAA size/LR03).
• Do not touch the battery contacts with sharp or metal objects.
CAUTION
There is danger of explosion if the battery is replaced by an incorrect type.
Dispose of used batteries according to their instructions.
Important guidelines for installing your Alert Sensor
• Use of other 2.4 GHz products, such as other wireless networks, Bluetooth
systems or microwave ovens may cause interference with this product. Keep
the Alert Sensor away from these types of products, or turn them off if they
appear to be causing interference.
• Always ensure that you have a good Wi-Fi
®
connection available.
®
ENGLISH
Safety Instructions 5
2. How it works
Alert Sensor
Magnet
The Alert Sensor is made up of 2 components - the sensor itself and the magnet.
When the magnet is within 2cm of the sensor, it detects that the window is
closed. When the magnet is more than 2cm away, the sensor detects that the
window is opened.
In the diagram below, the Alert Sensor is on the window frame and the magnet
on the window. When the window swings open more than 2cm, the Alert Sensor
detects that the window is opened and sends a notifi cation to your Android™ or
®
device.
iOS
6 How it works
3. System Requirements
Web Portal
• Windows® 7
• Mac OS
• Chrome™ 24
• Internet Explorer
• Safari
• Java™ 7
• Firefox
• Adobe
®
10.7
®
®
6
®
18.0
®
Flash® Player 15.0
9
Android™ System
• Version 4.2 or above
iPhone®/iPad® iOS
• Version 7.0 or above
High Speed (Wi-Fi®) Internet
• At least 0.6 Mbps upload bandwidth per camera (you can test your internet
speed on this site: http://www.speedtest.net
)
ENGLISH
System Requirements 7
4. Getting Started
4.1 Installing and Replacing Batteries
The device uses replaceable battery (AAA size/LR03).

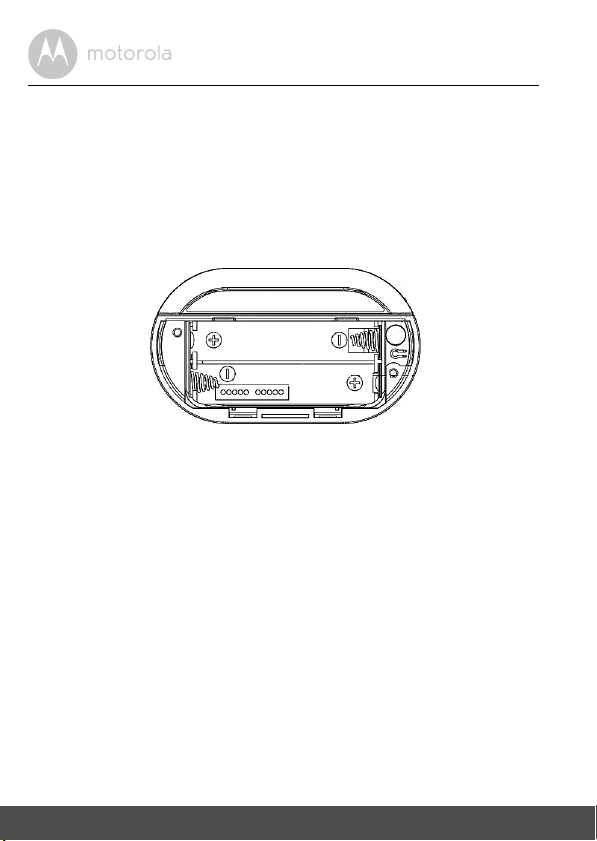

1. Carefully pry open the sensor’s battery cover.
2. Install two (2) new "AAA" batteries into the battery compartment, making
sure to match the positive and negative ends of the batteries to the correct
contacts as indicated below.
3. Replace the battery cover.
4. The Alert Sensor powers on automatically when the batteries are installed
correctly.
The LED lights up in solid red.
Battery Life
The average battery life is up to 5 months if the door/window opens and closes
about 10 times a day. The red LED flashes twice every 30 seconds when the
battery is low.
8 Getting Started
5. Connecting Devices
Access your Alert
Sensor locally
Receive notification
from any compatible
devices remotely
Alert
Sensor

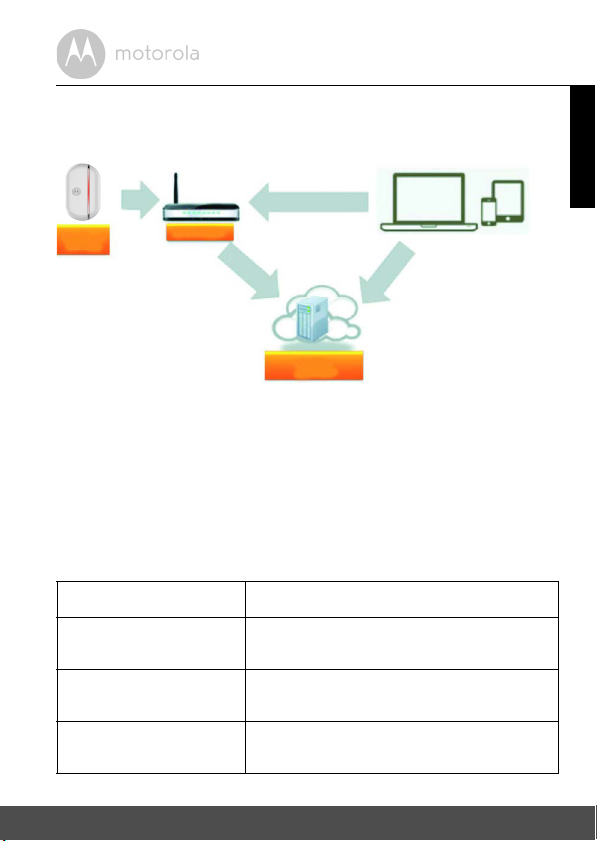

Wi-Fi Router
Smart Nursery Serv ice
How does it work?
When a user tries to access the Alert Sensor, our Smart Nursery server
authenticates the user’s identity and permits access.
5.1 Setup
Make sure the Alert Sensor is ON. The LED should light up in solid red. The Alert
Sensor must be within range of the Wi-Fi
connect. Make sure the password of the router is available for entering during
the in-app setup process.
Status of LED Indication:
LED lights up in solid red • Alert Sensor is powered ON
LED flashes in red once
every 3 seconds
LED flashes in red once
every 30 seconds
LED flashes in red twice
every 30 seconds
• Alert Sensor is connected to Wi-Fi
• Alert Sensor is connected to the APP
• Battery is low
®
router with which you want to
ENGLISH
®
Connecting Devices 9
5.2 User Account and Sensor Setup on Android™ Devices
P1
P2
What you need
• Alert
Sensor
• Device with Android™ system version 4.2 and above
5.3 Download Hubble Connect for Smart Nursery App
• Go to Google Play™ Store to search for Hubble Connect for Smart Nursery.
wnload Hubble Connect for Smart Nursery App and install it on your
• Do
Android™ device
Or
• Go to App Store to search for Hubble Connect for Smart Nursery.
wnload Hubble Connect for Smart Nursery App and install it on your
• Do
5.4 Run Hubble Connect for Smart Nursery App on
• Ensure that your Android™ Device / iPhone
• R
®
/ iPad®.
iPhone
Android™ device / iPhone®/ iPad
®
router or mobile network.
Wi-Fi

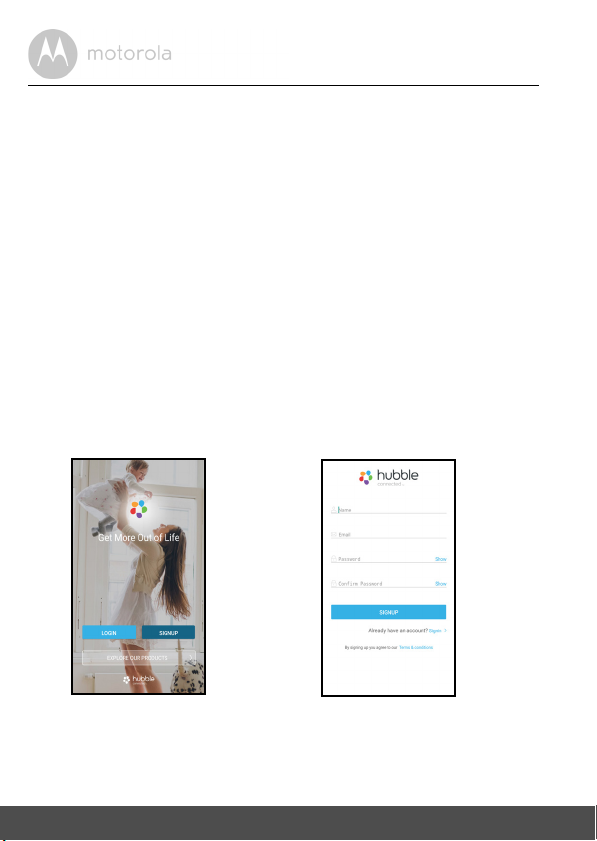

un Hubble Connect for Smart Nursery App, tap SIGNUP and follow the in-
app instructions to create your Smart Nursery Account. By signing up, you
agree to our Terms & Conditions. (P1 & P2)
®
®
/ iPad® is connected to the
Note
If you already have a Smart Nursery App account, please tap LOGIN by
entering your account information and go to the next steps.
10 Connecting Devices
5.5 Add Alert Sensor to your Smart Nursery account
P3
P4
P5

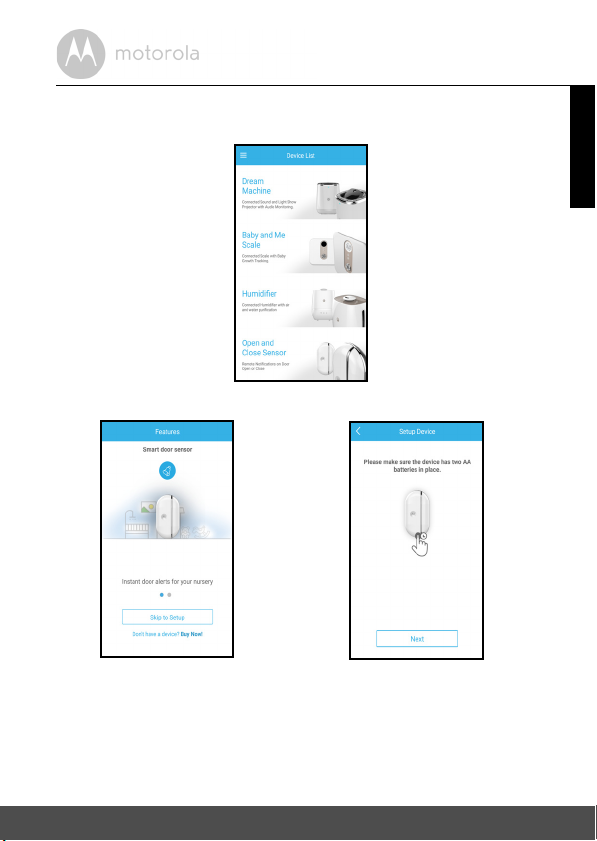

• Tap on Alert Sensor on screen to enter App setup mode. (P3)
• Tap on Skip to Setup, then tap Next to search for Alert Sensor. (P4 & P5)
ENGLISH
Connecting Devices 11

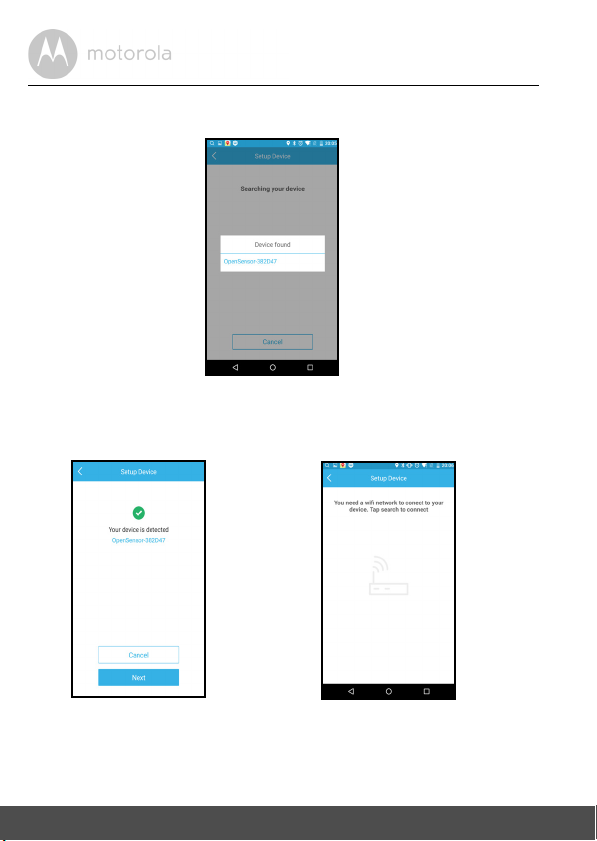

• The device SSID can be found on your Android™ Device / iPhone®/ iPad®.
P6
P7
P8
Tap the SSID to confirm. (P6)
• The Alert Sensor is detected. Tap Next to proceed to the next step. (P7)
• You need a Wi-Fi
®
network to connect to your Alert Sensor. Tap Search to
start network searching. (P8)
12 Connecting Devices

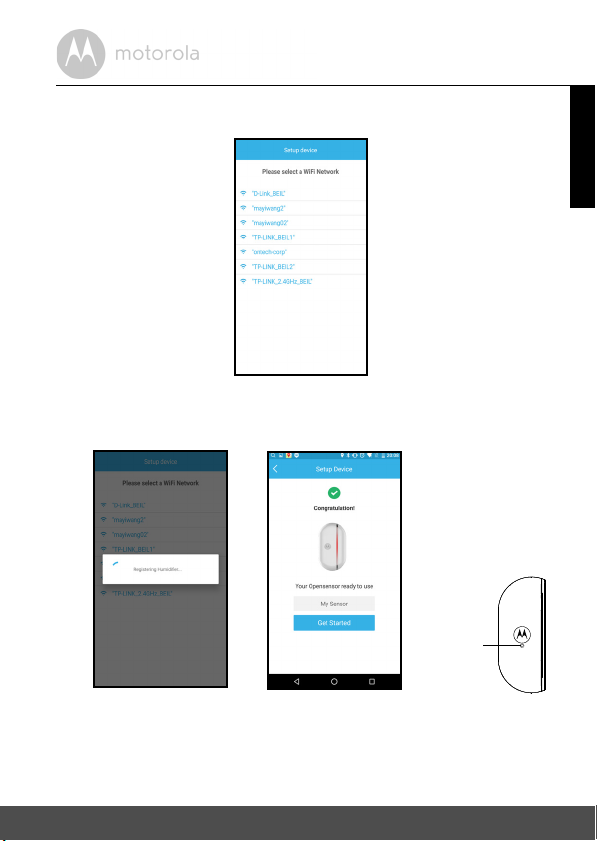

• Select a Wi-Fi® network from the network list, enter Wi-Fi® password and
P9
P10
P11
Reset button
then tap Submit. (P9)
ENGLISH
• It will take a few minutes for the Alert Sensor to connect to the Wi-Fi
®
network. Tap Get Started when the Alert Sensor is successfully connected to
Hubble Connect for Smart Nursery App. (P10 & P11)
Note
If you fail to comple te the setup process, reset the Alert Sensor by holding down
the Reset Button for 7 seconds and repeat the above registration steps again.
Connecting Devices 13
6. Reset the Alert Sensor
Reset button

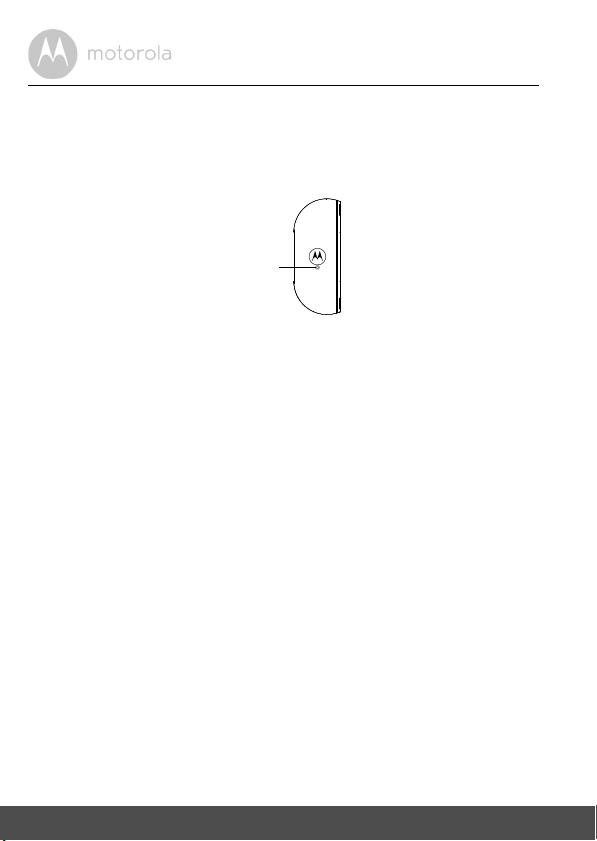

There is a reset button below the M logo of the Sensor unit. To reset the sensor
to factory default setting, press and hold the button for 7 seconds.
7. Overview of Hubble App
14 Reset the Alert Sensor
8. General Information
If your product is not working properly....
1. Read this User's Guide.
2. Visit our website: www.motorolastore.com
3. Contact Customer Service at
US and Canada 1-888-331-3383
E-mail: support@motorolahome.com
Consumer Products and Accessories Limited Warranty
("Warranty")
Thank you for purchasing this Motorola branded product manufactured under
license by Binatone Electronics International Ltd ("BINATONE").
What Does this Warranty Cover?
Subject to the exclusions contained below, BINATONE warrants that this
Motorola branded product ("Product") or certified access ory ("Accessory") sold
for use with this product is manufactured to be free from defects in materials and
workmanship under normal consumer usage for the period outlined below. This
Warranty is your exclusive warranty and is not transferable.
Who is covered?
This Warranty extends only to the first consumer purchaser, and is not transferable.
What will BINATONE do?
BINATONE or its authorized distributor at its option and within a commercially
reasonable time, will at no charge repair or replace any Products or Accessories
that does not conform to this Warranty. We may use functionally equivalent
reconditioned/ refurbished/ pre-owned or new Products, Accessories or parts.
ENGLISH
General Information 15
What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS
LIMITED WARRANTY, OTHERWISE THE REPAIR OR REPLACEMENT
PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE
REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA OR
BINATONE BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING
NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF
THE PRODUCT OR ACCESSORY, OR FOR ANY INDIRECT, INCIDENTAL,
SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF
REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR
OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE
ABILITY OR INABILITY TO USE THE PRODUCTS OR ACCESSORIES TO THE
FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
Some jurisdictions do not allow the limitation or exclusion of incidental or
consequential damages, or limitation on the length of an implied warranty, so
the above limitations or exclusions may not apply to you. This Warranty gives
you specific legal rights, and you may also have other rights that vary from one
jurisdiction to another.
16 General Information
Products Covered Length of Coverage
Consumer Products One (1) year from the date of the
Products, original purchase by the first
consumer purchaser of the product.
Consumer Accessories Ninety (90) days from the date of the
Accessories, original purchase by the
first consumer purchaser of the
product.
Consumer Products and Accessories
that are Repaired or Replaced
The balance of the original warranty or
for Ninety (90) days from the date
returned to the consumer, whichever is
longer.
Exclusions
Normal Wear and Tear. Periodic maintenance, repair and replacement of parts
due to normal wear and tear are excluded from coverage.
Batteries. Only batteries whose fully charged capacity falls below 80% of their
rated capacity and batteries that leak are covered by this Warranty.
Abuse & Misuse. Defects or damage that result from: (a) improper operation,
storage, misuse or abuse, accident or neglect, such as physical damage (cracks,
scratches, etc.) to the surface of the product resulting from misuse; (b) contact
with liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the
like, extreme heat, or food; (c) use of the Products or Accessories for
commercial purposes or subjecting the Product or Accessory to abnormal
usage or conditions; or (d) other acts which are not the fault of MOTOROLA or
BINATONE, are excluded from coverage.
Use of Non-Motorola branded Products and Accessories. Defects or damage
that result from the use of Non-Motorola branded or certified Products or
Accessories or other peripheral equipment are excluded from coverage.
Unauthorized Service or Modification. Defects or damages resulting from
service, testing, adjustment, installation, maintenance, alteration, or
modification in any way by someone other than MOTOROLA, BINATONE or its
authorized service centers, are excluded from coverage.
ENGLISH
General Information 17
Altered Products. Products or Accessories with (a) serial numbers or date
tags that have been removed, altered or obliterated; (b) broken seals or
that show evidence of tampering; (c) mismatched board serial numbers;
or (d) nonconforming or non-Motorola branded housings, or parts, are excluded
from coverage.
Communication Services. Defects, damages, or the failure of Products or
Accessories due to any communication service or signal you may subscribe to
or use with the Products or Accessories is excluded from coverage.
How to Obtain Warranty Service or Other Information?
To obtain service or information, please call:
US and Canada 1-888-331-3383
E-mail: support@motorolahome.com
You will receive instructions on how to ship the Products or Accessories at your
expense and risk, to a BINATONE Authorized Repair Center.
To obtain service, you must include: (a) the Product or Accessory; (b) the
original proof of purchase (receipt) which includes the date, place and seller of
the Product; (c) if a warranty card was included in your box, a completed
warranty card showing the serial number of the Product; (d) a written
description of the problem; and, most importantly; (e) your address and
telephone number.
These terms and conditions constitute the complete warranty agreement
between you and BINATONE regarding the Products or Accessories purchased
by you, and supersede any prior agreement or representations, including
representations made in any literature publications or promotional materials
issued by BINATONE or representations made by any agent employee or staff
of BINATONE, that may have been made in connection with the said purchase.
18 General Information
FCC and IC regulations
FCC Part l5
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the Federal Communications
Commission (FCC) rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to this equipment not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation. Privacy of communications
may not be ensured when using this device.
To ensure safety of users, the FCC has established criteria for the amount of radio
frequency energy that can be safely absorbed by a user or bystander according to
the intended usage of the product. This product has been tested and found to
comply with the FCC criteria.
This Class B digital apparatus complies with Canadian ICES-003.
CAN ICES-3(B)/NMB-3(B)
ENGLISH
General Information 19
WARN ING
Changes or modifications, to this equipment not expressively approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
The socket-outlet shall be installed near the equipment and shall be easily
accessible.
Industry Canada
This device complies with Industry Canada licence-exempt RSS standard(s):
Operation is subject to the following Two conditions:(1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
The term "IC: " before the certification/registration number only signifies that
the Industry Canada technical specifications were met. This product meets the
applicable Industry Canada technical specifications.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2)
l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
20 General Information
9. Technical Specifications
Frequency 2.4G Wi-Fi 802.11 b/g/n supported
LED Red (1pc)
Power 2 x AAA batteries/LR03
ENGLISH
Technical Specifications 21
Manufactured, distributed or sold by Binatone Electronics International
LTD., official licensee for this product. MOTOROLA and the Stylized M
logo are trademarks or registered trademarks of Motorola Trademark
Holdings, LLC. and are used under license. Apple logo and Safari are
trademarks of Apple Inc., registered in the U.S. and other countries. App
Store is a service mark of Apple Inc. Google Play, Android, and Chrome are
trademarks of Google Inc. Wi-Fi is a trademark of the Wi-Fi Alliance. All
other trademarks are the property of their respective owners. © 2016
Motorola Mobility LLC. All rights reserved.
US_EN Version 1.0
Printed in China
Loading...
