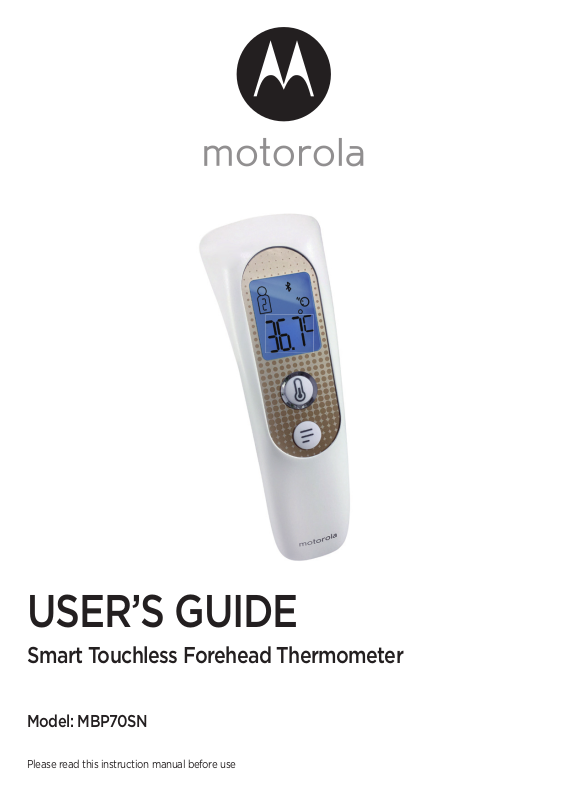

USER’S GUIDE
Smart Touchless Forehead Thermometer
Model: MBP70SN
Please read this instruction manual before use
Welcome…
to your new Motorola MBP70SN Smart Touchless Forehead Thermometer!
Thank you for purchasing your new Motorola MBP70SN Smart Touchless Forehead Thermometer.
The thermometer has been carefully developed to make accurate, safe, fast and contact-free human body temperature measurements (at a distance of 0 to 5 cm (0 to 2 inches)) on the forehead and object temperature measurements.
The reference body site is “core” and the mode of operation is “adjusted mode”. The device is a non-sterile, reusable clinical thermometer intended for the intermittent determination of human body temperature in “touch” and “no touch” mode, using the center of the forehead as the measurement site for people of all ages. The operator can measure and change battery under normal circumstances and maintain the device and its accessories in accordance with the user manual. Operators can take others’ as well as their own temperature.
Please keep your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.
For product-related questions, please call:
US and Canada, 1-888-331-3383
E-mail: support@motorolastore.com
On the Web: www.motorolastore.com/support
This User’s Guide has all the information you need to make the most out of your product.
Please read the Safety Instructions on page 7 before you install the unit.
Inside the Box
• 1 x Thermometer
• 2 x AAA Batteries
• 1 x Quick Start Guide
Overview of the Thermometer
1
2
3
1. LCD
2. Temperature measuring button
3. MENU button
4. Distance sensor
5. Infra-red sensor
6. Battery compartment cover
Operation of the Thermometer Buttons
Temperature Measuring Button Press once to take temperature
Menu Button a) To view the memory data b) To select the user profile
Mode button (select either body temperature or liquid temperature readings)
To switch between Celsius (°C) and Fahrenheit (°F)
reading a) Press this button to view the
b) Press and hold for 2 seconds to
By pressing and holding
and , you can switch between taking body temperature and object/liquid temperature measurement
By pressing and holding
and for 2 seconds, you can switch between Celsius (°C) and Fahrenheit (°F)
memory data.
select the desired user profile.
LCD Display
 
1. 4 user profiles
2. Memory symbol
3. Bluetooth symbol (lights up when thermometer is connected to the
smartphone)
4. Low battery symbol
5. “Forehead temperature” symbol
6. “Object/Liquid temperature” symbol
7. Temperature display (°C/°F)
Table of contents
1. IMPORTANT SAFETY INFORMATION ...................................................................... 7
2. INFLUENCES ON BODY TEMPERATURE................................................................9
3. PRIOR TO USE ................................................................................................................10
4. SYSTEM REQUIREMENT .............................................................................................. 11
5. PAIRING THE THERMOMETER TO YOUR MOBILE DEVICE ........................... 12
6. OVERVIEW OF HUBBLE APP ................................................................................... 19
7. TEMPERATURE LED INDICATION ..........................................................................20
8. TEMPERATURE TAKING HINTS................................................................................ 21

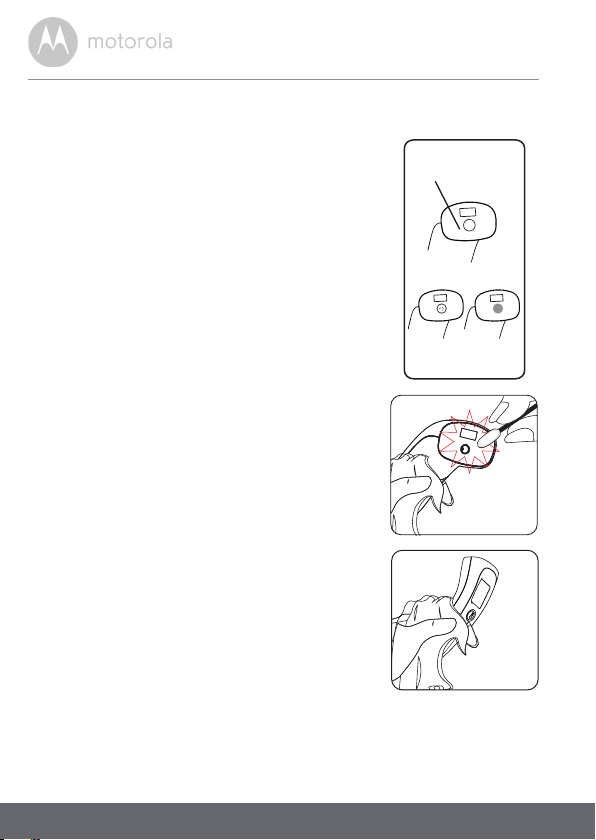

9. HOW TO MEASURE FOREHEAD TEMPERATURE .............................................22
10. HOW TO MEASURE OBJECT (LIQUID) TEMPERATURE .................................23
11. CHECK THE MEMORY ................................................................................................ 24
11.1 SELECTING THE USER PROFILE (4 PROFILES) ............................................ 24
12. CELSIUS/FAHRENHEIT OPTION ............................................................................ 25
13. REPLACING THE BATTERY ...................................................................................... 26
14. DISPOSAL OF THE DEVICE (ENVIRONMENT) .................................................27
15. GENERAL INFORMATION ......................................................................................... 28
16. DESCRIPTION OF THE WIRELESS FUNCTIONS AND TECHNOLOGY ......32
17. CARE AND CLEANING ............................................................................................... 34
17.1 CALIBRATION ...................................................................................................................34
18. TROUBLESHOOTING .................................................................................................. 35

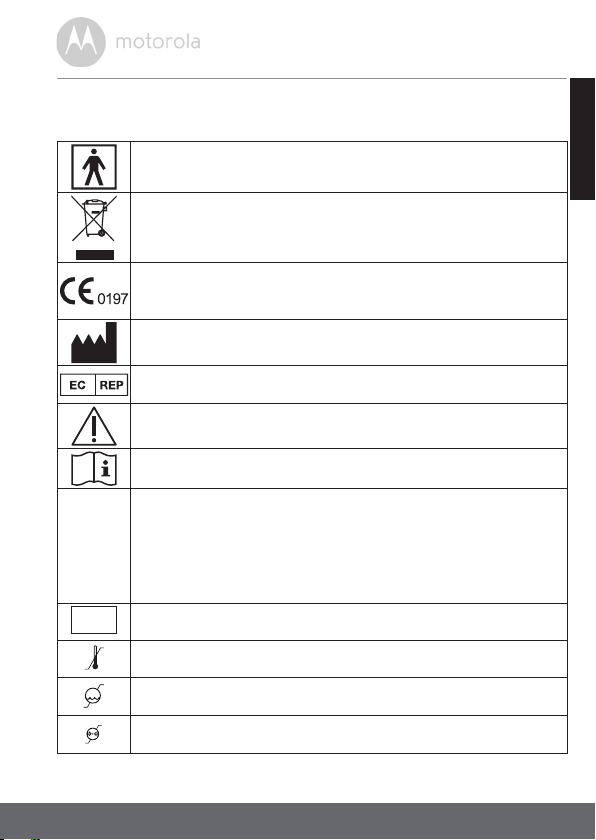

19. NORMALIZED SYMBOLS ...........................................................................................37
20. IMPORTANT INFORMATION REGARDING ELECTROMAGNETIC
COMPATIBILITY(EMC)................................................................................................ 38
21. FCC AND IC REGULATIONS
(FCC PART 15) ............................................................................................................... 44
22. SPECIFICATIONS.......................................................................................................... 46
6
Table of contents
1. IMPORTANT SAFETY INFORMATION
To obtain an accurate measurement, please read this manual carefully prior to use.
• Use of this thermometer is not intended as a substitute for consultation with your physician.
• Measurement results are for reference only. Contact your physician if you experience or suspect any health concerns.
• The infra-red sensor must be completely clean, dry and undamaged to ensure accurate measurements.
• Skin surface lipids on the forehead may cause an inaccurate measurement, so make sure the forehead is clean.
• Don’t touch or blow on the infra-red sensor. A dirty infra-red sensor may produce inaccurate readings.
• Do not use “forehead measurement” mode to measure the temperature of other body parts.
• If the temperature of the storage area diers greatly from that of the measuring area, please wait until the thermometer temperature has equalized to the room temperature, about 30 minutes, prior to use.
• Keep the device out of the reach of children and pets to avoid inhalation or swallowing of small parts. Do not allow children to take their temperatures unattended. Children may not be able to use the device in accordance with the instructions in this user manual. This device is not a toy.
• Do not dispose of batteries by fire. When placed in a fire, the battery is likely to explode.
• Do not store the thermometer under extreme temperature (below -20°C/­4°F or over 55°C/131°F) or extreme humidity conditions (below 15% RH or over 90% RH). Failure to store device under proper conditions may cause inaccurate readings.
• Do not use the thermometer if the device is damaged (for example, if the infra-red sensor is broken). Continued use of a damaged unit may cause injury, inaccurate results or serious hazard.
• Do not disassemble, repair or change any parts of the unit.
ENGLISH
Important Safety Information 7
• If your thermometer will not be used for a long time, remove battery to prevent possible damage caused by chemical leakage. If the battery is leaking, remove it carefully. Do not allow the leaking fluid to touch your bare skin.
• Use of this product requires special precautions regarding electromagnetic compatibility (EMC). It must be installed and put into service in accordance with the EMC information provided. This unit can be aected by portable and mobile RF communications equipment.
• All materials (e.g. ABS) intended to come into contact with patients have passed the ISO 10993-5 and ISO 10993-10 standards test, whereby they are non-toxic and non-allergenic, and do not produce irritation reactions. However, the state of current scientific knowledge and technology being incomplete, other potential allergic reactions may not yet be known. Should you have an allergic reaction to the materials, please stop treatment immediately and consult your physician.
• Store the thermometer in a dry, clean place. Do not expose the product to chemical solvents, lint, dust, direct sunshine or high temperature.
• During use, the operator shall prevent simultaneous contact between the battery and the patient.
• Do not maintain or service the device while it is in use.
• Should you experience any problems with this device (e.g. set-up, maintenance or use), please contact Motorola customer service or your local retailer.
• Should any unexpected operations or events occur, please report them to the manufacturer.
Caution:
This device should not be used adjacent to or stacked with other equipment. Should adjacent or stacked use be necessary, this device should be observed to ensure normal operation in the configuration in which it will be used.
8 Important Safety Information
2. INFLUENCES ON BODY TEMPERATURE
• A person’s individual metabolism
• Age Body temperature is higher in babies and toddlers than in adults. Greater temperature fluctuations occur faster and more often in children. Normal body temperature decreases with age.
• Clothing
• Outside temperature
• Time of day Body temperature is lower in the morning and increases throughout the day towards evening.
• Activities Physical and, to a lesser extent, mental activities increase body temperature.
This is why we recommend that you practice using the thermometer on yourself and family members when you are healthy. By doing so, you will know how the thermometer works and will feel more confident regarding the temperature readings you take when a family member is not feeling well.
ENGLISH
Influences On Body Temperature 9
3. PRIOR TO USE
1. The key to obtaining accurate readings is a clean sensor. To clean the sensor, use a cotton swab slightly moistened with alcohol to gently wipe its surface, and then immediately wipe dry using a clean cotton swab. Wait at least 20 minutes to make sure that the sensor is completely dry before taking temperature.
2. Skin surface lipids on the forehead may cause an inaccurate measurement, so make sure the forehead is clean. If you clean the forehead, please keep waiting a further 5 to 10 minutes before measuring.
3. If the temperature of the storage area diers greatly from that of the measuring area, please wait until the thermometer temperature has equalized to the room temperature, about 30 minutes, prior to use.

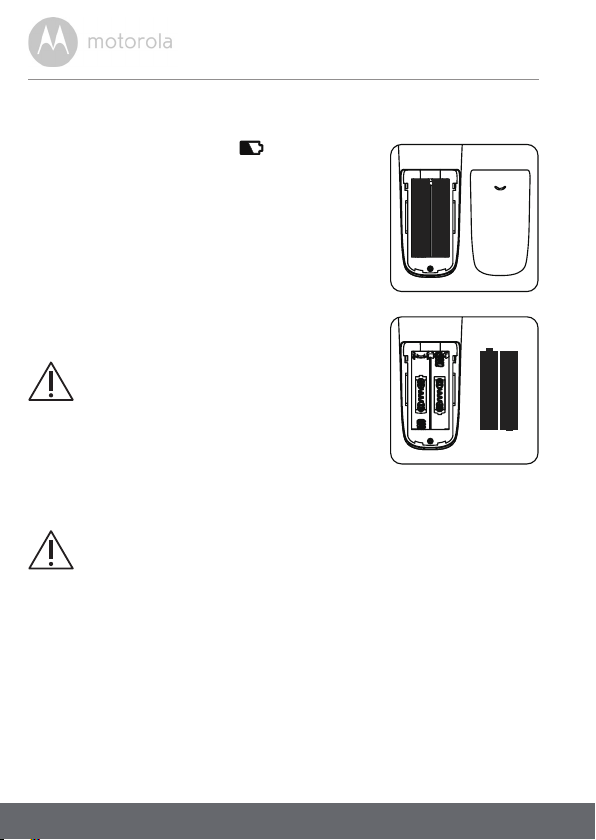

4. Please open the battery cover and install 2 AAA batteries, which can be found inside the packaging. Once batteries are installed, the thermometer will then turn on automatically and the LCD display will appear as in the figure to the left. Press any button to turn the device back on when it turns itself o.
10 Prior To Use
4. SYSTEM REQUIREMENT
Smartphones/Tablets: Android™ and iOS® only. System Requirements: iOS 8.0, Android™ 4.2 or above For more information, please visit: https://hubbleconnected.com/requirements
ENGLISH
System Requirement 11
5. PAIRING THE THERMOMETER TO YOUR
MOBILE DEVICE
Download the “Hubble Connect for Smart Nursery” app
• Go to the Google Play™ Store to search for Hubble Connect for Smart
Nursery.
• Download the Hubble Connect for Smart Nursery app and install it on your
Android™ device or
• Go to the App Store to search for Hubble Connect for Smart Nursery.
• Download the Hubble Connect for Smart Nursery app and install it on your
iPhone®/iPad®.
• Run the “Hubble Connect for Smart Nursery” app on your Android™ device/
iPhone®/iPad
• Run the Hubble Connect for Smart Nursery App, tap SIGNUP and follow the
in-app instructions to create your Smart Nursery account. By signing up, you agree to our Terms & Conditions.
Note: If you already have a Smart Nursery App account, please tap LOGIN, enter your account information and proceed to the next steps.
12 Pairing The Thermometer To Your Mobile Device
®
Launch the set-up wizard and follow the steps to create a user profile and add the thermometer.
Make sure that the Smart Nursery app is active and that Bluetooth on your mobile device is activated when pairing is in progress.
• Run the Hubble Connect for Smart Nursery app, tap SIGNUP and follow the
in-app instructions to create your Smart Nursery Account. By signing up, you agree to our Terms & Conditions. (Pictures A1 & A2)
A1 A2
Note: If you already have a Smart Nursery app account, please tap LOGIN, enter your account information and proceed to the next steps.
ENGLISH
Pairing The Thermometer To Your Mobile Device 13
• Tap on the Smart Touchless Forehead Thermometer to enter thermometer
set-up mode. (Picture A3)
A3
• Tap Skip to set-up or scroll to review features. (Picture A4)
A4
14 Pairing The Thermometer To Your Mobile Device

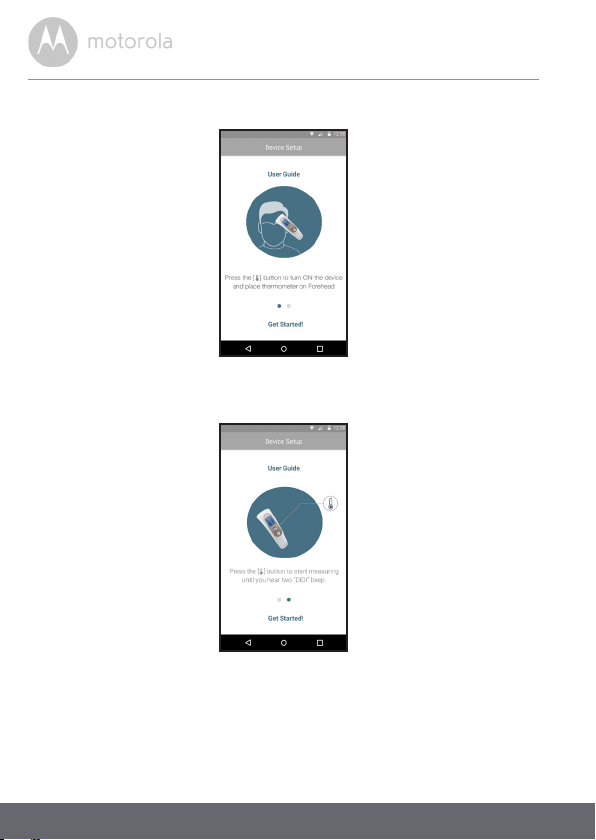

• Follow “Step 1”. Make sure that your thermometer is switched on then press
Next. (Picture A5)
A5

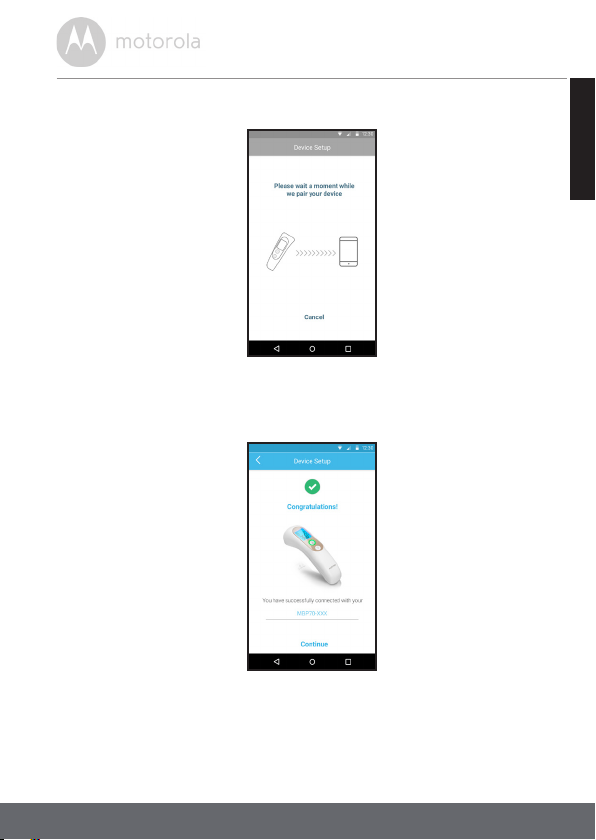

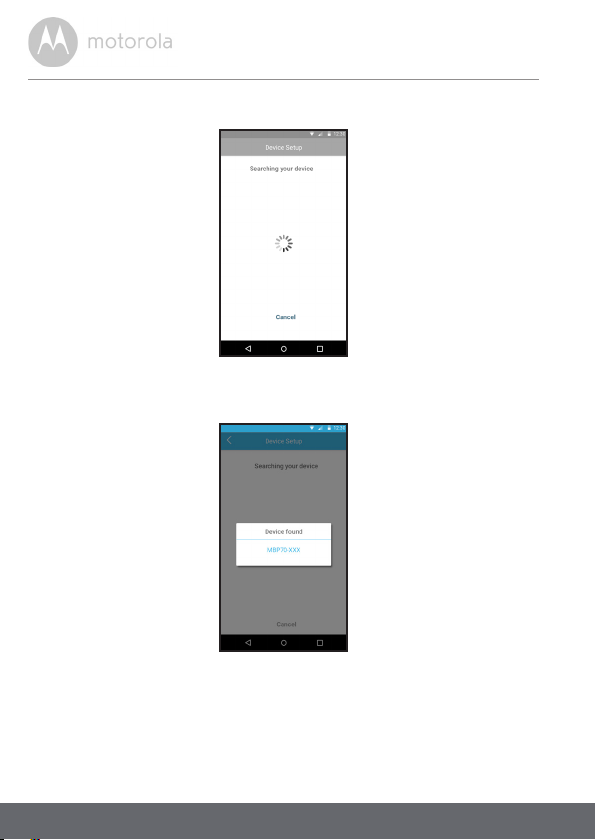

• Follow “Step 2”. Pair the thermometer with your mobile device via Bluetooth.
(Picture A6)
ENGLISH
A6
Pairing The Thermometer To Your Mobile Device 15
