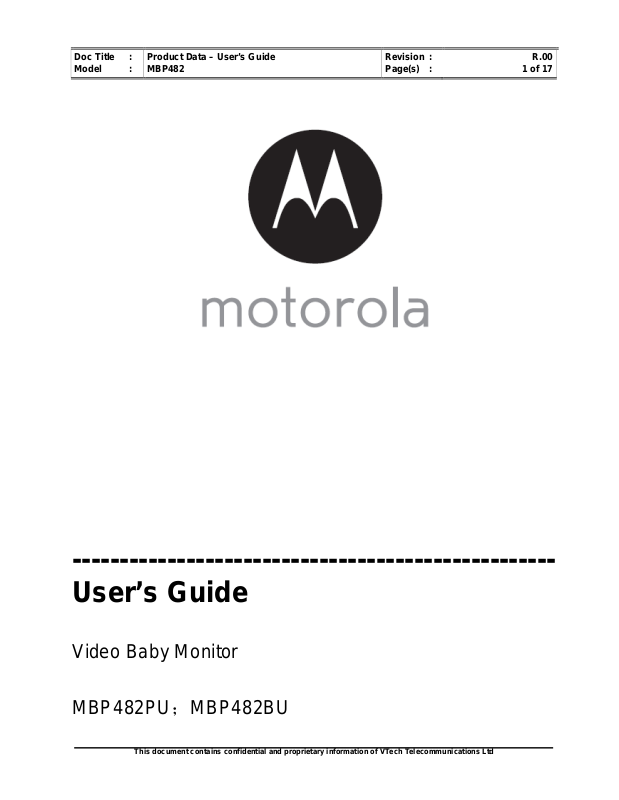

Binatone Electronics MBP482BU, MBP482PU User Manual
Doc Title : Product Data – User’s G u i d e Revision : R.00
Model : MBP482 Page(s) : 1 of 17
---------------------------------------------------
User’s Guide
Video Baby Monitor
MBP482PU；MBP482BU
This document contain s confidential and proprietary information of V Tech Telecommunications Ltd
Doc Title : Product Data – User’s G u i d e Revision : R.00
Model : MBP482 Page(s) : 2 of 17
Welcome...
to your new Motorola Baby monitor!
Thank you for purchasing the MBP482. Now you can see and hear your baby sleeping in another room or you can
monitor your older children in their play room.
Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you
will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for
warranty coverage.
For product-related questions, please call:
US and Canada 1-888-331-3383
Email: motorola@encompass.com
___________________________________________________
This User’s Guide provides you with all the information you need to get the most from
your product.
Before you use the baby monitor, we recommend you insert and fully charge the battery
in the parent unit, so that it continues to work if you disconnect it from the mains power
to carry it to another location. Please read the Safety Instructions on page 8 before you
install the units.
Got everything?
• 1 x Parent unit
• 1 x Baby unit (baby unit)
• 1 x Rechargeable Ni-MH battery pack for the Parent unit
• 1 x Battery door for Parent unit
• 1 x Stand for Parent unit
• 1 x Power adaptor for the Parent unit
• 1 x Power adaptor for the Baby unit
In multi-baby unit packs, you will find one or more additional Baby unit units with power adaptor units.
This document contain s confidential and proprietary information of V Tech Telecommunications Ltd
Doc Title : Product Data – User’s G u i d e Revision : R.00
Model : MBP482 Page(s) : 3 of 17
Overview of your Baby unit
1 Power ON/OFF switch
Slide to turn the parent unit on or off.
2 Power/Link indicator
- Red when the baby unit is turned on and linked to the parent unit.
- Flashes red when the baby unit is searching for the parent unit, or is in pairing process.
- Off when the baby unit is powered off.
3 PAIR
Press and hold to pair to the parent unit.
This document contain s confidential and proprietary information of V Tech Telecommunications Ltd
Doc Title : Product Data – User’s G u i d e Revision : R.00
Model : MBP482 Page(s) : 4 of 17
Overview of the Parent unit
1. Sound Level indicators
The sound level indicators show the sound level as detected by the baby unit.
- Sound level detected by the baby unit:
The more LEDs light on, the stronger the sound is detected.
2 Control key panel
UP / VOLUME +
- Press to increase the speaker volume.
- While in the menu, press to scroll up.
- While viewing a zoomed image, press and hold to move the image upward.
DOWN / VOLUME -
- Press to decrease the speaker volume.
- While in the menu, press to scroll down.
- While viewing a zoomed im age, press and hold to move t he image downward.
LEFT
- While viewi ng a zoomed image, press and hold to move the i mage leftward.
ZOOM / RIGHT
- While in a menu, press to choose the option on the right side.
- While viewing a zoomed image, press to zoom out; or press and hold to move the image rightward..
3. OK
While in a menu, press to choose an item, or save a setting.
This document contain s confidential and proprietary information of V Tech Telecommunications Ltd
Doc Title : Product Data – User’s G u i d e Revision : R.00
Model : MBP482 Page(s) : 5 of 17
4 Power ON/OFF indicator
- Red when the parent unit is turned on.
- Flashes red when the parent unit is searching for the parent unit, or is in pairing pr ocess..
- Off when the parent unit battery is fully charge
5 Battery level indicator
- Green when the parent unit battery is being charged.
- Flashes green when the parent unit battery is low and needs charging.
- Off when the parent unit battery is not being charged, or when no battery is installed.
6 LCD display
7.
Press to enter the main menu.
8 Power ON/OFF button
- Press and hold the parent unit on or off.
- Press to turn the screen on or off.
This document contain s confidential and proprietary information of V Tech Telecommunications Ltd
V
Doc Title : Product Data – User’s G u i d e Revision : R.00
Model : MBP482 Page(s) : 6 of 17
Parent unit Status Icons
Connection status
-
displays when strong signal strength is detected b etween the baby unit and
the parent unit.
-
or displays when moderate signal strength is detected between the baby
unit and the parent unit.
-
flashes when the parent unit is out of the valid range.
- displays when the link between the baby unit and the parent unit is lost.
Patrol mode
- Displays when the parent unit is in patrolling mode.
Current view status
- Displays the number of the baby unit that is being viewed in patrol mode.
Zoom
- Displays when the microphone is muted.
olume off
-
Displays when the volume is turned off.
20°C
Temperature
or
- Display s the current temperature the baby unit has detected.
69°F
Battery status
-
-> -> ->
animates when the battery is charging.
-
displays solid wh en the b attery is fully char ged.
-
displays when t he batt ery is l ow and needs c hargi ng.
displays when no battery is installed but operates using AC power, or the battery has been
installed incor rect ly.
Important guidelines for installing your baby monitor
To use your baby unit and parent unit together, you must be able to establish a radio link between them, and
the range will be affected by environmental conditions.
Any large metal object, like a refrigerator, a mirror, a filing cabinet, a metallic door or reinforced concrete,
between the baby unit and parent unit may block the radio signal.
The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical
equipment, such as TVs, computers, cordless or mobile phones, fluorescent lights or dimmer switches.
If the signal is poor, try moving the parent unit and/or the baby unit to different positions in the rooms.
This document contain s confidential and proprietary information of V Tech Telecommunications Ltd
