Binatone Electronics MBP18PU, MBP18BU User Manual
USER’S GUIDE

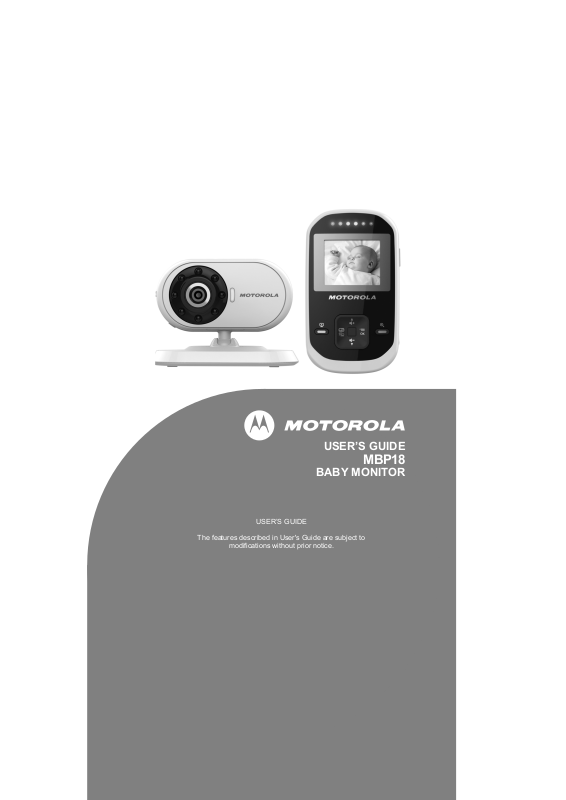

BABY MONITOR
USER’S GUIDE
The features described in User's Guide are subject to
modifications without prior notice.
MBP18
Welcome...
to your new Motorola Baby Monitor!
Thank you for purchasing the MBP18. Now you can see and hear
your baby sleeping in another room or you can monitor your older
children in their playroom.
Please retain your original dated sales receipt for your records.
For warranty service of your Motorola product, you will need to
provide a copy of your dated sales receipt to confirm warranty
status. Registration is not required for warranty coverage.
For product related questions, please call:
US and Canada 1-888-331-3383
On the Web: www.motorola.com
This User's Guide provides you with all the information you need
to get the most from your product.
Before you can use the baby monitor, we recommend you insert
and fully charge the battery in the parent unit, so that it continues
to work if you disconnect it from the power supply to carry it to
another location. Please read the Safety Instructions on page 6
before you install the units.
Got everything?
• 1 x Parent unit
• 1 x Baby unit
• 1 x Rechargeable Ni-MH battery pack for the Parent unit
• 1 x Power adapter for the Parent unit
• 1 x Power adapter(s) for the Baby unit
In multi-camera packs, you will find one or more additional
camera units with power adapter units.
Overview of the Parent Unit
8
7
6
1. Display (LCD screen)
2. Scroll Up/Volume+ Button
3.
Scroll Down/Volume- Button
4. Menu/OK Button
Press to open the menu options.
Press to confirm a selection.
Press to pan right in 2x zoom level.
5. Zoom Button
Press once to switch to 2x zoom level.
Toggle again to return to normal mode
(1x).
6. Return/Switch Camera Button
Press to return to previous menu level.
Press to switch camera units (if
paired with more than one camera).
Press to pan left in zoom mode.
Z
9
1
2
5
4
3
Parent unit menu icons
1
N
B
*
&
Signal Level (5 Levels)
Night Vision Mode (Screen changes to Black/White)
Battery Level Control (4 Levels)
Volume Level Control (8 Levels)
Brightness Level Control (8 Levels)
Alarm Setting (6h, 4h, 2h, OFF)
View Camera
Add Camera
Delete Camera
Scan Camera
10
11
7.Video ON/OFF Button
Press to turn the LCD display
on or off.
8. Unit ON/OFF LED (Green)
9. Audio Level LED
(Green, Orange, Red, Red)
10. Power Button
Press and hold to turn the unit
on or off.
11. Power Adapter Connector
12. Speaker
13. Stand
14. Battery cover
P
12
13
14
V
Overview of Your Baby Unit
4
1
2
3
1. ON/OFF Switch 6. Power LED
2. Pair Key 7. Infrared LEDs
3. Microphone 8. Power Adapter Connector
4. Photo Sensor (Night Vision Mode)
5. Camera Lens
Important guidelines for installing your Baby Monitor
• To use your Video Monitor Baby and Parent Units together, you must
be able to establish a radio link between them, and the range will be
affected by environmental conditions.
• Any large metal object, like a refrigerator, a mirror, a filing cabinet,
metallic doors or reinforced concrete between the Baby and Parent
Unit may block the radio signal.
• The signal strength may also be reduced by other solid structures, like
walls, or by radio or electrical equipment, such as TVs, computers,
cordless or mobile phones, fluorescent lights or dimmer switches.
• Use of other 2.4GHz products, such as wireless networks (WiFi
routers), Bluetooth
interference with this product, so keep the baby monitor away at least 5ft
(1m) from these types of products, or turn them off if they appear to be
causing interference.
• If the signal is weak, try moving the Parent and/or the Baby Unit to
different positions in the rooms.
®
systems, or microwave ovens, may cause
5
6
7
8
®
Table of contents
1. Safety Instructions ......................................................................... 6
2. Getting Started ............................................................................... 8
2.1 Baby Unit Power Supply.................................................................8
2.2 Parent Unit Battery Installation.......................................................8
2.3 Parent Unit Power Supply ..............................................................9
2.4 Registration (Pairing)....................................................................10
3. Using the Baby Monitor MBP18 .................................................. 11
3.1 Setting up .....................................................................................11
3.2 Night Vision Mode ........................................................................11
3.3 Video ON/OFF..............................................................................11
4. MBP18 Parent Unit Menu Options ..............................................12
4.1 Volume .........................................................................................12
4.2 Brightness.....................................................................................12
4.3 Zoom, Pan and Tilt .......................................................................12
4.4 Alarm............................................................................................12
4.5 Camera Control ............................................................................12
4.5.1 Add (pair) a camera .......................................................12
4.5.2 View a camera ...............................................................13
4.5.3 Delete a camera .............................................................13
4.5.4 Scan camera ..................................................................13
5. Disposal of The Device (environment) ....................................... 14
6. Cleaning ........................................................................................15
7. Help................................................................................................ 16
8. General Information .....................................................................18
ENGLISH
Table of contents 5
1. Safety Instructions
WARNING:
STRANGULATION HAZARD - Keep the adapter cord out of
baby's reach.
NEVER place baby unit or cords within the crib.
Secure the cord some distance away from baby's reach.
Never use extension cords with AC Adapters. Only use the AC
Adapters provided.
CAMERA SET UP & USE:
● Determine a location for the BABY UNIT that will provide the best
view of your baby in his crib.
● Place the BABY UNIT on a flat surface, such as a dresser, bureau,
or shelf.
● NEVER place baby unit or cords within crib.
● Secure the cord to the wall to keep cord away from the baby's reach.
WARNING
This baby monitor is compliant with all relevant standards regarding
electromagnetic fields and is, when handled as described in the User's
Guide, safe to use. Therefore, always read the instructions in this User's
Guide carefully before using the device.
• Adult assembly is required. Keep small parts away from children when
assembling.
• This product is not a toy. Do not allow children to play with it.
• This baby monitor is not a substitute for responsible adult supervision.
• Keep this user's guide for future reference.
• Do not place the baby unit or cables in the crib or within reach of the
baby (the unit should be at least 3 feet away).
• Keep the cords out of reach of children.
• Do not cover the baby monitor with a towel or blanket.
6 Safety Instructions
• Never use extension cords with power adapters. Only use the power
adapters provided.
• Test this monitor and all its functions so that you are familiar with it
prior to actual use.
• Do not use the baby monitor near water.
• Do not install the baby monitor near a heat source.
• Only use the chargers and power adapters provided. Do not use other
chargers or power adapters as this may damage the device and
battery pack.
• Only insert a battery pack of the same type.
• Do not touch the plug contacts with sharp or metal objects.
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
ENGLISH
Safety Instructions 7
2. Getting Started
2.1 Baby Unit Power Supply

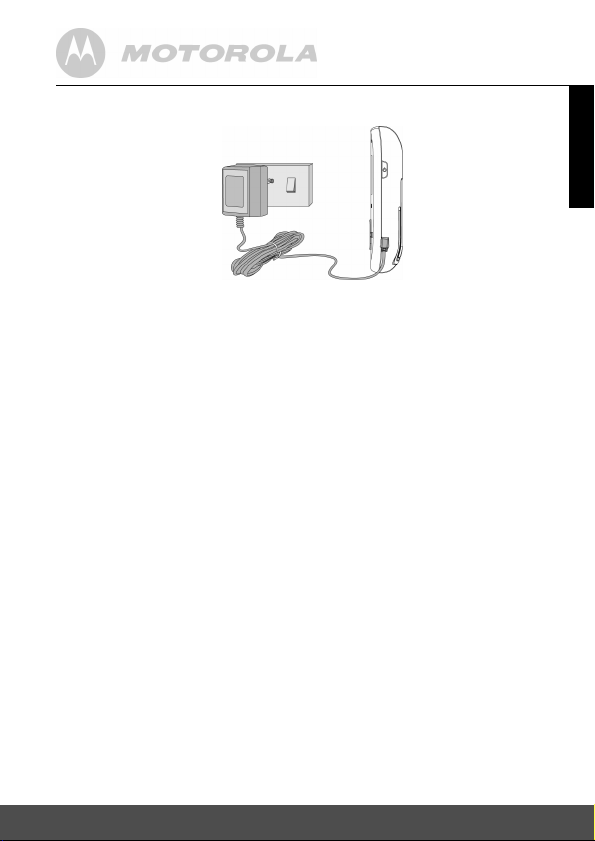

1. Connect the small plug of the power adapter to the baby unit and the
other end to the electrical outlet.
NOTE
Only use the enclosed power adapter (6V DC / 500mA).
2. Slide the ON/OFF switch to the ON position. The power LED will
light up in green.
3. Slide the ON/OFF switch to the OFF position to turn the Baby Unit off.
2.2 Parent Unit Battery Installation
Black
1. Insert the wire tab of the rechargeable battery pack into the contact
slot as shown above and fit the battery pack into the compartment.
Red
Small cross head or
Flat end screw driver.
2. Replace the battery cover over the compartment and gently tighten
the screw in a clockwise direction using a Small cross head or Flat
end screw drivers.
8 Getting Started
