User’s Guide

For LS1000W

10” Digital Photo Frame

with Slideshow

Warning

Use only the power adapter supplied with your product.

Welcome...

to your new Motorola Digital Photo Frame!

Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.

For product-related questions, please call:

1-888-331-3383 in US and Canada

0845 218 0890 in UK

(65) 68412668 in Singapore

On the Web: www.motorola.com

This User’s Guide provides you with all the information you need to get the most from your digital photo frame.

Before you start using, you will need to set up your digital photo frame. Follow the simple instructions in “Getting started”, on the next few pages.

IMPORTANT

z Only use the supplied power adapter.

Got everything?

z 1 x Digital Photo Frame z 1 x Stand z 1 x Power adapter z 1 x Remote control z 1 x Quick Start Guide z 1 x User’s Guide

Key features

z 3 view modes: Clock/Calendar mode, slideshow mode and

thumbnail mode

z 5 slideshow transition effects z Date and Time settings z Programmable On/Off Time z Supports flash drive, SD, SDHC and MMC memory cards.

Frame Overview

1. Navigation and ENTER buttons

2. EXIT button

3. ON/OFF button

4. Hanging slot (Portrait position)

5. Hanging slot (Landscape position)

6. Stand locking slot

7. Loudspeaker

8. Earphone jack

for connecting to an earphone/headset or external speaker to play the audio.

9. USB port

for inserting a USB flash drive that contains the photos or music you want to play.

10. Memory card slot

for inserting an SD/SDHC, MMC, MS, MS PRO or xD memory card that contains the photos or music you want to play.

11. Power jack

Getting started

Table of Contents

1. Getting started................................................................................5

1.1 Installing the stand ..........................................................6

1.1.1 Landscape position ..............................................6

1.1.2 Portrait position ....................................................7

1.2 Connecting to power .......................................................8

1.3 Inserting a memory card or a USB flash drive .................8

1.4 Replacing the remote control battery...............................9

2. Using the photo frame..................................................................10

2.1 Using the control buttons ..............................................10

2.2 Using the remote control...............................................13

3. Using the menus...........................................................................15

3.1 Using the Main Menu ....................................................15

3.2 Using the Photo menu...................................................16

3.2.1 Copying one or all photos...................................17

3.2.2 Deleting one or all photos...................................17

3.2.3 Auto rotation.......................................................18

3.3 Using the Music menu...................................................19

3.3.1 Copying one or all music files .............................19

3.3.2 Deleting one or all music files.............................20

3.4 Using the Calendar menu .............................................20

3.5 Using the Wi-Fi menu....................................................21

3.5.1 Step 1: Setting up Wi-Fi connection....................21

3.5.2 Step 2: Configuring your accounts ......................25

3.5.2.1 Configuring your Picasa account...........25

3.5.2.2 Configuring your Flickr account.............26

3.5.2.3 Configuring your Frame Channel

account .................................................26

3.5.2.4 Configuring RSS ...................................27

3.5.2.5 Configuring your email account.............28

3.5.3 Step 3: Using web services.................................29

3.5.3.1 Using Picasa.........................................29

3.5.3.2 Using Flickr ...........................................29

3.5.3.3 Using Frame Channel ...........................30

3.5.3.4 Using RSS ............................................30

3.5.3.5 Using WEB Radio.................................31

3.5.3.6 Using Email...........................................33

3.5.3.6.1 Adding your contacts to the

Welcome list ...........................33

3.5.3.6.2 Receiving photo emails...........33

3.5.3.6.3 Viewing received photo ʳʳʳʳʳʳʳ

emails on inbox .......................34

3.5.3.6.4 Sending a photo by email........35

3.5.3.6.5 Editing or deleting the contacts

in the Welcome list..................36

3.6 Using the Settings menu...............................................37

3.6.1 Setting an alarm....................................40

3.6.2 Enabling auto on/off..............................41

4. General information .....................................................................42

5. Technical specifications ..............................................................49

6. Appendix.......................................................................................51

Getting started

1. Getting started

WARNING

z Do not place your digital photo frame in the bathroom or

other humid areas.

z Do not place your digital photo frame near sources of

heat and extreme temperatures, such as fluorescent lighting, microwave ovens, heating appliances and direct sunlight.

z Do not disassemble your digital photo frame; there are no

user-serviceable parts inside.

z If the LCD screen breaks, do not touch the glass or liquid.

Contact Motorola customer support for assistance.

z Use only the power adapter supplied with your digital

photo frame.

Compatible photo format

Your digital photo frame can only display photos that are in JPEG format. Other photo formats may not be detected or displayed correctly.

The photos will be displayed in alphabetical order.

Care and maintenance

Wipe the frame and the LCD screen gently with a soft, clean, dry cloth.

To remove fingerprints on the LCD screen, wipe gently with a soft, lint-free cloth. Do not use cleaning solutions unless they are designed specifically for LCD screens.

IMPORTANT

Always switch off and disconnect the power adapter before cleaning the digital photo frame.

Getting started

1.1 Installing the stand

1.1.1 Landscape position

To place the photo frame in landscape position, follow the steps below to install the stand.

1. Hold the photo frame in landscape position.

2. Attach the stand to the stand locking slot on the back of

the photo frame.

3. Insert the stand into the stand locking slot as illustrated,

until the stand is secured to the photo frame.

WARNING

z Do not rotate the stand during the installation. Otherwise,

the photo frame will be damaged.

z Once the installation is complete, place the photo frame

on a stable surface to avoid any possible movement.

Getting started

1.1.2 Portrait position

To place the photo frame in portrait position, follow the steps below to install the stand.

1. Hold the photo frame in portrait position.

2. Attach the stand to the stand locking slot on the back of

the photo frame.

3. Insert the stand into the stand locking slot as illustrated,

until the stand is secured to the photo frame.

WARNING

z Do not rotate the stand during the installation. Otherwise,

the photo frame will be damaged.

z Once the installation is complete, place the photo frame

on a stable surface to avoid any possible movement.

Getting started

1.2 Connecting to power

1.3 Inserting a memory card

Follow the steps below to connect the photo frame to a power outlet to turn on the power.

1. Plug one end of the AC power adapter to the power

jack on the back of the photo frame.

2. Plug the other end into a power outlet. The power of

the photo frame will be turned on.

3. Place the photo frame in landscape or portrait position

on a stable surface.

NOTE

Available plug types may vary depending on where you purchased this photo frame.

or a USB flash drive

The photo frame is preloaded with some photos in the internal memory. On the top of the photo frame, you can also insert a memory card or a USB flash drive containing the content you want to show on this unit.

NOTE

z After you insert a photo loaded memory card or USB flash

drive and connect the photo frame to power, the photo frame will automatically start to display photos in slideshow mode.

z The memory card slot and USB port both support

hot-swap function.

z The memory card slot accepts these types of memory

cards: SD/SDHC or MMC.

z You can play audio and image files on the photo frame.

The supported audio file format is MP3 (*.mp3). The supported image file format is JPEG (*.jpg).

z Video files are not supported on this photo frame.

Getting started

1.4 Replacing the remote control battery

The supplied remote control comes installed with a CR2025 lithium battery. When you need to replace the battery, follow the steps below.

1. Slide the locking tab to the right.

2. Pull out the battery holder.

3. Insert the new battery into the battery holder. The

battery must be placed with the positive pole facing upwards in the illustrated position.

4. Slide the battery holder into the remote control.

WARNING

z Protect the battery from overheating or excessive

moisture.

z Failure to replace the battery in the correct manner may

result in damage to the battery.

z Use only the approved specified batteries. z Properly recycle or dispose of used batteries according to

local guidelines and regulations.

z Do not throw batteries into fire. This may result in an

explosion.

z If the battery is completely drained or the remote control

is not in use for a long time, remove the battery to prevent leakage.

Getting started

2. Using the photo frame

To operate the photo frame, you can:

z Use the control buttons on the back of the photo frame

z Use the supplied remote control

No. Description

1 Navigation and ENTER buttons

2.1 Using the control buttons

a. UP/VOLЀ: moves up/increases the volume. b. DOWN/VOL

volume.

c. RIGHT: moves right. d. LEFT: moves left. e. ENTER: Enters/confirms the selection, or

starts/pauses the playback.

2 EXIT button

z Returns to the Main Menu. z Goes back to the previous page. z Stops the playback.

3 ON/OFF button

z Turns on the screen backlight. z Turns off the screen backlight to enter Standby

mode.

: moves down/decreases the

Using the photo frame

When using the Main Menu

Button Function

UP/VOLЀ Selects Internal Memory, USB or

Memory Card.

DOWN/VOLЁ Selects Internal Memory, USB or

Memory Card.

LEFT Selects Photo, Music, Calendar,

Wi-Fi or Settings menu.

RIGHT Selects Photo, Music, Calendar,

Wi-Fi or Settings menu.

ENTER Enters sub-pages of Photo, Music,

Calendar, Wi-Fi or Settings menu.

When browsing photos in thumbnail view

Button Function

UP/VOLЀ Moves up.

DOWN/VOLЁ Moves down.

LEFT Moves left.

RIGHT Moves right.

ENTER Displays the currently selected

photo in Single Photo view.

EXIT Goes back to the previous page.

When playing a slideshow

Button Function

ENTER Starts/pauses the playback.

EXIT Goes back to the previous page.

When using the Music menu

Before playing music / When music is paused

Button Function

UP/VOLЀ Selects the previous track.

DOWN/VOLЁ Selects the next track.

LEFT Selects the previous track.

RIGHT Selects the next track.

When playing music

Button Function

UP/VOLЀ Increases the volume.

DOWN/VOLЁ Decreases the volume.

LEFT Selects the previous track.

RIGHT Selects the next track.

Using the photo frame

When using the Calendar menu

Button Function

LEFT Selects Photo, Music, Calendar,

Wi-Fi or Settings menu.

RIGHT Selects Photo, Music, Calendar,

Wi-Fi or Settings menu.

ENTER Enters Calendar full screen mode

when the Calendar menu is selected.

EXIT Goes back to the previous page.

When using the Wi-Fi menu

Button Function

UP/VOLЀ Moves up to select an item.

DOWN/VOLЁ Moves down to select an item.

LEFT Selects Wi-Fi List, Wi-Fi Setup or

Account Cfg.

RIGHT Selects Wi-Fi List, Wi-Fi Setup or

Account Cfg.

ENTER Enters the sub-page of Wi-Fi List,

Wi-Fi Setup or Account Cfg.

EXIT Goes back to the previous page.

When using the Settings menu

Button Function

UP/VOLЀ Moves up to the previous sub-menu

in Settings.

DOWN/VOLЁ Moves down to the next sub-menu

in Settings.

LEFT Selects Photo, Music, Calendar,

Wi-Fi or Settings menu.

RIGHT Selects Photo, Music, Calendar,

Wi-Fi or Settings menu.

ENTER z Enters sub-menus in Settings.

z Enters/confirms the selection.

EXIT z Quits sub-menus in Settings.

z Goes back to the previous page.

Using the photo frame

2.2 Using the remote control

The following table describes the buttons and their functions that are available on the supplied remote control.

No. Description

1 ON/OFF

z Turns on the screen backlight. z Turns off the screen backlight to enter Standby

mode.

2 MENU

z You can press this button to activate or deactivate

Copy One, Copy All, Delete One or Delete All options in Photo Viewer and Music Player.

z Displays the Add to favorites option when using

the WEB Radio menu in Wi-Fi List.

z Displays the Send Mail option when using the

Email menu in Wi-Fi List.

3 UP/VOL

Moves up or increases the volume.

4 LEFT/PREVIOUS

Moves left or selects the previous item.

5 ROTATE

You can press this button repeatedly to rotate the selected photo counterclockwise each time by 90 degrees.

6 DOWN/VOL

Moves down or decreases the volume.

Using the photo frame

No. Description

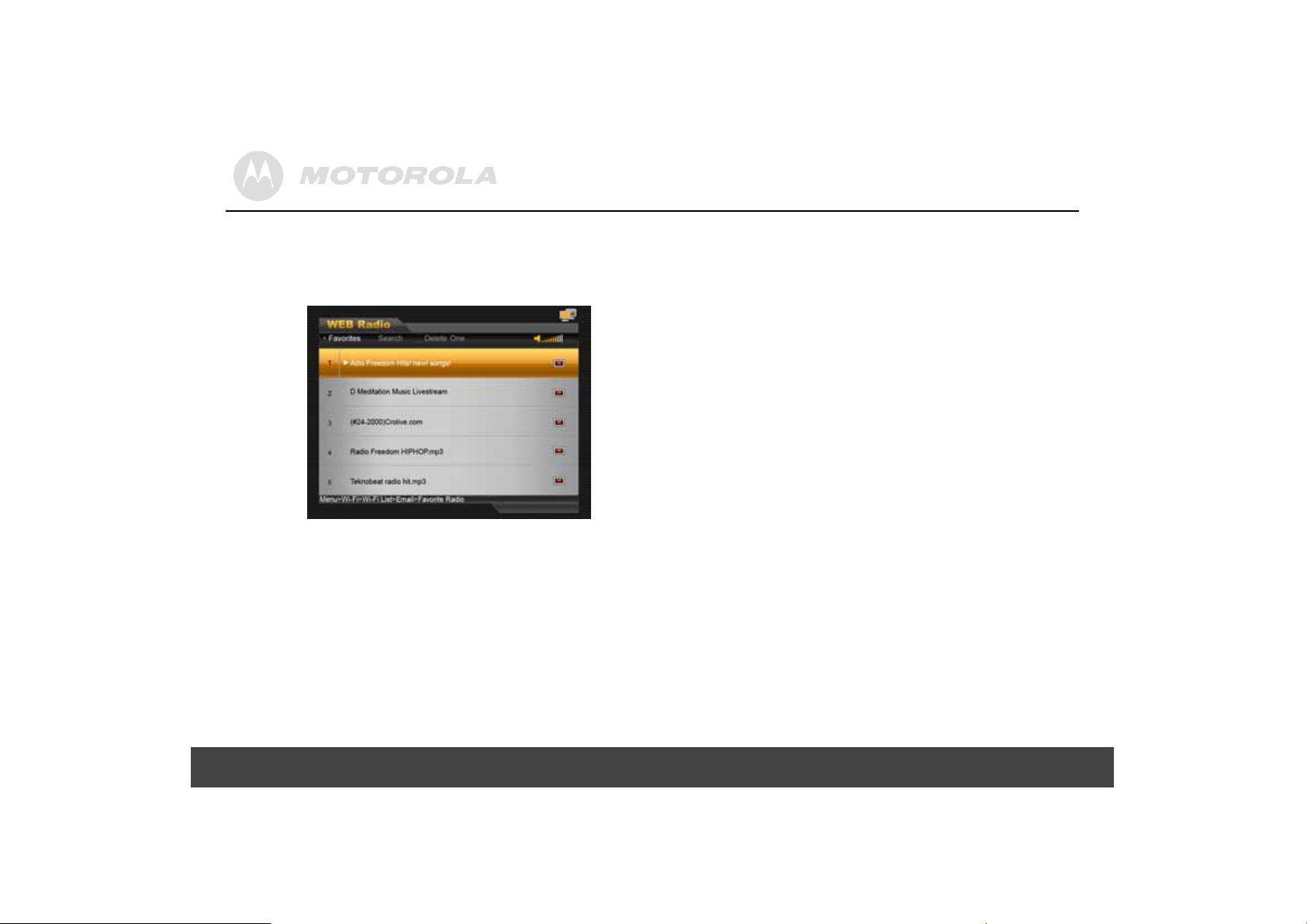

7 WEB Radio

You can press this shortcut key to access WEB Radio in Wi-Fi List to listen to radio stations on the

web, when a Wi-Fi connection has been set up.

8 EMAIL

You can press this shortcut key to access Email in Wi-Fi List to operate photo emails, when a Wi-Fi

connection has been set up.

9 WiFi SETUP

You can press this button to set up a Wi-Fi connection.

10 SETUP

You can press this button to access the Settings menu.

11 EXIT

Goes back to the previous page.

12 RIGHT/NEXT

Moves right or selects the next item.

13 ENTER (OK/PLAY/PAUSE)

Enters and confirms the selection, or starts/pauses the playback.

14 ZOOM

Zooms in the photo by a factor of 2x, 4x, 8x and 16x.

15 RSS

You can press this shortcut key to access RSS reader, when a Wi-Fi connection has been set up.

16 PICASA

You can press this shortcut key to access Picasa web album service, when a Wi-Fi connection has been set up and your account has been configured.

17 FRAME CHANNEL

You can press this shortcut key to access Frame Channel service, when a Wi-Fi connection has been set up and your account has been configured.

Using the photo frame

3. Using the menus

3.1 Using the Main Menu

After turning on the power of the photo frame, photos will play in slideshow mode automatically.

z If a memory card has been inserted, photos in the card

will play in slideshow mode automatically.

z If no memory card is inserted, photos in the built-in

memory will play in slideshow mode automatically.

To exit slideshow mode and return to the Main Menu, press the EXIT button on the back of the photo frame.

NOTE

To check the available space in Internal Memory, USB or Memory Card, select Internal Memory, USB or Memory Card and check the amount of free space shown on the bottom right corner.

In the Main Menu, you can:

z Press the LEFT or RIGHT button to select the Photo,

Music, Calendar, Wi-Fi or Settings menu.

z Press the UP/VOL

device, including Internal Memory, USB or Memory Card.

or DOWN/VOLЁ button to select a

Using the menus

3.2 Using the Photo menu

1. In the Main Menu, press the LEFT or RIGHT button to

select the Photo menu.

2. Press the UP/VOL

select a device.

3. Press the ENTER button to enter Photo Viewer, which

displays your photos in thumbnail view. In Photo Viewer, both photos and folders may display, depending on the content stored in your device.

or DOWN/VOLЁ button to

To browse or select a photo, use the UP/VOLЀ,

DOWN/VOL

, LEFT and RIGHT buttons.

To play photos in full screen single photo mode, press the ENTER button. Press the ENTER button again to start running slideshow.

To make photos play with background music in slideshow mode, go to the Settings menu to set Music slideshow to On. (This function is only available when you have music files in the internal memory or inserted memory card/USB flash drive.)

To switch to the previous or next photo in slideshow mode, press the LEFT or RIGHT button.

To control the slideshow music volume, press the

UP/VOL

or DOWN/VOLЁ button.

To rotate a photo, press the ROTATE button on your remote control.

To zoom in a photo, press the ZOOM button on your remote control.

Using the menus

3.2.1 Copying one or all photos

NOTE

z To copy photos from your memory card or USB to the

internal memory, please insert your memory card or USB flash drive first.

z Please use the supplied remote control for this operation.

1. In Photo Viewer, press the MENU button on the

remote control. Copy One, Copy All, Delete One and

Delete All options will appear on the screen.

3. Press the UP/VOL

select Yes, and then press the ENTER button.

4. Press the UP/VOL

select the destination (USB, Memory Card or Internal Memory), and then press the ENTER button to

confirm.

3.2.2 Deleting one or all photos

NOTE

Please use the supplied remote control for this operation.

or DOWN/VOLЁ button to

1. In Photo Viewer, press the MENU button on the

remote control. Copy One, Copy All, Delete One and

Delete All options will appear on the screen.

2. Press the LEFT or RIGHT button to select Delete One

or Delete All, and then press the ENTER button.

3. Press the UP/VOL

select Yes, and then press the ENTER button to confirm.

or DOWN/VOLЁ button to

2. Press the LEFT or RIGHT button to select Copy One

or Copy All, and then press the ENTER button.

Using the menus

3.2.3 Auto rotation

The photo frame has a built-in tilt sensor that allows the photo frame to determine its own orientation relative to gravity and thereby automatically switch from displaying photos in portrait view to displaying photos in landscape view.

Using the menus

3.3 Using the Music menu

3.3.1 Copying one or all music

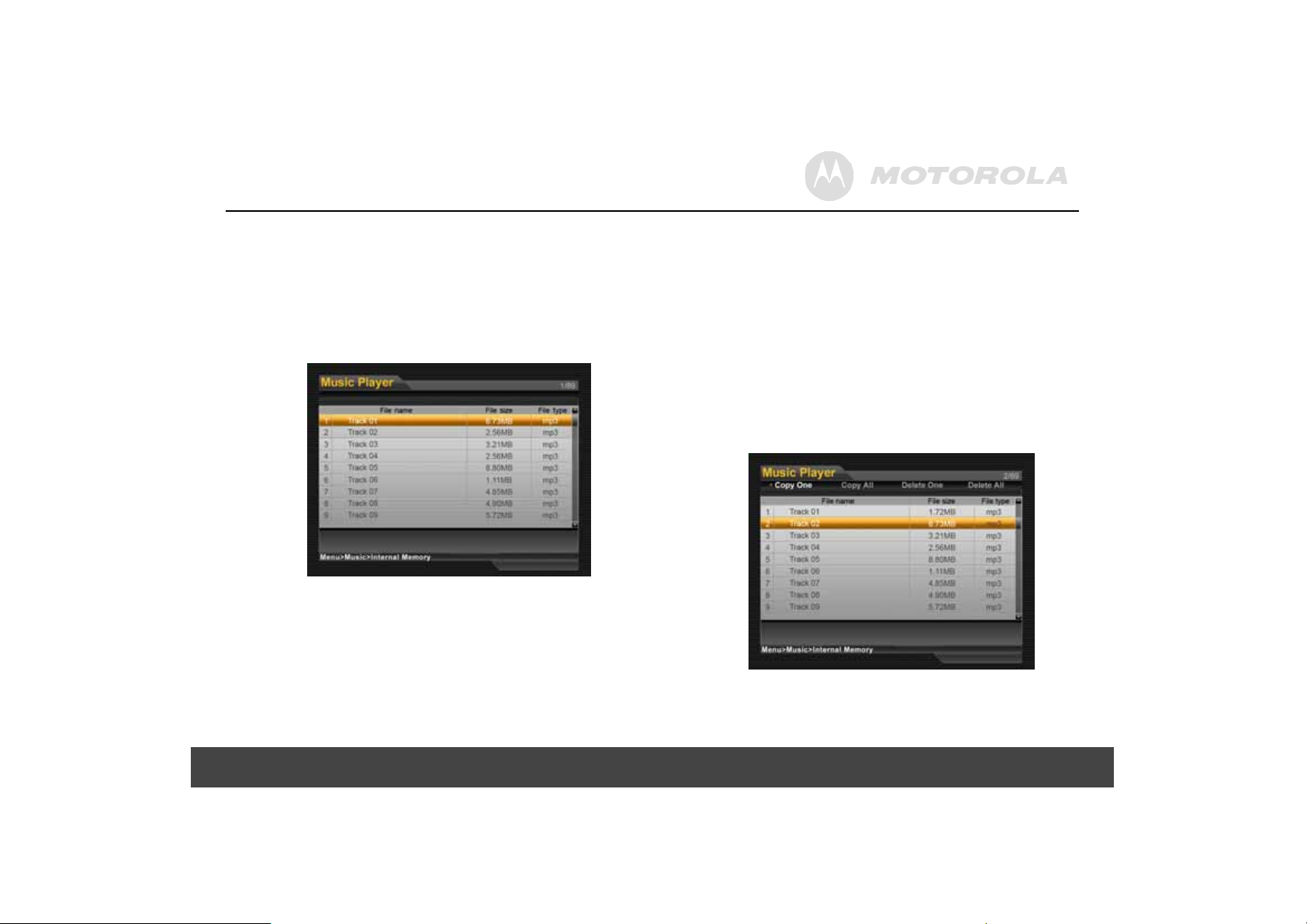

1. In the Main Menu, press the LEFT or RIGHT button to

select the Music menu.

2. Press the UP/VOL

select a device.

or DOWN/VOLЁ button to

3. Press the ENTER button to enter Music Player.

files

NOTE

z To copy music files from your memory card or USB to the

internal memory, please insert your memory card or USB flash drive first.

z Please use the supplied remote control for this operation.

1. In Music Player, press the MENU button on the

remote control. Copy One, Copy All, Delete One and

To select the previous track, press the UP/VOL or LEFT button.

To select the next track, press the DOWN/VOLЁ or RIGHT button.

To play the selected track, press the ENTER button.

During music playing, volume bar shows on top right

Using the menus

corner. To increase or decrease the volume, press the UP/VOL

or DOWN/VOLЁ button.

Delete All options will appear on the screen.

2. Press the LEFT or RIGHT button to select Copy One

or Copy All, and then press the ENTER button.

3. Press the UP/VOL

or DOWN/VOLЁ button to

select Yes, and then press the ENTER button.

4. Press the UP/VOL

select the destination (USB, Memory Card or Internal Memory), and then press the ENTER button to

confirm.

or DOWN/VOLЁ button to

3.3.2 Deleting one or all music files

NOTE

Please use the supplied remote control for this operation.

1. In Music Player, press the MENU button on the

remote control. Copy One, Copy All, Delete One and Delete All options will appear on the screen.

2. Press the LEFT or RIGHT button to select Delete One

or Delete All, and then press the ENTER button.

3. Press the UP/VOL

select Yes, and then press the ENTER button to confirm.

or DOWN/VOLЁ button to

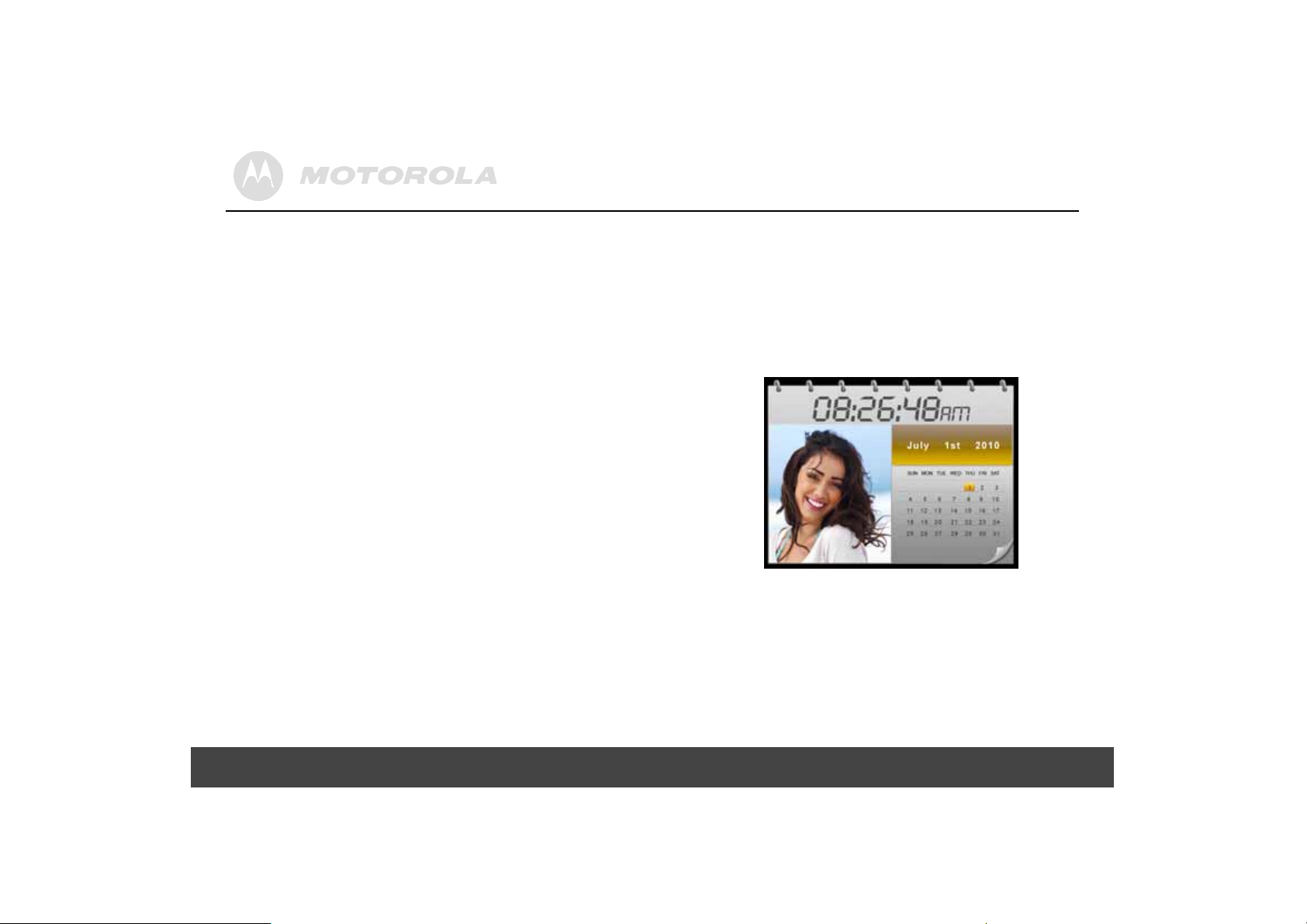

3.4 Using the Calendar menu

1. In the Main Menu, press the LEFT or RIGHT button to

select the Calendar menu.

2. Press the ENTER button to enter the Calendar

preview screen, and then press the ENTER button again to enter full screen mode in the Calendar menu. The slideshow automatically starts.

3. In full screen calendar mode, you can press the

ENTER button to display one specific still photo or

enter slideshow mode. To switch to next or previous photo, press the RIGHT or LEFT button.

NOTE

If you have set the alarm, an alarm icon will show on the Calendar screen. For details about alarm settings, refer to “3.6.1 Setting an alarm”.

Using the menus

3.5 Using the Wi-Fi menu

To enjoy the provided web services, such as Picasa, Flickr and Frame Channel from the photo frame, you need to sign up an account for the web service you want to use on the Internet. Then, follow the steps below to set up Wi-Fi connection and make required account configurations, so you can use the web services in Wi-Fi List.

3.5.1 Step 1: Setting up Wi-Fi connection

1. In the Main Menu, press the LEFT or RIGHT button to

select the Wi-Fi menu, and then press the ENTER button.

2. Press the RIGHT and then the ENTER button to enter

Wi-Fi Setup to search for an access point (AP) or use

a static IP address.

If you are using automatic IP network:

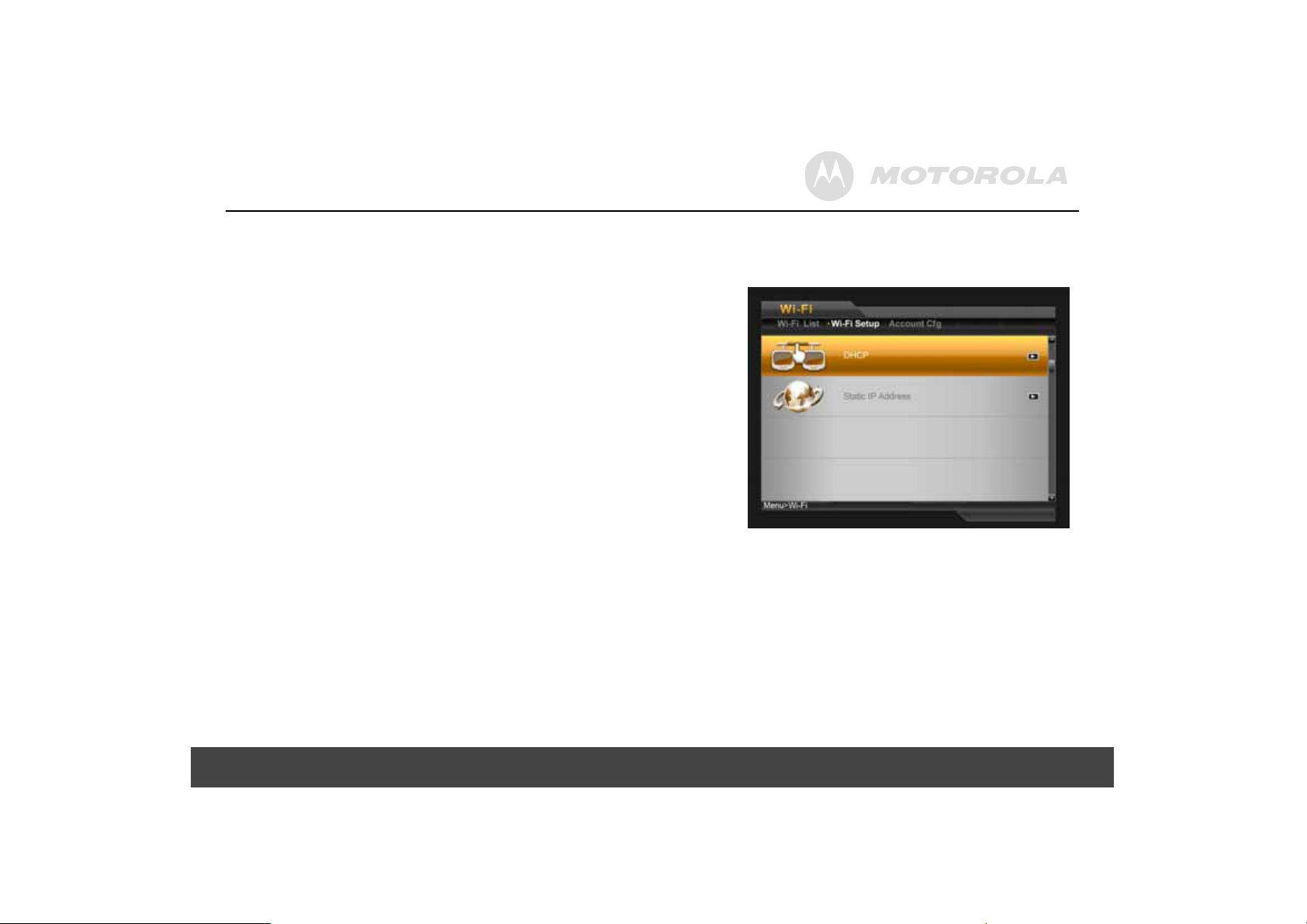

a. Choose DHCP for automatic connection in the

Wi-Fi Setup menu.

Using the menus

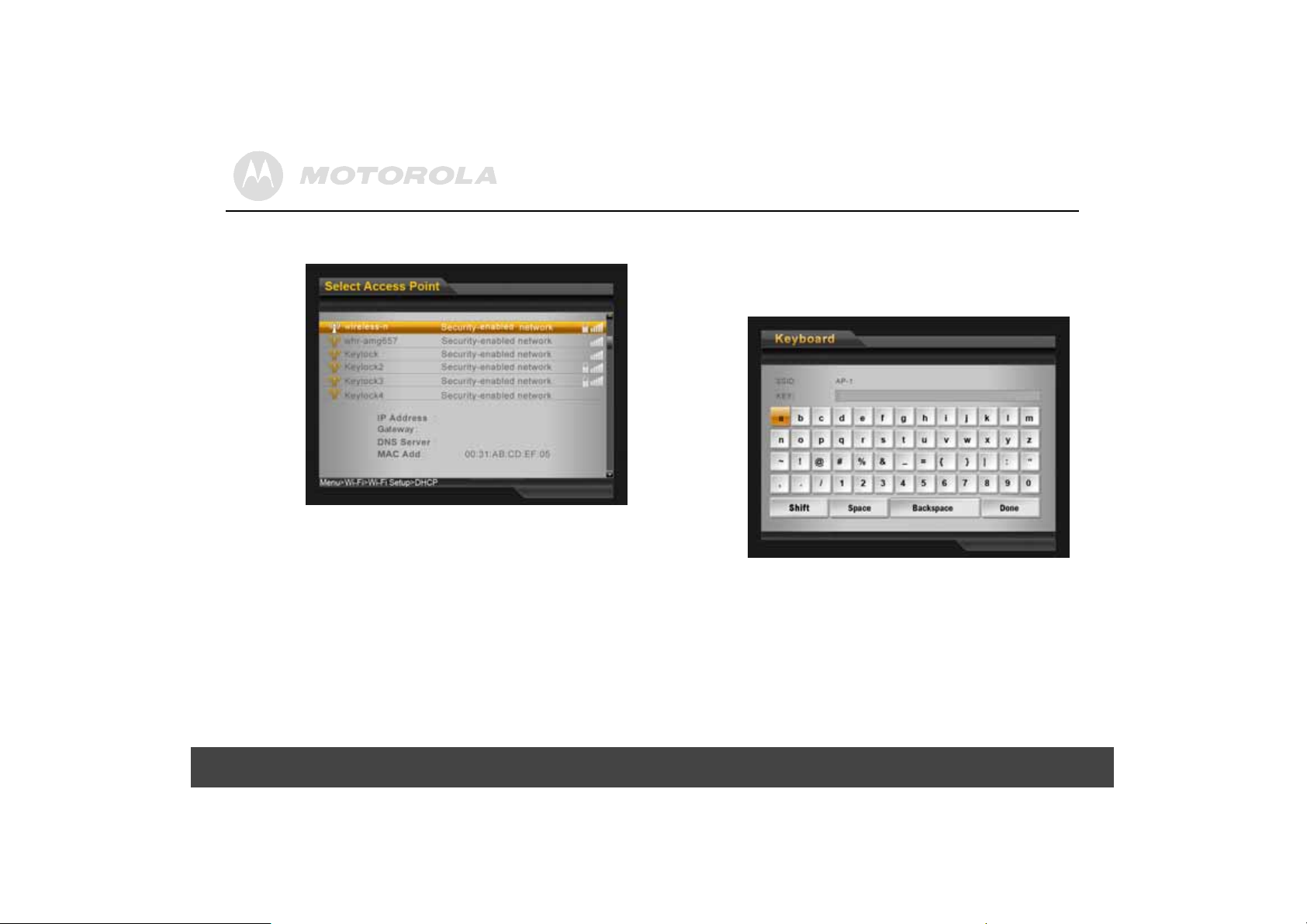

b. The Select Access Point screen appears and

shows access points that are available nearby.

d. To connect to a security-enabled access point,

you will be prompted to enter the password in the Keyboard screen that appears. (If you want to connect to a security-disabled network, skip Step d and e.)

c. Use the UP/VOL

select an access point, and then press the ENTER button.

or DOWN/VOLЁ button to

e. Enter the password. When finished, select Done,

and then press the ENTER button.

For details about how to use the keyboard, see the tips below.

TIPS

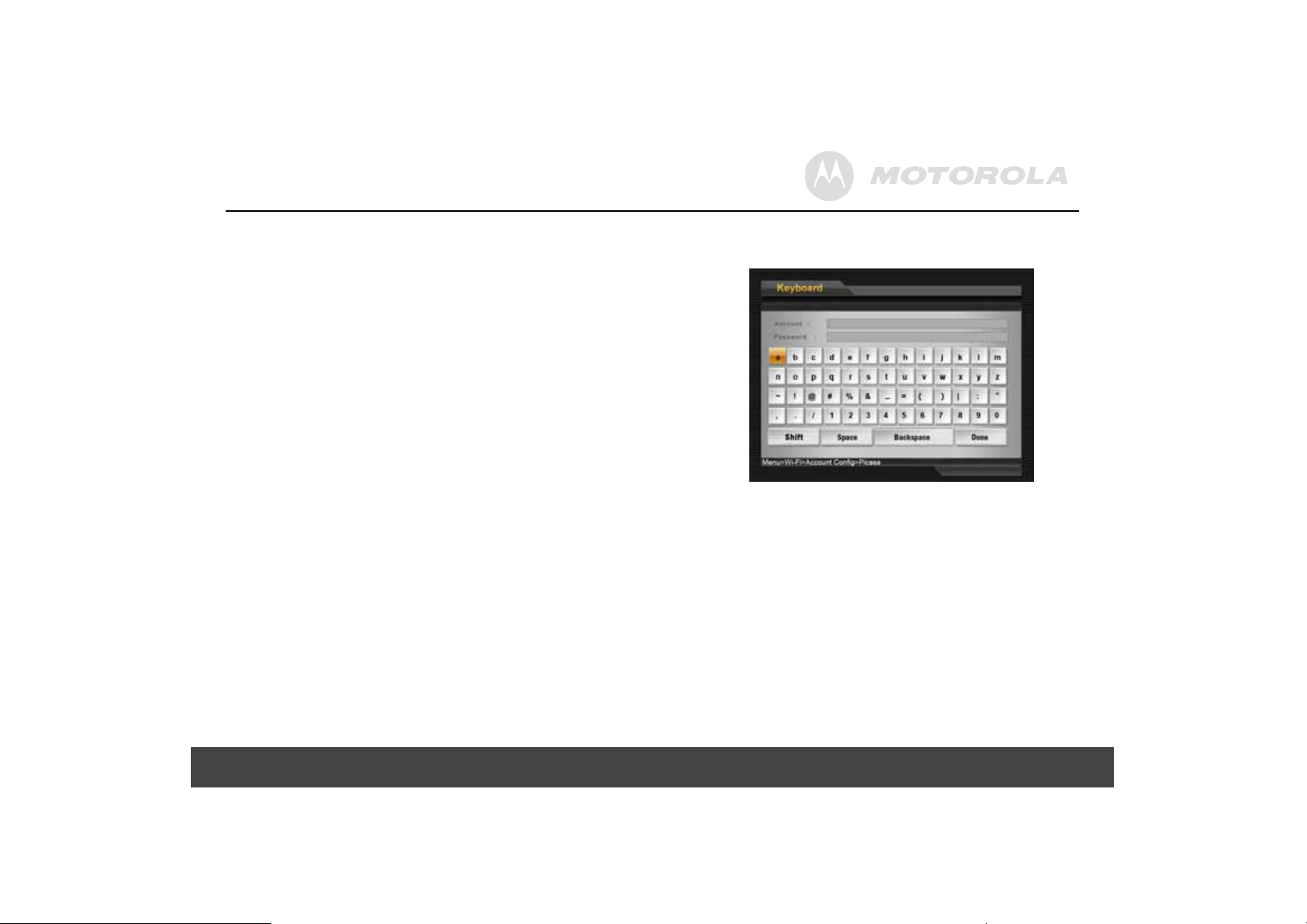

How to use the keyboard:

z To select a value, press the UP/VOL

DOWN/VOL

z To enter a value, press the ENTER button.

, LEFT and RIGHT buttons.

Using the menus

z To switch between uppercase and lowercase

letters or switch to other symbols, use the control buttons to select Shift, and then press the ENTER button.

z To cancel your last input, use the control

buttons to select Backspace, and then press the ENTER button.

z To enter a space, use the control buttons to

select Space, and then press the ENTER button.

z To go to the next field or move among fields,

use the control buttons to select Done, and then press the ENTER button.

f. Once the connection is established, the “Your

connection was successful” message appears,

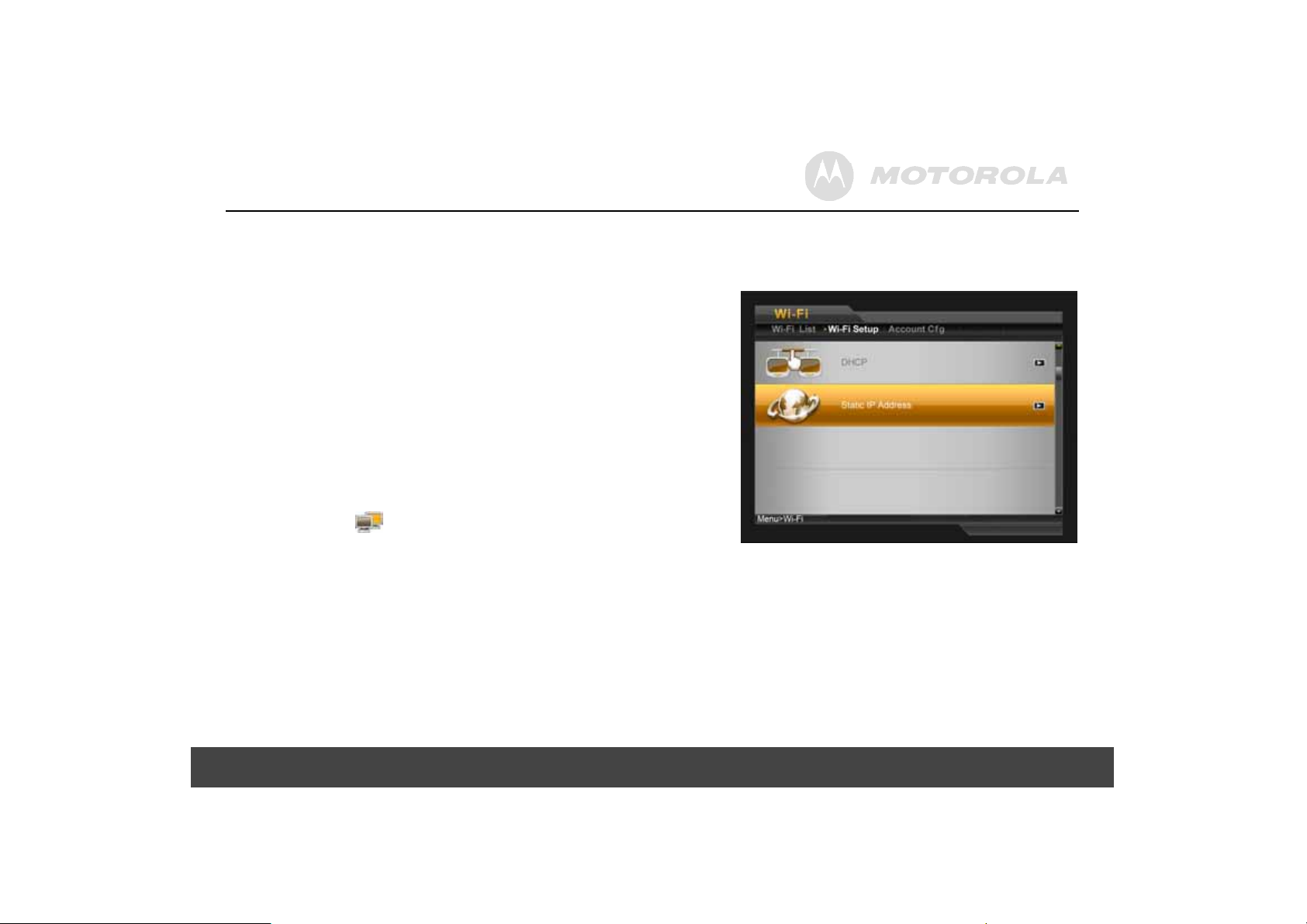

If you are using static IP connection:

a. Choose Static IP Address in the Wi-Fi Setup

menu.

and the

Press the EXIT button to return to the Wi-Fi

menu.

Using the menus

icon appears on the top right corner.

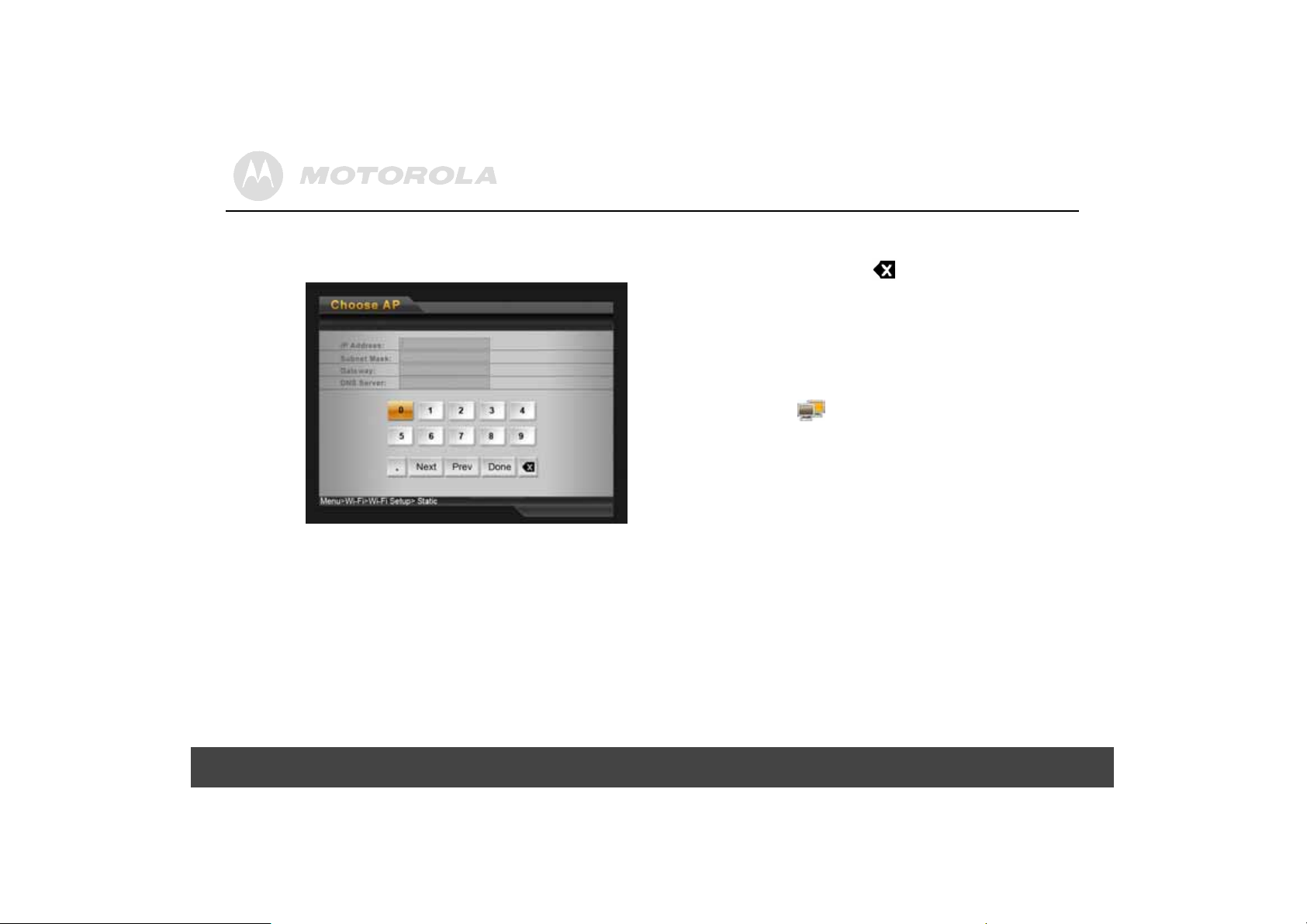

b. The Choose AP screen appears. Use the

keyboard to enter your IP address, subnet mask, gateway and DNS server.

then press the ENTER button.

z To cancel your last input, use the control

buttons to select

, and then press the

ENTER button.

c. When finished, select Done, and then press the

ENTER button.

d. Once the connection is established, the “Your

connection was successful” message appears,

For details about how to use the keyboard, see the tips below.

TIPS

How to use the keyboard:

z To select a value, press the UP/VOL

DOWN/VOL

z To move the cursor, use the control buttons to

select Next or Prev, and then press the ENTER button.

z To go to the next field or move among fields,

use the control buttons to select Done, and

, LEFT and RIGHT buttons.

and the

icon appears on the top right corner.

Press the EXIT button to return to the Wi-Fi

menu.

Using the menus

3.5.2 Step 2: Configuring your accounts

3.5.2.1 Configuring your Picasa account

NOTE

Before making the following configurations, you need to sign up for a Picasa account on the Internet first.

1. Press the LEFT or RIGHT button to select Account

Cfg from the Wi-Fi menu, and then press the ENTER

button.

2. Press the ENTER button to select Picasa.

3. In the Keyboard screen that appears, enter your

account in the Account field.

4. Use the control buttons to select Done, and then press

the ENTER button to move to the next field.

5. Continue to enter your password in the Password

field.

6. Use the control buttons to select Done, and then press

the ENTER button to complete.

7. Now you will be able to use Picasa in the Wi-Fi List.

Using the menus

3.5.2.2 Configuring your Flickr account

3.5.2.3 Configuring your Frame

NOTE

Before making the following configurations, you need to sign up for a Flickr account on the Internet first.

1. Press the LEFT or RIGHT button to select Account

Cfg from the Wi-Fi menu, and then press the ENTER

button.

2. Press the DOWN/VOL

then press the ENTER button.

3. In the Keyboard screen that appears, enter your Flickr

account (full email address) in the Email Adr: field.

4. When finished, use the control buttons to select Done,

and then press the ENTER button to complete.

5. Now you will be able to use Flickr in the Wi-Fi List.

button to move to Flickr, and

Channel account

NOTE

Before making the following configurations, you need to sign up for a Frame Channel account on the Internet first.

1. Press the LEFT or RIGHT button to select Account

Cfg from the Wi-Fi menu, and then press the ENTER

button.

2. Press the DOWN/VOL

Channel, and then press the ENTER button.

3. In the Keyboard screen that appears, enter your

account in the Account field.

button to move to Frame

Using the menus

4. Use the control buttons to select Done, and then press

the ENTER button to move to the next field.

5. Continue to enter the 4-digit PIN code you set for your

Frame Channel account in the PIN field.

NOTE

A 4-digit PIN code is different from a Frame Channel password. The PIN code is a unique identifier that Frame Channel uses to create your Frame Channel slideshow and send it to your photo frame. The Password is what you use to log into the www.framechannel.com web site.

6. Use the control buttons to select Done, and then press

the ENTER button to complete.

7. Now you will be able to use Frame Channel in the

Wi-Fi List.

3.5.2.4 Configuring RSS

RSS (Really Simple Syndication) is a method used to publish frequently updated web site content, such as news headlines, blog entries or podcasts. An RSS document (called a “feed”) contains a summary of content from an associated web site or the full text. When you subscribe to an RSS feed, you will receive an update once the publisher releases new content. You can view RSS feeds that you have subscribed to with the provided RSS Feed Viewer in the Wi-Fi List.

1. Press the LEFT or RIGHT button to select Account

Cfg from the Wi-Fi menu, and then press the ENTER

button.

2. Press the DOWN/VOL

then press the ENTER button.

button to move to RSS, and

Using the menus

3. The Keyboard screen appears and shows the web

address of the default RSS channel. You can clear the web address by using the Backspace key, and then enter the web address of another RSS channel you want to subscribe to.

4. Use the control buttons to select Done, and then press

the ENTER button to complete.

3.5.2.5 Configuring your email account

1. Press the LEFT or RIGHT button to select Account

Cfg from the Wi-Fi menu, and then press the ENTER

button.

2. Press the DOWN/VOL

Config, and then press the ENTER button.

button to move to Mail

3. In the Mail Config screen that appears, use the

keyboard to enter your POP server, POP port, SSL, SMTP server, SMTP port, email account and password in the fields.

4. Use the control buttons to select Done, and then press

the ENTER button to complete.

For examples about email server settings, refer to the table below.

Free

provider

Gmail pop.gmail.com 995 1 smtp.gmail.com 465

Yahoo pop.mail.yahoo.com 110 0 smtp.mail.yahoo.com 25

POP server POP

port

SSL SMTP server SMTP

port

Using the menus

3.5.3 Step 3: Using web services

3.5.3.1 Using Picasa

1. Press the LEFT or RIGHT button to select Wi-Fi List

from the Wi-Fi menu, and then press the ENTER button.

2. Press the ENTER button to enter Picasa. The screen

will display web albums that you have created on your Picasa account.

3. Press the UP/VOL

RIGHT buttons to select an album if you have multiple

ones.

4. Press the ENTER button to enter the selected album.

z To play photos in full screen single photo mode,

press the ENTER button.

z To start running slideshow, press the ENTER

button again.

5. To quit, press the EXIT button.

NOTE

To copy a photo, select the photo in thumbnail mode and press the MENU button on the remote control. When the Copy One option appears, press the ENTER button to select YES, use the UP/VOL select the destination (Internal Memory, USB or Memory Card), and then press the ENTER button to proceed.

, DOWN/VOLЁ, LEFT and

or DOWN/VOLЁ button to

3.5.3.2 Using Flickr

1. Press the LEFT or RIGHT button to select Wi-Fi List

from the Wi-Fi menu, and then press the ENTER button.

2. Press the DOWN/VOL

then press the ENTER button. The screen will display public web albums that you have created on your Flickr account.

3. Press the UP/VOL

RIGHT buttons to select an album if you have multiple

ones.

4. Press the ENTER button to enter the selected album.

z To play photos in full screen single photo mode,

press the ENTER button.

z To start running slideshow, press the ENTER

button again.

5. To quit, press the EXIT button.

NOTE

button to select Flickr, and

, DOWN/VOLЁ, LEFT and

or DOWN/VOLЁ button to

Using the menus

3.5.3.3 Using Frame Channel

1. Press the LEFT or RIGHT button to select Wi-Fi List

from the Wi-Fi menu, and then press the ENTER button.

2. Press the DOWN/VOL

Channel, and then press the ENTER button. The

screen will display web photos that you have uploaded on your Frame Channel account.

z To play photos in full screen single photo mode,

press the ENTER button.

z To start running slideshow, press the ENTER

button again.

3. To quit, press the EXIT button.

NOTE

button to select Frame

or DOWN/VOLЁ button to

3.5.3.4 Using RSS

1. Press the LEFT or RIGHT button to select Wi-Fi List

from the Wi-Fi menu, and then press the ENTER button.

2. Press the DOWN/VOL

then press the ENTER button. The screen will display the most recently updated RSS feeds.

3. Press the UP/VOL

select a RSS feed.

4. Press the ENTER button to view the selected RSS

feed.

5. To quit, press the EXIT button.

button to select RSS, and

or DOWN/VOLЁ button to

Using the menus

3.5.3.5 Using WEB Radio

NOTE

Please use the supplied remote control for this operation.

1. Press the LEFT or RIGHT button to select Wi-Fi List

from the Wi-Fi menu, and then press the ENTER button.

2. Press the DOWN/VOL

and then press the ENTER button.

3. Press the UP/VOL

select the category of radio channels you want to listen to, and then press the ENTER button.

4. Press the UP/VOL

select a radio program you want to listen to, and then press the ENTER button.

button to select WEB Radio,

or DOWN/VOLЁ button to

5. In the list that appears, press the UP/VOL

DOWN/VOL

To play the selected program entry, press the ENTER button to proceed with streaming. To stop the playback, press the ENTER button again.

When the program entry plays, you can press the

UP/VOL

volume.

button to select a program entry.

or DOWN/VOLЁ button to adjust the

6. To quit, press the EXIT button.

To add the selected program entry to the Favorites list, press the MENU button on the remote control. When Add to favorites appears, the selected program entry has been added to the Favorites list.

Using the menus

7. If you have added radio program entries to the

Favorites list, the WEB Radio screen will show Favorites, Search and Delete One options when you access WEB Radio next time.

Search: In this option, you can press the UP/VOL DOWN/VOL

button to search for all radio

programs that are available for playback.

Delete One: In this option, you can press the UP/VOL

DOWN/VOL

entry to be removed from the Favorites list, and then press the ENTER button to delete it.

button to select the radio program

Favorites: In this option, you can press the UP/VOL

DOWN/VOL

button to select a program entry,

and then press the ENTER button to start streaming and playback.

NOTE

To play another program entry in the Favorites list, you need to stop the current program playback first by pressing the ENTER button. Use UP/VOL

or DOWN/VOL

button to select another program entry, and then press the ENTER button to start streaming and playback.

Using the menus

3.5.3.6 Using Email

1. Press the LEFT or RIGHT button to select Wi-Fi List

from the Wi-Fi menu, and then press the ENTER button.

2. Press the DOWN/VOL

then press the ENTER button.

3.5.3.6.1 Adding your contacts to the Welcome list

To prevent from receiving junk mail, the photo frame only receives photo emails from the contacts that have been added to the Welcome list. Therefore, you need to add your contacts to the Welcome list, before you can receive photo emails from them.

1. In Email, press the LEFT or RIGHT button to select

Welcome list, and then press the ENTER button.

2. Select Add and then press the ENTER button.

3. In the Add screen that appears, enter the name and

email address of the contact to be added.

4. When finished, use the control buttons to select Done,

and then press the ENTER button to complete.

5. Once you have added your contacts to the Welcome

list, you will be able to receive photo emails from these

contacts.

button to select Email, and

3.5.3.6.2 Receiving photo emails

1. Press the button on the remote control to access

Email in Wi-Fi List.

The “Checking email” message appears and the photo frame starts checking for new photo emails.

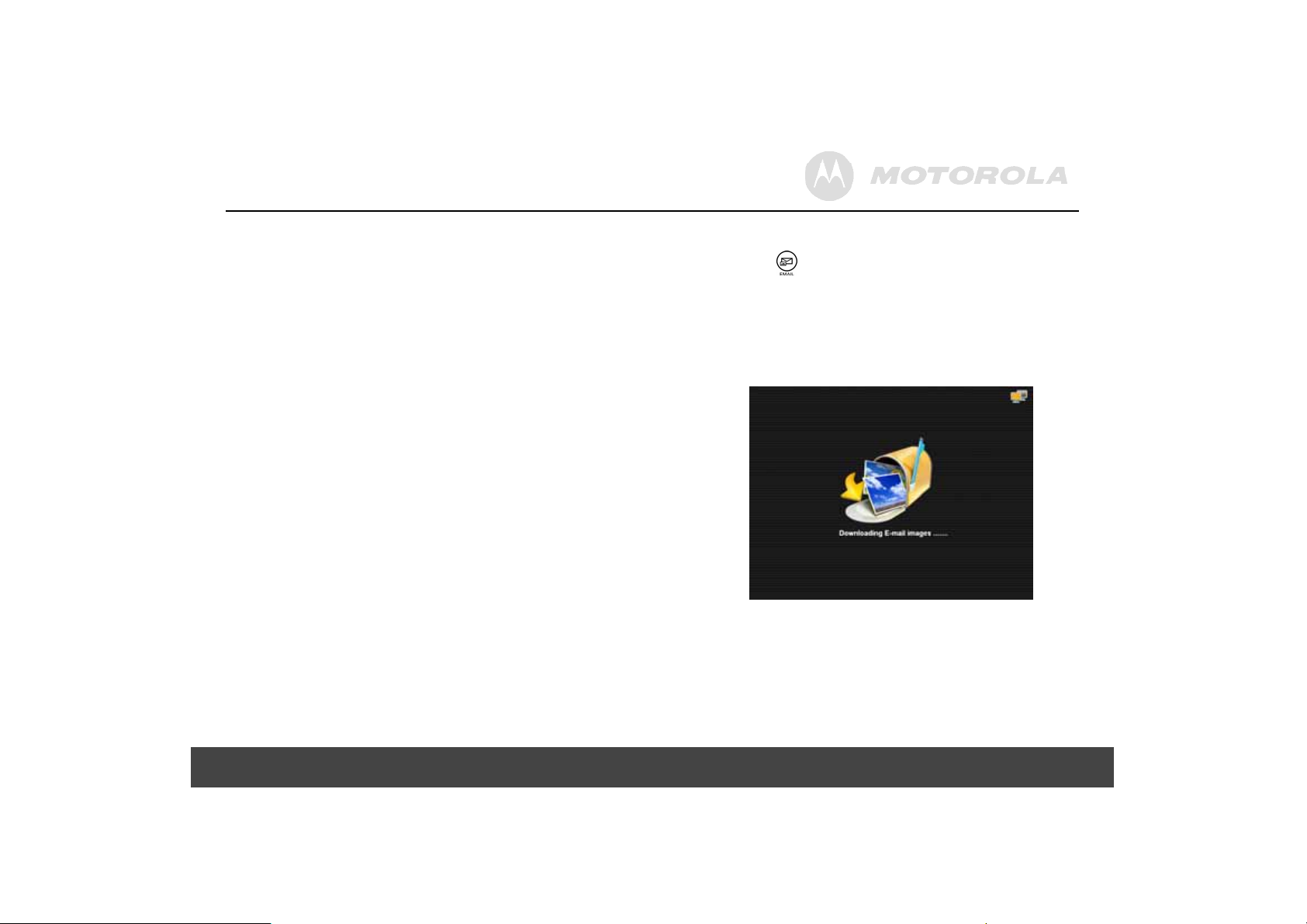

2. If you have received a new photo email, the

“Downloading E-mail images …….” message appears.

Using the menus

3. Then, the following screen appears, asking whether

you want to play photo(s) received in this email in slideshow mode.

3.5.3.6.3 Viewing received photo emails on inbox

1. In Email, press the LEFT or RIGHT button to select

Inbox, and then press the ENTER button.

2. You can press the UP/VOL

button to browse photo emails received from different contacts, and then press the ENTER button to view photo emails received from the selected contact.

or DOWN/VOL

4. The photos received from the email will be downloaded

to your internal memory automatically. You can also check them in Photo Viewer in the Photo menu.

3. To quit, press the EXIT button.

NOTE

Inbox only receives the emails that contain photos in your email box.

Using the menus

3.5.3.6.4 Sending a photo by email

NOTE

Please use the supplied remote control for this operation.

1. In Email, press the LEFT or RIGHT button to select

Send Mail, and then press the ENTER button.

2. Select the source of the photo you want to send

(Internal Memory, USB or Memory Card), and then press the ENTER button.

3. Press the UP/VOL

RIGHT buttons to select a photo you want to send.

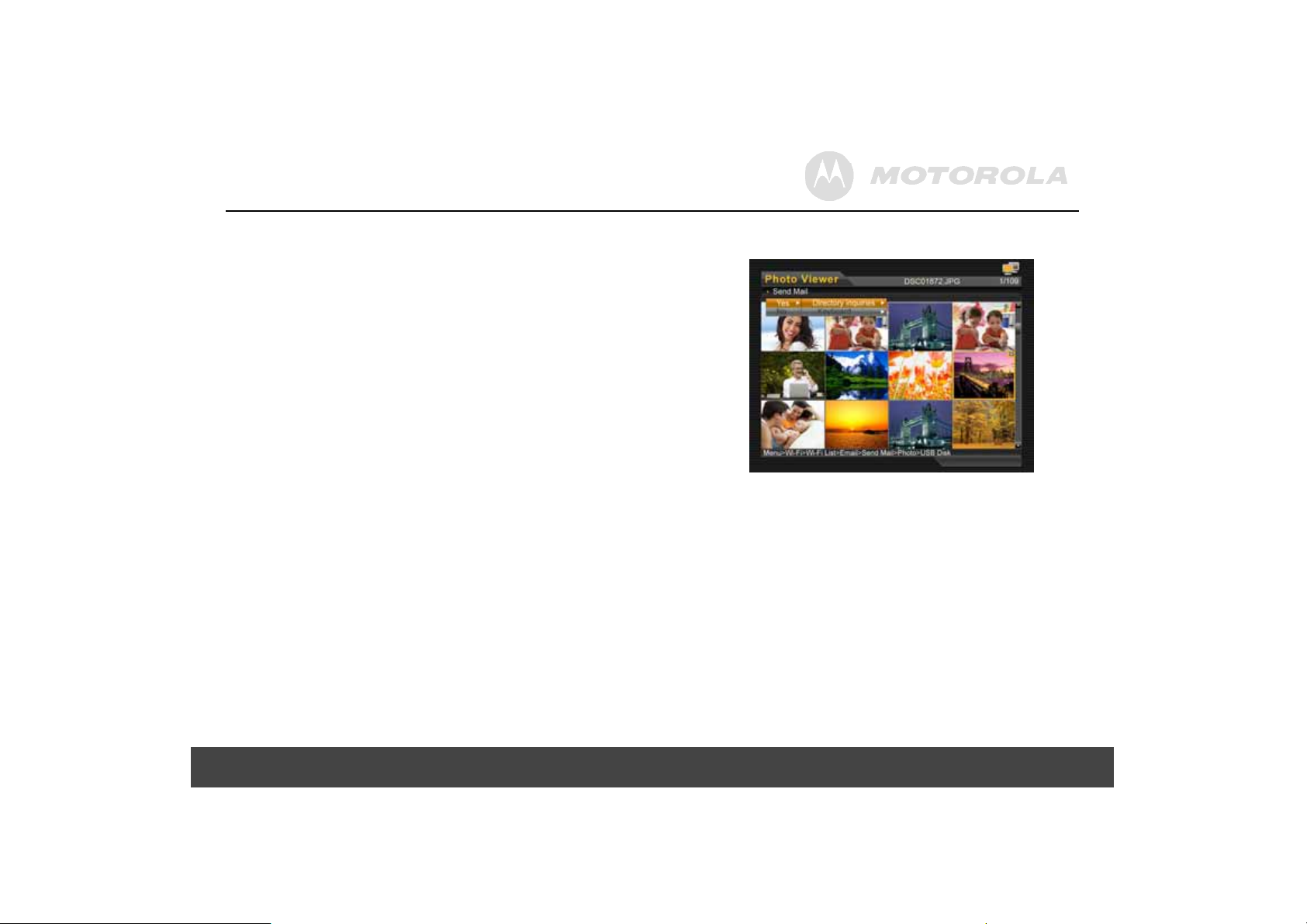

4. Press the MENU button on the remote control.

5. When the Send Mail option appears, press the

ENTER button.

, DOWN/VOLЁ, LEFT and

6. Select Yes and then press the ENTER button to

continue.

To look for history of email addresses sent before, select Directory inquiries, use the UP/VOL or DOWN/VOLЁ button to select an email address, and then press the ENTER button. To enter the email address directly, select

Keyboard, and then press the ENTER button.

7. Once you have entered an email address, press the

ENTER button to proceed. The “Sending photo mail…”

message appears.

8. When the photo has been sent successfully, the “Send

success” message appears.

Using the menus

NOTE

If the photo is not sent successfully, the “Send fail” message appears on the screen. Please verify the email address you entered.

3.5.3.6.5 Editing or deleting the contacts in the Welcome list

1. In Email, press the LEFT or RIGHT button to select

Welcome list, and then press the ENTER button.

Deleting a contact:

a. Press the LEFT or RIGHT button to select Delete. b. Press the UP/VOL

select the contact you want to remove from the list.

c. Press the ENTER button to delete the selected

contact.

Editing a contact:

a. Press the LEFT or RIGHT button to select Edit. b. Press the UP/VOL

select the contact you want to edit.

c. Use the keyboard to edit the selected contact. d. Use the control buttons to select Done, and then

press the ENTER button to complete.

2. To quit, press the EXIT button.

or DOWN/VOLЁ button to

Using the menus

3.6 Using the Settings menu

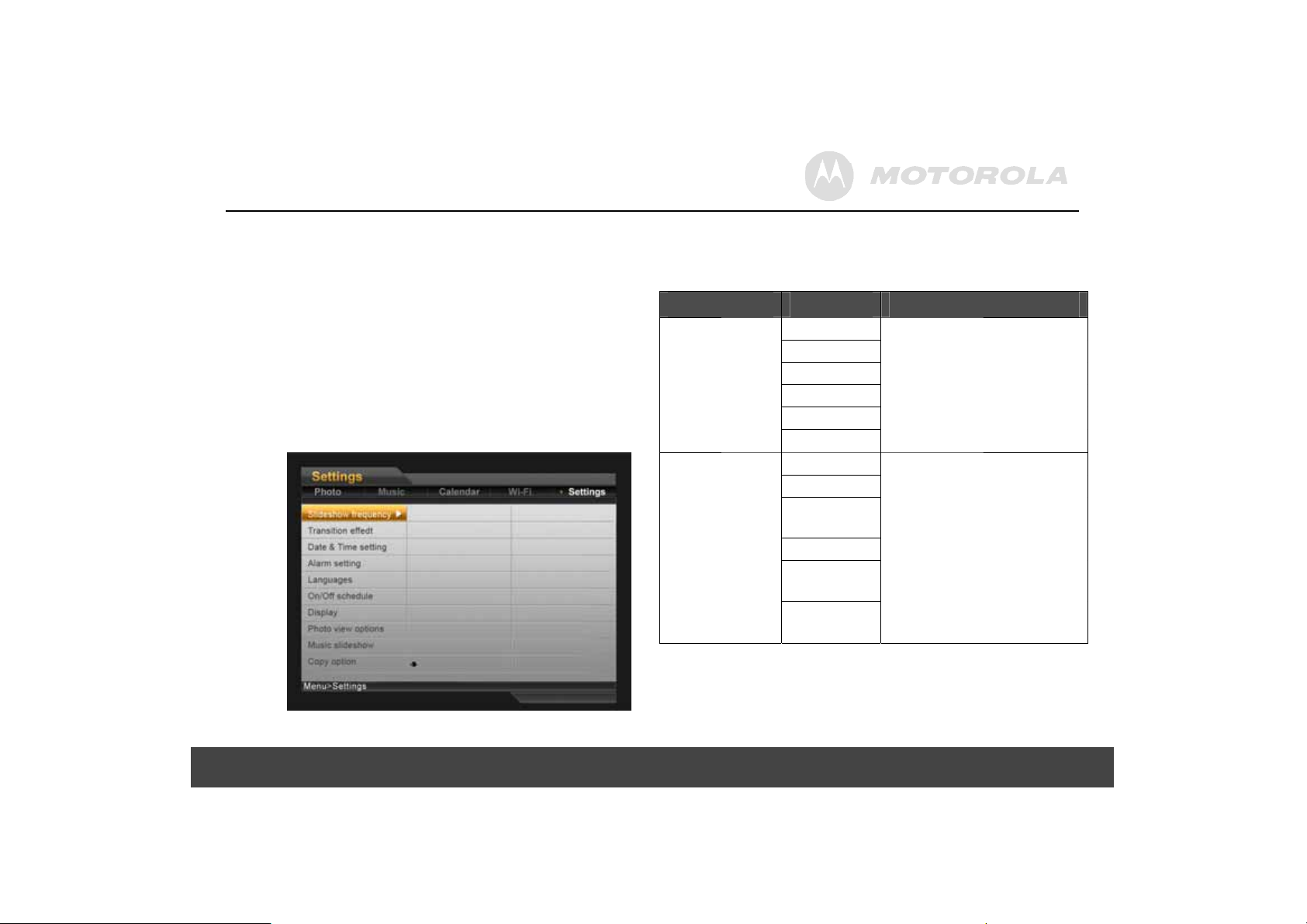

1. In the Main Menu, press the LEFT or RIGHT button to

You can control all function settings of the photo frame from the Settings menu. Refer to the table below for more information.

select the Settings menu.

2. Press the ENTER button to enter the Settings menu.

To move among sub-menus under Settings, press the UP/VOL

To apply the settings you have selected, press the ENTER button.

To go back to the previous page, press the EXIT button.

or DOWN/VOLЁ button.

Sub-menu Option Description/Function

Slideshow frequency

5 seconds

10 seconds

Selects the speed of slideshow.

30 seconds 1 minute

1 hour

1 day

Transition effect

No effect

Random

Selects the transition effect to be applied in slideshow.

Fade out Fade in

Left to Right

Horizontal open

Horizontal close

Using the menus

Sub-menu Option Description/Function

Date & Time setting

Alarm setting

Ye ar Month

Day

Hour

Minute

Time Format

Alarm on/off

Alarm hour Sets the alarm hour.

Alarm minute

Volume Sets the alarm volume

Tone Selects the type of alarm

Day Allows you to set the alarm

Allows you to set up the date and time.

Activates/deactivates the alarm clock function.

Sets the alarm minute.

level.

tones: Beep or MP3.

recurring everyday or on weekdays.

Languages

English

French

German

Italian Spanish

Portuguese

Dutch Russian

Swedish

Danish

Finnish

Norwegian

Polish Hungarian

Hebrew

Turkish

Greek

Selects an OSD (On-screen display) language.

Using the menus

Sub-menu Option Description/Function

On/Off schedule

Photo view options

Music slideshow

Auto On/Off Enables/disables the Auto

power on/power off options.

Auto on hour

Auto on minute

Auto off hour

Auto off minute

Brightness Sets the level of brightness.Display

Contrast Sets the level of contrast. Original Displays photos in their

Fit to screen

On Turns on background music

Off Turns off background music

Powers on the photo frame automatically according to the time length you set.

Powers off the photo frame automatically according to the time length you set.

original aspect ratio. Optimizes photos to fit the

whole screen.

in slideshow mode.

Copy option

settings

memory

Original size

Reduce size

EXIT Cancels the task. Default

OK Resets to system default

EXIT Cancels the task. Clear internal

OK Formats the internal

Use the original file size when copying photos or music.

Use the reduced file size when copying photos or music.

settings.

memory.

WAR N ING:

This option will delete all the photo and music files stored on the internal memory.

Using the menus

3.6.1 Setting an alarm

1. In the Main Menu, press the LEFT or RIGHT button to

select the Settings menu.

2. Press the ENTER button to enter the Settings menu.

3. Press the DOWN/VOL

setting, and then press the ENTER button.

4. Press the LEFT or RIGHT button to set the alarm to

On.

5. Continue to adjust the alarm hour, minute, volume,

tone and Day.

In the Day option, you can select Everyday or Weekday. When Everyday is selected, alarm repeats everyday, including Saturday and Sunday. When Weekday is selected, alarm repeats from Monday to Friday.

NOTE

z When the alarm goes on, you can press the EXIT button

to stop the alarm or press the ENTER (OK/PLAY/PAUSE) button to activate the snooze function.

z If you choose MP3 in the Tone option, music stored in the

built-in memory will be used as the alarm tone.

z If no music file is available in the memory, Beep tone will

be used as the alarm tone.

button to select Alarm

Using the menus

3.6.2 Enabling auto on/off

The photo frame comes with the Programmable On/Off Time feature, making it possible to power on and off automatically according to the time you set.

1. In the Main Menu, press the LEFT or RIGHT button to

select the Settings menu.

2. Press the ENTER button to enter the Settings menu.

3. Press the DOWN/VOL

schedule, and then press the ENTER button.

4. Press the LEFT or RIGHT button to select On.

5. Continue to set the Auto on/off time.

z To move among entries, press the UP/VOL

DOWN/VOL

z To adjust the time, press the LEFT or RIGHT button.

button.

NOTE

When the photo frame has been powered off automatically, you can press any control buttons or any buttons on the remote control to resume the system at any time. Once it reaches the scheduled Off time, the photo frame will power off automatically still.

button to select On/Off

Using the menus

4. General information

•

If your product is not working properly...

Consumer Products and Accessories purchased in the United States, Canada, UK and Singapore.

1. Read this User’s Guide or the Quick Start Guide.

2. Visit our website:

www.motorola.com

3. Contact Customer Service:

1-888-331-3383 in US and Canada

0845 218 0890 in UK

(65) 68412668 in Singapore

What Does this Warranty Cover?

Subject to the exclusions and limitations contained below, Binatone Electronics International LTD. warrants the Motorola branded consumer products that it manufactures (“Products”) and the Motorola branded or certified accessories sold for use with these Products that it manufactures (“Accessories”) to be free from defects in materials and workmanship under normal consumer usage for the period(s) outlined below. This limited warranty is a consumer’s exclusive remedy, and only applies as follows to new Motorola branded Products and Accessories manufactured by Binatone Electronics International LTD., and purchased by consumers in the United States or Canada, which are accompanied by this written warranty:

Who is covered?

This warranty covers only the first consumer purchaser, and is not transferable.

General information

What will BINATONE ELECTRONICS INTERNATIONAL LTD. do?

BINATONE ELECTRONICS INTERNATIONAL LTD., at its sole option, will at no charge repair, replace or refund the purchase price of any Products or Accessories that does not conform to this warranty. Binatone Electronics International LTD. may use functionally equivalent reconditioned/ refurbished/ pre-owned or new Products, Accessories or parts in such repair or replacement and any Products, Accessories or parts removed or being replaced under this warranty become the property of Binatone Electronics International LTD.

What Other Limitations Are There?

ANY IMPLIED WARRANTIES OR CONDITIONS IRRESPECTIVE OF WHETHER THEY ARE IMPOSED BY LAW OR OTHERWISE, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL WARRANTIES AND MOTOROLA AND BINATONE ELECTRONICS INTERNATIONAL LTD. MAKES NO OTHER WARRANTIES OR CONDITIONS, EXPRESS OF IMPLIED. IN NO EVENT SHALL MOTOROLA OR BINATONE ELECTRONICS

INTERNATIONAL LTD. BE LIABLE, WHETHER UNDER THIS LIMITED WARRANTY OR IN CONTRACT OR TORT (INCLUDING NEGLIGENCE OR STRICT PRODUCT LIABILITY) OR OTHERWISE FOR DAMAGES OR CLAIMS IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT OR ACCESSORY, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE, SAVINGS OR PROFITS, LOSS OF BUSINESS, LOSS OF PROGRAMS DATA INFORMATION (WHETHER CONFIDENTIAL PROPRIETARY OR PERSONAL IN NATURE OR OTHERWISE) OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS OR ACCESSORIES AND BINATONE ELECTRONICS INTERNATIONAL LTD. SHALL UNDER NO CIRCUMSTANCES BE LIABLE FOR ANY CLAIMS OR DEMANDS MADE BY ANY THIRD PARTY OR MADE BY YOU ON BEHALF OF ANY THIRD PARTY TO THE FULL EXTENT THESE DAMAGES OR CLAIMS MAY BE DISCLAIMED BY LAW.

Some states, countries or jurisdictions do not allow the limitation or exclusion of incidental or consequential damages, or limitation on the length of an implied warranty, so the above limitations or exclusions may not apply to you in such states, countries or jurisdictions. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or from one country/jurisdiction to another.

General information

Products or Accessories Covered

Consumer Products One (1) year from the date

Consumer Accessories Ninety (90) days from the

Consumer Products and Accessories that are Repaired or Replaced

Exclusions

Normal Wear and Tear. Periodic maintenance, repair and

replacement of parts due to normal wear and tear are excluded from coverage.

Length of Coverage

of purchase by the first consumer purchaser of the product.

date of purchase by the first consumer purchaser of the accessory.

The balance of the original warranty or for ninety (90) days from the

date returned to the consumer, whichever is longer.

Abuse & Misuse. Defects or damage that result from: (a) improper or unreasonable use, operation, storage, misuse or abuse, accident or neglect or other external cause, such as physical damage (cracks, scratches, etc.) to the surface of the product resulting from misuse; (b) your failure to follow or operation outside the usage parameters stated in the user instructions that came with the Products or Accessories; (c) contact with liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the like, extreme heat, or food; (d) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (e) other acts or omissions which are not the fault or neglect of Motorola or Binatone Electronics International LTD., are excluded from coverage.

Use of Non-Motorola branded Products and Accessories. Defects or damage that result from the use of

Non-Motorola branded or certified Products or Accessories or other peripheral equipment are excluded from coverage.

Unauthorized Service or Modification. Defects or damages resulting from service, testing, adjustment, installation, maintenance, alteration, or modification in any way by someone other than Motorola, Binatone Electronics International LTD. or its authorized service centers, are excluded from coverage.

General information

Altered Products. Products or Accessories with (a) serial numbers or date tags that have been removed, altered or obliterated; (b) broken seals or that show evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming or non-Motorola branded housings, or parts, are excluded from coverage.

Communication Services. Defects, damages, or the failure of Products or Accessories due to any communication service or signal you may subscribe to or use with the Products or Accessories is excluded from coverage.

How to Obtain Warranty Service or Other Information?

To obtain service or information, please call: 1-888-331-3383 in US and Canada 0845 218 0890 in UK (65) 68412668 in Singapore

You will receive instructions on how to ship the Products or Accessories, the shipment of which shall be at your own risk and expense, to a BINATONE ELECTRONICS INTERNATIONAL LTD. Authorized Repair Center. To obtain service, you must include: (a) a copy of your receipt, bill of sale or other comparable proof of purchase of the Products or Accessories showing the date of purchase; (b) a written description of the problem; and, most importantly; (c) your address and telephone number.

These terms and conditions constitute the complete warranty agreement between you and BINATONE ELECTRONICS INTERNATIONAL LTD. regarding the Products or Accessories purchased by you, and supersede any prior agreement or representations, including representations made in any literature publications or promotional materials issued by BINATONE ELECTRONICS INTERNATIONAL LTD. or representations made by any agent employee or staff of BINATONE ELECTRONICS INTERNATIONAL LTD., that may have been made in connection with the said purchase.

General information

Compliance Information

Declaration of Conformity

This product is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC and 1999/5/EC: European Standard ETSI EN 300 328 V1.7.1 (2006-10), EN 301 489-1 V1.8.1 (2008-04), EN 301 489-17 V1.3.2 (2008-04), EN55022:2006 Class B, EN61000-3-2:2006, EN61000-3-3:1995/A1:2001/A2:2005 and EN55024:1998/A1:2001/A2:2003 (IEC 61000-4-2:Edition 1.2:2001-04, IEC 61000-4-3:Edition 2.1:2002-09, IEC 61000-4-4:Second edition:2004-07, IEC 61000-4-5:Edition 1.1:2001-04, IEC 61000-4-6:Edition 2.1:2004-11, IEC 61000-4-8:Edition 1.1:2001-03, IEC 61000-4-11:Second Edition:2004-03) and Australian Standard AS/NZS CISPR 22:2006 Class B.

General information

FCC Statement

This device complies with Part 15 Subpart B of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 Subpart B of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and

receiver.

z Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

z Consult the dealer or an experienced radio/TV technician

for help.

WARNING

You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

IMPORTANT NOTE: Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instruction as documented in this manual. This equipment complies with FCC / IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

For Canada

z This Class B digital apparatus complies with Canadian

ICES-003.

z Cet appareil numérique de la classe B est conforme à la

norme NMB-003 du Canada.

WEEE Directive

Produced after 13 August 2005. Waste electrical should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

General information

5. Technical specifications

Screen size 10.4” diagonal TFT LCD

Aspect ratio 4:3

Panel resolution 800 (H) x 600 (V) pixels

Internal memory size 512MB

Brightness 300 cd/m

Contrast ratio 500:1

Viewing angle in landscape and portrait positions

(Top/Bottom/Left/Right)

Supported memory card types

USB Host Supported

Loudspeakers 0.5W x 2

Power adapter z AC input: 100-240V;

Supported image file format

Supported audio file format MP3 (*.mp3)

Auto rotation Built-in tilt sensor

50° / 60° / 75° / 75°

SD, SDHC, MMC

z DC output: 9.0V, 2A

JPEG (*.jpg)

50/60 Hz; 0.6A

Wi-Fi module 802.11b/g 2.4GHz WLAN

Chipset: Atheros AR2524 MAC/BB + UBEC UW2453 RFIC

Supported web services Picasa, Flickr, Frame

Channel, RSS, WEB Radio, Email

NOTE

Specifications are subject to change without prior notice.

Technical specifications

Appendix

6. Appendix

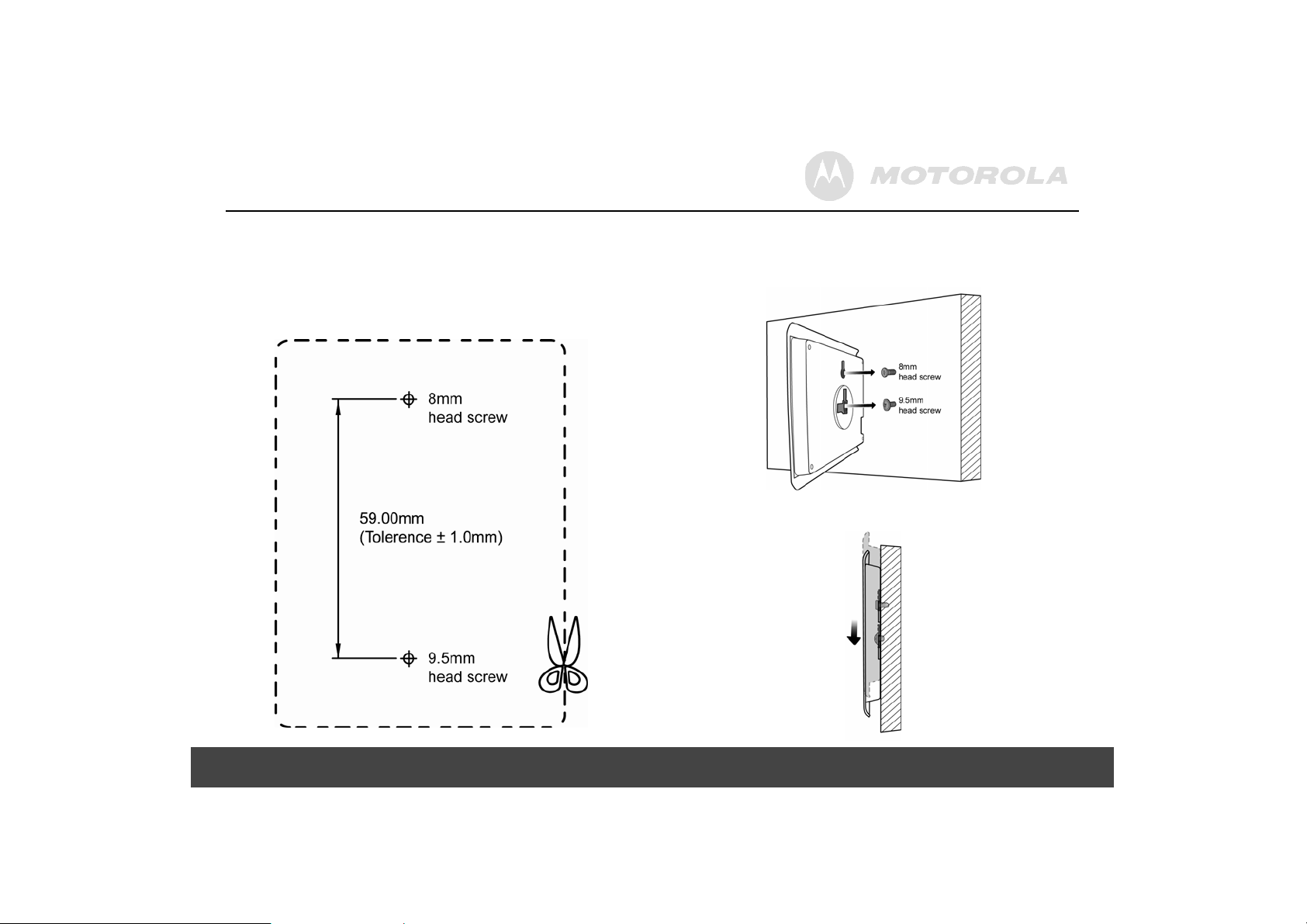

Landscape wall mounting

1. Cut the illustration below and drill holes in the wall exactly as

illustrated.

2. Insert 8mm and 9.5mm head screws (to be purchased

separately) into the holes and tighten the screws. Then, align your photo frame with the screws.

3. Mount your photo frame in landscape position on the wall.

Appendix

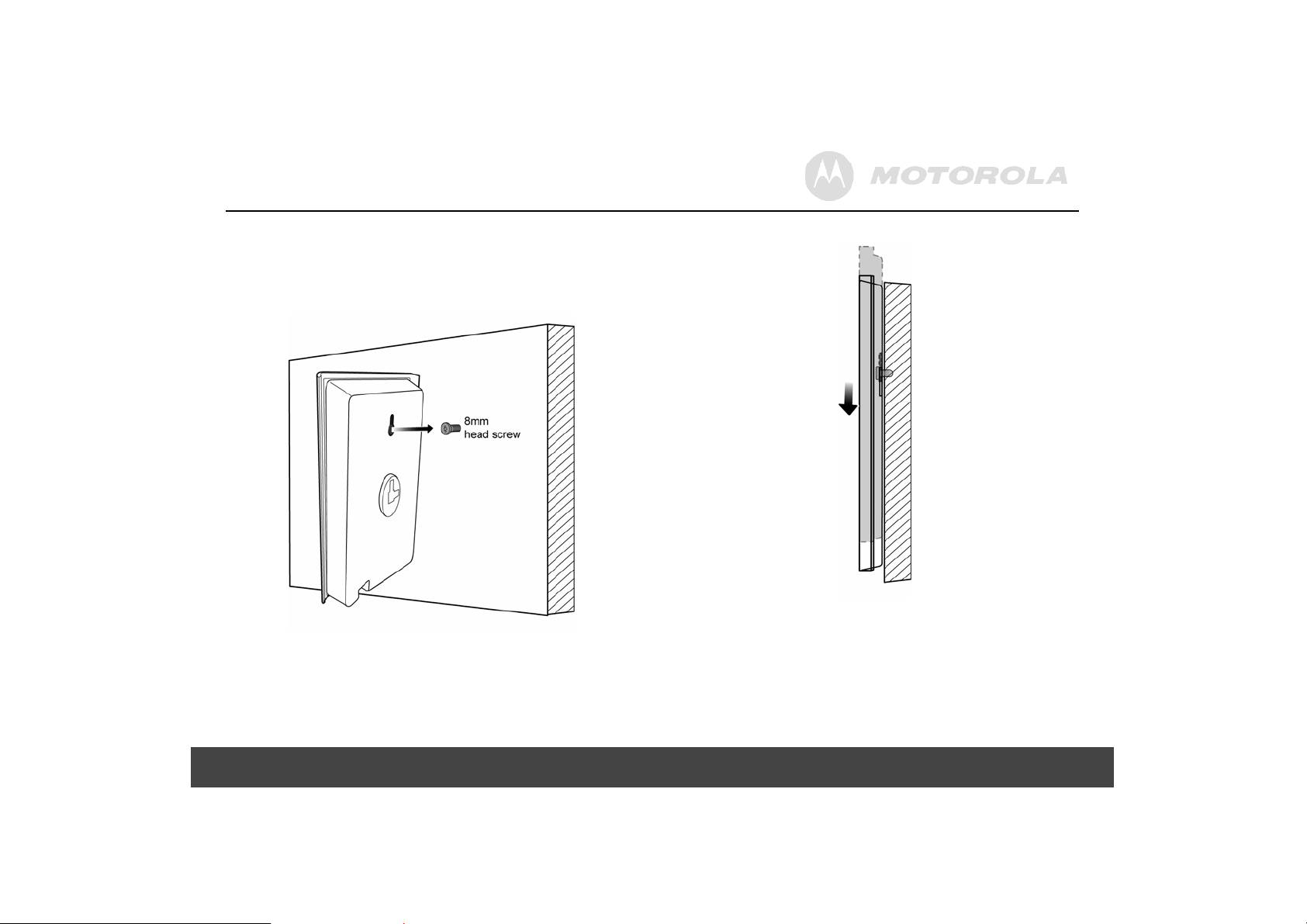

Portrait wall mounting

1. Drill a hole in the wall and insert an 8mm head screw (to be

purchased separately) into the hole.

2. Align your photo frame with the screw.

3. Mount your photo frame in portrait position on the wall.

Appendix

Manufactured, distributed or sold by Binatone Electronics

International LTD., official licensee for this product.

MOTOROLA and the Stylized M Logo, and other Motorola

trademarks and trade dress are owned by Motorola, Inc. and

are used under license from Motorola, Inc. MOTOROLA and

the Stylized M Logo are registered in the US Patent &

Trademark Office. All other product or service names are the

property of their respective owners.

Version 1.0

Printed in China

Binatone Electronics LS1000W User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
