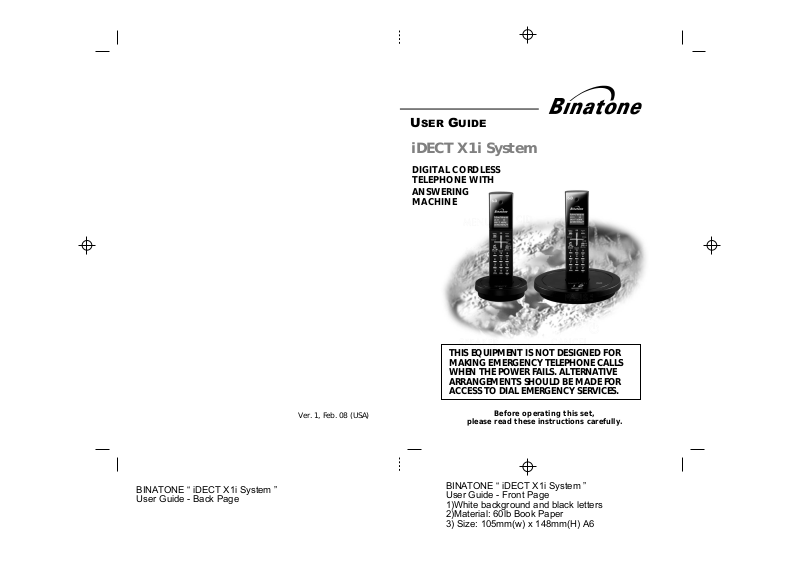

USER GUIDE

iDECT X1i System

DIGITAL CORDLESS TELEPHONE WITH

ANSWERING MACHINE

THIS EQUIPMENT IS NOT DESIGNED FOR MAKING EMERGENCY TELEPHONE CALLS WHEN THE POWER FAILS. ALTERNATIVE ARRANGEMENTS SHOULD BE MADE FOR ACCESS TO DIAL EMERGENCY SERVICES.

BINATONE “ iDECT X1i System ” User Guide - Back Page

Ver. 1, . 0 (USA)

8Feb

Before operating this set,

please read these instructions carefully.

BINATONE “ iDECT X1i System ” User Guide - Front Page

1)White background and black letters

2)Material:

3) Size: 105mm(w) x 148mm(H) A6

60lb Book Paper

Color profile: Generic CMYK printer profile Composite Default screen

IMPORTANTES MESURES DE SÉCURITÉ

Certaines mesures de sécurité doivent être prises pendant l’utilisation de matérial téléphonique afin de réduire les risques d’incendie, de choc électrique et de blessures. En voici quelquesunes:

1. Ne pas utiliser l’appareil près de l’eau, p.ex., près d’une

baignoire, d’un lavabo, d’un évier de cuisine, d’un bac à laver, dans un sous-sol humide ou près d’une piscine.

2. Éviter d’utiliser le téléphone (sauf s’il s’agit d’un appareil

sans fil) pendant un orage électrique. Ceci peut présenter un risque de choc électrique causé par la foudre.

3. Ne pas utiliser l’appareil téléphonique pour signaler une

fuite de gaz s’il est situé près de la fuite.

4. Utiliser seulement le cordon d’alimentation et le type de

piles indiqués dans ce manuel. Ne pas jeter les piles dans le feu: elles peuvent exploser. Se conformer aux règlements pertinents quant à l’élimination des piles.

5. la socklet-sortie sera installée près de l'équipement et

serafacilement accessible

6. ATTENTION-

Il y a danger d’explosion s’il y a remplacement incorrect de la batterie. Remplacer uniquement avec une batterie du même type ou d’un type équivalent recommandé par le constructeur. Mettre au rebut les batteries usagées conformément aux instructions du fabricant.

uniquement avec les piles rechargeables

SN-2/3AAA40HJ

================================================

CONSERVER CES INSTRUCTIONS

NiMH 400mAh 1.2V

SANIK

’

A utiliser

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03a.vp 12 June 2006 09:15:00

Color profile: Generic CMYK printer profile Composite Default screen

IMPORTANT SAFETY INSTRUCTIONS

When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

1. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.

5. Plug the adaptor to the socket-outlet that near the equipment and shall be easily accessible.

6. CAUTION Risk of explosion if battery is replaced by an Incorrect type. Dispose of used batteries according to the instructions. Use only with Sanik

rechargeable battery .

SAVE THESE INSTRUCTIONS

================================================

SN-2/3AAA40HJ NiMH 400mAh 1.2V

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03a.vp 12 June 2006 09:15:00

Color profile: Generic CMYK printer profile Composite Default screen

Equipment Approval Information

This equipment is approved for connection to the Public Switched Telephone Network and complies with Part 15 and 68 of the FCC rules and the requirements adopted by the ACTA.

Notification to Local Telephone Company

On the bottom of this equipment is a label that contains, among other information, BINW400BIDECTX1I and Ringer Equivalence Number (REN) for the equipment. If requested, this number must be provided to the telephone company.

The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. [For products approved after July 23, 2001, the REN for this product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3). For earlier products, the REN is separately shown on the label.]

A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details.

NOTICE:

• If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this does not disable your alarm equipment. If you

X1i have questions about what will disable alarm equipment, consult your telephone company or a qualified installer.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03a.vp 12 June 2006 09:15:00

Color profile: Generic CMYK printer profile Composite Default screen

• Connection to a party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information.

• AC electrical surges, typically resulting from lightning strikes, are very destructive to the telephone equipment connected to AC power sources. To minimize damage from these types of surges, a surge arrestor is recommended

Rights of the Telephone Company

If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required or may request that you disconnect the equipment until the problem is resolved. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service.

FCC Interference Information

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

X1i

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03a.vp 12 June 2006 09:15:00

Color profile: Generic CMYK printer profile Composite Default screen

Privacy of communications may not be ensured when using this phone.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the

receiver.

• Connect the equipment into an outlet on a circuit that is different to the one the receiver is connected.

If these measures do not eliminate the interference, please consult the dealer or an experienced radio/TV technician for help.

WARNING:

Changes or modifications to this unit that are not expressly approved by the party responsible for compliance, could void the user's authority to operate the equipment.

Hearing Aid Compatibility (HAC)

This equipment is hearing aid compatible for product

handset only.

FCC RF Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of

20 centimeters between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

NOTE: For body worn operation, this handset has been tested and meets the FCC RF exposure guidelines when used with an accessories that contains no metal. Use of other accessories may not ensure compliance with FCC RF exposure guidelines.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03a.vp 12 June 2006 09:15:00

Color profile: Generic CMYK printer profile Composite Default screen

Industry Canada Approval information

This product meets the applicable Industry Canada technical specifications.

The Ringer Equivalence Number is an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed five.

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-

003. (Cut appareil numérique de la classe B est conforme à la noeme NMB-003 du Canada.)

Privacy of communications may not be ensured when using this telephone.

Caution: To maintain the compliance with the Industry Canada’s RF exposure guidance, place the base unit at least 20cm from nearby persons.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03a.vp 12 June 2006 09:15:00

Color profile: Generic CMYK printer profile Composite Default screen

Important note — emergency calls

The iDECT X1i is not designed for making emergency calls if the mains power fails. So you should make alternative arrangements for access to Emergency Services.

(This means that you should also have a basic phone, that does not need mains power, connected to your line so that you can make calls during a power failure.)

Unpacking your iDECT X1i system

In the box are:

■

the cordless handset (up to four, depending on which iDECT X1i system you’ve bought)

■

the base unit

■

two batteries and a battery compartment cover for each handset

■

a telephone line cable for the base unit

■

a mains power lead and adapter for the base unit

■

up to three charger pods, each with a separate mains power lead and adapter, for multi-handset systems

Keep the packaging materials in a safe place in case you later need to transport the unit. Keep

your sales (till) receipt, which is your guarantee.

Before you can use the handset to make calls you’ll need to fit and fully charge the batteries, as described on pages 5 and 6. Please read the notes on page 4 before you install the base unit.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03a.vp 12 June 2006 09:15:00

Color profile: Generic CMYK printer profile Composite Default screen

Where to find it

/Caller Display (CID)

button

Press during a call to increase the volume in the earpiece. Press while using Menu functions to move through the

options. Press to show the list of Caller Display records.

MENU/MUTE

button

Press to start using Menu functions Press while reviewing Phonebook, Redial or Caller

Display records, to start editing. Press during a call to mute the mouthpiece so the

person on the other end can’t hear you.

/FORMAT button

Press when editing Phonebook, Redial or Caller Display records, to move the cursor to the left.

In call log review mode: Press repeatedly to view the alternate dialing sequence.

PHONE /SPEAKERPHONE

/OK button

Press to begin o r answer a phone call.

Press to switch the speakerphone

on and off.

When editing or using Menu functions, press to confirm your selection.

IN USE light

This comes on when you have a connection to the telephone line.

HANDSET LOCATOR (PAGE) button

Press to make all registered handsets ring (this is useful if you've forgotten where you put a handset).

Answering machi

This gives informat number of recorde details, see the ‘An section of this gui

FLASH button

You may need the function during a call if your iDECT X1i

Fl ash

is connected to a PBX, or if you use Te le ph on e ne tw or k Select Services.

Last Number Redial /Pause button

Press to open a list of the last 10 phone numbers you called. Press when editing Phonebook, Redial or Caller Display records, to move the

cursor to the right. Press and hold while dialling to insert a pause (you might need this on a PBX).

HANG UP /ON–OFF / Cancel button

Press to end a call. Press and hold for 4 seconds to turn the handset on and off; or for 2 seconds to

lock and unlock the keypad. Press while editing or using Menu functions, to cancel what you’re doing and

return the display to Standby mode.

/Phone Book button

Press during a call to turn down the volume in the earpiece. Press to open the Phone Book. Press while using Menu functions to move through the options.

# Intercom button

Press and hold for 2 seconds to make an intercom call (if you have more than one handset).

If the display is blank

Press the button to switch

e information display

the handset on

ion including the d messages. For full swering machine’

To subscribe to network features like Caller Display and Call Waiting, simply call your network service provider (the company that supplies your line). You don’t need to do anything special on your iDECT X1 phone to set these features up.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:55:40

Color profile: Generic CMYK printer profile Composite Default screen

Symbols on the display

The time and date

The handset’s name (the default is )

HANDSET

Signal level

Intercom call

Speakerphone

Phone

New call

Memory/ store

Battery charge level

18:44 WED

The handset’s number (if you

JANE 1

The duration of each call is shown on the display from 5 seconds after you press the PHONE button for a line, until 10 seconds after you end the call.

What the symbols mean

This is on steadily when there’s a radio link between the handset and base unit. lashes while the handset is trying to establish a link .

to the base unit

If this symbol flashes while you’re on a call, move closer to the base unit

Flashes while your handset is ringing for an intercom call, and comes on steadily when the call’s connected.

Appears when the speakerphone is turned on.

Appears when you have a connection to the outside line.

Appears when you have missed incoming calls (if you subscribe to Caller Display).

Comes on when you’re storing numbers in memory, and when you’re making calls to stored numbers.

When this shows ‘nearly empty’ ( ), put the handset on the base unit or charger pod as soon as possible, to charge the batteries. While the batteries are being charged, the symbol blinks.

It f

have more than one handset on your iDECT X1 system)

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:53:48

Color profile: Generic CMYK printer profile Composite Default screen

Contents

Read these notes first 4

Choosing a site for the base unit and charger pod 4

Radio signals between handset and base unit 4

Mains power connection 4

Installation and set-up 5

Before you start 8

Electrical safety 8 Interference 8 ‘Out of range’ warning 8

Switching on and off 9

To lock the keypad 9

Your handset’s name 10

To set the time and date 11

Ringer volume and melody 12

Making and answering calls 15

Using the speakerphone 15 To make a call 15 To answer a call 15 To end a call 15 Earpiece volume 16 To mute the mouthpiece 16 Last Number Redial (LNR) 16

To edit a number in the Redial list

To store a Redial number in the Phone Book 17

The Phone Book (memory dialling) 18

To store a number 18 To call a stored number 19 To edit a Phone Book entry 19

To delete a Phone Book entry To delete all Phone Book entries

Caller Display 21

To check Caller Display records 22 To return a call 22 To store a Caller Display number in

the Phone Book 23 To edit a Caller Display record 23

Using a multi-handset system 24

To make an intercom call 24 To answer an intercom call 25 To end an intercom call 25 To transfer a call 25 To shuttle between two calls 26 To set up a three-way conference 26 New Call tone 27 To page all handsets from the

base unit 27

Registering new handsets 59

To register a new handset to your base unit 59

To de-register a handset To register to a different brand of

base unit

Answering machine

Introduction 28

To open and use the

TAM menu

The display on the base unit 29

Outgoing messages

To record OGM1 To record OGM2 To check your OGMs To select an OGM

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:53:49

Color profile: Generic CMYK printer profile Composite Default screen

Contents

Switching on and off

Recording a memo 34

Playing your messages

Options during playback If memory is full …

Answering machine settings 38

Message recording time

Time stamping 39 Rings to answer Call monitoring Recording quality

39 40

Default settings 41

Remote operation

To change the PIN

To check your messages remotely Switching on remotely Keys to press during remote

operation

System settings

Handset settings

To open the Handset Setting menu

Earpiece volume Key beep Battery Low tone

Display language 48 Auto-answer 48 Returning to default settings 49 Handset PIN Baby Call

To set or change the Baby call number

To turn Baby Call on and off 51

Base unit settings

To open the Base Setting menu Returning to default settings Dialling type and recall signal Base unit PIN Call control

The call timer 55 To bar certain types of call 56 To bar calls to specified numbers 56 Emergency numbers 58

Other information

Troubleshooting 58

Cleaning and care 68

Guarantee and service 69

Technical details

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:53:49

Color profile: Generic CMYK printer profile Composite Default screen

Read these notes first

Choosing a site for the base unit and charger pod

Radio signals between handset and base unit

Mains power connection

The base unit and charger pod(s) should be placed on a level surface, in a position where:

the mains adapter plug will reach an easily accessible

■

0-V

AC switched mains supply socket — never try

to lengthen the mains power cable

the base unit’s telephone line cable will reach your

■

telephone line socket or extension socket (the charger pod does not have a telephone line connection)

it is not close to another telephone — this can cause

■

radio interference it is not close to a sink, bath or shower, or anywhere

■

else where it might get wet it is not close to other electrical equipment — fridges,

■

washing machines, microwave ovens, fluorescent lights, TVs etc.

it is not under direct exposure to sun and heat.

■

no object is placed on cables and/or on the phone.

■

To use your handset and base unit together, you must be able to establish a radio link between them. Be aware that:

■

Any large metal object — like a refrigerator, a mirror or a filing cabinet — between the handset and the base unit may block the radio signal.

■

Other solid structures, like walls, may reduce the signal strength.

IMPORTANT — The iDECT X1i base unit and charger pod must be used with the mains adapter supplied with the unit. Using any other adapter will result in noncompliance with , and will invalidate any

ETL or UL

approval given to this apparatus.

Make sure mains power to the base unit stays switched

on. The iDECT X1i needs electrical power for normal operation; not just for charging the batteries.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:53:49

Color profile: Generic CMYK printer profile Composite Default screen

Installation and set-up

Choose a suitable

site for the base unit

See page 4

Connect the

mains power lead and the telephone line cord into the underside of the base unit

Plug the mains adapter into

a 120 V AC, 6 0 Hz mains socket, with the switch on the socket set to OFF

Use the telephone line

RJ1 1C supplied with your

cord iDECT X1i — other line cords m ay n ot

work with thi s .

phone

See the note on page 4

If you have one or more charger pods …

Plug the mains adapter into a 0 V AC,

60 Hz mains socket, with the switch on

the socket set to OFF

Switch on at the mains socket(s)

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:53:51

Color profile: Generic CMYK printer profile Composite Default screen

Installation and set-up

Fit two rechargeable batteries in

each handset

A. Insert the batteries in the

compartment, with the end of each battery facing away from the cover.

Always use the rechargeable batteries supplied — never use any other kind of batteries in the handset.

B. Carefully close the battery

compartment door, matching the symbol on the door to the symbol on the handset

Make sure the battery compartment door is securely in place.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:53:53

Color profile: Generic CMYK printer profile Composite Default screen

Charge the batteries for 15 hours

Before you use the handset for the first time, it’s important to charge the batteries fully.

The handset ‘beeps’ when it’s correctly in position on the charging cradle.

Leave the handset on the charging cradle for 15 hours.

Connect the base unit to the telephone line

Switch off power at the mains socket Insert the telephone line plug into

the socket as shown Switch mains power back on

Make sure the mains socket is switched on if you want to use the phone — it will not work without electrical power

Installation and set-up

The ‘battery charge level’ symbol blinks

Use the plug to raise the shutter before pushing it into the socket

NOTE: the charger pod does not have a connection to the telephone line.

The navigation buttons

In the instructions, these buttons are represented by arrows, as shown here.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:53:55

LEFT

RIGHT

DOWN

Color profile: Generic CMYK printer profile Composite Default screen

Before you start

Electrical safety

Interference If the sound quality gets worse as you move around

‘Out of range’

warning

DON’T let the base unit or charger pod get wet.

■

Electrical equipment can cause serious injury if used while you are wet or standing in water.

If the base unit or charger pod ever falls into water,

■

DON’T retrieve it until you have unplugged the power lead from the mains and the telephone line plug from the telephone socket (base unit only); then pull it out by the unplugged cables.

NEVER use your iDECT X1i outdoors during a thunder

■

storm — unplug the base unit from the telephone line and the mains socket when there are storms in your area. Damage caused by lightning is not covered by the guarantee.

while on a call, this is probably caused by interference between the handset and the base unit, perhaps because you are too near to another phone or other electrical equipment.

Move to a different position to clear the interference. If you do not move, your call may be cut off.

Radio interference in the environment may occasion

ally cause a short break in the link between the handset and the base unit while you are on a call. The ‘signal level’ on symbol handset’s display may flash until the link is restored.

If you hear a warning tone during a call, and/or the sound in the earpiece becomes faint or distorted, you may be going out of range of the base unit. Move nearer to the base unit within 20 seconds, until the tone stops. Otherwise, your call may be cut off.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:53:55

Color profile: Generic CMYK printer profile Composite Default screen

Switching on and off

To switch the handset on and off

To lock the keypad

Notes

To switch the handset off (in case you need to save battery power when the handset is away from the base unit):

◗

■

Press the HANG UP button and hold it for 4 seconds

The display shows POWER OFF then goes

blank.

To switch the handset back on:

Briefly press the HANG UP button, or replace the handset on the base unit or charger pod

The display briefly shows 00:00 SUN before

returning to standby mode.

Press the HANG UP button and hold it for 2 seconds

The display shows KEYPAD LOCKED

To unlock the keypad:

Press the HANG UP button and hold it for 2 seconds, or replace the handset on the base unit or charger pod

When the handset is switched off, it can’t be used for making calls, including emergency calls.

When the handset is switched off, it won’t ring for incoming calls, but the base unit will ring. To answer a call when the handset is switched off, you need to switch it back on. It may take a few moments for the handset to re-establish a radio link with the base unit.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:53:55

Color profile: Generic CMYK printer profile Composite Default screen

Your handset’s name

Before you start to use your iDECT X1i handset, especially if you have a multi-handset system, you’ll probably want to personalise the display with your name. The name can have up to ten characters (including spaces).

To change the name

1 Press the MENU button

The display shows PHONEBOOK

2 Press the â button THREE times

The display shows SETTING

3 Press the PHONE/OK button

The display shows HANDSET SETTING

4 Press the PHONE/OK button

The display shows ACOUSTIC SETTING

5 Press the á button

è The display shows HANDSET NAME and the

twice

current name.

6 Press the PHONE/OK button

The display shows ENTER NAME and the

current name.

7 Press the HANG UP button to delete

characters from the current name, then key in your chosen name

8 When you’ve finished, press the MENU/OK

button

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:53:56

Color profile: Generic CMYK printer profile Composite Default screen

To set the time and date

1 Press the MENU button

The display shows PHONEBOOK

2 Press the â button THREE times

The display shows SETTING

3 Press the PHONE/OK button then the â

button

The display shows BASE SETTING

4 Press the PHONE/OK button then the â

button

The display shows TIME & DAY SETTING

5 Press the PHONE/OK button

The display shows SET TIME and the time in

24-hour format.

6 Key in the time, as a four-digit number, then

press the PHONE/OK button

Remember to use the 24-hour clock and to include any 0s (zeroes) — for example, 9:30 am

09:30; 6:05 pm is 18:05.

The display shows SET DAY and the day.

7 Use the â or á button to go to the correct

day of the week, then press the PHONE/OK button

The display shows

SET DATE DD/MM/YY

8 Key in the date, as a six-digit number, then

press the PHONE/OK button

Remember to include any 0s (zeroes) — for

05070

example,

5 July 2006 is

9 Press the HANG UP button to go back to

standby mode

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:53:56

Color profile: Generic CMYK printer profile Composite Default screen

Ringer volume and melody

Handset ringer

1 Press the MENU button

The display shows PHONEBOOK

2 Press the â button THREE times

The display shows SETTING

3 Press the PHONE/OK button

The display shows HANDSET SETTING

4 Press the PHONE/OK button

The display shows ACOUSTIC SETTING

5 Press the PHONE/OK button

The display shows RINGER VOLUME LEVEL

and the current level

6 Press the PHONE/OK button

The display shows SELECT VOLUME LEVEL

and the handset rings at the current level. There

1, 2, 3 and

are four volume levels — volume at

0, the handset won’t ring.

0 . With the

7 Use the â or á button to go to the level you

prefer then press the PHONE/OK button

The display shows ACOUSTIC SETTING

Press the PHONE/OK button then the â button

The display shows RINGER MELODY and the

current melody. There are six melodies, numbered

1 to 6

Press the PHONE/OK button

The display shows SELECT MELODY h

and the current molody

Press the á or â button to move between

the melodies. When you reach the one you prefer, press the PHONE/OK button

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:53:56

Press the HANG UP button to go back to standby mode

Color profile: Generic CMYK printer profile Composite Default screen

Area code

To set area code

1 Press the MENU button

The display shows PHONEBOOK

2 Press the â button until

display shows SETTING

3 Press the PHONE/OK button

The display shows HANDSET SETTING

4 Press the PHONE/OK button

The display shows ACOUSTIC SETTING

Press the â button until

display shows

AREA CODE

Press the PHONE/OK button

The display shows

AREA CODE

Key in upto 3 digits.

Press the PHONE/OK button

to confirm

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:53:56

Color profile: Generic CMYK printer profile Composite Default screen

Ringer volume and melody

Base unit ringer

1 Press the MENU button

The display shows PHONEBOOK

2 Press the â button THREE times

The display shows SETTING

3 Press the PHONE/OK button then the â

button

The display shows BASE SETTING

Press the PHONE/OK button

The display shows ACOUSTIC SETTING

Press the PHONE/OK button

The display shows RINGER VOLUME LEVEL

and the current level.

Press the PHONE/OK button

The display shows SELECT VOLUME LEVEL

and the base unit rings at the current level. There are four volume levels — the volume set to for incoming calls.

1, 2, 3 and 0. With

0, the base unit won’t ring

Use the â or á button to go to the level you prefer then press the PHONE/OK button

The display shows ACOUSTIC SETTING

Press the PHONE/OK button then the â

button

The display shows RINGER MELODY and the

current melody. There are six melodies, numbered

1 to 6

Press the PHONE/OK button

The display shows SELECT MELODY h

and the current molody

Press the á or â button to move between the melodies. When you reach the one you prefer, press the PHONE/OK button

Press the HANG UP button to go back to standby mode

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:53:56

Color profile: Generic CMYK printer profile Composite Default screen

Making and answering calls

Using the speakerphone

The speakerphone lets you hear calls without holding the handset to your ear.

You can switch between speakerphone and earpiece mode during calls at any time by pressing the PHONE/SPEAKERPHONE button. The display will show

SPEAKER PHONE ON or SPEAKER PHONE OFF

To make a call1 Key in the telephone number

If you make a mistake, press the HANG UP button to clear digits one by one from the display.

2 Press the PHONE button

(You can dial the number after you press the PHONE button to get Dial tone if you prefer, but you can’t correct any mistakes if you do it this way. If you press the PHONE button before

ONLINE.)

To answer a call

you dial, the display shows

When there’s an incoming call, the base unit and handset ring (unless the handset’s ringer is turned off). If you subscribe to Caller Display (see page 20) the caller’s number or name may appear on the display; otherwise,

<<CALL>>.

The display shows CALL END and the

To end a call

the display shows

Press any button (except HANG UP) to answer the

◗

call

The display shows ONLINE

◗

Press the HANG UP button so that the IN USE light on the base unit goes out

Or just replace the handset on the base unit

duration of the call.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:53:56

Color profile: Generic CMYK printer profile Composite Default screen

Making and answering calls

Earpiece volume

To mute the mouthpiece

Last Number Redial (LNR)

To edit a number in the Redial list

During a call, to adjust the volume in the earpiece or speakerphone:

◗

Press the á or â button

There are three volume levels. After you end the call, the volume will stay at the level you’ve set.

During a call, to mute the mouthpiece so the person on the other end can’t hear you:

◗

Press the MENU/MUTE button

The display shows

MICROPHONE OFF

To un-mute the mouthpiece, press the MENU/MUTE button again.

To make a repeat call to one of the last ten numbers you dialled (up to 32 digits):

1 Press the Redial button

2 Press the á or â button if necessary until

the number is displayed

3 Press the PHONE button to dial the number

1 Press the Redial button, then the á or â

button until the number is displayed

2 Press the MENU button

The display shows EDIT REDIAL, the entry

number (

#01 upwards) and the stored number,

with a flashing cursor

3 Press the HANG UP button to delete digits,

then key in the new digits

4 When you’ve finished, press the PHONE/OK

button, then the HANG UP button to go back to standby mode

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:53:57

Color profile: Generic CMYK printer profile Composite Default screen

Making and answering calls

To store a Redial number in the Phone Book

1 Press the Redial button, then the á or â

button until the number is displayed

2 Press and hold the PHONE BOOK button for

2 seconds

The display shows ENTER NAME

3 Key in a name then press the PHONE/OK

button

The display show the name and STORED

(See the list below for which buttons to use for which characters.)

4 Press the HANG UP button to go back to

standby mode

Buttons to press for text characters — press the button repeatedly until you get the character you want

[space] 1- !,.:;

ABC2ДавВЖЗ

DEF3ëéèê

GHI4Ìíîï

JKL5

MNO6Öòó

ó ô Ñ

PQRS7

TUV8ÜÙúû

WXYZ9

0Ø=<>()

*+%@&$¥£¿§

backspace/delete

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:53:57

Color profile: Generic CMYK printer profile Composite Default screen

The Phone Book (memory dialling)

You can store up to 50 numbers in the Phone Book. Each number can have up to 32 digits, and can be stored with a name of up to 20 characters (including spaces).

To store a number

1 Press the Phone Book button and hold

it for about 2 seconds

The display shows PHONEBOOK ADD ENTRY

2 Press the PHONE/OK button

The display shows ENTER NAME

3 Key in a name then press the PHONE/OK

button

The display shows ENTER NUMBER

4 Key in a number and press the MENU/OK

button

The display shows the name and STORED

5 Press the HANG UP button to go back to

standby mode

* This is a short-cut method. You can also press the

Phone Book button followed by the MENU button. Or you can press MENU—PHONE/OK—MENU.

** Refer to the diagram on page 77778 if you’re not sure how to

key in text using the numbered keypad.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:53:57

Color profile: Generic CMYK printer profile Composite Default screen

The Phone Book (memory dialling)

To call a stored number

To edit a Phone Book entry

1 Press the Phone Book button

The display shows the first entry in the

Phone Book. If the number has more than nine digits, it’s shown with an arrow and you can press the à button to show the rest of the digits.

2 Press the á or â button to go to the

number you want OR you can search by pressing a button on the

numeric keypad for the first letter of the name, then using the á and â buttons if necessary.

» at the end,

3 Press the PHONE button to dial the number

1 Press the Phone Book button then the á or

â button to go to the number you want

2 Press the MENU button, then the â button

The display shows PHONEBOOK EDIT ENTRY

3 Press the PHONE/OK button

The display shows EDIT NAME and the name.

4 To edit the name, use the HANG UP button

to delete characters, then key in the new ones

5 Press the PHONE/OK button

The display shows EDIT NUMBER and the

number.

6 To edit the number, use the HANG UP button

to delete digits, then key in the new ones

7 Press the PHONE/OK button then the

HANG UP button to go back to standby

mode

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:53:57

Color profile: Generic CMYK printer profile Composite Default screen

The Phone Book (memory dialling)

To delete a Phone Book entry

To delete all Phone Book entries

1 Press the Phone Book button then the á or

â button to go to the number you want

2 Press the MENU button, then the â button

TWICE

The display shows PHONEBOOK

DELETE ENTRY

3 Press the PHONE/OK button

The display shows DELETE? and the name.

4 Press the PHONE/OK button to delete the

entry, or the HANG UP button to cancel and go back one step

5 Press the HANG UP button to go back to

standby mode

1 Press the Phone Book button

2 Press the MENU button, then the â button

THREE times

The display shows PHONEBOOK DELETE ALL

3 Press the PHONE/OK button

The display shows ENTER H/S PIN

The handset’s PIN is 0000 unless you have changed it (see page 49). When you key in the PIN, the display shows it as

****

4 Key in the handset’s PIN and press the

PHONE/OK button

The display shows PHONEBOOK ALL DELETED

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:53:57

Color profile: Generic CMYK printer profile Composite Default screen

Caller Display

To subscribe to this feature, you need to contact your

service provider, who will tell how much it will cost.

Caller Display lets you see the phone numbers of your callers on the handset’s display, before you answer. The iDECT X1i will store the numbers of the last 20 callers (whether or not you answered the call) so you can call them back later. When the Caller Display list is full, the next incoming number will overwrite the oldest one.

If you’ve got new Caller Display records, the symbol is shown on the display.

Here are some examples of Caller Display records:

The record number is onwards.#01

CID #01 JENNY

CID #01 02x TUE 16:21

CID #02 07967345 678

CID #03 BLOCKED NUMBER

CID #06 <LONG-

A call from someone whose name (Jenny) and number are stored in your Phone Book.

Press the (HASH) button once to see the full number.

Press the button again to see more details. In this example, there have been two calls from this number ( ) and the most recent call

02x

at 4:21 pm on Tuesday. Press < ID nu mbe r.

A call from someone whose name and number are not stored in your Phone Book.

CID #03

UNKNOW CALLER

A call from someone whose number is unavailable (for example, this may be an international call).

DISTANCE>

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:53:59

came in

LEFT, RI GHT t o format Caller

A call from someone

who withheld their

number by dialling 141.

Color profile: Generic CMYK printer profile Composite Default screen

Caller Display

To check Caller Display records

To return a call

1 Press the Caller Display CID button

The most recent record is shown on the display.

2 To see more details, press the # (HASH) button

(Refer to the diagram on page 20.)

3 Press the á or â button to scroll through

the records

Once you’ve checked all new records, the

symbol disappears from the display.

4 Press the HANG UP button to go back to

standby mode

To ring back someone who’s called you:

Follow steps 1 to 3 above (step 2 is optional) to display the record

Note: Depending on a how the incoming caller'' s

phone number is formatted

number,

is received,

preprogrammed

menu, you may need incoming the call, press the

Press the PHONE button to dial the number

( )

(e.g. 1+==== area

number

co de

number ,

and (b) whether or not you previously \

area

your local area code into the set up

to adjust the format of the

caller' s stored

phone number before making

FORMAT

button to adjust the number,

only

code

whe n it

and try again.

Available formats include:

Example

1-317-888-8888

317-888-8888

888-8888

Number of digits Eleven digits

Ten digits

Seven digits

Explanation

long distance code 1" '' ' +

3-digit area code

7-digit telephone number.

3-digit area code

7-digit telephone number.

'' '

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:00

Color profile: Generic CMYK printer profile Composite Default screen

Caller Display

To store a Caller Display number in the Phone Book

To edit a Caller Display record

1 Use steps 1 to 3 above (step 2 is optional) to

display the record

2 Press and hold the Phone Book button for

2 seconds

The display shows ENTER NAME *

3 Key in a name then press the PHONE/OK

button

The display show the name and STORED

4 Press the HANG UP button to go back to

standby mode

1 Press the Caller Display button, then the á

or â button if necessary, to display the record

2 Press the MENU button

The display shows EDIT CID followed by the

record number and the phone number.

3 To edit the number, use the HANG UP

button to delete digits, then key in the new ones

4 When you’ve finished, press the PHONE/OK

button

5 Press the HANG UP button to go back to

standby mode

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:00

Color profile: Generic CMYK printer profile Composite Default screen

Using a multi-handset system

If you have an iDECT X1i multi-handset system, you already have more than one handset registered to your base unit. You can register additional handsets — up to four per base unit. With two or more handsets, you can:

make intercom calls from one handset to another

■

transfer an outside call from one handset to another

■

shuttle between an outside call and an intercom call

■

set up a three-way conference call

■

Each handset’s number (1 to 4) is shown on its display.

If you try to make a call while another handset is

already on the line. Barge-i n featu re: Han dset di splay " and you can he ar each othe r.

To make an intercom call

1 Press and hold the INT/# button for 2

2 Use the á or â button to scroll through

1 Press the MENU button then the â button

There are two ways to make an intercom call. First method:

seconds until display

available handset numbers, then press the PHONE/OK button

The other handset rings, and its display

INTERCOM FROM # (with your handset

shows number). When the other handset user answers, you’ll be connected.

Second method:

TWICE

The display shows INTERNAL CALL

CONFERENCE,

is shown on the

INTERNAL CALL ,

2 Press the PHONE/OK button

INTERCOM appears on the display, and you

can carry on to select the handset number (step 2 of the first method).

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:00

Color profile: Generic CMYK printer profile Composite Default screen

Using a multi-handset system

To answer an intercom call

To end an intercom call

To transfer a call

The ringing tune for intercom calls is different from that for outside calls.

When someone makes an intercom call to you, your handset’s display shows

INTERNAL FROM # with the

number of the handset calling you.

Press any button (except HANG UP) to answer

◗

◗ ◗

Press the HANG UP button Or simply replace the handset on the base

unit or charger pod

When you’re talking on an outside call (a call you’ve either made or answered), you can transfer it to another handset:

1 Press and hold the INT/# button until the

‘INTERNAL CALL’ appears on the display. Then use the á or â button to go to the handset number a nd t hen press PHO NE /O K

(or press

Ø to call all other

handsets)

The outside call is put on hold and the other handset rings. When the other handset user answers, you can speak to her/him.

If the other user does not answer, you can get back to the outside call at any time by pressing

and holding the INT/# button again.

2 Press the HANG UP button to hang up and

transfer the call

If you prefer, you can press HANG UP to transfer the outside call before the other handset answers your intercom call. If the user hasn’t answered after 30 seconds, the outside call will come back to you and your handset will ring.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:00

Color profile: Generic CMYK printer profile Composite Default screen

Using a multi-handset system

To shuttle between two calls

To set up a three-way conference

To end the conference

When you have made or answered an outside call and then made an intercom call, you can shuttle from one to the other, like this:

◗

Press and hold the INT/# button for two seconds to speak to each in turn, putting the other on hold

You can transfer the outside call to the other handset by pressing HANG UP while you’re connected to the intercom call

If you press HANG UP while you’re connected to the outside call, you’ll disconnect it.

Make or answer an outside call

Press and hold the INT/# button then use the á or â button to go to the handset

number a nd then p re ss PHONE/OK b ut ton

Ø to call all other handsets or press

è The outside call is put on hold and the other

handset rings.

When the other user answers:

Press the Ø button for two seconds

EITHER

◗

Press the # button for one second

You stay connected to the outside call and the intercom call is put on hold*. Provided the other user hasn’t hung up, you can bring her/him back into the conference by pressing

the button again. OR, to drop out of the conference call, leaving

the other user connected to the outside call:

◗

Press the HANG UP button

* You can only do this if you were the one who set up the conference. If you were brought into the conference by the other user and you press the # button at this point, you’ll cut off the conference call.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:00

Color profile: Generic CMYK printer profile Composite Default screen

Using a multi-handset system

New Call tone When you are on an intercom call and an

outside call comes in, you’ll hear New Call tone to tell you that someone is calling you.

To answer the outside call and end the intercom call:

FLASH

◗

Press the

FLASH button briefly

OR, to answer the outside call and put the intercom call on hold (so you can later use shuttle, conference or transfer):

◗

Press the INT/# button for one second

If you now want to set up a three-way conference, simply press and hold the the Ø button for two seconds.

To page all handsets from the base unit

◗

To make all registered handsets ring (this is useful if you’ve forgotten where you put a handset):

Press the HANDSET LOCATOR button on the base unit

Handsets ring for up to 30 seconds and their displays show

<<PAGE>>.

To stop the ringing before 30 seconds:

◗

EITHER press the HANDSET LOCATOR button again

OR press any button (except HANG UP) on any handset

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:00

Color profile: Generic CMYK printer profile Composite Default screen

Answering machine — introduction

To operate the answering machine, use the

TAM OPERATION menu on the handset’s display (TAM

stands for ‘telephone answering machine’).

Messages are played through the handset’s earpiece; or you can press the PHONE/OK/ button to turn the speakerphone on or off.

To open and use the

1 Press the MENU button

The display shows PHONEBOOK

2 Press the â button FOUR times

The display shows TAM OPERATION

3 Press the PHONE/OK button

The display shows

TAM

INCOMING

MESSAGE

4 Press then the â button to go to the option

you want, then the PHONE/OK button to select it

When you’ve finished:

5 Press the HANG UP button twice to go back

to standby mode

You can also press the HANG UP button at any point to cancel what you’re doing and go back one step.

When you’re keying in numbers, if you make a mistake, press the HANG UP button to delete digits.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:01

Color profile: Generic CMYK printer profile Composite Default screen

Answering machine — introduction

The display on the base unit

The display shows

X1i

page

two digit display - number of message

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:01

Color profile: Generic CMYK printer profile Composite Default screen

Outgoing messages

The outgoing message (OGM) is what callers hear when the machine answers their calls. There are two OGMs:

OGM1 asks the caller to leave a message. The

■

machine has a default OGM1

to answer your call now ,Please leave a message after the tone”

or you can record your own OGM1.

OGM2 asks the caller to call back later but does not

■

give them the opportunity to leave a message. The machine has a default OGM2:

to answer your call now ,Please call later”

or you can record your own OGM2.

The OGMs you record can be up to 60 seconds long.

: "'"''''''''''''''' hello,we are not available

“

"'"'''''''''''''''hello,we are not available

“

To record OGM1

1 Press the MENU button then the â button

FOUR times

The display shows TAM OPERATION

2 Press the PHONE/OK button

3 Press the â button THREE times

The display shows OUTGOING MESSAGE

4 Press the PHONE/OK button

The display shows SELECT

5 Press the â button

The display shows RECORD

6 Press the PHONE/OK button

The display shows OGM01

7 Press the PHONE/OK button

The display shows REC. . . .

8 Record your OGM, speaking clearly into the

handset’s mouthpiece for at least 3 seconds. Don’t shout

The display shows REC OGM01 and the lapsed time as you’re speaking.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:01

Color profile: Generic CMYK printer profile Composite Default screen

Outgoing messages

To record OGM2

To check your OGMs

9 When you’ve finished, press

PHONE/OK

button to stop the recording and your message. will then

play back through the handset

speaker

Press the HANG UP button repeatedly to go

Follow the steps for recording OGM1, but after step

◗

6, press the â button to display

back to standby mode.

OGM02 before going

to step 7.

1 Press the MENU button then the â button

FOUR times

The display shows TAM OPERATION

2 Press the PHONE/OK button

3 Press the â button THREE times

The display shows OUTGOING MESSAGE

4 Press the PHONE/OK button

The display shows

OGM

SELECT

5 Press the â button TWICE

The display shows REPLAY

OGM

6 Press the PHONE/OK button

The display shows OGM01

7 Press the â or á button to scroll between

the options —

OGM DEF02. (OGM DEF01 and OGM DEF02 are

OGM01, OGM02, OGM DEF01,

the pre-recorded default OGMs.)

8 Press the PHONE/OK button to play the

OGM shown on the display

The OGM is played through the handset’s earpiece or speakerphone, then the display goes back to the

TAM OPERATION menu.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:01

Color profile: Generic CMYK printer profile Composite Default screen

Outgoing messages

To select an OGM

If you want your callers to leave messages, make sure you select OGM1 — if OGM2 is

selected, callers will not be able to leave messages.

1 Press the MENU button then the â button

FOUR times

The display shows TAM OPERATION

2 Press the PHONE/OK button

3 Press the â button THREE times

The display shows OUTGOING MESSAGE

4 Press the PHONE/OK button

The display shows

OGM

SELECT

5 Press the PHONE/OK button

The display shows

SELECT OGM O 01

7 Press the â or á button to scroll between

the options —

OGM DEF02 OGM DEF01

OGM01, OGM02, OGM DEF01,

and OGM DEF02 are the pre-

recorded default OGMs.

8 Press the PHONE/OK button to select the

OGM shown on the display

You hear a confirmation tone, then the display goes back to the

TAM OPERATION

menu.

9 Press the HANG UP button twice to go back

to standby mode

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:02

Color profile: Generic CMYK printer profile Composite Default screen

Switching on and off

1 Press the MENU button then the â button

FOUR times

The display shows TAM OPERATION

2 Press the PHONE/OK button

3 Press the â button FOUR times

The display shows TAM ON/OFF

4 Press the PHONE/OK button

The display shows the current setting:

ON or OFF

5 Press the â or á button to change the

display

The display shows ON OFF (meaning

that you can select the option shown).

6 Press the PHONE/OK button to confirm

You hear a ‘beep’, then the display goes back to the

TAM

ON/OFF

menu.

7 Press the HANG UP button twice to go back

to standby mode

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:02

Color profile: Generic CMYK printer profile Composite Default screen

Recording a memo

Memos you record directly into the machine are stored and played back like messages from callers (incoming messages).

1 Press the MENU button then the â button

2 Press the PHONE/OK button

3 Press the â button TWICE

4 Press the PHONE/OK button

FOUR times

The display shows TAM OPERATION

The display shows

RECORD MEMO

TAM

5 Record your memo, speaking into the

handset’s mouthpiece

The display shows REC MEMO and the lapsed time as you’re speaking.

6 When you’ve finished, press the PHONE/OK

button to stop recording

The display goes back to the menu.

Press the HANG UP button twice to go back to standby mode

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:02

REC MEMO

Color profile: Generic CMYK printer profile Composite Default screen

Playing your messages

When the machine is switched on, and OGM1 is selected, it will record messages from callers (incoming messages).

To play back your incoming messages (and memos if applicable):

1 Press the MENU button then the â button

FOUR times

The display shows TAM OPERATION

2 Press the PHONE/OK button TWICE

If you have new messages, they will be

played back. If you have no new messages, any old messages will be played back. If you have no messages at all, the display will show

NO MESSAGES!

During playback, the display shows:

the message number — ICM #1 etc

the time and date of the call

If you subscribe to Caller Display (page 21), you can press the â or á button to switch the display between the time/date and the caller’s number (if the number is available). If the caller’s number is stored in your handset’s Phone Book, the name may be shown instead of the number.

After all new messages (or all old messages) have been played back, the display shows

END OF MESSAGE for 2 seconds, then goes back

TAM OPERATION menu.

to the

See overleaf for functions you can use during message playback.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:02

Color profile: Generic CMYK printer profile Composite Default screen

Playing your messages

Options during playback

From the playback options menu…

During playback, you can press:

◗

the PHONE/OK button to switch between the earpiece and the speakerphone

the â or á button to change the volume in the earpiece or speakerphone

the HANG UP button briefly to stop playback and go back to the

TAM OPERATION menu

the HANG UP button (long press) to stop playback and go back to standby mode

the MENU button to display the playback options menu:

SKIP FORWARD to the next message

DELETE the current message and start

playing the next message

SKIP BACK to the previous message

REPEAT the current message from the

beginning

CALL BACK the person who left the message

(if you subscribe to Caller Display and the caller’s number is available)

DELETE ALL recorded message and memos

(new messages will not be deleted until you have played them back)

◗

Press the â or á button to scroll to the option you want, then the PHONE/OK button to select it

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:02

Color profile: Generic CMYK printer profile Composite Default screen

Playing your messages

Deleting messages

If memory is full …

If you select DELETE or DELETE ALL from the playback options menu

◗

Press the PHONE/OK button to confirm that you want to delete the message(s), or the HANG UP button to cancel

The answering machine has enough memory to record up 14 minutes of messages (standard quality; see page 39) or 7 minutes (high quality).

If the memory becomes full:

Callers can’t leave messages and you can’t record

■

memos or new OGMs.

■ Anyone trying to record a message or memo will

hear: “Answering machine full”, while the handset’s display shows

■

The machine will automatically switch to OGM2, so

MEMORY FULL

that new callers will be asked to call back later, without being able to leave a message.

■

The display on the base unit will flash between the number of recorded messages and 88

You need to delete some or all recorded messages to make room in memory. Remember to select OGM1 again (page 3 ) if you want new callers to be able to

leave messages.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:02

Color profile: Generic CMYK printer profile Composite Default screen

Answering machine settings

The SETTINGS menu lets you customise the way your answering machine works.

To use the

1 Press the MENU button then the â button

2 Press the PHONE/OK button

3 Press the â button ONCE

4 Press the PHONE/OK button

5 Press the â or á button to scroll to the

SETTINGS menu:

FOUR times

The display shows TAM OPERATION

The display shows

option you want, then the PHONE/OK button to select it

TAM

SET

TING

TAM SETTING REC TIME

6 When you have finished, press the HANG UP

button to go back to standby mode

Message recording time

By default, callers can leave a message up to 2 minutes (120 seconds) long. You can change this to 60 seconds or ‘No limit’.

1 Press the PHONE/OK button to select

ICM REC TIME from the TAM SETTINGS menu

The display shows the current setting.

2 Press the â or á button to scroll to the

option you want —

NO LIMIT

3 Press the PHONE/OK button to select it

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:03

60s or 120s or

Color profile: Generic CMYK printer profile Composite Default screen

Answering machine settings

Rings to answer

The machine can answer calls after to

two five

rings.

Or you can set ‘toll saver’ — it will answer after two rings if there are new messages, or after four rings if there are no new messages. So if you call in to check your messages remotely, and your call isn’t answered after two rings, you can hang up and avoid paying for the call.

1 Press the PHONE/OK button to select

RING ANS from the TAM SETTINGS menu

The display shows the current setting.

Press the â or á button to scroll to the

or or

option you want —

or or TOLL SAVE?

4 RINGS 5 RINGS

2 RING 3 RINGS

Press the PHONE/OK button to select it

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:03

Color profile: Generic CMYK printer profile Composite Default screen

Answering machine settings

Call monitoring

Recording quality

With call monitoring turned on, when a caller is leaving a message you can hear them through the handset’s speakerphone — so you can press the PHONE/OK button to pick up the call and talk to the caller, stopping the message recording. With call monitoring turned off, you will not hear callers leaving messages. The default setting is ON

1 Press the PHONE/OK button to select

MONITOR ON/OFF from the TAM

The display shows the current setting.

SETTINGS

2 Press the â or á button to scroll to the

option you want —

MONITORING OFF

MONITORING ON or

3 Press the PHONE/OK button to select it

You can set the recording quality as ‘high’ or ‘standard’. With standard quality recording, the machine has enough memory for 14 minutes of recorded messages; with high quality recording, it has enough memory for 7 minutes.

1 Press the PHONE/OK button to select

RECORD QUALITY from the TAM SETTINGS

The display shows the current setting.

2 Press the â or á button to scroll to the

option you want —

RECORD QUALITY HIGH

or RECORD QUALITY STANDARD

3 Press the PHONE/OK button to select it

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:03

Color profile: Generic CMYK printer profile Composite Default screen

Answering machine settings

Default settings

This option returns the answering machine to its default settings:

answering machine ON

default OGM1 selected

no recorded incoming messages or memos

remote PIN — 123

message recording time — 120 seconds (2 minutes)

rings to answer — TOLL SAVE

call monitoring — on

recording quality — HIGH

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:03

Color profile: Generic CMYK printer profile Composite Default screen

Remote operation

When you’re not at home, you can phone your iDECT X1i to check your messages remotely. First, you need to set up remote operation using the iDECT X1i’s handset.

The machine has a three-digit PIN (security code) which you need to key in when you operate it remotely. The default PIN is 123; you can leave it as 123 or change it to any 3-digit number.

To change the PIN

1 Press the MENU button

The display shows PHONEBOOK

2 Press the â button FOUR times

The display shows TAM

3 Press the PHONE/OK button

4 Press the â button FIVE times

The display shows

TAM

REMOTE CONTROL

5 Press the PHONE/OK button

The display shows

REMOTE

PIN CHANGE

6 Press the PHONE/OK button

The display shows ENTER PIN ORIGINAL

7 Key in the current PIN (default 123) and

press the PHONE/OK button

The display shows ENTER PIN NEW

8 Key in your new PIN and press the

PHONE/OK button

The display shows ENTER PIN CONFIRM

9 Key in your new PIN again and press the

PHONE/OK button

The display goes back to the

REMOTE CONTROL menu

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:03

Color profile: Generic CMYK printer profile Composite Default screen

Remote operation

To check your messages remotely

Notes

Switching on remotely

1 Using a tone dialling phone, dial your home number

2 When your outgoing message starts playing,

press then key in your remote PIN

press

You hear one long ‘beep’. The machine tells you how many messages you have, and how many new messages.

If you have new messages, playback will start automatically; or you can go to step 4 —

4 Press to play back all your messages

and/or use the keys listed on page 46

At steps 2 and 3, you must press a key within

■

10 seconds, or the machine will cut off your call. At step 2, if you key in the wrong PIN, you can try

■

again. You have up to three attempts to get the code right before the machine cuts off your call.

■

You’ll hear voice prompts to help you during remote operation

If the answering machine is switched off, it will answer your call after 10 rings. To switch it on remotely:

1 When you hear ‘Please enter the PIN’ then a ‘beep’,

key in your remote PIN

2 Press to switch on

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:04

Color profile: Generic CMYK printer profile Composite Default screen

Remote operation

Keys to press during remote operation

To play your messages and memos, press:

To skip backwards and forwards during playback, press:

To delete messages and memos, press:

To record a new OGM, press:

To play your OGM, press:

Ü 2

5 5

1 1

0 2

6 1

6 2

7 1

7 2

to play all messages

to play only new messages

to pause during playback

to restart playback

to stop playback

to go back to the start of the current message

to go back to the previous message

to go to the next message

during playback to delete the current message

after playback to delete all messages

to record OGM1

to record OGM2

to play OGM1

to play OGM 2

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:04

Color profile: Generic CMYK printer profile Composite Default screen

Remote operation

To select an OGM, press:

To record a memo, press:

To switch the machine on and off, press:

9 1

9 2

6 3

to select OGM1

to select OGM2

to start recording

to stop recording (or just hang up)

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:04

Color profile: Generic CMYK printer profile Composite Default screen

Handset settings

The HANDSET SETTING menu lets you customise your handset to suit your preferences. Some of the functions in this menu have been covered earlier in this User Guide.

To open the Handset Setting menu

1 Press the MENU button

The display shows PHONEBOOK

2 Press the â button THREE times

The display shows SETTING

3 Press the PHONE/OK button

The display shows HANDSET SETTING

4 Press the PHONE/OK button

If you’ve set a new PIN for the handset (page ), the display will show

ENTER H/S PIN * and

you’ll need to key it in. If you’ve left the PIN at its default of 0000, you won’t be asked for it at this point.

5 Press then the â button to go to the option

you want, then the PHONE/OK button to select it

All instructions below follow from this step.

When you’ve finished:

◗

Press the HANG UP button to go back to standby mode

You can also press the HANG UP button at any point to cancel what you’re doing and go back one step.

When you’re keying in numbers, if you make a mistake, press the HANG UP button to delete digits.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:04

Color profile: Generic CMYK printer profile Composite Default screen

Handset settings

Ringer volume and melody

Earpiece volume

These are set using the ACOUSTIC SETTING option. See page 12 for details.

There are three earpiece volume levels. You can also change the earpiece volume during a call using the â or á buttons (see page 16).

1 Select the ACOUSTIC SETTING option by

pressing the PHONE/OK button

2 Use the â or á button to go to EARPIECE

then press the PHONE/OK button

VOLUME

The display shows SELECT VOLUME and the

current volume level.

3 Use the â or á button to go to the level you

prefer, then press the PHONE/OK button to confirm

Key beep Normally, whenever you press a button on the

handset you’ll hear a tone. You can turn this off if you prefer:

1 Select the ACOUSTIC SETTING option by

pressing the PHONE/OK button

2 Use the â or á button to go to KEY BEEP

then press the PHONE/OK button

The display shows SET KEY BEEP and ON

or OFF

3 Use the â or á button to go to the setting

you prefer, then press the PHONE/OK button to confirm

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:04

Color profile: Generic CMYK printer profile Composite Default screen

Handset settings

Battery Low tone

Normally, when the handset’s batteries are running low, you’ll hear a warning tone. You can turn this off if you prefer:

1 Select the ACOUSTIC SETTING option by

pressing the PHONE/OK button

2 Use the â or á button to go to BATTERY

LOW TONE

ON or OFF

then press the PHONE/OK button

The display shows SET BATT LOW TONE and

3 Use the â or á button to go to the setting

you prefer, then press the PHONE/OK button to confirm

Display language

1 Select the LANGUAGE option by pressing the

To change the language on the display:

PHONE/OK button

The display shows SELECT LANGUAGE and

the current language.

2 Use the â or á button to go to the

language you want

The options are

D UTSCH

ENGLISH,

ESPAÑOL,FRANCAIS

3 Press the PHONE/OK button to select the

language

Auto-answer Normally, when there’s an incoming call, you need to

press a button on the handset to answer it.

With auto-answer turned on, if a call comes in when the handset is in place on the base unit or charger pod, you can answer the call by simply lifting the handset.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:04

Color profile: Generic CMYK printer profile Composite Default screen

To turn auto-answer on and off:

1 Select the AUTOMATIC ANSWER option by

pressing the PHONE/OK button

The display shows SET AUTO ANSWER and

ON or OFF

2 Use the â or á button to go to the option

you prefer, then press the PHONE/OK button to confirm

Handset settings

Returning to default settings

The default settings for the handset are:

Ringer volume level — 3

■

Ringer melody — 3

■

Earpiece volume level — 2

■

Speakerphone volume level — 3

■

■ Key beep — ON

■

Battery Low tone — ON

■

Auto-answer — OFF

■

Handset PIN — 0000

■

Baby Mode — OFF

■

Baby Number — none

■

Handset name — HANDSET

■

Language — ENGLISH

To return all handset settings to their defaults:

1 Select the DEFAULT SETTING option by

pressing the PHONE/OK button

The display shows CONFIRM DEFAULT

SETTING?

2 Press the PHONE/OK button to confirm, or

the HANG UP button to cancel

The display shows DEFAULT SETTING DONE

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:04

Color profile: Generic CMYK printer profile Composite Default screen

Handset settings

Registration See page .

Handset PIN The default PIN (personal identity number, or security

code) for the handset is 0000. If you want to protect your handset’s settings, you can change the PIN to any four-digit number you’ll easily remember. Once you’ve changed it, you’ll be asked for it every time you go into

HANDSET SETTING menu.

the

To change the PIN:

1 Select the CHANGE PIN option by pressing

the PHONE/OK button

The display shows ENTER OLD PIN

2 Key in your existing PIN (default 0000) then

press the PHONE/OK button

The display shows ENTER NEW PIN

3 Key in your chosen new PIN then press the

PHONE/OK button

The display shows CONFIRM NEW PIN

4 Key in your new PIN again then press the

PHONE/OK button

The display goes back to standby mode.

If the PINs you key in at steps 2 and 3 don’t match, you’ll hear an error tone, and you’ll need to try again from the beginning.

If you want to turn PIN protection off, follow the steps above to change the PIN back to 0000. Then you won’t be asked for it when you change the handset’s settings.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:05

Color profile: Generic CMYK printer profile Composite Default screen

Handset settings

Baby Call With Baby Call (babysitter’s call) turned on, the handset

To set or change the Baby Call number

To turn Baby Call on and off

will automatically dial a specified number when any button (except MENU) is pressed. Before you can turn Baby Call on, you must set (programme) the Baby Call phone number to be dialled.

With Baby Call turned on, the iDECT X1i handset

can’t be used for calling Emergency Services. Make sure there’s an alternative phone available for emergencies.

1 Select the BABY CALL NUMBER option by

pressing the PHONE/OK button

The display shows ENTER BABY NUMBER *

2 Key in the phone number then press the

PHONE/OK button

The display goes back to standby mode.

1 Select the BABY MODE option by pressing the

PHONE/OK button

The display shows SET BABY MODE and ON

or OFF

2 Use the â or á button to go to the option

you prefer, then press the PHONE/OK button to confirm

The display goes back to standby mode,

BABY MODE shown on the middle line.

with

If you try to turn Baby Call on before you’ve set a Baby Call number, the display will show

ENTER BABY NUMBER * and you’ll need to key a

number in.

Your handset’s name

See page 10.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:05

Color profile: Generic CMYK printer profile Composite Default screen

Base unit settings

The BASE SETTING menu lets you customise your base unit to suit your preferences. Some of the functions in this menu have been covered earlier in this User Guide.

To open the Base Setting menu

1 Press the MENU button

The display shows PHONEBOOK

2 Press the â button THREE times

The display shows SETTING

3 Press the PHONE/OK button then the â

button

The display shows BASE SETTING

4 Press the PHONE/OK button

If you’ve set a new PIN for the base unit (page

53), the display will show

ENTERBASEPIN*

and you’ll need to key it in. If you’ve left the PIN at its default of 0000, you won’t be asked for it at this point.

5 Press the â button to go to the option you

want, then the PHONE/OK button to select it

All instructions below follow from this step.

When you’ve finished:

◗

Press the HANG UP button to go back to standby mode

You can also press the HANG UP button at any point to cancel what you’re doing and go back one step.

When you’re keying in numbers, if you make a mistake, press the HANG UP button to delete digits.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:05

Color profile: Generic CMYK printer profile Composite Default screen

Base unit settings

Ringer volume and melody

These are set using the ACOUSTIC SETTING option. See page 13 for details.

Time & day See page 11for details.

Returning to default settings

The default settings for the base unit are:

Ringer volume level — 2

■

Ringer melody — 3

■

Time and day — 00:00 SUN

■

Dialling mode — TONE

■

Flash time 6

■

Base unit PIN — 0000

■

Call Barring — OFF

■

SOS numbers —

■

Total time —

— 00MS

911 and 112

ONEN

To return all base unit settings to their defaults:

1 Select the DEFAULT SETTING option by

pressing the PHONE/OK button

The display shows CONFIRM DEFAULT

SETTING?

2 Press the PHONE/OK button to confirm, or

the HANG UP button to cancel

The display shows DEFAULT SETTING DONE

Dialling type and recall signal

The next option in the Base Setting menu is

TONE - 00MS

. This is for setting the dialling type and

the recall (flash) signal length, and you probably won’t ever need this option.

You should always leave the dialling type at its default setting —

TONE. You should not need to change

the recall signal setting unless you’re having problems using your iDECT X1i on a PBX. Refer to page 66 for more information.

LINE SET

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:05

Color profile: Generic CMYK printer profile Composite Default screen

Base unit settings

Deregistering

For details of the DEREGISTER option, see page .

handsets

Base unit PIN The default PIN (personal identity number, or security

code) for the base unit is 0000. If you want to protect your base unit’s settings, you can change the PIN to any four-digit number you’ll easily remember. Once you’ve changed it, you’ll be asked for it every time you go into

BASE SETTING menu.

the

To change the PIN:

1 Select the CHANGE PIN option by pressing

the PHONE/OK button

The display shows ENTER OLD PIN

2 Key in your existing PIN (default 0000) then

press the PHONE/OK button

è The display shows ENTER NEW PIN

3 Key in your chosen new PIN then press the

PHONE/OK button

The display shows CONFIRM NEW PIN

4 Key in your new PIN again then press the

PHONE/OK button

The display goes back to CHANGE PIN .and then press and hold HANG UP button to return to standby mode.

If the PINs you key in at steps 2 and 3 don’t match, you’ll hear an error tone, and you’ll need to try again from the beginning.

If you want to turn PIN protection off, follow the steps above to change the PIN back to 0000. Then you won’t be asked for it when you change the base unit’s settings, although you’ll still need it when you register a new

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:05

handset.

Color profile: Generic CMYK printer profile Composite Default screen

Base unit settings

Call control The CALL CONTROL options let you monitor and

control the calls made on your iDECT X1i. You can:

Use the call timer to see how much time has been

■

spent making outside calls. For each handset, bar (prevent) international calls or

■

all outgoing calls. For each handset, bar calls to numbers starting with

■

specified digits — for example, if you bar calls to numbers starting with 090, you’ll bar calls to premium rate numbers; or if you bar calls to numbers starting with 0, you’ll bar calls to all non-local numbers.

Set up to four emergency numbers, which can

■

always be dialled even when other calls are barred.

The call timer To check the call timer:

1 Select the CALL CONTROL option by pressing

the PHONE/OK button

The display shows CALL TIMER

2 Press the PHONE/OK button

You have three options:

TOTAL CALL DURATION — to see how much

time in total has been spent on call since the

call timer was last reset.

LAST CALL DURATION — to see how long the

most recent call lasted.

RESET CALL DURATION — to reset the call

timer to zero.

3 Use the â or á button to go to the option

you want, then press the PHONE/OK button

You can go back to the pressing the HANG UP button, then select a different option.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:06

CALL TIMER screen by

Color profile: Generic CMYK printer profile Composite Default screen

Base unit settings

To bar certain types of call

To bar calls to specified numbers

1 Select the CALL CONTROL option by pressing

PHONE/OK, then press the â button

The display shows CALL LIMIT

2 Press the PHONE/OK button

The display shows SELECT H/S HANDSET 1

3 Use the â or á button to go to the

handset number you want, then press the PHONE/OK button

The display shows CALL LIMIT HANDSET 1

and the handset’s current status — either:

GLOBAL — all calls allowed NATIONAL — no international calls allowed INTERNAL — intercom calls only; no outgoing

calls

4 Use the â or á button to go to the option

you want, then press the PHONE/OK button

Before you turn barring of calls to specified numbers on and off, you need to set up to three barred numbers. Each barred number can have up to eight digits.

1 Select the CALL CONTROL option by pressing

PHONE/OK, then press the â button TWICE

The display shows CALL BARRING

2 Press the PHONE/OK button

The display shows SELECT H/S HANDSET 1

3 Use the â or á button to go to the

handset number you want, then press the PHONE/OK button

The display shows BARRING MODE

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:06

Color profile: Generic CMYK printer profile Composite Default screen

Base unit settings

4 Press the â button

The display shows BARRING NUMBER

5 Press the PHONE/OK button

The display shows SELECT BARRING NO

BARR NUM 1

. This lets you set the first barred number. There are three possible barred numbers altogether.

6 (If you want to set a different barred number

2 or 3], use the â or á button to go to it.)

[

7 Press the PHONE/OK button

The display shows BARR NUM 1 *

8 Key in the number you want to bar, then

press the PHONE/OK button

You can go on to set two more barred numbers if you wish.

Now you’ve set the barred numbers, you can turn this kind of call barring on and off:

1 Select the CALL CONTROL option by pressing

PHONE/OK, then press the â button TWICE

The display shows CALL BARRING

2 Press the PHONE/OK button

The display shows SELECT H/S HANDSET 1

3 Use the â or á button to go to the handset

number you want, then press the PHONE/OK button

The display shows BARRING MODE

4 Press the PHONE/OK button

The display shows SET BAR MODE and OFF

or ON

5 Use the â or á button to go to the setting

you want, then press the PHONE/OK button to confirm

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:06

Color profile: Generic CMYK printer profile Composite Default screen

Base unit settings

Emergency numbers

You can set up to four emergency (SOS) numbers, each with up to ten digits. These numbers can always be dialled using any handset, even when call barring is turned on. Emergency number 1 is preset as 911.

1 Select the CALL CONTROL option by pressing

PHONE/OK, then press the â button THREE

times

The display shows EMERGENCY NUMBER

2 Press the PHONE/OK button

The display shows EMERGENCY NUMBER

SOS NUM

and 1 .

3 If necessary, use the â or á button to go to

the number you want

(For example, you may want to leave numbers 1 and 2 as they are, and set a new emergency number as number 3.)

4 Press the PHONE/OK button

The display shows ENTER SOS NUM 3 * (for

example) and any number that is already set.

5 Key in the new emergency number and

press the PHONE/OK button

The display goes back to EMERGENCY

and you can set another emergency

NUMBER

number if you wish.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:06

Color profile: Generic CMYK printer profile Composite Default screen

Troubleshooting

Registering new handsets

To register a new handset to your base unit

Important — The handset(s) supplied with your iDECT X1i base unit

are already registered to it, so you don’t need to register them. But if you’ve bought extra handsets

separately, you’ll need to register them. Each iDECT X1i handset can be registered to one base at a time.

it is registered to a second base it will lose its registration to the first.

Make sure the handset you’re registering is in standby mode.

1 Press the MENU button

The display shows PHONEBOOK

2 Press the â button THREE times

The display shows SETTING

3 Press the PHONE/OK button

The display shows HANDSET SETTING

4 Press the PHONE/OK button then the â

button FOUR times

The display shows REGISTER

5 Press the PHONE/OK button

The display shows ENTER BASE PIN *.

The PIN is 0000 unless you’ve set a new one (see page 5 ).

6 Key in the PIN

The display shows REGISTER IN PROGRESS

7 Immediately press the HANDSET LOCATOR

button on the base unit and hold it until you hear a tone

The handset’s display flashes for a while, then

shows matically given the lowest free handset number.

continued overleaf …

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:01

Color profile: Generic CMYK printer profile Composite Default screen

Registering new handsets

Registration failed?

To de-register a handset

If registration has failed, the handset’s display will show

REGISTRATION FAILED for a few seconds then return to

standby mode.

If this happens, try again, making sure you don’t leave too long between steps. If you still can’t register the handset, contact the Help Line for advice.

You may need to do this in order to replace a faulty handset.

1 Press the MENU button

The display shows PHONEBOOK

2 Press the â button THREE times

The display shows SETTING

3 Press the PHONE/OK button then the â

button

The display shows BASE SETTING

4 Press the PHONE/OK button

If you’ve set a new PIN for the base unit

(see page 5 ), the display will show

BASE PIN *

and you’ll need to key it in. If

ENTER

you’ve left the PIN at its default, you won’t be asked for it at this point.

5 Press the â button FOUR times

The display shows DEREGISTER

6 Press the PHONE/OK button

The display shows DEREGISTER HANDSET 1.

7 Press the â or á button to go to the

handset number you want to deregister then press the PHONE/OK button

The display shows DEREGISTER DONE for a

few seconds and then goes back to the

standby mode

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:01

Color profile: Generic CMYK printer profile Composite Default screen

Registering new handsets

To register to a different brand of base unit

Your iDECT X1i can be registered to any GAPcompatible base unit; or your can register other GAPcompatible handsets to your iDECT X1i base unit.

But we do not guarantee that all features or display messages will be available using other manufacturers’ equipment.

1 Follow the instructions in the base unit’s User Guide to

put the base unit into registration mode (for example, step 7 on page 59).

2 Follow the instructions in the handset’s User Guide to

register the handset (for example, steps 1 to 5 on page 59). If you need to enter a PIN for the base unit, refer to the base unit’s User Guide.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:01

Color profile: Generic CMYK printer profile Composite Default screen

The iDECT X1i must be serviced by trained engineers.

NEVER attempt any repairs or adjustments yourself — you could make the problem worse and invalidate the Guarantee.

Troubleshooting

ALWAYS check first that:

“I cannot make

or answer calls.”

you have followed all the steps listed on pages 5 to 7

■

to install and set up your iDECT X1i all connectors are firmly inserted in their sockets

■

mains power is switched on at the socket

■

the handset’s batteries are correctly and securely

■

installed, and are not run down

Everyday use

If the handset’s display is blank, it may be switched off. Press the HANG UP button to switch it back on.

Check that the base unit’s mains power adapter is plugged in and power is switched on. The base unit needs mains power for normal operation of the phone — not just for charging the batteries.

Make sure you’re using the telephone line cable that was supplied with your iDECT X1i. Other telephone line cables might not work.

Move the handset closer to the base unit.

Check the Battery Level symbol on the display. If it’s low, replace the handset on the base unit or charger pod to recharge the batteries.

If auto-answer is turned off (page 48), you need to press any button (except HANG UP) on the handset to answer an incoming call. Turn auto-answer on if you want to answer calls by simply lifting the handset from the base unit or charger pod.

Switch off power at the mains socket, wait for a few seconds and then switch back on. This may help.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:06

Color profile: Generic CMYK printer profile Composite Default screen

Troubleshooting

“I cannot make

a call.”

“When I press

keys, nothing happens.”

“When I key in a

number, it appears on the display, but I can’t make an outside call.”

“The phone

does not ring”

“There is inter

ference and noise on the line.”

The handset’s keypad may be locked (see page 9). Unlock it before you make a call.

Call barring may be set. Refer to pages 5 to 5 for

6 8

details.

Make sure the batteries are correctly fitted in your handset. If the ‘battery charge level’ symbol on the display shows ‘low’, recharge the batteries.

Try moving the handset closer to the base unit.

Try a different position for the base unit — somewhere higher if possible, or further from other electrical equipment.

If you have more than one registered handset, make sure another handset isn’t already using the line.

Check that the base unit’s mains power adapter is plugged in and power is switched on. The base unit needs mains power for normal operation of the phone — not just for charging the batteries.

Make sure you’re using the telephone line cable that was supplied with your iDECT X1i. Other telephone line cables might not work.

Check that the total REN value of all equipment connected to your telephone line is no more than 4 (see page 3). Disconnect one or more telephones and see whether that helps.

Move the handset closer to the base unit, or to a different position.

Try moving the base unit so that it’s not near other electrical equipment, such as a television or a computer.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:06

Color profile: Generic CMYK printer profile Composite Default screen

You’ll get the best results if you site the base unit as high as possible. For example, in a two-storey house,

the first-floor landing is an ideal place for the base unit.

Troubleshooting

“My call was cut

off when I went out of range. Now I can’t use my handset.”

“I hear ‘beeps’

from my handset while I’m on a call.”

“The Caller

Display feature isn’t working.”

“When I try to

make a call, I hear Busy tone.”

“The volume in

the earpiece is low when I’m on a call.”

Move the handset closer to the base unit before you try again to make a call.

You may be going out of range of the base unit. Move closer, or your call may be cut off.

Check the ‘battery charge level’ symbol on the display. If it is low, recharge the batteries.

You need to subscribe to the Caller Display feature. Contact your service provider.

The caller may have withheld their number. Or they may be calling from a network that does not transmit the Caller ID (for example, it may be an international call).

If you have more than one handset registered to your base unit, make sure that another handset isn’t already using the line.

Make sure you’re holding the earpiece correctly over your ear.

Adjust the volume using the á or â button.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:07

Color profile: Generic CMYK printer profile Composite Default screen

Troubleshooting

Using a multi-handset system

“I can’t transfer

a call.”

Make sure the other handset is in range of the base unit.

Make sure you’re dialling the correct number for the other handset (1 to 6, or Ø for all registered handsets).

The answering machine

“The machine

won’t record messages.”

“I can’t switch

the machine on.”

“I can’t hear my

messages being played back.”

“Remote

operation doesn’t work.”

“The handset‘s

batteries are running low within an hour or two.”

Make sure the answering machine is switched on.

The machine’s memory may be full. Delete some messages to make room for new ones.

Check that outgoing message OGM1 is selected; with OGM2 selected, callers can’t leave messages.

The machine’s memory may be full. Delete some or all recorded messages (see page 3 ), then try again to

switch on.

Use the á or â button on the handset, to adjust the volume in the earpiece or speakerphone.

Make sure you’re using the correct remote PIN (page 4 ).

Check that you’re using a tone-dialling phone. Some cordless or mobile phones don’t generate continuous tones, so aren’t suitable for remote operation.

Batteries

Before you first used the handset, you should have left it on the base unit or charger pod for up to 15 hours to charge the batteries fully.

You may need to replace the batteries (see below).

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:07

Color profile: Generic CMYK printer profile Composite Default screen

Clean the battery charging contacts on the base unit with a dry cloth.

Check the connections between the base unit and the mains power socket.

Troubleshooting

“I try to

recharge the batteries, but I still get a warning that they are low.”

“The Flash

function doesn’t seem to work.”

“Last Number

Redial and/or memory dialling don’t work on a PBX.”

You need to replace the batteries.

Dispose of used batteries safely — never burn them,

or put them where they could get punctured.

ALWAYS use the batteries supplied with your iDECT X1i

— other batteries may burst, causing damage.

Use only with SANIK SN-2/3AAA 40H J N iMH 400Ah

1.2V rechargeable battery.

PBX use

You may need to change the lash signal length from

F its default of 600 ms. Consult your PBX documentation for help if necessary. To change the recall setting, use

BASESETTING menu (page 5 ).

the

When you first make a call, after keying in the outside line access code (e.g. 9), press and hold the Last Number Redial button until a

P appears on the

display. This inserts a pause between the access code and the telephone number. You should later be able to redial the number.

When storing numbers in memory, you can include the outside line access code (e.g. 9) with each number.

If your PBX requires you to wait for a second Dial tone before dialling the telephone number, press and hold the Last Number Redial button for a pause between the access code and the number.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:07

Color profile: Generic CMYK printer profile Composite Default screen

Troubleshooting

If the fault persists …

Disconnect all other instruments connected to the same line as the iDECT X1i and see whether you can make a call.

Disconnect the base unit from the telephone line and plug a different phone into the master telephone socket. Try making a call. If this works, the line is OK.

If the call does not work, and you are using a two-way socket adapter, remove it and plug a telephone directly into the socket. If the call now works, the adapter may be faulty.

If you cannot make a call, the fault may be on the exchange line. Contact the local telephone company.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:07

Color profile: Generic CMYK printer profile Composite Default screen

Cleaning and care

Do not clean any part of your iDECT X1i with benzene,

■

thinner or other solvent chemicals — this may cause permanent damage which is not covered by the Guar antee. When necessary, clean it with a damp cloth.

Keep your iDECT X1i away from hot, humid conditions

■

or strong sunlight, and don’t let it get wet.

Every effort has been made to ensure high standards of

■

reliability for your iDECT X1i. However, if something does go wrong, please do not try to repair it yourself — consult your supplier or the Help Line.

Declaration of conformity

The Binatone iDECT X1i complies with the essential protective requirements and objectives of:

■

EC R&TTE Directive 1999/5/EC

■

EC Low Voltage Directive 73/23/EEC

■

EC EMC Directive 89/336/EEC

and conforms to the following relevant harmonised standards:

■

Radio: EN 301406

■

EMC: EN 301489-1, EN 301489-6

■

Safety: EN 60950-6, All: 2004

Binatone Telecom plc operates a policy of continuous product improvement, and so reserves the right to make changes to the product and functions without notice.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:07

Color profile: Generic CMYK printer profile Composite Default screen

Guarantee and service

The iDECT X1i is guaranteed for 12 months from the date of purchase shown on your sales receipt. The Guar antee does not cover damage by misuse or negligence, or by excessive voltages — for example, faults on the telephone line, or lightning.

Please keep your sales (till) receipt — this is your guarantee. You should also keep the original packaging

material.

If you think your iDECT X1i has developed a fault, please:

1 Disconnect the base unit from the telephone line and

the mains electricity supply

2 Pack up all parts of your iDECT X1i, using the original

packaging. Remember to include the mains adapter

3 Return the unit to the shop where you bought it,

making sure you take your sales receipt

Service Information

For Service information,in and out of warranty Call My-Tec, Inc Customer Support at

1-888 - 433 -7440

Returned Device should be send to:

My-Tec,lnc. 3060 Royal Blvd South

Suite 120.Alpharetta ,GA 300222

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:07

Color profile: Generic CMYK printer profile Composite Default screen

Technical details

Standard

1.9 GHz DECT 6.0

Frequency range 1.92 ~ 1.93 GHz Channel bandwidth 1.28 MHz Operating range up to 300 m outdoors; up to 50 m

indoors

Operating time standby: 100 hours approx.

talking: 10 hours approx. battery charge time: 12–15 hours

Temperature range Operating 0 ºC to 40 ºC

Storage -20 ºC to 60 ºC

Electrical power

Handset — two

/3 AAA 400 mAH NiMH

rechargeable batteries

Base unit/Charger pod — input 120 V AC, 60 Hz; output

DC 7.5 V, 500 mA

Port specification The port (connected to the mains power supply) is a SELV port with respect to EN41003.

The port (connected to the telephone line) is a TNV port with respect to EN41003.

PBX compatibility Timed break recall: adjustable to 600 ms (default), 100 ms, 300 ms or 600 ms. Pause length (using the button): 3 seconds. Signalling type: DTMF (dual-tone multifrequency, also called tone dialling); or loop disconnect (pulse dialling).

Network connection This equipment is intended to be used in the US and Canada only. Operation on other countries’ PSTN termination points cannot be guaranteed.

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:07

Color profile: Generic CMYK printer profile Composite Default screen

Index

A answering a call, 15

answering an intercom call, 25

answering machine, 28

call monitoring, 46 calling back the caller, 16 default settings, 49 deleting messages, 37 memo recording, 34 memory full, 37 message playback, 35 message recording time, 38 outgoing messages, 30 recording quality, 40 remote operation, 42 rings to answer, 39 skip back, 44 skip forward, 44 switching on and off, 45 time stamping, 39 toll saver, 48

auto-answer, 48

B ‘battery low’ tone, 51

Baby Call, 51 base settings, 54 base unit ringer, 14 batteries

charging the handset’s batteries, 7

fitting the batteries, 6 replacing the batteries, 66

C call barring, 56

call control, 55

barring calls to specified numbers, 56

barg certain types of call, 56

call timer, 55 emergency numbers, 58

call limit, 58 cleaning and care, 68 clock setting, 11 conference calls, 26 connection and conditions

for use, 66

D date and time, 11

default settings

base unit, 53 handset, 49

de-registering handsets, 59

E earpiece volume, 47

electrical power, 70 emergency numbers, 58 ending a call, 15

G guarantee, 68

H HANDSET LOCATOR button,

26–27 handset name, 10 handset ringer, 12 handset settings, 46

I installation, 24-25

intercom calls, 23–24 interference, 8

K key beep, 47

L language, 48

Last Number Redial, 16

on a PBX, 66

locking the keypad, 9

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:07

Color profile: Generic CMYK printer profile Composite Default screen

Index

M making a call, 15

memory dialling, 19 multi-handset use, 24

N name, 18

New Call tone, 27

O ‘Out of range’ warning, 8

P the Phone Book, 17–19

calling a stored number, 19 deleting entries, 20 editing entries, 19 storing names and

numbers, 18

paging handsets, 27 pause, 65, 69 PBX compatibility, 66 PIN

base unit, 54 for remote operation of the

answering machine, 42 handset, 52

problems, 62–67

R radio signals, 4, 9

recall signal, 53

Waste electrical products must not be disposed of with household waste. This equipment should be taken to your local recycling centre for safe treatment.

registering new handsets,

registration and de-

registration, 59-60

REN (ringer equivalence

number), 63

ringer volume and melody

base unit, 12 handset, 14

S service information, 69

shuttling between calls, 26

signalling, 69

site for the base unit, 4

site for the charger pod, 4

SOS numbers, 58

switching on and off, 9

T three-way conference, 26

time and date, 11

transferring calls, 25

troubleshooting, 59

V volume control, 1 , 38

E:\Binatone2006\iDECT_X1i\iDECT_X1i_UK_03.vp 12 June 2006 10:54:09

Binatone Electronics IDECTX1I Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
