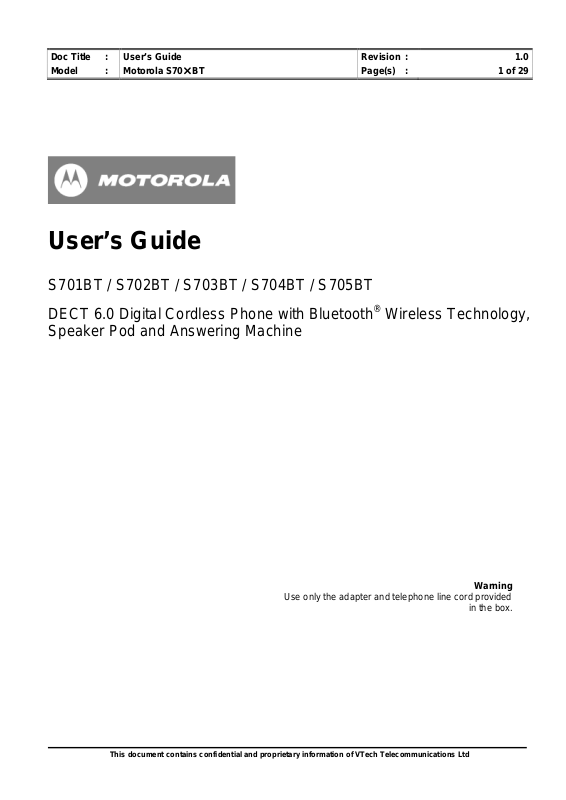

User’s Guide
S701BT / S702BT / S703BT / S704BT / S705BT
DECT 6.0 Digital Cordless Phone with Bluetooth® Wireless Technology, Speaker Pod and Answering Machine
Warning
Use only the adapter and telephone line cord provided in the box.
This document contains confidential and proprietary information of VTech Telecommunications Ltd
Doc Title |
: |
User’s Guide |
Revision : |
1.0 |
Model |
: |
Motorola S70×BT |
Page(s) : |
2 of 29 |
|
|
|
|
|
Welcome to your new Motorola Phone!
Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.
For product-related questions, please call:
US and Canada: 1-888-331-3383 On the Web: www.motorola.com
30 name and number phonebook.
Answering machine with up to 15 minutes digital recording time. *
Caller ID shows you who is calling and includes details of the last 30 callers in a calls list. **Register up to 5 handsets or speaker pods to a single base.
Make internal calls, transfer external home calls, hold 3-way conversation between two internal callers and
an external caller.
*The recording time includes the pre-recorded voice menu and outgoing announcements.
**You must subscribe to your network provider’s Caller ID or Call Waiting service for these features to work.
Please note that this equipment is not designed for making emergency telephone calls when the power fails. Alternative arrangements should be made if emergency telephone call is necessary.
This ENERGY STAR® program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to mark this product with the ENERGY
STAR® label indicating it meets the latest energy efficiency guidelines.
This document contains confidential and proprietary information of VTech Telecommunications Ltd
Doc Title |
: |
User’s Guide |
Revision : |
1.0 |
Model |
: |
Motorola S70×BT |
Page(s) : |
3 of 29 |
|
|
|
|
|
This User’s Guide provides you with all the information you need to get the most from your phone.
Before you make your first call you will need to set up your phone. Follow the simple instructions in ‘Getting Started’, on the next few pages.
IMPORTANT
Use only the supplied telephone line cord.
This equipment is not designed to make emergency telephone calls during power failures. Alternative arrangements should be made for access to emergency services.
Got everything?
HandsetBase
Power Adapters×2
NiMH Rechargeable Battery Packs×2Battery Door
Speaker Pod
NiMH Rechargeable Battery Pack for Speaker PodCharging Cradle for Speaker Pod
Mobile Phone Stand
Telephone Line CordUser’s GuideQuick Start Guide
In multi-handset packs, you will find one or more additional handsets, chargers with power adapters, additional rechargeable battery packs and battery doors.
This document contains confidential and proprietary information of VTech Telecommunications Ltd
Doc Title |
: |
User’s Guide |
|
Revision : |
1.0 |
Model |
: |
Motorola S70×BT |
|
Page(s) : |
4 of 29 |
|
|
|
|
|
|
|
|
|
TABLE OF CONTENTS |
|
|
1 |
GETTING STARTED......................................................................................................................................... |
4 |
|
1.1 |
CONNECTING THE BASE.................................................................................................................................... |
4 |
|
1.2 |
INSTALLING AND CHARGING THE HANDSET BATTERY PACK ......................................................................... |
4 |
|
1.3 |
INSTALLING AND CHARGING THE SPEAKER POD BATTERY PACK.................................................................. |
4 |
|
1.4 |
SETTING THE DISPLAY LANGUAGE .................................................................................................................. |
4 |
|
1.5 |
SETTING DATE AND TIME.................................................................................................................................. |
4 |
|
2 GETTING TO KNOW YOUR PHONE............................................................................................................ |
4 |
||
3 |
USING THE PHONE.......................................................................................................................................... |
4 |
|
3.1 |
|
INTRODUCING BLUETOOTH.............................................................................................................................. |
4 |
3.2 |
|
BLUETOOTH SETUP........................................................................................................................................... |
4 |
3.2.1 |
SETUP CELLULAR............................................................................................................................................. |
4 |
|
3.2.2 REPLACING A PAIRED DEVICE .......................................................................................................................... |
4 |
||
3.2.3 |
PAIRED DEVICES............................................................................................................................................... |
4 |
|
3.3 |
MAKING A HOME CALL USING YOUR LANDLINE ............................................................................................. |
4 |
|
3.4 |
MAKING A CELLULAR CALL USING YOUR CORDLESS DECT HANDSET......................................................... |
4 |
|
3.5 |
SPEED DIAL CALLING ........................................................................................................................................ |
4 |
|
3.6 |
ANSWERING A HOME CALL............................................................................................................................... |
4 |
|
3.7 |
ANSWERING A CELLULAR CALL....................................................................................................................... |
4 |
|
3.8 |
RECEIVING A CELLULAR CALL WHILE ON A HOME CALL .............................................................................. |
4 |
|
3.9 |
RECEIVING A HOME CALL WHILE ON A CELLULAR CALL .............................................................................. |
4 |
|
3.10 |
ENDING A HOME CALL.................................................................................................................................... |
4 |
|
3.11 |
ENDING A CELLULAR CALL ............................................................................................................................ |
4 |
|
3.12 |
ADJUSTING VOLUME....................................................................................................................................... |
4 |
|
3.13 |
MUTING A CALL .............................................................................................................................................. |
4 |
|
3.14 |
DIALING FROM THE REDIAL LIST................................................................................................................... |
4 |
|
3.15 |
DIALING FROM THE CALLS LIST .................................................................................................................... |
4 |
|
3.16 |
ADDING AN ENTRY TO THE PHONEBOOK....................................................................................................... |
4 |
|
3.17 |
STORING A PHONEBOOK ENTRY AS A ONE TOUCH NUMBER......................................................................... |
4 |
|
3.18 |
DIALING FROM THE PHONEBOOK .................................................................................................................. |
4 |
|
3.19 |
CALLER ID ...................................................................................................................................................... |
4 |
|
3.19.1 CALLS LIST..................................................................................................................................................... |
4 |
||
3.19.2 VIEWING THE CALLS LIST............................................................................................................................... |
4 |
||
3.19.3 SAVING A NUMBER FROM THE CALLS LIST TO THE PHONEBOOK.................................................................... |
4 |
||
3.19.4 DELETING A CALLS LIST ENTRY ..................................................................................................................... |
4 |
||
3.19.5 DELETING THE ENTIRE CALLS LIST ................................................................................................................ |
4 |
||
3.20 |
PERSONAL SETTINGS...................................................................................................................................... |
4 |
|
3.21 |
INTERCOM ....................................................................................................................................................... |
4 |
|
3.21.1 CALLING ANOTHER HANDSET OR THE SPEAKER POD ..................................................................................... |
4 |
||
3.21.2 TRANSFERRING AN EXTERNAL HOME CALL TO ANOTHER HANDSET OR THE SPEAKER POD .......................... |
4 |
||
3.21.3 THREE-PARTY CONFERENCE CALL ................................................................................................................. |
4 |
||
3.22 |
SETTING THE DIAL MODE ............................................................................................................................... |
4 |
|
3.23 |
SETTING THE FLASH TIME.............................................................................................................................. |
4 |
|
3.24 |
SETTING THE AREA CODE............................................................................................................................... |
4 |
|
3.25 |
REGISTRATION................................................................................................................................................ |
4 |
|
This document contains confidential and proprietary information of VTech Telecommunications Ltd
Doc Title : |
User’s Guide |
Revision : |
1.0 |
||
Model |
: |
Motorola S70×BT |
Page(s) : |
5 of 29 |
|
|
|
|
|||
3.25.1 REGISTERING A HANDSET .............................................................................................................................. |
|
4 |
|||
3.25.2 REGISTERING A SPEAKER POD........................................................................................................................ |
|
4 |
|||
3.26 RESETTING ALL SETTINGS ............................................................................................................................. |
|
4 |
|||
3.27 PAGING/FINDING HANDSETS AND/OR A SPEAKER POD ................................................................................. |
|
4 |
|||
3.28 USING YOUR ANSWERING MACHINE .............................................................................................................. |
|
4 |
|||
3.28.1 |
PLAYING MESSAGES ....................................................................................................................................... |
|
4 |
||
3.28.2 TURNING ON OR OFF THE ANSWERING MACHINE ........................................................................................... |
|
4 |
|||
3.28.3 SETTING THE ANNOUNCEMENT MODE............................................................................................................ |
|
4 |
|||
3.28.4 SETTING THE RINGS TO ANSWER .................................................................................................................... |
|
4 |
|||
3.28.5 |
ANNOUNCEMENT ........................................................................................................................................... |
|
4 |
||
3.28.5.1 |
Recording the announcement...................................................................................................................... |
|
4 |
||
3.28.5.2 |
Playing the announcement .......................................................................................................................... |
|
4 |
||
3.28.6 |
RECORDING A MEMO...................................................................................................................................... |
|
4 |
||
3.28.7 CALL SCREENING ON/OFF............................................................................................................................... |
|
4 |
|||
3.28.8 DELETING ALL OLD MESSAGES ...................................................................................................................... |
|
4 |
|||
3.28.9 |
REMOTE ACCESS ............................................................................................................................................ |
|
4 |
||
3.28.10 SETTING THE SECURITY CODE...................................................................................................................... |
|
4 |
|||
4 |
HELP .................................................................................................................................................................... |
|
|
4 |
|
5 |
GENERAL INFORMATION............................................................................................................................. |
|
4 |
||
This document contains confidential and proprietary information of VTech Telecommunications Ltd
Doc Title |
: |
User’s Guide |
Revision : |
1.0 |
Model |
: |
Motorola S70×BT |
Page(s) : |
6 of 29 |
|
|
|
|
|
1 GETTING STARTED
WARNING
Do not place your phone in the bathroom or other humid areas.
Location
When choosing a location for your new phone, here are some important guidelines you should consider:
Avoid sources of noise and heat, such as motors, fluorescent lighting, microwave ovens, heating appliances and direct sunlight.
Avoid areas of excessive dust, moisture, and low temperature.Avoid other cordless telephones or personal computers.Never install telephone wiring during a lightning storm.
Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.Never touch non-insulated telephone wires or terminals unless the telephone line has been disconnected at the
network interface.
Use caution when installing or modifying telephone lines.
HANDSET RANGE
Optimal range is reached when there are no other electrical appliances working within the range area. Any obstruction between the base and handset will also reduce the range significantly.
SIGNAL STRENGTH
When out of range of the base, the screen shows OUT OF RANGE. If you are on a call, the line will hang up. Move back within range of the base. The handset will automatically re-connect to the base.
Setting up
IMPORTANT
The base must be plugged into an electrical outlet at all times. Do not connect the telephone line cord into the telephone wall jack until the handset is fully charged. Use only the adapter and telephone line cord supplied with the product.
WHICH POWER ADAPTER
The power adapter with the smaller DC plug is for the base unit and the power adapter with the larger DC plug is for the charger unit (only in multi-handset packs).
1.1Connecting the base
1.Insert the DC plug of the power adapter and the telephone line cord into the base, as shown above. The power adapter with the larger DC plug is for the charger (only in multi-handset packs).
2.Insert the other end of the power adapter into a power outlet and the telephone line cord into a telephone wall jack.
3.Use only the supplied power adapter.
This document contains confidential and proprietary information of VTech Telecommunications Ltd
Doc Title |
: |
User’s Guide |
Revision : |
1.0 |
Model |
: |
Motorola S70×BT |
Page(s) : |
7 of 29 |
|
|
|
|
|
1.2Installing and charging the handset battery pack
1.Slide off the battery compartment cover to remove it. Place the supplied rechargeable battery pack in the battery compartment, and insert the plug of the battery pack into the socket, as shown above.
2.Slide the battery compartment cover back on.
3.Put the handset on the base to charge for at least 24 hours. Once charging completed, the <Battery full icon> will indicate that the handset is fully charged.
IMPORTANT
Use only the rechargeable battery pack provided with the product.
1.3Installing and charging the battery pack of speaker pod
1.Slide off the battery compartment cover to remove it. Place the supplied rechargeable battery pack in the battery compartment, and insert the plug of the battery pack into the socket, as shown above.
2.Slide the battery compartment cover back on.
3.Put the speaker pod on the charging cradle for charging. When the speaker pod is properly placed on the charging cradle, the light on the speaker pod will turn on red steadily.
NOTE
With the clip on the back of speaker pod, you can wear it for convenient use when necessary.
IMPORTANT
Use only the rechargeable battery pack provided with the product.
1.4Setting the display language
1.Press <MENU> and then <VOL+> or <REDIAL/VOL-> to select SETUP HS.
2.Press <MENU> and then <VOL+> or <REDIAL/VOL-> to select LANGUAGE.
3.Press <MENU> and then <VOL+> or <REDIAL/VOL-> to select the desired language.
4.Press <MENU> to save the setting.
This document contains confidential and proprietary information of VTech Telecommunications Ltd
Doc Title |
: |
User’s Guide |
Revision : |
1.0 |
Model |
: |
Motorola S70×BT |
Page(s) : |
8 of 29 |
|
|
|
|
|
1.5Setting date and time
1.Press <MENU> to select DATE & TIME.
2.Press <MENU> and then use the keypad to edit the year and the date.
3.Press <VOL+> or <REDIAL/VOL-> or <PHONEBOOK> or <RIGHT/CALLS LIST> to move between the input fields YEAR and DATE.
4.Press <MENU> and then use the keypad to edit the time in 12 HR format.
Press <VOL+> or <REDIAL/VOL-> to toggle AM/PM settings. And use <PHONEBOOK> or <RIGHT/CALLS LIST> to move the cursor to the target input field.
5.Press <MENU> to save the settings.
NOTE
If you have subscribed to your network provider’s Caller ID service, date and time will be automatically set when a call is received.
Your phone is now ready for use.
This document contains confidential and proprietary information of VTech Telecommunications Ltd
Doc Title |
: |
User’s Guide |
Revision : |
1.0 |
Model |
: |
Motorola S70×BT |
Page(s) : |
9 of 29 |
|
|
|
|
|

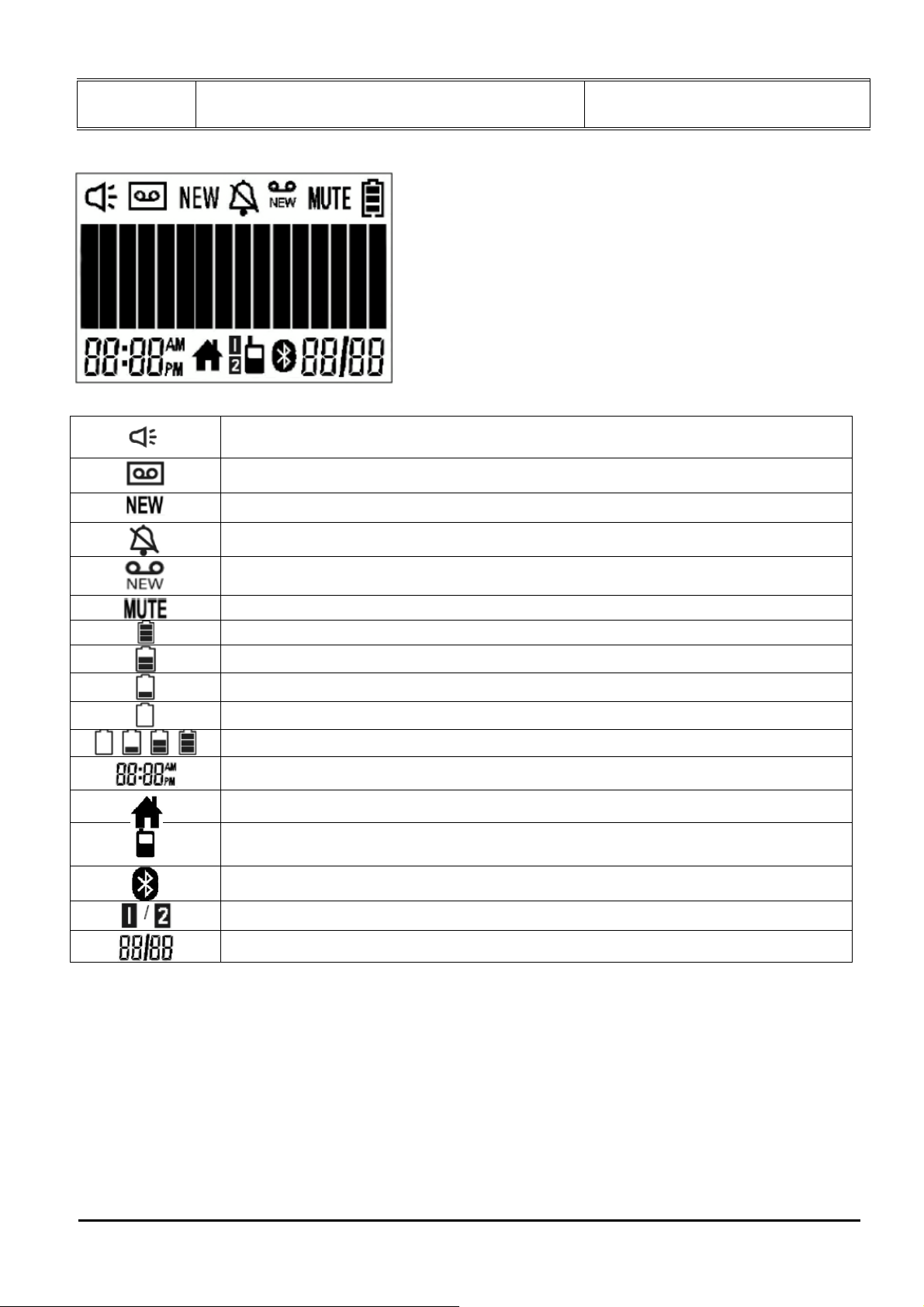

2 GETTING TO KNOW YOUR PHONE Overview of your handset
1
15 2
3
14 |
4 |
|
|
||
13 |
5 |
|
6 |
||
|
7
12
8
11
9
10
This document contains confidential and proprietary information of VTech Telecommunications Ltd
Loading...
