Instruction Manual
Mixer with a bowl
A
B
ENGLISH......................................... 4
FRANÇAIS .................................... 10
РУССКИЙ .....................................16
ENGLISHFRANÇAISРУССКИЙ
УКРАЇНСЬКА ............................... 22
3
УКРАЇНСЬКА
Mixer with a bowl HM155B
Please read the safety instructions carefully before using this
appliance. Please retain the instructions for future refer-
ence.
SAFETY MEASURES
When using your appliance, the following basic
safety precautions should always be followed:
X Before using for the first time, check that the
appliance voltage is the same as your local supply.
X Only use the appliance for the purposes stipu
lated by the instructions.
ment.
X To avoid electric shocks, do not immerse the appliance,
plug or power cord in water or any other liquids. Do
not place the appliance where it could come into contact with
water or other liquids. If the appliance comes in contact with
water, immediately disconnect it from the mains. Do not use
the machine again until it has been serviced by an autho
rized service center.
X Do not let children use the appliance without supervision.
X If the power cord plug does not fit to your wall socket,
consult a qualified electrician.
X Use of various adapters may result in damage to the
appliance and termination of warranty.
X Always supervise the equipment while in use.
X To avoid a circuit overload, do not operate any other high
voltage equipment on the same circuit.
X Always unplug before moving the appliance from one
place to another, cleaning and storing.
X Never pull the cord to disconnect the appliance, instead grasp
the plug and pull it to disconnect.
X Do not allow the cord or the machine itself to come in contact
with hot surfaces.
X Position the appliance and the cord so that nobody can acci
dentally overturn it.
X Do not use the appliance if it has been dropped, or it has a
damaged power cord or plug. Do not modify or repair the
machine yourself.
X Do not dismantle the appliance as improper assembly might
result in an electric shock during the subsequent use of the
equipment. Repairs should only be done by authorized
service centers.
X Do not use the device in areas where combustible gas mixtures
or inflammable liquid vapors could present in the air, or in
areas with inflammable airborne dust or fibers
X This equipment is intended for household use only, not for
commercial or industrial use.
X Please follow all the requirements of this guide.
X Do not use the appliance if it has mechanical defects (dents,
cracks etc.), get it checked by the nearest authorized service
center.
X Only use attachments supplied with the equip
4
SPECIAL SAFETY
PRECAUTIONS
X Avoid contacts with moving parts of the appliance.
X Never attempt to remove attachments during
operation of the unit. First switch the mixer off.
X Always insert beaters into the appropriate slots.
X Never use the mixer to mix paints or solvents.
X Do not apply extra force while assembling/
disassembling the appliance.
X Switch the mixer on only when fully assembled. Before use,
always check whether the unit is assembled properly.
X Do not use the appliance if the ambient temperature exceeds
00C/ +350C
X Duration of continuous operation of the appliance:
- Blending whisks – not more than 20 minutes of operation
and 5-10 minutes break.
- Dough kneading attachments – not more than 10 minutes
of operation and 5-10 minutes break.
- Turbo regime – not more than 1 minute of continuous
operation.
DESCRIPTION OF THE
APPLIANCE

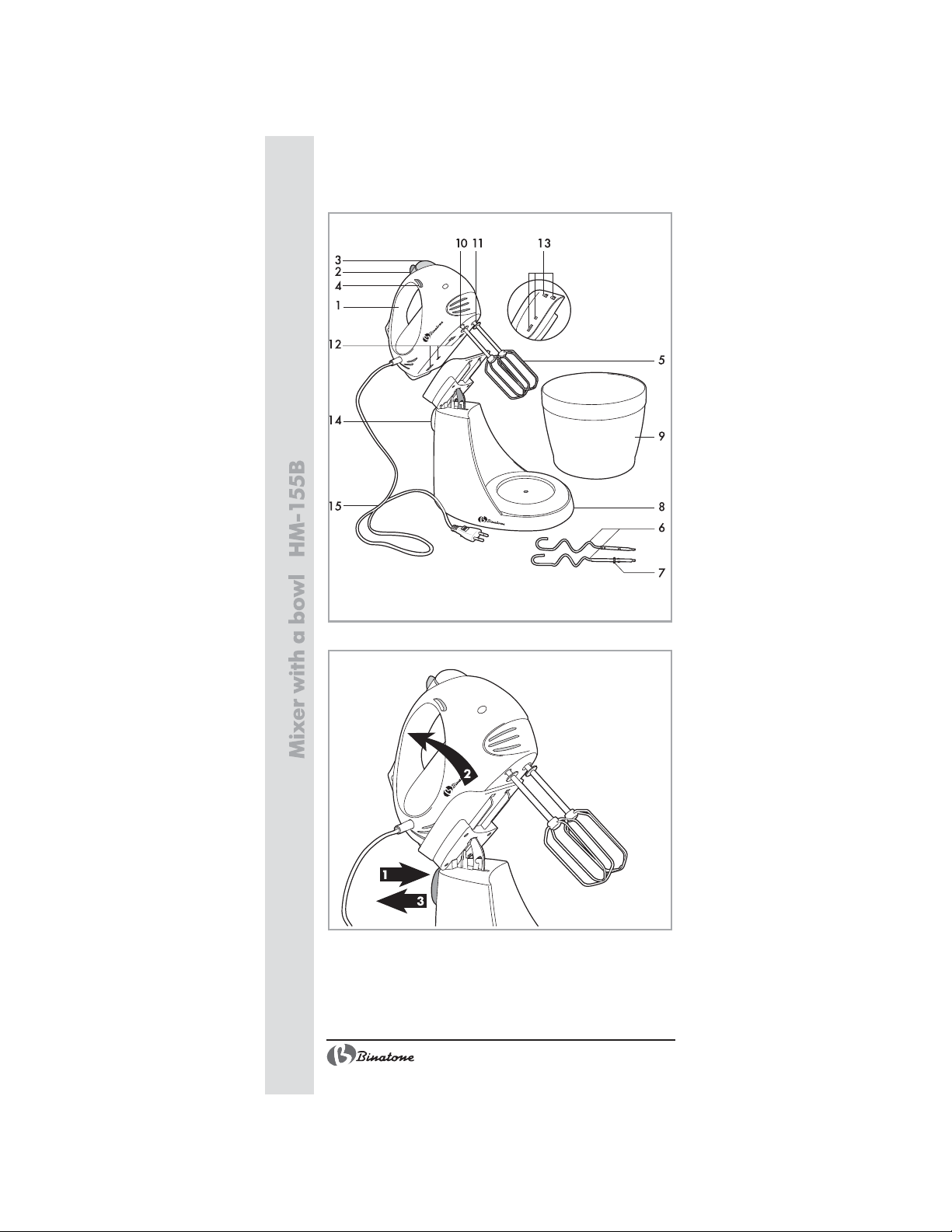

Picture A:
1. Housing
2. Speed control
3. Attachments automatic eject button
4. Turbo regime button
5. Steel beating whisks
6. Steel dough kneading attachments
7. Washer
8. Mixer’s stand
9. Removable plastic bowl
10.Small aperture to fix attachments
11.Large aperture to fix attachments
12.Grooves to fit the mixer onto the bowl
13.Mounting hooks
14.Lock button
15.Power cord
ENGLISH
5
PREPARING FOR USE
Unpack the equipment and clean the mixer as
described in the present instructions.
OPERATING INSTRUCTIONS
1. Select the attachments you intend to use.
2. Before fixing the attachments, check that the
speed selector (2) is in position «0» and the
power cord (15) is disconnected from the supply outlet.
3. Beating whisks (5) can be fixed in random
order. Fix them into apertures for attachments
4. Dough kneading attachments (6) can be installed only ac-
cording to the following procedure: attachment with washer
(7) has to be fixed into the large aperture for attachments
(10), and the second attachment (without a washer) shall be
fixed into the small aperture (11). Both attachments shall be
fixed until a click is heard.
5. Before switching the appliance on, make sure that both attachments are fixed properly!
6. Connect the appliance to the power outlet and set the speed
selector (2) to the desired setting to start operation of the
machine. Always start operating the machine at the lowest
speed gradually increasing the speed.
7. At the end of the operation set the speed selector (2) to «0»
position and switch the unit off the power supply.
8. Remove excessive products from attachments by a plastic or
wooden scapula.
9. Push the button of automatic ejection of attachments (3) to
take them out of the housing (1).
till a click is heard (10, 11).
Use of the stand with removable bowl
You may use the bowl with or without the stand. In order to
use the mixer with the stand:
1. Fill the bowl (9) with all necessary ingredients.
2. Put the bowl (9) on the stand (8). Make sure the bowl guides
are aligned with grooves in the stand.
3. Place the mixer onto the stand:
X Align mating grooves to fix the mixer (12) with the mounting
hooks on the stand (13).
X Push the lock button (14) and place the mixer fully down onto
the stand. Release the button (14).
X Make sure the mixer is securely attached to the stand and all
fixtures are reliably fastened.
4. To remove the bowl from the stand in the course of the operation of the equipment (without taking the mixer off the stand),
6
push the lock button (14) and while pressing it slightly lift the
mixer as shown in figure 1. Release the button (14). The
mixer is locked in the upper position. To return the mixer into
the initial position, push the button (14) and while pressing it
lower the mixer accurately into place.
5. To prepare a homogeneous substance turn the bowl round
from time to time during the operation process (9).
CARE AND CLEANING
1. Always disconnect the unit from the power
outlet before cleaning.
2. Rub the housing (1) and the power cord of
the machine with damp cloth and then rub it
dry.
3. Wash the attachments (5,6) in warm water
with detergent and dry them. Attachments may
be washed in a dishwashing machine.
Note: never immerse the appliance’s housing (1) and the
power cord into water.
USEFUL ADVICES
X To achieve homogeneous mass move the whisks
inside the bowl along its perimeter. If it is necessary
to clean the bowl in which you prepare food from
remnants of non-mixed products stop the appliance and remove remnants of products from the
walls of the bowl with a scoop. After that continue
operating the mixer according to the selected re
gime.
X It is recommended to use beating whisks (5) to prepare pud-
dings, puree, mobile dough (for example, pancake dough),
to beat cream and egg whites (fro example, to prepare kiss.
Selection of the speed regime:
ENGLISH
Speed
OFF
1 low
2 low – middle
3 middle
4 middle – high
5 high
Function
OFF
To combine
components
To mix
To shake
To beat
To froth
Utilization
Switched off.
To prepare sauces, puddings,
dough for rolls è pancakes.
To mix liquid and dry
ingredients, to beat up eggs
To prepare mobile dough and
mixes
To mix butter with sugar, to
prepare dough for cookies,
mixes for patisserie and glace
icing
To prepare light foamy mixes,
to beat cream, whites, etc.
7
X Attachments to knead dough (6) should be used for average
texture dough. Tough dough should be kneaded manually.
Speed regimes 1 and 2 are considered to be optimal for kneading dough.
X You can change the mixer’s speed in the course of its opera-
tion.
X Turbo regime. The turbo button (4) provides an additional
possibility to increase the mixer’s operation speed in the course
of several short time periods. This function can be activated at
any of 5 speed ranges. To achieve that press the button (4)
and keep it pressed. Time of continuous operation of the appliance in the turbo regime shall not exceed 1 minute.
DISPOSAL
The appliance should be disposed of in accordance with waste disposal regulations in your country and with the least damage to the environment.
Only ecologically safe materials are used in
the packaging of our products and the cardboard
and paper can be disposed of with normal paper
waste.
AFTER-SALES SERVICE
If your appliance does not operate at all
or operates poorly, call an authorized service
center for help or repairs.
The warranty does not cover the following:
X Non-observance of the above safety mea-
X Commercial use (use outside the scope of personal household
needs).
X Plugging into a mains socket with a voltage different from the
voltage on the appliance rating plate.
X Improper care (ingress of liquid, dust, insects, and other for-
eign items and substances inside the appliance).
X Use of excessive force during appliance operation or other
damages (mechanical damages resulting from incorrect use,
shocks or dropping of the appliance).
X Unauthorized repairs or replacement of the appliance parts
performed by an unauthorized person or service center.
X Accidents, such as lightning strike, flood, fire and other acts of
God.
sures and operation instructions.
8
ENGLISH
Features may be changed by Binatone without any notice.
Warranty details are set out in the warranty card provided with
the product.
Exploitation period: 3 years after the day of purchase.
Manufacture: Binatone Industries Ltd, Great Britain, Wembley,
1 Beresford Avenue, Vitabiotics House
Made in PRC for Binatone Industries Ltd, Great Britain
