INSTALLATION
MANUAL
4K HDR HDBaseT Extender
B-560-EXT-444-70
Page 2
2
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of re or electric shock, read and follow all instructions and warnings in this
manual. Keep this manual for future reference.
1. Do not expose this apparatus to rain or moisture. Do not expose this equipment to dripping
or splashing, and ensure that no objects lled with liquids, such as vases, are placed on the
equipment. Do not use this apparatus near water.
2. Do not remove cover. No user serviceable parts inside. Refer servicing to qualied service
personnel.
3. Clean only with a dry cloth.
4. Do not block any ventilation openings. Install according to manufacturer’s instructions.
5. Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus (including ampliers) that produce heat.
6. Do not override the safety purpose of the polarized or grounding plug. A polarized plug has
two blades, one of which is wider than the other. A grounding plug has two matching blades
and a third grounding prong. The wide blade or the third prong is provided for your safety. If
the provided plug does not t into your outlet, consult an electrician for replacement of the
obsolete outlet.
7. Protect the power cord from being walked on or pinched, particularly at the plug end and
where the power cord is attached to the apparatus.
8. Only use attachments and accessories specied by the manufacturer.
9. Refer all servicing to qualied service personnel. Servicing is required when the apparatus
has been damaged in any way, such as when the power supply cord or plug is damaged,
liquid has been spilled on or objects have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, the apparatus does not operate normally, or it has been
dropped.
10. To completely disconnect this equipment from power, disconnect the power supply cord
from the power outlet.
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
CAUTION
TO REDUCE THE RIS K OF ELECTRICAL
SHOCK:
DO NOT REMOVE COVER. NO USER
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
Page 3
3
CONTENTS
1. Product Overview ..........................................................................................................................................................4
2. Features ...............................................................................................................................................................................4
3. Package Contents ............................................................................................................................................................4
4. Device Layout ....................................................................................................................................................................5
4.1. B-560-EXT-444-70 Transmitter ..................................................................................................................5
4.2. B-560-EXT-444-70 Receiver ........................................................................................................................6
5. Installation ..........................................................................................................................................................................6
5.1. B-560-EXT-444-70 Transmitter Installation ..........................................................................................6
5.2. B-560-EXT-444-70 Receiver Installation ................................................................................................7
6. Applications ......................................................................................................................................................................7
6.1. HDBaseT Link (RJ45) Connection ..............................................................................................................8
6.2. IR Control Connections ..................................................................................................................................8
6.2.1. Point-to-Point IR Control — Stereo (3.5mm) IR Receiver ..................................................9
6.2.2. Control System — Mono (3.5mm) IR Receiver ........................................................................9
6.2.3. IR Flasher Out— Mono (3.5mm) ...................................................................................................10
6.3. RS-232 Control Connections .......................................................................................................................10
6.3.1. RS-232 Control (DB-9) Connection ............................................................................................11
6.3.2. RS-232 Operation Mode / Firmware Update Operation ....................................................12
6.4. IP Control Connections ..................................................................................................................................12
6.5. Thread-Locking Power Supply .....................................................................................................................13
7. Specications ....................................................................................................................................................................14
8. Support ...............................................................................................................................................................................15
9. Warranty .............................................................................................................................................................................15
Page 4
4
1. PRODUCT OVERVIEW
Welcome to Binary. This product is engineered to provide years of exceptional reliability. We
appreciate your business and we stand committed to providing our customers with the highest
degree of quality and service in the industry.
This device extends 4K HDR signals (HDMI 2.0a / HDCP 2.2) over a single category cable
allowing video and audio transmission to remote displays, and will pass all video formats
up to 18Gbps including 4K@60Hz 4:4:4 8bit and 10/12 bit HDR formats. Also, the B-560EXT-444-70 supports all audio formats including Dolby Atmos and DTS:X. The device also
supports bi-directional IR pass-through, RS-232, Power-over-Ethernet (PoC) and also extends
LAN over the same category cable.
2. FEATURES
• Extends all HDMI formats up to:
Resolution Cat 5e/6 Cat 6a/7
4K Ultra HD 70 m / 230' 100 m / 330'
1080p Full HD 100 m / 330' 100 m / 330'
• This unit supports HDMI 2.0a and HDCP 2.2 formats
• Supports all HDMI supported audio formats including Dolby Atmos and DTS:X
• Bi-directional, CEC, RS-232 and IP control signals
• Extends ethernet over same category cable
• Power-over-Cable (PoC) allowing power to be applied from transmitter or receiver.
3. PACKAGE CONTENTS
• 1x B-560-EXT-444-70 Transmitter
• 1x B-560-EXT-444-70 Receiver
• 1x 12V DC, 2A Power Supply
• 4x Mounting Ears
• 4x Mounting Screws
• 8x Rubber Feet
• 1x Installation Manual
• 1x Power Supply Label
• 2x HDBaseT Labels
Page 5
5
4. DEVICE LAYOUT
4.1. B-560-EXT-444-70 Transmitter
12 43
ON

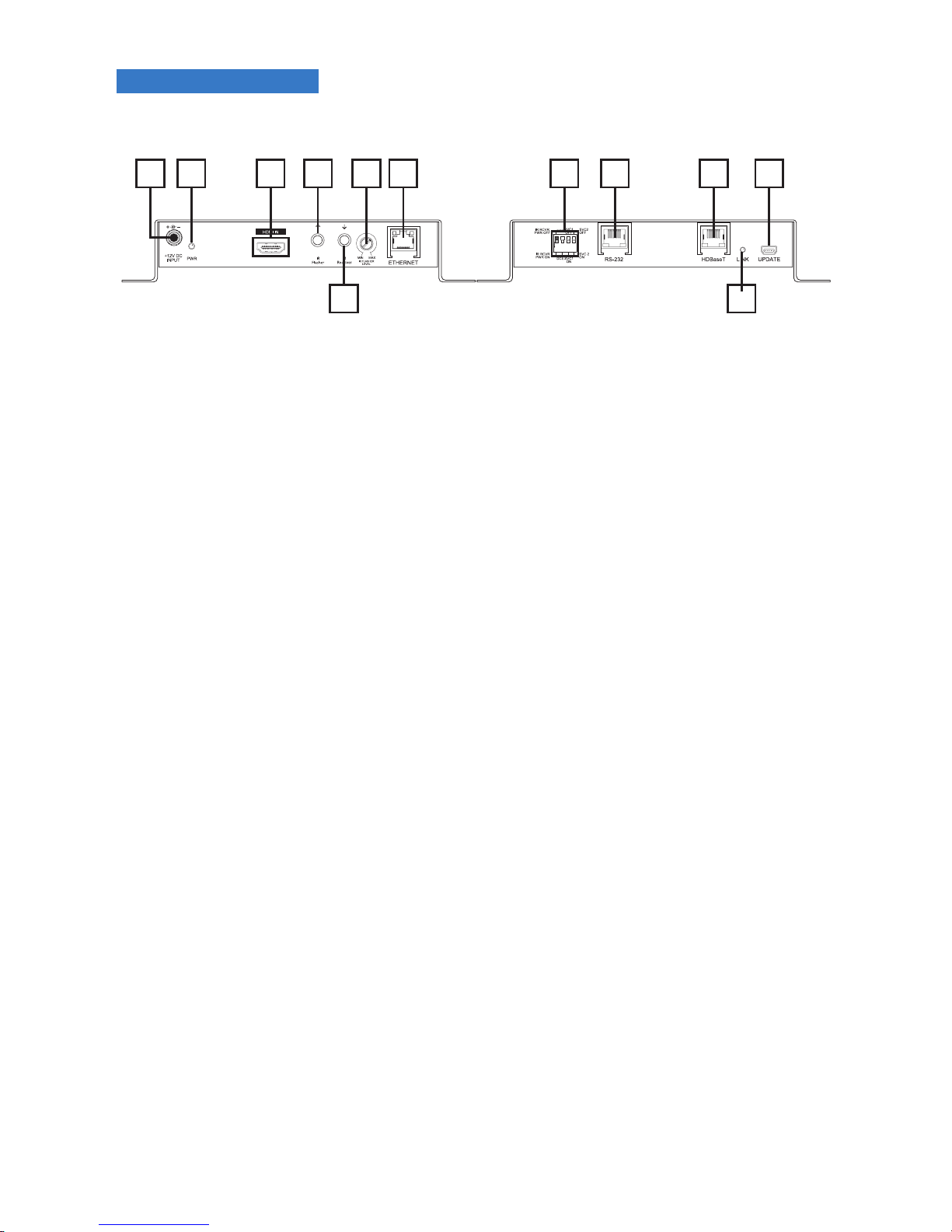

FIGURE 1: Transmitter Layout
A. Thread-locking Power Connector
Connect to the included 12V DC, 2A power supply
B. Power LED
Lights up blue when the unit has power
C. HDMI IN
HDMI Input to connect to the HDMI output of a source
D. IR Flasher
IR output to connect to IR Flasher
E. IR Receiver
IR input to connect to IR Receiver or to output of a control system
F. IR Flasher level
Adjusts the intensity of the IR Flasher output
G. Ethernet (RJ45)
To communicate IP data between Transmitter and Receiver
H. DIP Switches
IR RCVR PWR OFF/ON
OFF to connect to control system | ON to connect to IR Receiver
DCE/DTE
To select if serial (RS232) communication via CAT5e/6 DB9-M-RJ45-ADPT is in DTE or DCE
mode
SVC1 OFF/ON
Leave this at the OFF position for normal operation
SVC2 OFF/ON
Leave this at the OFF position for normal operation
I. RS-232
To communicate RS-232 command with the receiver when connected to a control system
J. HDBaseT (RJ45)
To connect to the HDBaseT RJ45 port on receiver
K. Link LED
Lights up green when synced with receiver
L. Update (mini USB port)
To connect mini USB cable when updating rmware
A B C HG I J LD
E K
F
Page 6
6
4.2. B-560-EXT-444-70 Receiver
12 43
ON
HDMI OUT

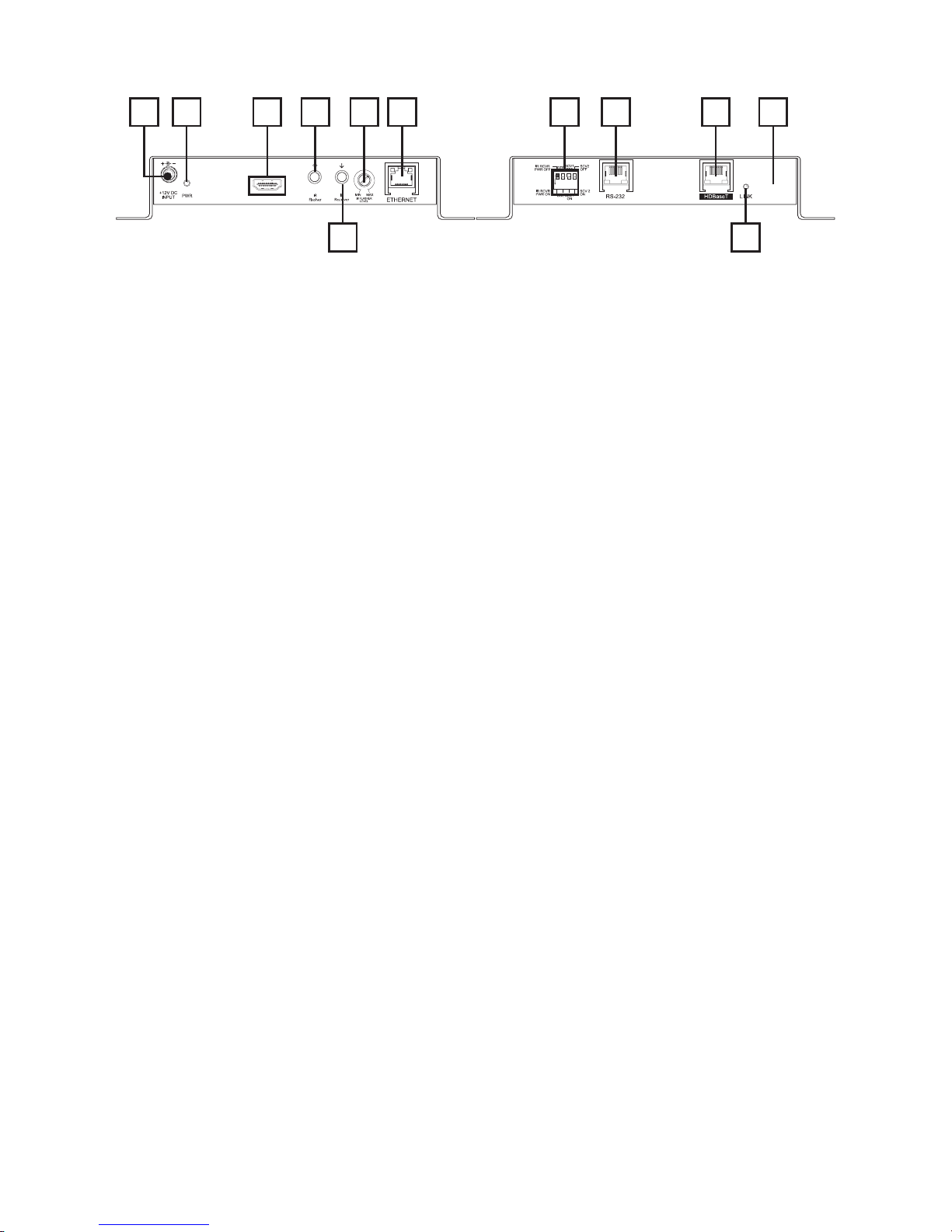

FIGURE 2: Receiver Layout
A. Thread-locking Power Connector
Connect to the included 12V DC, 2A power Supply
B. Power LED
Lights up blue when the unit has power
C. HDMI Out
HDMI Output which could be connected to the HDMI input of a sink (display)
D. IR Flasher
IR output to connect to IR Flasher
E. IR Receiver
IR input to connect to IR Receiver or to output of a control system
F. IR Flasher level
Adjusts the intensity of the IR Flasher output
G. Ethernet (RJ45)
To communicate IP data between Transmitter and Receiver
H. DIP Switches
IR RCVR PWR OFF/ON
OFF to connect to control system | ON to connect to IR Receiver
DCE/DTE
To select if serial (RS-232) communication via CAT5e/6 using DB9-M-RJ45-ADPT is in DCE
or DTE mode
SVC1 OFF/ON
Leave this at the OFF position for normal operation
SVC2 OFF/ON
Leave this at the OFF position for normal operation
I. RS-232
To communicate RS-232 command with the transmitter when connected to a control
system
J. HDBaseT (RJ45 )
To connect to the HDBaseT RJ45 port on transmitter
K. Link LED
Lights up green when synced with receiver
A B C HG I J LD
E K
F
Page 7
7
5. INSTALLATION
CAUTION: Do not connect power to the device until all other connections are made and the
unit is installed.
5.1. B-560-EXT-444-70 Transmitter Installation
1. Run category cable from the location of the transmitter to the remote location of the receiver.
2. Mount the transmitter in the desired location.
3. Connect the HDMI Out of a source to the HDMI IN on the transmitter using an HDMI cable.
4. Connect the RS-232 RJ-45 with CAT5e/6 using DB9-M-RJ45-ADPT from a control system
if being used.
5. Connect an IR control system to the IR receiver and/or IR asher if being used. Refer to Section 6.2.
6. Connect the patch cable from the router or network switch to the ethernet port (RJ45).
7. Connect the 12V DC, 2A power supply to the latch-locking power jack, unless PoC is being
used to send power from the receiver. DO NOT plug the power supply into an AC outlet
until Receiver Installation is completed.
5.2. B-560-EXT-444-70 Receiver Installation
1. Run category cable from the location of the transmitter to the remote location of the receiver.
2. Mount the receiver in the desired location.
3. Connect the category cable to the receiver.
4. Connect an IR asher and/or IR receiver if being used. Refer to Section 6.2.
5. Connect an HDMI cable from the HDMI Out of receiver to the display.
6. Connect the RS-232 RJ-45 with CAT5e/6 using DB9-M-RJ45-ADPT to an RS-232
controllable source if being used.
7. Connect the ethernet RJ45 to an ethernet enabled device if being used.
8. Connect the 12V DC, 2A power supply to the latch-locking power jack, unless PoC is being
used to send power from the transmitter.
9. Connect the power supply to the AC outlet.
Page 8
8
6. APPLICATIONS
PLAY
12 43
ON
12 43
ON
HDMI OUT

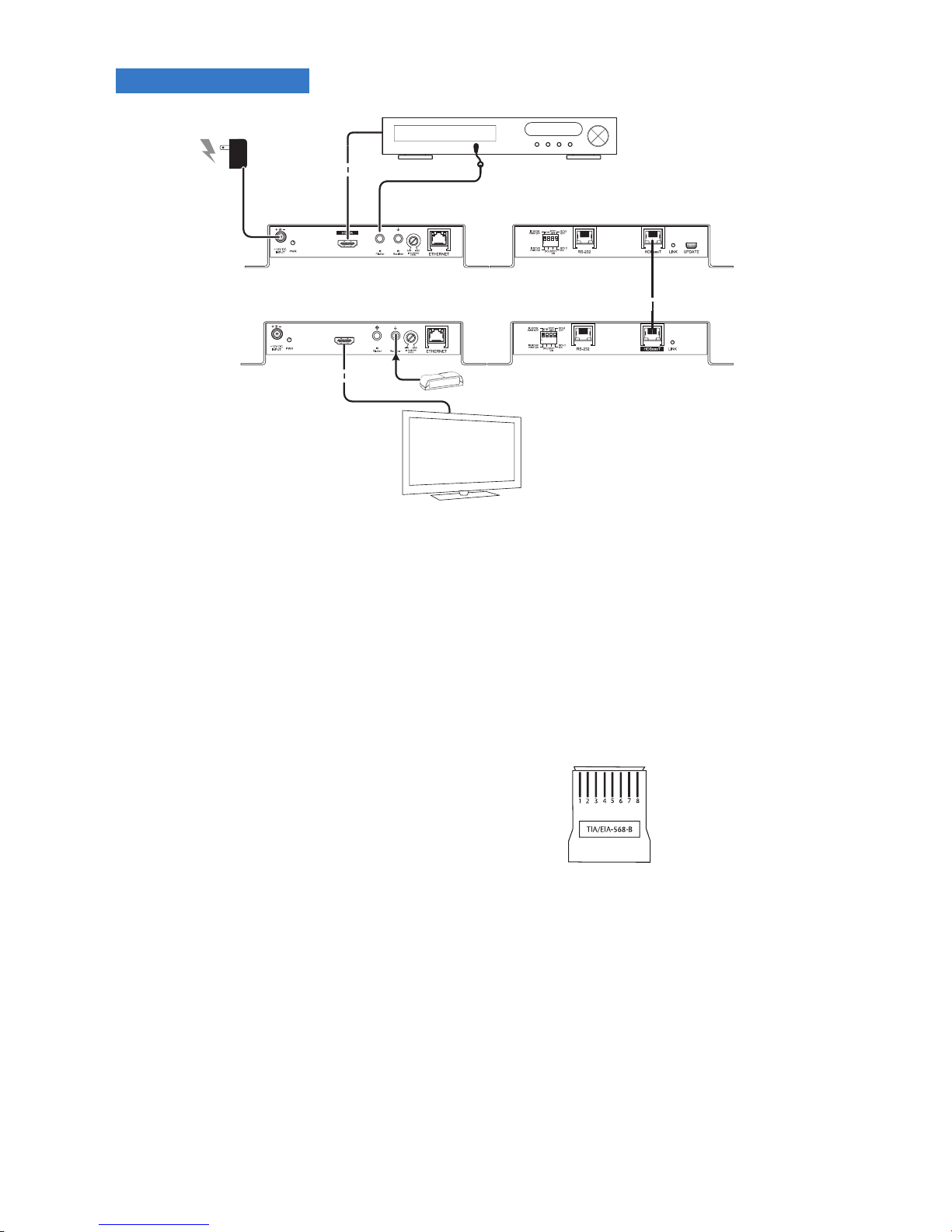

FIGURE 3 : Application Diagram
Note: When a power supply is connected to either the transmitter or receiver, the HDBaseT
link sends power to the other unit. Only one unit requires a power supply to be connected.
6.1. HDBaseT Link (RJ45) Connection
This device is specied to operate with category cables for communication between the transmitter
and receiver. The transmission path may include a maximum of two keystones and two patch cables,
as long as the total length does not exceed 100 m for category cable and resolution desired.
Pi
n 1White/OrangePin 5White/Blue
Pi
n 2OrangePin 6Green
Pi
n 3White/Green Pin 7White/Brown
Pi
n 4BluePin 8Brown
TIA/EIA Standard 568-B (Gold Pins Facing Up)
FIGURE 4: RJ45 Connections
Note: The HDBaseT Link RJ45 connection includes a 12V signal. Do not connect anything to
this port other than an HDBaseT transmitter or receiver.
HDMI Source
HDMI
CAT5
HDMI
AC
Power
Back Front
B-560-EXT-444-70 Receiver
Back Front
B-560-EXT-444-70 Transmitter
Page 9
9
6.2. IR Control Connections
Bidirectional IR signals can be transmitted between transmitter and receiver through category
cable. The IR signal can be generated either from a powered receiver or from a control system.
The following section describes these two use cases.
CAUTION: Pinout congurations for IR receivers and control systems vary. Before connecting
to this input, review this section carefully in order to match the pinouts for the device.
IR OutputsIR Inputs
PLAY
HDTV
12 43
ON
12 43
ON
HDMI OUT
C A
D
C B

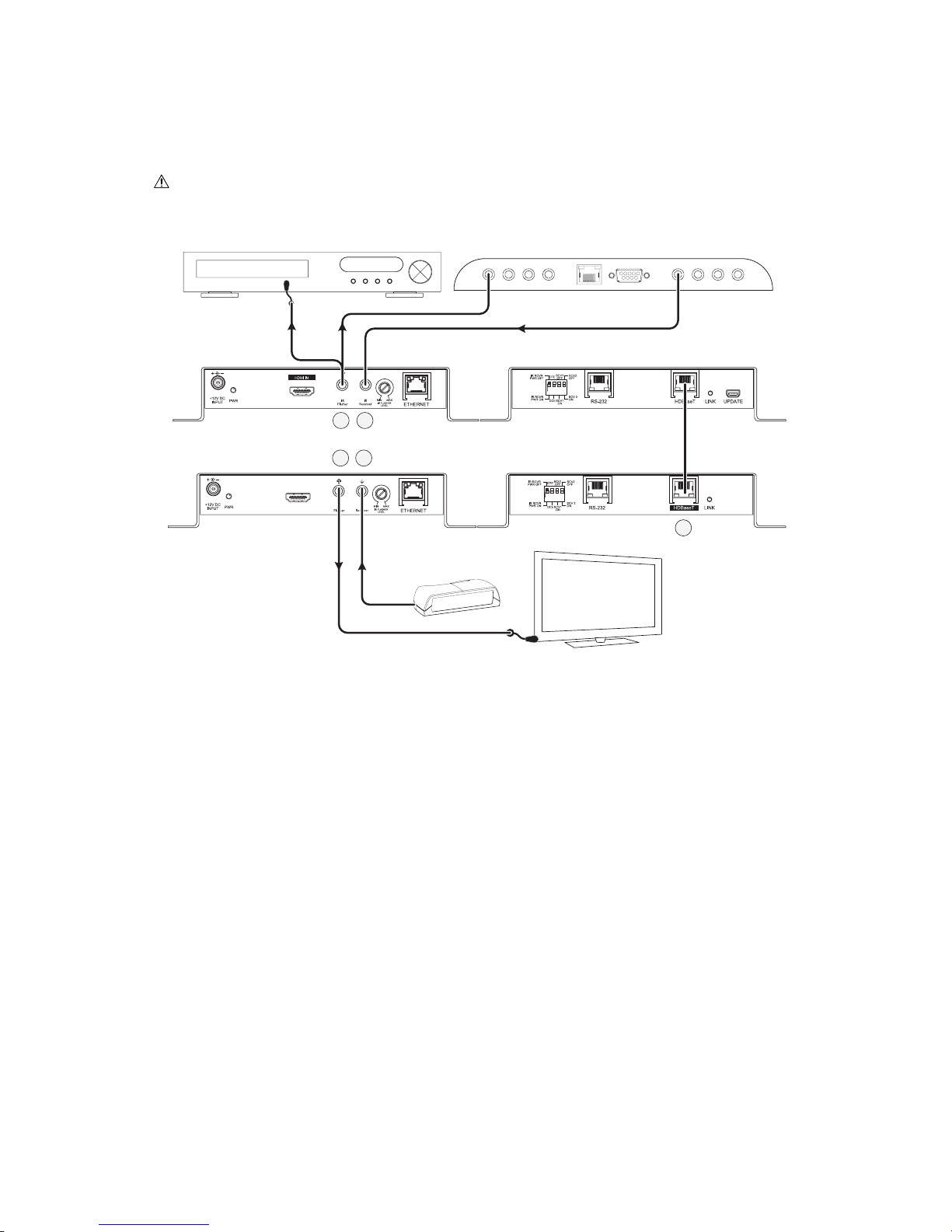

FIGURE 5: IR Connections
Note: Arrow direction indicates signal ow.
IR Receiver In-3.5 mm Mono—See Section 6.2.2
IR Receiver In-3.5 mm Stereo—See Section 6.2.1
IR Flasher Out-3.5 mm Mono—See Section 6.2.3
D HDBaseT Link category cable (RJ45)—See Section 6.1
B-560-EXT-444-70 Receiver
B-560-EXT-444-70 Transmitter
IR Processor/ Controller
HDMI Source
Front
Back
HDBaseT
Back Front
Page 10
10

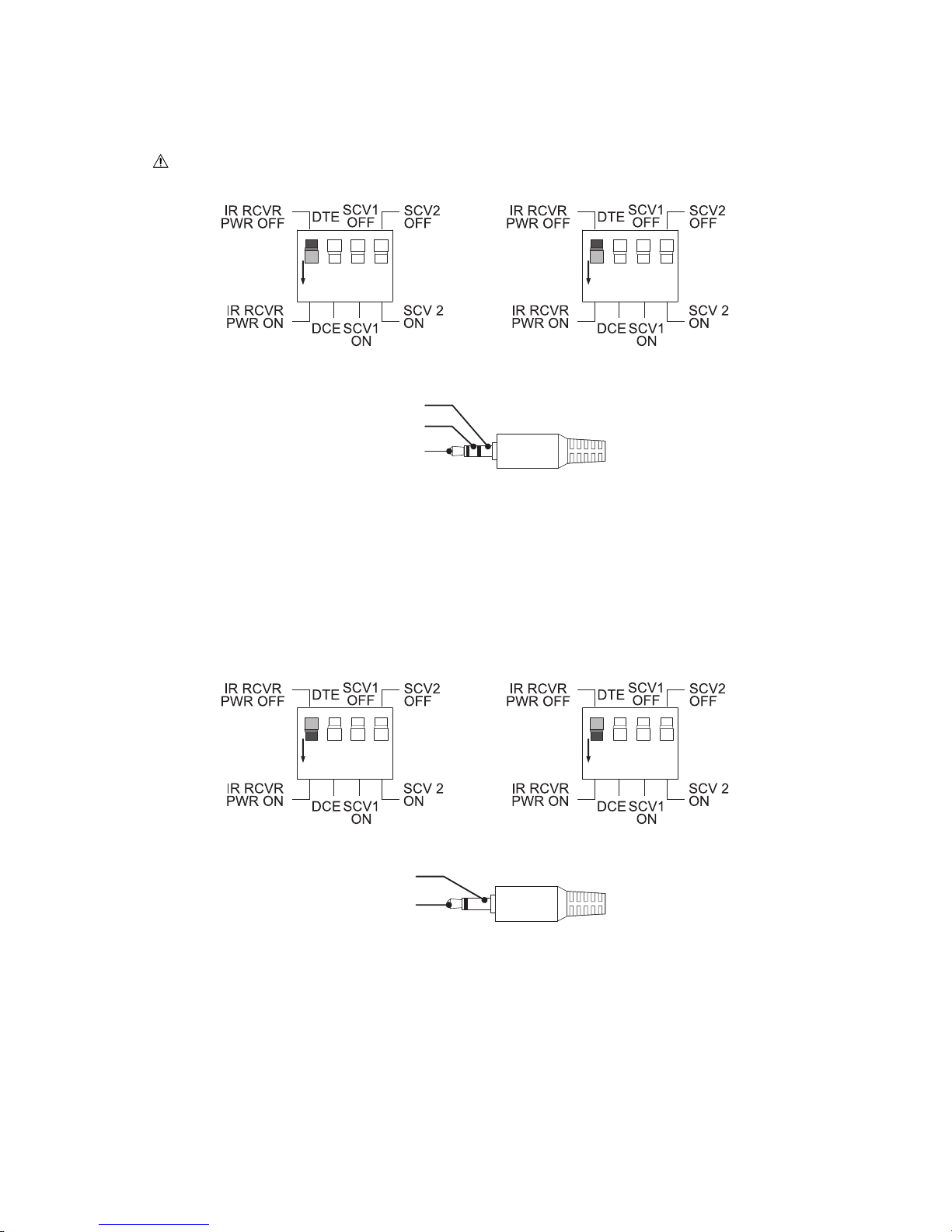

6.2.1. Point-to-Point IR Control — Stereo (3.5mm) IR Receiver
When using a powered IR receiver, the DIP switch for IR RCVR PWR should be set to ON. In
this case a 3.5mm (1/8") stereo jack has to be used to send 9V DC power to the receiver.
CAUTION: DO NOT connect a mono cable to this connection as damage may occur.
12 43
ON
12 43
ON
9V DC (Sleeve)
GND (Ring)
IR Signal (Tip)
FIGURE 6: Point-to-Point IR settings
6.2.2. Control System — Mono (3.5mm) IR Receiver
When using a control system which generates the signal through a mono jack, the IR RCVR
PWR switch should be in the OFF position.
12 43
ON
12 43
ON
GND (Sleeve)
IR Signal
(Tip)
FIGURE 7 : Control System IR settings
Transmitter Receiver
Pinout Conguration
Transmitter Receiver
Pinout Conguration
Page 11
11
6.2.3. IR Flasher Out— Mono (3.5mm)
The IR Flasher level adjusts the intensity of the IR Flasher output
GND (Sleeve)
IR Signal
(Tip)

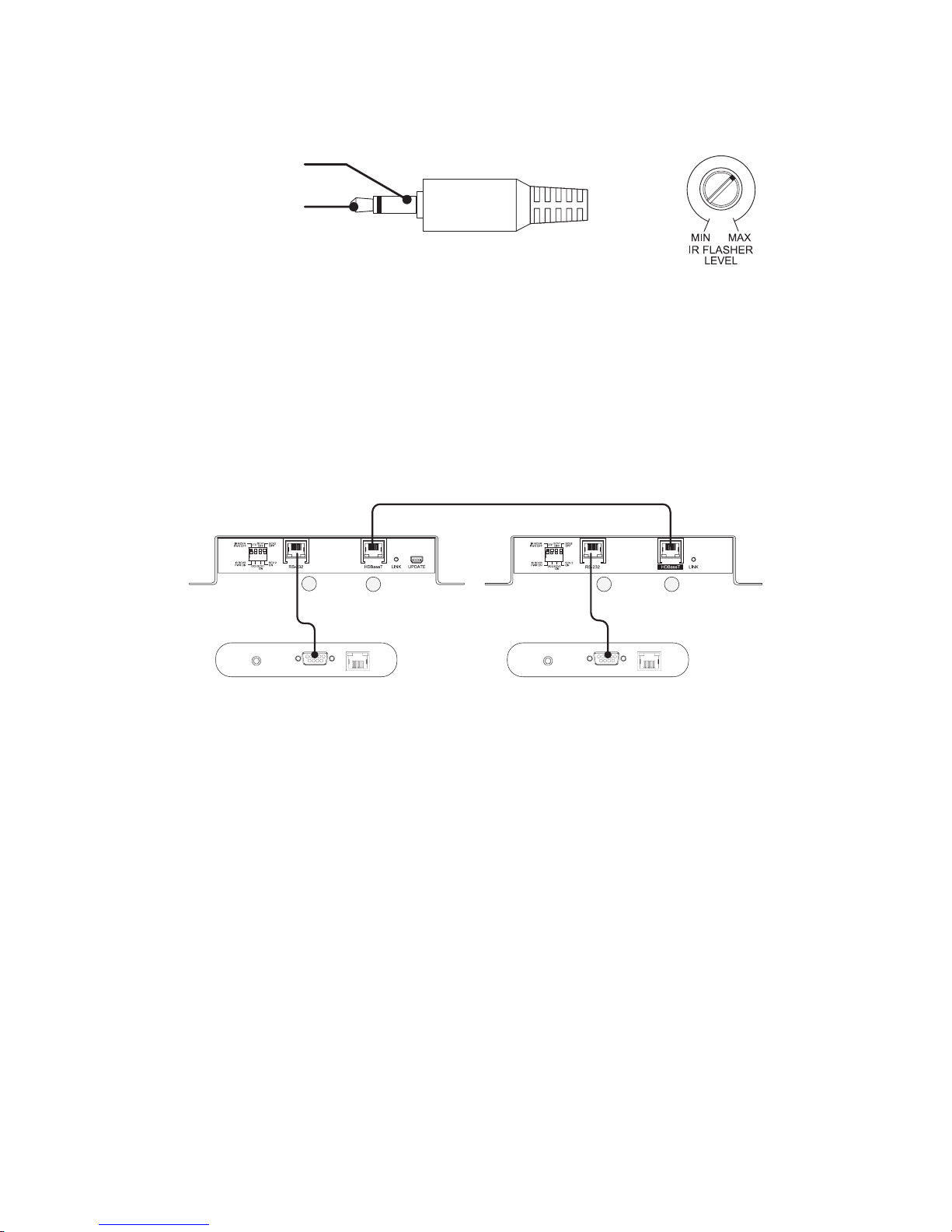

FIGURE 8: IR Flasher Out
6.3. RS-232 Control Connections
Bidirectional RS-232 signals are transmitted between the device transmitter and receiver over
the category cable. The transmitter may be connected to a control system, and the receiver
may be connected to an RS-232 controllable device.
12 43
ON
12 43
ON
A
B
A
B
RS-232 Control (DB-9)- See Section 6.3.1
HDBaseT Link category - See Section 6.1
FIGURE 9:RS-232 Connections
Pinout Conguration
B-560-EXT-444-70 Transmitter
RS-232 Controllable Device
Control System
B-560-EXT-444-70 Receiver
Page 12
12
6.3.1. RS-232 Control (DB-9) Connection
To eliminate the need to make crossover or null modem cables, the RS-232 pinouts can be
congured for DCE or DTE. Set switch 2 to DCE if the connected device is DCE, and to DTE if
the connected device is DTE.
Typically the control system will be DTE and the controlled device will be DCE, however,
devices may vary. Refer to the manual for the connected devices for proper pinout
conguration.
DB9 FUNCTION
5 GND
2 RxD (Data Receive)
3 TxD (Data Transmit)
DB9 FUNCTION
5 GND
2 TxD (Data Transmit)
3 RxD (Data Receive)
1 (NC)
2 (NC)
3 (NC)
4 (GND)
5 (RxD)
6 (TxD)
7 (NC)
8 (NC)
1
2
3
4
5
6
7
8
RJ-45
4
5
6
RJ-45
4
5
6
12 43
ON
12 43
ON
12 43
ON
12 43
ON

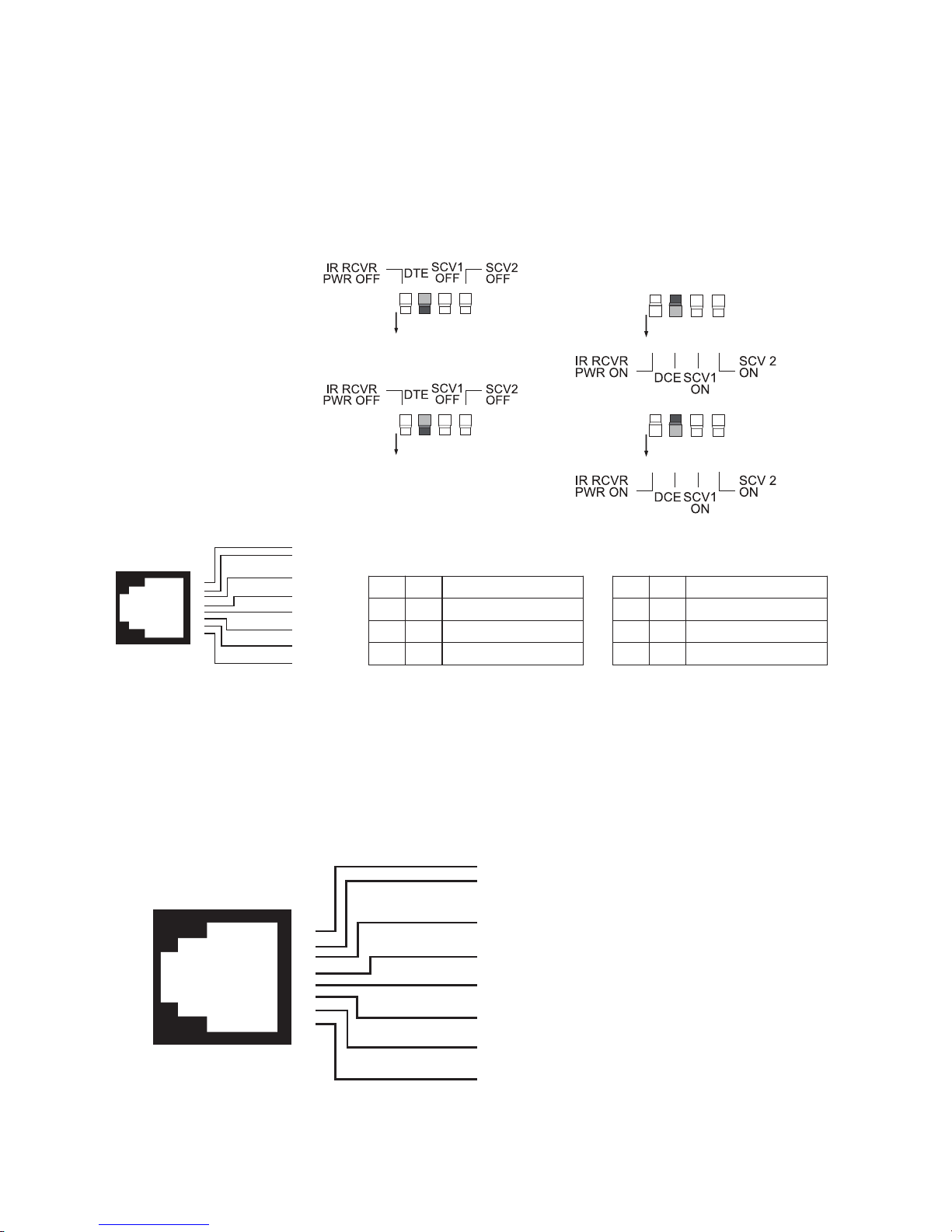

FIGURE 10: RS-232 Modes and Connections
6.3.2. EIA-561 Serial Port (RJ45) Connection
See the diagram below for the EIA-561 interface pinout.
1 (NC)
2 (NC)
3 (NC)
4 (GND
)
5 (RxD)
6 (TxD)
7 (NC)
8 (NC)
1
2
3
4
5
6
7
8
DTE Mode
DCE Mode
Transmitter
Receiver
Pinout based on DB9-M-RJ45-ADPT
Page 13
13
6.3.3. RS-232 Operation Mode / Firmware Update Operation
The RS-232 connection can also be used for rmware updates in addition to sending RS-232
signals. The DTE/DCE switch is used to set the RS-232 Mode.
Note: Set both SCV1 & SCV2 DIP switches to OFF during normal RS-232 passthrough
operation.
To perform rmware updates, the DIP switches must be set to DTE and service modes. Detailed
instructions and updated rmware will be posted to www.snapav.com as they are released.
12 43
ON
12 43
ON
12 43
ON
12 43
ON
12 43
ON
12 43
ON

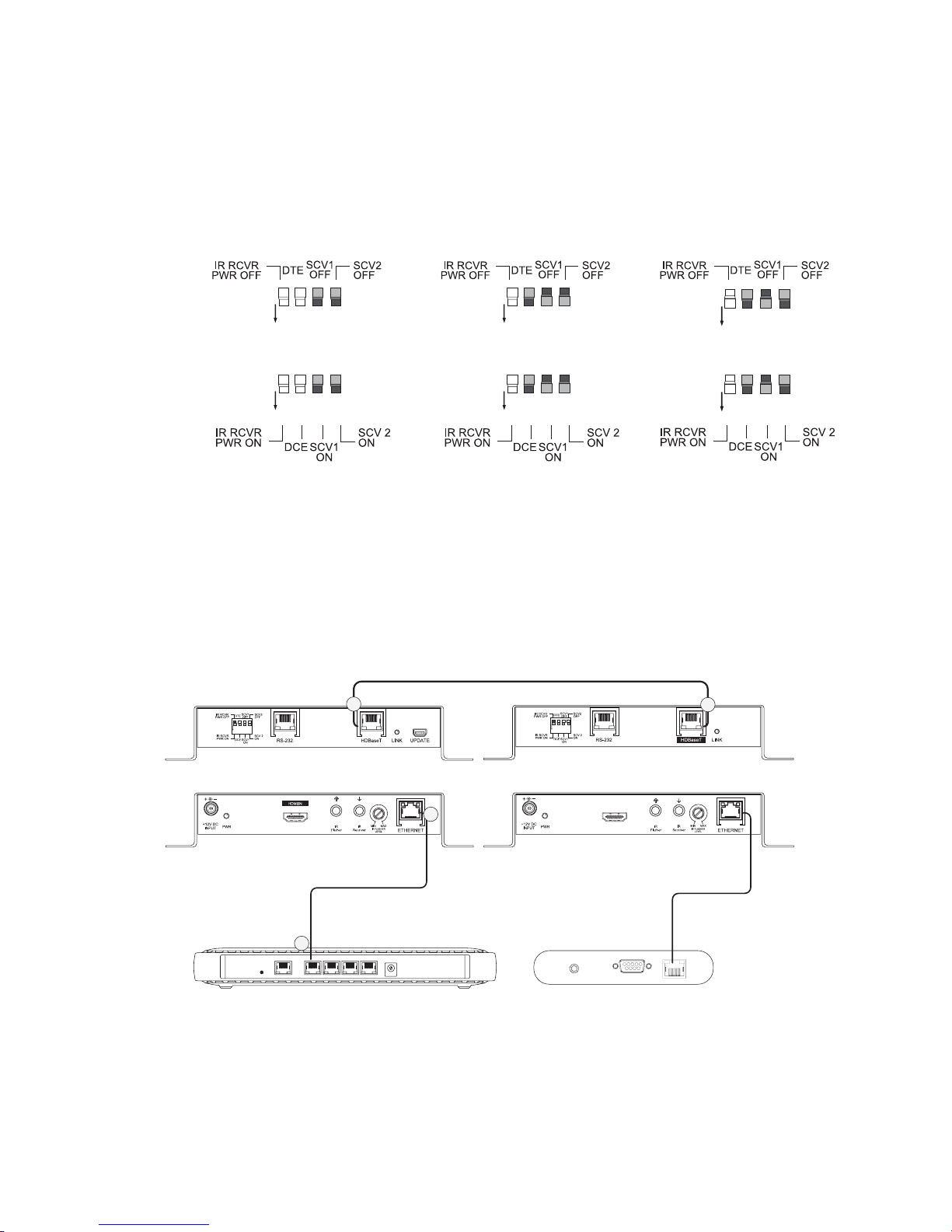

FIGURE 11: Firmware Update settings
6.4. IP Control Connections
Bidirectional Ethernet signals are transmitted between the B-560-EXT-444-70 Transmitter
and Receiver over the Cat 5e/6 cable. The most common use is to send Ethernet signals for
Networked TVs or any device in the remote location that has an Ethernet connection. This
connection is only to be used for standard Ethernet signals and cannot be used for other
communication formats.
FIGURE 12: IP Control Connection Layout
Ethernet (RJ45)
HDBaseT Link category - See Section 6.1
Note: This connection is for 10/100 BaseT Ethernet ONLY. DO NOT connect a cable from an
HDBaseT port.
Ethernet Enabled Device
Network Ro uter or Switch
12 43
ON
12 43
ON
HDMI OUT
B
B
A
A
Transmitter
Transmitter
Receiver
Receiver
Transmitter
Receiver
RS-232 Passthrough
System Firmware
Update
HDBaseT Firmware
Update
Page 14
14
6.5. Thread-Locking Power Supply
This extender pair is Power over Cable capable and therefore can be powered from either
the transmitter or receiver. When a power supply is connected to either the transmitter or
receiver, the HDBaseT link sends power to the other end.
CAUTION: Do not connect the power supply to the device until it is completely installed
and all connections have been made.
7. SPECIFICATIONS
Technical Transmitter Receiver
HDMI Compliance HDMI 2.0a
HDCP Compliance 2.2
Video Bandwidth 18 Gbps
HDMI over UTP Transmission 4K Ultra HD (4:4:4) — 70' (Cat 5e/6), 330' (Cat 6a/7)
1080p Full HD — 330’
Input TMDS Signal 1.2V (peak-to-peak)
Input DDC Signal 5V (peak-to-peak, TTL)
ESD Protection (1) Human body model: ±15kV (air-gap discharge) & ±8kV
(contact discharge) (2) Core chipset — ±8kV
IR Signal (Bidirectional) Carrier frequency: 20–60kHz
Connections
HDBaseT Link 1x RJ45 1x RJ45
HDMI 1x HDMI Type A
(19-pin female)
1x HDMI Type A
(19-pin female)
IR Receiver (In) 3.5mm Stereo/Mono 1x 3.5mm Stereo/Mono
IR Flasher (Out) 1x 3.5mmMono 1x 3.5mm Mono
RS-232 passthrough RJ-45 RJ-45
IP pass-through Ethernet Ethernet
Power Latch-Locking
Controls
DIP switch 1 IR RCVR PWR OFF/ON
DIP switch 2 RS-232 Pin Conguration (DCE /DTE)
DIP switch 3 & 4 Service ON/OFF
Mechanical
Housing Metal enclosure
Dimensions 5.75" x 3.13" x 0.82" (without rack ears)
Weight 1.1 lb
Power Supply 12V DC, 2A
Power Consumption 12W (max)
Operation Temperature 32–104°F
Storage Temperature -4–140°F
Relative Humidity 20–90% RH (no condensation)
Page 15
15
Technical Transmitter Receiver
Certications and Compliance Product: CE, FCC
Power Supply: CE, FCC, UL
CONTACTING TECH SUPPORT
Phone: 866. 838.5052
For SnapAV customers, snapav.com
For Aisle 8 customers, onaisle8.com
9. WARRANTY
2-Year Limited Warranty
This Binary Product has a 2-Year limited warranty. This warranty includes parts and labor
repairs on all components found to be defective in material or workmanship under normal
conditions of use. This warranty shall not apply to products that have been abused, modied or
disassembled. Products to be repaired under this warranty must be returned to a designated
service center with prior notication and an assigned return authorization number (RA).
Page 16
Rev: 180913-1240
© 2018 Binary
Loading...
