Binary B-240-HDSPLTR-1x2 Installation Manual

Source | Mute | 2ch
(HDMI Out Audio)
INSTALLATION MANUAL

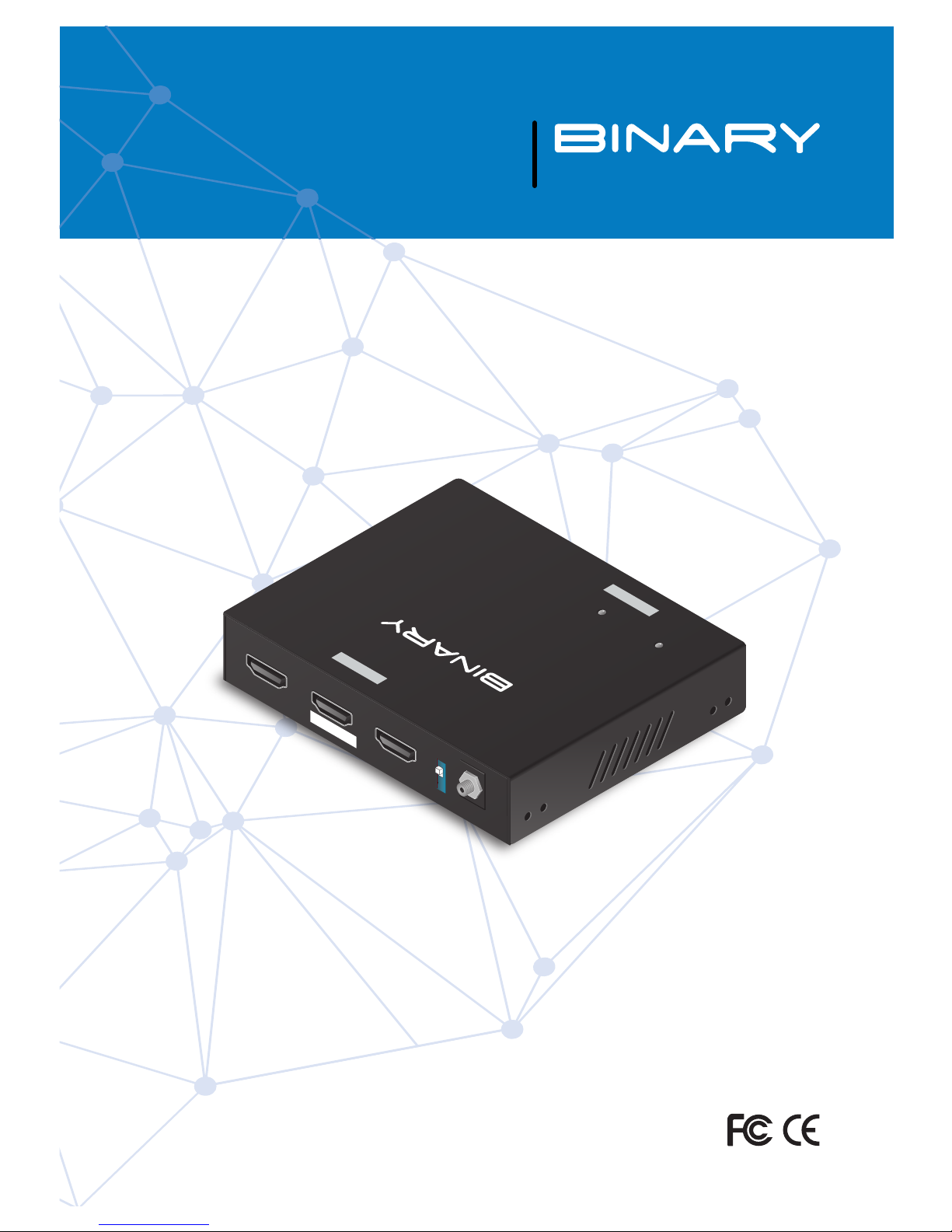

HDMI 1x2 Splitter
B-240-HDSPLTR-1x2
1
ON
B-240-HDSPLTR-1X2
HDMI OUT 1 HDMI OUT 2
HDMI IN
INPUT
2
3
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of re or electric shock, read and follow all instructions and warnings in this manual. Keep this manual for future reference.
1. Do not expose this apparatus to rain or moisture. Do not expose this equipment to dripping or splashing, and ensure that no objects lled with liquids, such as vases, are placed on the equipment. Do not use this apparatus near water.
2. Do not remove cover. No user serviceable parts inside.
3. Clean only with a dry cloth.
4. Do not block any ventilation openings. Install according to manufacturer’s instructions.
5. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including ampliers) that produce heat.
6. Do not override the safety purpose of the polarized or grounding plug. A polarized plug has two blades, one of which is wider than the other. A grounding plug has two matching blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.
7. Protect the power cord from being walked on or pinched, particularly at the plug end and where the power cord is attached to the apparatus.
8. Only use attachments and accessories specied by the manufacturer.
9. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power supply cord or plug is damaged, liquid has been spilled on or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, the apparatus does not operate normally, or it has been dropped.
10. To completely disconnect this equipment from power, disconnect the power supply cord from the power outlet.
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK.
DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INS IDE.
REFER SERVICING TO QUALIFIED SERVICE PERS ONNEL.
4
1. PRODUCT OVERVIEW
Welcome to Binary™. This product is engineered to provide years of exceptional reliability. We appreciate your business, and we stand committed to providing our customers with the highest degree of quality and service in the industry.
This unit supports all HDMI dened audio and video formats, iincluding 4k@60 4:4:4, and 4K2K@30 Hz and is compatible with HDMI 2.0 and HDCP 2.2 products. Additionally, the design includes DDC termination and inlcudes a dip switch for basic EDID function.
2. FEATURES
Distributes a single HDMI signal to 2 identical HDMI outputs
DIP switch for AUTO EDID & First Output EDID selection
Supports 7.1 channel surround sound, DTS-HD Master Audio and TrueHD high
bit rate audio
4K Ultra HD with 36 bit Deep Color
HDCP compliant
3. PACKAGE CONTENTS
1x B-240-HDSPLTR-1x2
1x 12VDC power adapter
2x Mounting Ears
4x Mounting Screws
4x Rubber Feet
1x Installation Manual
5

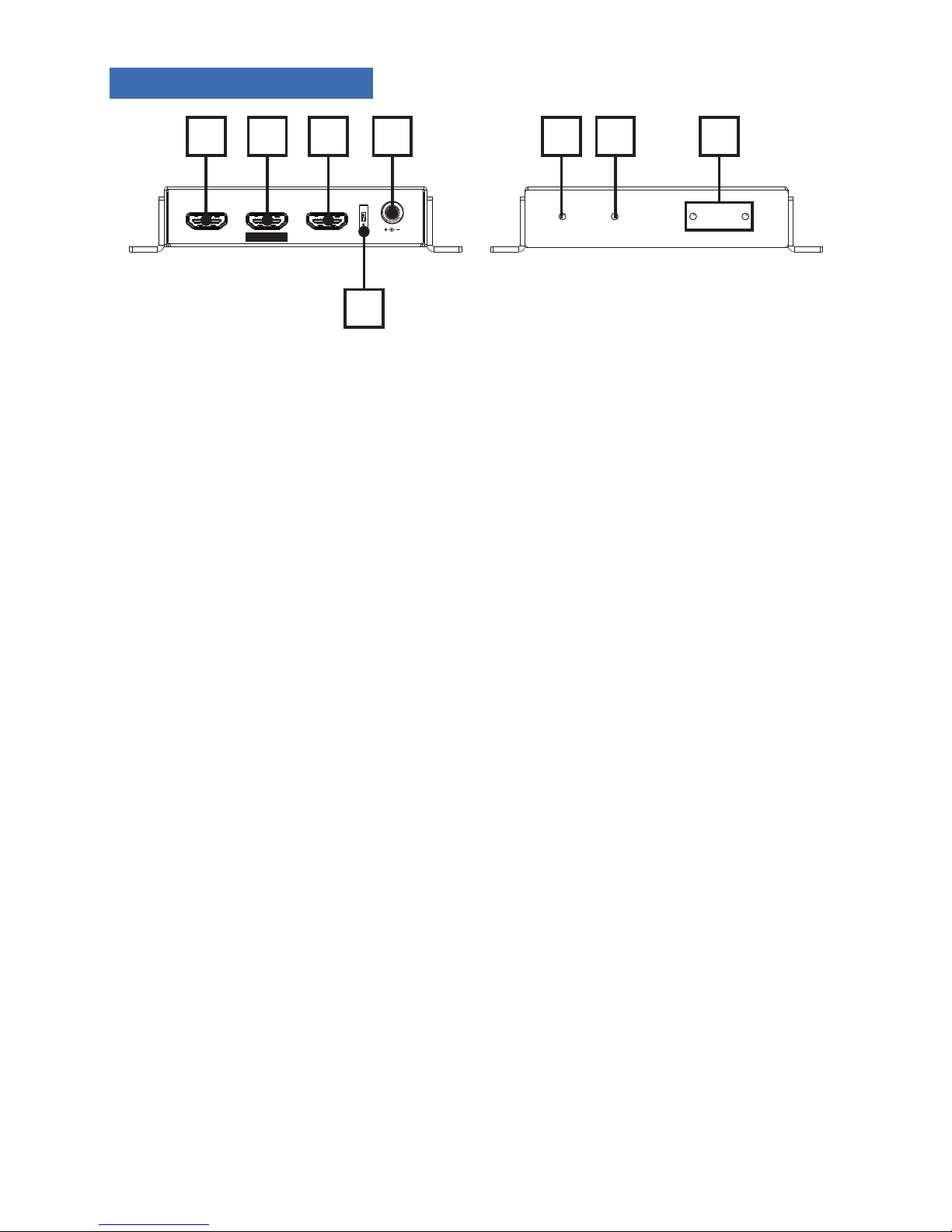

4. DEVICE LAYOUT
HDMI OUT 1 HDMI OUT 2 AUTO EDID
1
ST
OUTPUT
+12 VDC
HDMI IN
PWR IN OUT 1 OUT 2
A. HDMI Output 1
Connect HDMI cables to local display
B. HDMI Input
Connect HDMI cable from source
C. HDMI Output 2
Connect HDMI cables to local display
D. Dip Switch
AUTO EDID selects the lowest common EDID between the two output ports to send to the source
Output EDID reports the EDID from output 1 to the source
E. Power Supply (+12V DC)
Connect the included 12V power supply to this port
F. Power LED
Indicates that device is receiving power
G. Input LED
Indicates signal transfer over the input port
H. LEDs for Outputs 1 and 2
Indicates signal transfer over output ports
A B C E F G H
D
6

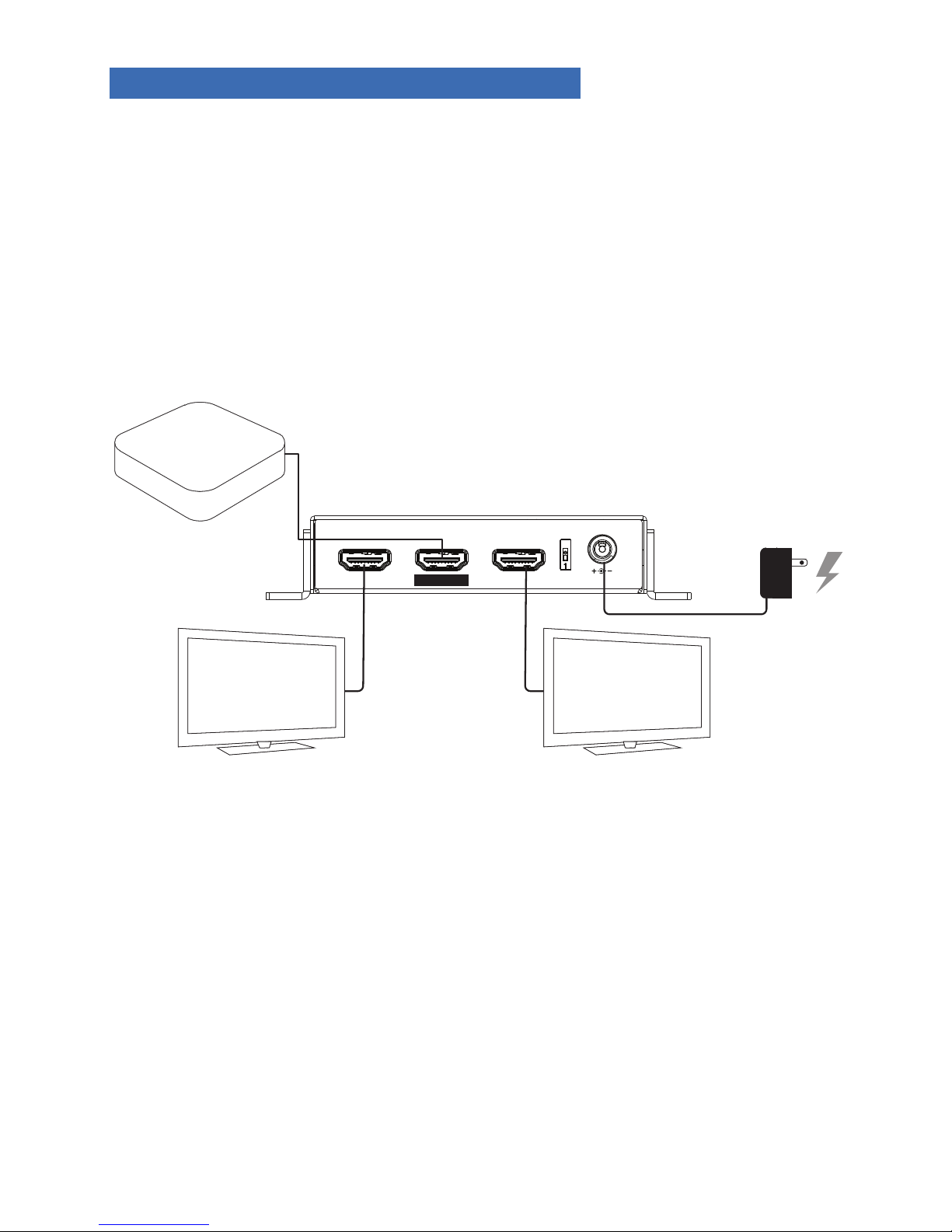

5. INSTALLATION AND CONNECTIONS
1. Connect an HDMI cable from the source to the B-240-HDSPLTR-1x2 HDMI input.
2. Connect an HDMI cable from each HDMI output to a display.
3. Connect the power to the B-240-HDSPLTR-1x2.
4. Turn on the source and the devices.
5. Set DIP switch to AUTO/First Output based on requirement of installation.
HDMI OUT 1 HDMI OUT 2 AUTO EDID
1
ST
OUTPUT
+12 VDC
HDMI IN
HDMI Source
B-240-HDSPLTR-1x2
TV
TV
AC
Power
7
6. SPECIFICATIONS
Technical
HDMI Compliance HDMI 4K
HDCP Compliance HDCP 2.2 Compliant
Video Bandwidth 4K@60 4:4:4
Input TMDS Signal 1.2V (peak-to-peak)
Input DDC Signal 5V (peak-to-peak, TTL)
ESD Protection (1) Human body model: ±15kV (air-gap discharge) &
±8kV (contact discharge) (2) Core chipset — ±8kV
Connections
HDMI 2x HDMI Type A
(19-pin female)
Power Thread-Locking
Controls
DIP switch 1 AUTO EDID | EDID – Output 1 EDID
Mechanical
Housing Metal enclosure
Dimensions 3.960” L x 3.228” W x 0.905” H
Weight 0.55 lbs. (0.25kg)
Power Supply 12V DC, 2A
Power Consumption 12W (max)
Operation Temperature 32–104°F
Storage Temperature -4–140°F
Relative Humidity 20–90% RH (no condensation)
Certications and Compliance
Product: CE, FCC, RoHS
Power Supply: CE, FCC, RoHS, UL
7. WARRANTY
This Binary product has a 2-Year limited warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modied or disassembled. Products to be repaired under this warranty must be returned to SnapAV or a designated service center with prior notication and an assigned return authorization number (RA).
8. SUPPORT
866.838.5052
For SnapAV customers, snapav.com
For Aisle 8 customers, onaisle8.com
Rev: 160927-0315 | A6 Booklet fold
