Page 1
Source | Mute | 2ch
(HDMI Out Audio)
INSTALLATION
MANUAL
HDMI 1x2 Splitter
B-230-HDSPLTR-1x2
POWER
HDMI IN
HDMI OUT 1HDMI OUT 2
B-230-HDSPLTR-1X2
Page 2
IMPORTANT SAFETY INSTRUCTIONS
1. Read and follow all instructions and warnings in this manual. Keep
for future reference.
2. Do not install near any heat sources such as radiators, heat
registers, stoves or other apparatus (including ampliers).
3. Do not install the unit near water or where moisture is present.
4. Clean with a dry cloth.
5. Unplug this apparatus during lightning storms or when unused for
long periods of time.
6. Protect the power cord from being walked on or pinched
particularly at plug, convenience receptacles, and the point where
it exits from the apparatus.
7. Refer all servicing to qualied service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as when the power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate normally, or
has been dropped.
8. To completely disconnect this equipment from the AC mains,
disconnect the power supply cord plug from the AC receptacle.
CAUTION: To reduce the risk of electrical shock, inspect the premises
carefully. Do not use the unit if proper equipment grounding cannot
be veried.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended
to alert the user to the presence of uninsulated
dangerous voltage within the product’s enclosure
that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user
to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance.
CAUTION
CAUTION: TO REDUCE THE RISK OF
ELECTRICAL SHOCK.
DO NOT REMOVE COVER. NO USER
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
Page 3
1. PRODUCT OVERVIEW
Welcome to Binary™. This product is engineered to provide years of
exceptional reliability. We appreciate your business, and we stand
committed to providing our customers with the highest degree of
quality and service in the industry.
This HDMI Splitter supports HDMI 1.4, 10.2 Gbps Bandwidth,
WUXGA, and 1080P Deep Color.
2. CONTENTS
• (1) HDMI Splitter, 1X2
• (1) 5V DC power adapter
• (1) Installation Manual
• (2) Mounting Ears
IMPORTANT: Install and uninstall the mounting ears one at a time to
avoid releasing the splitter housing from the unit.
3. FEATURES
• Auto EDID congured
• Multiple Cascade - When needed this unit can cascade (daisy
chain) to allow installation exible
• 10.2 Gbps Bandwidth - Supports 7.1 channel surround sound,
DTS-HD Master Audio and TrueHD high bit rate audio, plus
Deep Color Full HD 1080p color
• Supports HDMI or DVI inputs
• HDCP compliant
Page 4

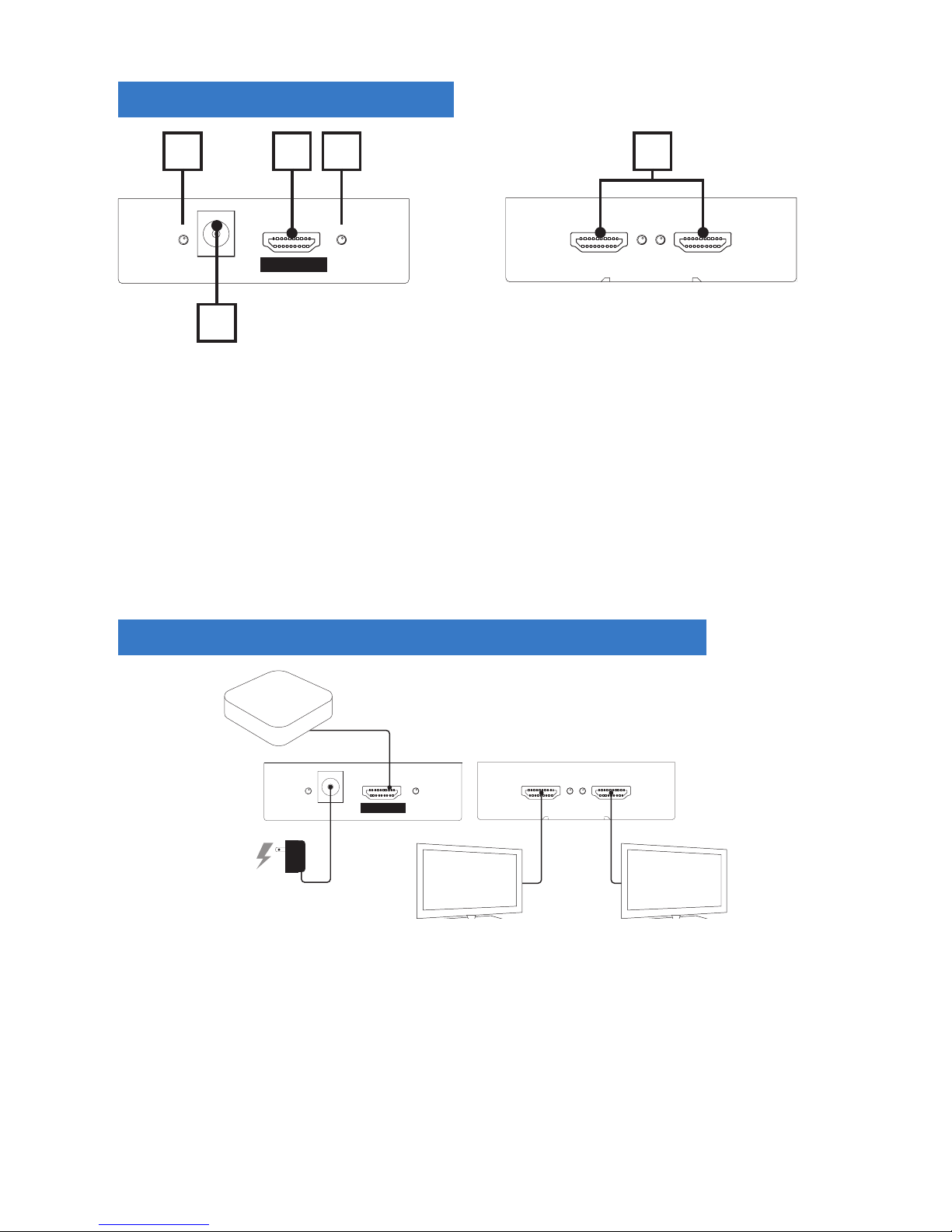

4. DEVICE LAYOUT
POWER
HDMI IN
HDMI OUT 1 HDMI OUT 2
A. Power LED: Indicates that device is receiving power
B. Power Supply (+5V DC): Connect the included 5V power supply
to this port
C. HDMI Input: Connect HDMI cable from source
D. HDMI LED: Indicates that HDMI Input is active
E. HDMI output 1 & 2 with LED indicator: To Connect HDMI cables
to local displays. LED indicates connection is active
5. INSTALLATION AND CONNECTIONS
POWER
HDMI IN
HDMI OUT 1HDMI OUT 2
1. Place the unit where it will be installed.
2. Connect the HDMI cable from the source to the HDMI IN of
the splitter.
3. Connect the HDMI cable from the HDMI OUT of the splitter to
the Display/Receiver to the two devices.
4. Connect the power to the B-230-HDSPLITTER-1X2.
5. Turn on the source and the devices.
HDMI Source
B-230-HDSPLTR-1x2
TV
TV
AC
Power
A
B
C D E
Page 5
6. SPECIFICATIONS
Technical
HDMI Compliance HDMI 3D
HDCP Compliance Yes
Video Bandwidth 10.2 Gbps
Input TMDS Signal 1.2V (peak-to-peak)
Input DDC Signal 5V (peak-to-peak, TTL)
ESD Protection (1) Human body model: ±5kV
(air-gap discharge) & ±8kV (contact
discharge) (2) Core chipset — ±8kV
Connections
HDMI 3x HDMI Type A
(19-pin female)
Power Thread-Locking
Mechanical
Housing Metal enclosure
Dimensions 6.25"x3.1"x1.3"
Weight 1.1 lbs.
Power Supply 5V DC, 1A
Power Consumption 12W (max)
Operation Temperature 32–104°F
Storage Temperature -4–140°F
Relative Humidity 20–90% RH (no condensation)
Certications and
Compliance
Product: CE, FCC, RoHS
Power Supply: CE, FCC, RoHS, UL
Page 6
7. CONTACTING TECH SUPPORT
866.838.5052
For SnapAV customers, snapav.com
For Aisle 8 customers, onaisle8.com
8. WARRANTY
2 Year Limited Warranty
This Binary product has a 2-Year limited warranty. This warranty
includes parts and labor repairs on all components found to be
defective in material or workmanship under normal conditions
of use. This warranty shall not apply to products that have been
abused, modied or disassembled. Products to be repaired under
this warranty must be returned to SnapAV or a designated service
center with prior notication and an assigned return authorization
number (RA).
Rev: 160928-0510
© 2016 Binary
