Audio Output Up to Dolby Digital TrueHD / DTS
Master Audio
HDMI Support HDMI 1.3
Signal Rate 2.25 GBPS
Input (2) RJ-45 / 3.5 mm IR Receiver Input
Output HDMI
HDCP Compliant YES
Manual EQ Adjustment YES
Power Supply 5VDC
Power Consumption 2 Watts
Troubleshooting Status and Power LED
Video Output 1080p(24/60) / 1080i/ 720p /576p
/480p /576i /480i
CEC Support Yes
Housing Metal
Weight 1.4 lbs
Dimensions 85mm (3.3”) x 92mm (3.6”)
x 24mm (1”)
Transmission Length 130 feet (CAT-5) / 160 feet (CAT-6)
WARRANTY
2-Year Limited Warranty
This Binary™ Product has a Two-Year Limited Warranty. This warranty includes parts and labor repairs on
all components found to be defective in material or workmanship under normal conditions of use. This
warranty shall not apply to products which have been abused, modied or disassembled. Products to
be repaired under this warranty must be returned to SnapAV or a designated service center with prior
notication and an assigned return authorization number (RA).

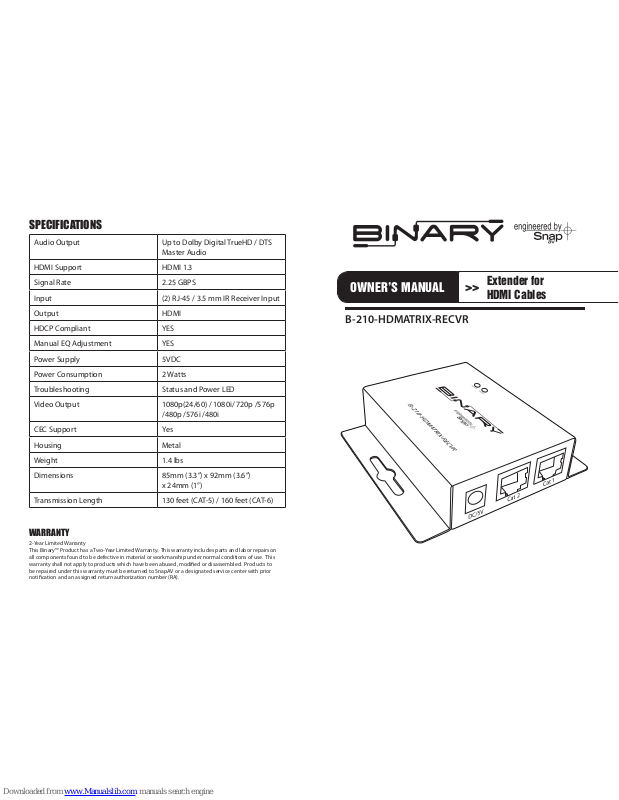

SPECIFICATIONS

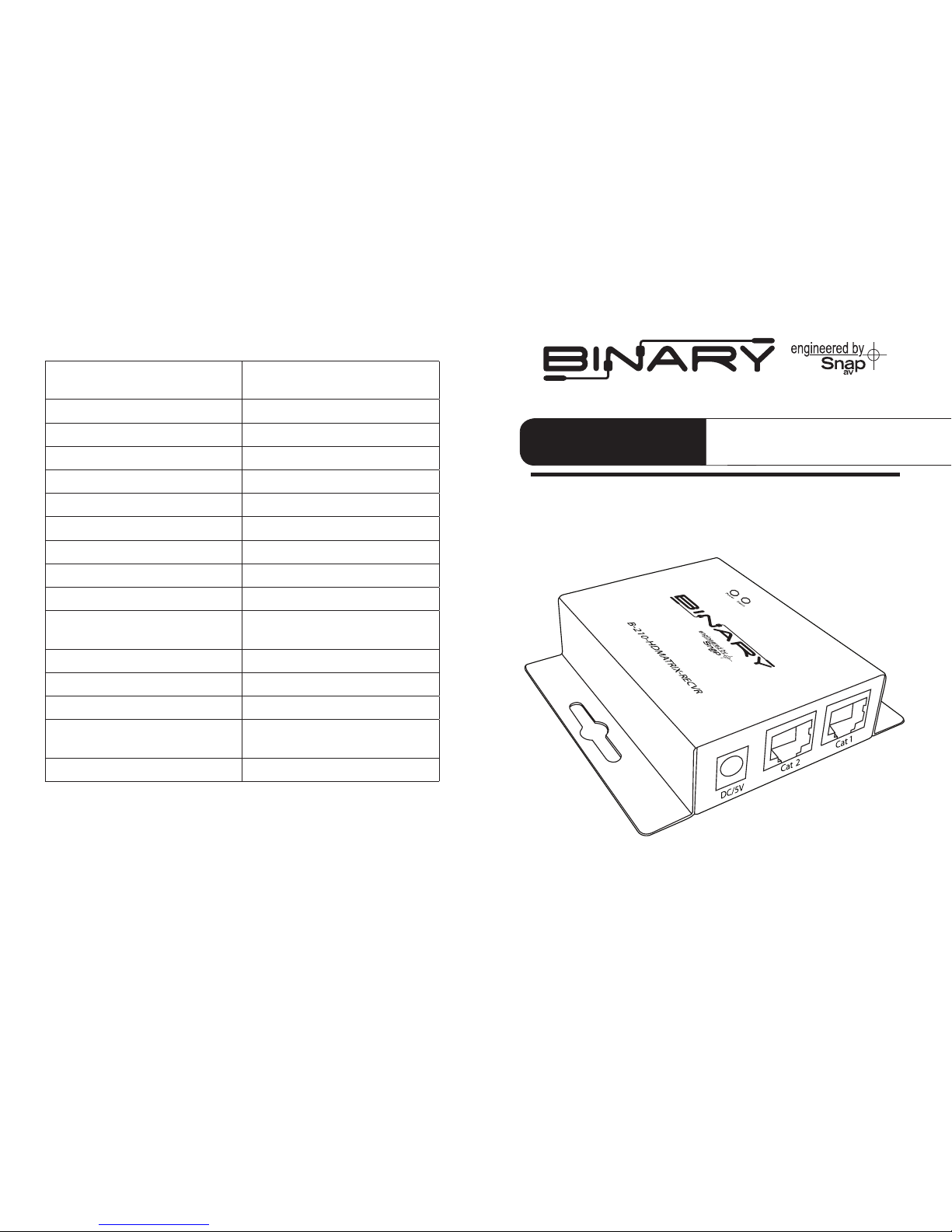

B-210-HDMATRIX-RECVR
OWNER’S MANUAL
Extender for
HDMI Cables
>>
DC/12V
CAT5/6
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
HDMI
CAT5/6
HDMI
IR EMITTER
RS232
EDID
SOURCE 1 SOURCE 2 SOURCE 3 SOURCE 4
IR EXT.
Cat 1
Cat 2
Cat 1
Cat 2
INPUT 1 INPUT 2 INPUT 3 INPUT 4
CAT5/6
HDMI
Cat 1
Cat 2
CAT5/6
HDMI
Cat 1
Cat 2
DC/12V
CAT5/6
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
HDMI
CAT5/6
HDMI
IR EMITTER
RS232
EDID
SOURCE 1 SOURCE 2 SOURCE 3 SOURCE 4
IR EXT.
Cat 1
Cat 2
Cat 1
Cat 2
INPUT 1 INPUT 2 INPUT 3 INPUT 4
CAT5/6
HDMI
Cat 1
Cat 2
CAT5/6
HDMI
Cat 1
Cat 2
INSTALLATION INSTRUCTIONS
1. Test all associated equipment and cables in the system for proper
operation. Turn o all power before proceeding.
2. Make sure the HDMI™ cables being used do not exceed 1.0M
(3.28 ft) and are at least 26 AWG. Any length longer than this
may cause intermittence issues. To ensure maximum performance,
please use high quality HDMI™ cables capable of transmitting
1080p signals.
3. Determine the best placement of the unit based on how it will be
incorporated into the system design. Leave enough room to reach
the EQ adjustment after installation.
4. Make sure all CAT 5 or CAT 6 cables are properly terminated
(EIA/TIA-568B is recommended).
5. Connect the HDMI™ cables.
6. Turn on all associated equipment, plug in the 5V DC power, and
verify that the signal LEDs are illuminated.
7. If a ickering, blinking, or snowy image is seen, adjust the EQ dial
to improve the cable signal. An EQ set to “9” stands for the
strongest signal for longer cable lengths while “0” is for short cable
lengths. Try adjusting the EQ from 0 to 9 until picture is clear.
8. Once you have a picture, adjust down to the lowest number
setting that still has a picture. This will ensure you have reached
the optimal setting.
9. (OPTIONAL) Plug in Episode IR receiver into the 3.5mm IR jack.
PACKAGE CONTENTS
•5VDCPowerSupply
•4RubberFeet
•Drywallscrewsformounting
•Owner’sManual

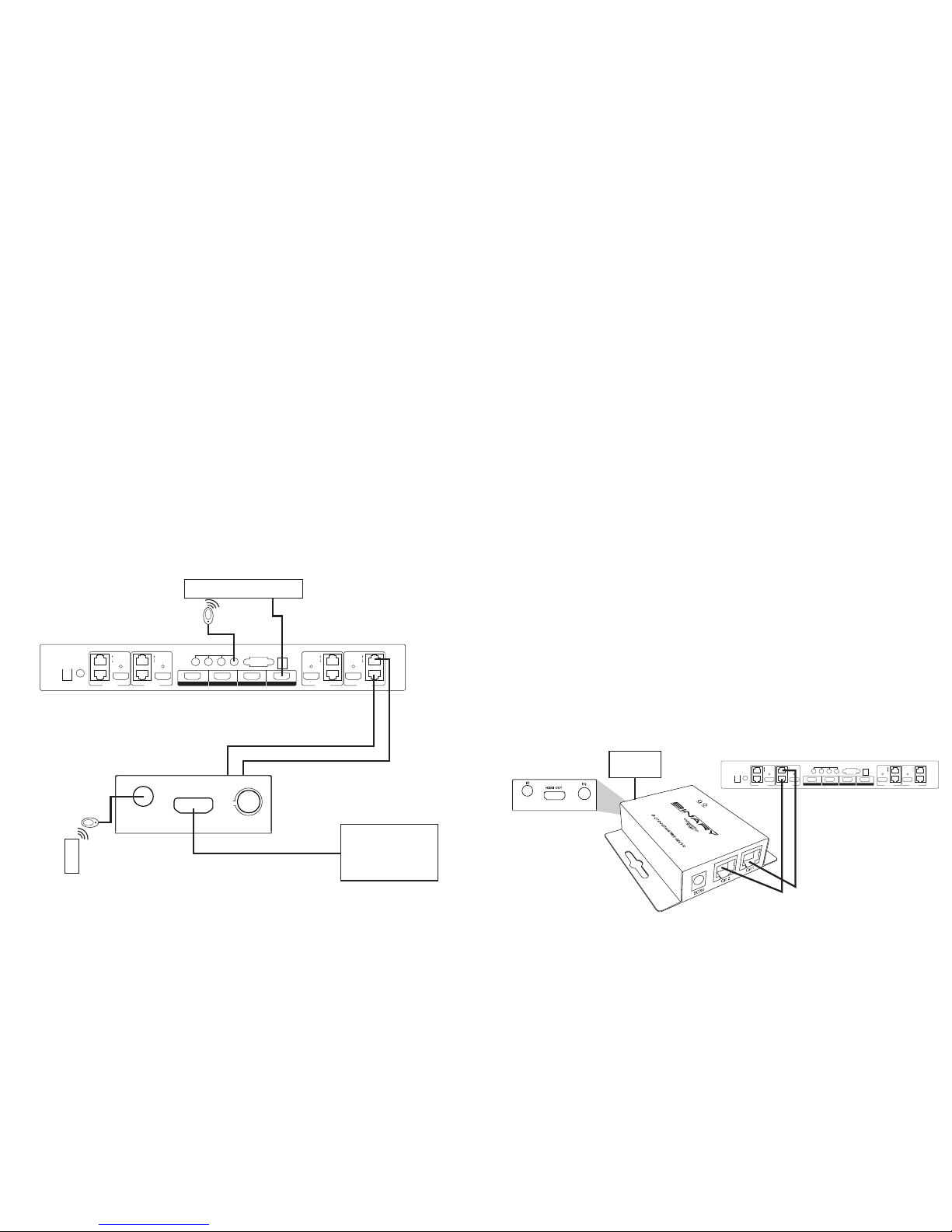

REMOTE LOCATION IR RECEIVER
The B-210-HDMATRIX-RECVR can transmit IR control signal back to
the matrix when using an Episode® IR Receiver. The matrix will send
the IR signal to the appropriate emitter cable to control the selected
HDMI source device.
Cat 5e/6 cables
TV
DVD Player
Display
HDMI OUT
EQ
IR INPUT
MAX
MIN
DISTANCE
Remote
HDMI Cable
IR Emitter
IR Receiver
HDMI Cable
CAT 5/6 Cables
