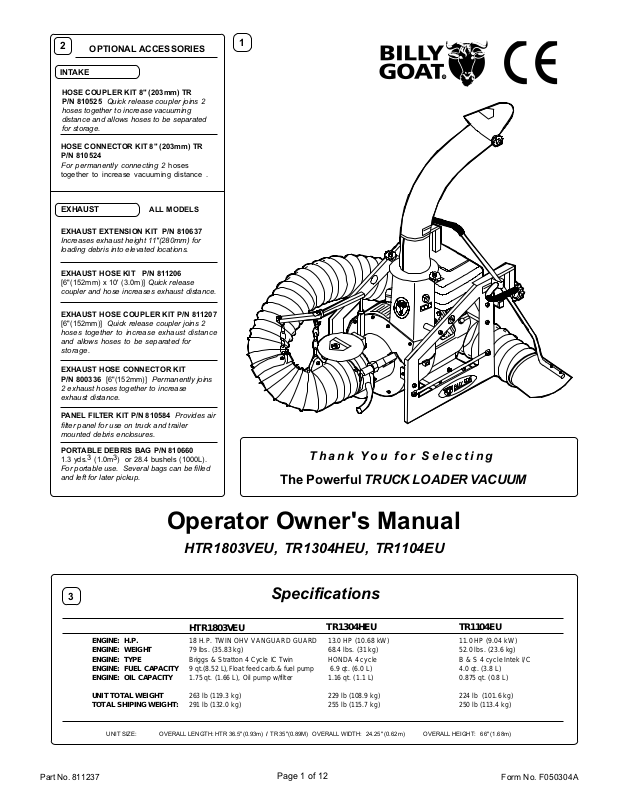

Billy Goat TR1104EU, TR1304HEU, HTR1803VEU User Manual
2
OPTIONAL ACCESSORIES
INTAKE
HOSE COUPLER KIT 8" (203mm) TR
P/N 810525 Quick release coupler joins 2
hoses together to increase vacuuming
distance and allows hoses to be separated
for storage.
HOSE CONNECTOR KIT 8" (203mm) TR
P/N 810524
For permanently connecting 2 hoses
together to increase vacuuming distance .
1
EXHAUST
EXHAUST EXTENSION KIT P/N 810637
Increases exhaust height 11"(280mm) for
loading debris into elevated locations.
EXHAUST HOSE KIT P/N 811206
[6"(152mm) x 10' (3.0m)] Quick release
coupler and hose increases exhaust distance.
EXHAUST HOSE COUPLER KIT P/N 811207
[6"(152mm)] Quick release coupler joins 2
hoses together to increase exhaust distance
and allows hoses to be separated for
storage.
EXHAUST HOSE CONNECTOR KIT
P/N 800336 [6"(152mm)] Permanently joins
2 exhaust hoses together to increase
exhaust distance.
PANEL FILTER KIT P/N 810584 Provides air
filter panel for use on truck and trailer
mounted debris enclosures.
PORTABLE DEBRIS BAG P/N 810660
1.3 yds.3 (1.0m3) or 28.4 bushels (1000L).
For portable use. Several bags can be filled
and left for later pickup.
ALL MODELS
Thank You for Selecting
The Powerful TRUCK LOADER VACUUM
Operator Owner's Manual
HTR1803VEU, TR1304HEU, TR1104EU
3
HTR1803VEU
ENGINE: H.P. 18 H.P. TWIN OHV VANGUARD GUARD 13.0 HP (10.68 kW) 11.0 HP (9.04 kW)
ENGINE: W EI GHT 79 lbs. (35.83 kg) 68.4 lbs. (31 kg) 52.0 lbs. (23.6 kg)
ENGI N E: T YP E Briggs & Stratton 4 Cycle IC Twin HONDA 4 cyc le B & S 4 cycle Intek I/C
ENGINE: FUEL CAP ACI T Y 9 qt.(8.52 L),Float feed carb.& fuel pump 6.9 qt. (6.0 L) 4.0 qt. (3.8 L)
ENGINE: OI L CAP ACITY 1.75 qt. (1.66 L), Oil pump w/filter 1.16 qt. (1.1 L) 0.875 qt. (0.8 L)
UNIT TOTAL WEIGHT 263 lb (119.3 kg) 229 lb (108.9 kg) 224 lb (101.6 kg)
TOTAL SHIPING WEIGHT: 291 lb (132.0 kg) 255 lb (115.7 kg) 250 lb (113.4 kg)
UNIT SIZE: OVERALL LENGTH: HTR 36.5"(0.93m) / TR 35"(0.89M) OVERALL WIDTH: 24.25" (0.62m) OVERALL HEIGHT: 66" (1.68m)
Part No. 811237 Form No. F050304A
Specifications
TR1304HEU TR1104EU
Page 1 of 12
5
IN THE INTEREST OF SAFETY
BEFORE STARTING ENGINE, READ AND UNDERSTAND THE “ENTIRE OPERATOR'S MANUAL &
ENGINE MANUAL.”
THIS SYMBOL MEANS WARNING OR CAUTION. DEATH, PERSONAL INJURY AND/OR PROPERTY
DAMAGE MAY OCCUR UNLESS INSTRUCTIONS ARE FOLLOWED CAREFULLY.
The engine exhaust from this product contains chemicals known to the State
WARNING!
of California to cause cancer, birth defects or other reproductive harm.
WARNING: DO NOT
1. DO NOT run engine in an enclosed area.
Exhaust gases contain carbon monoxide, an
odorless and deadly poison.
2. DO NOT place hands or feet near moving
or rotating parts.
3. DO NOT store, spill or use gasoline near
an open flame, or devices such as a stove,
furnace, or water heater which use a pilot
light or devices which can create a spark.
4. DO NOT refuel indoors where area is not
well ventilated. Outdoor refueling is recommended.
5. DO NOT fill fuel tank while engine is
running. Allow engine to cool for 2 minutes
before refueling. Store fuel in approved
safety containers.
6. DO NOT remove fuel tank cap while
engine is running.
7. DO NOT operate engine when smell of
gasoline is present or other explosive
conditions exist.
8. DO NOT operate engine if gasoline is
spilled. Move machine away from the spill
and avoid creating any ignition until the
gasoline has evaporated.
9. DO NOT transport unit with fuel in tank.
10. DO NOT smoke when filling fuel tank.
11. DO NOT choke carburetor to stop
engine. Whenever possible, gradually
reduce engine speed before stopping.
13. DO NOT tamper with governor springs,
governor links or other parts which may
change the governed engine speed.
14. DO NOT tamper with the engine speed
selected by the engine manufacturer.
15. DO NOT check for spark with spark plug
or spark plug wire removed. Use an
approved tester.
16. DO NOT crank engine with spark plug
removed. If engine is flooded, place throttle
in “FAST” position and crank until engine
starts.
17. DO NOT strike flywheel with a hard
object or metal tool as this may cause
flywheel to shatter in operation. Use proper
tools to service engine.
18. DO NOT operate engine without a
muffler. Inspect periodically and replace, if
necessary. If engine is equipped with
muffler deflector, inspect periodically and
replace, if necessary, with correct deflector.
19. DO NOT operate engine with an
accumulation of grass, leaves, dirt or other
combustible material in the muffler area.
20. DO NOT use this engine on any forest
covered, brush covered, or grass covered
unimproved land unless a spark arrester is
installed on the muffler. The arrester must
be maintained in effective working order by
the operator. In the State of California the
above is required by law (Section 4442 of
the California Public Resources Code).
Other states may have similar laws.
Federal laws apply on federal lands.
21. DO NOT touch hot muffler, cylinder, or
fins because contact may cause burns.
22. DO NOT run engine without air cleaner
or air cleaner cover.
23. DO NOT operate during excessive
vibration!
24. DO NOT leave machine unattended
while in operation.
25. DO NOT park machine on a steep grade
or slope.
WARNING: DO
1. ALWAYS DO remove the wire from the
spark plug when servicing the engine or
equipment TO PREVENT ACCIDENTAL
STARTING.
2. DO keep cylinder fins and governor
parts free of grass and other debris
which can affect engine speed.
3. DO pull starter cord slowly until resistance is felt. Then pull cord rapidly to avoid
kickback and prevent hand or arm injury.
4. DO examine muffler periodically to be
sure it is functioning effectively. A worn or
leaking muffler should be repaired or
replaced as necessary.
5. DO use fresh gasoline. Stale fuel can
gum carburetor and cause leakage.
6. DO check fuel lines and fittings frequently
for cracks or leaks. Replace if necessary
7. Follow engine manufacturer operating
and maintenance instructions.
8. Inspect machine and work area before
starting unit.
12. DO NOT run engine at excessive
speeds. This may result in injury &
/or damage to unit.
TABLE OF CONTENTS
6
SAFETY INSTRUCTIONS
GENERAL SAFETY
ASSEMBLY
PARTS BAG & CONTROLS
LABELS
OPERATION
MAINTENANCE
PARTS DRAWING & LIST
TROUBLESHOOTING
WARRANTY
○○○○○○○○
○○○○○○○○○
○○○ ○○○○
○○○○○○
○○○ ○○○○
○○
○○○○○
5 - 7
8 - 9
10 - 12
○○○
12
12
7 8
Sound tests conducted were in accordance with 2000/14/EEC and
were performed on 04/13/2004 under the conditions listed:
NOTE: Sound power level listed is the highest value for any model in this manual.
Please refer to serial plate on the unit for the sound power level for your model.
2
3
3
4
4
Sound level of 94 dBA at operator position
120 dB
(HTR1803VEU
MODEL)
BAROMETRIC PRESSURE: 30.18" Hg (767mm Hg)
Part No. 811237 Form No. F050304A
SOUND
GENERAL CONDITION:
TEMPERATURE:
WIND SPEED:
WIND DIRECTION:
HUMIDITY:
Page 2 of 12
Sunny
50.5° F (10.3° C)
0.5 MPH (0.8 kmh)
North West
39 %
Vibration levels at the operators handles were
measured in the vertical, lateral, and longitudinal
directions using calibrated vibration test equipment.
Tests were performed on
conditions listed:
GENERAL CONDITION:
VIBRATION
VIBRATION LEVEL 0.02g
07/14/94 under the
TEMPERATURE:
WIND SPEED:
WIND DIRECTION:
HUMIDITY:
BAROMETRIC
PRESSURE:
78° F (23.8° C)
16 MPH (25.7 kmh)
30.10" Hg (765mm Hg)
Sunny
South East
62 %
9
GENERAL SAFETY
For your safety and the safety of others, these directions should be followed:
Do not operate this machine without first reading
owner's manual and engine manufacturer's manual.
Use of Ear Protection is recommended while
operating this machine.
Use of Eye and Breathing protection is recom mended when using this machine, especially in dry
and dusty conditions.
·DO NOT place hands or feet inside nozzle intake opening,
near debris outlet or near any moving parts.
·DO NOT start engine without hose and exhaust elbow
connected firmly in place to housing and exhaust outlet.
10
ASSEMBLY
Read all safety and operating instructions
before assembling or starting this unit.
PUT OIL IN ENGINE BEFORE STARTING.
Your Billy Goat is shipped from the factory in one carton and is
completely assembled except for the exhaust elbow, nozzle, handle
loop for nozzle, hose booms, hose bands, hose coupler, hose clamps
and related hardware.
1. ASSEMBLE exhaust elbow (item 10), to main unit and firmly tighten
knobs (item 90), that are preassembled to main unit.
2. SECURELY ATTACH unit to tailgate of a truck or to a trailer, so that
the exhaust discharges into an enclosed container.
3. ATTACH hose to hose coupler (item 24), using hose clamp (item
60) NOTE: This unit is equipped with a unidirectional hose. Assemble
hose so that interior hose material seams face toward unit.
4. ASSEMBLE hose coupler to housing of main unit and securely
tighten knob (item 13), that is preassembled to housing front plate.
·DO NOT operate without discharging exhaust into enclosed
container.
·DO NOT operate during excessive vibration.
·DO NOT remove hose until engine has been turned off and has
come to a complete stop.
·DO NOT operate machine with hose or exhaust elbow removed.
·DO NOT use this machine for vacuuming exclusively sand,
dust, fine dirt, rock, glass, string like material, grain, rags,
cans, metal, bark or water.
·DO NOT operate this machine on slopes greater than 20%.
·DO NOT pick up any hot or burning debris, or any toxic or
explosive material.
·DO NOT allow children to operate this equipment.
5. ASSEMBLE nozzle handle loop (item 82), to nozzle handle using
screw (item 80), washer (item 6) and lock nut (item 5). Adjust handle
loop to desired height and angle and securely tighten in place.
6. ASSEMBLE nozzle handle (item 78), to nozzle (item 77), using
screws (item 80), washers (item 79), washers (item 4) and lock nuts
(item 5).
7. ATTACH assembled nozzle to hose using hose clamp (item 60).
Before tightening hose clamp, position nozzle handle upward when hose
is stretched to prevent twisting load on hose assembly during operation.
8. ASSEMBLE tube square boom (item 51), to boom pivot (item 50),
using chain loop assembly (item 54), washers (item 4) and lock nut
(item 52).
9. ASSEMBLE remaining chain loop assembly (item 54), to end of tube
square boom (item 51) using washer (item 4) and lock nut (item 52).
10. SLIDE boom assembly into square tube on front of housing.
11. ASSEMBLE hose bands (item 56) around hose and onto chain loop
assemblies on boom assembly using screws (item 55) and lock nuts
(item 52) (see ADJUSTING HOSE BOOM on page 5).
11
PACKING CHECKLIST
TR MODELS
Briggs & Stratton 11 HP
Honda 13 HP
HTR MODELS
Briggs & Stratton
Vanguard-Twin 18 HP
Hose 8"x 12.5'
P/N 810523
Handle Loop Nozzle
P/N 811019
Parts Bag &
Literature Assy
P/N 811128
Parts Bag
& Literature
Assy
Engine
Manual Per
Model
These items should be included in
your carton. If any of these parts are
missing, contact your dealer.
Boxing Checklist
Check
10
51
50
56
59
60
78
77
Exhaust Elbow 811191
Boom Square Arm 810875
Boom Pivot WA 810870
Band Hose Boom 8" (203mm)
810880 Qty. 2
Coupler Weld Assy. 8"(203mm)
811170
Hose Clamps 8"(203mm)
810566 Qty. 2
Handle Nozzle 811020
Nozzle 8"(203mm) 811007
Part No. 811237 Form No. F050304A
Page 3 of 12
12
PARTS BAG & LITERATURE ASSY P/N 811201
Washer 5/16
79
Fender
8172020 Qty. 4
Washer 5/16 SAE
4
8172008 Qty. 4
Nut Lock 1/4-20
52
8160001 Qty. 4
Nut Lock 5/16-18
5
8160002 Qty. 3
Washer 5/16 FLAT CUT
6
8171003 Qty. 1
Screw Cap 5/16-18 x 1 1/2
80
8041030 Qty. 3
Screw Cap 1/4-20 x 1 3/4
55
8041009 Qty. 2
Chain Loop Assy
54
810878 Qty. 2
Owner's
Manual
Literature
Parts Bag
Literature
HTR / TR
Accessories
Warranty
Card
EU Declaration
of Conformity
& EU
Distributor List
Literature Checklist
Check
Owner's
Manual
811202
Check
Literature
Parts Bag
811203
Check
Check
Check
Literature
HTR / TR
Accessories
811208
Warranty
Card
400972
EU Declaration
of Conformity &
EU Distributor
List 811204
13
CONTROLS
Throttle Controls
Start
Honda
Units have
frame
mounted
throttle
controls as
shown
here.
Briggs Vanguard Units
have an engine mounted
throttle control.
Engine
Stop
Switch
Start
position
Stop
position
position
START
STOP
Stop
position
SLOW FAST
14
INSTRUCTION LABELS
These labels should be included on your Vacuum. If any of these
labels are damaged, replace them before putting this equipment into
operation. Item and part numbers are given to help in ordering
replacement labels..
Label Danger Keep Hands
and Feet Away
Item 3 Part No.400424
Label Ear Eye Breathing
Item No. 48 Part No. 890254
WARNING
EXPLOSIVE FUEL
STOP ENGINE AND ALLOW TO
COOL BEFORE REFUELING.
Label Do Not Fill While Engine Is Hot
Item 81 Part No.400268
Clean debris from all engine surfaces
regularly to prevent engine overheating,
premature failure, or fire.
DANGER
Label Danger Flying Material
Item No. 19 Part No. 810736
890254
400268
INSPECT MACHINE BEFORE EACH USE AND REPLACE ANY
WORN AND DAMAGED PARTS.
PROPERLY SECURE EQUIPMENT BEFORE TRANSPORTING.
NEVER SERVICE UNIT WITHOUT DISCONNECTING SPARK PLUG WIRE.
USE ONLY A QUALIFIED MECHANIC TO SERVICE THIS MACHINE.
Label Warning Engine Overheat
Item 49 Part No.811215
810736
Label Read Owner's Manual
Item 15 Part No.830301
READ OWNER'S MANUAL
USE PROTECTION
BEFORE OPERATING, MAKE SURE:
EXHAUST ELBOW IS ATTACHED.
EXHAUST IS DISCHARGING INTO
ENCLOSED CONTAINER.
HOSE IS ATTACHED.
ALL GUARDS ARE ATTACHED.
OPERATING INSTRUCTION IS OBTAINED.
STOP ENGINE AND ALLOW TO
COOL BEFORE REFUELING.
KEEP ENGINE CLEAN OF DEBRIS.
ABRASIVE DEBRIS WILL SHORTEN UNIT LIFE.
Label Caution
Item 47 Part No.830138
15
ENGINE LABELS
Briggs & Stratton Vanguard
STOP
RUN
Honda
830138
HONDA M OTOR CO., LTD. M ADE IN JAPAN
Briggs & Stratton
ON
OFF
RUN CHOKE
THIS ENGINE EQUIPPED WITH
LOW OIL SENSOR, IF ENGINE WILL
NOT START, CHECK OIL LEVEL
RUN
CHOKE
ENGINE MAINTENANCE
1. CHECK OIL LEVEL
2. CHECK & CLEAN AIR CLEANER
3. CHANGE OIL
4. REPLACE OIL FILTER
5. CLEAN COOLING FINS
See Operating and Maintenance Instructions
OIL ALERT
WHEN OIL LEVEL LOW,
ENGINE STOPS IMMEDIATELY.
FUEL SHUTOFFFUEL SHUTOFF
OFF
Read and follow Operating
Instructions before running engine.
Gasoline is flammable. Allow engine
to cool at least 2 minutes before fueling.
Engines emit carbon monoxide,
DO NOT run in enclosed area.
ON
8 HOURS
25 HOURS
50 HOURS
100 HOURS
100 HOURS
Part No. 811237 Form No. F050304A
Page 4 of 12
Loading...
