Thank You for SelectingThank You for Selecting
Thank You for Selecting
Thank You for SelectingThank You for Selecting

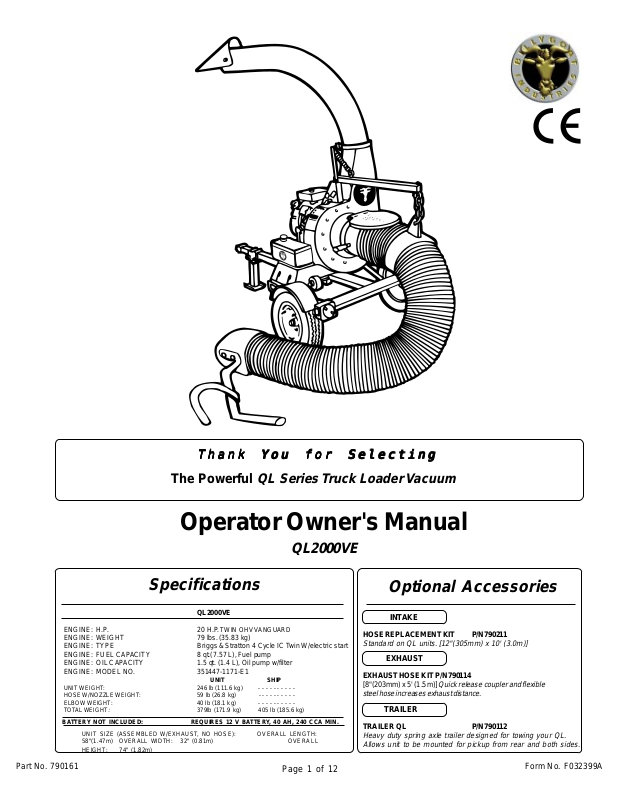

The Powerful
QL Series Truck Loader Vacuum
Operator Owner's Manual
Specifications
QL2000VE
ENGINE: H.P. 20 H.P. TWIN OHV VANGUARD ENGINE: WEIGHT 79 lbs. (35.83 kg) ENGINE: TYPE Briggs & Stratton 4 Cycle IC Twin W/electric start ENGINE: FUEL CAPA CITY 8 qt.(7.57 L), Fuel pump ENGINE: OIL CAPA CITY 1.5 qt. (1.4 L), Oil pump w/filter ENGINE: MODEL NO . 351447-1171-E1
UNIT WEIGHT: 246 lb (111.6 kg) - - - - - - - - - ­HOSE W/NOZZLE WEIGHT: 59 lb (26.8 kg) - - - - - - - - - ­ELBOW WEIGHT: 40 lb (18.1 kg) - - - - - - - - - ­TOTAL WEIGHT
BATTERY NOT INCLUDED: REQUIRES 12 V BATTERY, 40 AH, 240 CCA MIN.
Part No. 790161 Form No. F032399A
:
UNIT SIZE (ASSEMBLED W/EXHAUST, NO HOSE): OVERALL LENGTH: 58"(1.47m) OVERALL WIDTH: 32" (0.81m) OVERALL
HEIGHT: 74" (1.82m)
UNIT SHIP
379lb (171.9 kg) 405 lb (185.6 kg)
Page 1 of 12
Optional Accessories
INTAKE
HOSE REPLACEMENT KIT P/N 790211
Standard on QL units. [12"(305mm) x 10' (3.0m)]
EXHAUST
EXHAUST HOSE KIT P/N 790114
[8"(203mm) x 5' (1.5m)]
steel hose increases exhaust distance.
TRAILER
TRAILER QL P/N 790112
Heavy duty spring axle trailer designed for towing your QL. Allows unit to be mounted for pickup from rear and both sides.
Quick release coupler and flexible
IN THE INTEREST OF SAFETY
BEFORE STARTING ENGINE, READ AND UNDERSTAND THE “ENTIRE OPERATOR'S MANUAL & ENGINE MANUAL.”
THIS SYMBOL MEANS WARNING OR CAUTION. DEATH, PERSONAL INJURY AND/OR PROPERTY DAMAGE MA Y OCCUR UNLESS INSTR UCTIONS ARE FOLLOWED CAREFULLY .
The engine exhaust from this product contains chemicals known to the State of
WARNING!
WARNING: DO NOT
1. DO NOT r un engine in an enclosed area. Exhaust gases contain carbon monoxide, an odorless and deadly poison.
2. DO NOT place hands or feet near moving or rotating parts.
3. DO NOT store, spill or use gasoline near an open flame, or devices such as a stove, furnace, or water heater which use a pilot light or devices which can create a spark.
4. DO NOT refuel indoors where area is not well ventilated. Outdoor refu eling is recommended.
5. DO NOT fill fuel tank while engine is running. Allow engine to cool for 2 minutes before refueling. Store fuel in approved safety containers.
6. DO NOT remove fuel tank cap while engine is running.
7. DO NOT operate engine when smell of gasoline is present or other explosive conditions exist.
8. DO NOT operate engine if gasoline is spilled. Move machine away from the spill and avoid creating any ignition until the gasoline has evaporated.
9. DO NOT transport unit with fuel in tank.
10. DO NOT smoke when filling fuel tank.
11. DO NOT choke carburetor to stop engine. Whenever possible, gradually reduce engine speed before stopping.
12. DO NOT run engine at excessive speeds. This may result in injury & /or damage to unit.
TABLE OF CONTENTS
SAFETY INSTRUCTIONS GENERAL SAFETY ASSEMBL Y P AR TS BAG & CONTROLS LABELS OPERATION MAINTENANCE P AR TS DRAWING & LIST TROUBLESHOOTING WARRANTY
Part No. 790161 Form No. F032399A
○○○○○○
○○○○○○○
○○○○○○○
○○○○○○
○○○○○○○○
○○
○○○○
5 ­8 - 9
7
10 - 12
○○
California to cause cancer , birth defects or other reproductive harm.
Other states may have similar laws.
13. DO NOT tamper with governor springs, governor links or other parts which may change the governed engine speed.
14. DO NOT tamper with the engine speed selected by the engine manufac­turer.
15. DO NOT check for spark with spark plug or spark plug wire removed. Use an approved tester.
16. DO NOT crank engine with spark plug removed. If engine is flooded, place throttle
Federal laws apply on federal lands.
21. DO NOT touch hot muffler, cylinder, or fins because contact may cause burns.
22. DO NOT run engine without air cleaner or air cleaner cover.
23. DO NOT operate during excessive vibration!
24. DO NOT leave machine unattended while in operation.
25. DO NOT park machine on a steep grade or slope.
in “FAST” position and crank until engine starts.
17. DO NOT strike flywheel with a hard object or metal tool as this may cause flywheel to shatter in operation. Use proper tools to service engine.
18. DO NOT operate engine without a muffler. Inspect periodically and replace, if necessary. If engine is equipped with muffler deflector, inspect periodically and replace, if necessary, with correct deflector.
WARNING: DO
1. ALWAYS DO remove the wire from the spark plug when servicing the engine or equipment TO PREVENT ACCIDENTAL STARTING.
2. DO keep cylinder fins and gover nor parts free of grass and other debris which can affect engine speed.
3. DO pull starter cord slowly until resis­tance is felt. Then pull cord rapidly to avoid kickback and prevent hand or ar m injur y.
19. DO NOT operate engine with an accumulation of grass, leaves, dir t or other combustible material in the muffler area.
20. DO NOT use this engine on any forest covered, brush covered, or grass covered unimproved land unless a spark arrester is
4. DO examine muffler periodically to be sure it is functioning effectively. A wor n or leaking muffler should be repaired or replaced as necessary.
5. DO use fresh gasoline. Stale fuel can gum carburetor and cause leakage.
installed on the muffler. The arrester must be maintained in effective working order by the operator. In the State of California the above is required by law (Section 4442 of the California Public Resources Code).
6. DO check fuel lines and fittings frequently for cracks or leaks. Replace if necessary
7. Follow engine manufacturer operating and maintenance instructions.
8. Inspect machine and work area before starting unit.
SOUND
SOUND TESTS
Sound tests conducted were in accordance with 79/ 113/EEC and were performed on 05/07/98 under the
A
conditions listed:
GENERAL CONDITION:
TEMPERATURE:
A
WIND SPEED: WIND DIRECTION: HUMIDITY:
BAROMETRIC PRESSURE:
Page 2 of 12
69 F (20.6 C)
8 MPH (12.8 kmh)
29.71" Hg (755mm Hg)
Partly Cloudy
N
76 %
12 12
L
2 3 3
4 4
89
L
p
94
VIBRATION
VIBRATION LEVEL 0.02g
Vibration levels at the operators handles were measured in the vertical, lateral, and longitudinal directions using calibrated vibration test equipment. T ests w ere perf ormed on conditions listed:
GENERAL CONDITION:
TEMPERATURE:
WIND SPEED: WIND DIRECTION: HUMIDITY:
BAROMETRIC PRESSURE:
05/07/98 under the
69 F (20.6 C)
8MPH (12.8 kmh)
Partly Cloudy
N
76 %
29.71" Hg (755mm Hg)
GENERAL SAFETY
For your safety and the safety of others, these directions should be followed:
Do not operate this machine without first reading owner's manual and engine manufacturer's manual.
Use of Ear Protection is recommended while operating this machine.
Use of Eye and Breathing protection is recom­ mended when using this machine, especially in dry and dusty conditions.
·DO NOT place hands or feet inside nozzle intake open-
ing, near debris outlet or near any moving parts.
·DO NOT start engine without hose and exhaust elbow connected firmly in place to housing and exhaust outlet.
.DO NOT allow children to oper ate this equipment. .DO NOT transport unit without elbow retension cable (item
87) assembled.
ASSEMBL Y
·DO NOT operate without discharging exhaust into enclosed
container.
·DO NOT operate during excessive vibration.
·DO NOT remove hose until engine has been tur ned off and has
come to a complete stop.
·DO NOT operate machine with hose or exhaust elbow removed.
·DO NOT use this machine for vacuuming exclusively sand,
dust, fine dirt, rock, glass, string like material, grain, rags, cans, metal, bark or water.
·DO NOT operate this machine on slopes greater than 45%(25°).
·DO NOT pick up any hot or bur ning debr is, or any toxic or
explosive material. .DO NOT operate this unit freestanding. Unit must be secured in place during any operation.
Read all safety and operating instructions before assembling or starting this unit.
PUT OIL IN ENGINE BEFORE STARTING.
BATTERY NOT INCLUDED WITH UNIT.
Your Billy Goat is shipped from the factory in one carton and is completely assembled except for the exhaust elbow, nozzle, handle loop for nozzle, hose boom, hose band, hose coupler, hose clamps and related hardware.
1. SECURELY ATTACH unit to the bed of a truck or to a trailer, so that the exhaust discharges into an enclosed container. This unit must be securely mounted to the bed of a truck or to a trailer before operating.
2. AT TA CH hose to hose coupler, using hose clamp (item 26)
NOTE:
NOTE:
This unit is equipped with a unidirectional hose. Assemble hose so that interior hose material seams face toward unit. Refer to flow direction arrow printed on outside of hose. When installed arrow should point toward vac housing.
3. ATTACH hose coupler w/hose to housing intake, that is preassembled to housing front plate, and rotate to lock it in place.
PACKING CHECKLIST
4. ASSEMBLE handle loop nozzle (item 45), to nozzle handle (item
44) using capscrew (item 53), and lock nut (item 60). Adjust handle loop to desired height and angle and securely tighten in place.
5. ASSEMBLE nozzle handle (item 44), to nozzle (item 25), using screws (item 52), washers (item 66), washers (item 68) and lock nuts (item 60).
8. ATTACH assembled nozzle to hose using hose clamp (item 26). Before tightening hose clamp, position nozzle handle upward when hose is stretched to prevent twisting load on hose assembly during operation.
9. ATTACH preassembled hose boom to control panel located on top of housing.
10. ASSEMBLE hose band (item 29) around hose and secure chain between flanges of the hose band using capscrew (item 53) and lock nut (item 60) (see ADJUSTING HOSE BOOM on page 6).
11. ATTACH opposite end of chain to J-hook located on end of boom assy.
12. SECURELY ATTACH exhaust elbow (item 21) capturing both flanges inside the clamp, then firmly tighten the clamp, securing the elbow to the housing (see MOUNTING on page 5).
13. ASSEMBLE batter y (not included) by using battery bracket QL (item no. 70, hold down rods (item 71), washers (item 70), and lock nuts (item
59).
14. ATTACH red battery cable to + terminal and black battery cable to - terminal.
Check
Boxing Checklist
Exhaust Elbow Assembly
Hose Boom Assembly Band Hose Boom 12" (305mm)
790153 Hose Clamps 12" (305mm) 790150
Qty. 2 Hose Coupler Assy
Handle Nozzle 811020
Nozzle QL 790149
Hose 12"x 10' QL 790148 Handle Loop Nozzle 811019
Parts Bag & Literature
Denotes parts found in Parts Bag Assembly (shown on page 4).
These items should be included in your carton. If any of these parts are missing,
Part No. 790161 Form No. F032399A
contact your dealer.
Page 3 of 12
Assy
Engine
Manual Per
Model
Parts Bag & Literature Assy 790111
Briggs & Stratton Vanguard 20 HP
P/N MS-4147-7/97 Multi-Lang
PARTS BA G & LITERA TURE ASSY P/N 790111
S
T
O
P
S
T
A
R
T
O
F
F
O
N
PARTS BAG ASSEMBLY CHECKLIST P/N 790229
Nut Lock 1/4-20
59
8160001 Qty. 3
Nut Lock 5/16-18
60
8160002 Qty. 4
Washer 1/4 SAE
65
8181008 Qty. 2
Washer 5/16 FC
63
8171003 Qty. 2
Washer 5/16
66
SAE 8172008 Qty. 2
Washer 5/16
68
Fender 8172020 Qty. 4
45
71
70
40
Handle Adj. W/ Grip 811019 Qty. 1
Rod Battery Hold Down 790231 Qty. 2
Bracket Battery QL 790230 Qty. 1
Chain Hang Hose 790189 Qty.1
Screw Cap 5/16-18 x 1 1/
52
2 8041030 Qty. 4
Screw Cap 1/4-20 x 1 1/2
85
8041008 Qty. 1
Owner's
Manual
Literature
Parts Bag
Warranty
Card
EU
Declaration of
Conformity &
EU Distributor
List
Literature Checklist
Check
Owner's
Manual
790161
Check
Literature
Parts Bag
790111
Check
Check
Warranty
Card
400972
EU Declaration of
Conformity & EU
Distributor List
790162
INSTRUCTION LABELS
These labels should be included on your Quite Loader. If any of these labels are damaged, replace them before putting this equipment into operation. Item and part numbers are given to help in ordering replacement labels.
D AN GE RDANGER
KEEP HANDS and FEET AWAYKEEP HANDS and FEET AWAY
Label Ear Eye Breathing Item No. 49 P art No. 890254
890254
DANGER
Label Danger Keep Hands and Feet Awa y Item 3 Part No.400424
CAUTION
READ OWNER'S MANUAL
BEFORE OPERATING
USE PERSONAL
PROTECTION EQUIPMENT
PROTECT BYSTANDERS
FLYING DEBRIS
DO NOT OPERATE UNLESS
DEBRIS IS DISCHARGING
INTO AN ENCLOSED
CONTAINER
KEEP ENGINE CLEAN OF DEBRIS
ENGINE EXHAUST SYSTEM IS HOT.
KEEP HANDS CLEAR.
BEFORE STARTING, MAKE SURE:
EXHAUST ELBOW IS SECURELY ATTACHED. INTAKE HOSE IS ATTACHED. ALL GUARDS ARE ATTACHED.
FOR PREVENTATIVE MAINTENANCE:
CHECK ENGINE OIL DAILY INSPECT AND CLEAN ENGINE AIR FILTER DAILY. REPLACE AS NEEDED. INSPECT AND CLEAN ENGINE RECOIL FILTER DAILY. REPLACE AS NEEDED.
INSPECT MACHINE BEFORE EACH USE AND REPLACE ANY WORN OR DAMAGED PARTS. PROPERLY SECURE EQUIPMENT BEFORE TRANSPORTING.
DISCONNECT SPARK PLUG WIRES AND BATTERY CABLE BEFORE SERVICING UNIT.
USE ONLY A QUALIFIED MECHANIC TO SERVICE THIS MACHINE.
Label QL Instruct/Warn Item 18 Part No.790142
.
ALWAYS:
WARNING
WARNING
UNIT MUST BE SECURED
IN PLACE BEFORE
OPERATION
790142
OFF ON
Label On Off Item 77 Part No.830276
Label Danger Flying Material Item No. 43 P art No. 810736
810736
Label Warning Secure Item No. 72 Part No. 790232
790232
Label Read Owner's Manual Item No. 50 P art No. 890301
WARNING
EXPLOSIVE FUEL
STOP ENGINE AND ALLOW T O COOL BEFORE REFUELING.
Label Do Not Fill While Engine Is Hot Item 1 Part No.400268
400268
CONTROLS
Control Panel
ENGINE LABELS
1. CHECK OIL LEVEL
2. CHECK & CLEAN AIR CLEANER
3. CHANGE OIL
4. REPLACE OIL FILTER
5. CLEAN COOLING FINS See Operating and Maintenance Instructions
IN U.S.A. USE UNLEADED GASOLINE
IMPORTANT ENGINE INFORMATION BRIGGS & STRATTON CORPORATION FAMILY VBS190U1G1RB:EM
DISPLACEMENT 190cc. MODEL 12VOHV THIS ENGINE CONFORMS TO 1995-1998 CALIFORNIA EMISSION REGULATIONS FOR ULGE ENGINES AND U.S. EPA PHASE 1 REGULATIONS FOR SMALL NON-ROAD ENGINES. REFERS TO OWNER'S MANUAL FOR MAINTENANCE SPECIFICATIONS AND ADJUSTMENTS.
ONLY
ENGINE MAINTENANCE
CAUTION
IF BATTERY IS REMOVED, DO NOT OPERATE ENGINE WITHOUT INSULATING POS + BATTERY CABLE TERMINAL WITH ELEC ­TRICAL TAPE, OR SPARKING FROM BATTERY CABLE CAN RESULT.
8 HOURS 25 HOURS 50 HOURS 100 HOURS 100 HOURS
Part No. 790161 Form No. F032399A
Page 4 of 12
OPERATION
INTENDED USE: This machine is designed for vacuuming
leaves, grass clippings and other types of organic litter. Debris mixed with cans, bottles and small amounts of sand can be vacuumed; however, it is not this machine's primary purpose. Vacuuming cans, bottles and sand will affect the longevity of your machine. Do not operate if excessive vibration occurs. If excessive vibration occurs, shut engine off immediately and check for damaged or worn impeller, loose impeller bolt, loose impeller key, loose engine or lodged foreign objects. Note: See parts list for proper impeller bolt torque specifications. (See trouble shooting section on page 12).
Like all mechanical tools, reasonable care must be used when operating machine.
MOUNTING
WARNING
WARNING
UNI T MUST BE SECURE D
I N PLACE BE FORE
OPER ATIO N
GENERAL: Unit must be securely mounted to a trailer, truck bed, or other similar surface before use. Do not use this unit in a freestanding position. Unit is not stable until it has been secured in place. Secure unit by bolting through the base of the unit and through the mounting surface using 3/8" dia. bolts, with washers and locking nuts (see fig. 1)
790232
MOUNTING
INSTRUCTIONS:
1) Remove the loose hardware from the clamp assembly so that there are 4 seperate pieces (remaining clamp assembly, two half plates, and a plate split).
2) Slide the assembled plates over the housing flange. The flange should rest between the bottom plate and the plate split.
3) Slide the elbow over the plate spacer and center it in the clamp. The elbow flange should now be resting on the housing flange between the plate split and the top plate.
4) Insert the other plate split beneath the plate spacer so the holes align and the plate overlaps the flange on the elbow.
exhaust elbow
Typical on
both sides
Fig. 1
MOUNTING: Unit can be mounted in various positions. Figure
2 illustrates the mounting options available when using the optional trailer (Billy Goat Part no. 790112) available from your Billy Goat dealer. The unit can be mounted to allow vacuuming from either sides as well as from the rear.
Trailer
tongue
Fig. 2
Part No. 790161 Form No. F032399A
5) Secure the assembly with a plate half on top of the elbow flange and a plate half on bottom of the housing flange using 3, 1" carriage bolts and 3 lock nuts (removed hardware in step
1).
6) Tighten down the clamp with 2, 1 3/4" carriage bolts, 2 knobs, and 2 lock nuts (removed hardware in step 1).
Page 5 of 12
OPERATION continued
STARTING
PUT OIL IN ENGINE BEFORE STARTING.
Inspect machine work area and machine before operat­ing. Make sure that all operators of this equipment are trained in general machine use and safety.
ENGINE: See engine manufacturer’s instructions
for type and amount of oil and gasoline used. Engine must be level when checking and filling oil and gasoline.
ENGINE SPEED: Controlled by throttle lever on the vac housing. Under normal conditions, operate at minimum throttle to accomplish your current cleaning task.
INTAKE HOSE: Hose mounting assembly must be properly attached to vac housing and safety switch must be engaged before engine will start. Note: Any damage to the switch or wiring harness will prevent engine from starting.
CHOKE: Located on the vac housing as part of the engine control panel.
THROTTLE: Move throttle control to fast position. KEY SWITCH: Turn to start position until engine begins to fire,
immediately release the key to the run position.
Note:
Do not hold key in start position more than 10 seconds
per attempt.
INTAKE OPERATION: With machine r unning and fully assembled, move the nozzle in sweeping motions over debris. Always allow air to flow into the nozzle along with the debris. Do not completely block the nozzle when vacuuming, it will reduce performance, and increase clog­ging (See figure 3).
For removal of heavier debr is, or debris that is stuck to the ground, rock nozzle forward to concentrate suction power around the debris (See figure 4).
Fig. 3
IF YOUR UNIT FAILS TO START:
See Troubleshooting on page 12. Also see engine owner's manual.
OPERATION
DO NOT OPERATE UNLESS
DEBRIS IS DISCHARGING
INTO AN ENCLOSED
CONTAINER
KEEP ENGINE CLEAN OF DEBRIS
EXHAUST DIRECTION & DISTANCE: Exhaust direction and distance are controlled by the angle of the exhaust deflector and by rotation of the exhaust elbow. Adjust the angle of the exhaust deflector to control the distance that debris is dis­charged. Typically debris is aimed to discharge to the rear of the container. The direction of discharge is adjusted by loosening the knobs on the exhaust elbow clamp and rotating the elbow to the desired direction.
NOTE:
stand directly under the elbow while adjusting direction of exhaust.
discharge while unit is running. Never direct exhaust into an area where bystanders may cross the path of the debris.
Elbow is heavy. Use caution when adjusting. Never
Never adjust exhaust deflector angle or direction of
Fig. 4
HOSE CARE & USE TIPS
THE HOSE IS A REPLACEABLE WEAR ITEM. FOR BEST HOSE OPERATION RESULTS, FOLLOW THESE
RECOMMENDATIONS.
Be sure the hose is correctly installed by checking that the arrow printed on the hose indicating flow direction is pointing toward the vac housing.
Keep hose as straight as possible and avoid sharp bends during operation for best pick-up and to avoid clogs.
Never drag hose. Always remove and store hose before transporting unit.
Store hose straight and flat to maintain flexibility for next use.
To increase hose life, periodically rotate hose and reposition nozzle and coupler on front plate of unit. This increases hose life by keeping hose from wearing only on one side.
Part No. 790161 Form No. F032399A
Page 6 of 12
OPERATION continued
ADJUSTING HOSE BOOM:
Properly adjusting the boom will prevent most hose clogs from occurring and will maximize vacuum performance by keeping the hose straight and perpendicular to the housing (see fig. 5).
Hose Bands.
Hose Stretch hose out before clamping.
Fig. 5
UNCLOGGING A CLOGGED HOSE:
With engine running and unit secured to a trailer, truck bed, or other similar surface, fully stretch hose in a straight line to dislodge the clog. If the clog will not clear, turn unit off, and allow engine to come to a complete stop. Remove hose and manually clear hose clog.
NOTE:
gloves when removing clog.
The clogged debris may be sharp. Always wear durable
UNCLOGGING A CLOGGED HOUSING OR EXHAUST ELBO W:
HANDLING & TRANSPORTING
The unit is equipped with small front wheels to allow for easier transportation to storage. With unit removed from its mounting, tilt unit forward toward the ground and use wheels to manuever it into storage area.
STORAGE
Drain all fuel prior to storage.
Never store engine indoors or in enclosed poorly ventilated areas with fuel in tank, where fuel fumes may reach an open flame, spark or pilot light, as on a furnace, water heater, clothes dryer or other gas appliance.
If engine is to be unused for 30 days or more, prepare as follows:
Be sure engine is cool. Do not smoke. Remove all gasoline from carburetor and fuel tank to prevent gum deposits from forming on these parts and causing possible malfunction of engine. Drain fuel outdoors, into an approved container, away from open flame. Run engine until fuel tank is empty and engine runs out of gasoline.
NOTE: Fuel stabilizer (such as Sta-Bil) is an acceptable alternative in minimizing the formation of fuel gum deposits during storage. Add stabilizer to gasoline in fuel tank or storage container. Always follow mix ratio found on stabilizer container. Run engine at least 10 min. after adding stabilizer to allow it to reach the carburetor.
HOSE STORAGE: Store hose as straight and flat as possible. Storing hose in a covered area, out of sunlight and heat will prolong hose life. Do not store hose where it could be stepped on or where other objects could crush or damage hose.
Turn engine off and wait for impeller to come to a complete stop. Disconnect spark plug wires and battery cables. Remove the hose coupler from the
housing and determine where the clog is located. If possible clear the clog through the intake opening. It may require removal of the intake adaptor (item 33) to allow access to clear the housing. If clog is in the elbow, carefully remove the elbow. Remove elbow by removing the knobs on the elbow clamp. Then remove 3 bolts so that the split plate can be taken out. FInally, the elbow can be removed by sliding it past the remaining attached clamp.
NOTE:
Elbow is very heavy. Do not stand directly under elbow
during removal. Danger, the clog may contain sharp materials. Wearing durable
gloves, clear the clog. Reconnect spark plug wire.
Part No. 790161 Form No. F032399A
Page 7 of 12
MAINTENANCE
USE ONLY A QUALIFIED MECHANIC FOR ANY ADJUSTMENTS, DISASSEMBLY OR ANY KIND OF REPAIR.
WARNING: TO AVOID PERSONAL INJURY, ALWAYS TURN MACHINE OFF, MAKE SURE ALL MOVING PARTS COME TO A COMPLETE STOP.
DISCONNECT SPARK PLUG WIRES & BATTERY CABLES BEFORE SERVICING UNIT.
ENGINE: SEE ENGINE MANUFACTURER OPERATOR'S INSTRUCTIONS.
RECONNECT ALL GUARDS GUARDS AND HOSE BEFORE STARTING ENGINE.
USE ONLY BILLY GOAT ORIGINAL EQUIPMENT PARTS FOR REPLACEMENT AND REPAIR
GENERAL
IMPELLER REMOVAL
1. Wait for engine to cool and disconnect spark plugs from the both
sides of the engine.
2. Disconnect the negtive battery cable (black) (item 12) from the battery.
3. Remove the hose coupler assy from the unit (item 36).
4. Remove the hose boom assembly.
5. Remove the intake housing assembly (item 33) using 1/2" socket and
socket wrench to remove (12) locknuts and washers (item 60 & 63). Be careful to place intake assembly to the side without putting excess strain on safety switch wire harness
6. Remove impeller bolt and lock washer using 5/8" socket and impact wrench (see fig. 6).
7. Once bolt is removed impeller should slide out freely. If impeller will not slide free on crankshaft, obtain a 3/4"-10 x 3" bolt and thread it into the nut that is welded onto the center of the impeller and tighten slowly to push the impeller off the crankshaft.
Note:
3/4"-10 x 3" bolt is included in each impeller replacement kit or the
bolt can be ordered from your local Billy Goat Dealer (part no. 790214).
8. When impeller is free of the engine shaft, align impeller with the opening and pull it straight out of the housing.
9. Using a new impeller bolt, washer, and lockwasher, reinstall new or repaired impeller in reverse order.
10. Tighten impeller bolt. Torque impeller bolt to [ 60 Ft. Lbs. (81.4 N.m)].
11. Repeat steps 2 through 5 in re verse order .
12. Reinstall spark plug wires.
Replace any worn or damaged parts as required. DO NOT operate if excessive vibration occurs. If excessive vibration
occurs, shut engine off immediately. Remove spark plug wire and check for damaged impeller, loose impeller bolt, loose impeller key or lodged foreign objects. Refer to parts list (item 16) on page 11 for proper torque specifications.
ENGINE
Remove and Service foam air cleaner and inner air filter every 25 hours of use or every 10 hours or less for extremely dusty conditions (see engine manual).
Keep engine and engine cooling fins clean from dust and debris build-up.
When servicing engine refer to specific manufacturers engine owner's manual. All engine warranty is covered by the specific engine manufacturer. If your engine requires warranty or other repair work contact your local servicing engine dealer. When contacting a dealer for service it is a good idea to have your engine model number available for reference(See table page 1). If you can not locate a servicing dealer in your area you can contact the manufacturers national service organization.
To reach:
Fig. 6
Briggs & Stratton: 800-233-3723 Fax: 414-259-5249
Part No. 790161 Form No. F032399A
Page 8 of 12
MAINTENANCE continued
Maintenance Schedule
Maintenance Operation
Engine (See Engine Manual) Inspect battery for damage or leak Check battery terminal for corrosion
Check for excessive vibration Clean Hose Keep engine free of debris Inspect for loose parts
Inspect for worn or damaged parts
MAINTENANCE HISTORY
Date of Service
Follow these hourly maintenance intervals.
Every Use
Every 5 hrs or (Daily)
Every
10 hrs
Service Performed
Every
25 hrs
INTERLOCK SYSTEM
Hose coupler assy (item no.36) must be installed, as shown in Fig. 8, to operate the unit. When the switch is depressed one circuit is opened so engine is not grounded out and other circuit is closed to enable starter and fuel pump.
Fig. 7
Hose must be installed and switch
lever must engage switch for engine
to start.
Fig. 8
Part No. 790161 Form No. F032399A
Page 9 of 12
PARTS DRAWING
Part No. 790161 Form No. F032399A
Page 10 of 12
Parts List
ITEM PART
NO. NO.
DESCRIPTIO N QTY
1 400268 LAB EL HOT ENGINE 1 2 400339 KNOB 3 3 400424 LA BEL OPEI WARNING 3 4 400502 WASHER LOCK 3/8 TWIST 5 5 400570 GRIP HANDLE 1" x 13" 1 6 500282 STRAIN RELIEF HEYCO 1244 1 7 790100 ENGINE 20 HP HORIZ. VANGUA RD 1 8 790129 LINE FUEL QL 1
9 790130 CONTROL THROTTLE QL 1 10 790131 CONTROL CABLE CHOKE 1 11 790132 CABLE BATTER Y RED 26" 1 12 790133 CABLE BATTERY BLACK 10" 1 13 790134 CLAMP FUEL LINE 2 14 790135 COVE R CONTROL QL 1 15 790136 SCREWCAP 7/16-14 x 1 3/4" GR. 5 4 16 790137 GUARD MANIFOLD G UARD 1 17 790103-S IMPELLER 16" x 1.12" ASSY QL (INCL. 4,32,84) 1 18 790142 LABEL QL INSTRUCT /W ARN 1 19 790143-S BASE ENGINE ASSY QL(INCLUDES 72) 1 20 790144 WHEEL 4" DIA. X 2" W/SPANNER 2 21 790145-S ELBOW 8" ASSY QL(INCLUDE S 2,3,43) 1 22 790255-S CLAMP ASSEMBLY 1 23 790147 DEFLECTOR EXHAUST QL 1 24 790211 HOSE 12" x 10' INTAKE W/WEARSTRIP 1 25 790149 NOZZLE INTAKE 12" FORMED 1 26 790150 CLAMP HOSE 12" 2 27 790151 ROD PIVOT BOOM WA QL 1 28 790152 SPRING BOOM QL 1 29 790153 BAND HOSE BOOM 12" FORMED 1 30 790154 ARM BOOM QL 1 31 790155 BOLT EYE 3/8" x 4" 1 32 500269 SCREWCAP 7/16-20X3" GR.8 [TORQUE 60 ft.lb. (81.4Nm)] 1 33 790140-S INTAKE HOUSING ASSY QL(INCL. 3,6,34,35,55,60,63,69) 1 34 790174 SWITCH INTERLOCK QL 1 35 790175 HARNESS WIRE ASSY QL 1 36 790141-S HOSE INTAKE ASSY QL (INCLUDES 37,38,39,48,54,60) 1 37 790178 SPRING LOCK LATCH QL 1 38 790179 GRIP 1" ID x 4" LG 2 39 790187 LEVE R LOCK Q L 1 40 790189 CHAI N HANG HOSE QL 1 41 42 810656 LABEL THROTTLE 1 43 810736 LABEL FLYING DEB RIS 2 44 811020 HANDLE NOZZLE W/ GRIP 1 45 811019 HANDLE ADJ. NOZZLE W/ GRIP 1 46 790238 BOLT J-HOOK 1 47 850132 WASHER LOCK 7/16 TWIST 4 48 890132 PLUG RD 1" 4 49 890254 LABEL EAR EYE BREATHE 1 50 890301 LABEL READ 1 51 *802404 3 BOLT CARR AIGE 5/16-18 x 1 3/4 3 52 *8041030 S CREWCAP 5/16-18 x 1 1/2 4 53 *8041031 S CREWCAP 5/16-18 x 1 3/4 4 54 *8041033 S CREWCAP 5/16 - 18 x 2 1/4" 1 55 *8024050 B OLT CARR. 5/16 - 18 x 3 1/2 1 56 *8041051 S CREW CAP 3/8 - 16x 1 1/4 4 57 *8041104 S CREWCAP 1/2-13 x 3 1/2" 2 58 *8122082 S CREW SM 1/4 x 3/4 6 59 *8160001 NUT LOCK 1/4"-20 HEX Z/P 3 60 *8160002 NUT LOCK 5/16-18 32 61 *8160003 NUT LOCK 3/8 3 62 *8161044 NUT LOCK 1/2-13 THIN 2
* Denotes standard hardware item that may be purchased locally .
Part No. 790161 Form No. F032399A
Page 11 of 12
Parts List continued from page 11.
63 *8171003 WASHER 5/16 FLA T CUT 22 64 *8171004 WASHER FLA T 3/8 2 65 *8172007 WASHER 1/4 SAE 2 66 *8172008 WASHER 5/16 SAE 2 67 *9201125 KEY 1/4 x 2 3/4 1 68 *8172020 WASHER 5/16 FENDER 4 69 790163 DOOR FLAPPER INTAKE QL W A 1 70 790230 BRA CKET BATTERY QL 1 71 790231 ROD BATTERY HOLD DOWN 2 72 790232 LABEL WA RNING SECURE 3 73 790125-S HOUSING A S SY QL (INCLUDES 18,49,50,72) 1 74 430208 SHEET METAL SCREW 1/4 x 3/4 DRILL POINT 2 75 790138-01 GUARD MUFFLER GUA RD 1 76 790138-02 GUARD MUFFLER GUA RD BOTTOM 1 77 830276 LABEL ON / OFF 1 78 790228 BRA CKET W HEEL QL 2 79 790240 90 DEGREE ELBOW 1/8" NPT MALE X 1/4" 1 80 *8041026 SCREWCA P 5/16-18 X 3/4 HCS ZP 4 81 790258 CA P TANK FUEL 3 GAL 1 82 790257 TANK FUEL 3 GAL 1 83 790100-04 IGNITION SWITCH 1 84 850443 WASHER PLATE IMPELLER 1 85 8041008 SCREW CA P 1/4-20 x 1 1/2 1 86 500267 GRIP HANDLE 1" x 7.5" 1 87 88 89 790254 PLA TE CLA MP SPLIT 2 90 790253 PLA TE CLA MP SPACER 1 91 790252 PLA TE CLA MP HA LF 4 92 8163002 LOCK NUT 5/16-18 THIN ZP 8 93 8024040 BOLT CA RRIA GE 5/16- 1" ZP 6
* Denotes standard hardware item that may be purchased locally .
BRIGGS & STRATTON PART NUMBERS. AVAILABLE THROUGH BRIGGS & STRATTON SERVICING DEALERS
TROUBLESHOOTING
Problem Possible Cause
Engine will not start. (starter does not turn)
Engine will not start. (starter turns)
Will not vacuum or has poor vacuum performance.
Abnormal vibration. Engine is locked, will not
turn over.
Engine Service and Warranty
Contact your nearest engine manufacturer's authorized
Serial Plate
L
A
89
Model Serial No.
L
A
p
Unit(Weight) Engine Power
94
Operator
Purchase Date
Purchased from
- Battery is low or dead.
- Battery cable is disconnected or battery terminal is corroded.
- Hose coupler is not installed, allowing interlock switch to operate.
- Harness wire is bad or disconnected from interlock switch.
- Throttle stop switch in idle position.
- Out of gasoline. Bad or old gasoline.
- Spark Plug wire disconnected.
- Dirty air cleaner. Nozzle height too high or too low. Clogged hose or exhaust. Excessive
quantity of debris. Loose or out of balance impeller or loose engine. Debris locked inside impeller. Engine problem.
servicing dealer.
R
ecord your machine model, serial number and
date-of-purchase and where purchased
1803 S. Jefferson P.O. Box 308 Lee's Summit,
R
lbs. kg kW rpm
MO 64063 / USA Tel (816) 524-9666 Fax (816) 524-6983
Before Requesting Service Review These Suggestions
- Charge battery or replace if the battery does not hold charge.
- Clean battery terminal and cable then reconnect.
- Install hose coupler securely to the unit and check whether interlock switch is engaged by le v er.
- Check harness wire connection and replace if necessary.
- Check throttle.
- Check gasoline, Replace if gasoline is old.
- Connect spark plug wire.
- Clean or replace air cleaner. Or contact a qualified service person. Adjust nozzle position. Unclog hose or exhaust (see page 6).
Allow air to feed with debris. Check impeller and replace if required. Check Engine.
See page 6, Clearing a clogged impeller housing. Contact an engine servicing dealer for engine problems.
WARRANTY PR OCEDURE
Please fill in the WARRANTY CARD and send the upper part to Billy Goat. The WARRANTY terms are stated on the lower part which remains with the user. Whenever a Billy Goat Machine is faulty due to a defect in material and / or workmanship, the owner should make a warranty claim as follo ws:
The Machine should be taken to the dealer from whom it was purchased or to an authorized Billy Goat dealer.
The owner should present the remaining half of the W arranty Registration Card, or, if this is not availab le , the inv oice or receipt.
The Warranty Claim will be filled in b y the authorized Billy Goat Dealer, who will send it with the faulty part to Billy Goat headquarters.
The Quality / Service department at Billy Goat headquarters will study the claim and parts and will notify their conclusions.
The decision by the Quality / Service department at Billy Goat headquarters to approve or reject a Warranty claim is final and
min
-1
binding.
Note:
To process a Warranty Claim, it is necessary to quote the Model
& Serial number who are printed on the Billy Goat Serial Plate.
BILLY GOAT INDUSTRIES INC.
P.O. BOX 308 (1803 S JEFFERSON) LEE'S SUMMIT, MO 64063 / USA PHONE: 816-524-9666 FAX: 816-524-6983 WEBSITE: www.billygoat.com
Solution
Part No. 790161 Form No. F032399A
Page 12 of 12
Loading...
