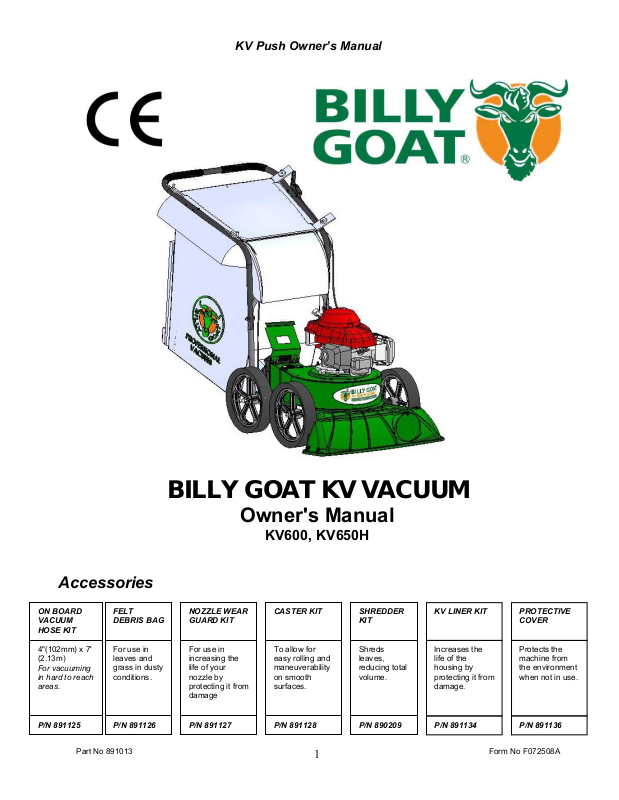

Billy Goat KV600 User Manual

KV Push Owner’s Manual

BILLY GOAT KV VACUUM

Owner's Manual

KV600, KV650H

Accessories

ON BOARD
VACUUM
HOSE KIT

4"(102mm) x 7'
(2.13m)

For vacuuming
in hard to reach
areas.

P/N 891125

FELT
DEBRIS BAG

For use in
leaves and
grass in dusty
conditions.

P/N 891126

NOZZLE WEAR
GUARD KIT

For use in
increasing the
life of your
nozzle by
protecting it from
damage

P/N 891127

CASTER KIT

To allow for
easy rolling and
maneuverability
on smooth
surfaces.

P/N 891128

SHREDDER
KIT

Shreds
leaves,
reducing total
volume.

P/N 890209

KV LINER KIT

Increases the
life of the
housing by
protecting it from
damage.

P/N 891134

PROTECTIVE
COVER

Protects the
machine from
the environment
when not in use.

P/N 891136

Part No 891013 Form No F072508A

1

KV Push Owner’s Manual

ABOUT THIS MANUAL

THANK YOU for purchasing a BILLY GOAT

manufactured to provide years of reliable and productive service. This manual provides complete operating and
maintenance instructions that will help to maintain your machine in top running order. Read this manual carefully
before assembling, operating, or servicing your equipment.

®

KV Vacuum. Your new machine has been carefully designed and

CONTENTS

SERIAL PLATE DATA AND SPECIFICATIONS 3

GENERAL SAFETY 4

SOUND AND VIBRATION 6

INSTRUCTION LABELS 7

PACKING CHECKLIST & ASSEMBLY 8

OPERATION 9-10

MAINTENANCE 11

TROUBLESHOOTING AND WARRANTY PROCEDURE 12

MAINTENANCE RECORD 13

ILLUSTRATED PARTS & PARTS LISTS 14-15

-5

Part No 891013 Form No F072508A

2

SERIAL PLATE DATA

KV Push Owner’s Manual

Record the model number, serial number, date of
purchase, and where purchased.

Purchase Date:

Purchased From:

Specifications

Engine: HP 6.0 (4.47 kW) 6.5 (4.85kW)

Engine: Type B&S Quantum HONDA

Engine: Model 112K020124E1 GSV190AN1L

Engine: Fuel Capacity 1.5 qt. (1.4 L) 1.6 qt. (1.5 L)

Engine: Oil Capacity 0.63 qt. (0.6 L) 0.58 qt (0.54L)

Total Unit Weight: 112# (50.8kg) 113# (51.3kg)

Overall Length 59” (1.5m) 59” (1.5m)

Overall Width 26. 5” (0.7m) 26.5” (0.7m)

Overall Height 42.75” (1.1m) 42.75” (1.1m)

Max. operating slope 200 200

Sound in accordance with
2000/14/EEC standards

Sound at operator’s ear 88 dBa 89 dBa

Vibration at operator position 0.5 g (4.95m/s2) 0.32 g (3.18m/s2)

KV600 KV650H

108 dBa 109 dBa

Part No 891013 Form No F072508A

3

KV Push Owner’s Manual

GENERAL SAFETY INSTRUCTIONS and SYMBOLS

The safety symbols shown below are used throughout this manual. You should become familiar with them before
assembling, operating, or servicing this equipment.

This symbol indicates important information that will prevent injury to yourself or others.

This symbol indicates ear protection is recommended when operating this equipment.

This symbol indicates eye protection is recommended when operating this equipment.

This symbol indicates gloves should be worn when servicing this equipment.

This symbol indicates that this manual and the engine manufacturer’s manual should be read
carefully before assembling, operation, or servicing this equipment.

This symbol indicates important information that will prevent damage to your BILLY GOAT ®
KV Vacuum.

This symbol indicates the engine oil level should be checked before operating this
equipment.

Read and make sure you thoroughly understand the following safety precautions before assembling, operating or
servicing this equipment:

READ this manual and the engine manufacturer’s manual carefully before assembling,
operating, or servicing this equipment.

EAR PROTECTION is recommended when operating this equipment.

EYE PROTECTION is recommended when operating this equipment.

BREATHING PROTECTION is recommended when operating this equipment.

EXHAUST from this product contains chemicals known to the State of California to cause

cancer, birth defects or other reproductive harm.

DO NOT operate this equipment on any unimproved forested, brushy, or grass covered land
unless a spark arrester is installed on the muffler as required by Section 4442 of the
California Public Resources Code. The arrester must be maintained in good working order.
Other states may have similar laws. Federal laws apply on federal lands.

DO NOT run engine in an enclosed area. Exhaust gases contain carbon monoxide, an
odorless and possibly fatal poison.

Part No 891013 Form No F072508A

4

KV Push Owner’s Manual

DO NOT run this equipment indoors or in any poorly ventilated area. Refueling outdoors is
recommended.

DO NOT refuel this equipment while the engine is running. Allow engine to cool for at least
two minutes before refueling.

DO NOT store gasoline near an open flame.

DO NOT remove gas cap while engine is running.

DO NOT start or operate engine if strong odor of gasoline is present.

DO NOT start or operate engine if gasoline is spilled. Move equipment away from spill until

gasoline has completely evaporated.

DO NOT smoke while filling the fuel tank.

DO NOT check for spark with spark plug or spark plug wire removed. Use an approved spark

tester.

DO NOT operate engine without a muffler. Inspect muffler periodically and replace if
necessary. If equipped with muffler deflector, inspect deflector periodically and replace if
necessary.

DO NOT operate engine with grass, leaves or other combustible material near the muffler.

DO NOT touch muffler, cylinder, or cooling fins when hot. Contact with hot surfaces may

cause severe burns.

DO NOT leave equipment unattended while in operation.

DO NOT park equipment on a steep grade or slope.

DO NOT operate equipment with bystanders in or near the work area.

DO NOT allow children to operate this equipment.

DO NOT operate equipment with guards removed.

DO NOT operate equipment near hot or burning debris or any toxic or explosive materials.

DO NOT operate equipment on slopes greater than specified in Specifications section of this

manual.

DO NOT place hands or feet underneath unit, or near any moving parts.

ALWAYS remove spark plug wire when servicing equipment to prevent accidental starting.

ALWAYS check fuel lines and fittings frequently for cracks or leaks. Replace if necessary.

ALWAYS keep hands and feet away from moving or rotating parts.

ALWAYS store fuel in approved safety containers.

WARNING: Important

Remove all rocks, wire, string, plastic, etc. that can present a hazard during work prior to
starting.

DO identify and mark all fixed objects to be avoided during work such as sprinkler heads,

water valves, buried cables, or clothes line anchors, etc.

Part No 891013 Form No F072508A

5

KV Push Owner’s Manual

SOUND

SOUND LEVEL 97 dB(a) at Operator Position

Sound tests were conducted in accordance with 2000/14/EEC, and were performed on 7-25-07 under the
conditions listed below.

Sound power level listed is the highest value for any model covered in this manual. Please refer to serial plate on

the unit for the sound power level for your model.

General Conditions: Sunny
Temperature: 88
Wind Speed: 2 mph (3.8 kmh)
Wind Direction: South South East
Humidity: 44%
Barometric Pressure: 30.07”Hg (764 mm Hg

o

F (31.1oC)

)

VIBRATION DATA

VIBRATION LEVEL 0.5g (4.95m/s2)

Vibration levels at the operator’s handles were measured in the vertical, lateral and longitudinal directions using
calibrated vibration test equipment. Tests were performed on 12-20-2007 under the conditions listed below.

General Conditions: Sunny
Temperature: 47.5
Wind Speed: 3 mph (4.8kph)
Wind Direction: West
Humidity: 87%
Barometric Pressure: 29.98 Hg (101.5kpa

o

F (8.6oC)

)

INTENDED USE

INTENDED USE: This machine is designed for vacuuming leaves, grass clippings and other types of organic litter.

Debris mixed with cans, bottles and small amounts of sand can be vacuumed; however, it is not this machine's
primary purpose. Vacuuming cans, bottles and sand will affect the longevity of your machine.

Do not operate if excessive vibration occurs. If excessive vibration occurs, shut engine off immediately and check
for damaged or worn impeller, loose impeller bolt, loose impeller key, loose engine or lodged foreign objects.
Note: See parts list for proper impeller bolt torque specifications. (See trouble shooting section on page 12).

Part No 891013 Form No F072508A

6

KV Push Owner’s Manual

INSTRUCTION LABELS

The labels shown below were installed on your BILLY GOAT ® KV Vacuum. If any labels are damaged or missing, replace them before operating
this equipment. Item numbers from the Illustrated Parts List and part numbers are provided for convenience in ordering replacement labels. The
correct position for each label may be determined by referring to the Figure and Item numbers shown.

LABEL DANGER KEEP HANDS LABEL EAR EYE BREATHING ITEM #20 DANGER FLYING DEBRIS
AND FEET AWAY P/N 890254 ITEM # 19 P/N 810736
ITEM #18 P/N 400424

LABEL READ MANUAL LABEL EXPLOSIVE FUEL DEBRIS BAG FOLDING LABEL
ITEM #17 P/N 890301 ITEM # 16 P/N 400268 LOCATED ON BAG

ENGINE LABELS

ENGINE CONTROLS

HONDA BRIGGS & STRATTON

Read Owner’s Manual Before Operating.
Lire le manuel d’utilisation avant la mise en route.
Vor Inbetriebnahme Bedienungs - und Wartungsanleitung lesen.
Favor leer las instrucciones de operacion antes de operar el motor.
Consultare il Manuale Uso e Manutenzione prima dell utilizzo.

Las Skotselinstruktionen Innan Start.

Honda Throttle Control Briggs Throttle Control

Part No 891013 Form No F072508A

7

KV Push Owner’s Manual

PACKING CHECKLIST

Your Billy Goat KV Vacuum is shipped from the factory in one carton, completely assembled except for the
upper handle, debris bag, and bag quick disconnect.

READ all safety instructions before assembling unit.
TAKE CAUTION

cables and folded over

when removing the unit from the box the Handle Assembly is attached by

PUT OIL IN ENGINE BEFORE STARTING

PARTS BAG &
LITERATURE ASSY

Warranty card P/N- 400972, Owner’s Manual P/N-891013, Declaration of Conformity P/N-891057, Ty­Wraps 900407 (qty2).

Use Ty-wraps

Quick disconnect

Boxing Parts
Checklist

Debris Bag

P/N-891132

Literature Assy

P/N-891123

Connector Quick
Disconnect
P/N-890176

Honda 6.5
GSV 190

Briggs & Stratton

6.0 HP Quantum

Fig. 2

ASSEMBLY

1. ASSEMBLE Lift upper handle (item 11), remove items 34, 32, and 33 from lower handle (item 10). Attach and
secure upper handle as shown using same hardware. Then use the two ty-wraps to secure the height adjust cable
and the throttle cable at the bend on the upper handle

2. UNFOLD the debris bag (item 21) and fasten bag neck to bag quick disconnect (item 12). Attach firmly to
housing exhaust (item 1) see fig. 2.

3. ATTACH bag hanger strap to bag supports (item 13), preassembled to upper handle.

4. CONNECT spark plug wire.

Part No 891013 Form No F072508A

8

KV Push Owner’s Manual

OPERATION

Like all mechanical tools, reasonable care must be used when operating machine.

Inspect machine work area and machine before operating. Make sure that all operators of this
equipment are trained in general machine use and safety.

PUT OIL IN ENGINE BEFORE STARTING

STARTING

ENGINE: See engine manufacturer’s instructions for type and amount of oil and gasoline used. Engine

must be level when checking and filling oil and gasoline.

ENGINE SPEED

throttle to accomplish your current cleaning task.

CHOKE

Honda-Place remote throttle in choke position

PRIMER

THROTTLE

IF YOUR UNIT FAILS TO START:

See Troubleshooting on page 12.

: Briggs-Located on engine and must be controlled manually.

: Push primer per engine instructions (B&S only).

: Controlled by throttle lever on the engine. Under normal conditions, operate at minimum

: Move throttle to fast/choke position. Located on handle.

HANDLING & TRANSPORTING:

This unit requires two people to lift it. Lift holding the lower handle and the front wheels. Secure

the machine in place during transport. See page 3 for weight specifications

Never lift the machine while the engine is running.

STORAGE

Never store engine indoors or in enclosed poorly ventilated areas with fuel in tank, where fuel fumes may reach
an open flame, spark or pilot light, as on a furnace, water heater, clothes dryer or other gas appliance.
If engine is to be unused for 30 days or more, prepare as follows:

Remove all gasoline from carburetor and fuel tank to prevent gum deposits from forming on these parts and
causing possible malfunction of engine. Drain fuel outdoors, into an approved container, away from open flame. Be
sure engine is cool. Do not smoke. Run engine until fuel tank is empty and engine runs out of gasoline.

Part No 891013 Form No F072508A

9

KV Push Owner’s Manual

OPERATION

VACUUMING OPERATION

VACUUM NOZZLE HEIGHT ADJUSTMENT

to reduce tension on the adjuster, and then pulling height adjust trigger on the handle (item 23) up at right rear of
machine. Then select the desired height that fits the task.

FOR MAXIMUM PICKUP

Never bury nozzle into debris.

CLEARING A CLOGGED NOZZLE & EXHAUST: Turn engine off and wait for impeller to stop completely

and disconnect spark plug wire. Wearing durable gloves, remove clog. DANGER the clog may contain sharp
materials. Reconnect spark plug wire.

: Adjust nozzle close to debris, but without blocking airflow into the nozzle. NOTE:

: is raised and lowered by pushing slightly downward on handle

DEBRIS BAG

Debris bags are normal replaceable wear items.

Note: Frequently empty debris to prevent bag overloading with more weight than you can lift.
An optional felt bag is available for use where debris will be vacuumed in dusty conditions (see Optional Accessories

shown on page 1).

DO NOT place bag on or near hot surface, such as engine. Be sure engine has come to a complete stop before removing or
emptying bag.

This vacuum is designed for picking up trash, organic material and other similar debris (see Safety Warnings

page 4-5).
However, many vacuums are used where dust is mixed with trash. Your unit can intermittently vacuum in dusty areas.
Dust is the greatest cause of lost vacuum performance. However, following these rules will help maintain your
machine's ability to vacuum in dusty conditions:

• Run machine at idle to quarter throttle.

• The debris bag must be cleaned more frequently. A vacuum with a clean, pillow soft bag will have good pickup
performance. One with a dirty, tight bag will have poor pickup performance. If dirty, empty debris and vigorously shake
bag free of dust.

• Pressure-wash debris bag if normal cleaning does not fully clean bag. Bag should be thoroughly dry before use.

NOTE: Having one or more spare debris bags is a good way to reduce down time while dirty bags are being cleaned.
DO NOT leave debris in bag while in storage.

Part No 891013 Form No F072508A

10

KV Push Owner’s Manual

COMPOST

Vacuumed leaves, grass and other organic material from your own yard can be emptied into a pile or composter to
provide enriched soil for later use as fertilizer in gardens and flower beds

NOTE: Allow green chips to dry before spreading around living plants.

MAINTENANCE

PERIODIC MAINTENANCE

Periodic maintenance should be performed at the following intervals:

Maintenance Operation Every Use (daily) Every 5 hrs (daily) Every 25 Hours

Inspect for loose, worn or damaged parts.

Clean Debris bag

Check bag strap tightness

Engine (See Engine Manual)

Check for excessive vibration

z

z

z

z

IMPELLER REMOVAL

1. Wait for engine to cool and disconnect spark plug.

2. Drain fuel and oil from the engine.

3. Remove bag, quick release, and upper handle. Do not kink, stretch, or break control cables, control
housings, or end fittings while removing handles.

4. Remove housing top plate by removing bolts around outside of housing.

5. Leaving engine fastened to top plate, turn it upside down so the impeller is on top.

6. Remove impeller bolt and lock washer and washer.

7. Lift impeller upward. If impeller slides freely, proceed to (step 10).

8. Place two crowbars between impeller and housing on opposite sides. Pry impeller away from engine until it
loosens. Using a penetrating oil can help loosen a stuck impeller.

9. If the impeller does not loosen, use two pry bars and pull the impeller near the hub away from the engine,
this should loosen it and allow you to remove the impeller from shaft. Using a penetrating oil can help loosen a
stuck impeller.

10. Using a new impeller bolt and lockwasher and washer, reinstall new impeller in reverse order.

11. Tighten impeller bolt. Torque impeller bolt to 33-38 Ft. Lbs. (44-51 N.m) (see item 30 on page 15).

12. Reinstall engine onto housing in reverse order of removal.

13. Gas and oil.

14. Reinstall spark plug wire.

Part No 891013 Form No F072508A

11

KV Push Owner’s Manual

Troubleshooting

Abnormal vibration. · Loose or out of balance impeller or

W ill not vacuum or has poor
vacuum performance

En gine will not start. · Sto p switch off. T hrottle in off position .

Problem Possible Cause Solution

loose engine

· dirty debris bag. Hose kit cap missing.

·Clogged nozzle or exhaust. Excessive
quantity of debris.

· Improper nozzle height

Engine not in full choke position. Out of
gasoline. Bad or old gasoline. Sparkplug
wire disconnected. Dirty air cleaner

· Check impeller and replace if required.
Check engine

· Clean debris bag. Shake bag clean or
wash. Check for hose kit cap. Unclog
nozzle or exhaust. Allow air to feed with
debris

· Check stop switches, throttle, choke
position and gasoline. Connect spark
plug wire. Clean or replace air filter. Or
contact a qualified service person.

Engine is locked, will not pull
over.

Nozzle scrapes ground in
lowest height setting.

Too m uch dust coming from
bag.

· Debris locked in impeller. Engine
problem.

Nozzle height out of adjustment

· Vacuuming very dry, brittle or small
debris

· See page 5. Contact a engine service
dealer for engine problems
Adjust nozzle height (See Nozzle height
fine adjustment for hard surfaces on
page 5

· Switch to felt bag (see page 1
accessories)

When servicing engine refer to specific manufacturers engine owner's manual. Engine warranty is covered by the
specific engine manufacturer. If your engine requires warranty or other repair work contact your local servicing
engine dealer. When contacting a dealer for service it is a good idea to have your engine model number available
for reference (See table page 3). If you cannot locate a servicing dealer in your area you can contact the
manufacturers national service organization.
To reach:

American Honda: 800-426-7701
Briggs & Stratton: 800-233-3723

WARRANTY CLAIM PROCEDURE

Should a BILLY GOAT

®

machine fail due to a defect in material and/or workmanship, the owner should make a

warranty claim as follows:

• The machine must be taken to the dealer from whom it was purchased or to an authorized Servicing BILLY
GOAT Dealer.

• The owner must present the remaining half of the Warranty Registration Card, or, if this is not available, the
invoice or receipt.

• The Warranty Claim will be completed by the authorized BILLY GOAT Dealer and submitted to their
respective BILLY GOAT Distributor for their territory Attention: Service Manager. Any parts replaced under
warranty must be tagged and retained for 90 days. The model number and serial number of the unit must
be stated in the Warranty Claim.

• The distributor service manager will sign off on the claim and submit it to BILLY GOAT for consideration.

• The Technical Service Department at BILLY GOAT will study the claim and may request parts to be

returned for examination. BILLY GOAT will notify their conclusions to the distributor service manager from
whom the claim was received.

• The decision by the Technical Service Department at BILLY GOAT to approve or reject a Warranty Claim is

final and binding.

For online product registration go to www.billygoat.com

Part No 891013 Form No F072508A

12

KV Push Owner’s Manual

MAINTENANCE RECORD

Date Service Performed

Part No 891013 Form No F072508A

13

PARTS DRAWING KV

KV Push Owner’s Manual

Part No 891013 Form No F072508A

14

KV Push Owner’s Manual

PARTS LIST

* Denotes
standard
hardware
item that
may be
purchased
locally.

Part No 891013 Form No F072508A

ITEM

NO.

1 MAIN FRAME HOUSING NEW KD 891100-S 1 891100-S 1

2 NOZZLE ASSEMBLY TKV 891110-S 1 891110-S 1

3 AXLE FRONT WA NEW KD 891103 1 891103 1

4 PLATE TOP ENGINE KV 891007-1-S 1 891007-1-S 1

5 IMPELLER 12.75 WA PUSH VAC 891108-S 1 891108-S 1

6 DOOR EXHAUST ASSY RAW 890148 1 890148 1

7 WASHER 1/2" SAE Z/P 8172011 4 8172011 4

8 WHEEL ASSY 12" X 2.5" TREAD 900509 4 900509 4

9 ENGINE 6.5 HP HONDA GSV190AN1L - - 840069 1

10 LOWER HANDLE KV 891050 1 891050 1

11 HANDLE UPPER KV 891054-S 1 891054-S 1

12 QUICK DISCONNECT 890176 1 890176 1

13 PIN CLEVIS 3/8" x 2.125" LONG 520120 4 520120 4

14 RETAINER 360279 4 360279 4

15 GRIP HANDLE 1"X 9.5" LG 430342 2 430342 2

16 LABEL HOT ENGINE 400268 1 400268 1

17 LABEL READ 890301 1 890301 1

18 LABEL WARNING DANGER 400424 2 400424 2

19 LABEL DANGER FLYING DEBRIS 810736 1 810736 1

20 LABEL EAR EYE BREATHING 890254 1 890254 1

21 BAG DEBRIS NO ZIPPER KV 891132 1 891132 1

23 CABLE THROTTLE ASSY 42" W/CHOKE 891036 1 891027 1

25 CABLE HGT ADJ TRIGGER KV 891001 1 891001 1

26 TY WRAP 900407 3 900407 3

27 WASHER LOCK 3/8" ST MED 8177012 1 8177012 1

28 KEY 3/16 SQ. X 1.25 9201080 1 9201080 1

29 SCREW MACHINE #10-24 X 1 1/2" HWF ZP 891042 1 891042 1

30 SCREWCAP 3/8-24X1 LOCKTITE 900154 1 - -

SCREWCAP 3/8-24X1 1/2" GR. 8 - - 900344 1

31 SCREWCAP 1/4 - 20 x 5/8 HWH 890359 16 890359 16

32 WASHER 5/16 FLATWASHER Z/P 8171003 18 8171003 18

33 SCREWCAP 5/16-18 X 1.75 ZP 8041031 8 8041031 8

34 NUT LOCK 5/16-18 8160002 8 8160002 8

35 SCREWCAP 1/4-20 X 3/4" 8041004 2 8041004 2

36 WASHER 1/4" SAE ZP 8172007 10 8172007 10

37 NYLON INSERT LOCKNUT, 1/4-20 UNC 8160001 9 8160001 9

38 1/2-13 CAP NUT NP W/PATCH 890530 4 890530 4

39 SCREWCAP 1/4-20x2.25x0.75-N 8041011 1 8041011 1

40 SCREW PLASTIC 1/4-10 X 1 891039 8 891039 8

41 SCREW 3/8 x 1 1/2 TAPTITE 890408 3 890408 3

42 NOZZLE TOP HALF KV

43 NOZZLE BOTTOM HALF KV

44 PLUG HOUSING KD LB

45 SCREW SELF TAPPING 10-24 X 1/2
46 LABEL KV PUSH 891045 1 891045 1

47 SCREWCAP 1/4-20 X 1" 8041006 6 8041006 6
48 KV REINFORCEMENT NOZZLE BRACKET LFT 891062 1 891062 1
49 KV REINFORCEMENT NOZZLE BRACKET RT 891064 1 891064 1
50 SPACER 1.50 OD X .890 ID X .50 THK - - 840083 2
51 WASHER 1.5 OD X .453 ID X .25 THK 440153 1 440153 1

DESCRIPTION

ENGINE 6.0 HP B&S 890622 1 - -

KV600 PART

NUMBER

891002

891003

900146-01

891043

KV650H PART

QTY

1 891002 1

1 891003 1

1 900146-01 1

1 891043 1

NUMBER

15

QTY

KV Push Owner’s Manual

BRUSH CUTTER FORCE BLOWER AERATOR

If you liked this product please feel

free to view our full line of quality lawn

care, renovation, and debris removal

products at www.billygoat.com

DL VACUUM MULTI VACUUM POWER RAKE

Part No 891013 Form No F072508A

16
