CR Owner’s Manual
Accessories Replacement Parts
SLICING REEL
A complete vertislicing reel for your
CR. 20" wide reel for
use in grasses that
require vertical
cutting, and for
assisting in lawn
overseeding projects.
P/N 350252
Part No 350245 Form No F062206A
BILLY GOAT CR550HC POWER RAKE
Owner's Manual
SLICING BLADES
A full set of twenty
blades for
replacement. Includes
40 new capscrews,
and lock nuts for
replacement
installation.
P/N 350187
SPACER
BUMPERS
A complete
replacement set.
44 of 1/2" spacer
bumpers and 4
of 1/4" spacer
bumpers
P/N 350258
DRIVE
BELT
Original
Equipment drive
belt for your CR.
P/N 350207
1

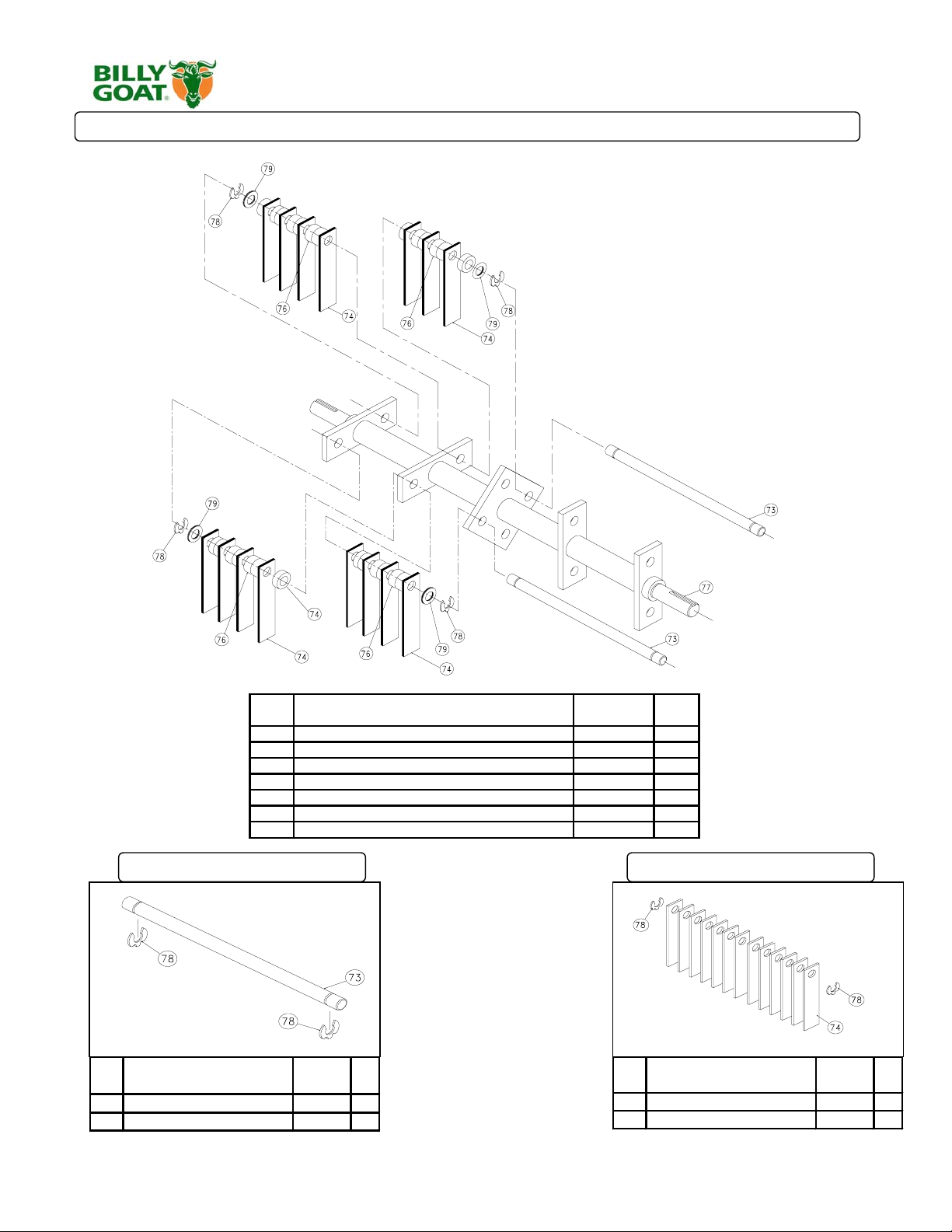

FLAIL
BLADES
A complete
replacement set.
52 of our high
quality flail
blades for your
CR. Includes 8
new lock clips for
replacement
installation.
P/N 350251
FLAIL SHAFTS
A full set of four
shafts for
replacement.
Includes 8 new lock
clips for
replacement
installation.
Note: We
recommend
replacing the shafts
when you replace
flails.
P/N 350185
CR Owner’s Manual
ABOUT THIS MANUAL
THANK YOU for purchasing a BILLY GOAT®CR Power Rake. Your new machine has been carefully designed and
manufactured to provide years of reliable and productive service. This manual provides complete operating and
maintenance instructions that will help to maintain your machine in top running order. Read this manual carefully
before assembling, operating, or servicing your equipment.
CONTENTS
SERIAL PLATE DATA AND SPECIFICATIONS 3
GENERAL SAFETY 4-5
SOUND AND VIBRATION 6
INSTRUCTION LABELS 7
PACKING CHECKLIST & ASSEMBLY 8
OPERATION 9-10
MAINTENANCE 11
TROUBLESHOOTING AND WARRANTY PROCEDURE 12
ILLUSTRATED PARTS & PARTS LISTS 13-16
Part No 350245 Form No F062206A
2
CR Owner’s Manual
SERIAL PLATE DATA
Record the model number, serial number, date of
purchase, and where purchased.
Purchase Date:
Purchased From:
Specifications
Engine: HP 5.0 (3.73 kW)
Engine: Model GC160AQHA
Engine: Type HONDA OHC
Engine: Fuel Capacity 2.1 qt (2.0 L)
Engine: Oil Capacity 0.63 qt. (0.6 L)
Total Unit Weight: 125# (56.8 kg)
Max. operating slope 20
Lwa at operator position 99 dB(a)
Lpa at operator position 81 dB(a)
Vibration at operator position 1.01g (9.94 m/s2)
CR550HC
o
Part No 350245 Form No F062206A
3
CR Owner’s Manual
GENERAL SAFETY INSTRUCTIONS and SYMBOLS
The safety symbols shown below are used throughout this manual. You should become familiar with them before
assembling, operating, or servicing this equipment.
This symbol indicates important information that will prevent injury to yourself or others.
This symbol indicates ear protection is recommended when operating this equipment.
This symbol indicates eye protection is recommended when operating this equipment.
This symbol indicates gloves should be worn when servicing this equipment.
This symbol indicates that this manual and the engine manufacturer’s manual should be read
carefully before assembling, operation, or servicing this equipment.
This symbol indicates important information that will prevent damage to your BILLY GOAT
CR Power Rake.
This symbol indicates the engine oil level should be checked before operating this
equipment.
Read and make sure you thoroughly understand the following safety precautions before assembling, operating or
servicing this equipment:
READ this manual and the engine manufacturer’s manual carefully before assembling,
operating, or servicing this equipment.
EAR PROTECTION is recommended when operating this equipment.
EYE PROTECTION is recommended when operating this equipment.
BREATHING PROTECTION is recommended when operating this equipment.
EXHAUST from this product contains chemicals known to the State of California to cause
cancer, birth defects or other reproductive harm.
®
DO NOT operate this equipment on any unimproved forested, brushy, or grass covered land
unless a spark arrester is installed on the muffler as required by Section 4442 of the
California Public Resources Code. The arrester must be maintained in good working order.
Other states may have similar laws. Federal laws apply on federal lands.
DO NOT run engine in an enclosed area. Exhaust gases contain carbon monoxide, an
odorless and possibly fatal poison.
Part No 350245 Form No F062206A
4
CR Owner’s Manual
yp
DO NOT run this equipment indoors or in an
recommended.
DO NOT refuel this equipment while the engine is running. Allow engine to cool for at least two
minutes before refueling.
DO NOT store gasoline near an open flame.
DO NOT remove gas cap while engine is running.
DO NOT start or operate engine if strong odor of gasoline is present.
DO NOT start or operate engine ifgasoline is spilled. Move equipment awayfrom spill until
gasoline has completely evaporated.
DO NOT smoke while filling the fuel tank.
DO NOT check for spark with sparkplugor sparkplugwire rem oved. Use an approved spark
tester.
DO NOT operate engine without a muffler. Inspect mufflerperiodicallyand replace if necessary.
If equipped with muffler deflector, inspect deflector periodically and replace if necessary.
DO NOT operate engine with grass, leaves or other combustible material near the muffler.
DO NOT touch muffler, cylinder, or coolingfins when hot. Contact with hot surfaces maycause
severe burns.
oorlyventilated area. Refuelingoutdoors is
DO NOT leave equipment unattended while in operation.
DO NOT park equipment on a steep grade or slope.
DO NOT operate equipment with bystanders in or near the work area.
DO NOT allow children to operate this equipment.
DO NOT operate equipment with guards removed.
DO NOT operate equipment near hot or burning debris or any toxic or explosive materials.
DO NOT operate equipment on slopesgreater than specified in Specifications section of this
manual.
DO NOT start engine without height adjust lever in up position and clutch bail disengaged.
DO NOT place hands or feet underneath unit, or near any moving parts.
ALWAYS remove spark plug wire when servicing equipment to prevent accidental starting.
ALWAYS check fuel lines and fittings frequently for cracks or leaks. Replace if necessary.
ALWAYS keep hands and feet away from moving or rotating parts.
ALWAYS store fuel in approved safety containers.
WARNING: Important
Remove all rocks, wire, string, etc. that can present a hazard during work prior to starting.
DO identifyand mark all fixed objects to be avoided duringwork such as sprinkler heads, water
valves, buried cables, or clothes line anchors, etc.
Part No 350245 Form No F062206A
5
CR Owner’s Manual
SOUND
SOUND LEVEL 81 dB(a) at Operator Position
Sound tests were conducted in accordance with 2000/14/EEC, and were performed on 2-9- 2002 under the
conditions listed below.
Sound power level listed is the highest value for any model covered in this manual. Please refer to serial plate on
the unit for the sound power level for your model.
General Conditions: Sunny
Temperature: 43
o
F(6.1oC)
Wind Speed: 10 mph (16.1 kmh)
Wind Direction: North West
Humidity: 82.2%
Barometric Pressure: 29.72Hg (754 mm Hg
)
VIBRATION DATA
VIBRATION LEVEL 1.01g (9.94m/s2)
Vibration levels at the operator’s handles were measured in the vertical, lateral and longitudinal directions using
calibrated vibration test equipment. Tests were performed on 5-25-2006 under the conditions listed below.
General Conditions: Sunny
Temperature: 72.32
o
F(22.4oC)
Wind Speed: 3.8 mph (6.12kph)
Wind Direction: East
Humidity: 62.2%
Barometric Pressure: 29.9Hg (101.3kpa
)
INTENDED USE
INTENDED USE: This machine is designed for removing thatch from your lawn, renovation of existing lawns, and to
assist in overseeding operations. The machine should not be used for any other purpose than that stated above.
Do not operate if excessive vibration occurs. If excessive vibration occurs, shut engine off immediately and check
for damaged or worn reel, loose pulley bolts or set screws, loose engine or lodged foreign objects. (See trouble
shooting section on page 12).
Part No 350245 Form No F062206A
6
CR Owner’s Manual
INSTRUCTION LABELS
The labels shown below were installed on your BILLY GOAT®CR Power Rake. If any labels are damaged or missing, replace them before
operating this equipment. Item numbers from the Illustrated Parts List and part numbers are provided for convenience in ordering replacement
labels. The correct position for each label may be determined by referring to the Figure and Item numbers shown.
LABEL DANGER KEEP HANDS LABEL CLUTCH ITEM #49 DANGER FLYING DEBRIS
AND FEET AWAY P/N 830503 ITEM # 48 P/N 810736
ITEM #51 P/N 400424
LABEL CAUTION GUARD LABEL EXPLOSIVE FUEL LABEL INSTRUCTION HEIGHT ADJ.
ITEM #52 P/N 900327 ITEM # 50 P/N 400268 ITEM #35 P/N 350224
ENGINE LABELS/CONTROLS
HONDA
Part No 350245 Form No F062206A
7
CR Owner’s Manual
teratureC
ccessories 350246
PACKING CHECKLIST
Your Billy Goat Power Rake is shipped from the factory in one carton, completely assembled.
READ all safety instructions before assembling unit.
TAKE CAUTION when removing the unit from the box the Handle Assembly is attached and
folded over
PUT OIL IN ENGINE BEFORE STARTING
PARTS BAG &
LITERATURE ASSY
Warranty card P/N- 400972, Owner’s Manual P/N-350245, Declaration of Conformity P/N-350139, and
Li
RA
.
Boxing Parts
26
Checklist
Honda GC 5.0
28
OHC
Literature Assy
P/N-350243
28
ASSEMBLY
1. ASSEMBLE the left rear wheel to the axle using ¾” wrench.
2. UNFOLD the upper handle (item 26) and slide handle lock loops (item 28) into place to secure the upper handle
to the lower.
3. CHECK engine oil level and fill to proper level with engine manufacturers recommended grade of oil. Move
height adjust lever to down position, to level engine during checking. See engine manufacturers instruction
manual.
4. CONNECT spark plug wire.
Part No 350245 Form No F062206A
8
CR Owner’s Manual
p
OPERATION
Like all mechanical tools, reasonable care must be used when operating machine.
Inspect machine work area and machine before operating. Make sure that all operators of this
equipment are trained in general machine use and safety.
PUT OIL IN ENGINE BEFORE STARTING
STARTING
ENGINE: See engine manufacturer’s instructions for type and amount of oil and gasoline used. Engine must be
level when checking and filling oil and gasoline.
FUEL VALVE: Move fuel valve to "ON" position (when provided on engine).
STOP SWITCH: Located on the engine. "slow/stop" position.
CHOKE: Operated with choke lever on side of engine.
THROTTLE: Controlled by throttle lever on the motor.
IF YOUR UNIT FAILS TO START:
See Troubleshooting on page 12.
FOLDING HANDLE
This unit is equipped with a folding upper handle for easier storage and transportation. The handle can be folded by
sliding the handle lock loops (item 28) up. This releases the upper handle, allowing it to be folded over the unit.
HANDLING & TRANSPORTING:
This unit requires two people to lift it. With the handle in the folded position, lift holding the lower handle and
belt/shaft guard one on each side of the machine. Secure the machine in place during transport. See page 3 for
weight specifications
Never lift the machine while the engine is running.
BLADE POSITION & DEPTH CONTROL LEVER
The blades can be raised or lowered into the ground by height adjustment
lever on the engine base. The resulting blade depth can be adjusted higher
or lower. See ADJUSTING BLADE DEPTH.
ADJUSTING BLADE DEPTH
The de
the top of the adjustment lever. The blades are lowered by rotating the
knob counter-clockwise, and raised by rotating the knob clockwise. The
relative depth of the blades can be gauged by using the depth scale
located on the right front corner of the engine base.
th of the blades can be raised or lowered byrotatingthe knob on
Part No 350245 Form No F062206A
9
CR Owner’s Manual
p
y
p
p
RAKING OPERATION
MOW: Mow the lawn to it's normal cut height
DRY: Be sure grass is dry. Wet conditions can cause increased damage to healthy grass.
SET DEPTH: With engine off, set the raking depth so that the blades just touch on a flat surface (i.e. driveway, or
sidewalk).
START ENGINE: See page 9.
ENGAGE BLADES: Pull back on the bail on the operators handle. NOTE: When engaging the blades in heavy load
conditions (i.e. heavy thatch, or very uneven turf), push down on the operators handle lifting the front wheels slightly.
Engage the blades. Slowly lower the unit into the turf.
RAKE: Rake a small test area and examine the results. Thatch should be removed and de
grass. If excessive damage occurs to healthy grass, adjust the blade depth to decrease damage. Continue raking the
yard, working in one direction (i.e. north-south, or east-west). NOTE: If a large drop in engine RPM occurs, or the unit
pulls you forward and bounces during operation the blade depth is set too low.
REMOVE TH ATCH: After raking, a layer of thatch will be deposited over the top of the lawn. This thatch must be
removed prior to any fertilizing, seeding, or watering of the lawn. We suggest the use of a lawn vacuum or wheeled
blower for collection and removal of the thatch.
VERTI-CUTTING OPERATION
MOW: Mow the lawn to it's normal cut height
DRY: Be sure grass is dry. Wet conditions can cause increased damage to healthy grass.
SET DEPTH: With engine off, set the raking depth so that the blades just touch on a flat surface (i.e. driveway, or
sidewalk).
START ENGINE: SeePage9.
ENGAGE BLADES: Pull back on the bail on the operators handle. NOTE: When engaging the blades in heavy load
conditions (i.e. heavy thatch, or very uneven turf), push down on the operators handle lifting the front wheels slightly.
Engage the blades. Slowly lower the unit into the turf.
SLICE: Verti-cut a small test area and examine the results. Some thatch and cut stems should be removed and
de
osited on topof the healthygrass. Grass runners should be cut and readyfor removal. If excessive damage occurs
to healthy grass, adjust the blade depth to decrease damage. Continue raking the yard, working in one direction (i.e.
north-south, or east-west). NOTE: If a large drop in engine RPM occurs, or the unit pulls you forward and bounces
during operation the blade depth is set too low.
REMOVE THATCH/STEMS: After verti-cutting, a layer of thatch and cut stems will be deposited over the top of the
lawn. We suggest the use of a lawn vacuum or wheeled blower for collection and removal of the thatch/stems.
osited on topof the health
RAKING/SLICING TIPS
THATCH: Thatch is a dense layer of dead grass, clippings, and roots that builds up over time at the base of the lawn
preventing air, water, and fertilizer from reaching the soil. This can cause shallow root development and make a lawn
more susceptible to drought and disease. Thatch also provides an ideal environment for insects to hide and multiply.
Periodic removal of thatch will keep your lawn in good health.
HEAVY TH ATCH: Lawns with an excessive amount of thatch will require multiple treatments for effective removal.
Trying to remove excessive thatch (greater than 3/4"[19 mm] deep) in one treatment will damage or destroy the living
part of the lawn. It is best to remove heavy thatch in seasonal treatments (i.e. spring, and fall).
CHECK: Before beginning, it is best to evaluate the condition of the lawn by cutting one or more core samples from
area to be treated. A core can be cut using a piece of pvc, or metal pipe. Hammer the pipe into the ground, remove it,
push the core out of the pipe and inspect it to determine the depth of thatch in your yard.
SLOPES: Rake slopes across not up and down. This is much easier and safer for the operator and is better for the
lawn. Raking across will help to reduce runoff during watering and allow the sloped ground to hold more seed, fertilizer,
and water. The units maximum operating slope is 35% or 19°.
DEPTH: The wide range of depth adjustment on your unit is provided to allow for blade wear. Setting the reel deeper
will not
ground. The slicing reel should be set even with the ground for verti-slicing work, and set to a maximum 1/2" depth for
overseeding jobs. Setting the reel deeper than this will only result in premature wear on the unit (i.e. failed belt). If you
desire to work the ground deeper than the above guidelines allow, it should be done gradually in multiple passes.
roduce better, orquicker results. The flail reel is intended to be set so it just touches the surface on flat
Part No 350245 Form No F062206A
10
CR Owner’s Manual
MAINTENANCE
P
ERIODICMAINTENANCE
Periodic maintenance should be performed at the following intervals:
Maintenance Operation Every Use (daily) Every 25 Hours
Inspect for loose, worn or damaged parts.
Check engine oil
Inspect belt
Engine (See Engine Manual)
Grease reel bearings
Inspect and clean engine air filter
Oil height adjustment linkage
FLAIL BLADE WEAR
1. Wait for engine to cool and disconnect spark plug.
2. Close fuel valve on engine. (Honda only)
3. Lean unit back onto lower handles and secure in place.
4. Inspect blades for wear, and immediately replace any bent or cracked
blades. Measure the overall length of the blade. (See fig. 1)
5. If blades measure less than 3.0"(76 mm) in overall length they must be
replaced. NOTE: We recommend replacing all the flails at once.
z
z
z
z
z
z
SLICING BLADE WEAR
1. Wait for engine to cool and disconnect spark plug.
2. Close fuel valve on engine. (Honda only)
3. Lean unit back onto lower handles and secure in place.
4. Inspect blades for wear, and immediately replace any bent or cracked
blades. Measure the overall length of the blade from the center of the
attachment bolts to the tip of the worn blade.
5. If blades measure less than 3.0"(76 mm) they must be replaced. NOTE:
We recommend replacing all the blades at once.
ROTATING FLAIL REEL END TO END
To maximize flail blade life and performance the reel can be rotated end to end periodically to provide a fresh lead cutting edge. Takes approx. 20
min. and requires two 1/2" socket wrenches with extension bar.
1. Wait for engine to cool and disconnect spark plug.
2. Close fuel valve on engine.
3. Lean unit back onto lower handles and secure in place.
4. Remove (6) lock nuts (item 62) holding the belt and shaft guards (item 21 &22) in place. It is necessary to lower the height adjust lever to reach
the locknuts on the guards. Remove the guards.
5. Remove the drive belt (item 9) by "walking" it out of the groove on the reel pulley (item 2).
6. Remove the (4) lock nuts (item 60) and washers (item 68) holding the bearings (item 23) to the frame of the unit.
7. The reel is now free from the machine. Slide the reel down and out of the machine.
8. Remove the capscrew (item 71), lockwasher (item 57), reel pulley (item 2), key (item 42), and reel spacer (item 10) from the end of the reel.
9. Rotate the reel end to end, and re-install these items on the opposite end of the reel.
10. Re-install the reel in reverse order of removal. Re-install the guards in reverse order of removal.
DRIVE BELT REPLACEMENT
NOTE: Takes approx. 10 min. and requires 3/8" socket wrench with extension.
1. Wait for engine to cool and disconnect spark plug.
2. Remove (6) self-tapping screws (item 65) holding the belt guard (item 21 & 22) in place. Remove the guard.
3. Remove the belt (item 9) by rotating the reel pulley (item 2) and walking it out of the groove. Discard old belt
4. Install new belt using same procedure to walk the belt into the groove.
5. With new belt installed pull bail rod back to engaged position and measure extension of idler spring. Spring should stretch 1" to 1.25" (25-32
mm) with bail engaged. Adjust clutch cable as necessary to achieve this extension.
6. Re-install the belt guard.
Fig. 1
Part No 350245 Form No F062206A
11
CR Owner’s Manual
g
p
g
q
g
STORAGE
Never store engine indoors or in enclosed poorly ventilated areas with fuel in tank, where fuel fumes may reach an open
flame, spark or pilot light, as on a furnace, water heater, clothes dryer or other gas appliance.
If engine is to be unused for 30 days or more, prepare as follows:
Remove all gasoline from carburetor and fuel tank to prevent gum deposits from forming on these parts and causing possible
malfunction of engine. Drain fuel outdoors, into an approved container, away from open flame. Be sure engine is cool. Do not
smoke. Run engine until fuel tank is empty and engine runs out of gasoline.
Troubleshooting
Abnormal vibration. · Dam aged or m issing blades. Loose
Engine stalls or labors w hen
rak ing
ine w ill n o t s ta rt. T h ro tt le in of fposition · C heck chokeposition.
En
Engine is locked, will not pull
over.
Problem Possible C ause Solution
handle bolts. Loose engine bolts
· Blades set too deep into ground. · Raise blades so that they just touch the
· O ut of gasoline or bad, old gasoline. · Check gasoline.
ark P lugwire disconnected. · Connect sparkplugwire.
·S
· G as valve off. · Turn on
· Dirty air cleaner. · Clean or replace air cleaner. Contact a
· Debris locked against reel, or drive
pulleys. Engine problem.
· S to p w o rk im m ed ia te ly . R e p la c e a n y
damaged or m issing blades. Tighten all
loose nuts and bolts.
ground on a level surface
as valve.
ua lifie d s er v ic eperson.
· Pull spark plug wire and remove debris.
Contact an engine servicing dealer for
ineproblems.
en
When servicing engine refer to specific manufacturers engine owner's manual. Engine warranty is covered by the
specific engine manufacturer. If your engine requires warranty or other repair work contact your local servicing
engine dealer. When contacting a dealer for service it is a good idea to have your engine model number available
for reference (See table page 3). If you cannot locate a servicing dealer in your area you can contact the
manufacturers national service organization.
To reach:
American Honda: 800-426-7701
WARRANTY CLAIM PROCEDURE
Should a BILLY GOAT®machine fail due to a defect in material and/or workmanship, the owner should make a
warranty claim as follows:
• The machine must be taken to the dealer from whom it was purchased or to an authorized Servicing BILLY
GOAT Dealer.
• The owner must present the remaining half of the Warranty Registration Card, or, if this is not available, the
invoice or receipt.
• The Warranty Claim will be completed by the authorized BILLY GOAT Dealer and submitted to their
respective BILLY GOAT Distributor for their territory Attention: Service Manager. Any parts replaced under
warranty must be tagged and retained for 90 days. The model number and serial number of the unit must
be stated in the Warranty Claim.
• The distributor service manager will sign off on the claim and submit it to BILLY GOAT for consideration.
• The Technical Service Department at BILLY GOAT will study the claim and may request parts to be
returned for examination. BILLY GOAT will notify their conclusions to the distributor service manager from
whom the claim was received.
•
The decision by the Technical Service Department at BILLY GOAT to approve or reject a Warranty Claim is
final and binding.
For online product registration go to www.billygoat.com
Part No 350245 Form No F062206A
12
PARTS DRAWING CR550HC
CR Owner’s Manual
Part No 350245 Form No F062206A
13
CR Owner’s Manual
PARTS LIST
ite m P A R T S CR550HC QTY
no. LIST
1 P u lle y 3 . 0 " O .D . 350101 1
2 P u lle y 5 . 5 " O .D . X ¾ " 350206 1
3 W heel 8" Sem i-Pneu W hite 350236 4
4BarStrap 350211 1
5RodHeightWa 350220 1
6 Reel Flail Assy (see page 10 & 11 for parts list and detailed dw g.) 350241 1
7 Pulley Idler 2.75" 350114 1
8ArmIdlerWA 350115 1
9Belt5LX34" 350207 1
10 Spacer Reel Pulley 350118 1
11 BracketBeltFinger 350208 1
12 C hassis W A W / Label 350235 1
13 Fram e Front W A 350213 1
14 GRIP 1" x 13" 400570 2
15 Label Instr. Hgt. Adj. 350224 1
16 Link Height Bar 350223 2
17 Knob H eight Adj. 850154 1
18 S TUD 3/4"-10 X 5 1/2" PLTD 810538 1
19 LOCKNUT ASSY 800227 1
20 W ASH ER 3\4" NY LON 800109 1
21 G uard B elt Top W a 350248 1
22 G uard B elt Bottom W a 350249 1
23 Bearing ¾ " Cast Flange 350209 2
24 Handle Low er LH W A 350134 1
25 Handle Low er RH W A 350135 1
26 Handle U pper PR500 350136 1
27 Bail Clutch W A 350137 1
28 Loop Folding H andle 350138 2
29 Deflector Rubber 350210 1
30 G uard S haft CR 350250 1
31 PIN LIFT FR ON T 3/8" X 21 3/16" Long 350212 1
32 PIN C O TTER 1/8" X 1" Z/P 900471 1
33 S CR EW C AP 5/16-24x3/4" G R5 8042026 2
34 S CR EW C AP 5/16 - 18 x 1 1/2 8041030 6
35 W ASH ER 1/4" FLAT Z/P 8171002 13
36 SC RE W CAP 1/4"-20X1.5" 8041008 1
37 BE LT F ING ER W IRE 350301 1
38 CableClutchReelPR500 350181 1
39 S pring E xtension 350300 1
40 Bolt Shoulder 1/2" X 1" 500114 1
41 ENGINE HONDA 5.0 HP GC 430272 1
42 KE Y 3/16" X 1" 9201078 1
43 NU T 1/2 - 13 JA M 8162005 4
44 W ASH ER 1/2 S AE 8172011 8
45 S CR EW C AP 1/2-13 x 3" Z/P 8041102 4
46 SC RE W CAP 5/16"-18X1 1/4" HCS ZP 8041029 5
47 NU T LO CK 5/16-18 8160002 13
48 LABEL DANGER THROW N O BJECT 810736 1
49 LABEL CLUTCH VQ 830503 1
50 LABEL HOT ENGIN E 400268 1
51 LABEL W ARNING 400424 2
52 LABEL DANGER GUARD 900327 1
53 PLUG CAP 1" RD 890132 2
54 BOLT CARRAIGE 3/8-16 x 1 3/4 8024061 4
55 B OLT C AR RA IG E 5/16-18 x 1 3/4 8024043 2
56 S CR EW C AP 1/4-20x1" 8041006 4
57 LOCK W AS HER TW ISTE D TO O TH 400502 1
58 SCREW C AP 3/8-16x1" REEL ASSEMBLY 8041050 1
60 NU T LO CK 3/8-16 8160003 5
61 NU T LO CK 3/8-16 TH IN 8161042 1
62 NU T LO CK 1/4-20 8160001 5
63 W ASH ER 5/16 F LAT C UT 8171003 2
64 S CR EW C AP 3/8-16x1.5" 8041052 1
65 SC RE W CAP SH EE T M ETA L D RILL PO IN T 1/4X3/4 430208 6
66
67 SCREW M ACH. #10-24X2" 8059143 1
68
6 9 K n o b H e ig h t A d j. 430128 1
70 W ASH ER 5/16 S AE 8172009 1
71 SPACER CRANK CR HONDA 350338 1
72 SCREW CAP 5/16-24 x 1 1/4" GR. 8 400389 1
73 W ASHER FENDER 5/16 8172020 1
74 W ASH ER TW ISTED TO O TH 400389 1
75 KE Y 3/16" X 5/8" 9201072 1
76 3/8 FLA T C U T W A SH ER 8171004 5
Part No.
Part No 350245 Form No F062206A
14
FLAIL SHAFT KIT 350185
FLAIL
BLADE KIT 350251
FLAIL REEL ASSY 350241
CR Owner’s Manual
item
no. LIST
73 SHAFT FLAIL BLADE 350141 4
74 BLADE FLAIL 350205 52
75 SPACER B UMPER 5/8"X 1/4" 350143 4
76 SPACER B UMPER 5/8" x 1/2" 350144 44
77 SHAFT WA FLAIL REEL 350145 1
78 CLIP LOCK 1/2" 350146 8
79 WASHER 1/2 SAE 8172011 8
item
no. LIST
73 SHAFT FLAIL BLADE 350141 4
78 CLIP LOCK 1/2" 350146 8
PART S
Part No. QTY
PARTS
QTY
Part No.
item
no. LIST
74 BLADE FLAIL 350205 52
78 CLIP LOCK 1/2" 350146 8
PART S
Part No. QTY
Part No 350245 Form No F062206A
15
CR Owner’s Manual
SPACER BUMPER KIT 350258
item
no. LIST
75 SPACER BUMPER 5/8" x 1/4" 350143 4
76 SPACER BUMPER 5/8" x 1/2" 350144 54
PAR TS
Part No.
SLICING REEL ASSY 350252
QTY
SLICING BLADE KIT 350187
item
no. LIST
81 BLADE SLICING REEL 350147 20
85 SCREW CAP 1/4-20 x 3/4, GR. 5 350151 40
86 NUT LOCK 1/4-20 8142004 40
PARTS
PR500 QTY
Part No.
item
no. LIST
57 LOCK WASHER 5/16 TWISTED TOOTH 430298 1
58 SCREWCAP 5/16 - 24 X 1" GR. 5 400164 1
80 SHAFT SLICING WA 350142 1
81 BLADE SLICING REEL 350147 20
82 PLATE BLADE MTG. 350253 20
83 SPACER BLADE MTG. 350254 10
84 SPACER BLADE ASSY 350150 9
85 SCREWCAP 1/4-20 x 3/4, GR. 5 350151 40
86 NUT LOCK 1/4-20 8142004 40
87 COLLAR SPACER 350152 1
88 WASHER 0.937 x 1.750 x 0.119 350153 1
89 WASHER LOCK 7/8 INT. TOOTH 350154 1
90 NUT JAM 7/8-14 350155 1
Part No 350245 Form No F062206A
PART S
16
PR500 QT Y
Part No.
Loading...
