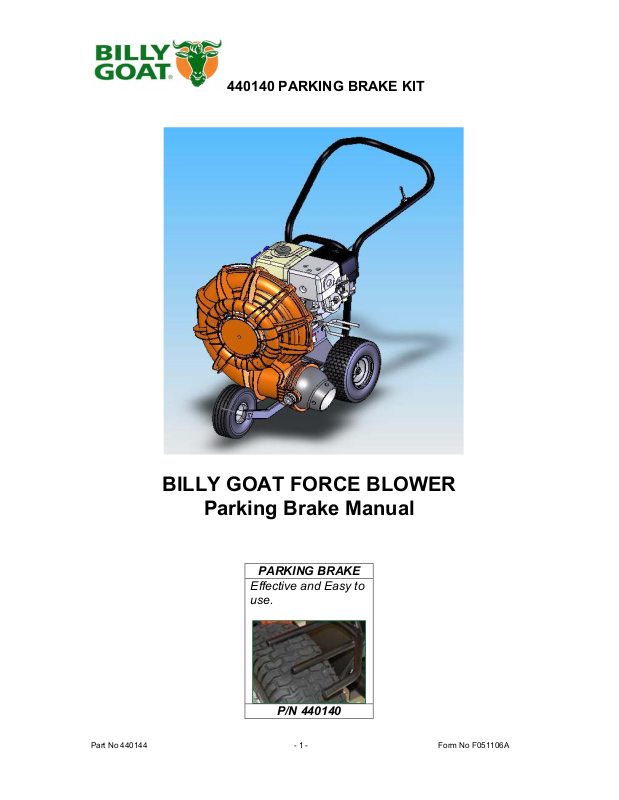

Billy Goat 440140 User Manual

440140 PARKING BRAKE KIT

BILLY GOAT FORCE BLOWER

Parking Brake Manual

PARKING BRAKE

Effective and Easy to use.

P/N 440140

Part No 440144 - 1 - Form No F051106A

440140 PARKING BRAKE KIT

ASSEMBLY

To install parking brake, first install the bushings (item #3) into the rear holes located on the base next to the rear wheels (see figure below). Next place a washer (item #2) on the fork shaft, against the stop washer. Then gently push shaft through the bushings and hole until it rests against stop washer. Finally place pal nut (item #4) on opposing end. To install stop bolt,

lace washer face nut (item #6) on screwcap (item #5) until nut reaches the end of the threads.

ext insert the screwcap into the hole located in front of the brake and use the nut lock (item

#7) on the interior and tighten it.

Parts List

Part No. Description Qty 1 440143 ROD BRAKE WA 1 2 8172011 WASHER 1/2 SAE 1

3 500130 BUSHING SHIFTER 2 4 840089 NUT PAL 1/2 1 5 8041012 SCREWCAP 1/4-20X2 1/2 ZP 1 6 900453 NUT LOCK 1/4-20 WASH FACE 1 7 8160001 NUT LOCK 1/4-20 1

44014

PARKING BRAKE KI

To apply parking brake, simply rotate forks to till they rest against the back end of the tire. Place once foot on top fork and gently put downward pressure on the fork while carefully

ushing unit forward. The forward motion of the tire will help to roll the forks into a fixed osition. To remove from braking position pull unit backwards rotating the tire, which will

rotate the forks away from locked position on wheel.
