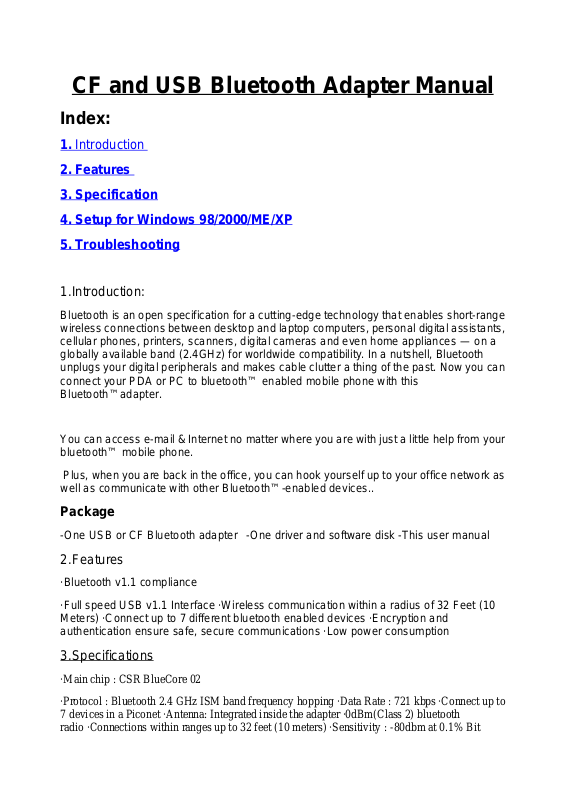

Billionton Systems USBBT02 Users Manual

CF and USB Bluetooth Adapter Manual

Index:

1. Introduction

2. Features

3. Specification

4. Setup for Windows 98/2000/ME/XP

5. Troubleshooting

1.Introduction:

Bluetooth is an open specification for a cutting-edge technology that enables short-range
wireless connections between desktop and laptop computers, personal digital assistants,
cellular phones, printers, scanners, digital cameras and even home appliances — on a
globally available band (2.4GHz) for worldwide compatibility. In a nutshell, Bluetooth
unplugs your digital peripherals and makes cable clutter a thing of the past. Now you can
connect your PDA or PC to bluetooth™ enabled mobile phone with this
Bluetooth™adapter.

You can access e-mail & Internet no matter where you are with just a little help from your
bluetooth™ mobile phone.

Plus, when you are back in the office, you can hook yourself up to your office network as
well as communicate with other Bluetooth™-enabled devices..

Package

-One USB or CF Bluetooth adapter -One driver and software disk -This user manual

2.Features

·Bluetooth v1.1 compliance

·Full speed USB v1.1 Interface ·Wireless communication within a radius of 32 Feet (10
Meters) ·Connect up to 7 different bluetooth enabled devices ·Encryption and
authentication ensure safe, secure communications ·Low power consumption

3.Specifications

·Main chip : CSR BlueCore 02

·Protocol : Bluetooth 2.4 GHz ISM band frequency hopping ·Data Rate : 721 kbps ·Connect up to
7 devices in a Piconet ·Antenna: Integrated inside the adapter ·0dBm(Class 2) bluetooth
radio ·Connections within ranges up to 32 feet (10 meters) ·Sensitivity : -80dbm at 0.1% Bit

Error Rate (BER) ·Security : encrypted link, authentication ·Bluetooth profile support includes:
Generic access profile (GAP), Serial port profile (SPP), Service discovery app profile
(SDAP), Generic object exchange profile (GOEP), Object push profile (OPP), File
transfer profile (FTP), Dial-up network profile (DUN), LAN access profile (LAP), Fax
profile (FAX), ActiveSync 3.1. Mechanics USB Bluetooth Dimension: 58.6 x

19.8 x 8.1 mm (L x W x H) CF Bluetooth Dimension: 47.3 x 42.9 x 4.58 mm (L x W x
H) 3.2. Certification FCC, CE, BQB 3.3. Environmental Operating
Ranges ·Temperature: 0 ~ 50% ·Humidity: 10 ~ 90% 3.4. Power Consumption

·Typical: 40mA/5V ·Maximum: 90mA/5V 3.5. LED Indication: ·CF adapter LED:
Power on 3.6. Drivers support:

Windows 98 SE, Windows Me, Windows 2000, Windows XP

4. Setup for Windows 98/2000/ME/XP

For CF Bluetooth adapter please install the driver before installing
Bluetooth software, the driver can be located in BTCF of the driver
CD.

For USB Bluetooth adapter please install Bluetooth software before
inserting the USB adapter.

4.1 Installing Bluetooth for Windows

1. Place installation disk into PC and setup should launch automatically.
If setup does not launch, use Windows Explorer to navigate to the appropriate CDROM

drive and run "bsetup".

2. Place select your device and O.S..

For CF Bluetooth adapter please install the driver before installing
Bluetooth software, the driver can be located in BTCF of the driver
CD.

4.1.1 S

YSTEM REQUIREMENTS

Bluetooth software for Windows runs under Microsoft Windows 98 Second Edition
(SE), Windows 2000,

Windows Millennium Edition (“Me") and Windows XP.

4.1.2 U

NINSTALL PREVIOUS VERSION OF

Bluetooth software

Any previous version of the Bluetooth software must be uninstalled before installing an
upgraded version.

There are two ways to remove Bluetooth software:

1. The InstallShield Wizard automatically uninstalls the previous version when a
new version is installed.

2. Manually uninstall Bluetooth software by completing these steps:
a) Close any open applications.
b) From the Windows taskbar, click

Control Panel

.

followed by

Start

Settings

followed by

c) Double-click

Add/Remove Programs

.
d) On the Add/Remove Programs window, select the Bluetooth
Software entry. Scroll down if necessary.
e) Click the
f) Click

OK

Change/Remove

on the Confirm File Deletion window to remove the Bluetooth Software and all

button (Windows 2000). The InstallShield Wizard is started.

of its components.
g) When prompted, click

4.1.3 I

NSTALL

Bluetooth software

Restart

and then click the

Finish

button.

4.1.3.1 Windows 98 Second Edition (SE) and Windows Millennium Edition (Me)

Bluetooth software requires that a number of Microsoft Windows networking components
be installed before Bluetooth software can be successfully configured.

If Windows 98SE or Windows Me was installed without the networking components,
have the MS Windows CD available during the Bluetooth software installation process.

Under normal Windows 2000 installations you should not be prompted for the Windows
CD, however you may want to have it on hand.

4.1.3.2 InstallShield Wizard

Installing Bluetooth software is an automated process made easy by the use of the
InstallShield Wizard. You will need to:
