Billionton Systems PCBTC1 User Manual

USB /PCMCIA /CF Adapter

1.4

Manual and

Application note

Manual and Application note

Index

INTRODUCTION i

CHAPTER1
Package 1
Features 1
Specifications 2
Mechanics 3
Certification 4
Environmental Operating Ranges 3
Power Consumption 3
LED Indication 4
Drivers support 4

CHAPTER2
Setup for Windows 98/2000/ME/XP 6
Setup for Mac 14

CHAPTER3
Application note for Windows
98SE/ME/2000/XP 14
Icons used for Bluetooth devices and
services 14

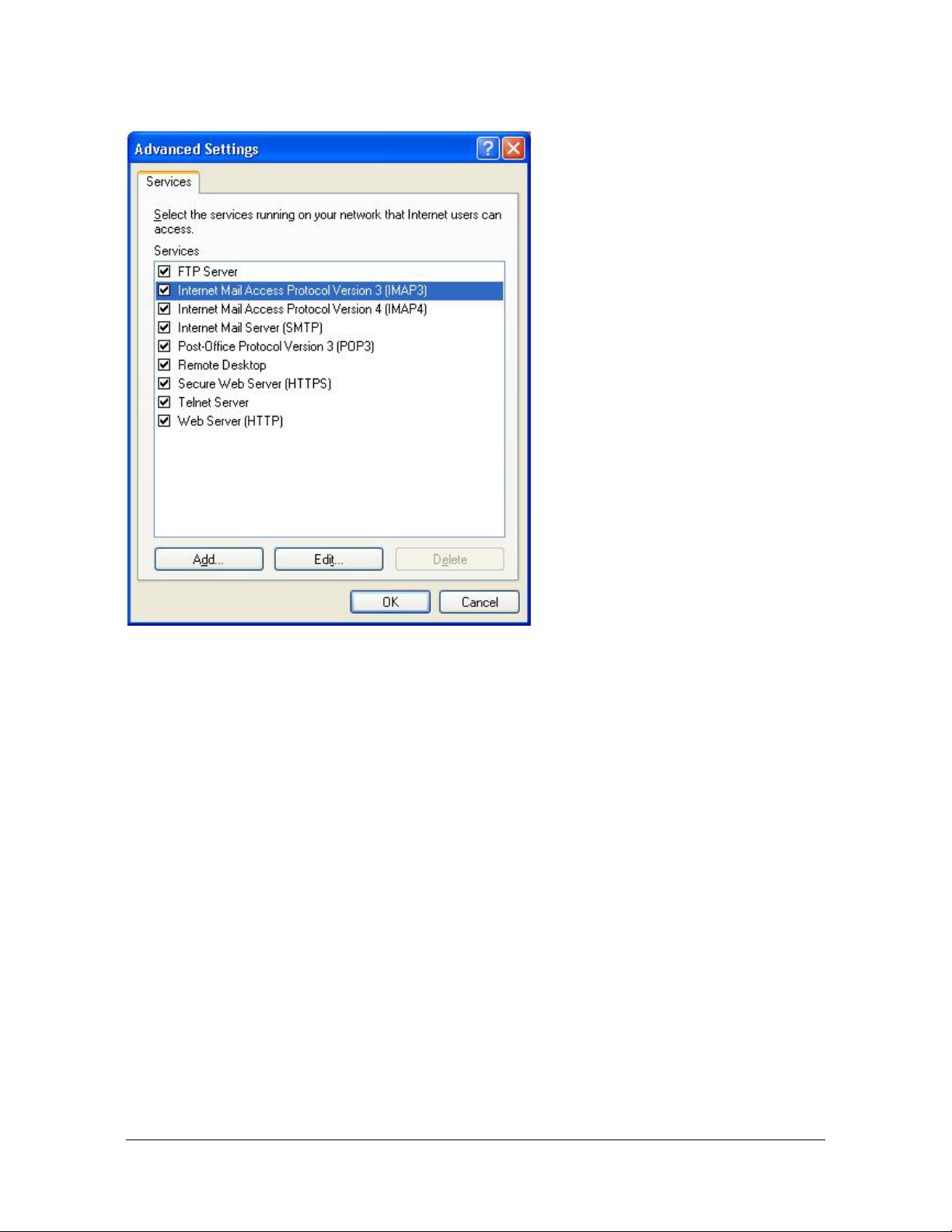

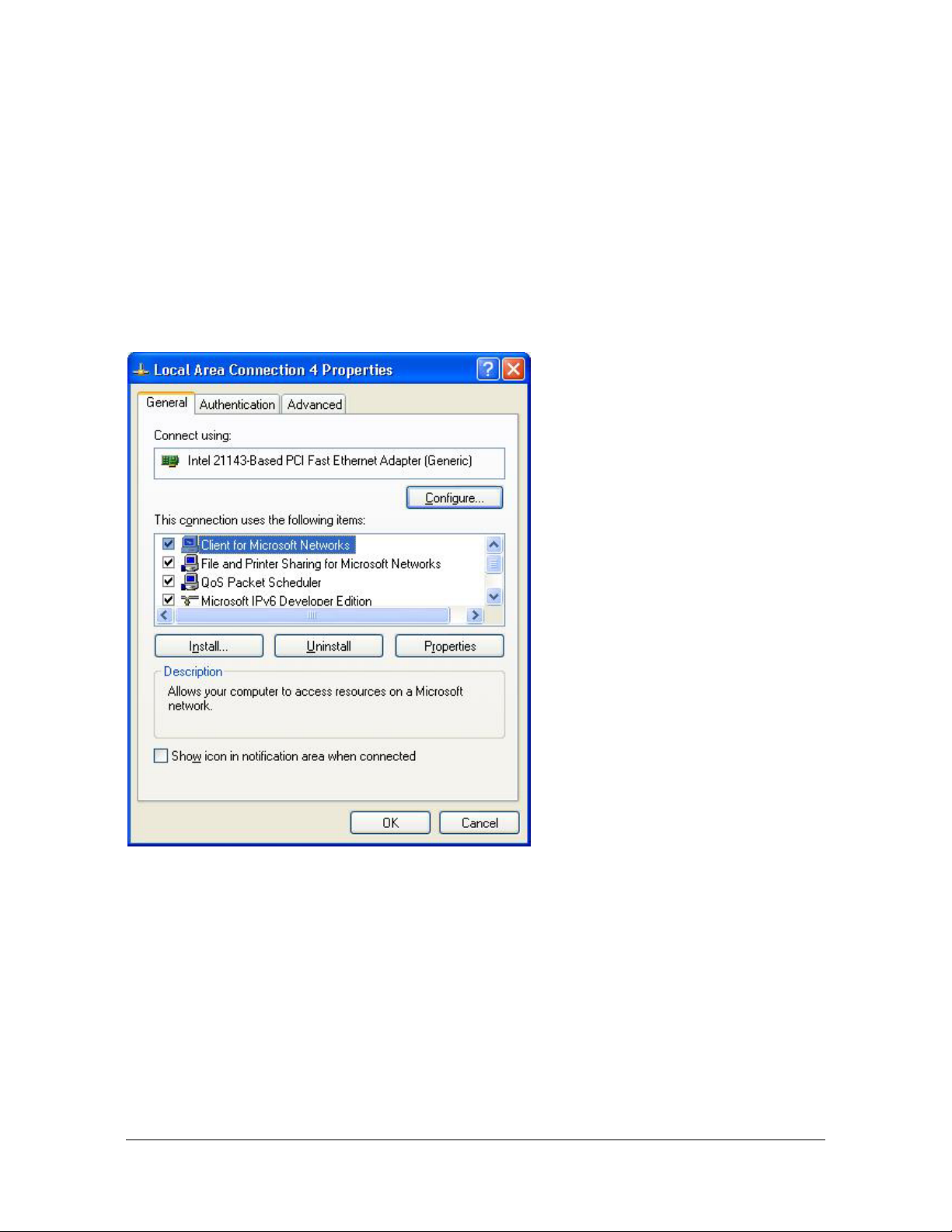

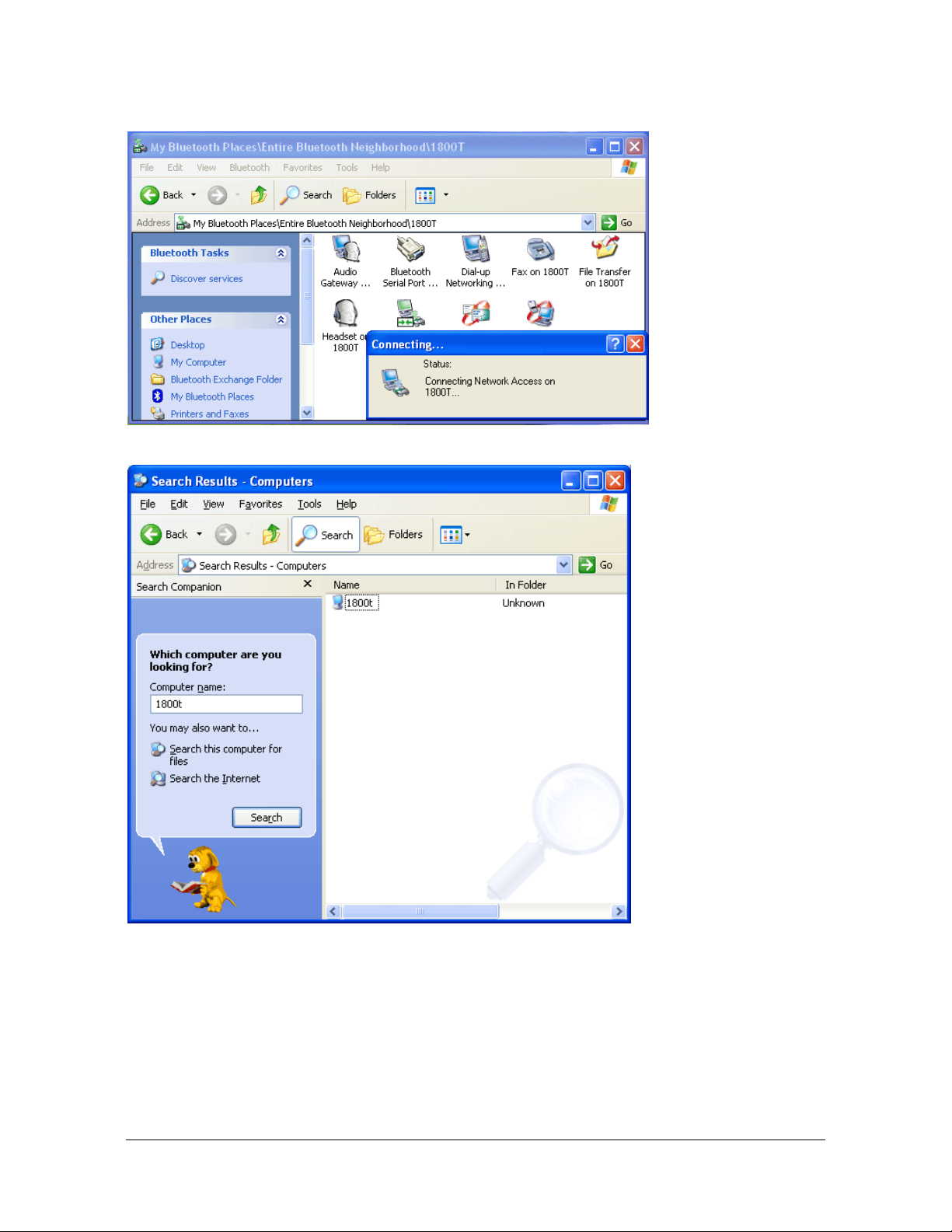

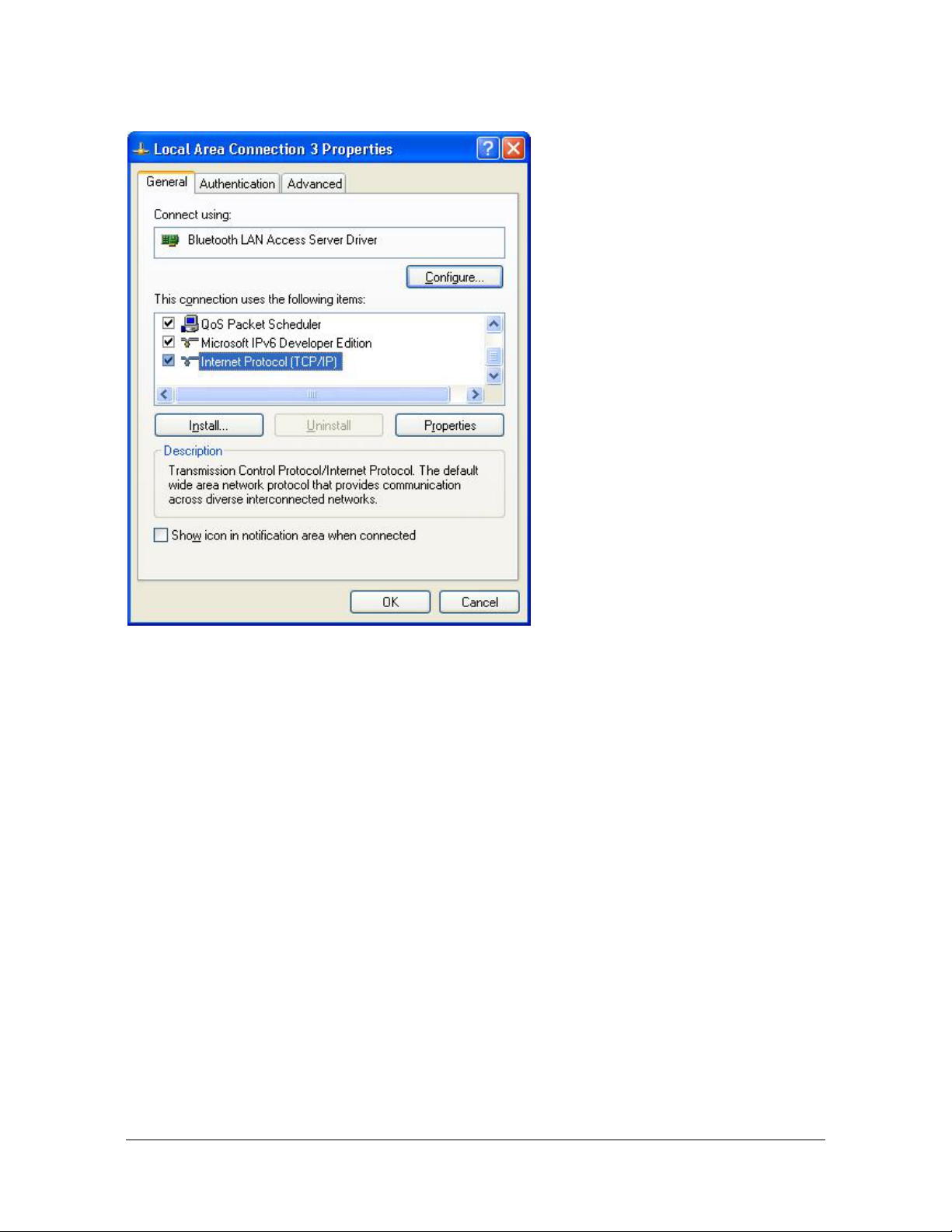

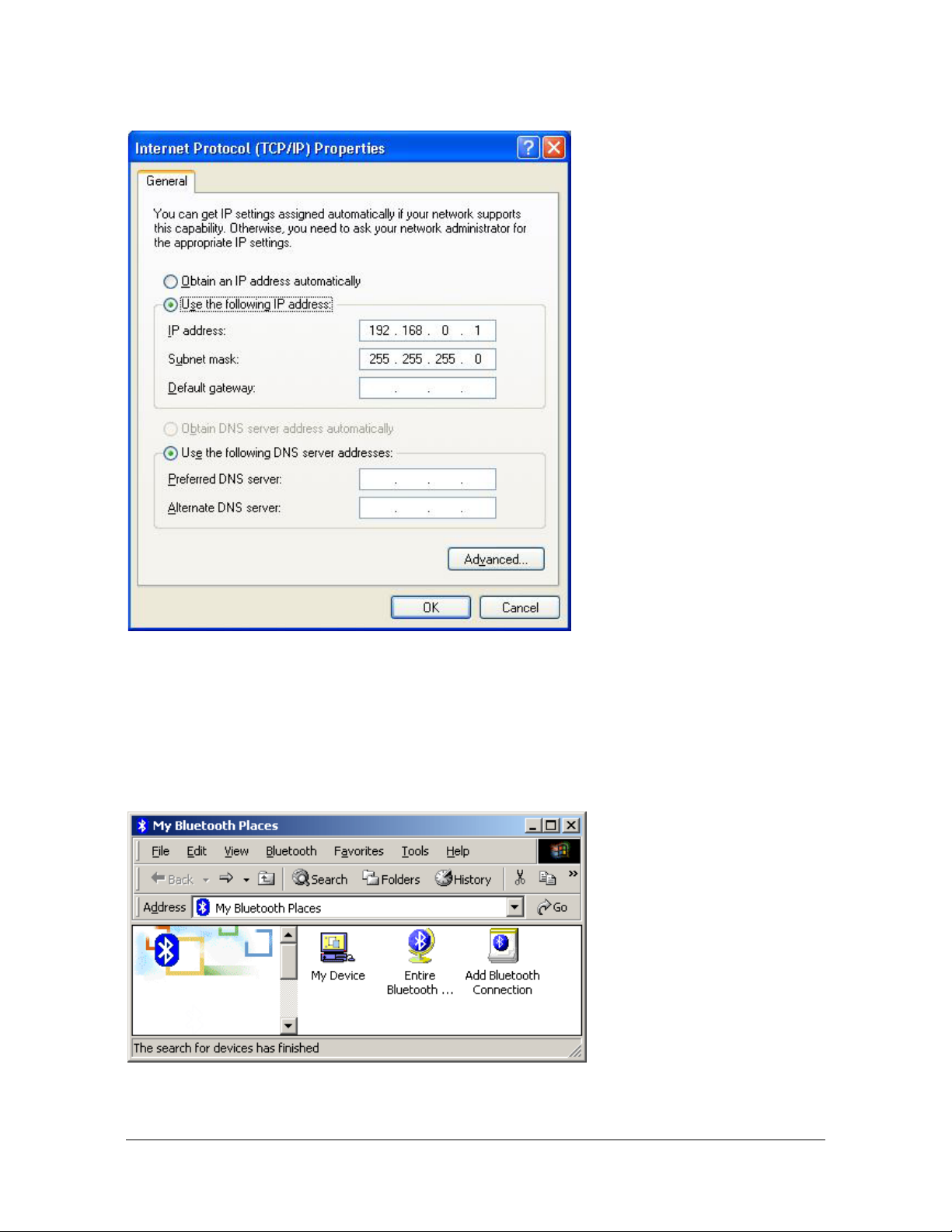

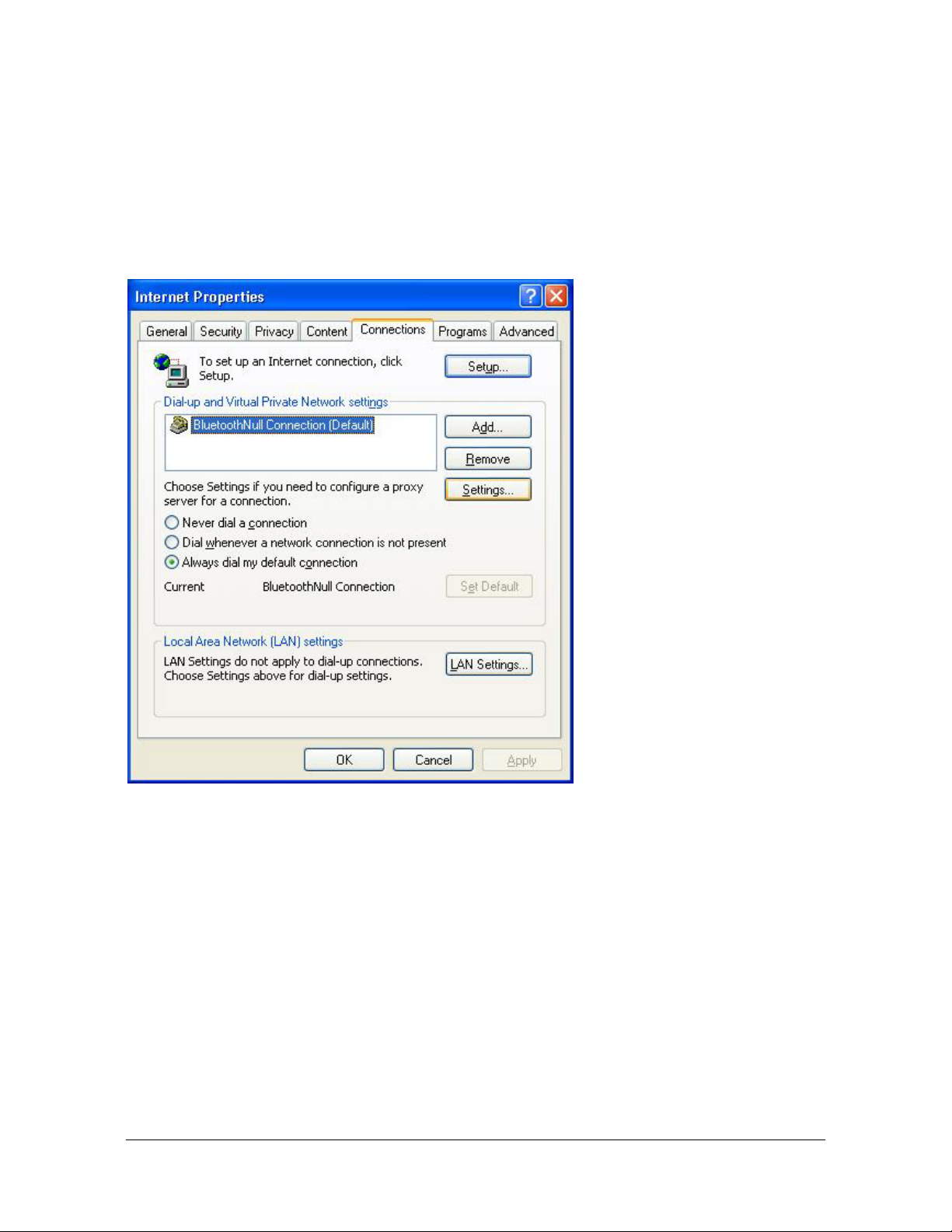

Network sharing setting for Windows 17

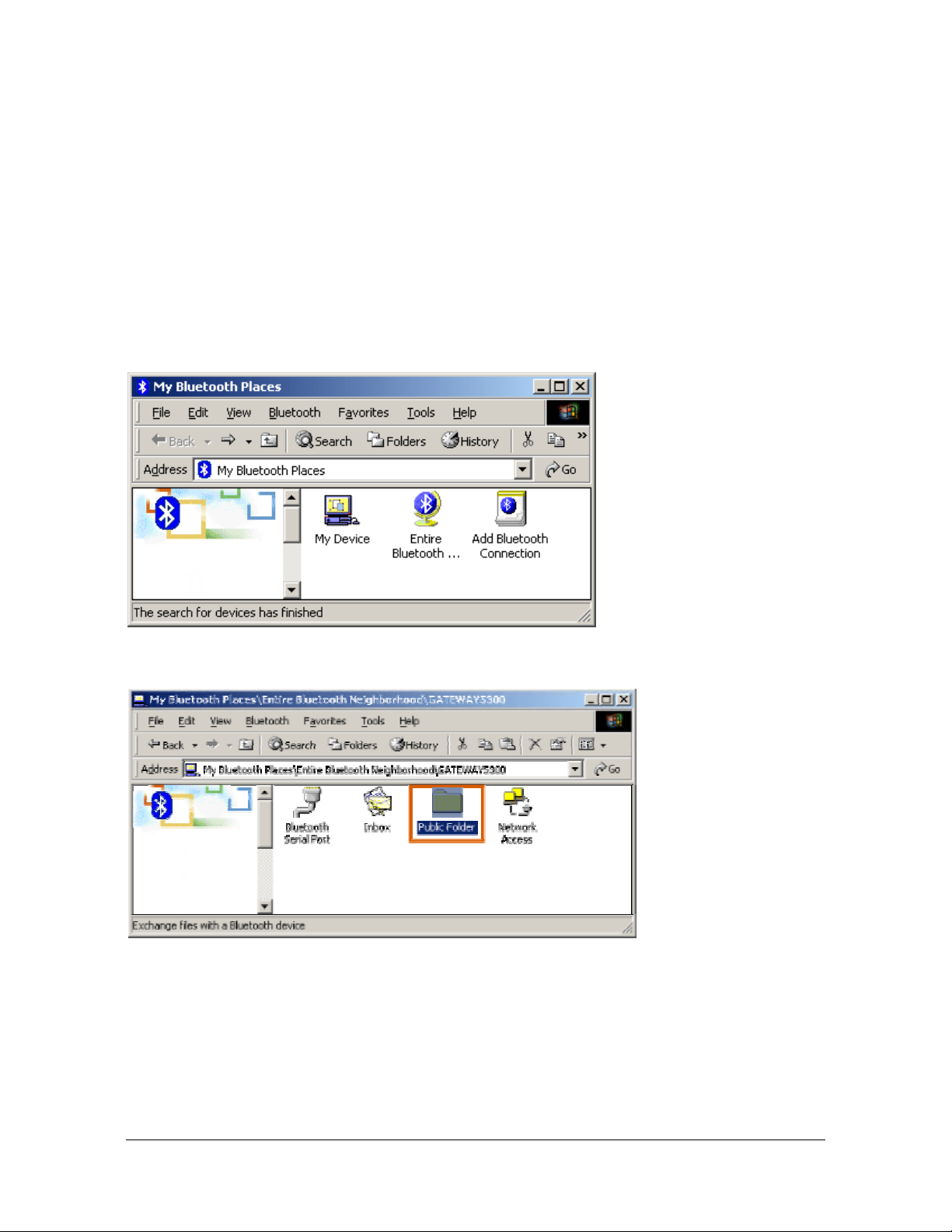

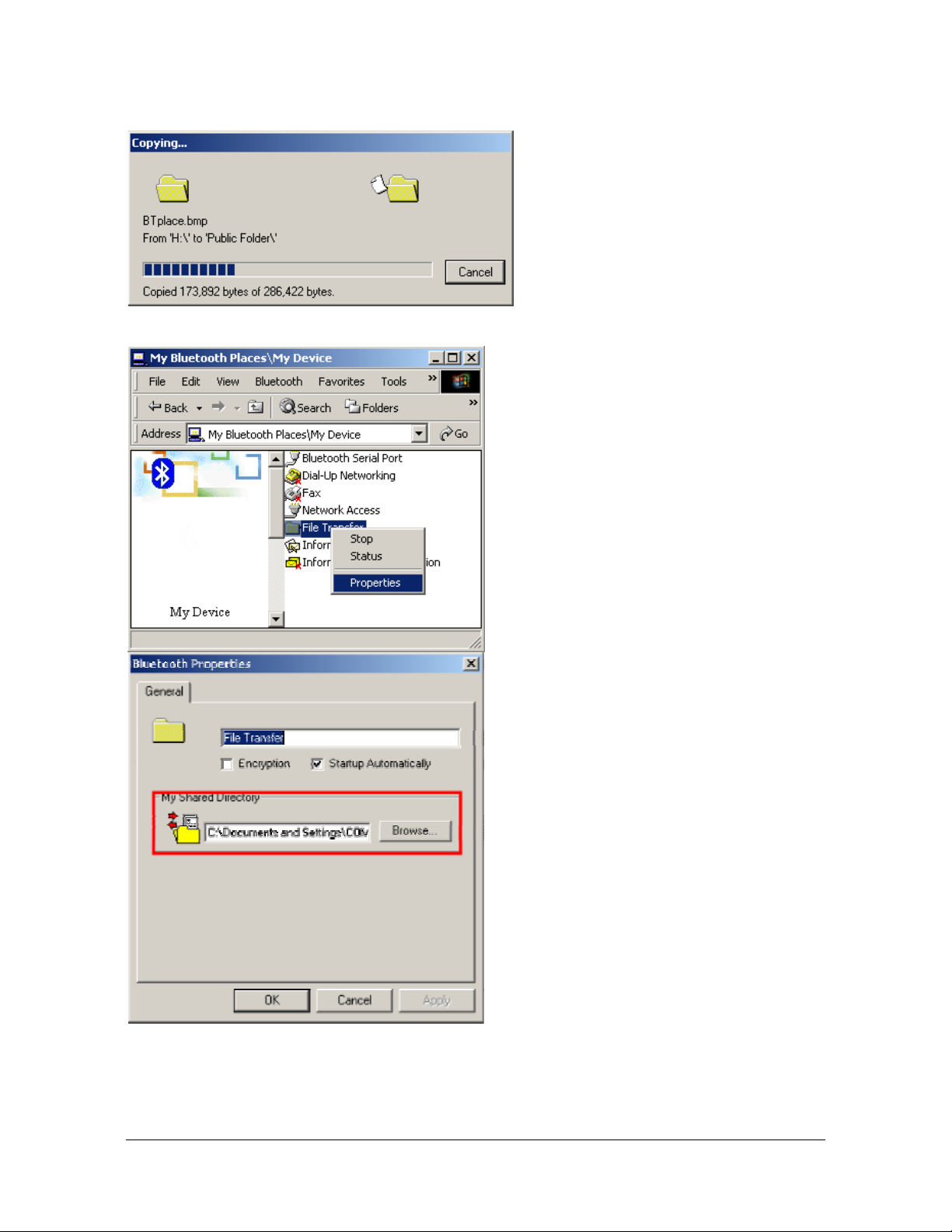

File transfer setting for Windows 25

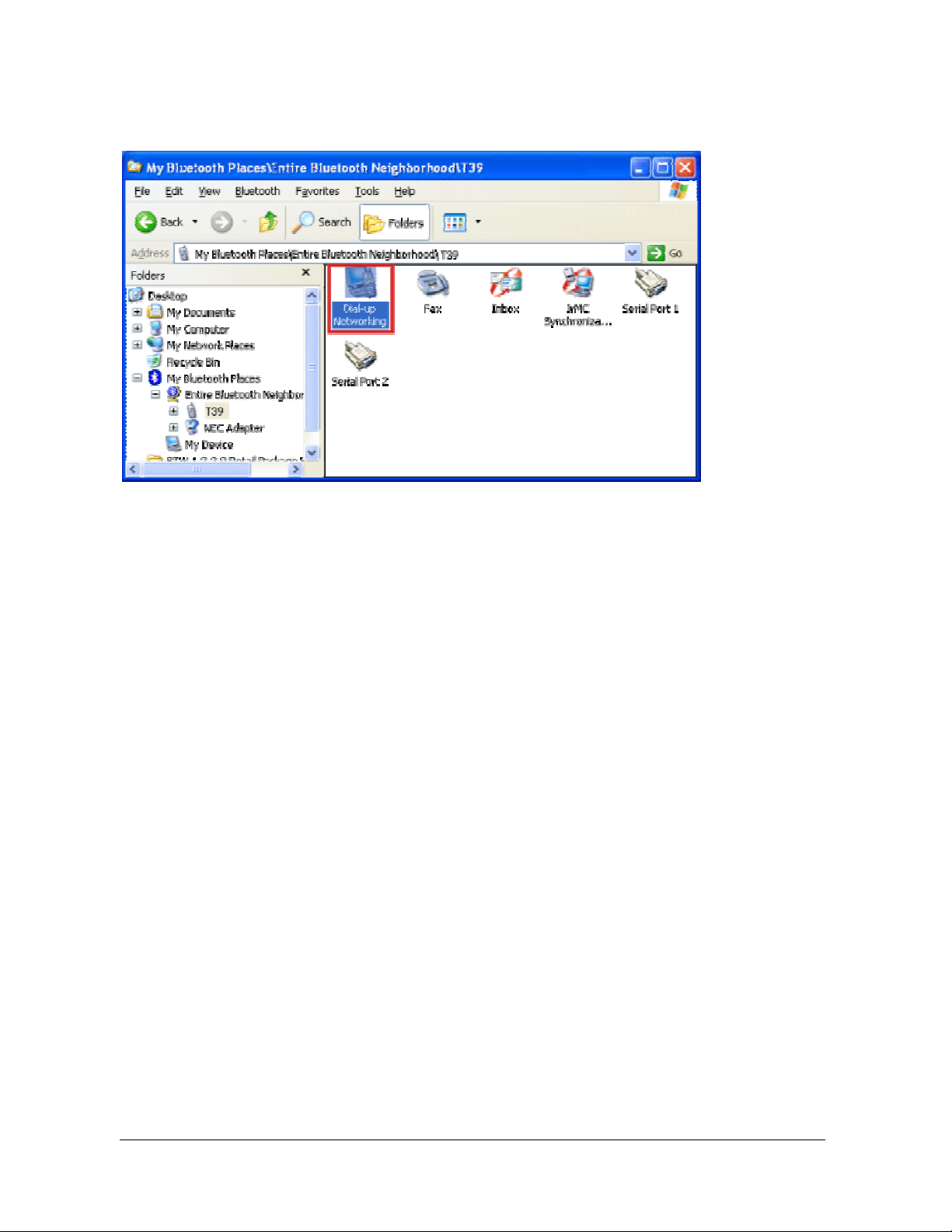

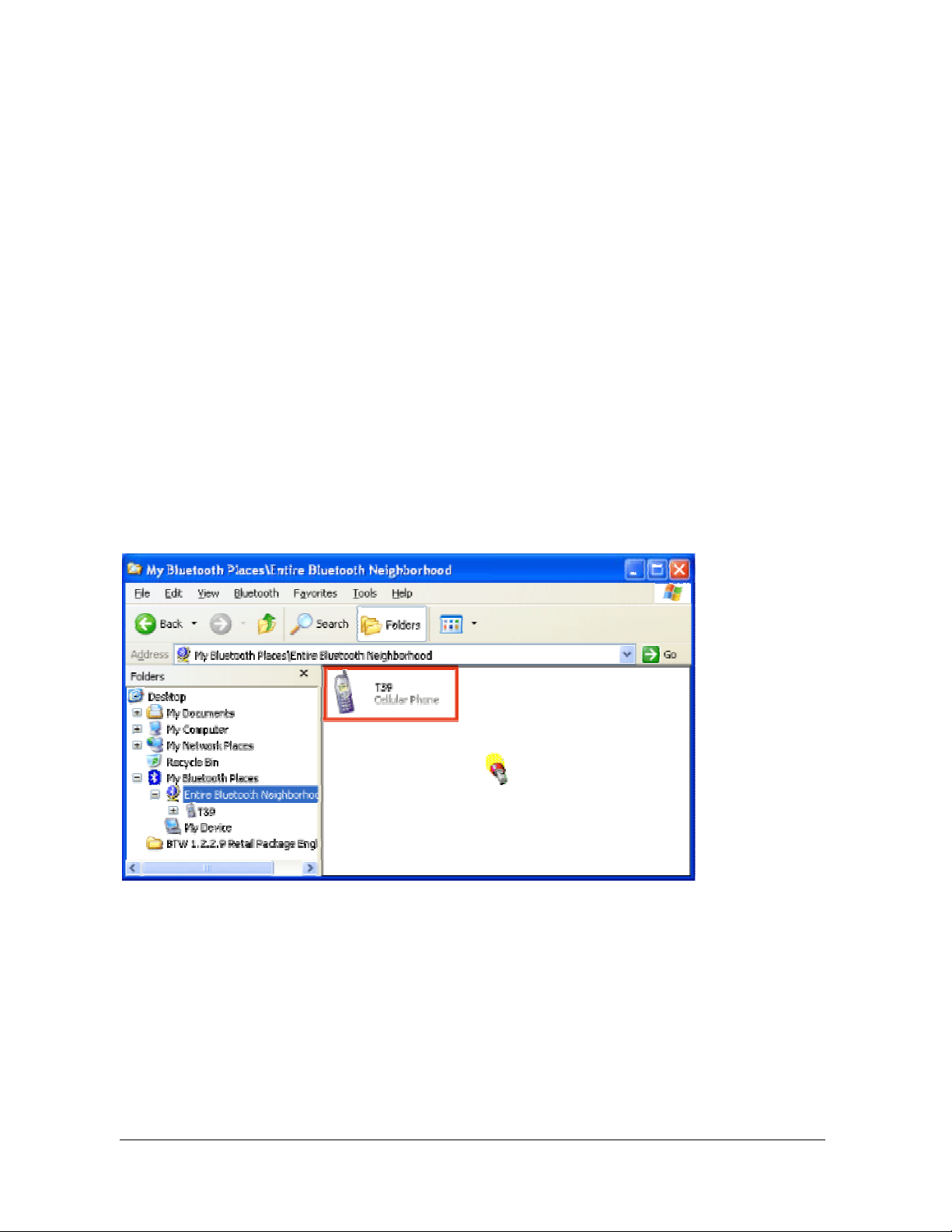

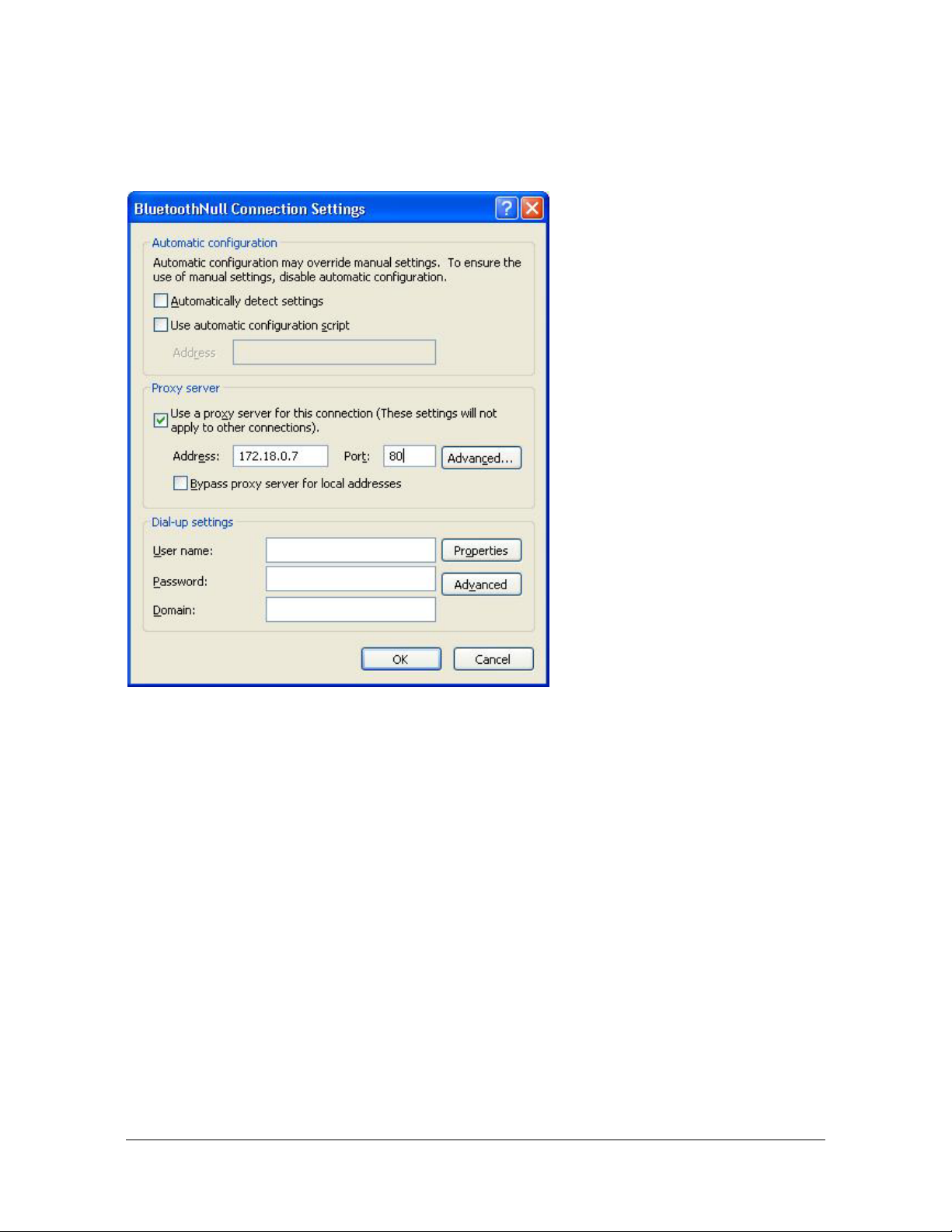

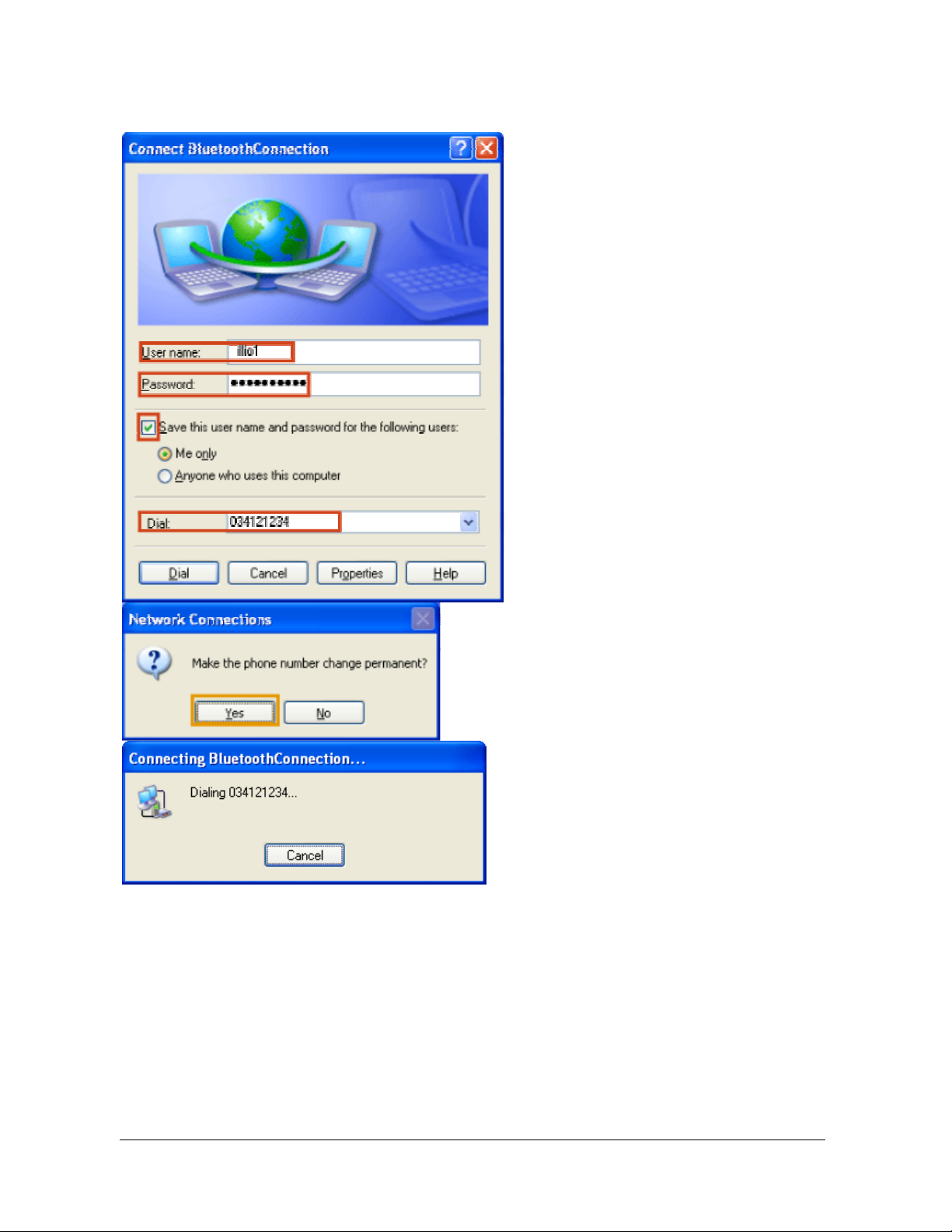

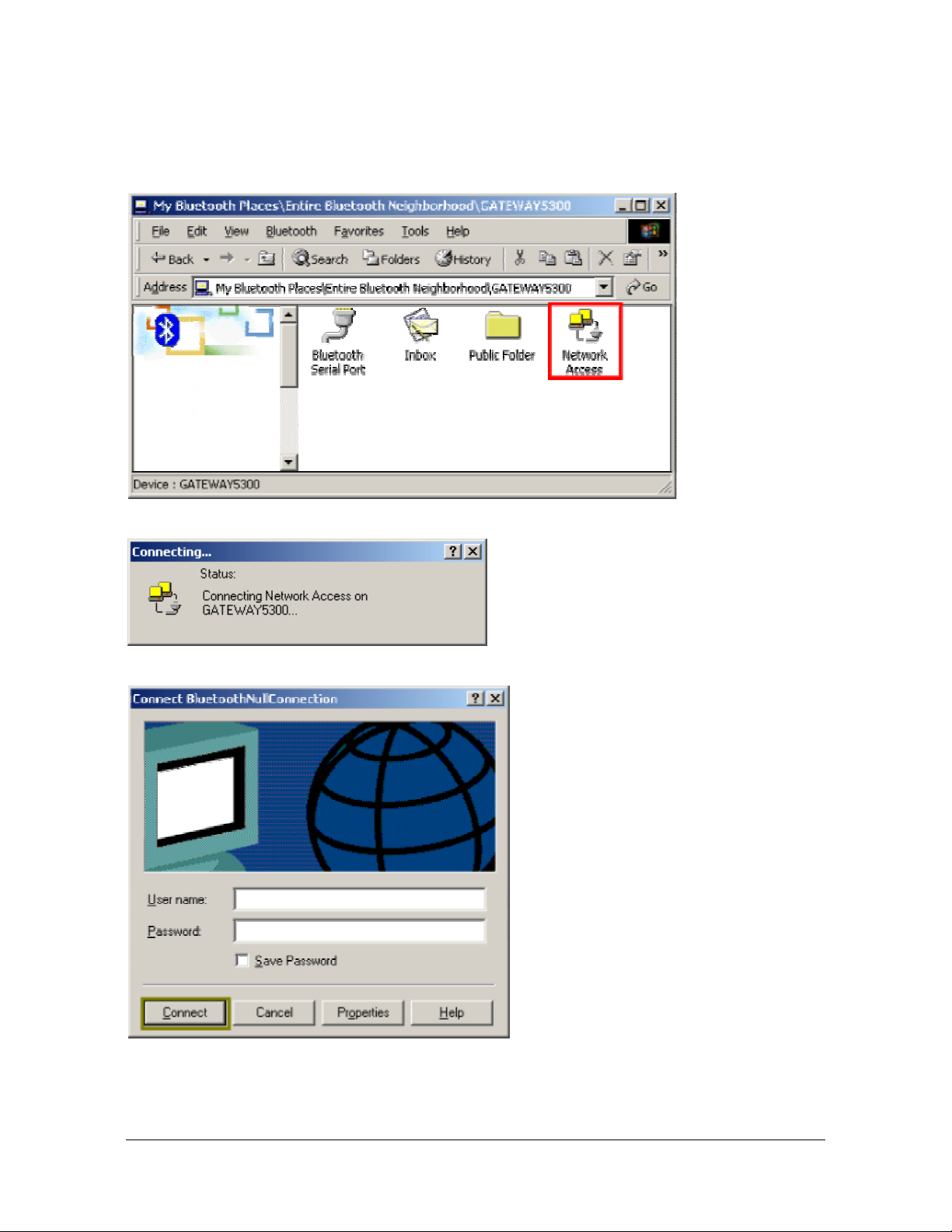

Dial-up networking setting for Windows 27
FAX setting 30
PIM Item Transfer setting 31
PIM Synchronization setting 33
Serial Port setting 35

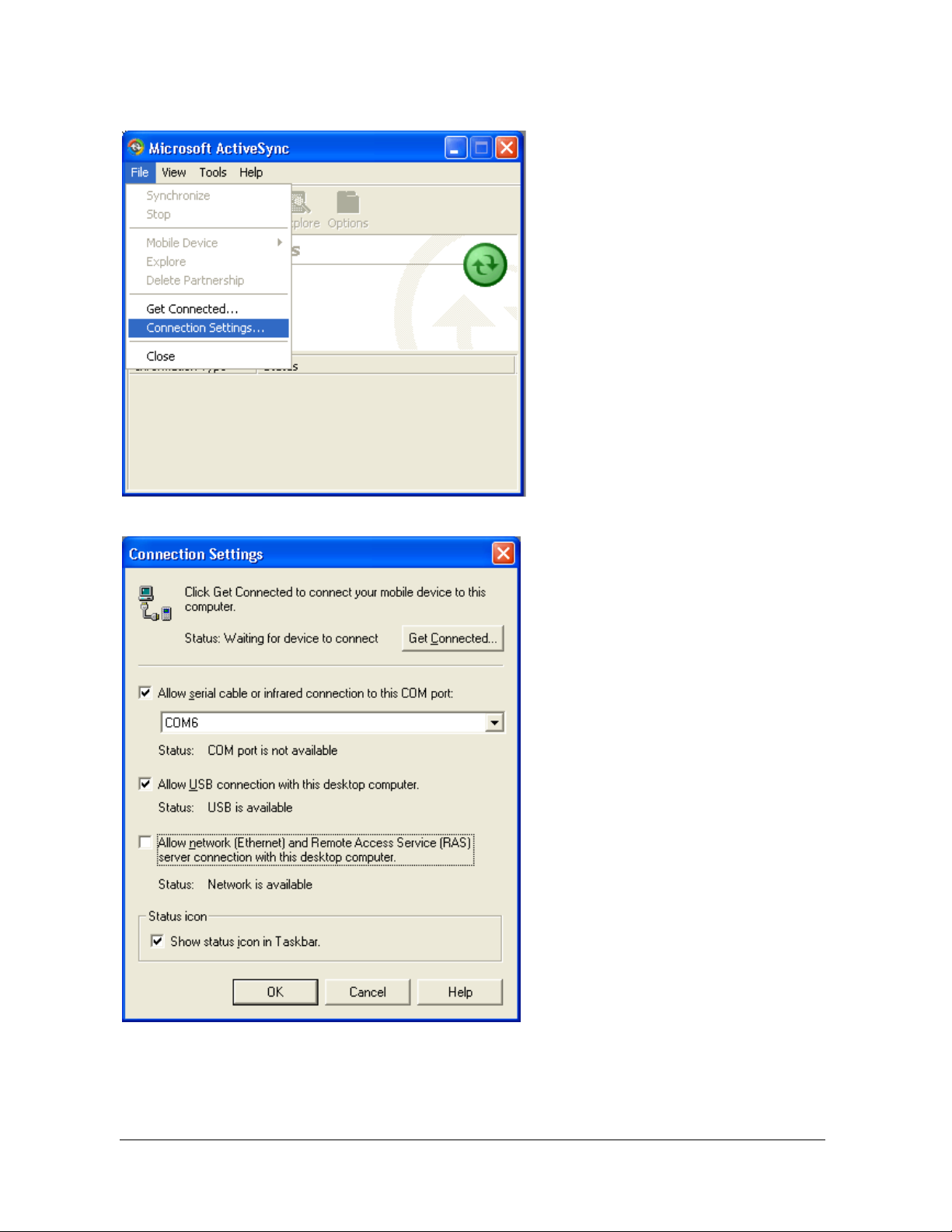

ActiveSync setting 36
Audio Gateway setting for windows 38

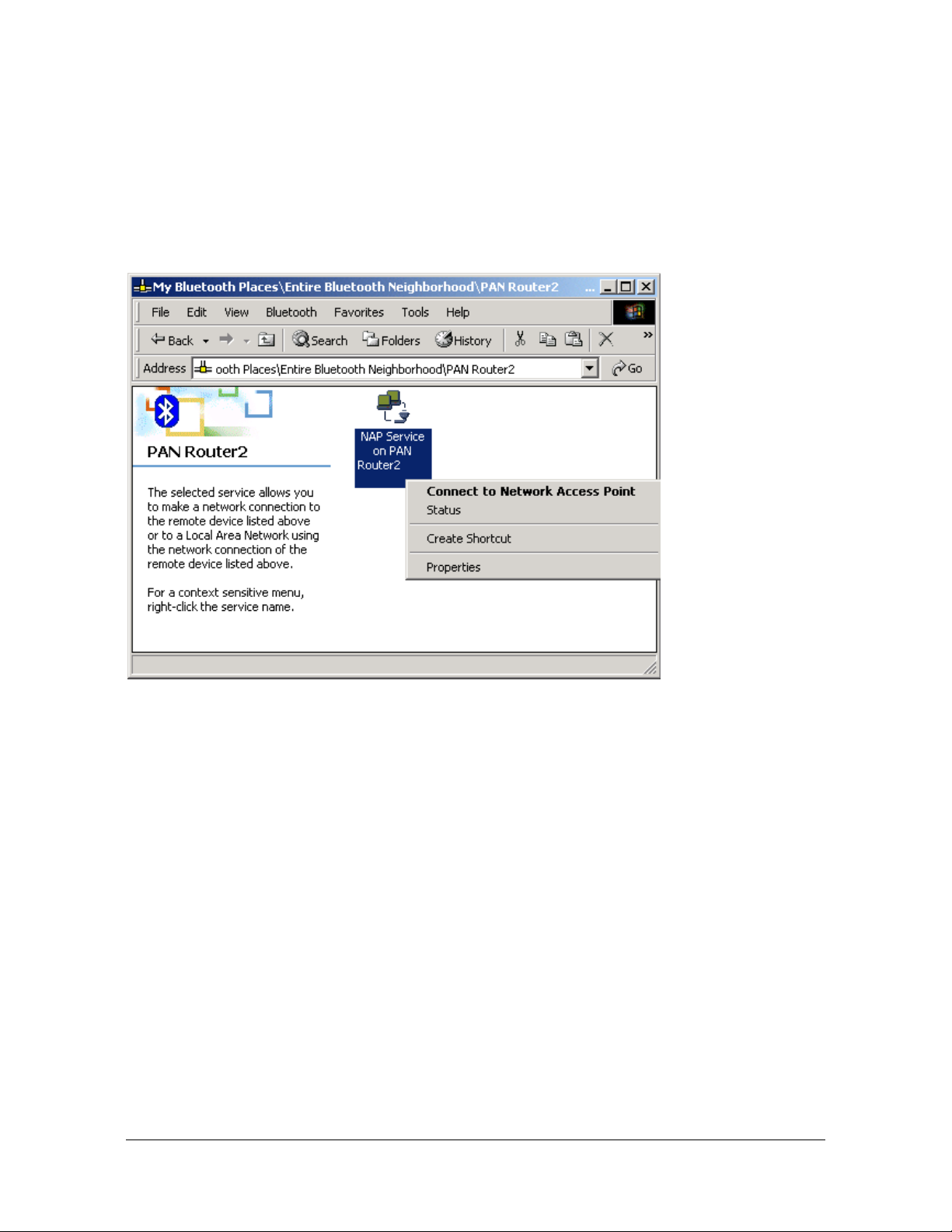

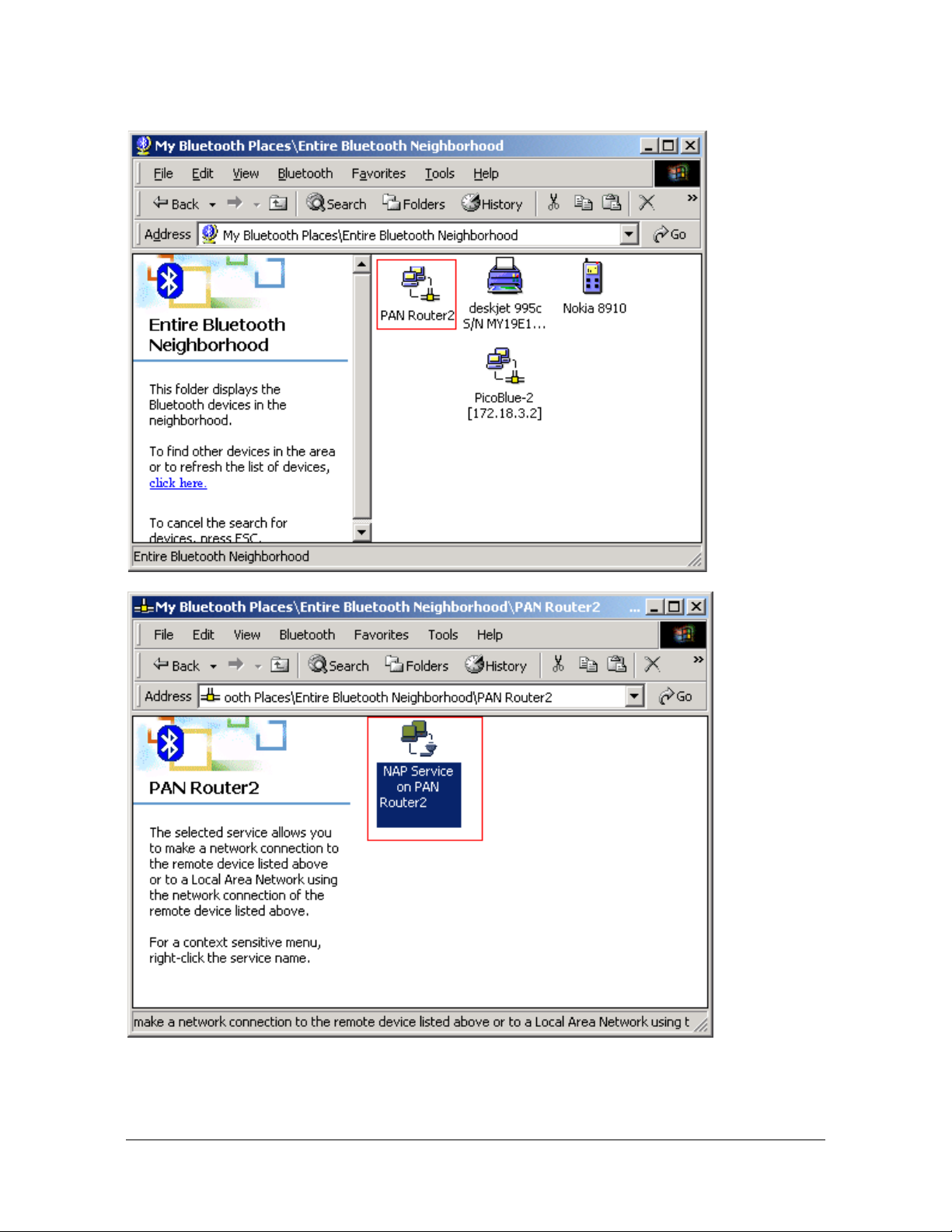

Personal area network setting for
Windows 40

How to pair with 6310 85

How to pair with 8910 86

How to pair with Ericsson T39m 87

How to pair with Ericsson T68 88

How to sync with Ericsson T68 via

XTNDConnectPC 89

How to sync with Nokia 7650 via Nokia PC

Suite for 7650 98

How to establish Bluetooth connection

with Nokia 3650 103

How to connect to Ericsson P800 via serial

port 113

How to setup Hyper Terminal for Bluetooth

transfer 140

How to HotSync with Palm Bluetooth SDIO

and Tungsten T 146

How to dial-up from Palm Tungsten T to my

PC’s modem to surf the internet 149

Sending FAX VIA mobile phone with

WinFAXPro 150

Bluetooth Printing to HP DeskJet 995c 154

CHAPTER6

Application note for Mac O.S. 159

CHAPTER4

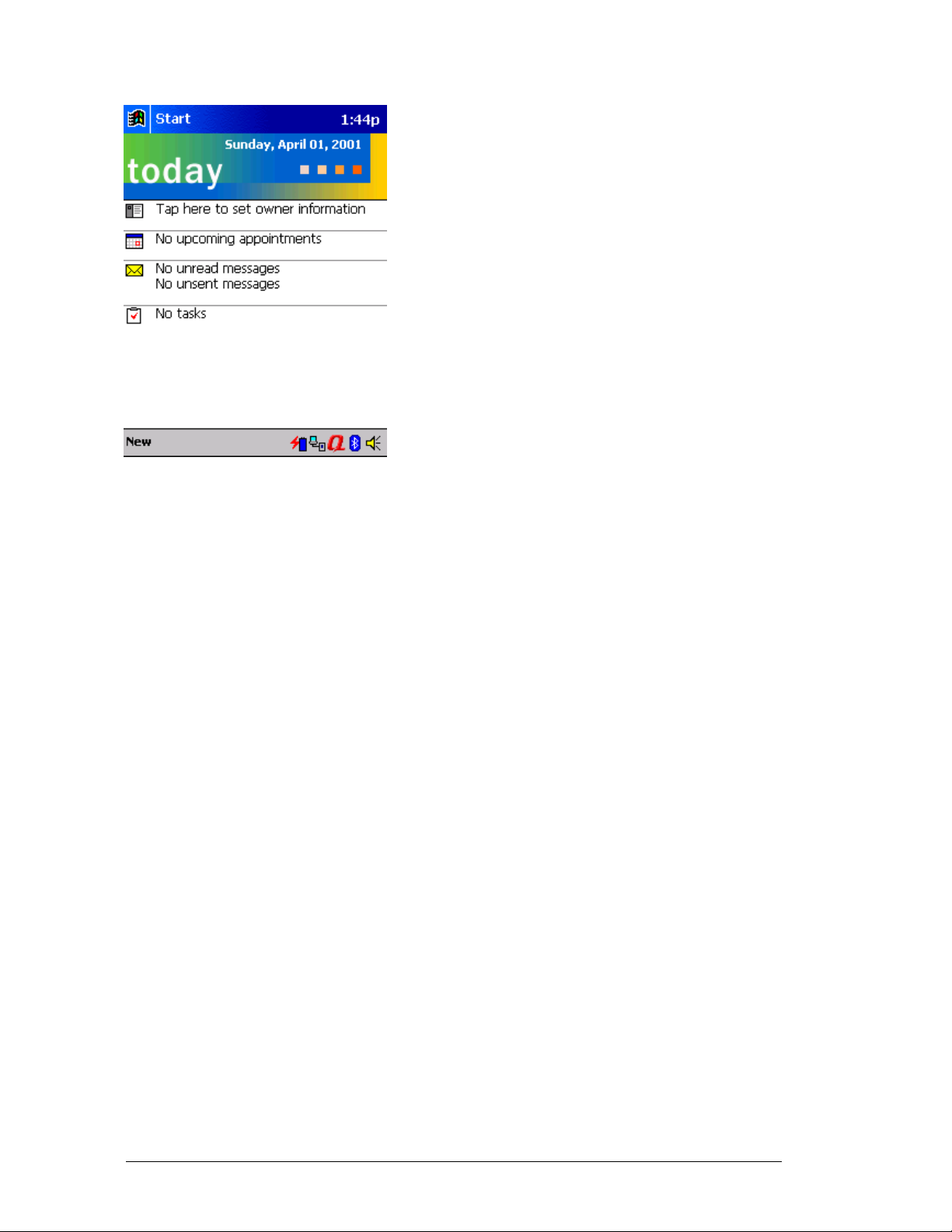

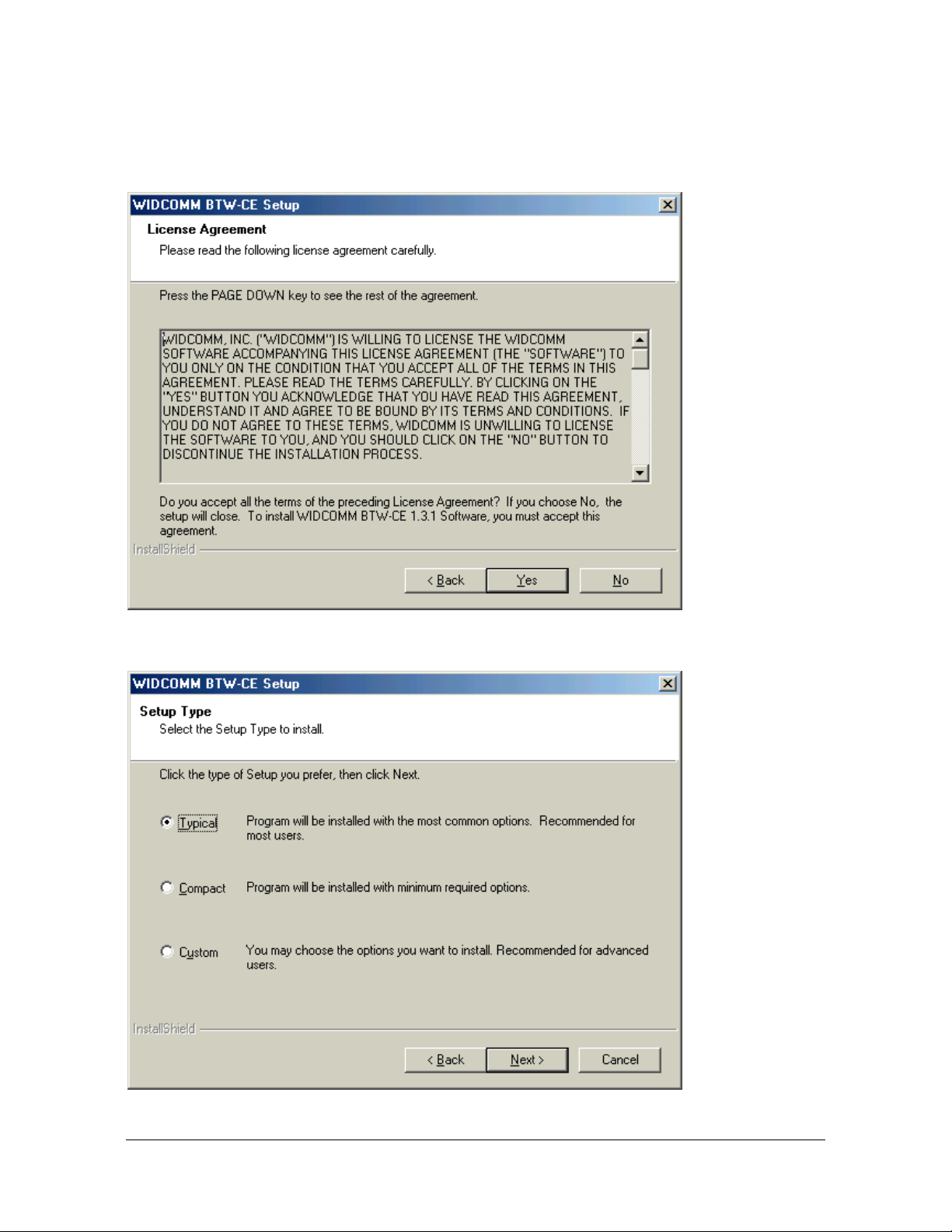

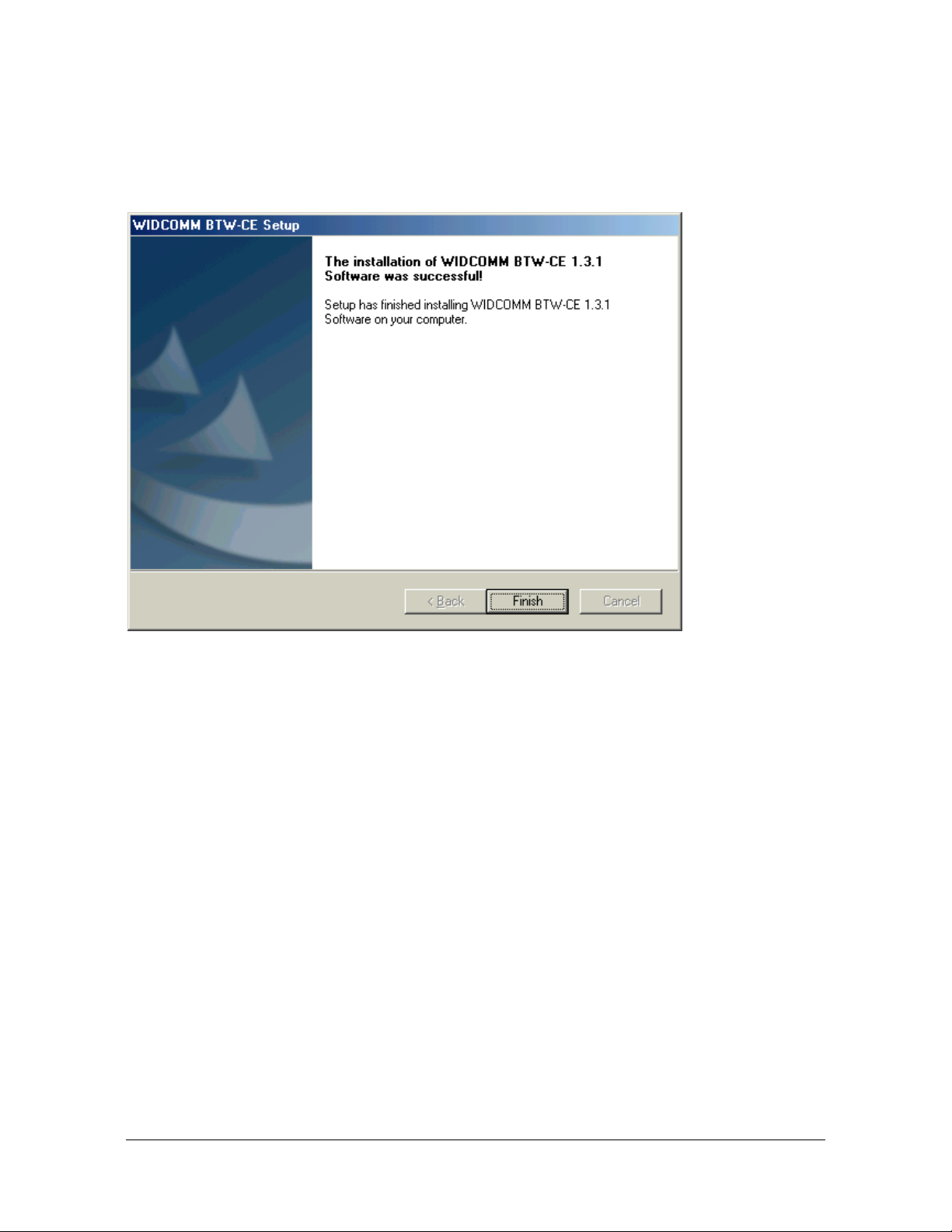

Setup for PocketPC2000 & PocketPC2002

45

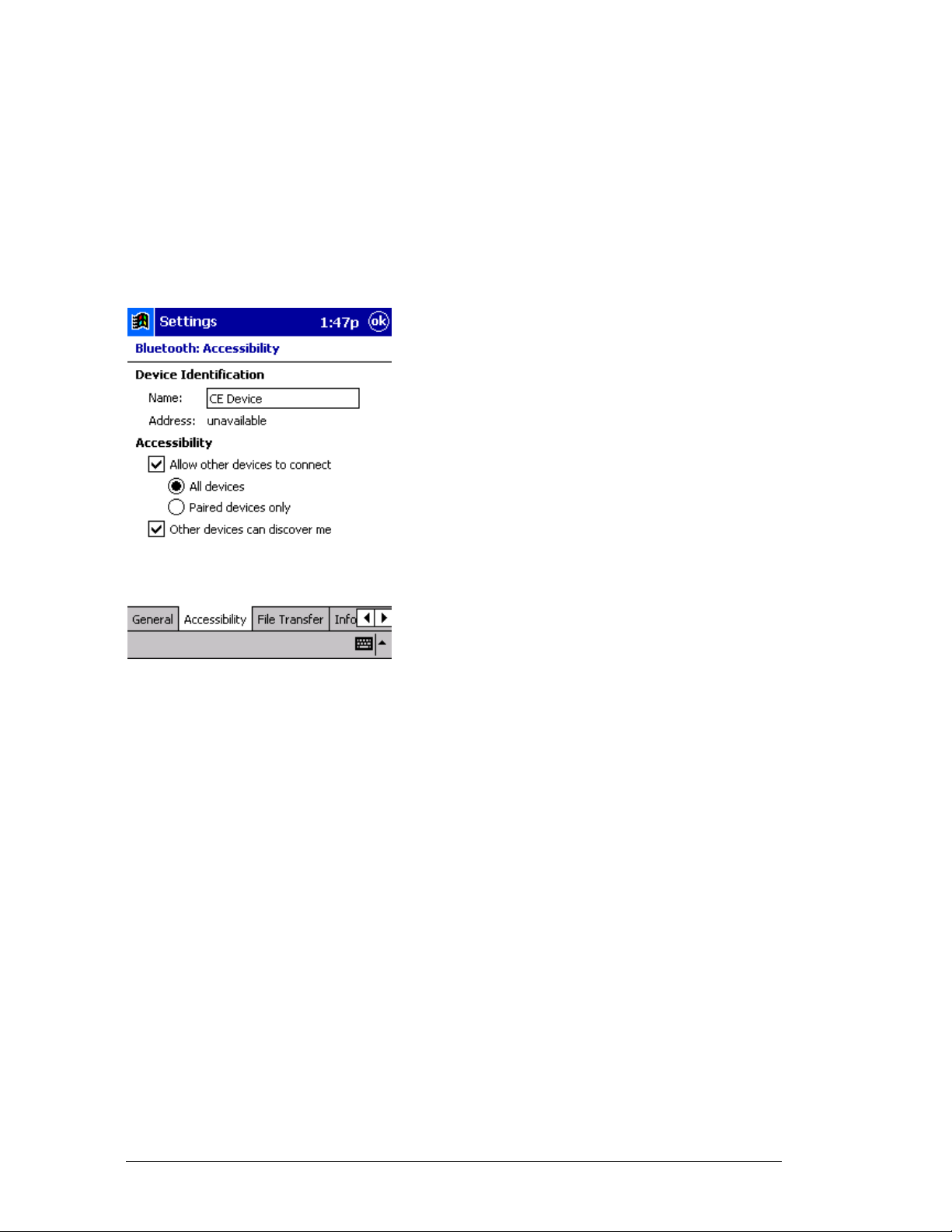

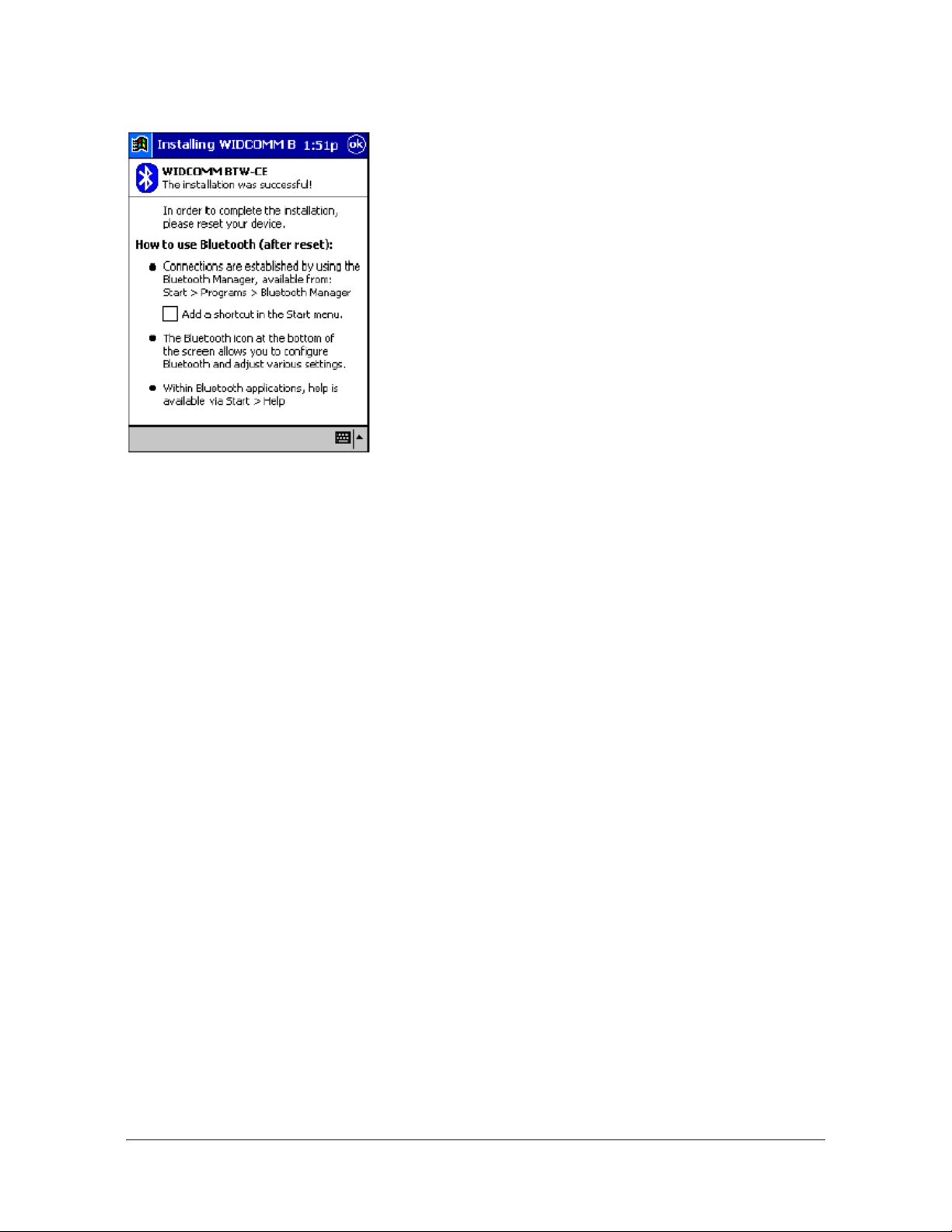

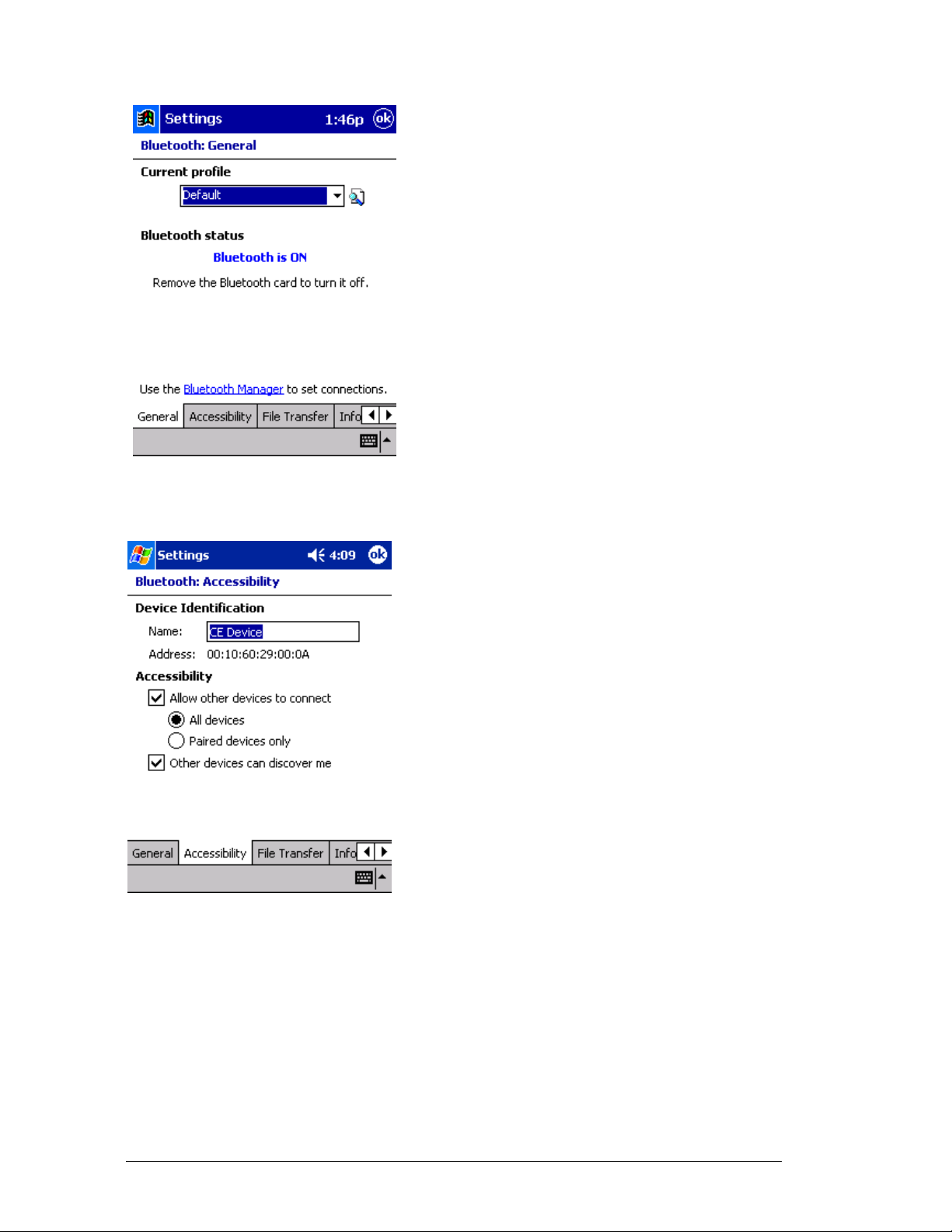

Configuring BTW-CE 50
Network sharing setting for WinCE 58

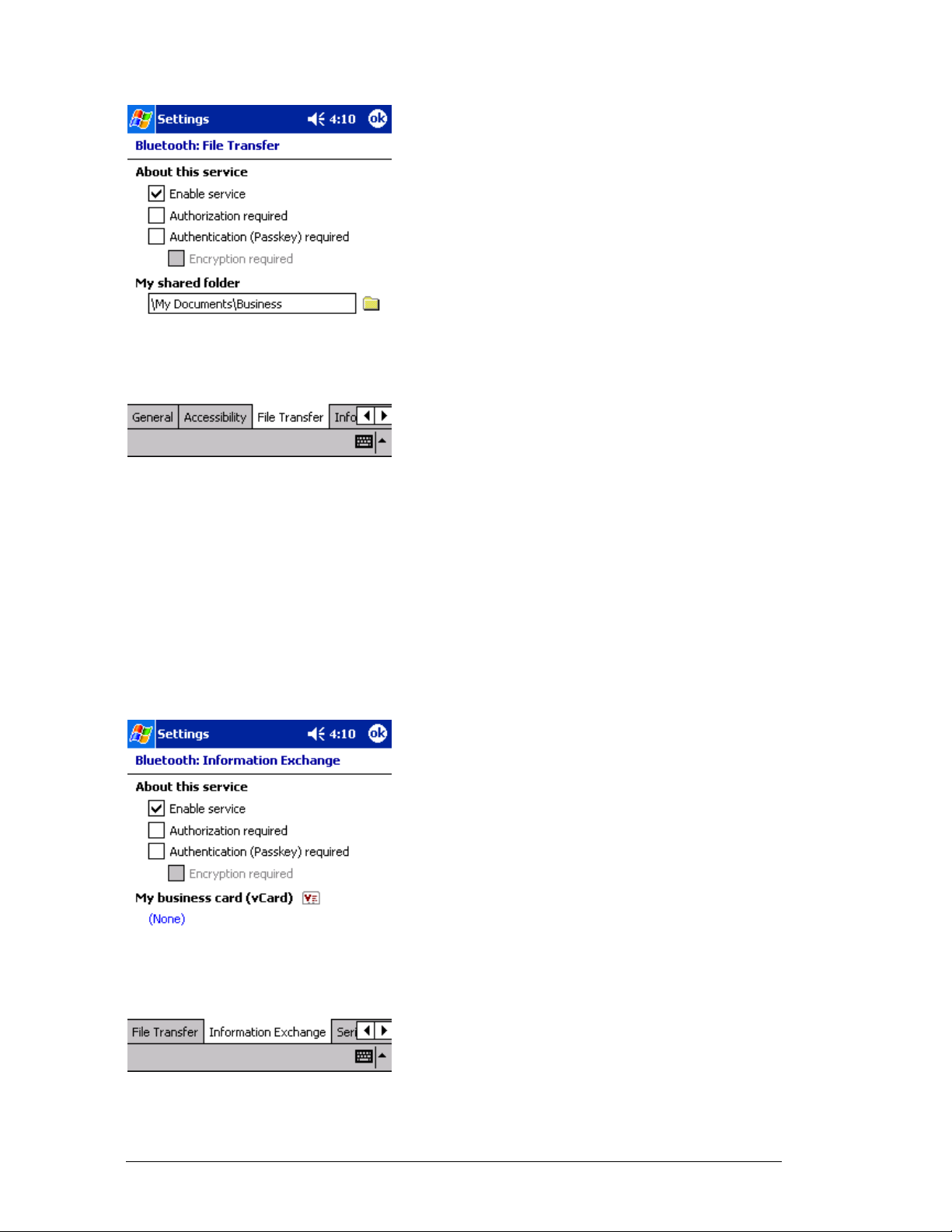

File transfer setting for WinCE 64

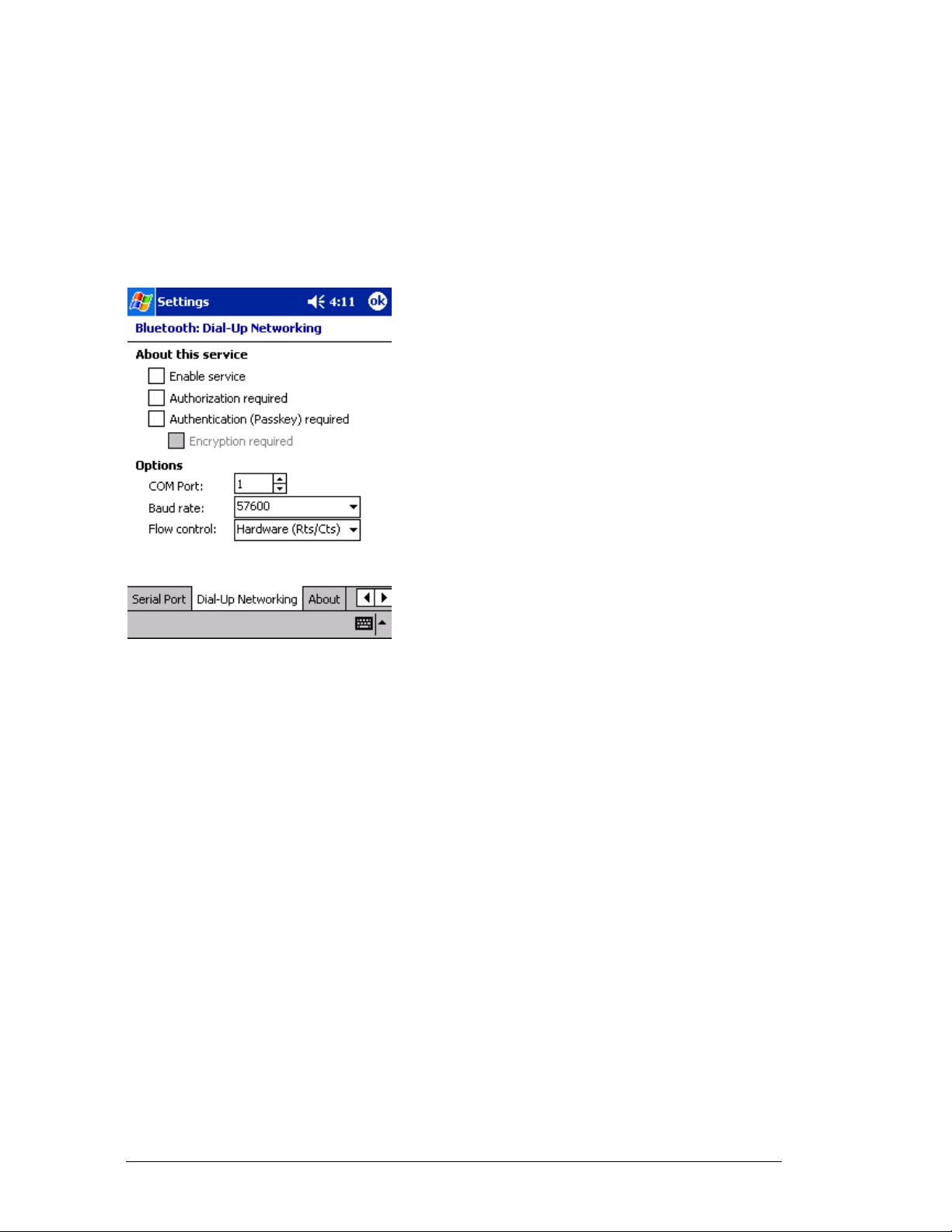

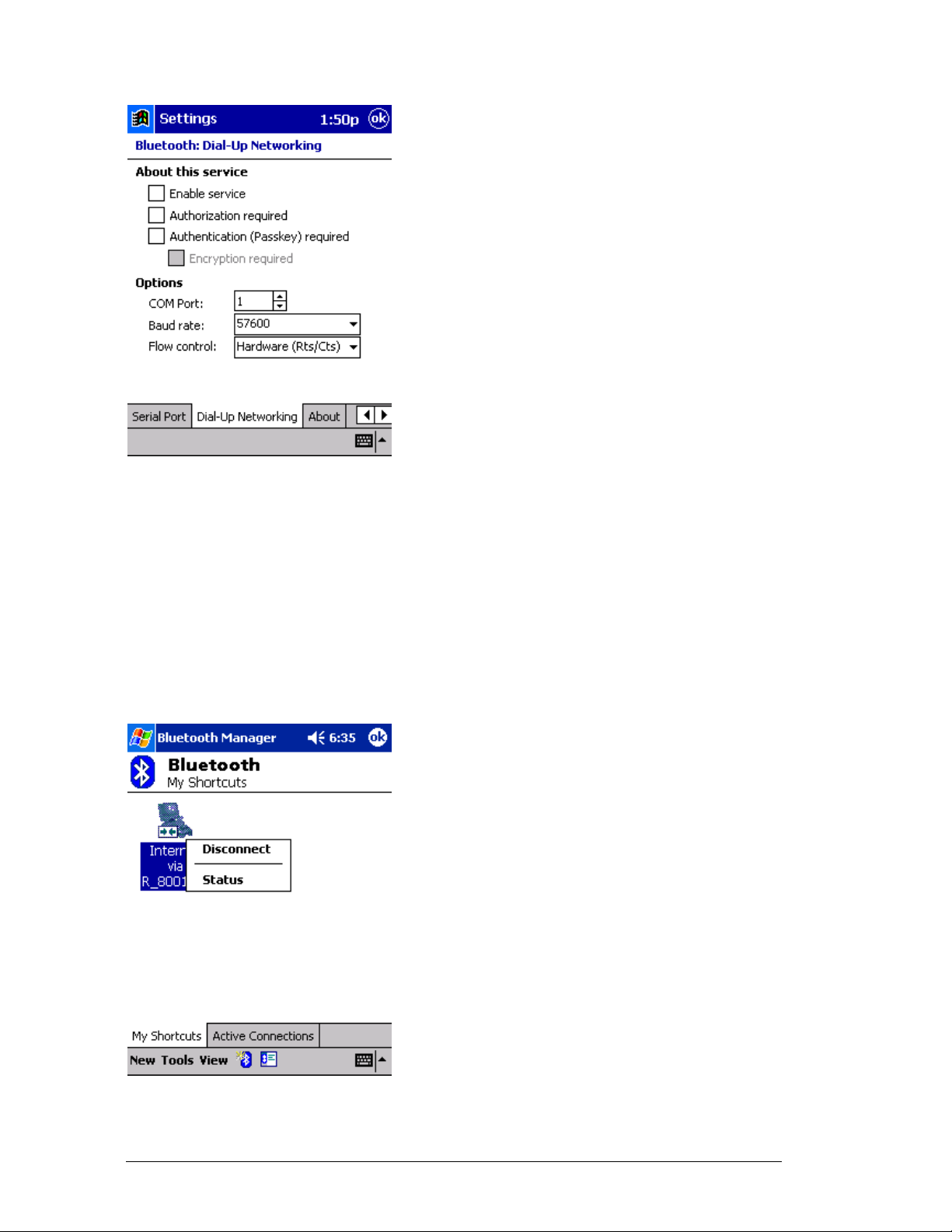

Dial-up networking setting for WinCE 68

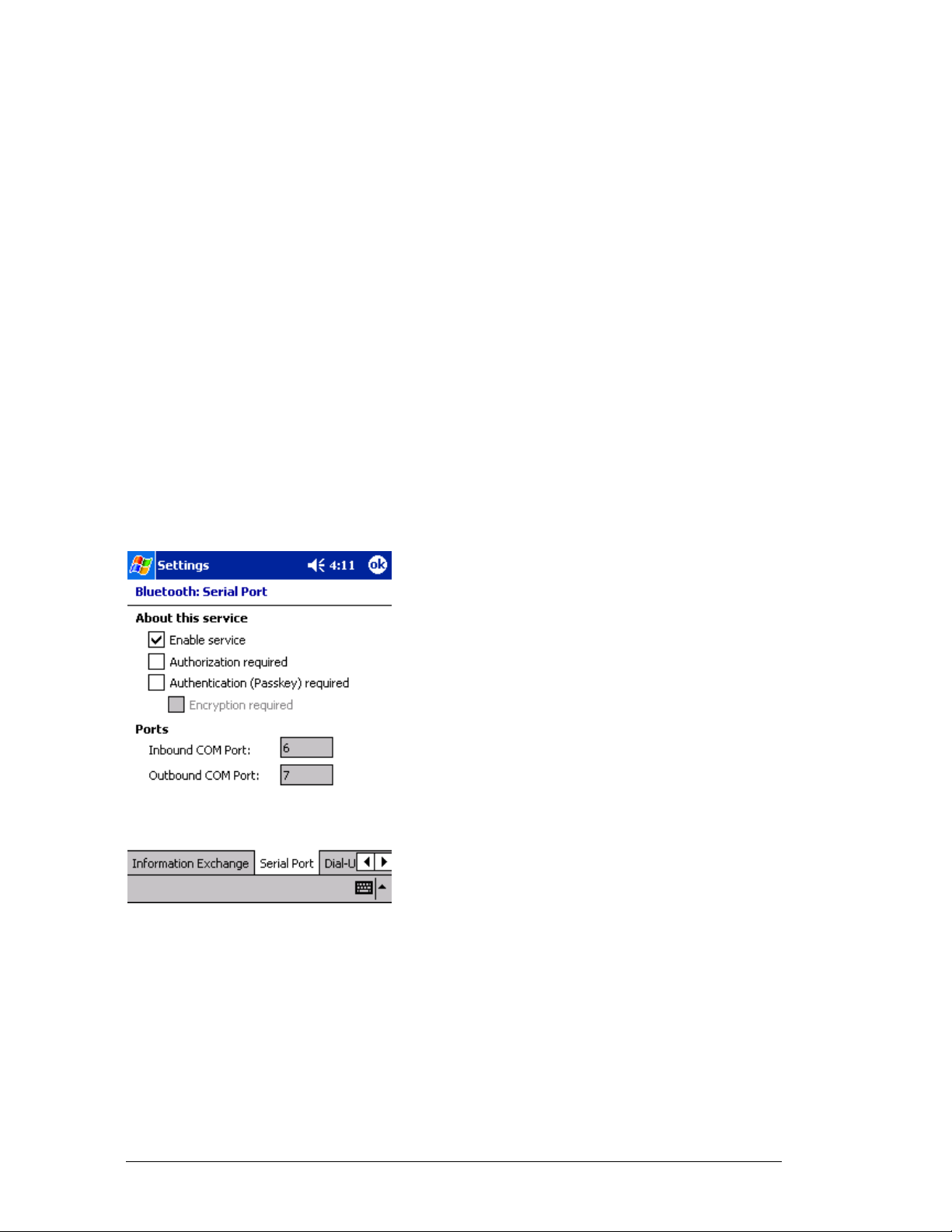

Serial Port setting for WinCE 77
ActiveSync setting for WinCE 78

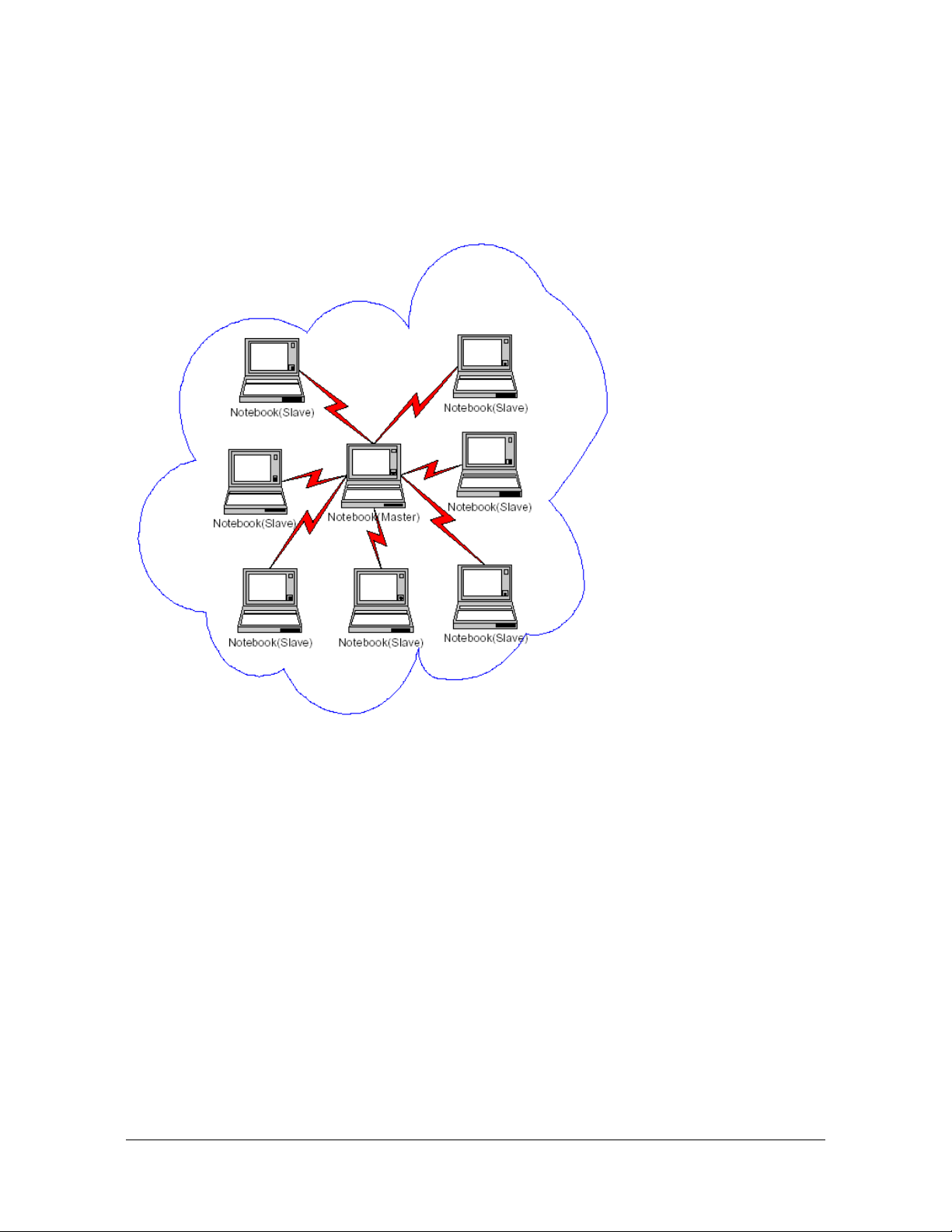

Hosting a Personal area network 82

TROUBLESHOOTING

Troubleshooting 168

CHAPTER5

How to pair with my mobile phone 83

i

Introduction

Bluetooth is an open specification for a cutting-edge technology that enables short-range
wireless connections between desktop and laptop computers, personal digital assistants,
cellular phones, printers, scanners, digital cameras and even home appliances — on a
globally available band (2.4GHz) for worldwide compatibility. In a nutshell, Bluetooth
unplugs your digital peripherals and makes cable clutter a thing of the past. Now you can
connect your PDA or PC to Bluetooth™ enabled mobile phone with this Bluetooth™
adapter.

You can access e-mail & Internet no matter where you are with just a little help from your
Bluetooth™ mobile phone.
Plus, when you are back in the office, you can hook yourself up to your office network as
well as communicate with other Bluetooth™-enabled devices.

1

1

Chapter1

Package

z One Bluetooth adapter
z One driver and software disk
z This user manual

Features

z Bluetooth v1.1 compliant
z USB Bluetooth adapter support full speed USB v1.1 Interface.
z CF Bluetooth adapter complies with CompactFlash type I Interface.
z PCMCIA Bluetooth adapter complies with PC Card Standard, including PCMCIA

release 2.1 and JEIDA 4.x standards.

z Wireless communication within a radius of 32 Feet (10 Meters) for Class 2 Bluetooth

devices.

z Wireless communication within a radius of 328 Feet (100 Meters) for Class 1

Bluetooth devices.

z Connect up to 7 different Bluetooth enabled devices
z Encryption and authentication to ensure safe, secure communications
z Low power consumption

Specifications

Main chip: CSR BlueCore 02

Protocol: Bluetooth 2.4 GHz ISM band frequency hopping

Data Rate: 721 Kbps

Connect up to 7 devices in a Piconet

Antenna: Integrated inside the adapter

0dBm(Class 2) Bluetooth radio:

Connection within a range of up to 32 feet (10 meters)

2

Class1 Bluetooth radio:

Connection within a range of up to 328 feet (100 meters)

Sensitivity: -80dbm at 0.1% Bit Error Rate (BER)

Security: encrypted link, authentication

Bluetooth profile support includes:

Generic Access Profile (GAP),

Serial Port Profile (SPP),

Service Discovery Application Profile (SDAP),

Generic Object Exchange Profile (GOEP),

Object Push Profile (OPP),

File Transfer Profile (FTP),

Dial-up Network Profile (DUN),

LAN Access Profile (LAP),

Fax Profile (FAX),

Synchronization Profile,

Headset Profile,

Personal Area Network (PAN)

Human Interface Device (HID)

Hardcopy Cable Replacement Profile (HCRP)

Mechanics

USB Bluetooth Dimension:

58.6 x 19.8 x 8.1 mm (L x W x H) (for Class 2)

72.2 x 29.8 x 8.5 mm (L x W x H) (for Class 1 width including external antenna)

3

CF Bluetooth Dimension:

47.3 x 42.9 x 4.58 mm (L x W x H)

PCMCIA Bluetooth Dimension:

86 x 54 x 5 mm (L x W x H)

Certification

FCC, CE, BQB

Environmental Operating Ranges

·Temperature: 0 ~ 50%

·Humidity: 10 ~ 90%

Power Consumption

USB Bluetooth:

Typical: 40mA/5V
Maximum: 90mA/5V

CF Bluetooth:

Typical: 40mA/3.3V
Maximum: 90mA/3.3V

PCMCIA Bluetooth:

Typical:
Maximum: 21

Idle: 25mA/5V

70mA/5V

0mA/5V

LED Indication

CF adapter LED: Power on, Activity

PCMCIA adapter LED: Activity

Drivers support

USB Bluetooth:

4

Windows 98SE, Me, 2000, XP, MAC O.S. 10.2.x

CF Bluetooth:

Windows 98SE, Me, 2000, XP, PPC2000, PPC2002

PCMCIA Bluetooth:

Windows 98SE, Me, 2000, XP,

5

2

Chapter2

Setup for Windows 98SE/2000/ME/XP

For PCMCIA or CF Bluetooth card, please install the driver before
installing Bluetooth software, the driver can be located in BTCF (for CF
Bluetooth adapter) or BTPCMCIA (for PCMCIA Bluetooth adapter) of the
driver CD.

For USB Bluetooth adapter, please install Bluetooth software before
inserting the USB adapter.

Install CF (PCMCIA) Bluetooth card driver

Please follow the steps below to install driver for CF Bluetooth card.
(1) Insert your CF Bluetooth card in a PCMCIA adapter.
(2) Plug the PCMCIA adapter in the PCMCIA slot of your notebook and place the

installation CD in the CD-ROM.

(3) System will automatically detect the card. Select "Install the software automatically
(Recommended)" and click "Next".

6

(4) If the driver was not found automatically, please click "Install from a list or specific
location (Advanced)" and direct the system to the BTCF directory on your CD-ROM for the
appropriate driver.
(5) When the driver is found, Windows 2000/XP will pop up a warning message as below.
Click "Continue Anyway" to continue.

(6) Click the "Finish" button to complete the driver installation process for CF Bluetooth
card.

(7) The driver installation process of PCMCIA Bluetooth card is similar to the CF Bluetooth
card, please refer to the section above.

7

Installing Bluetooth software for Windows

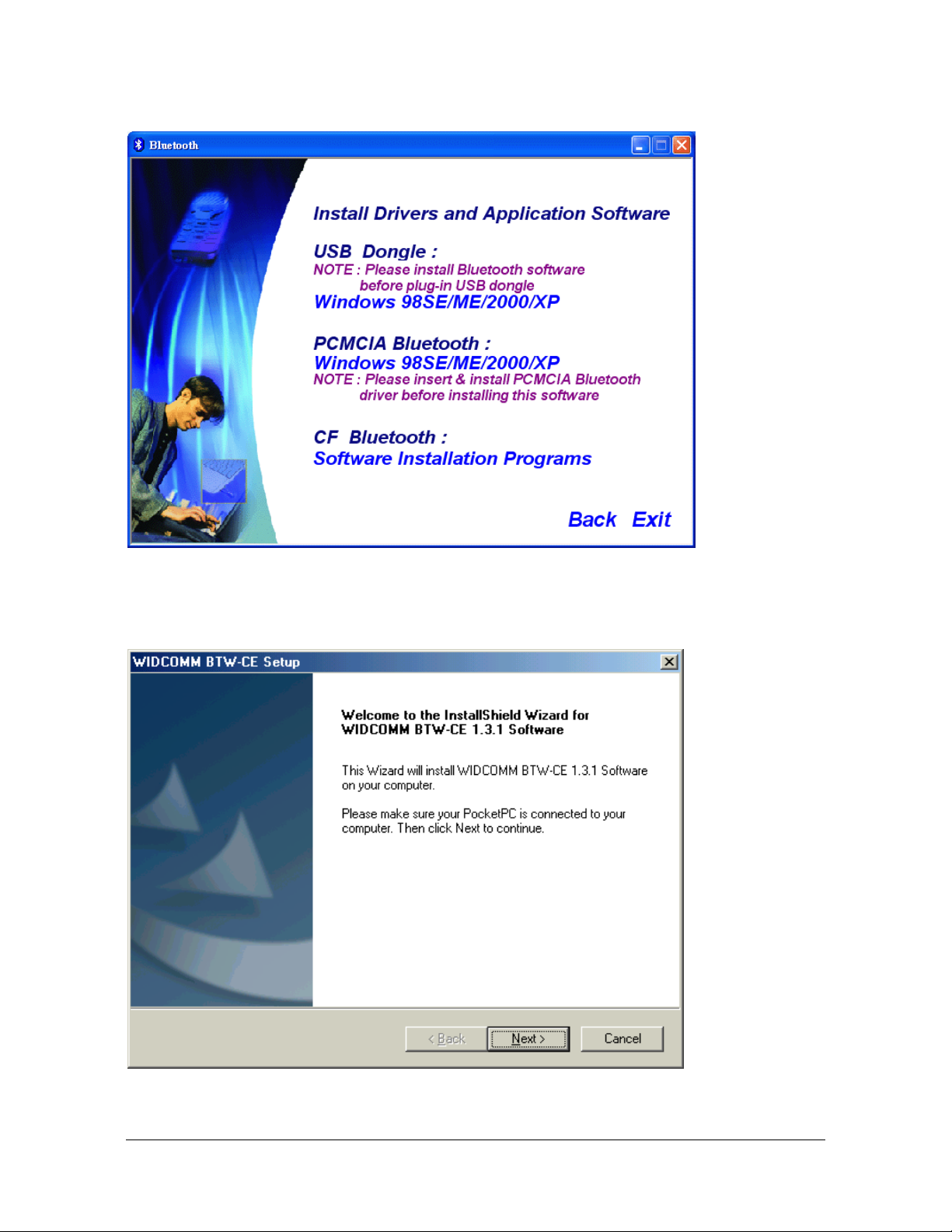

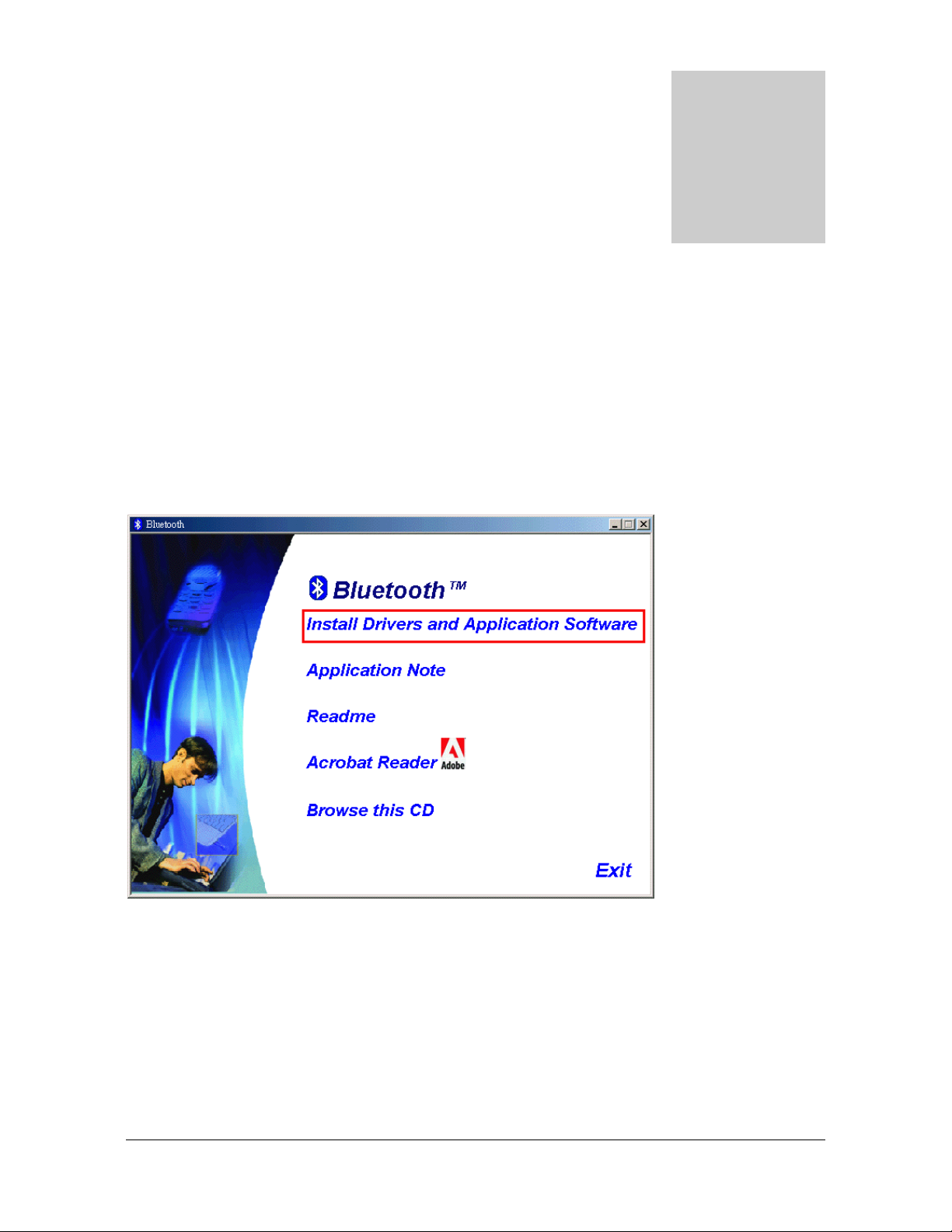

(1) Place installation CD into PC and the setup menu should launch automatically.

If the setup menu does not launch automatically, use Windows Explorer to navigate to the
appropriate CD-ROM drive and run "Bsetup".

(2) Please select your device and O.S.

8

(3) Complete the following steps to install Bluetooth software:

(a) Exit all applications.

(b) InstallShield Wizard setup dialog box will automatically be displayed.

(c) Follow the instructions on screen:

(d) On the Welcome screen, click the Next button.

(e) When the License Agreement screen is displayed, read the License Agreement, then
click the radio button to the left of "I accept the terms in the license agreement" and
click the Next

button.

9

(f) You can choose the destination folder in your system, if you do not want to change the
destination folder please click “Next“. On the Destination Folder screen, click the Change
button to browse to a new destination folder for the Bluetooth software. Otherwise, click the
Next button to accept the default folder.

10

(g) The system is ready to install the Bluetooth software. If you need to review or change
any settings, click the "
Otherwise, click the "Install"

Back" button. Click the "Cancel" button to exit the Wizard.

button.

(h) For Windows 2000/XP users, system will popup a "Driver Signature Notice", please
click the "OK" button.

(i) During the installation of USB Bluetooth adapter, system will try to detect your Bluetooth
device, please make sure your Bluetooth device is plugged in properly. If the USB
Bluetooth adapter was not plugged in previously, a message box as below will pop up,

11

please plug it in now and click "OK" to continue, or you can click "Cancel" to continue the
installation without the Bluetooth device.

(j) When the installation is completed, please click the "Finish" button.

(k) Click "Yes" to restart your computer. If you plan to restart later, click "No".

For more information of Bluetooth software Configuration & User’s Guide,

please refer to Chapter 3 of this application note.

12

Setup for Mac

Mac O.S.X 10.2

Mac O.S. 10.2.x has build-in Bluetooth software for USB Bluetooth adapters, therefore no
additional Bluetooth software is required. Simply plug in the USB Bluetooth adapter and a
Bluetooth icon will appear in the System folder. Open the Bluetooth applet to configure the
Bluetooth functions on your Mac system.

13

3

Chapter3

Application note for Windows 98SE/ME/2000/XP

3.1 Icons used for Bluetooth devices and services

Bluetooth icons provide at-a-glance feedback about a device or service's status by
changing appearance.
The Bluetooth icon in the Windows system tray provides feedback about Bluetooth status.

Basic Bluetooth Icon

Device Icons for Windows 98SE, Me and 2K

Service Icons for Windows 98SE, Me and 2K

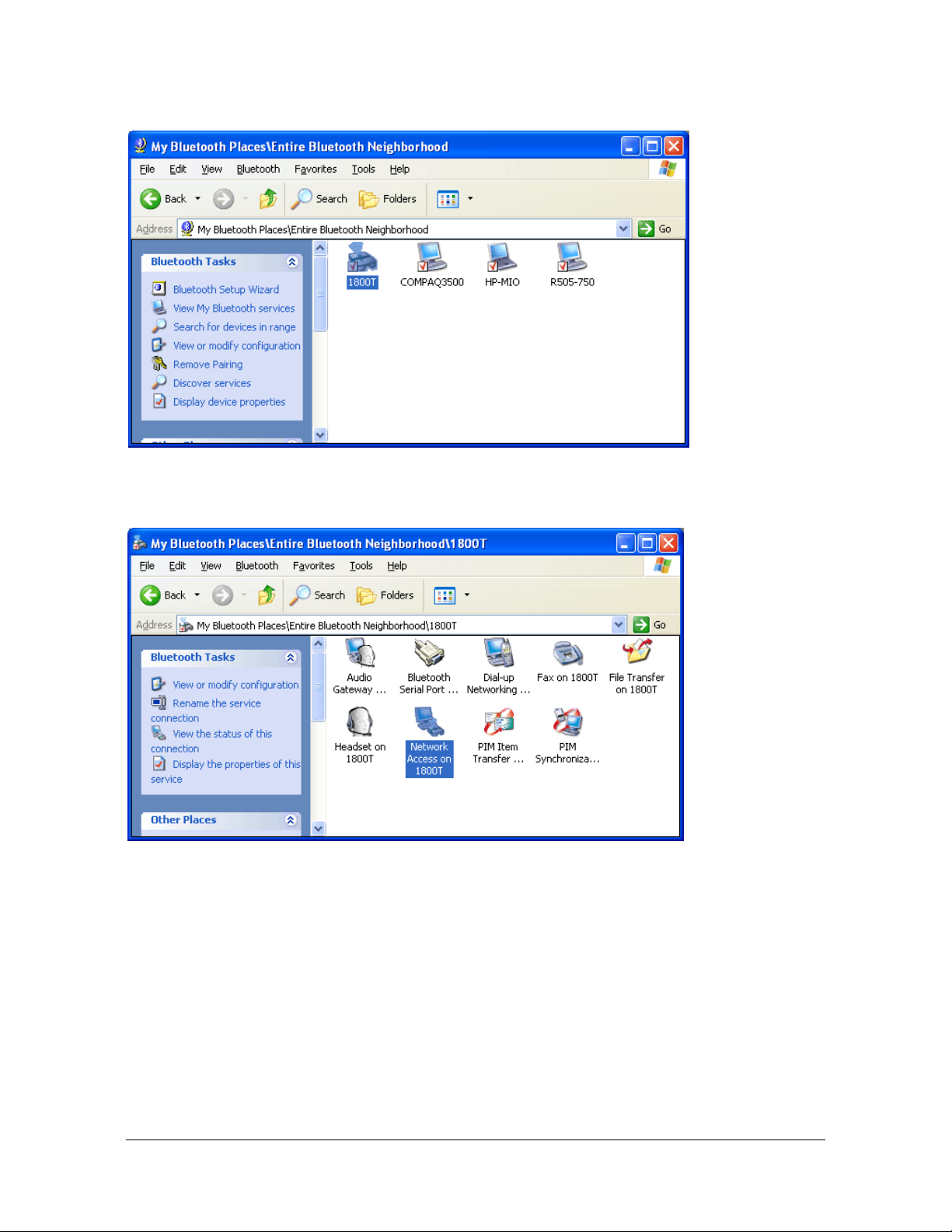

Device Icons for Windows XP

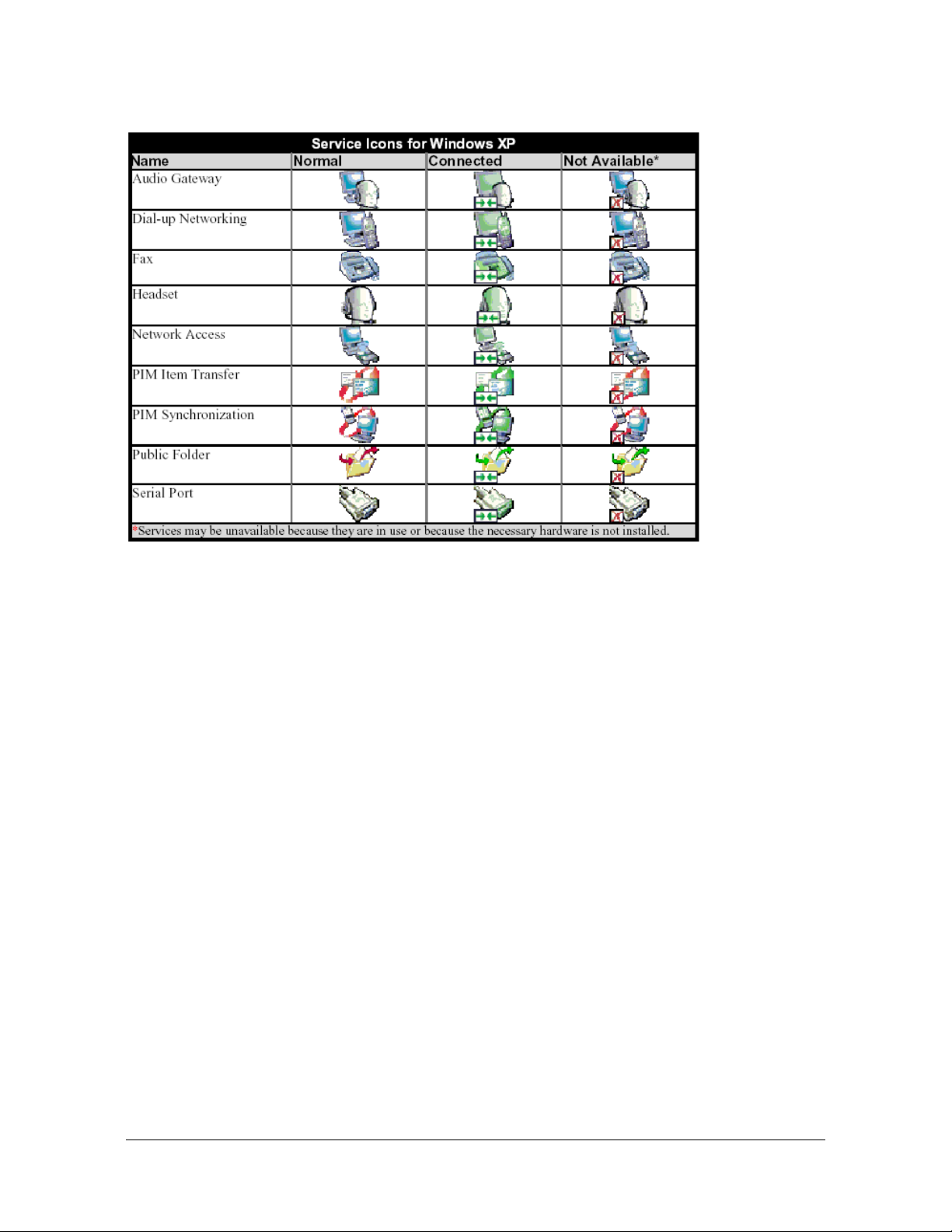

Service Icons for Windows XP

15
