Billionton Systems GMEWLGRL Users Manual

MINICARD
WIRLESS LAN ADAPTER

Quick Guide

Caution and Notes before using

• Do not disassemble, repair, or modify the unit. It may cause damage, or

accident.

• Keep away from heat & flame or humid environment.

• To avoid risk of electrical shock, not do the plug and unplug operations with wet

hands.

• Keep the unit out of the reach of young children. If a child swallows battery,

cover, or screw, consult a doctor immediately.

Product detail

- Support System: Microsoft Windows 98/98SE, ME, 2K & Windows XP

- USB2.0 MiniCard ( Mini PCI Express bus )

- Dimension: 50.95 x 30 x 1 mm (L x W x H)

- Compatible with IEEE 802.11b/g Standard

- 2.4GHz spread specturm technology

- 54Mbps high speed transfer rate and backward compatible with 802.11b

- Support 64/128-bit WEP Data Encryption function for high level of security

- Support WPA and WPA2 advanced WLAN Security.

- Supports peer to peer communication among any wireless users, no Access Point
required.

- Support Quality of service(QOS)802.11e,WMM

- Support antenna diversity

- Packet- OVERDRIVE technology

- Software Range OVERDRIVE technology

- Certification: FCC, CE class B, RoHS-2002/95/EC (Green Certification)

1

Setup for Windows

1. Make sure your PC is powered on and that you are running the Windows operating

system.

2. Insert the driver CD into the CD-ROM drive. The CD will automatically start the

installation or you can select the proper setup program file from the CD manually.

3. The setup wizard will help you to finish the installation. The installation will install the

application on the background, Please wait until the application finish for disappear.

4. Reboot the PC to let the application effect.

5. The install wizard will help you to install automatically, while the device working , you

can see the icon on the system tray become colorful as below:

*Note: On Window 98/98SE system the computer will ask user to insert the “Windows
98 CD-ROM”, please insert the CD-ROM into your computer to continue it.

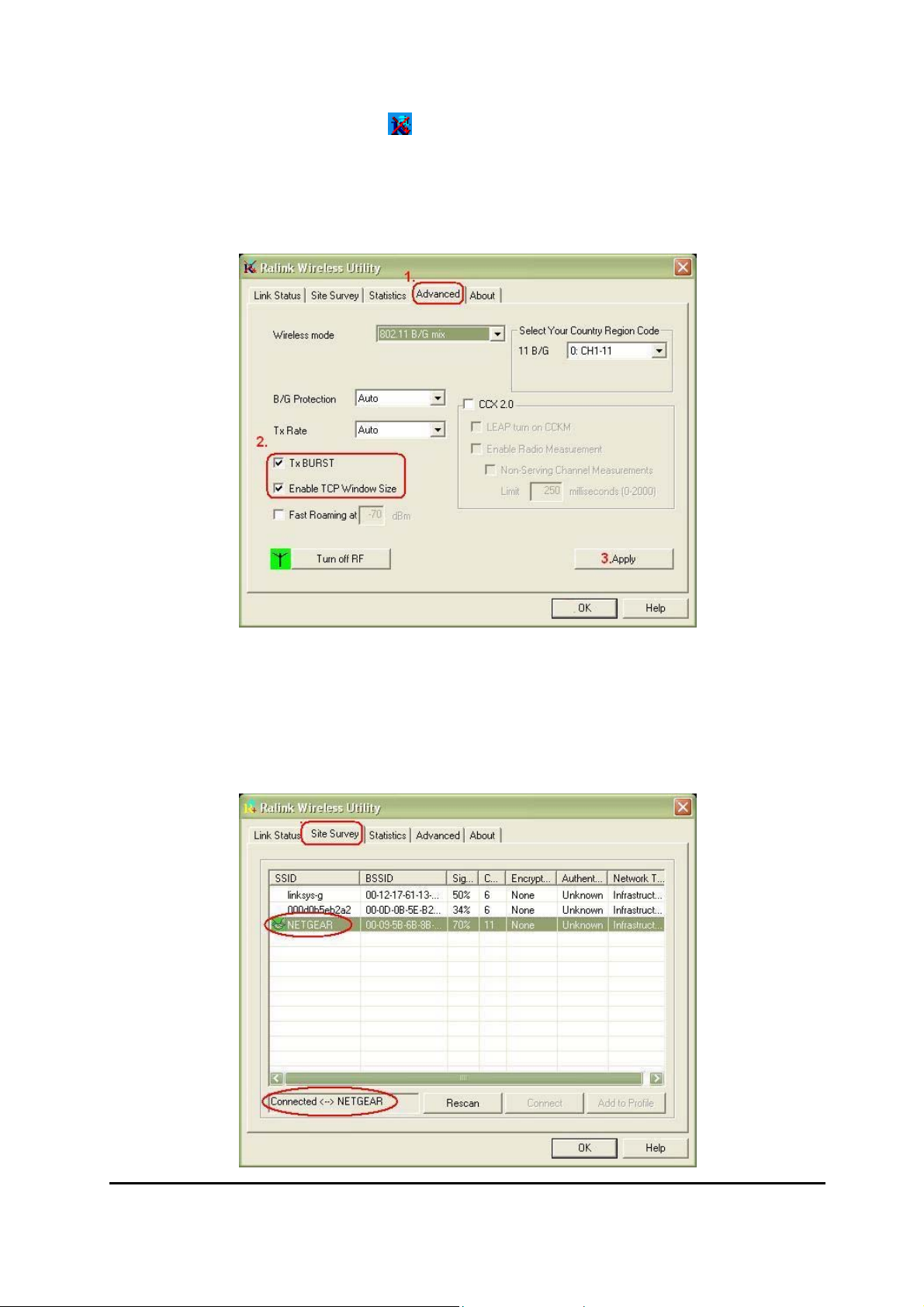

6. After the driver installation, Ralink’s icon will appear on the task try which is right on

the desk screen.

While the O/S could not find the device , the icon shows by black

color.

While the device work and didn’t connect any wireless

point, it shows with the X mark.

While the device works and connect with a wireless

point , it shows as it.

2
