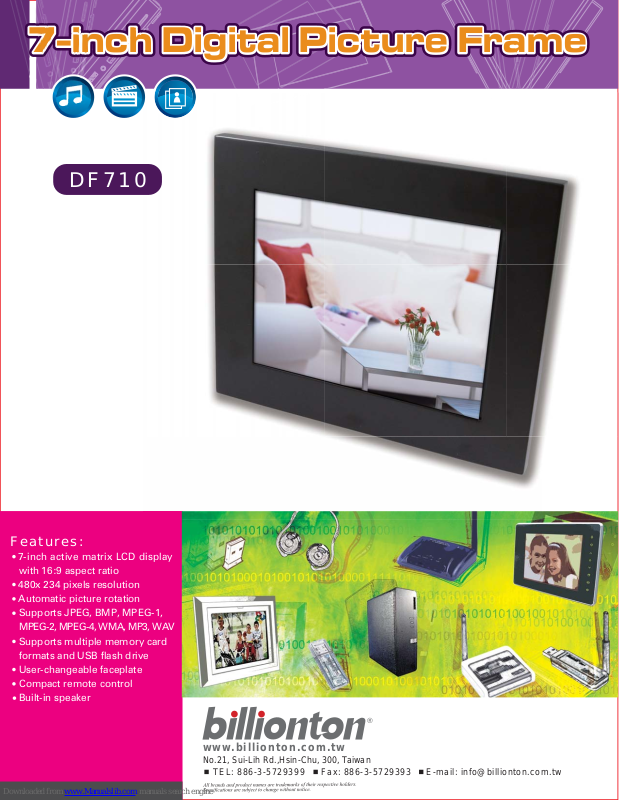

7-inch Digital Picture Frame
7-inch Digital Picture Frame
7-inch Digital Picture Frame
7-inch Digital Picture Frame
7-inch Digital Picture Frame
DF710
Features:
7-inch active matrix LCD display
with 16:9 aspect ratio
480x 234 pixels resolution
Automatic picture rotation
Supports JPEG, BMP, MPEG-1,
MPEG-2, MPEG-4, WMA, MP3, WAV
Supports multiple memory card
formats and USB flash drive
User-changeable faceplate
Compact remote control
Built-in speaker
www.billionton.com.tw
No.21, Sui-Lih Rd.,Hsin-Chu, 300, Taiwan
TEL: 886-3-5729399 Fax: 886-3-5729393 E-mail: [email protected]
Page 2
Specification
Display Type TFT Active Matrix LCD
Display Size 7 inches (diagonal)
Display Resolution 480 x 234 pixels
Display Ratio 16:9
CPU Sunplus 8104p-A
Image format JPEG, BMP
Video Formats MPEG-1, MPEG-2, MPEG-4
Music Format MP3, WMA, WAV
Memory (option) Optional 128MB to 1GB internal memory
Memory cards supported Secure Digital (SD) / Multimedia Card (MMC) / Memory
Stick (MS) / Compact Flash (CF) / xD
USB connection USB 2.0 Host and USB 2.0 Device
Speaker Built-in speaker
Picture Orientation Automatic rotation by frame’s orientation
Remote Control Compact 8-key remote control
On-board Buttons Up/Down/Left/Right/Enter/Menu/ESC/Power
Frame Faceplates User-changeable faceplates
Certificate CE / FCC / VCCI
O
Operation condition 5
C ~35OC
