Billion Electric Company BIPAC 7000 User Manual
BIPAC 7000
ADSL USB Modem
User’s Manual
Table of Contents
Chapter 1 ............................................................................................1
Introduction .................................................................................................... 1
1.1 Billion ADSL USB Modem Features.................................................................... 1
1.2 Package Contents........................................................................................... 1
1.3 The Front Panel LEDs...................................................................................... 2
1.4 Information from ISP........................................................................................ 2
Chapter 2 ............................................................................................3
Installation ...................................................................................................... 3
2.1 Installing Billion ADSL USB Modem.................................................................... 3
2.2 Installing Billion ADSL USB Modem Drivers .........................................................4
2.2.1 For Windows: ...........................................................................................................4
2.2.2 For Mac OS 9...........................................................................................................5
2.2.3 For Mac OS X .........................................................................................................6
2.2.4 For Linux Redhat 7.1/7.2/8.0/9.0:.............................................................................8
Chapter 3 ............................................................................................9
Configuration (For Windows)........................................................................ 9
3.1 Billion ADSL USB Modem Configuration ............................................................. 9

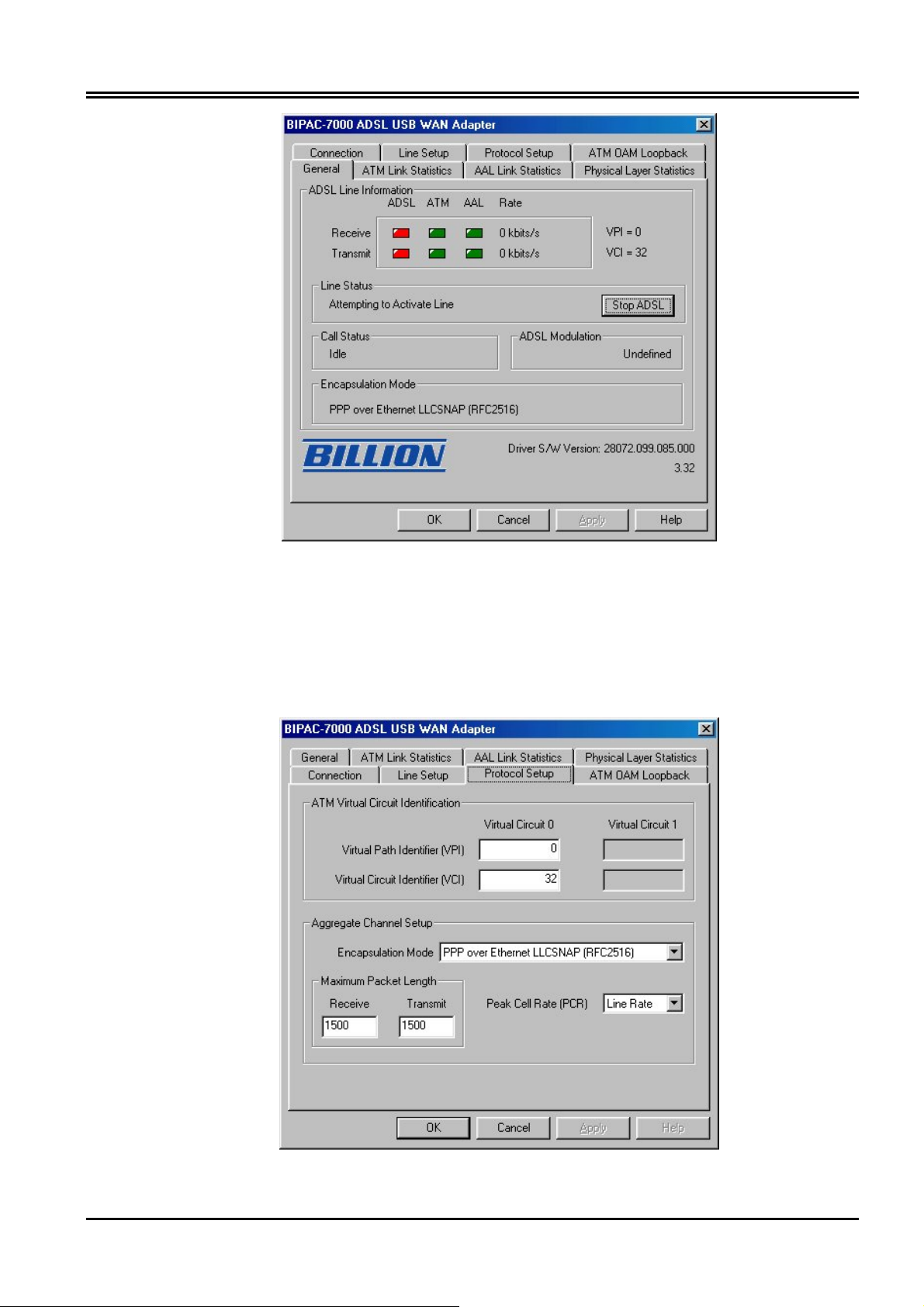

3.2 ADSL USB WAN Adapter Configuration ............................................................ 11
Chapter 4 ..........................................................................................12
Configuration(For Mac & Linux) ................................................................. 12
4.1 Configuring the Network Properties .................................................................. 12
4.2 Factory Default Settings ................................................................................. 12
4.3 Information from ISP...................................................................................... 13
4.4 Configuring with Web Browser......................................................................... 14
4.4.1 Status – Home Page ..............................................................................................15
4.4.2 Status – ADSL Status.............................................................................................15
4.4.3 Status – PPP..........................................................................................................16
4.4.4 Configuration – WAN Configuration .......................................................................17
4.4.5 Configuration – LAN Configuration.........................................................................19
4.4.6 Configuration – DNS Configuration ........................................................................19
4.4.7 System – Password Configuration .........................................................................20
4.4.8 System – Diagnostic Test.......................................................................................20
4.4.9 System – System Log ............................................................................................24
4.4.10 Advance – WAN Status........................................................................................24
i
BILLION BIPAC-7000 ADSL USB Modem
4.4.11 Advance – ATM Status.........................................................................................24
4.4.12 Advance – TCP Status .........................................................................................25
4.4.13 Advance – ADSL Configuration............................................................................ 25
4.4.14 Save Settings .......................................................................................................26
APPENDIX A.....................................................................................27
Product Support........................................................................................... 27
ii
Introduction
1.1 Billion ADSL USB Modem Features
Billion ADSL USB Modem provides the following features:
♦ Bus-powered USB modem for broadband ADSL.
♦ Downstream data rate up to 8 Mbps and upstream up to 1 Mbps.
♦ No external power supply is required.
♦ Hot Plug and Play for Microsoft Windows 98 (SE), 2000, Me, and XP.
♦ Supports NDIS interface for RAS and Dial-Up Networking.
Chapter 1
♦ Software upgradable.
♦ Supports multiple data encapsulation formats, including PPPoE, PPPoA, IPoA, and
RFC1483 bridged or routed.
♦ Friendly GUI Configuration Program.
1.2 Package Contents
The product package comes with the following accessories:
1. One Billion BIPAC-7000 ADSL USB Modem
2. One installation CD with drivers and online manual
3. One RJ-11 ADSL telephone cable
4. One USB cable
5. One Quick Start Guide
1
BILLION BIPAC-7000 ADSL USB Modem
1.3 The Front Panel LEDs
LED Meaning
USB
When this LED is lit, it indicates that the USB port is
connected to the PC and working properly.
When this LED is flashing constantly, it indicates the
DATA
BIPAC-7000 is transmitting/receiving data.
When lit, it indicates that the ADSL (Line) port is
ADSL
connected to the DSLAM and working properly.
1.4 Information from ISP
Before start installing this device, you have to check with your ISP on what kind of service
(connection method) is provided such as PPPoE, PPPoA, RFC1483 bridged or routed,
IPoA.
Gather the information as illustrated in the following table and keep it for reference.
VPI/VCI, VC-based/LLC-based multiplexing,
PPPoE
Username, Password, Service Name, and Domain
Name System (DNS) IP address (it can be
PPPoA
RFC1483
Bridged
RFC1483
Routed
IPoA
automatically assigned from ISP or be set fixed).
VPI/VCI, VC-based/LLC-based multiplexing, Username,
Password, and Domain Name System (DNS) IP address (it
can be automatically assigned from ISP or be set fixed).
VPI/VCI, VC-based/LLC-based multiplexing
VPI/VCI, VC-based/LLC-based multiplexing, IP address,
Subnet mask, Gateway address, and Domain Name
System (DNS) IP address (it is fixed IP address).
VPI/VCI, IP address, Subnet mask, Gateway address, and
Domain Name System (DNS) IP address (it is fixed IP
address).
2
2.1 Installing Billion ADSL USB Modem
Please refer to the following instructions and figures:
1. Connect ADSL telephone cable to the LINE RJ-11 jack.
2. Connect the USB cable to the USB port and connect the other end to the PC.
Chapter 2
Installation
3
BILLION BIPAC-7000 ADSL USB Modem
2.2 Installing Billion ADSL USB Modem Drivers
2.2.1 For Windows:
Simply follow the instructions below which outline what you
need to do. This section is described based on Windows XP/
2000/Me/98 and the systems will automatically acknowledge
the modem has been connected to your computer.
1. Insert the CD into your computer’s CD Rom drive. This is the hi-speed modem
installation CD, and to specify the driver directory such as F:\Driver\Windows\setup,
than Click “Yes” to continue.
2. Please plug USB cable into ADSL USB Modem.
3. Then, click “OK”.
4. After Billion ADSL USB Modem driver is successfully installed, you will see these 2
4
icons on your desktop.
5. The Status Task Bar will appear on the System Tray.
2.2.2 For Mac OS 9
If you connect the ADSL Modem/Router through USB port, for the first time the USB cable is
connected to the PC, the host PC OS will automatically detect the device. Follow the steps to
install the USB driver.
1. When PC tells you that the new device has been detected, insert the installation CD into
the CD-ROM drive. Click the driver installer. The following directory will be created.
2. Click “Install”.
3. Click “Restart” to end the installtion.
5
BILLION BIPAC-7000 ADSL USB Modem
2.2.3 For Mac OS X
1. Insert the installation CD into the CD-ROM drive, click the driver installer.
2. Input the user name and password of your Mac system.
3. Click “Continue”.
6
