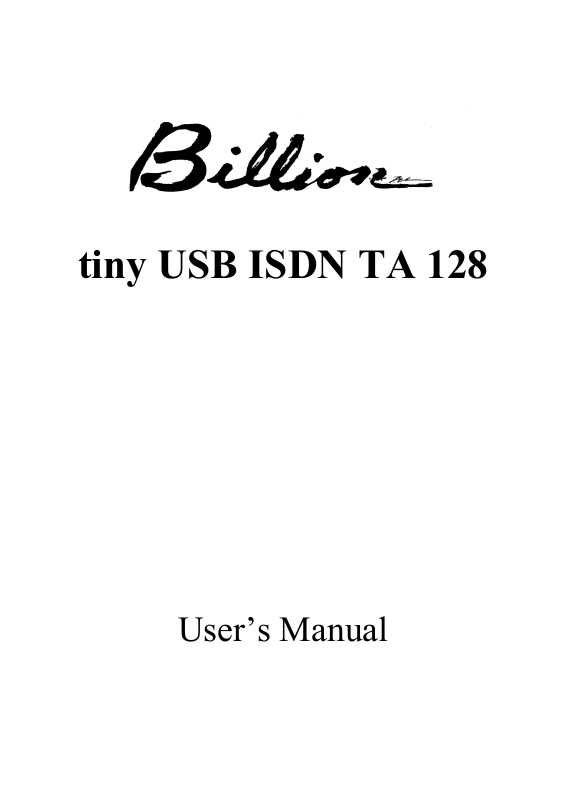

tiny USB ISDN TA 128
User’s Manual
CE Approval
All CE approved ISDN devices may be connected to the Euro­ISDN in all countries of the EU.
The tiny USB ISDN TA 128 has been approved by the German TÜV according to the new European procedure and may therefore be connected to the Euro-ISDN in all EU countries. This ISDN TA therefore complies with:
CTR-3 (ISDN Basic Rate Access) Electromagnetic Compatibility Standards Safety Standards
tiny USB ISDN TA128
CE/EMC Restriction of Liability
The product described in this handbook was designed, produced and approved according to the EMC-regulations and is certified to be within EMC limitations.
If the product is used in an uncertified PC, the manufacturer undertakes no warranty in respect to the EMC limits. The described product in this handbook was constructed, produced and certified so that the measured values are within EMC limitations. In practice and under special circumstances, it may be possible, that the product may be outside of the given limits if it is used in a PC that is not produced under EMC certification. It is also possible in certain cases and under special circumstances, which the given EMC peak values will become out of tolerance. In these cases, the user himself is responsible for compliance with the EMC limits.
The manufacturer refuses all liability claims and may not be liable in any cases, which may occur in the practical use of the product outside of the EMC limitation.
Table of Contents
CHAPTER 1 1
Introduction 1
1.1 An Overview of the tiny USB ISDN TA 128 1
1.1.1 What is ISDN? 1
1.1.2 What is USB? 2
1.1.3 The tiny USB ISDN TA 128 2
1.2 Package Contents 3
1.3 The tiny USB ISDN TA 128 Features 3
CHAPTER 2 5
Installation 5
2.1 Before Installing 5
2.2 The Front Panel LEDs 6
2.3 Connecting the tiny USB ISDN TA 128 6
2.4 Driver Installation 7
2.5 ISDN Utility Installation 18
2.5.1 The Diagnostic Program 20
2.5.2 The ISDN STATUS Program 21
2.6 Using Multilink PPP 21
2.7 Uninstalling the tiny USB ISDN TA 128 26
CHAPTER 3 27
Troubleshooting 27
Chapter 1
Introduction
1.1 An Overview of the tiny USB ISDN TA 128
1.1.1 What is ISDN?
ISDN is an abbreviation for Integrated Services Digital Network. ISDN transfers information digitally and integrates all telecommunication services (such as telephone, teletext, videotex, etc.) into a single network. Using ISDN, you can transfer text, voice, data files, images, and even video.
Before the use of ISDN, telecommunications operated using analog devices, which limited the quality of telecommunication transfers. With ISDN technology, the telephone lines can transmit data digitally with much greater speed and clarity of transmission than with analog transmissions. The ISDN is capable of transmitting all kinds of information at greatly accelerated rates. A typical modem transmission has a rate of 56Kbps (kilobits per second or thousand bits per second). ISDN digital technology allows transfer rates of up to 128Kbps.
Because ISDN transmits data digitally, the data is virtually error free, and the transmission is much clearer, with fewer interruptions and slowdowns in facsimile transmissions. With
1
tiny USB ISDN TA128
ISDN devices implemented throughout the world, a truly digital network will emerge, allowing everyone fast and easy access to the global information highway.
1.1.2 What is USB?
USB is an abbreviation for Universal Serial Bus. It is a new peripheral bus employing a single connector type for all low­speed and medium-speed devices, such as keyboard, mouse, monitor, floppy drive, printer, scanner, digital camera, modem and ISDN TA. It brings plug-and-play of computer peripherals outside the box, eliminating the need to install cards into dedicated computer slots and reconfigure the system. PCs equipped with USB allow computer peripherals to be automatically configured as soon as they are hot attached, without the need to reboot. USB also allows multiple devices, up to 127, to run simultaneously on a computer; some peripherals, such as monitors and keyboards, can act as additional plug-in hubs to make it easy for users to manage peripherals on the desktop. USB does offer unprecedented peripheral expandability and ease of use for PC users.
With better throughput of 12Mbps (megabits per second or million bits per second), USB is expected to rapidly become the preferred means of connecting ISDN TAs, though it will not replace the traditional PC ports (COM and LPT) overnight.
1.1.3 The tiny USB ISDN TA 128
The tiny USB ISDN TA 128 is ideally suited to give your PC
2
access to the world of the Integrated Services Digital Network. It is easy to install, and easy to configure because it is fully plug-and-play compatible. The Windows 98, Me, 2000 or XP operating systems will automatically install and configure the tiny USB ISDN TA 128.
With the tiny USB ISDN TA 128, you can have an ISDN telephone, answering machine, file transfer, videotex, G3/G4 Fax functions, and Internet access. This will bring you more versatility and efficiency in the ISDN era.
1.2 Package Contents
The product package comes with the following accessories:
Chapter 1 Introduction
1. One
2. One
3. One CD with bundled application software programs
4. One RJ-45 ISDN cable
5. One quick start guide
tiny USB ISDN TA 128 with USB cable built-in
USB ISDN TA 128 installation CD with drivers
tiny
and utility software
(optional)
1.3 The tiny USB ISDN TA 128 Features
The tiny USB ISDN TA 128 supports many standard and enhanced features, including the following:
Fully plug-and-play compatible
Hot attach and detach without rebooting the PC
Bus-powered, no extra power adapter
Supports both 16-bit and 32-bit CAPI drivers
Supports TAPI and NDIS WAN miniport drivers
3
tiny USB ISDN TA128
Supports Multilink PPP (MP) for 128Kbps (two B channels)
internet access and data transfer
Supports X.75, T.70NL, ISO8208, T.90, and HDLC
transparent protocols on the B channel for T-Online, AOL, CompuServe, BTX, BBS, Eurofile transfer, and G4 Fax.
Has support for a bit-transparent driver on the B channel for
answering machine, G3 Fax and soft-modem functions
Supports V.120 rate adaptation
Supports COM port simulation for modem-based
application programs
If you want to send and receive the Group 3 (G3) fax at 14.4Kbps, you should have a Pentium processor.
4
Installation
2.1 Before Installing
Chapter 2
Make sure that you have all you need to install the ISDN TA 128. You should have the following:
1. A PC that has USB connector and its USB controller is working properly as shown below.
tiny
USB
2. Microsoft Windows 98, Me, 2000 or XP.
3. At least 10MB of free disk space for the driver and
software.
4. An ISDN basic rate Telephone and Telegraph administration).
S
line released by PTT (Post,
0
5
tiny USB ISDN TA128
2.2 The Front Panel LEDs
LED Meaning
USB When this LED is lit, it indicates that the USB port
is connected to the PC and working properly.
ISDN
B1 When this LED is lit, it indicates that the ISDN B1
B2 When this LED is lit, it indicates that the ISDN B2
When this LED is lit, it indicates that the ISDN bus is activated. It will flash when there is message transfer in the D channel.
channel is being accessed. It will flash when there is data transfer in the B1.
channel is being accessed. It will flash when there is data transfer in the B2.
S
0
2.3 Connecting the tiny USB ISDN TA 128
Please refer to the following instructions and figure for installing
6
tiny USB ISDN TA 128:
the
1. Connect the ISDN S
2. Connect the other end of USB cable to the PC. Refer to
the following figure.
You should not connect the tiny USB ISDN TA 128 to a bus-powered USB hub device, such as keyboard, because there could be not enough power for the ISDN TA.
line to the RJ-45 jack.
0
Chapter 2 Installation
3. All the LEDs will be lit and, then, extinguished one by
one. Please refer to Chapter 3 Troubleshooting if any LED is not lit or extinguished normally.
2.4 Driver Installation
For Windows 98:
1. Start Windows. After the opening banner, Windows will
tell you that the new device has been detected. You will then see the following screen. Click “Next >”.
7
tiny USB ISDN TA128
2. In the next window, select “Search for the best driver for your
device
3. Insert the installation CD into the CD-ROM drive and check “C
” and click “
D-ROM drive” in the next window.
Next >
”.
8
Chapter 2 Installation
4. Continue through the Wizard, clicking the “Next >
buttons. Windows will start copying files to your system. You will see the following screen prompting for the path of the Windows source files. Please specify a location. Click “OK”. Then, click “ the installation.
Finish
” in the next window to end
5. If you are prompted to restart the computer after Windows finishes installing the driver, press “Y
es”.
9
tiny USB ISDN TA128
For Windows Me:
1. Start Windows. After the opening banner, Windows will
tell you that the new device has been detected. Select
pecify the location of the driver” and click “Next >”.
S
10
2. In next window, select “Search for the best driver for your device”. Insert the installation CD into the CD-ROM drive and check “Removable M
edia”. Click the “Next >” button.
Chapter 2 Installation
3. Continue through the Wizard, clicking “Next >” at the
following screens. Windows will start copying files to your system. Then, click “Finish” in the following window.
4. If you are prompted to restart the computer after Windows finishes installing the drivers, press “Y
es”.
11
tiny USB ISDN TA128
For Windows 2000:
1. Start Windows. After the opening banner, Windows will
tell you that the new device has been detected. Click “
Next>
”.
12
2. In next window, select “Search for a suitable driver for my device”. Click “Next>”.
Chapter 2 Installation
3. Insert the installation CD into the CD-ROM drive, then in
the next window check “
CD-ROM drives
” and click “
Next>
”.
13
tiny USB ISDN TA128
4. Click “Next>” to install the driver. When the following
windows titled “Digital Signature Not Found” appear, press “
” to continue the installation.
Yes
14
5. Press “Finish” to end the installation.
Chapter 2 Installation
For Windows XP:
1. Start Windows. After the opening banner, Windows will
tell you that the new device has been detected. Select “Install the software automatically”. Insert the installation CD into the CD-ROM drive and click “Next >”.
15
tiny USB ISDN TA128
2. When next window appears, press “Next >” to continue
the installation.
3. Click “
Installation
Continue Anyway
” windows appear.
” when the following “
Hardware
16
Chapter 2 Installation
4. Press “Finish” to end the installation.
17
tiny USB ISDN TA128
2.5 ISDN Utility Installation
The ISDN Utility includes helpful programs for the tiny USB ISDN TA 128, such as diagnostic program, uninstallation program, and on-line manual.
After Windows installs the driver of your tiny USB ISDN TA 128, the ISDN Utility may be installed automatically. If the ISDN Utility is not installed, you may install it from the installation CD.
To install the ISDN Utility, please follow the instructions listed below.
1. Insert the installation CD into the CD-ROM drive.
2. Run Windows Explorer, and enter the directory of your
CD-ROM drive. Double-click “Setup” to install the utility.
18
Chapter 2 Installation
3. When the following window prompts, click on the
“ISDN Utility” button.
4. The Install Shield Wizard will load the ISDN utility installation program.
5. Press “N Follow the instructions on the screen to complete the installation.
ext>” to begin installing the ISDN Utility.
19
tiny USB ISDN TA128
2.5.1 The Diagnostic Program
After you have installed your highly recommended to use the diagnostic program to make sure the
tiny USB ISDN TA 128, its drivers and the ISDN line are all
properly installed and connected. To run the diagnostic program please follow these instructions:
1. Open the “ click on the “ISDN Utility” program folder.
2. Click on the “Diagnostic Program” item to start the program.
3. In the “Own ISDN Number” box, type in the subscriber number of your own ISDN line.
4. Press “Loopback Test” to begin the diagnostic procedure. It will make a call from the B1 channel that returns through the B2 channel. The D and B channels will be
P
rograms
” folder on the “
USB ISDN TA 128, you are
tiny
” menu and
Start
tested for line integrity.
5. Please refer to Chapter 3 Troubleshooting if you see any error or warning message.
20
Chapter 2 Installation
2.5.2 The ISDN STATUS Program
To know the status of ISDN line and B channels, you can start the ISDN STATUS program as below:
1. Open the “P click on the “ISDN Utility” program folder.
2. Click on the “ISDN STATUS” item to start the program.
3. You will see the status of ISDN S B2 channel.
rograms” folder on the “Start” menu and
, B1 channel and
0
2.6 Using Multilink PPP
To have multilink PPP connections, the answering Internet Service Provider (ISP), online service or corporate LAN must
To configure multilink support, please follow these steps.
provide multilink capabilities.
21
tiny USB ISDN TA128
1. Double click on the “My Computer” icon on your Windows
Desktop, and then double click on the “Dial-Up Networking” (DUN) folder.
2. The DUN folder displays an icon labeled “Make New Connection”, plus icons for each of the connections that you
have already created. If you have not yet created a connection, double click on “Make New Connection” to define a connection to the dial up service you wish to use.
22
3. When you have created your connection, or if the connection you wish to use for multilink access already exists in the folder, use the mouse to right click on the connection icon. Choose the “Pr displays a dialog box with several category tabs at the top.
operties” option. This
Chapter 2 Installation
4. Select the “Multilink” tab and click on the “U
devices” radio button.
5. Press “Ad to form the multilink connection.
d…” to specify the device to be bundled together
se additional
23
tiny USB ISDN TA128
6. Use the “
the list of additional devices.
7. You may enter a different phone number for each device, and the phone numbers will be stored. If you subsequently change the phone number for the connection icon, the phone numbers associated with additional devices on this page will not change.
After your additional devices are configured, you are ready to dial the multilink connection. Once the connection is established, you can view the status information by double clicking on the “communicating computers” icon displayed in the taskbar.
Ad
d…
”, “
Remove
”, and “
” buttons to change
Edit
24
Chapter 2 Installation
The status information includes the number of bytes sent and received, the network protocols negotiated for use on the connection and a list box showing each of the additional devices. As you highlight a device in the list box, a “SR
esume” button is displayed.
If a “S in use and bundled into the multilink connection. Clicking on the “S additional device from the bundled connections.
If the “R dial that connection and add that additional device to the bundle. You may suspend and resume individual additional device without dropping the connection.
uspend” button is displayed, the additional device is now
uspend” button disconnects that device and removes the
esume” button is displayed, then click on “Resume” to
uspend” or
25
tiny USB ISDN TA128
2.7 Uninstalling the tiny USB ISDN TA 128
If you decide to permanently remove the driver and utility of the
tiny USB ISDN TA 128 from your system, you must run the
uninstallation program from the ISDN Utility program group as follows:
1. Open the “P click the “ISDN Utility” item.
2. Click the “Uninstall DRV & UTL” item. The following ISDN Uninstallation Program window opens.
3. Check the items that you want to completely remove
rograms” folder on the “Start” menu and
26
from the Windows system and press “OK”.
Chapter 3
Troubleshooting
If your tiny USB ISDN TA 128 does not work properly, run the Diagnostic Program to help you identify the problem.
Error
Indication
“USB” LED is not lit
or
“Fail” on USB interface panel
or The CAPI2032.DLL file cannot start.
The B1 LED is lit upon start-up.
The B2 LED is lit upon start-up.
Possible
Cause
1. The tiny USB ISDN TA 128 is not ready.
2. The PC is not USB-ready.
The RAM is out of order
The ISDN chip is out of order
Remedy
1. Make sure the USB cable is securely connected to PC or self­powered USB hub device.
2. Examine your PC's hardware and software for USB capability.
Consult your dealer.
Consult your dealer.
You are not allowed to run this program.
The CAPI2032.DLL is not from the ISDN package.
Uninstall and then reinstall the ISDN device.
27
tiny USB ISDN TA128
Error
Indication
A required .DLL file, CAPI2032.DLL, was not found.
CAPI driver is not loaded.
Please input your own number
Cannot activate S0 interface (“ISDN” LED is always OFF)
Possible
Cause
The CAPI2032.DLL is missing.
The Registration key has been destroyed.
The subscriber number of your own ISDN line has not been entered.
The ISDN line is not connected.
Remedy
Uninstall and then reinstall the ISDN device.
Uninstall and then reinstall the ISDN device.
Key in the subscriber number of your ISDN line in the Own ISDN Number box.
Ensure that the ISDN S0 line is securely connected to the RJ-45 jack.
Cannot establish LAPD link
Connecting fail
(error code = xxxx)
Data transfer error
The ISDN line may be malfunctioning.
1. Own ISDN Number is incorrect.
2. Other devices on the same S are occupying the B channel.
3. The ISDN protocol is wrong.
The ISDN line is not in good condition
line
0
Ensure that the ISDN S0 line is in good condition.
1. Ensure that your ISDN number is correct.
2. Be sure no other device is on the same S0 line and occupying the B channel.
3. Check to see if the ISDN protocol configuration is correct.
Check the ISDN line
28
Loading...
