Billion SG600 User Manual

Billion BEsmart Service Packages

SG600 Smart Wireless Bridge

User Manual

Last Revised on Mar. 2013

www.smartgrid.com.tw

Table of Contents

CHAPTER 1: Introduction ............................................................................. 0

1.1 Introduction of BEsmart ................................................................... 1

1.2 BEsmart Application......................................................................... 2

CHAPTER 2: Device Description and Installation ....................................... 3

2.1 BEsmart Package Content and Specifications .............................. 3

2.2 Device Descriptions ......................................................................... 5

2.3 BEsmart Installation ......................................................................... 7

2.3.1 Device Configurati .................................................................. 7

2.3.2 Network Configuration ........................................................... 9

2.3.3 Device Connections ............................................................. 23

2.3.4 Pairing the smart meter ........................................................ 25

2.3.5 Un-pairing the smart meter .................................................. 27

CHAPTER 3 Installation of Web Manager .................................................. 28

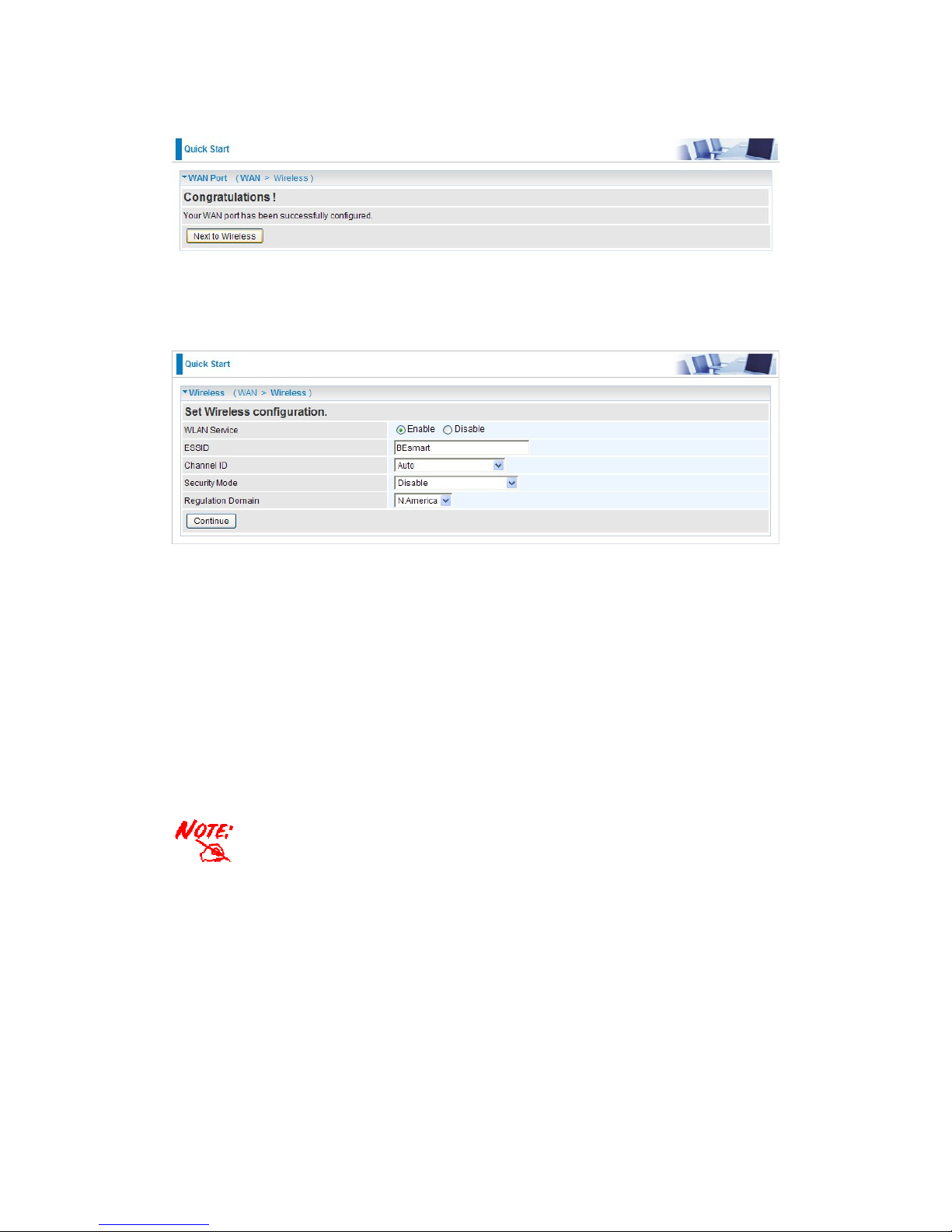

3.1 Quick Start .................................................................................. 28

WARNING

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

‧ Reorient or relocate the receiving antenna.
‧ Increase the separation between the equipment and receiver.
‧ Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

‧ Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:

(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may
cause undesired operation. Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to operate this
equipment. . This device and its antenna(s) must not be co-located or operating in
conjunction with any other antenna or transmitter.

Co-location statement

This device and its antenna(s) must not be co-located or operating in conjunction
with any other antenna or transmitter.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.

1

CHAPTER 1

Introduction

1.1 Introduction of BEsmart

The issue of environmental protection and energy conservation has been

received great attentions since the global warming and energy shortage have

become a serious worldwide crisis. Billion BEsmart highlights the importance

of energy preservations and managements, and contributes smart solutions for

Telco/ISP/SI service providers who dedicate to strengthening customer

satisfactions. With the implement of the smart control, track, and monitor

power consumption technologies, energy usage could be clearly examined

and analyzed anytime and anywhere simply through a smart phone. It helps

reduce energy waste, provide a green environment, and further increase the

benefit of the mutual investment, that is, the investors and customers.

BEsmart brings a great amount of benefits with a long-term effect:

Increase Average Revenue, Increase Customers’ Satisfaction and Loyalty,

Reduce Customers’ Churn Rate, Leverage Existing Network Infrastructure,

Bring GREEN and Carry Out CSR. Furthermore, BEsmart also provides

effective power management, highly flexible on connection and establishment,

and extended applications on other services. Creating a win-win situation for

service providers and customers and establishing a green society are what

BEsmart expect to accomplish.

2

1.2 BEsmart Application

The SG600 acts the role of coordinator, which processes the power data

delivered from smart energy meters connected with electrical appliances by

ZigBee to an xDSL cable modem/router and then transmits to the cloud with

the internet access. All history information of power usage would be saved on

the cloud. BEsmart APP serves as a service platform for smart phone users to

make connection to the cloud server. Hence, users are able to monitor the

instant energy consumption status and review all the previous consumption

records. Furthermore, you can take control of power on/off status remotely for

the home appliances merely by a smart phone with an internet access.

3

CHAPTER 2

Device Description and Installation

This section specifies package contents, device descriptions, BEsmart kit

installations, and network connections.

2.1 BEsmart Package Content and Specifications

§ SG600

Collect power information from each smart meter measure.

§ Smart Power Plug

Energy Management and Remote on/off Control

Comprehensive Measurement Capability

§ Smart Energy Meter

Remote power on/off control on connected electrical appliances

Electricity usage data and other indication information collection

§ Mobile App

Straightforward user interface (UI) for easy operation

Multiple functions all in a single glance on the main menu

4

5

2.2 Device Descriptions

SG600 product overview

Power Lit green when power is ON

Ethernet Lit when one of LAN ports is connected to an Ethernet device.

AP/Client

Lit green when wireless client is working

Blinking green when wireless client is not working

ZigBee/WPS

Blinking green quickly when ZigBee pairing mode is working

Blinking orange quickly when WPS pairing mode is working

Internet

Lit green when SG600 is getting internet connection

Lit red when wireless in not getting internet connection

Power Connect it with the supplied power adapter.

Reset

To be sure the device is being turned on press RESET button

for 6 seconds and above: restore to factory default settings.

Caution: After pressing the RESET button for more than

6 seconds, to be sure you power cycle the device again.

Ethernet

Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the

LAN ports when connecting to a PC or an office/home

network of

10Mbps or 100Mbps.

6

ZigBee/WPS

Push WPS button to trigger ZigBee function, thus smartmeter

allowing join in is starting. See ZigBee Config section.

Push WPS button more than 5 seconds to trigger Wi-Fi

Protected

Setup function. See WPS section.

SG3015-T1/3010-T1

1

Power Plug

Put the plug in the power socket.

2

Status LED

Lit green when the meter does not pair with

SG6200NXL.

Blinking green when the meter is pairing.

Blinking green 5 time for 30 seconds when it reach

the strongest signal.

3

Power Meter

Setting Hidden

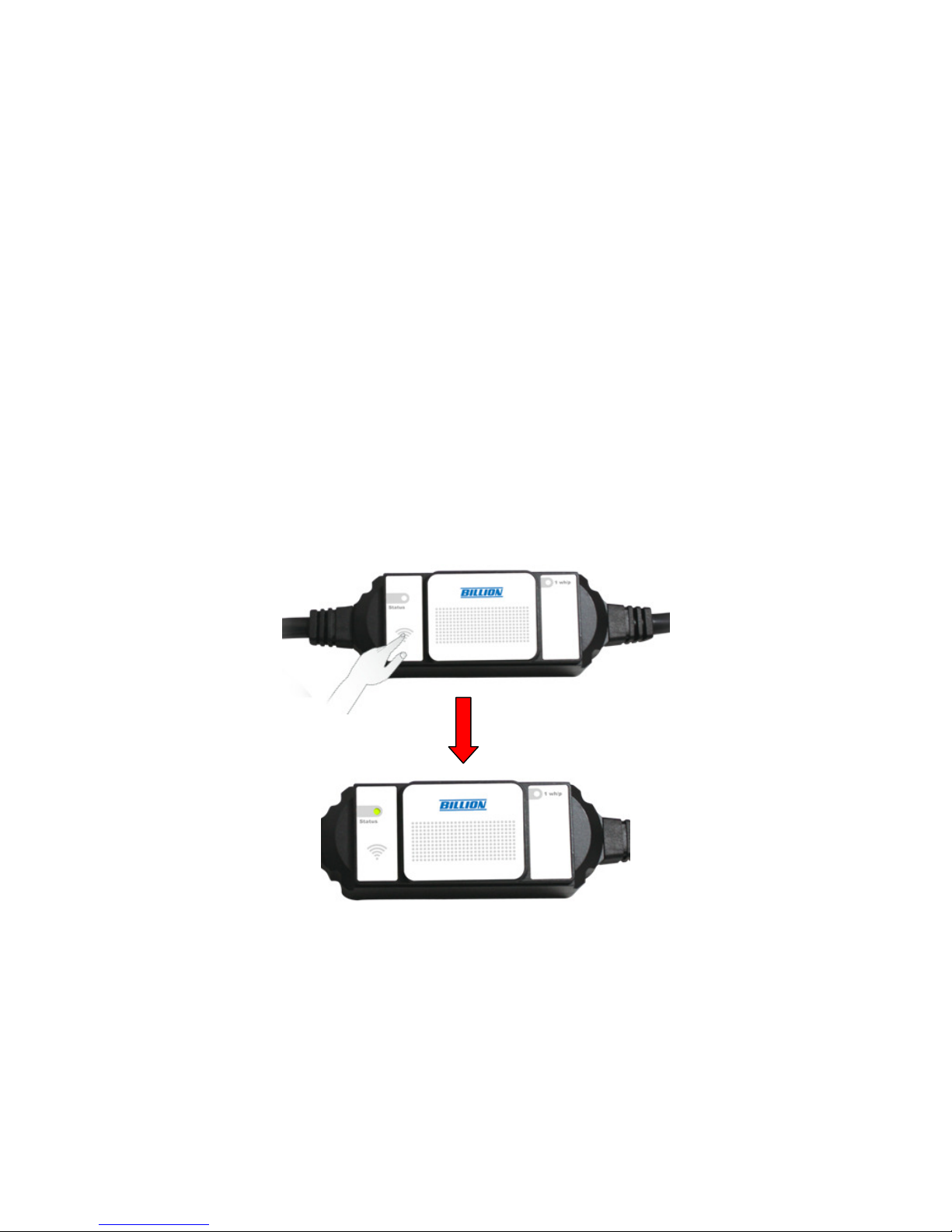

Button

When Status LED lights, press the hidden button for

3~5 seconds until the LED blinks, indicat

ing that the

device is connected to wireless network.

When Status LED blinks steadily, tap this button once

to detect the signal strength.

4

Energy Indicator

I

t would flash once when the electronic consumption

has accumulated to 1wh (0.001kwh).

7

5

Power outlet

Plug in the electronic

appliance that you intend to

monitor to the power outlet.

2.3 BEsmart Installation

It’s easy to setup the power meter and power plug simply by following the

instructions below. Also this section shows how the SG600 device connects to

the SG3010-T1/SG3015-T1.

2.3.1 Device Configuration

The Illustration above demonstrates overall structure for device

configurations. To construct the connection environment, you must prepare a

PC, Billion SG600, a router, power meter(s), power plug(s), network

connection provided by ISP, and power supply. For the configuration, please

8

refer to the following instructions

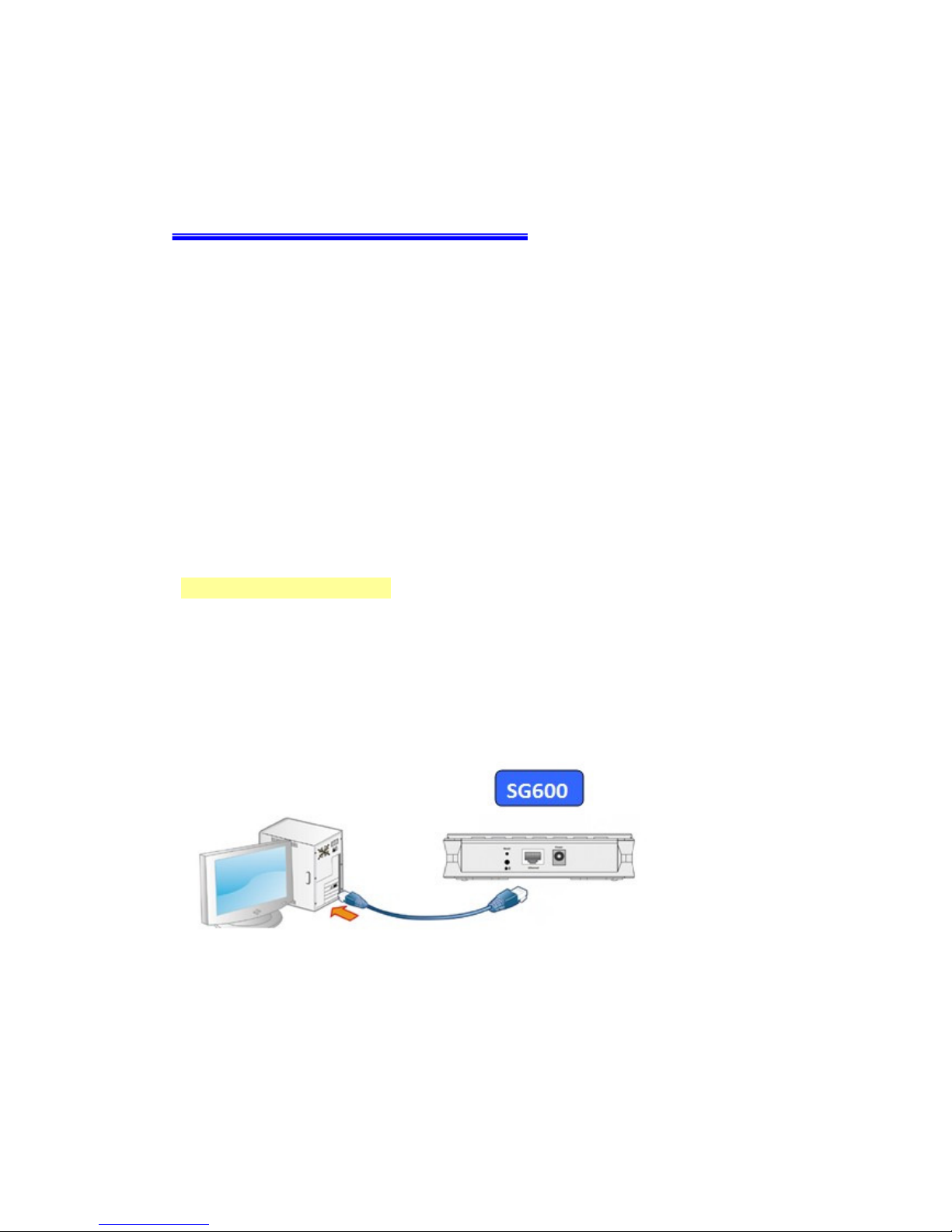

SG600---Internet (Router)---PC

Connect a XDSL router to PC with an Ethernet cable and prepare your SG600

and connect it to the router with the supplied RJ45 Ethernet cable or wireless

client. Make sure the internet connection is workable (please refer to the next

Network Configuration section). You can configure the SG600 and manage the

power status through the web browser. For different internet environments,

please refer to internet setting document.

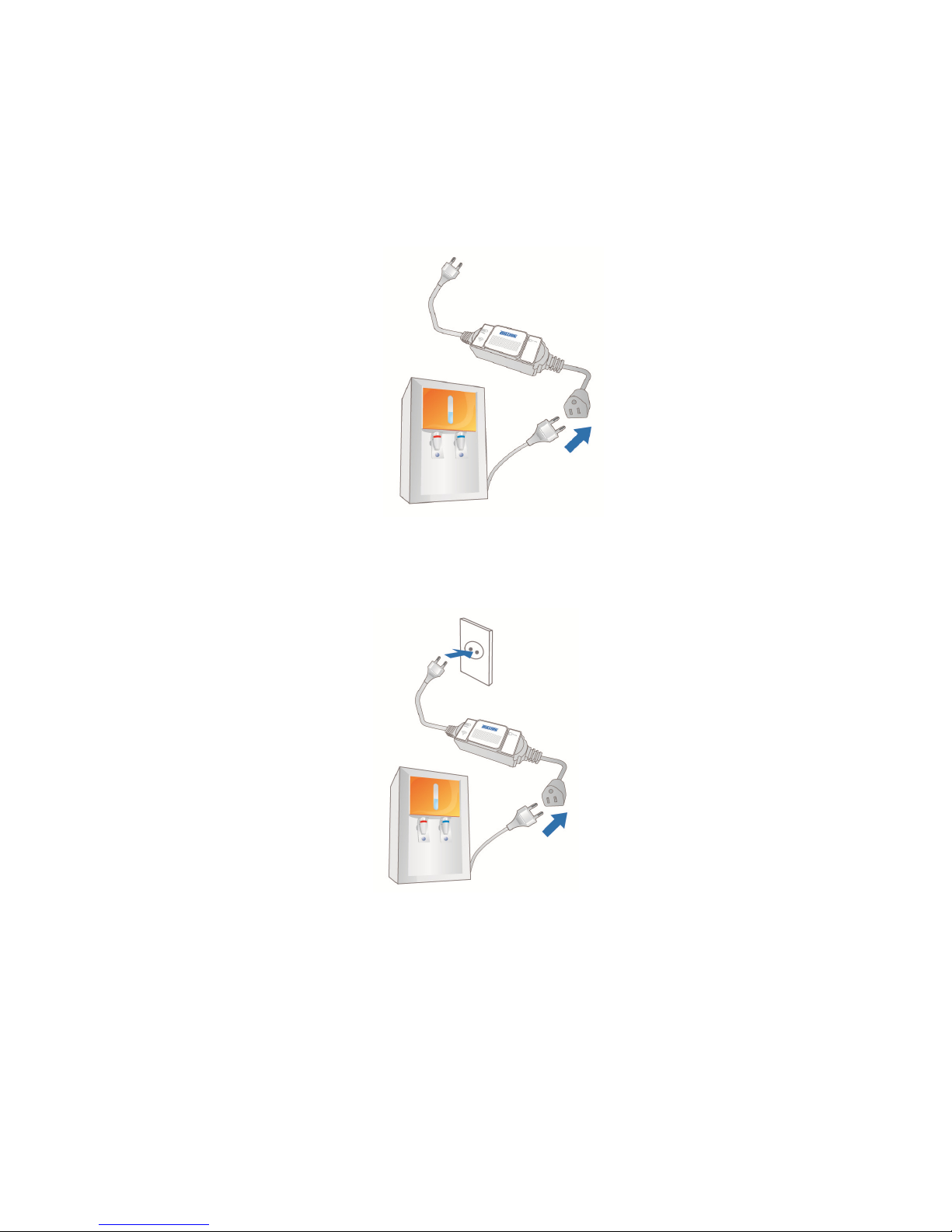

Electric Appliance----Power Meter

Plug in the electric appliance to the power meter or home plug and make sure

the power supply is on. Before managing the power information, you have to

pair the meter with the router. For the connection process, please refer to 2.3.3

for device connection.

9

2.3.2 Network Configuration

The router can be configured through your web browser. A web browser is

included as a standard application in the following operating systems: Linux,

Mac OS, Windows 98/NT/2000/XP/Me/Vista/7, etc. The product provides an

easy and user-friendly interface for configuration. Please check your PC

network components. The TCP/IP protocol stack and Ethernet network

adapter must be installed. If not, please refer to your Windows-related or other

operating system manuals.

There are ways to connect the router, either through an external repeater hub

or connect directly to your PCs. However, make sure that your PCs have an

Ethernet interface installed properly prior to connecting the router device. You

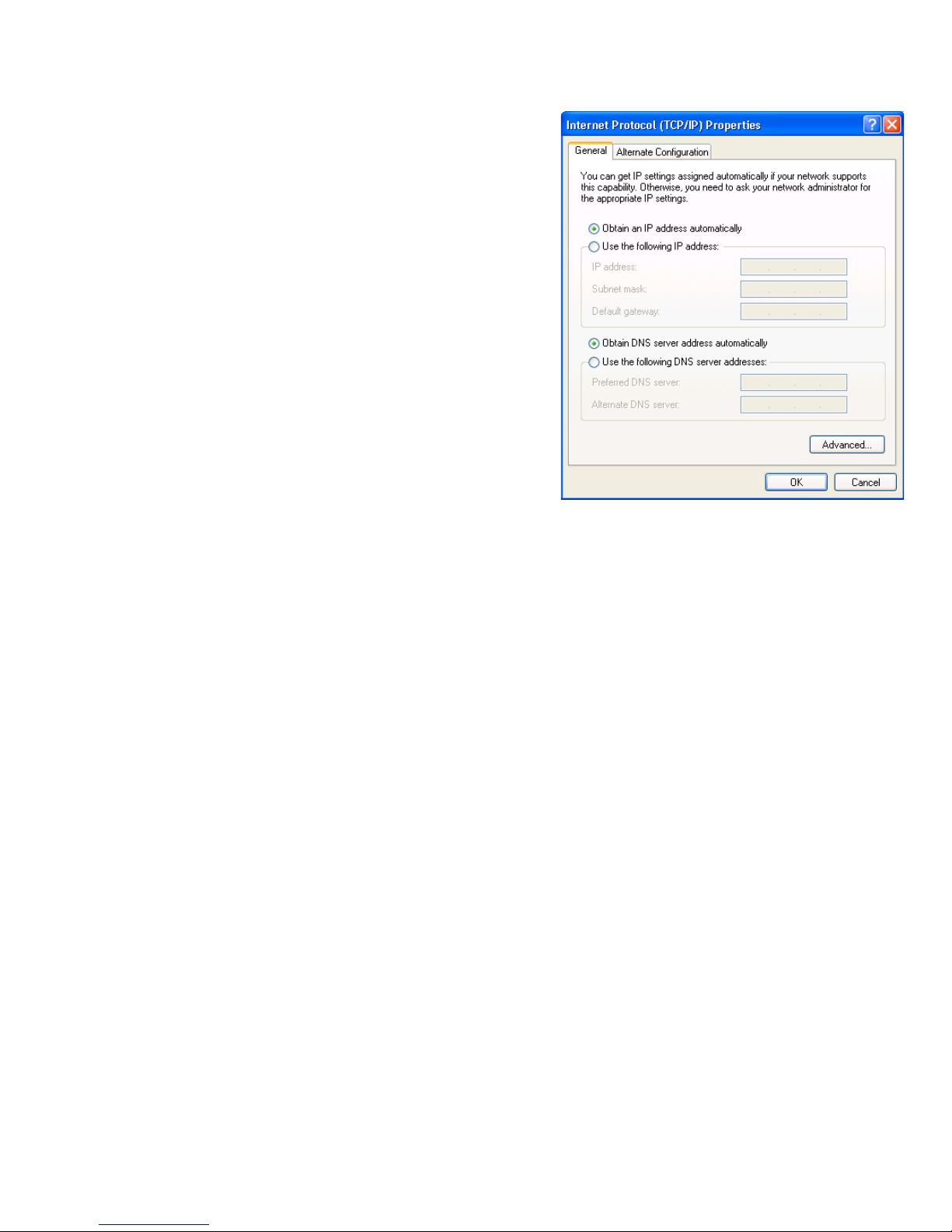

ought to configure your PCs to obtain an IP address through a DHCP server or

a fixed IP address that must be in the same subnet as the router. The default

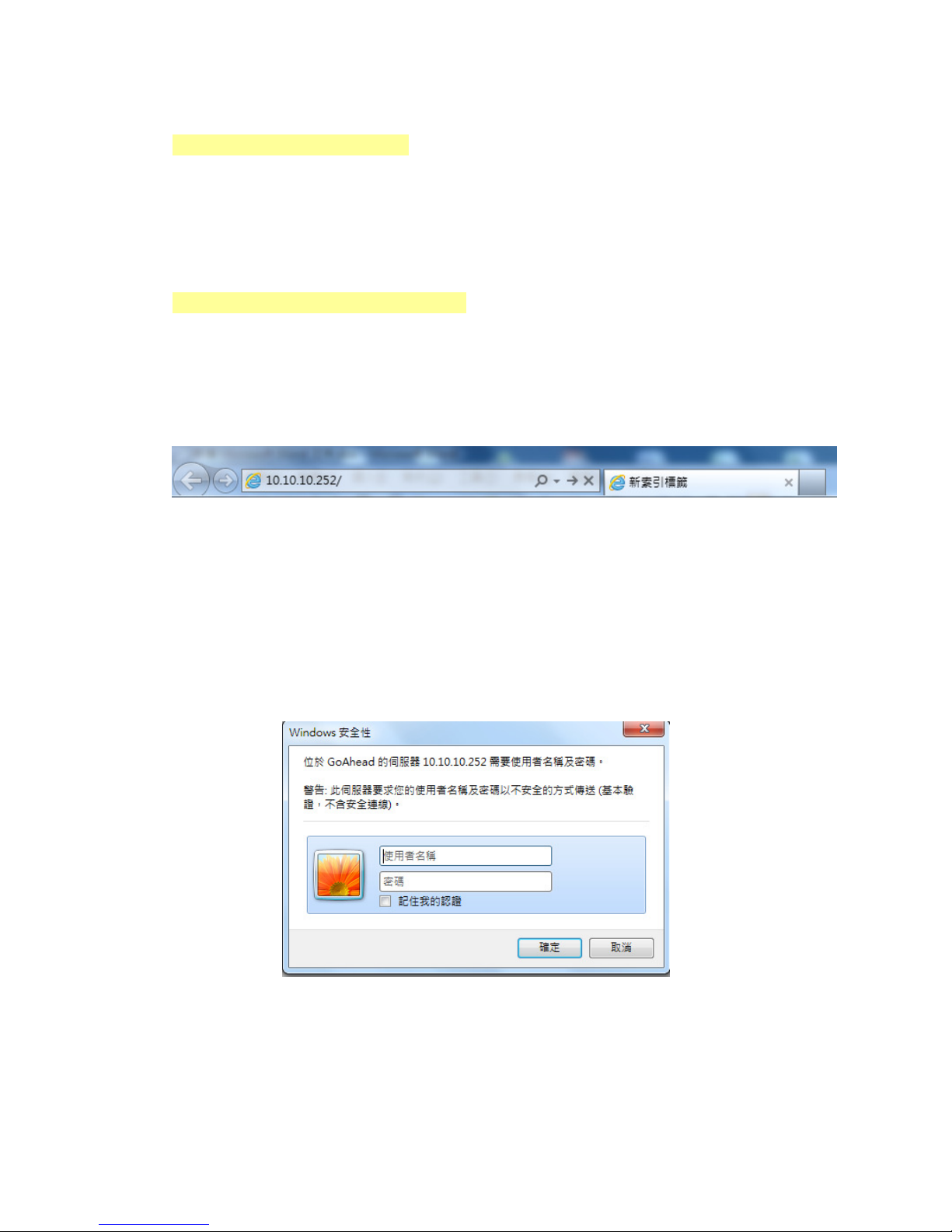

IP address of the router is 10.10.10.252 and the subnet mask is 255.0.0.0 (i.e.

any attached PC must be in the same subnet, and have an IP address in the

range of 10.10.10.1 to 10.10.10.251). If you encounter any problem accessing

the router web interface it is advisable to uninstall your firewall program on

your PCs, as they can cause problems accessing the IP address of the router.

Users should make their own decisions on what is best to protect their network.

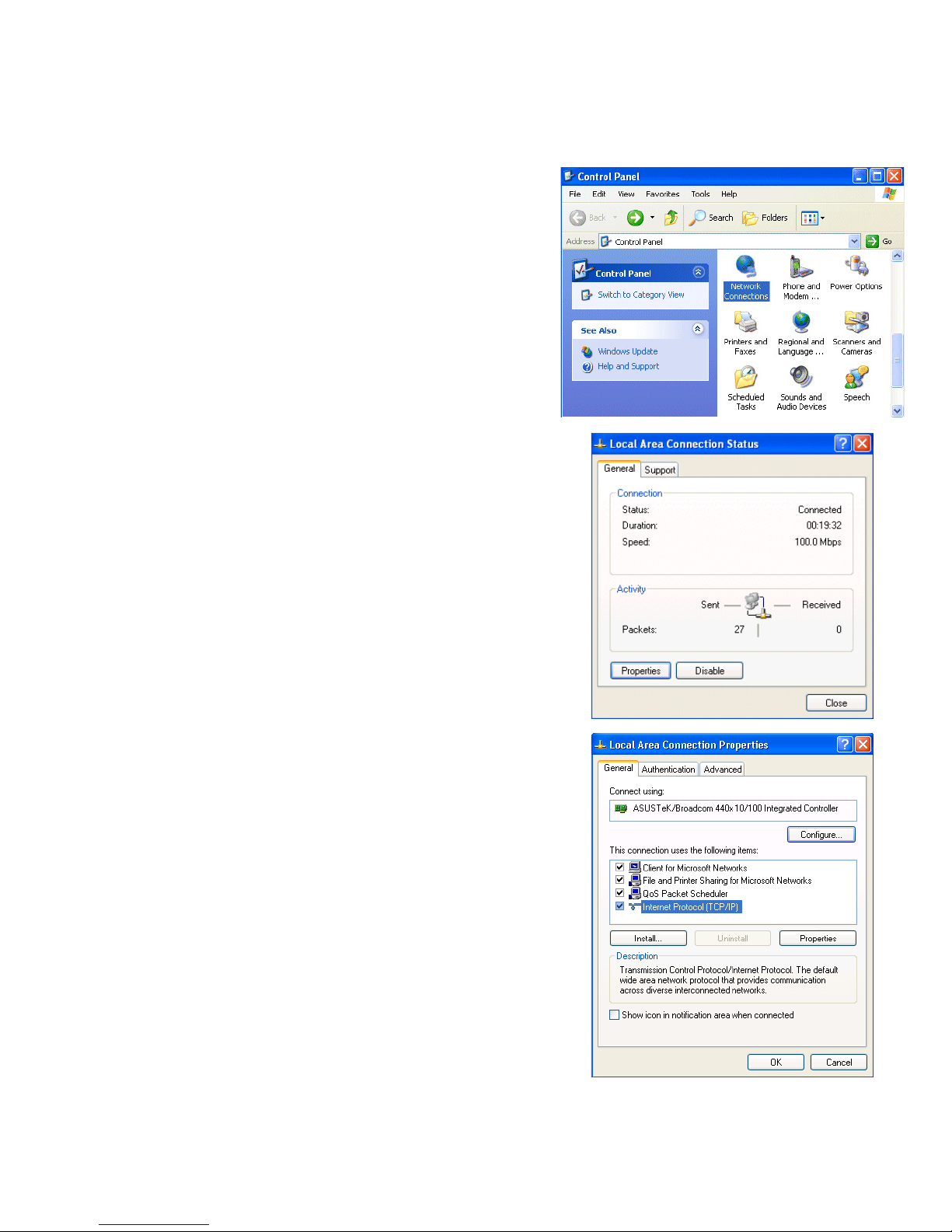

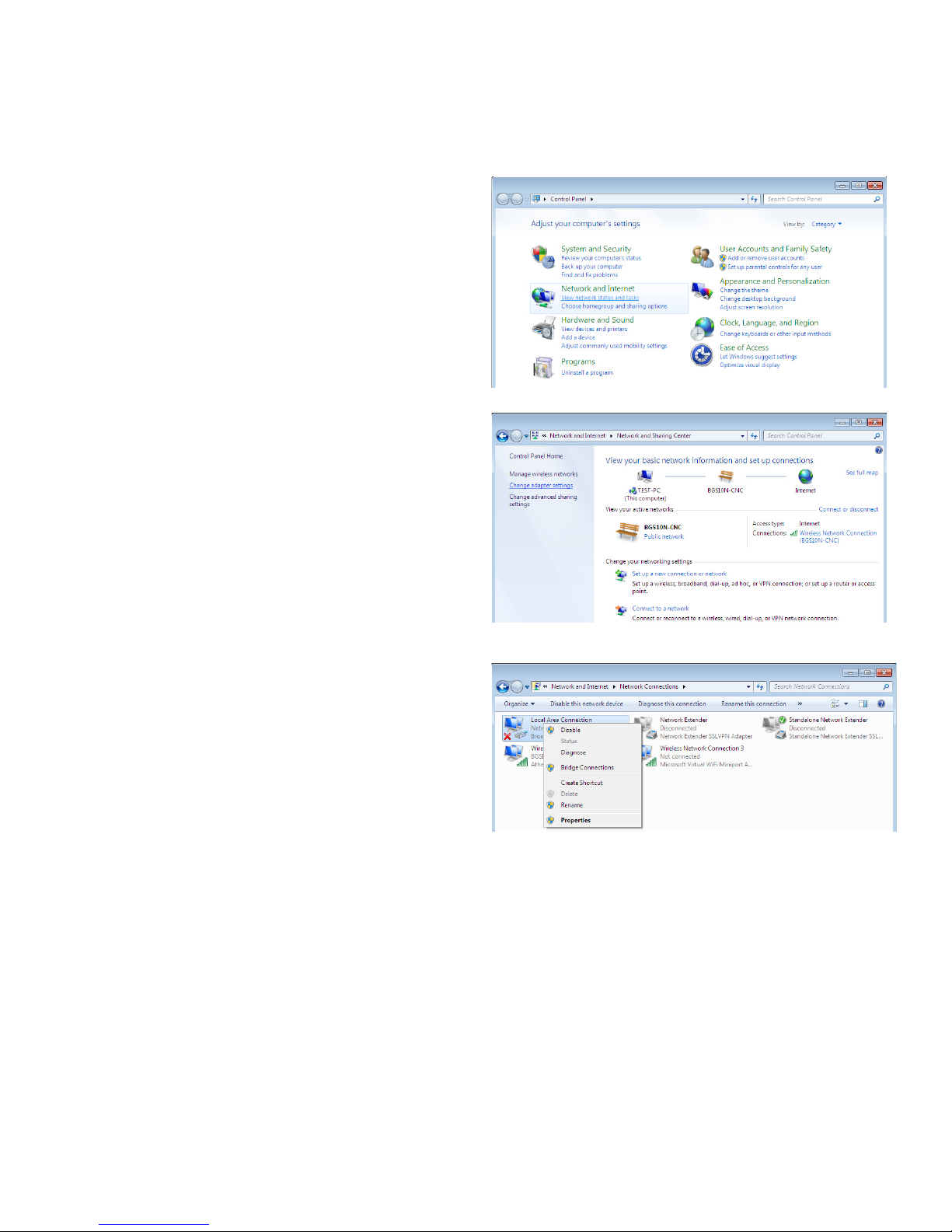

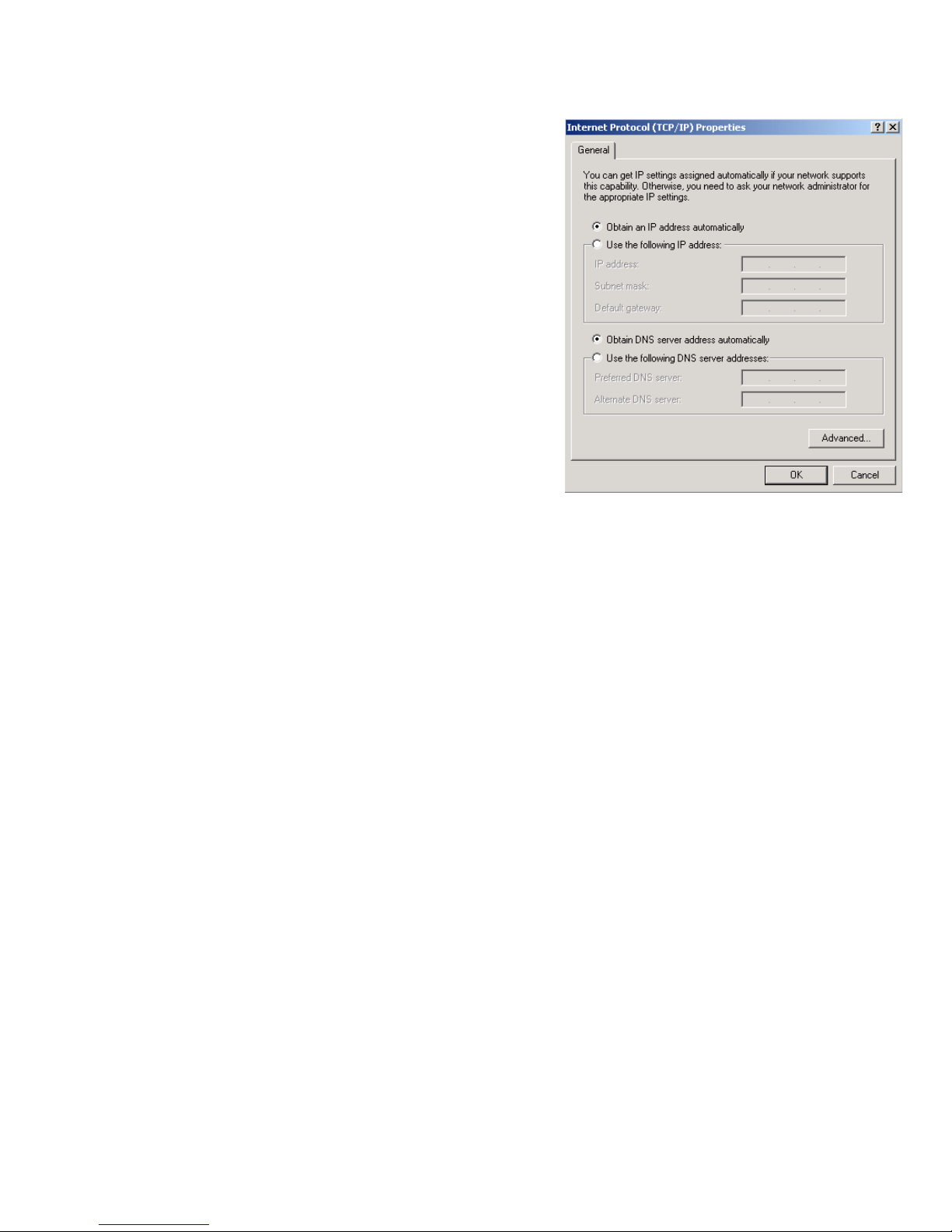

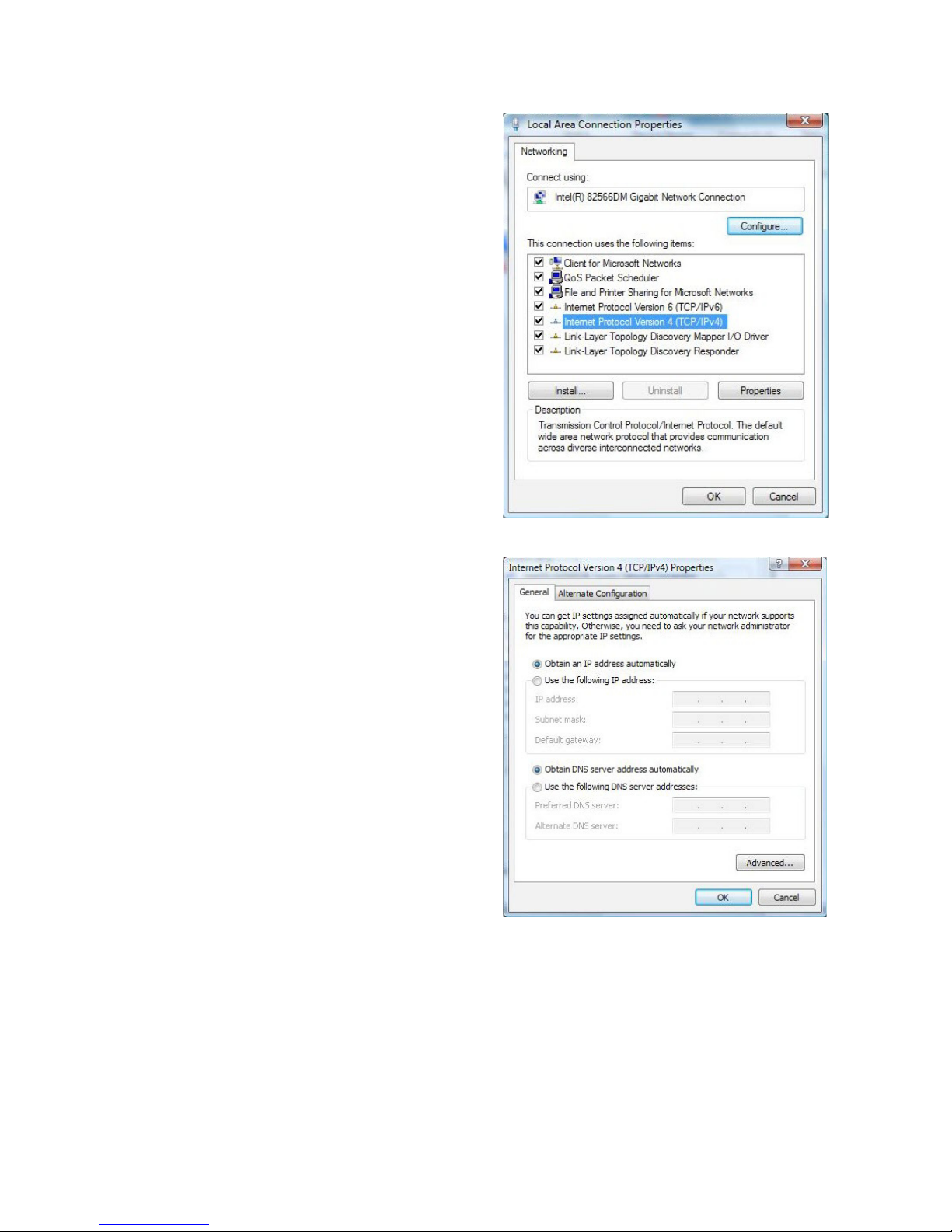

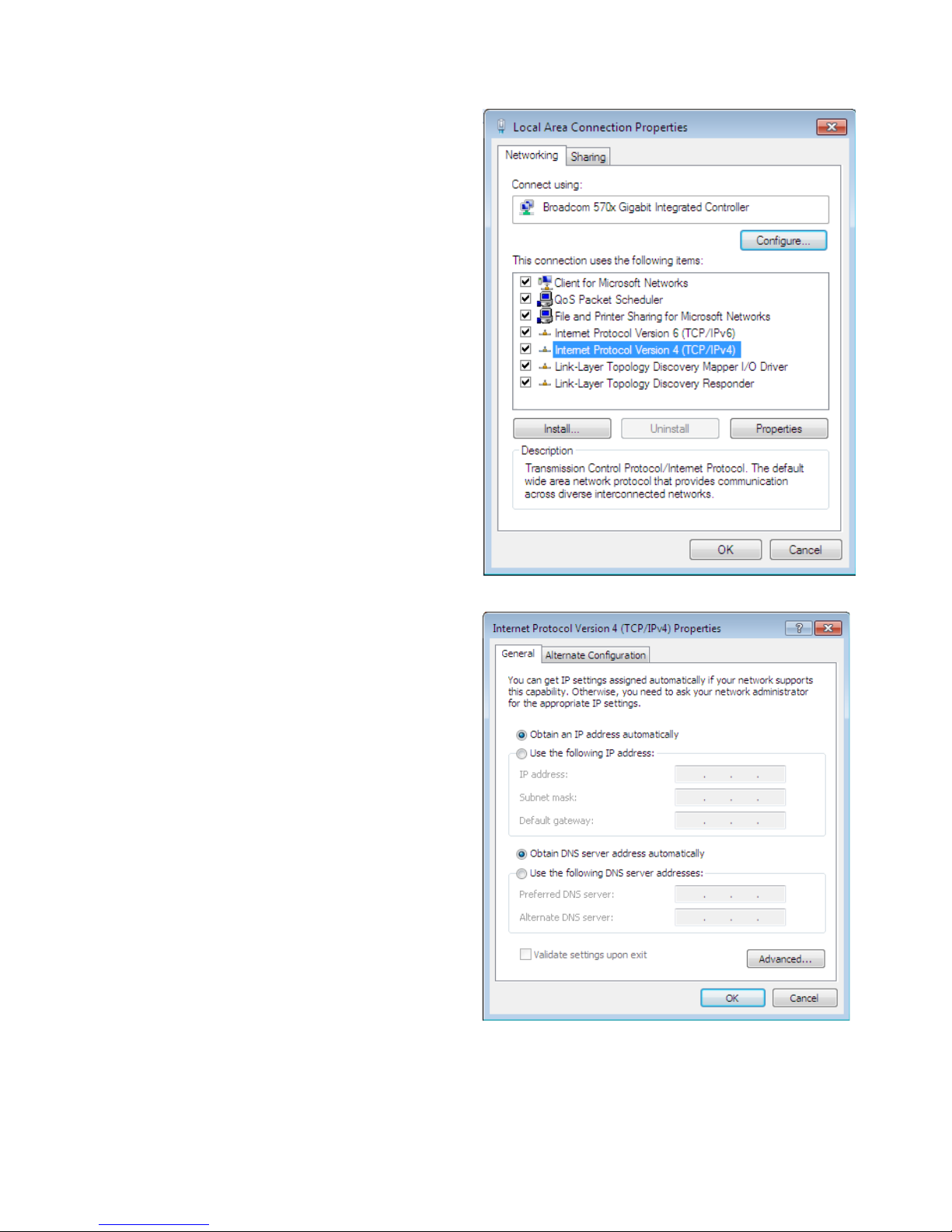

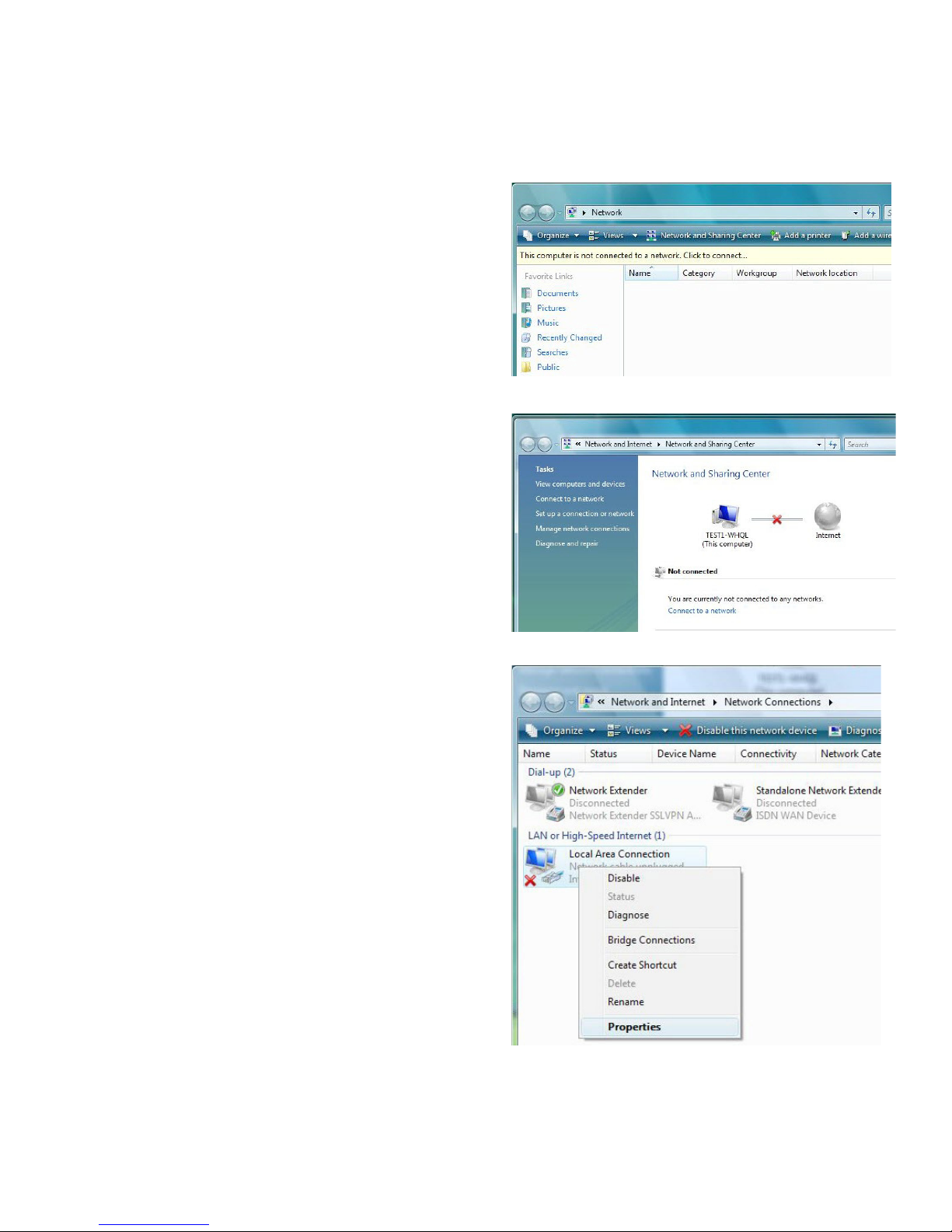

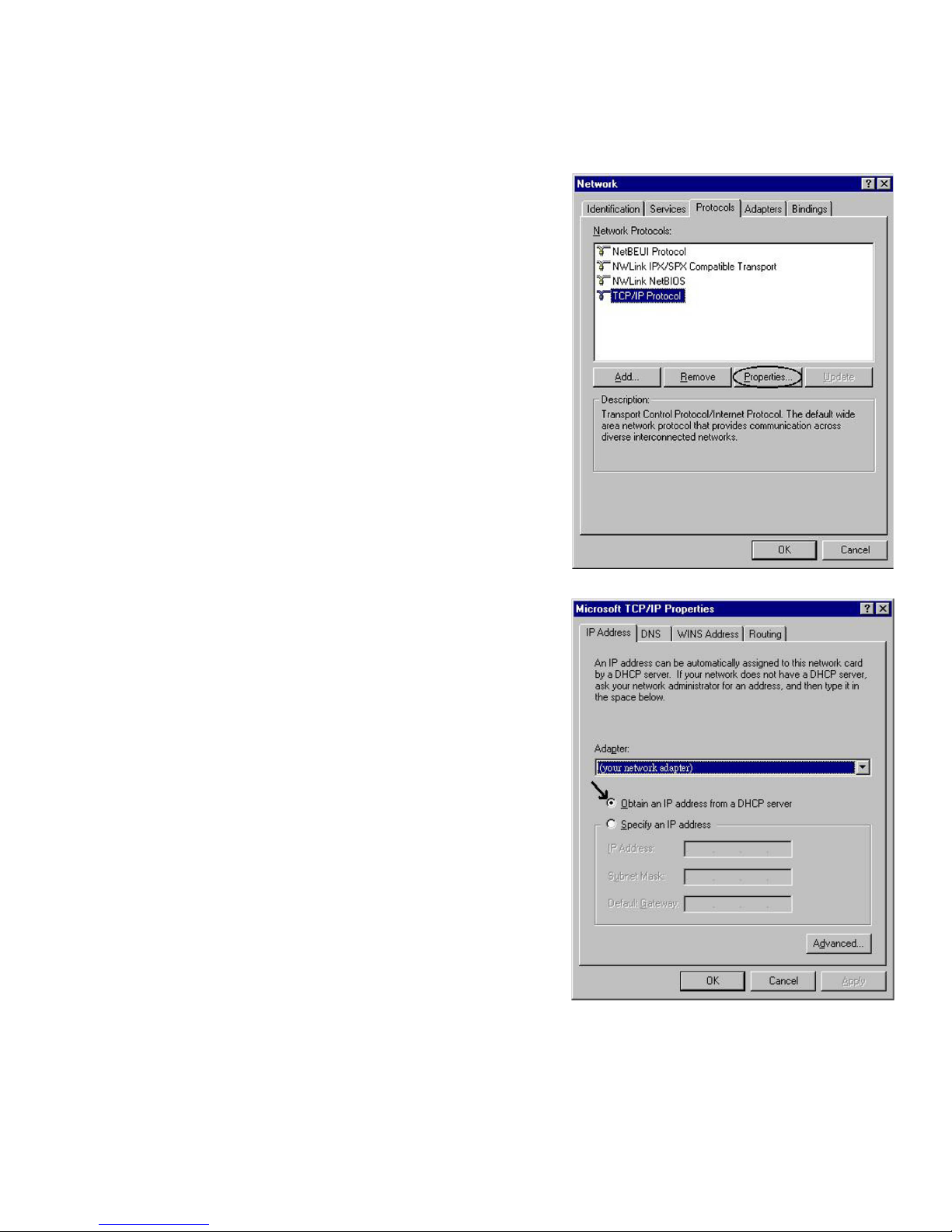

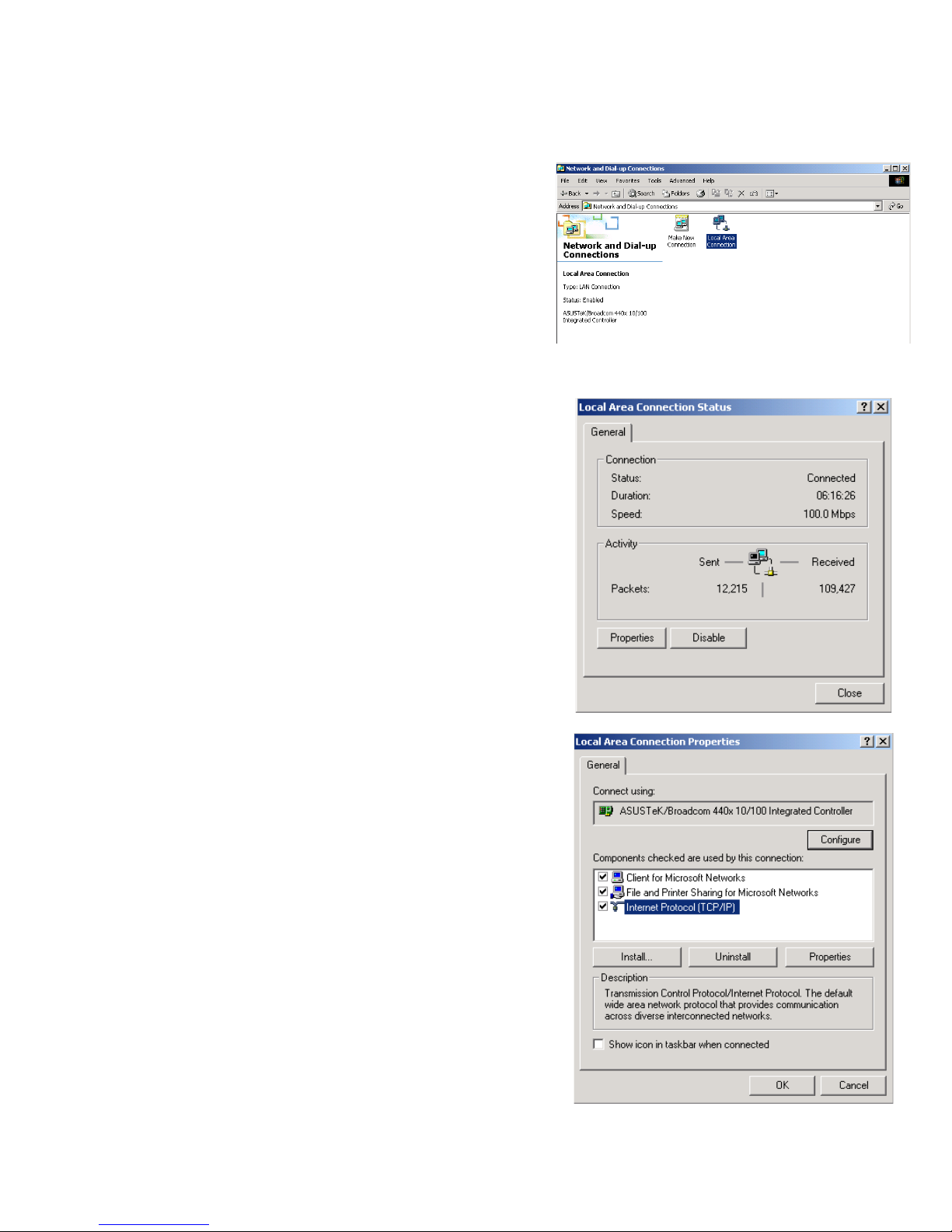

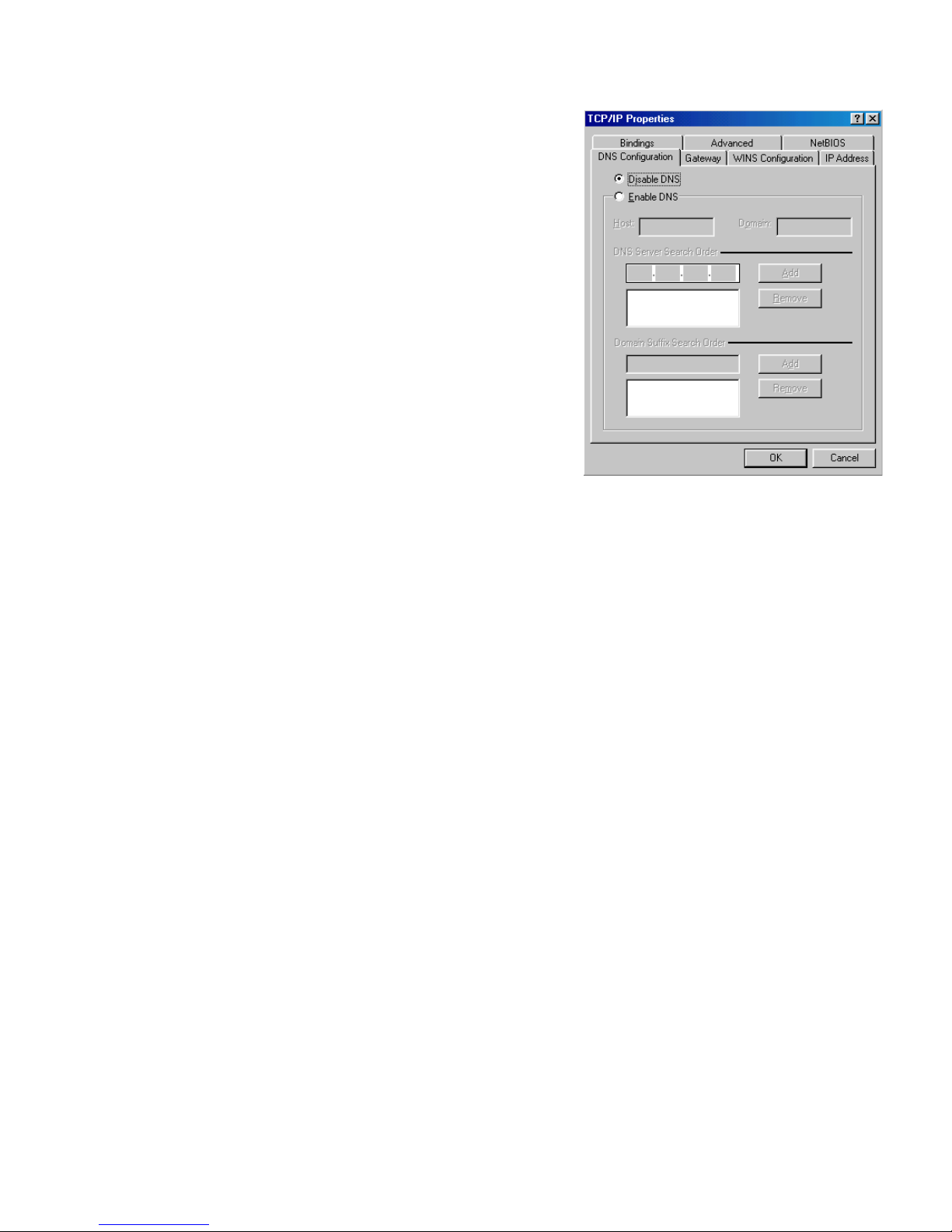

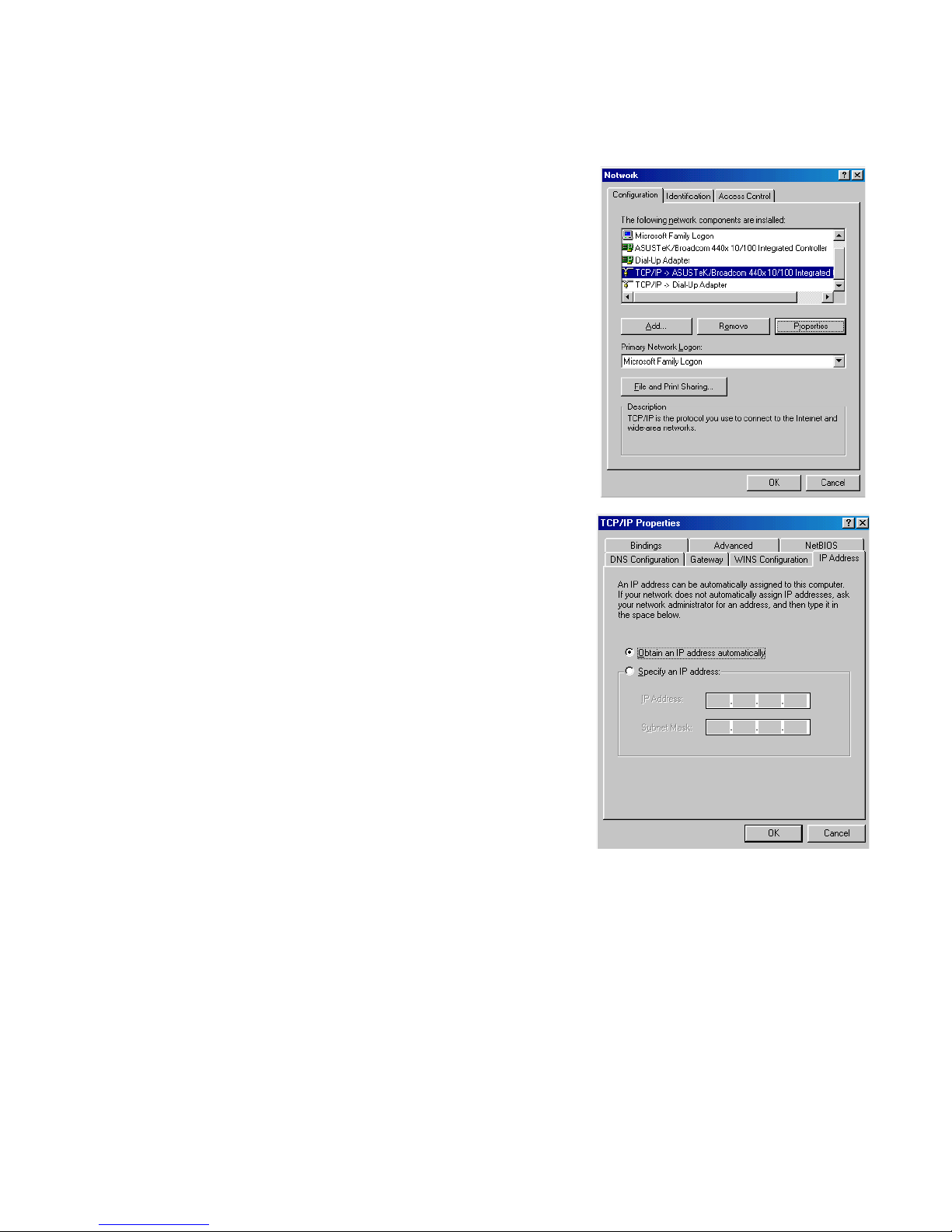

Please follow the following steps to configure your PC network environment.
