BiPAC 9800(N)
(802.11n) Fiber Optical Router
Quick Start Guide
Billion BiPAC 9800(N) (802.11n) Fiber Optical Router
PLEASE READ THE QUICK START GUIDE AND FOLLOW THE
Do not use the
ro
uter
in high humidity or high temperatures.
Avoid using this
product
and all
accessories
outdoors.
Place the router on a stable surface.
STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU
INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE.
IF YOU NEED MORE INFORMATION ON THIS SOFTWARE
CONFIGURATION, PLEASE REFER TO THE USER MANUAL ON
CD-ROM.
Package Contents
BiPAC 9800(N) (802.11n) Fiber Optical Router
CD containing the on-line manual
Ethernet (RJ-45) cable
Three 2dBi detachable antennae (BiPAC 9800N only)
Power adapter
This Quick Start Guide
Do not use the same power source for the router as other
equipment.
Do not open or repair the case yourself. If the router is too hot,
turn off the power immediately and have it repaired at a qualified
service center.
Warning
Only use the power adapter that comes with the package. Using a
different voltage rating power adaptor may damage the router.
Attention
-1-
Quick Start Guide
Connect the
Press more than 1
Connect your computer
When
the
power
is
on it will
be
Lit orange when one of LAN
Lit green when the device is
(BiPAC 9800N only)
transmitted/received.
Power ON/OFF
switch
(BiPAC 9800N only)
(BiPAC 9800N only)
Lit orange when WAN port fails
(BiPAC 9800N only)
Setup
function
*
1
Connect the fiber cable to the WAN port. There
Hardware Overview
The Front LEDs
lit green. When the system is
booting it will blink orange.
When the system is ready it
will be lit green. When system
boot fails or if in emergency
mode, it will be lit orange.
Lit green when a wireless
connection is established.
Flash green when data is
connected to a broadband
connection device.
Blinking when data is
transmitted/received.
ports is connected to an
Ethernet device. Lit green when
the speed of transmission hits
1000Mbps; Lit orange when the
speed of transmission hits
10/100Mbps. Blinking when data
is transmitted/ received.
Flash green when WPS
configuration is in
progress. However, if WPS
fails, the LED will only lit for
1 min before goes off.
The Rear Ports
Single SC Port
Connect the
detachable antenna
second to restore
the device to its
default mode
to a LAN port using the
included Ethernet cable
(with RJ-45 cable)
to get IP address. Lit green
when WAN port gets IP address
successfully. Lit off when the
device is in bridge mode or
supplied power
adapter to this jack
are 2 options for single SC interface:
100Base-BX and 1000Base-BX, and they do not
coexist. Please refer to the figures shown
below. *2
Push WPS button to
trigger Wi-Fi Protected
-2-
Billion BiPAC 9800(N) (802.11n) Fiber Optical Router
Connect the fiber cable to the WAN port. There are 3 options for
• 100BASE-BX: A single strand of optical fiber. Single-mode fiber is used. It
supports SC connector.
• 1000BASE-BX: A single strand of optical fiber. Single-mode fiber is used. It
supports SC connector.
Dual SC Ports
Dual fiber WAN interface is separated into single-mode and multi-mode.
dual SC interface: 100Base-LX/ SMF, 1000Base-LX/SMF and
100Base-FX/MMF, and they do not coexist. Please refer to the
figures shown below. *2
•100BASE-LX/SMF: Two strands of optical fiber, one for receive (RX) and the
other for transmit (TX). Single-mode fiber is used. It supports SC connector.
•1000BASE-LX/SMF: Two strands of optical fiber, one for receive (RX) and
the other for transmit (TX). Single-mode fiber is used. It supports SC
connector.
•100BASE-FX/MMF: Two strands of optical fiber, one for receive (RX) and
the other for transmit (TX). Multi-mode fiber is used. It supports SC connector.
-3-
Quick Start Guide
Install the Mini
-
GBIC module into the SFP cage.
Connect the
Note that apply 100Base
SFP
module into
the
device
SFP Port
fiber cable to the fiber port of Mini-GBIC module. We offer 2
types of SFP interfaces: 100Base-SFP and 1000Base-SFP, and
they do not coexist. Please refer to the figure shown below. *2
A cage for SFP (Small Form-Factor Pluggable) transceiver- 100BASE or
1000BASE optical convector.
with 100Base-SFP WAN interface. Similarly, ensure that
apply 1000Base SFP module into the device with
1000Base-SFP WAN interface. Please find the exact
WAN interface on the label of outer box or on the
Attention
bottom of device for the specification of your router.
* Note 1: For WPS configuration, please refer to the WPS section of User Manual.
* Note 2: Please refer to the instructions on the label of the outer box or on the bottom of the
device to get the specification of your router
-4-
Billion BiPAC 9800(N) (802.11n) Fiber Optical Router
other side to the router.

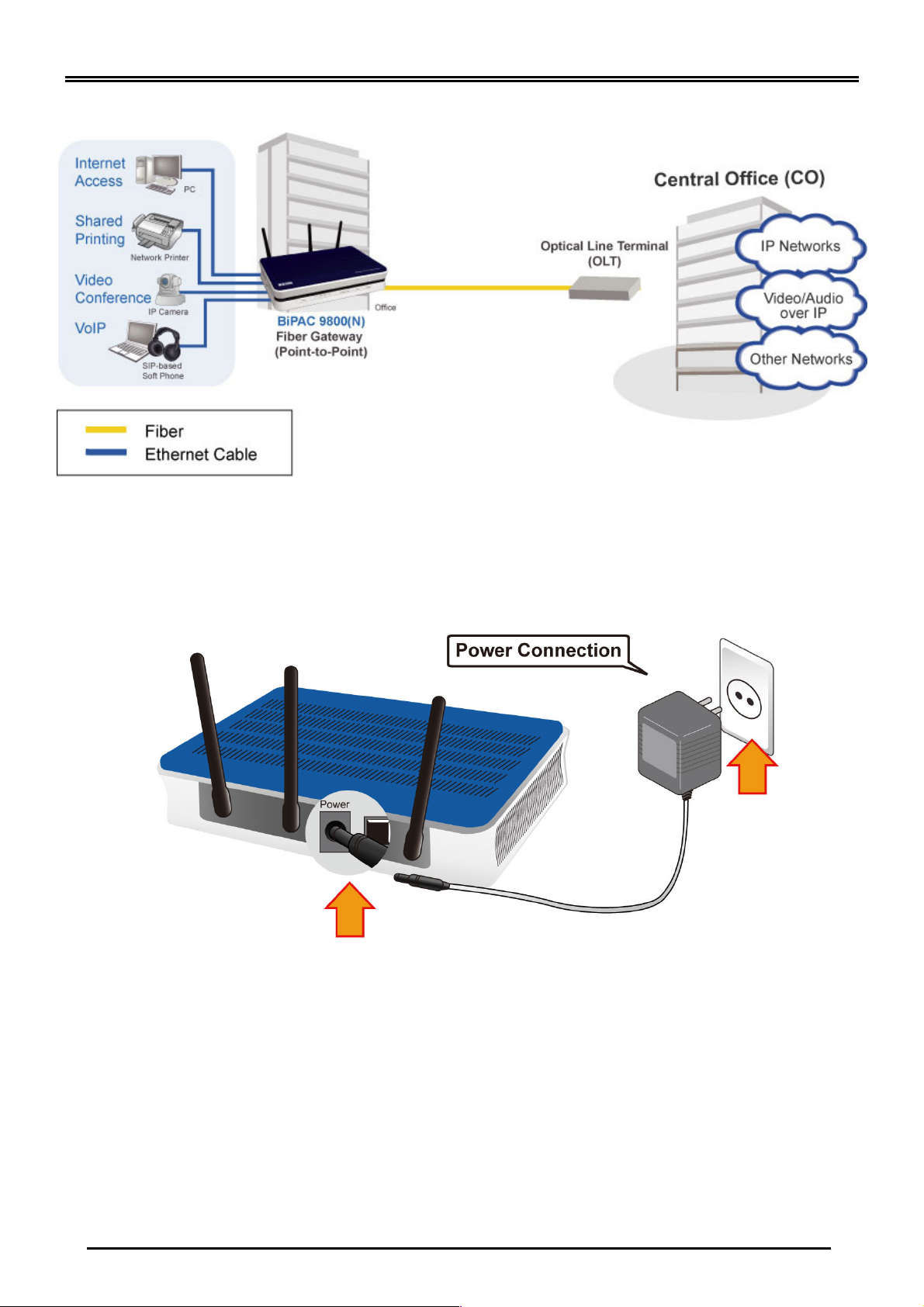

Hardware Connection
Hardware Installation
1. Power Connection
Plug the supplied power adapter into the wall jack and the
Please note that the plug type may differ according to country.
-5-
Quick Start Guide
The type of fiber interface varies from device models
2. LAN Connection
Connect the supplied RJ-45 Ethernet cable to one of the Giga Ethernet ports, and
the other side to the PC’s Ethernet interface.
3. Fiber Connection
Please follow the illustrations below to connect the fiber cable or module and the
router.
provided by your ISP. Please find the exact WAN
interface on the label of outer box, or label of the
Attention
bottom of device for the specification of your device.
And follow the instructions of hardware installation
corresponded to the device specification.
Please do not look steadily at the fiber port when
you connect the fiber, because the invisible light
Warning
may harm your vision.
a) BX
Insert the single fiber cable into the BX jack of the router.
-6-
Billion BiPAC 9800(N) (802.11n) Fiber Optical Router
b) LX/ FX
Insert the dual fiber cable into the TX and RX jacks separately of the router.
c) SFP
Set the Mini-GBIC module in the SFP port of your device, and then connect the
fiber cable to the module.
Connecting to the Router
1. Open the web browser and type http://192.168.1.254 in the browser's address box. This
number is the default IP address for this router. Press Enter.
2. A username and password window will appear. The default username and password are
admin and admin. Press OK to proceed.
3. You will get a status report web page and main menu screen.
Please see the relevant sections of user manual for detailed instructions on how to configure
your router.
-7-
Quick Start Guide
BiPAC 9800(N)
: V1.00EN
Troubleshooting
1. None of the LEDs lit when the router is turned on.
Examine the connection between the router and the adapter. If the problem persists, most
likely it is due to the malfunction of your hardware. Please contact your service provider or
Billion for technical support.
2. You have forgotten your login username and/or password.
Try the default username & password (please refer to User Manual). If this fails, restore your
router to its default setting by pressing the reset button for 1~2 seconds.
3. Cannot PING any PC on LAN.
Examine the Ethernet LEDs on the front panel. The LED should be on for the port that has a
PC connected. If it does not light, check to see whether the cable between your router and
the PC is properly connected. Make sure you have first uninstalled your firewall program
before troubleshooting.
4. Fail to make fiber connection.
Ensure the fiber cable or the mini-GBIC module has been connected correctly and the fiber
cable has not become damaged or bent. Ensure that you apply right fiber cable(s) into right
port(s) and right SFP module into right device as well. If the problem persists, Please contact
your service provider or Billion for technical support.
Product Support and Contact Information
Most problems can be solved by referring to the Troubleshooting section in the User Manual. If
you cannot resolve the problem with the Troubleshooting chapter, please contact the dealer
where you purchased this product.
Contact Billion
WORLDWIDE
http://www.billion.com
Billion Product Registration
Billion is committed to before and after sales customer services. You will get the most out of your Billion's products
after registration. Please register online at http://www.billion.com/register to receive valuable services and support
from us.
