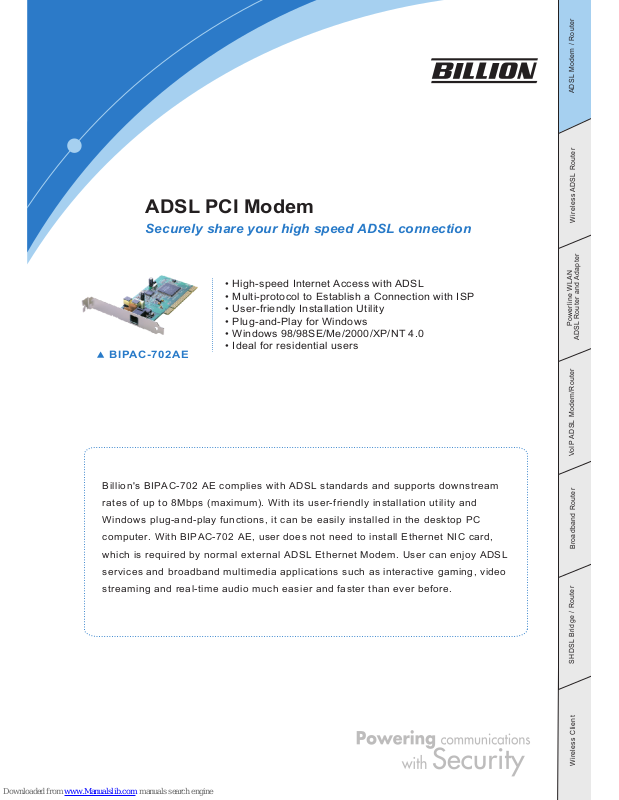

Page 1
BIPAC-702AE
Billion BIPAC-7560
Powerline WLAN
ADSL Router and Adapter
VoIP ADSL Modem/Router
Broadband Router
SHDSL Bridge / Router
Wireless ADSL Router
Wireless Client
Billion's BIPAC-702 AE complies with ADSL standards and supports downstream
rates of up to 8Mbps (maximum). With its user-friendly installation utility and
Windows plug-and-play functions, it can be easily installed in the desktop PC
computer. With BIPAC-702 AE, user does not need to install Ethernet NIC card,
which is required by normal external ADSL Ethernet Modem. User can enjoy ADSL
services and broadband multimedia applications such as interactive gaming, video
streaming and real-time audio much easier and faster than ever before.
ADSL PCI Modem
Securely share your high speed ADSL connection
• High-speed Internet Access with ADSL
• Multi-protocol to Establish a Connection with ISP
• User-friendly Installation Utility
• Plug-and-Play for Windows
• Windows 98/98SE/Me/2000/XP/NT 4.0
• Ideal for residential users
ADSL Modem / Router
Page 2
Feature & Specification
Billion Electric Co., Ltd.
8F, No.192, Sec.2, Chung Hsing Road,
Hsin Tien City, Taipei Hsien, Taiwan
TEL : +886-2-2914-5665
FAX : +866-2-2918-6731,+886-2-2918-2895
E-mail : [email protected]
www.billion.com
Specifications are subject to change without notice.
Features
•
Support Full-rate Annex A, Annex B and U-R2
standard
•
Compliant with ANSI T1.413 Issue 2, ITU-T
G.992.1 (G.dmt), G.992.2 (G.Lite) and
G.994.1 (G.hs)
•
Downstream data rate up to 8Mbps, upstream up
to 1Mbps
•
Interoperable with major CO DSLAM equipment
vendors
•
Support OAM F4/F5 loopback
•
Support multiple data encapsulation format,
including PPPoE, PPPoA, IPoA, and RFC1483
bridged or routed
•
Compliant with 32-bit PCI interface
•
Supports NDIS interface for RAS and Dial-Up
Networking
•
Easy GUI program for configuration and
management
•
Software upgradable
Hardware Specification
Physical Interface
•
WAN: ADSL port
Physical Specification
•
Dimensions: 4.72” *4.72” *0.83”
(120mm *120mm *21mm)
OS Support
•
Windows 98/98SE/Me/2000/XP/NT4.0
Operating Environment
•
Operating temperature: 0 ~ 45 ºC
•
Storage temperature: -20 ~ 70 ºC
•
Humidity: 20 ~ 95% non-condensing
