BIPAC-7025
Billion BIPAC-7560
Powerline WLAN
ADSL Router and Adapter
VoIP ADSL Modem/Router
Broadband Router
SHDSL Bridge / Router
Wireless ADSL Router
Wireless Client

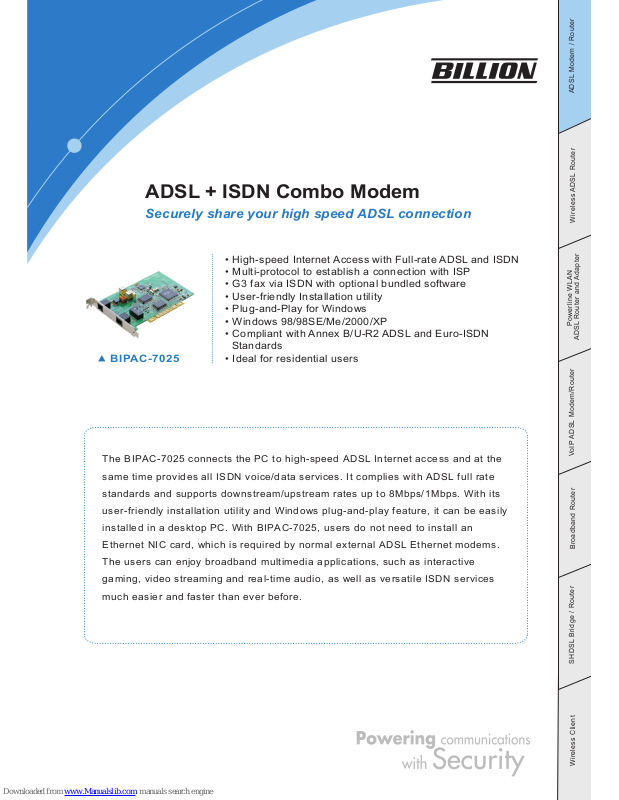

The BIPAC-7025 connects the PC to high-speed ADSL Internet access and at the
same time provides all ISDN voice/data services. It complies with ADSL full rate
standards and supports downstream/upstream rates up to 8Mbps/1Mbps. With its
user-friendly installation utility and Windows plug-and-play feature, it can be easily
installed in a desktop PC. With BIPAC-7025, users do not need to install an
Ethernet NIC card, which is required by normal external ADSL Ethernet modems.
The users can enjoy broadband multimedia applications, such as interactive
gaming, video streaming and real-time audio, as well as versatile ISDN services
much easier and faster than ever before.
ADSL + ISDN Combo Modem
Securely share your high speed ADSL connection
• High-speed Internet Access with Full-rate ADSL and ISDN
• Multi-protocol to establish a connection with ISP
• G3 fax via ISDN with optional bundled software
• User-friendly Installation utility
• Plug-and-Play for Windows
• Windows 98/98SE/Me/2000/XP
• Compliant with Annex B/U-R2 ADSL and Euro-ISDN
Standards
• Ideal for residential users
ADSL Modem / Router
Page 2
Feature & Specification
Billion Electric Co., Ltd.
8F, No.192, Sec.2, Chung Hsing Road,
Hsin Tien City, Taipei Hsien, Taiwan
TEL : +886-2-2914-5665
FAX : +866-2-2918-6731,+886-2-2918-2895
E-mail : [email protected]
www.billion.com
ADSL
•
Support Full-rate Annex B and U-R2 standard
•
Downstream data rate up to 8Mbps, upstream up
to 1Mbps
•
Support OAM F4/F5 loopback
•
Support multiple data encapsulation format,
including PPPoE,PPPoA, IPoA, and RFC1483
bridged or routed
•
Supports NDIS interface for RAS and Dial-Up
Networking
•
Easy GUI program for configuration and
management
Hardware Specification
Physical Interface
•
WAN: ADSL and ISN ports
Physical Specification
•
Dimensions: 65”x4.72”x0.83”
(165mmx120mmx21mm)
ISDN
•
Compliant with Euro-ISDN (TBR3) standard
•
Internet access up to 128Kbps with Multilink PPP
•
Support both CAPI 2.0 and NDIS WAN miniport
drivers
•
Support G3 fax, answering machine and file
transfer via ISDN with bundled software (optional)
•
Easy GUI program for configuration and
management
OS Support
•
Windows 98/98SE/Me/2000/XP
Operating Environment
•
Operating temperature: 0 ~ 45 ºC
•
Storage temperature: -20 ~ 70 ºC
•
Humidity: 20 ~ 95% non-condensing
Specifications are subject to change without notice.
