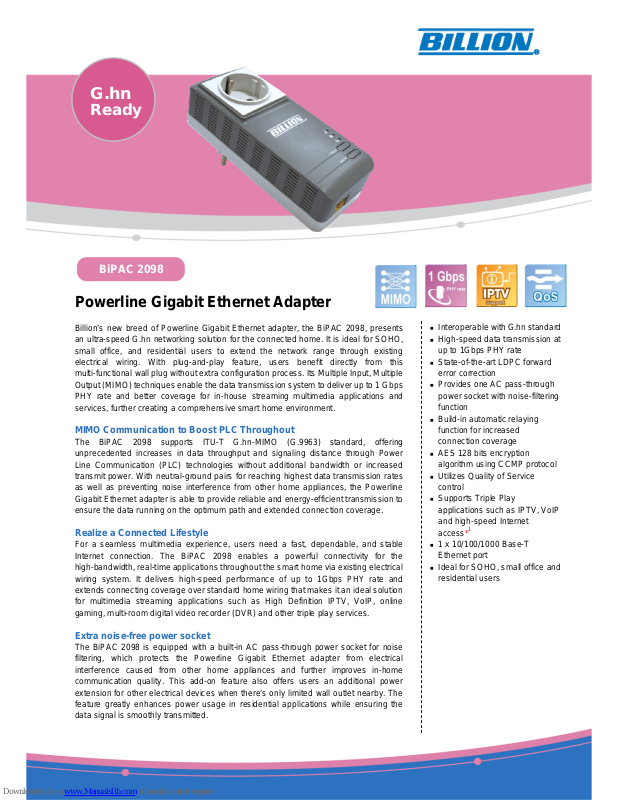

Billion BiPAC 2098 Specifications

 Interoperable with G .hn standard
 High-speed data transmission at

up to 1Gbps PHY rate

 State-of-the-art LDPC forward

error correction

 Provides one AC pass-through

power socket with noise-filtering
function

 Build-in automatic relaying

function for increased
connection coverage

 AES 128 bits encryption

algorithm using CCMP protocol

 Utilizes Quality of Service

control

 Supports Triple Play

applications such as IPTV, VoIP
and high-speed Internet
access*

1

 1 x 10/100/1000 Base-T

Ethernet port

 Ideal for SOHO, small office and

residential users

BiPAC 2098

Powerline Gigabit Ethernet Adapte

r

Billion’s new breed of Powerline Gigabit Ethernet adapter, the BiPAC 209 8, presents
an ultra-speed G.hn networking solution for the connected home. It is ideal for SOHO,
small office, and residential users to extend the network range through existing
electrical wiring. With plug-and-play feature, users benefit directly from this
multi-functional wall plug without extra configuration process. Its Multiple Input, Multiple
Output (MIMO) techniques enable the data transmission system to deliver up to 1 Gbps
PHY rate and better coverage for in-house streaming multimedia applications and
services, further creating a comprehensive smart home environment.

MIMO Communication to Boost PLC Throughout

The BiPAC 2098 supports ITU-T G.hn-MIMO (G.9963) standard, offering
unprecedented increases in data throughput and signaling distance through Power
Line Communication (PLC) technologies without additional bandwidth or increased
transmit power. With neutral-ground pairs for reaching highest data transmission rates
as well as preventing noise interference from other home appliances, the Po werline
Gigabit Ethernet adapter is able to provide reliable and energy-efficient transmission t o
ensure the data running on the optimum path and extended connection coverage.

Realize a Connected Lifestyle

For a seamless multimedia experience, users need a fast, dependable, and stable
Internet connection. The BiPAC 2098 enables a powerful connectivity for the
high-bandwidth, real-time applications throughout the smart home via existing electrical
wiring system. It delivers high-speed performance of up to 1Gbps PHY rate and
extends connecting coverage over standard home wiring that makes it an ideal solution
for multimedia streaming applications such as High Definition IPTV, VoIP, online
gaming, multi-room digital video recorder (DVR) and other triple play services.

Extra noise-free power socket

The BiPAC 2098 is equipped with a built-in AC pass-through power socket for noise
filtering, which protects the Powerline Gigabit Ethernet adapter from electrical
interference caused from other home appliances and further improves in-home
communication quality. This add-on feature also offers users an additional power
extension for other electrical devices when there’s only limi ted wall outlet nearby. The
feature greatly enhances power usage in residential applications while ensur ing the
data signal is smoothly transmitted.

G.hn

Ready

Features & Specifications

Billion Electric Co., Ltd.

8F., No.192, Sec. 2, Zhongxing Road,
Xindian Dist., New Taipei City, 23146, Taiwan

TEL: [phone]
FAX: [phone]

E-mail: [e-mail]

Application Diagram

www.billion.com

*Notes:

1. IPTV application may require subscribing to IPTV services from a Telco/ISP.

2. Future release

3. Specifications in this datasheet are subject to change w i thout pri or notice

V10112013-Global
Copyright © Billion Electric Co., Ltd. All rights reserved.

Communication Performance

 G.hn Physical speed Up to 1Gbps
 Gigabit Ethernet
 OFDM for minimizing data latency
 MIMO implementation for powerline (based on ITU

G.9963) boosting PLC throughput

 Robust Communication Mode (RCM) supported for high

noise environments

Reliability and Robustness

 LDPC FEC and enhanced ACK-based selective for best

selective retransmission scheme

 Synchronization with the AC cycle for PLC medium
 Auto-mesh networking and smart route to increase the

coverage and network resilience

Power Consumption

 Device standby mode lower than 0.5W
 Integrated power saving mode

Security and Traffic Handling

 AES 128 bits encryption algorithm
 Packet inspection for sniffing multicast traffic detection
 One Button User Security procedure to easily pair devices

and active end-to-end encryption using push buttons

Quality of Service

 Prioritized QoS with 8 priority levels
 Bandwidth management and reservation
 Support Data TSpec (Traffic Specification) Priority setup

Dual TCP/IP Stacks Enabling

 Embedded IPV4/IPV6
 TR-069 client for remote management
 Web server for configuration management
 Support DHCP, DNS, NTP, FTP clients

Easy Device Setup

 PnP (Plug and Play) Installation
 Multi-Color LED coverage indication
 Embedded noise-filtered power socket

Others Feature

 NDIM (Neighbor Domain Interference Mitigation) function

for Multi-Dwelling Unit signal interference

 Dynamic PSD (Power Spectrum Density) control
 Coexistence with IEEE 1901 Powerline networks
 Power Mask and Notch embedded
 Supports IGMP snooping and MLD support for IPTV

multicasting
