Billion BiPAC 2073 R2, BiPAC 2074 R2 User Manual
BiPAC 2073 R2
HomePlug AV 200 Ethernet Adapter
BiPAC 2074 R2
HomePlug AV 200 Ethernet Bridge with
AC Pass-Through
User Manual
Firmware Version 4.0.1
Last revised on Mar 2010
Safety Warnings
1. Do not use the adapter in high humidity or high temperature environment.
2. Do not open or repair the case yourself.
3. Avoid using this product and all its accesories outdoor.
4. Place the adapter on a stable surface.
5. Only “HomePlug AV” compliant Powerline Communication (PLC) adapter for remote access is
necessary.
6. Plug your BiPAC HomePlug AV device directly to the AC outlet on the wall. It is best to avoid
using extension power cable as it may possess noise lter or surge protector functions that may
cause interference that may impact the performance of the device.
7. Use only IT products (eg. fax machine, router) that are below 6Amp for the built-in AC outlet of
BiPAC 2074 R2.
Table of Contents
Chapter 1: Product ............................................................................ 1
Introduction .................................................................................1
Features ...................................................................................... 2
Chapter 2: Installing the Router ....................................................... 3
Package Contents ....................................................................... 3
BiPAC 2073 R2 ...................................................................................3
BiPAC 2074 R2 ...................................................................................3
Important note for using this adapter .........................................................4
Device Overview ........................................................................................5
Hardware Installation (For separated plug clip type only) .......................... 7
Connecting the HomePlug Adapter ............................................................ 9
Power Connection ...............................................................................9
LAN Connection ................................................................................10
AC Pass-Through Connection .......................................................... 11
Networking Setup ..............................................................................12
Setup Utility .......................................................................................13
Quick Start (Setup Powerline Network) ..................................... 14
Push Button usage ............................................................................14
Application Scenarios .......................................................................14
Powerline Network Illustration ...........................................................16
Chapter 3: Installation ..................................................................... 17
Utility Installation ....................................................................... 17

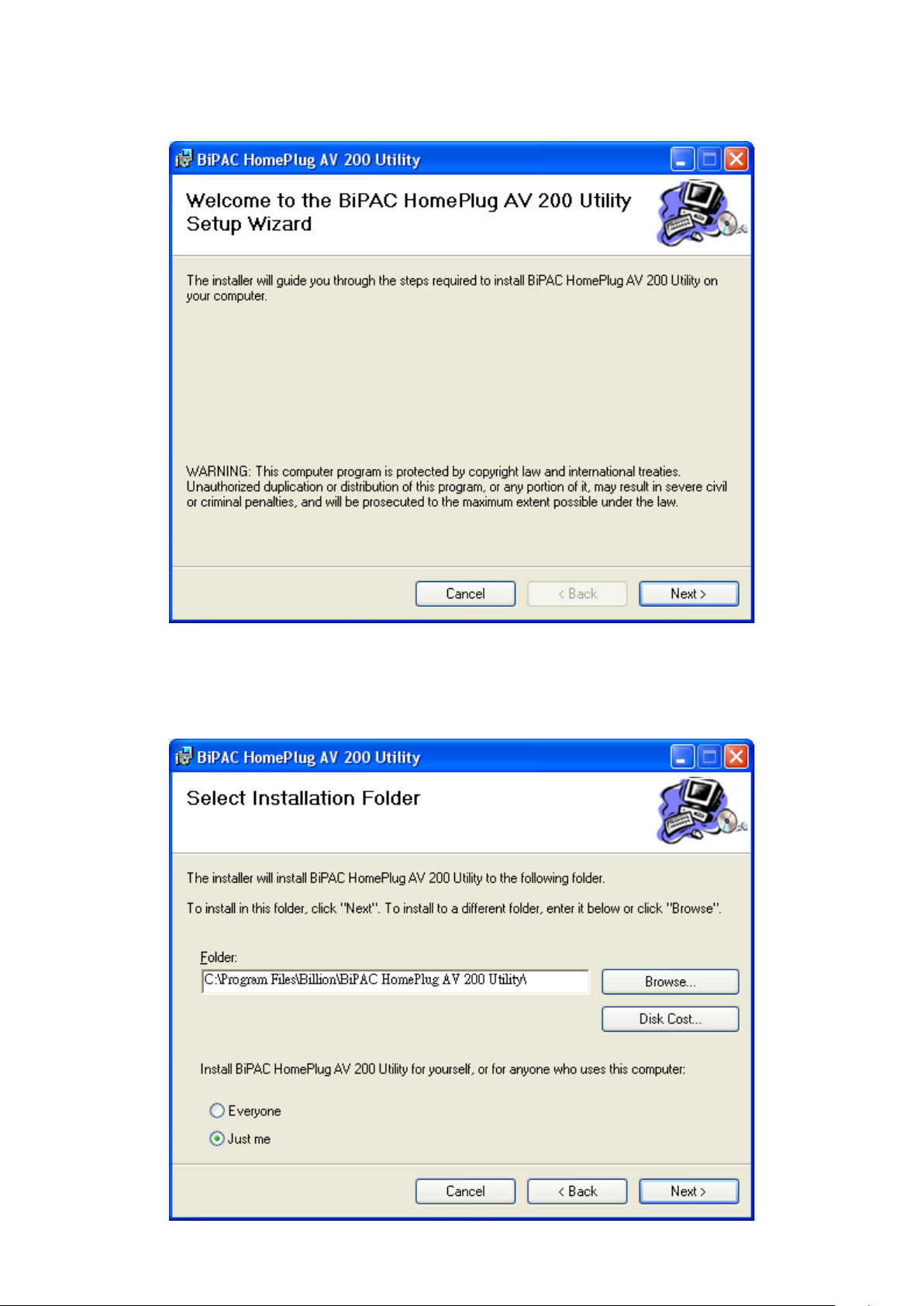

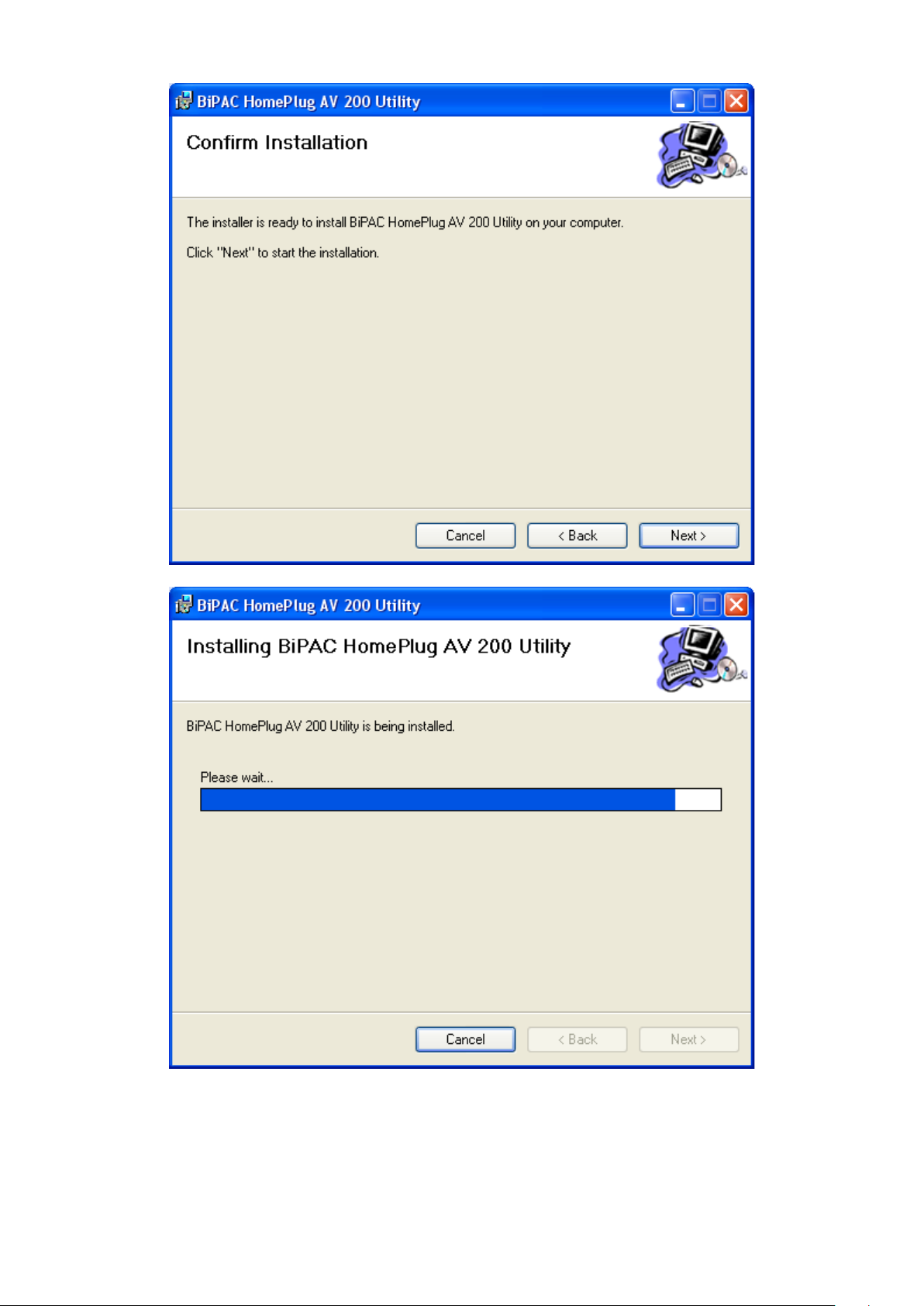

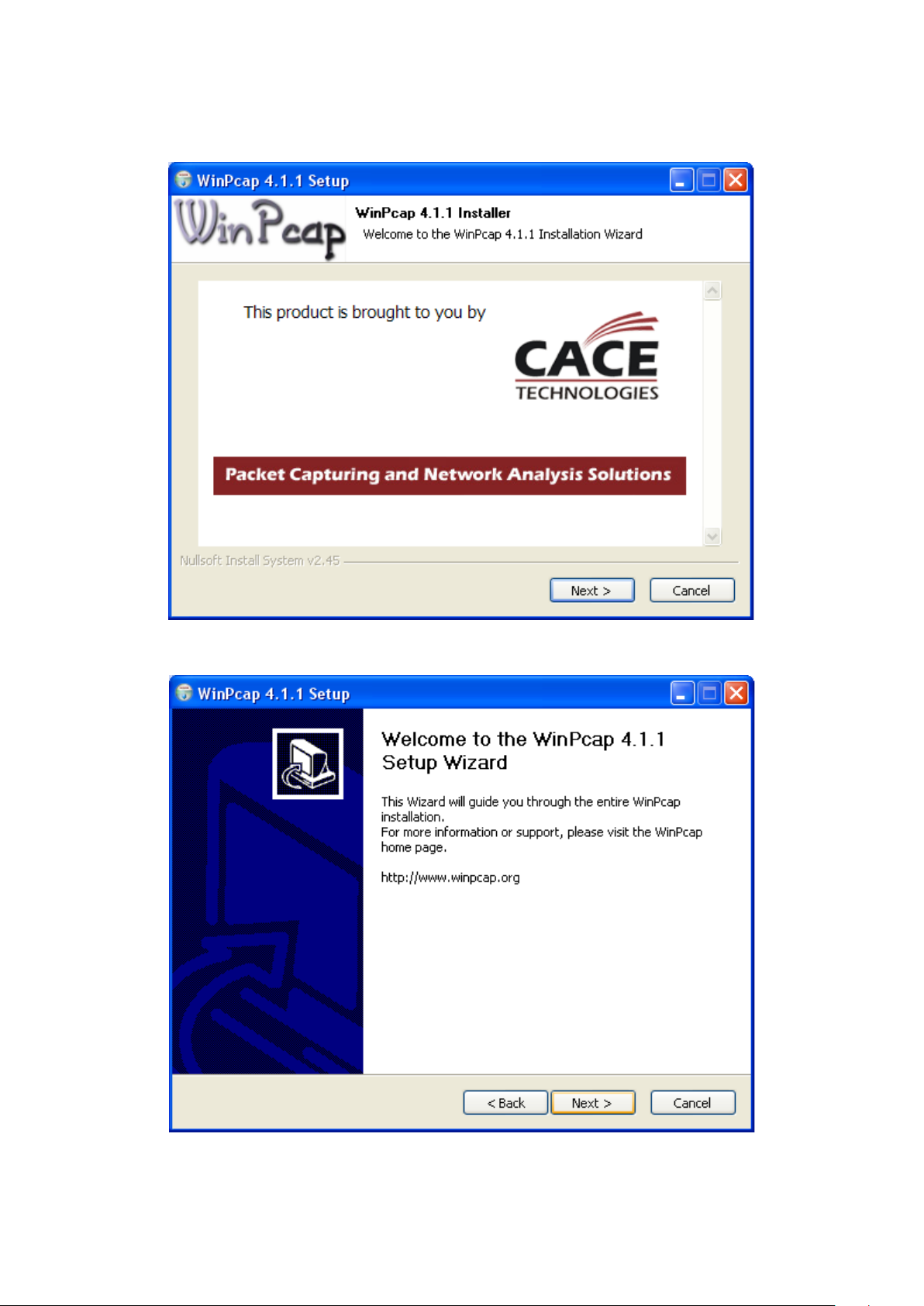

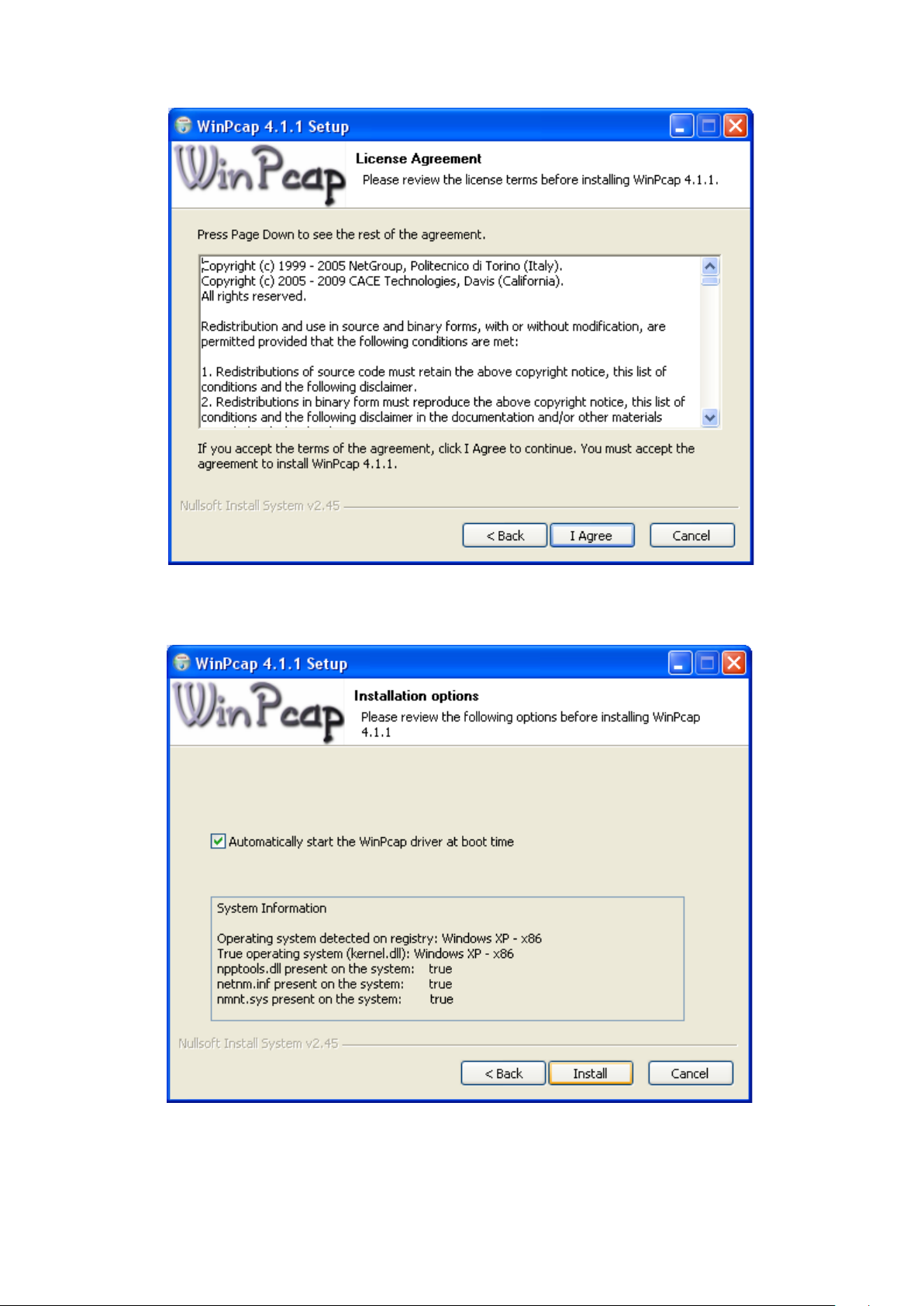

BiPAC HomePlug AV 200 Utility Installation .............................. 18
Chapter 4: Conguration ................................................................24
Accessing BiPAC HomePlug AV 200 Utility ............................... 24
BiPAC HomePlug AV Utility ....................................................... 25
Main Tab ...........................................................................................25

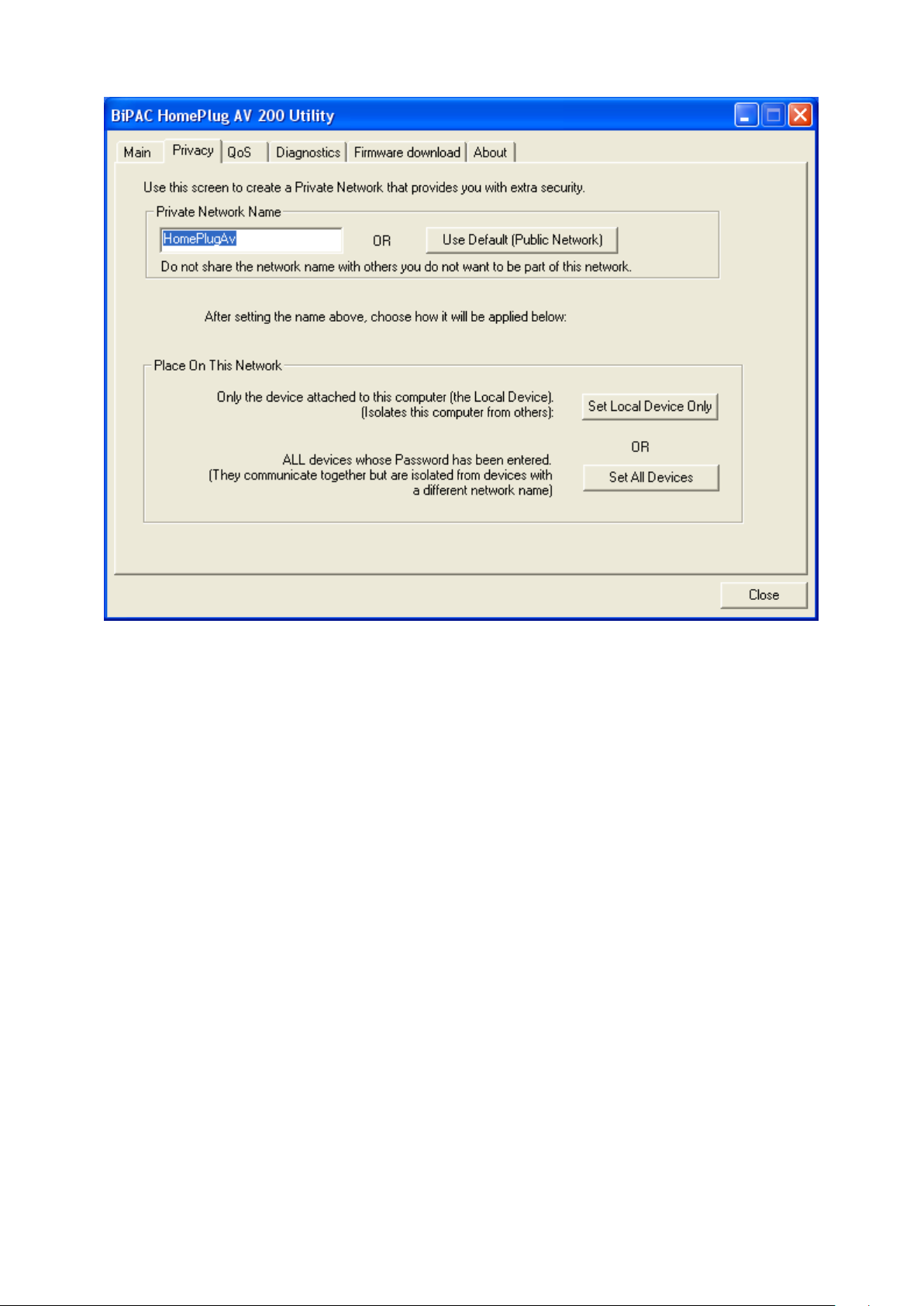

Privacy Tab .......................................................................................29
QoS Tab ............................................................................................ 30
Diagnostic Tab ..................................................................................32

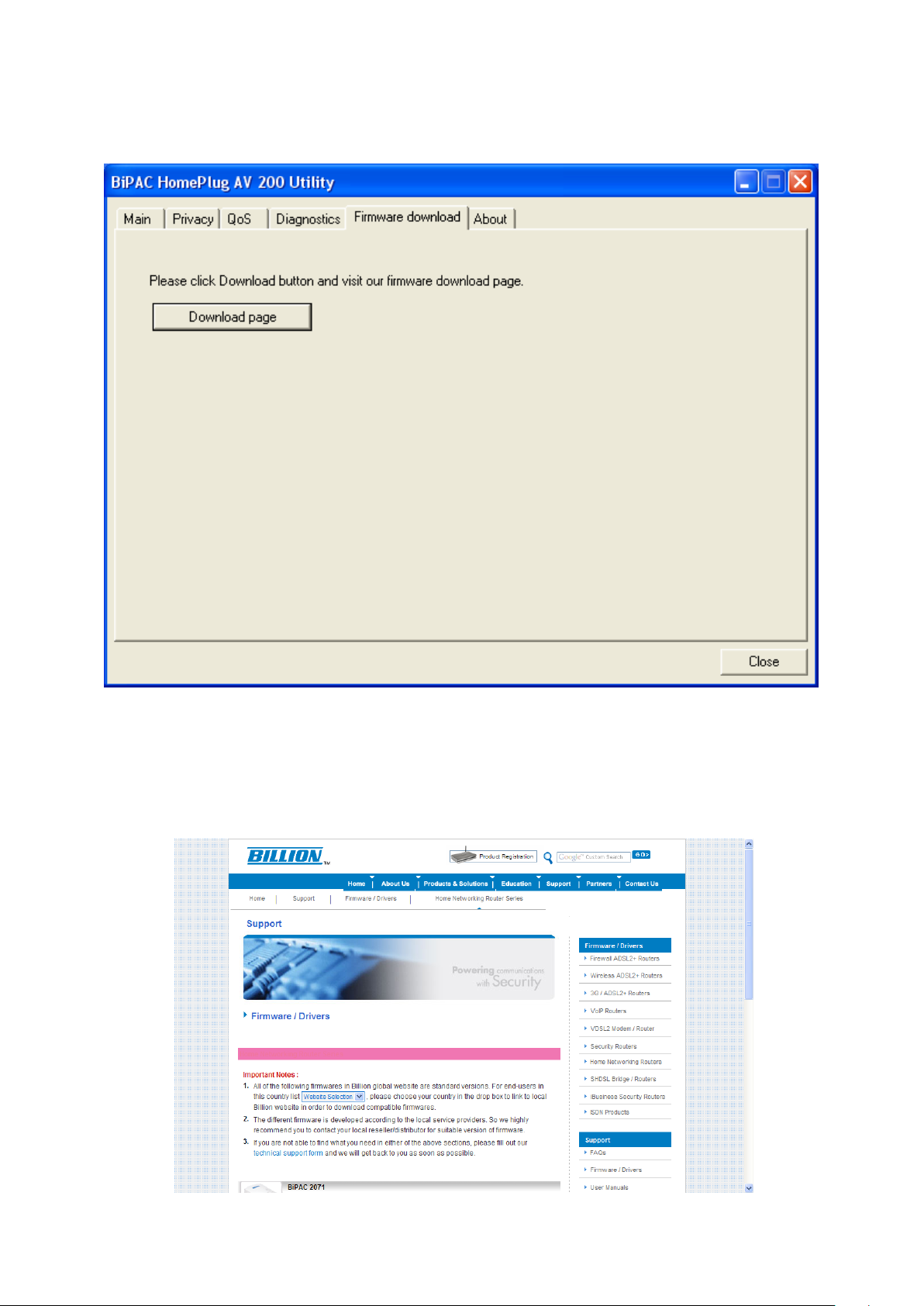

Firmware Download Tab ...................................................................34
About Tab ..........................................................................................35

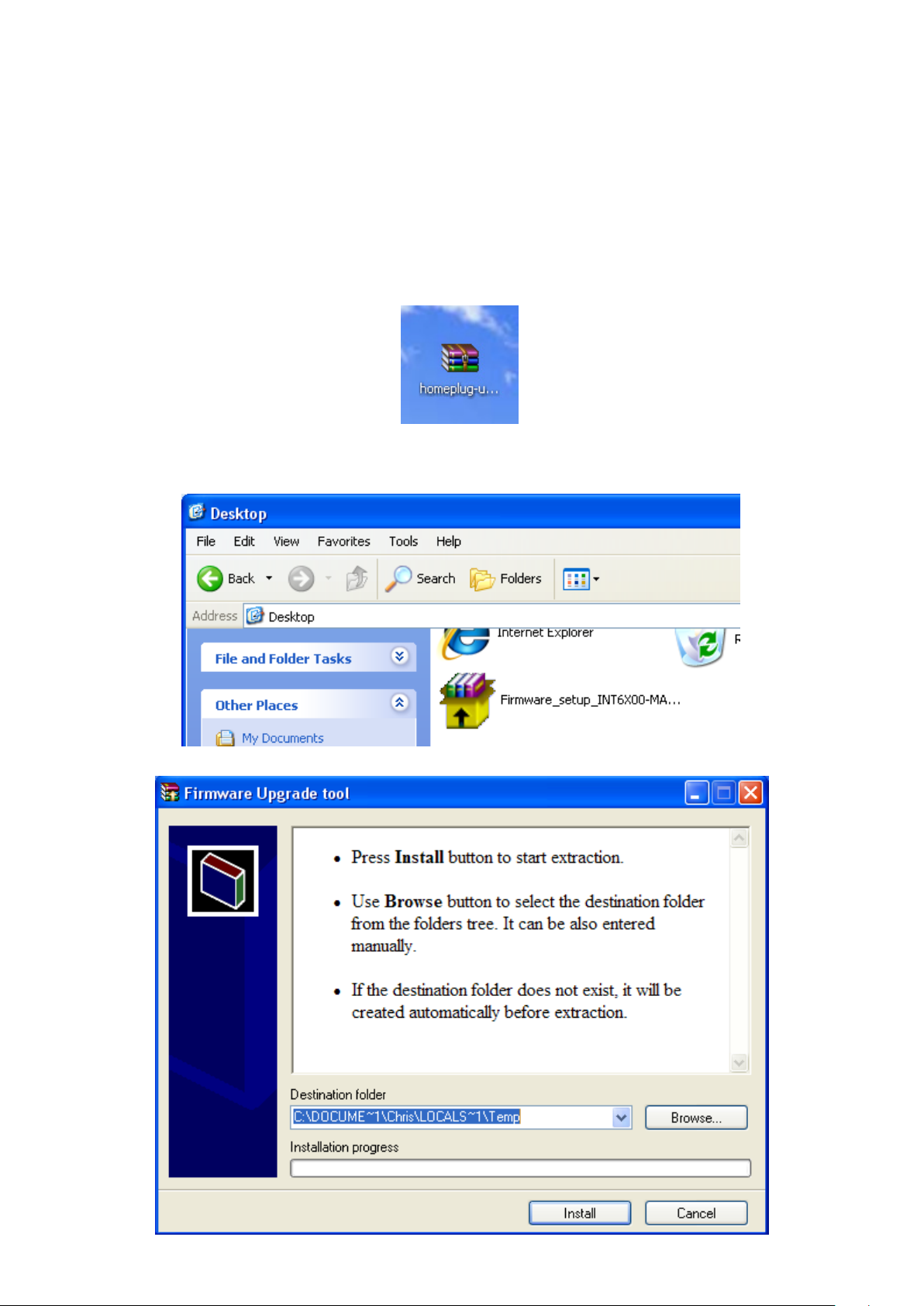

Firmware Upgrade ............................................................................36
Chapter 5: Troubleshooting ............................................................ 39
Appendix: Product Support & Contact .......................................... 40
Chapter 1: Product
Introduction
BiPAC HomePlug AV 200 is a networking device that utilizes the existing wiring system as a path
to transmit data signal through the inter-conversion between digital and analog signal. With this
functionality, HomePlug AV devices can be plugged into an AC outlet to draw power and at the
same time establishing a network connection between two or more Ethernet devices.
BiPAC HomePlug AV 200 can be used to bridge any Ethernet device to your Powerline network
in your home or ofce. With this technology, Ethernet devices in your home or ofce can equally
share high speed data transmission rate without the need to spend excessive time and money
installing expensive Ethernet cable. It can be plugged into an Ethernet port on a router to equip
a network with powerline capabilities and take advantage of the router features. HomePlug AV
device can also be plugged directly into a cable or DSL modem that allows instant internet access
over home Powerlines to each computer equipped with a HomePlug AV certied Powerline
network adapter. BiPAC HomePlug AV 200 makes high-speed modem sharing as fast and simple
as plugging the devices in the wall.
1
Features
1. Physical layer data rate up to 200Mbps over existing Powerline.
2. Uses powerline technology that takes advantage of the unused bandwidth of the electrical wiring in the home.
3. Ideal for Triple Play applications such as IPTV, VoIP telephony and high-speed Internet access.
4. Support 10/100 (MDI/MDIX) Ethernet switching.
5. Compliant with the HomePlug Powerline Alliance Industry specication HomePlug AV.
6. Power supplier design inside.
7. Ideal for Residential Users.
8. Power Saving mode: When PC / other Ethenet devices are completely power off or when there
is no Ethernet cable connected, HomePlug device will automatically enter power saving mode
which will help to reduce power consumption.
9. Noise Filter (only available in BiPAC 2074 R2): Allow the ltering of noise which may be gener-
ated by some electrical appliances such as vacuum cleaner and hair dryer to prevent possible
interference with HomePlug AV network.
2
Chapter 2: Installing the Router
Package Contents
BiPAC 2073 R2
• BiPAC 2073 R2 HomePlug AV 200 Ethernet Adapter
• Quick Start Guide
• CD (containing user manual and QSG)
• Ethernet (CAT-5 LAN) cable
BiPAC 2074 R2
• BiPAC 2074 R2 HomePlug AV 200 Ethernet Bridge with AC Pass Through
• Quick Start Guide
• CD (containing user manual and QSG)
• Ethernet (CAT-5 LAN) cable
3
Important note for using this adapter
4
Device Overview
The LEDs and Buttons
BiPAC 2073 R2
Power LED
PLC LED
ETH LED
SYNC Button
Reset Button
Ethernet Port
BiPAC 2074 R2
AC Power
Outlet / AC
Pass-through
(only available
in BiPAC 2074
R2)
Power Plug
The Description of each labeled part is described in the table below.
AC Outlet / AC Passthrough (only available
Filtered AC Pass-through available for electrical devices with Input:
100~240V AC, 50~60Hz, 6Amp (Maximum).
in BiPAC 2074 R2)
Power LED Lit when the device is power on.
Blinking briey when the device enters power saving mode.
Blinking when pushing the SYNC button.
Lit off when power is off.
PLC (Powerline Link/
Act) LED
Lit green when the power line connection is established.
Blinking quickly when data is transmitted or received via power line.
Note: When the device acts as a CCO (Central Coordinator), PLC
LED will light steadily. There should be at least one CCO in your
powerline network.
Blinking after SYNC button is pushed (see SYNC Button descripted
below).
ETH (Ethernet Link/
Act) LED
Lit when connected to an Ethernet device.
Blinking when data is transmitted or received via Ethernet port.
SYNC Button Used to establish a LAN network with other power line devices.
Push this button for 1~3 second(s) and release it to set device enter
the power line SYNC state.
Reset Button Press this button to for 1~3 second(s) to reset device to factory default
settings.
Ethernet Port Connect the HomePlug AV device with an Ethernet device (e.g.
computer, router, hub/switch , IP pone, IPTV set-top-box, gaming
consoles…), using the RJ-45 Ethernet cable included.
Power Plug / AC Power
Cord
Plug into an AC outlet for power supply and to build a powerline
network with other HomePlug AV devices.
5
The Rear Side and Look
BiPAC 2073 R2 BiPAC 2074 R2
(For separated plug clip type only)
Power Plug
Clip Socket:
Install the clip
into this socket
6
Hardware Installation (For separated plug clip type
only)
Refer to the following diagrams and direction to install the clip with BiPAC 2073 R2:
Example 1: EU clip.
• Please check the lock instruction on your clip.
• If you got the “Triangle Lock”, refer to right diagram.
7
Example 2: UK clip.
• Please check the lock instruction on your clip.
• If you got the “Circle Lock”, refer to right diagram.
8
Connecting the HomePlug Adapter
It is easy to connect the device simply by performing the following instructions:
Power Connection
BiPAC 2073 R2
Plug the Homeplug AV 200 Ethernet Adapter into the wall outlet/socket.
BiPAC 2074 R2
Plug the embedded AC power cable to the wall outlet/socket.
Note: Plug/socket, power cable and input voltage/frequency may vary from country to
country.
9
LAN Connection
Connect the supplied RJ-45 Ethernet cable to the Ethernet port on HomePlug AV 200 Ethernet
bridge/adapter and the other side to the device’s Ethernet interface.
10
