BiPAC 2071
HomePlug AV 200 Ethernet Adapter
BiPAC 2072
HomePlug AV 200 Ethernet Bridge with AC
Pass-Through
Quick Start Guide
Page 2
Billion BiPAC 2071 / 2072 Homeplug AV 200 Ethernet series
- 2 -
Page 3
Billion BiPAC 2071 / 2072 Homeplug AV 200 Ethernet series
Package Contents (BiPAC 2071)
BiPAC 2071 HomePlug AV 200 Ethernet Adapter
This Quick Start Guide
CD containing the on-line manual & Utility
Ethernet (CAT-5 LAN) cable
Package Contents (BiPAC 2072)
BiPAC 2072 HomePlug AV 200 Ethernet Bridge with AC Pass Through
This Quick Start Guide
CD containing the on-line manual & Utility
Ethernet (CAT-5 LAN) cable
z Do not use the adapter in high humidity or high temperatures.
z Do not open or repair the case yourself.
z Avoid using this product and all accessories outdoors.
Warning
Attention
z Place the adapter on a stable surface.
z Only “Homeplug AV” compliant Power Line Communication (PLC)
adapter for remote access is necessary
- 3 -
Page 4
Billion BiPAC 2071 / 2072 Homeplug AV 200 Ethernet series
Hardware Overview

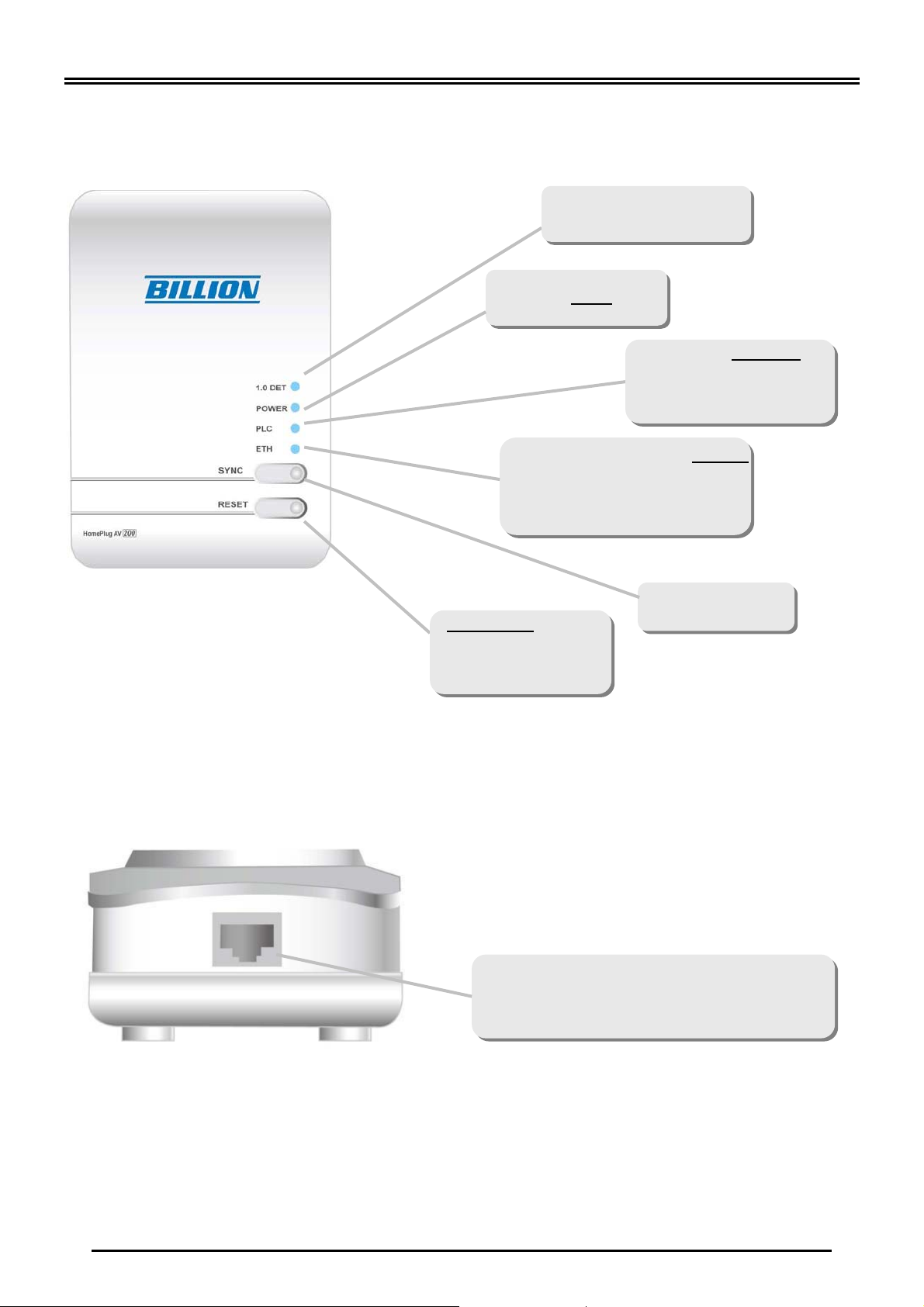

The LEDs
* Blinking when detecting
HomePlug 1.0 device
* Lit when poweris ON
* Lit when the power line
sync is established.
* Blinking when
networking is active.
* Lit when connected to an Ethernet
device.
* Blinking when data is transmitted
or received via Ethernet port.
The Connector
* Power line sync
*Reset Button: Hold
down the reset button
for 1~3 seconds to
reset device to factory
default.
* Connect your device (e.g.: computer, router,
hub , IP pone, IPTV set-top-box, gaming
consoles…) to a LAN port, using the included
RJ-45 Ethernet cable
- 4 -
Page 5
Billion BiPAC 2071 / 2072 Homeplug AV 200 Ethernet series

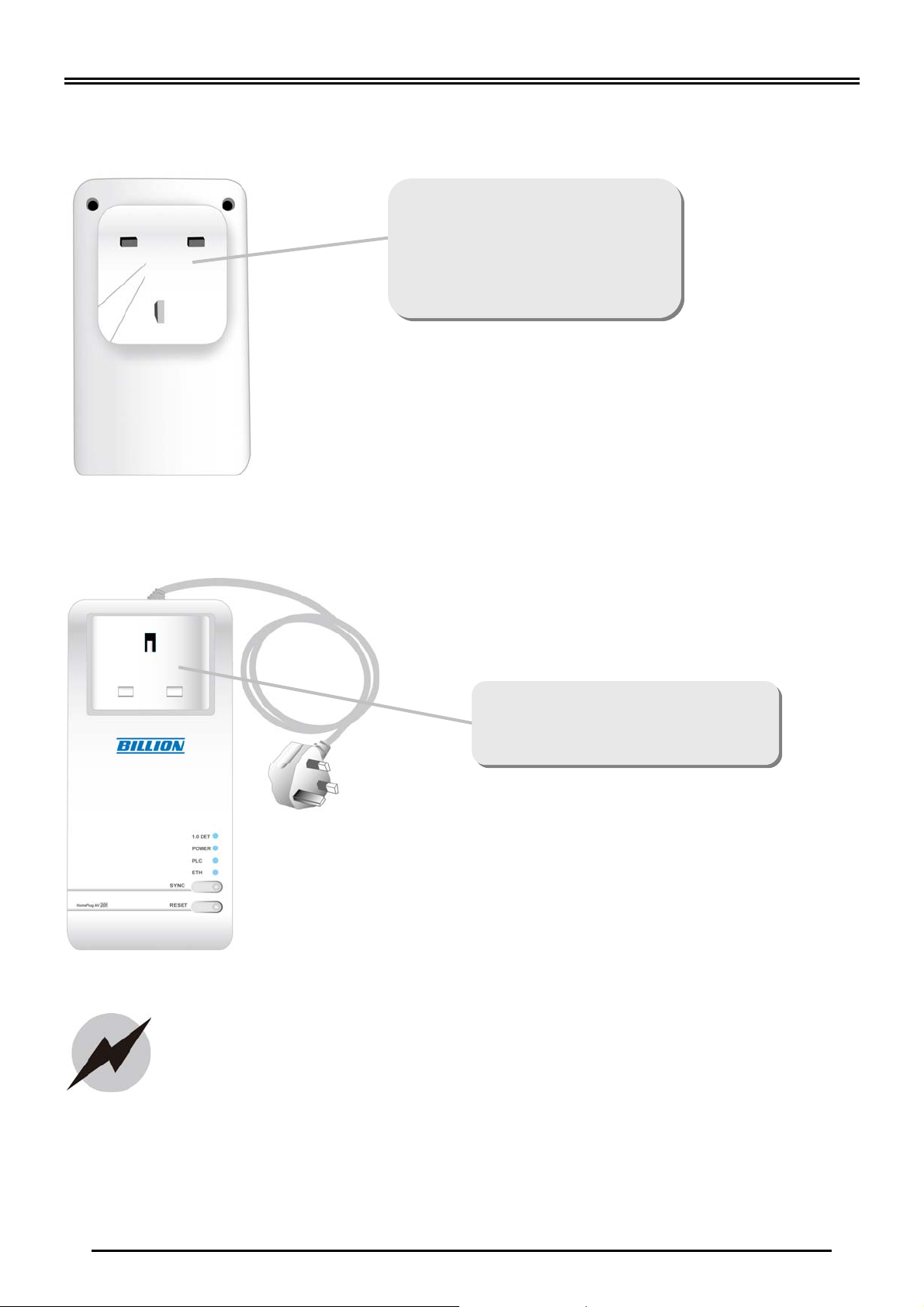

The clip (BiPAC 2071)
* Please DO NOT
attempt to remove or
disassemble the socket
clip as this may cause
The AC power outlet (BiPAC 2072)
* Filtered AC Pass-through available for
electrical devices with Input: 100~240V
AC, 50~60Hz, 6Amp (Maximum)
Attention
z Above is an example of a UK plug-socket type and AC power
cable. Both plug-socket and power cable type and input
voltage/frequency may vary for different countries!
- 5 -
Page 6
Billion BiPAC 2071 / 2072 Homeplug AV 200 Ethernet series

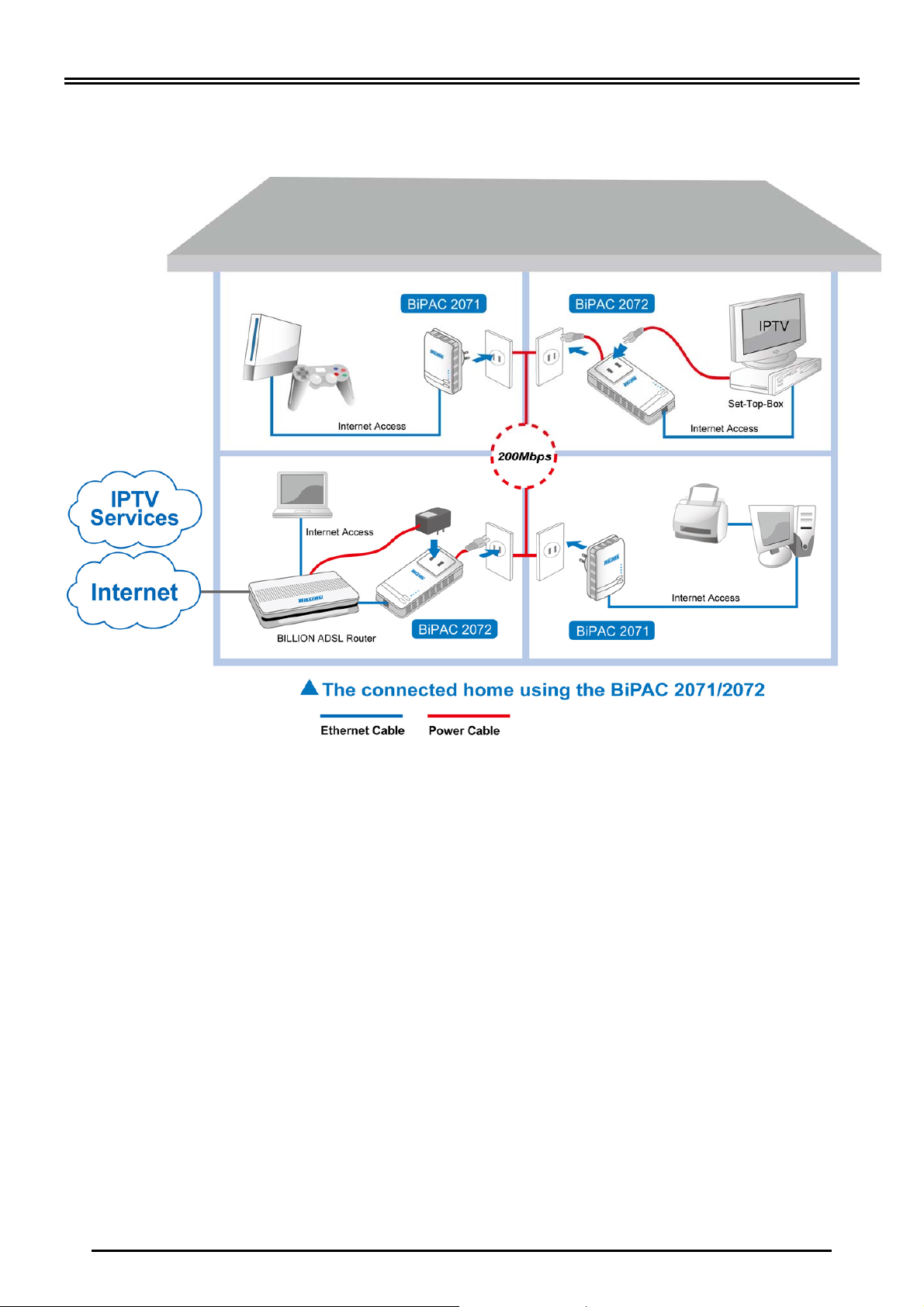

Product Application
- 6 -
Page 7
Billion BiPAC 2071 / 2072 Homeplug AV 200 Ethernet series
Hardware Installation
1. Power Connection
BiPAC 2071

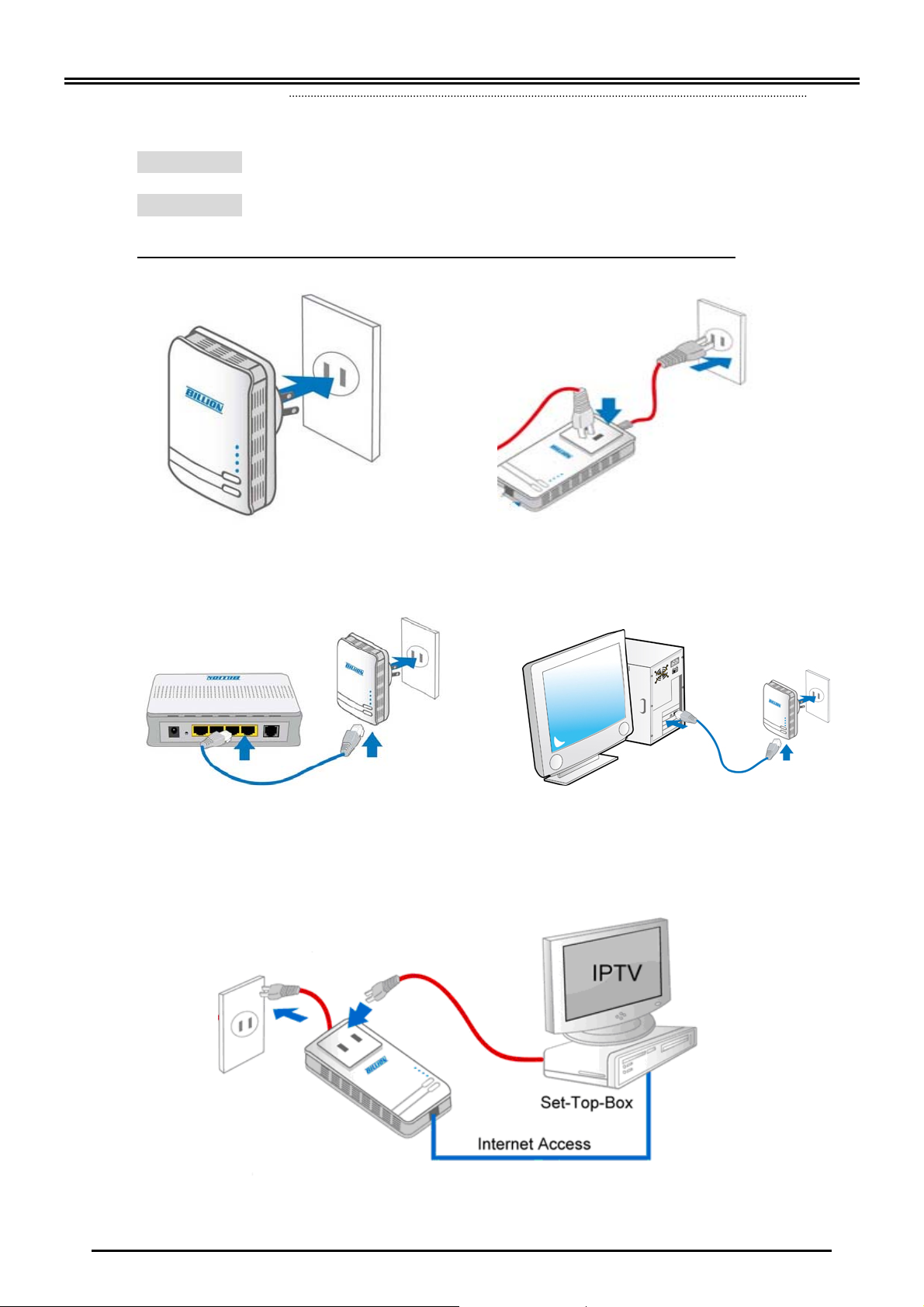

Plug the Homeplug AV 200 Ethernet Adapter into the wall jack.
BiPAC 2072
Plug the embedded AC power cable to the wall jack.
Please note that the plug type may differ according to different countries.
2. LAN Connection
Connect the supplied RJ-45 Ethernet cable to the Ethernet port on HomePlug AV
200 Ethernet bridge / adapter and the other side to the device’s Ethernet interface.
3. AC Pass-Through Connection (BiPAC 2072 only)
To plug IT electrical devices (e.g.: ADSL router, Set-to-box, notebook..) into the
built-in AC pass-through with an embedded low-pass filter to prevent electrical noise
from interfering on your Powering network.
- 7 -
Page 8
Billion BiPAC 2071 / 2072 Homeplug AV 200 Ethernet series

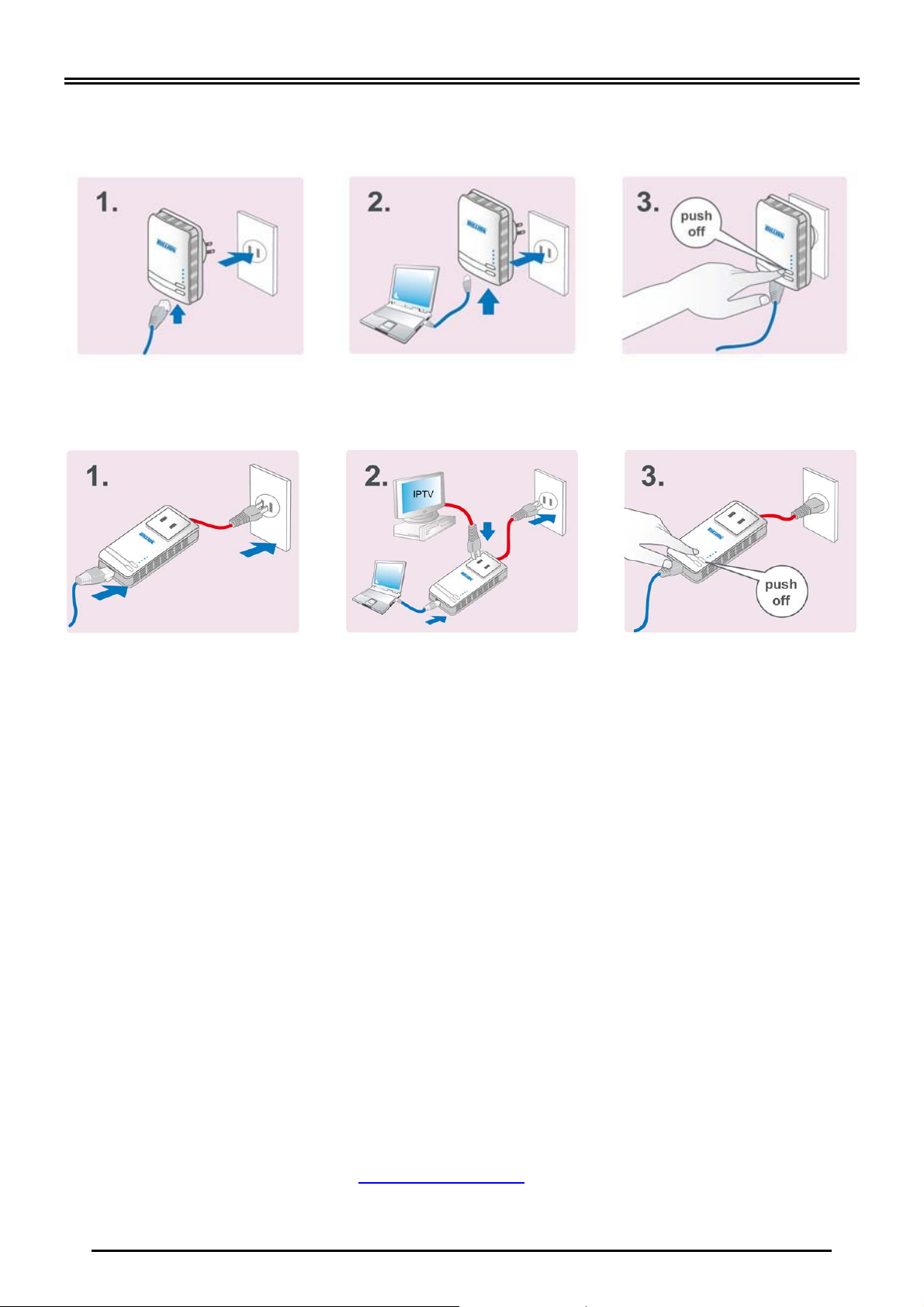

Connection the BiPAC 2071
Plug in the HomePlug AV adapter Then connect the BiPAC 2071 to a Create a secure network by a
PC, modem, router or a set-top-box simply push off the network sync
button.
Connection the BiPAC 2072
Plug in the HomePlug AV Ethernet Then connect the BiPAC 2072 to a Create a secure network by a
bridge PC, modem, router or a set-top-box simply push off the network sync
button.
Setup Utility
After you complete the hardware installation, insert the CD-ROM to the CD-ROM drive to
perform Setup Utility for network configuration. The Setup Utility will auto-run. Follow the
step-by-step configuration wizard, the utility will guide you complete the basic network
configuration.
Product Support and Contact Information
Most problems can be solved by referring to the Troubleshooting section in the User’s Manual.
If you cannot resolve the problem with the Troubleshooting chapter, please contact the dealer
where you purchased this product.
Contact Billion
WORLDWIDE
http://www.billion.com
Billion Product Registration
Billion is committed to before and after sales customer services. You will get the most out of your Billion's products
after registration. Please register online at
www.billion.com/register to receive valuable servi ce s and support from
2071/2072 V100EN
