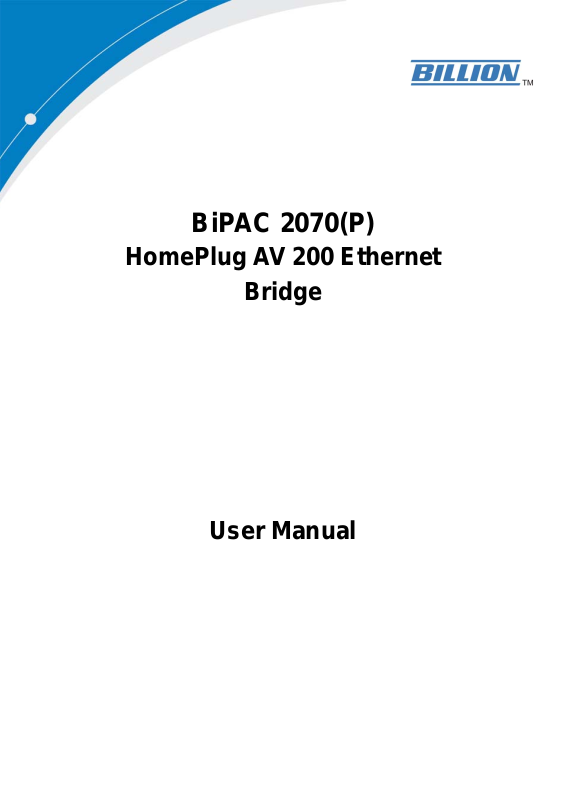

BiPAC 2070(P)

HomePlug AV 200 Ethernet

Bridge

User Manual

Safety W arnings

1. Do not use the adapter in high humidity or high temperatures.

2. Do not open or repair the case yourself.

3. Avoid using this product and all accessories outdoors.

4. Place the adapter on a stable surface.

5. Only “HomePlug AV” compliant Powerline Communication (PLC) adapter

for remote access is necessary.

Hardware Overview

The LEDs

*Power LED: Lit when power is ON

*Sync LED: Lit when the network is
formed (CCo and Station function)
*Blinks when packets are transmitted or
received (Station function)

*Ethernet LED: Lit when connected to an
Ethernet device

The Connectors

*Push Button: Power line sync

*Connect your device to
a LAN port, using the
included Ethernet cable

*Reset Button: Hold down
the reset button for 1~3
seconds to reset device
to factory default

*Connect DC power
cord to your DC
port on device
(for BiPAC 2070P)

Connect the AC power
cable to the outlet

Push Button usage

There are 3 types of trigger states for the Push Button.

1. “Broadcast State”, for a 2070(P) providing information for another 2070(P) to

join its powerline network group (it works even if it is the only one currently in
the group).

2. “Join State”, for an ungrouped 2070(P) to join an existing powerline network

group.

Press the Push Button on the first 2070(P) device turns it into the “Broadcast State”
and press the Push Button on the second ungrouped 2070(P) device will turn it into
the “Join State”.

3. “Ungroup State”, press the Push Button for more than 10 seconds, and the

2070(P) will ungroup from its current powerline network group

Scenario 1: 2070(P) Device A wants to form a network group with 2070(P) Device
B.

You can allocate which ever device (A or B) to become the “Broadcast State” and the
“Join State”.
Example:

1. Hold down the Push Button of 2070(P) Device A for 1~3 seconds to turn it into

the “Broadcast State”.

2. Hold down the Push button of 2070(P) Device B for 1~3 seconds to turn it into

the “Join State”.

3. Wait for the Sync LED of both Device A and B to light up and you will have

both devices being in the same network group.

Scenario 2: 2070(P) Device A wants to join an existing network group “BC”.

Device A wants to join a network group “BC” currently consisting of device B and
device C. Any devices within the “BC” group can become the “Broadcast State” and
device A will be the “Join State”.
Example:

1. Hold down the Push Button of 2070(P) Device B or C (of the “BC” group) for

1~3 seconds to turn it into the “Broadcast State”.

2. Hold down the Push button of 2070(P) Device A for 1~3 seconds to turn it into

the “Join State”.

3. Wait for the Sync LED of both Device A and (B or C) to light up and you will

have device A joining the network group “BC”.

Scenario 3: 2070(P) Device A of network group “AD” wants to join an existing
network group “BC”.

For a device which already belongs to an existing group, if it wants to join another
group that device must go into the “Ungroup State” and ungroup itself first.
Example:

1. Hold down the Push Button of 2070(P) Device A for 10 or more seconds to turn
it into the “Ungroup State”. Once it is in the “Ungroup State” it breaks away from the
“AD” network group and becomes an individual device.

2. Hold down the Push Button of 2070(P) Device B or C (of the “BC” group) for

1~3 seconds to turn it into the “Broadcast State”.

3. Hold down the Push button of 2070(P) Device A for 1~3 seconds to turn it into

the “Join State”.

4. Wait for the Sync LED of both Device A and (B or C) to light up and you will

have device A joining the network group “BC”.

Introduction

HomePlug AV Adapter with power supplier

• Physical layer data rate up to 200Mbps over existing Powerline

• Uses powerline technology that takes advantage of the unused bandwidth of

the electrical wiring in the home.

• Ideal for Triple Play applications such as IPTV, VoIP telephony and

high-speed Internet access.

• Support 10/100M (MDI/MDIX) Ethernet switching

• Compliant with the HomePlug Powerline Alliance Industry specification

HomePlug AV

• Power supplier design inside

• Ideal for Residential Users

Benefits

Extended LAN through Powerline

The BiPAC 2070P plugs into the electrical socket and draws power for the

device. At the same time, it sends data signals down the power cord. A BiPAC

2070P/BiPAC 2070 can then be placed on any electrical outlet in the

home/office to receive the signal.

The BiPAC 2070P can be used to bridge any Ethernet device to your

Powerline network. No need to spend time and money professionally installing

expensive Ethernet cable to share your high-speed cable or DSL modem. It

can be plugged into an Ethernet port on a router to equip a network with

powerline capabilities and take advantage of the router features. The BiPAC

2070P can also be plugged directly into a cable or DSL modem allow to access

the Internet over home powerlines to each computer equipped with a

HomePlug AV certified Powerline network adapter. Sharing your high-speed

modem is as fast and simple as plugging the devices in the wall.

High Transmission Rate

Easy plug-and-play networking of various devices through the electrical wiring

in your home

Up to 200 Mbps – ideal for Triple Play applications such as IPTV, VoIP

telephony and high-speed Internet access. The BiPAC 2070P links your

modem, router, set-top box and PC at speeds of up to 200 Mbps via your

household power grid and with QoS prioritization.

Features and Specifications

Protocols

• TDMA, CSMA/CA

Standard

• Ethernet specification: IEEE 802.3, IEEE 802.3x,

IEEE 802.3u, Auto MDI/MDIX

• HomePlug AV compliant

Transmission speed

• 200Mbps.

Modulation

•Supports OFDM - 1155 carriers,1024/256/64

QAM,QPSK,BPSK and ROBO

Frequency Band

• 2MHz ~ 30MHz

Security

• 128-bit AES encryption over household power supplier grid.

Device port

• Ethernet RJ-45

Operation System

• Windows 98_SE / Me / NT / 2000 /XP

• Other 10/100M (MDI/MDIX) Ethernet switch device

Power Supplier Specification

• Input: 100~240V AC, 50~60Hz

• Output: 12V DC, 1.2A

• Protection: OCP, OVP, SCP

Hardware Specification

Physical Interface

• Interface: Ethernet 10/100M (MDI/MDIX) switch

• Power DC jack

• Sync button

• Reset button

• Power AC socket

• LED display:

- Power

- Ethernet (Link/Act)

- PLC (Powerline Link/Act)

Physical Specification

• Dimensions: 75(w) * 114(D) *63 (H) m/m

Operation Environment

• Operating temperature: 0 ~ 40 ℃

• Storage temperature: -20 ~ 70 ℃

• Humidity: 20 ~ 95% non-condensing

Application Diagram:
