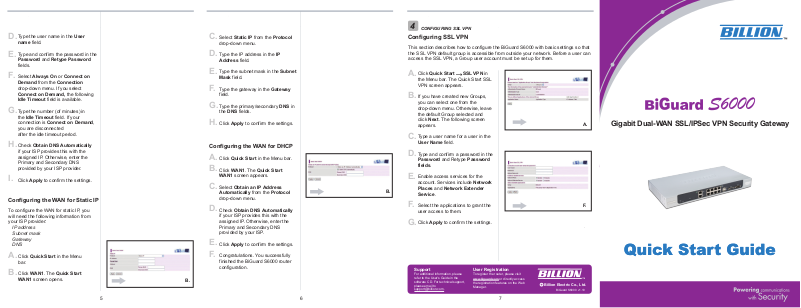

Billion BiGuard S6000 Quick Start Guide
Type the user name in the User
D.
name field.
Type and confirm the password in the
E.
Password and Retype Password
fields.
F.
Select Always On or Connect on
Demand from the Connection
drop-down menu. If you select
Connect on
Idle Timeout field is available.
G.
Type the number (of minutes) in
the Idle Timeout field. If your
connection is Connect on Demand,
you are disconnected
after the idle timeout period.
Check Obtain DNS Automatically
H.
if your ISP provides this with the
assigned IP. Otherwise, enter the
Primary and Secondary DNS
provided by your ISP provider.
I.
Click Apply to confirm the settings.
Demand, the following
Configuring the WAN for Static IP
To configure the WAN for static IP, you
will need the following information from
your ISP provider:
IP address
Subnet mask
Gateway
DNS
Select Static IP from the Protocol
C.
drop-down menu.
Type the IP address in the IP
D.
Address field.
Type the subnet mask in the Subnet
E.
Mask field.
Type the gateway in the Gateway
F.
field.
Type the primary/secondary DNS in
G.
the DNS fields.
H.
Click Apply to confirm the settings.
Configuring the WAN for DHCP
A.
Click Quick Start in the Menu bar.
B.
Click WAN1. The Quick Start
WAN1 screen appears.
Select Obtain an IP Address
C.
Automatically from the Protocol
drop-down menu.
D.
Check Obtain DNS Automatically
if your ISP provides this with the
assigned IP. Otherwise, enter the
Primary and Secondary DNS
provided by your ISP.
E.
Click Apply to confirm the settings.
4
CONFIGURING SSL VPN
Configuring SSL VPN
This section describes how to configure the BiGuard S6000 with basic settings so that
the SSL VPN default group is accessible from outside your network. Before a user can
access the SSL VPN, a Group user account must be set up for them.
Click Quick Start
A.
the Menu bar. The Quick Start SSL
B.
VPN screen appears.
B.
If you have created new Groups,
you can select one from the
drop-down menu. Otherwise, leave
the default Group selected and
click Next. The following screen
appears.
Type a user name for a user in the
C.
User Name field.
D.
Type and confirm a password in the
Password and Retype Password
.
fields
Enable access services for the
E.
account. Services include Network
Places and Network Extender
Service
F.
Select the applications to grant the
user access to them.
Click Apply to confirm the settings.
G.
.
SSL VPN in
→
A.
F.
Gigabit Dual-WAN SSL/IPSec VPN Security Gateway
A.
Click Quick Start in the Menu
bar.
B.
Click WAN1. The Quick Start
WAN1 screen opens.
F.
Congratulations. You successfully
finished the BiGuard S6000 router
configuration.
B.
5 6 7
Support
For additional information, please
refer to the User's Guide in the
software CD. For technical support,
please email to
support@billion.com.
User Registration
To register the router, please visit
www.biguard.com or directly access
the registration features on the Web
Manager.
C
Billion Electric Co., Ltd.
BiGuard S6000 v1.10
1 2
Out of Box
Carefully unpack the BiGuard
S6000 and check that the following
items are included.
1. BiGuard S6000
2. Power cable x 1
3. Warranty card x 1
4. Mounting brackets x 2
5. Mounting screws x 4
6. User Manual CD x 1
7. Ethernet cable x 1
8. Quick Start Guide x 1
Front and Rear View
1. Power LED
2. Status LED
3. Alarm LED
4. Reset button
5. WAN1 and WAN2 RJ-45
6. LAN 1~8 100/1000M RJ-45
7. USB connector
8. DB-9/RS232 connector
9. Modem connector
10. Power on switch
11. Power connector
NOTE:
Ensure that the BiGuard S6000
is turned off before beginning to
setup.
CONNECTING THE BiGuard S6000The BiGuard S6000
connectors
connectors.
Ensure that your hardware is
A.
powered off, including the BiGuard
S6000.
B.
Connect an RJ-45 Ethernet cable
to the WAN1 port and/or WAN2
port on the BiGuard S6000, and
connect the other end to an ADSL
or cable modem or another router.
C.
Connect switches, hubs, and
servers to the eight LAN ports on
the BiGuard S6000.
D.
Connect the power cable to the
connector on the BiGuard S6000
and connect the power adapter to
an electrical outlet. Turn the power
button to the On position.
NOTE:
Register Your BiGuard Gateway
Once you have established an
Internet connection, please
register your BiGuard gateway
at www.biguard.com for
firmware updates, the latest
information and technical
support. It is crucial that you
register as soon as possible to
enjoy the benefits of possessing
a BiGuard gateway.
C.
D.
B.
3
CONFIGURING THE WAN
Logging In
You configure and manage the BiGuard
S6000 with the Web Manager. The Web
Manager is a web-based interface that you
can access from any web browser.
In the Address field of your Web
A.
browser, type the default IP address:
192.168.1.254.
B.
A Security Alert screen appears.
Click Yes to continue. The login
screen appears.
Type the default user name and
C.
password:
User Name: admin
Password: admin
Then click Login. The Web Manager
opens on the Status menu.
Configuring the WAN for PPPoE
To configure the WAN for PPPoE, you
need the following information from your
ISP provider:
User name
Password
DNS (if necessary)
(contact your ISP for more information)
Click Quick Start in the Menu bar.
A.
NOTE:
Click WAN1. The Quick Start
B.
Ensure that the BiGuard S6000
screen opens.
is turned off before beginning
setup.
Select PPPoE from the Protocol
C.
drop-down menu.
WAN1
A.
B.
B.
21 3 4
