Billion 7202, 7202G User Manual

myGuard 7202 / 7202G
(Wireless-G) Security ADSL2+ Router
User’s Manual
Chapter 1.................................................................................................1
1.2 Features................................................................................................. 3
1.3 Applications of the myGuard 7202(G).................................................6
Chapter 2.................................................................................................7
2.1 Important Notes.................................................................................... 7
2.3 The Front LEDs..................................................................................... 8
2.4 The Rear Ports...................................................................................... 9
2.5 Cabling ................................................................................................ 11
Chapter 3...............................................................................................12
3.2 Activating Trend Micro Security Services ........................................17
3.4 LAN and WAN Port Addresses..........................................................19
3.5 Configuring with your Web Browser................................................. 19
Chapter 4...............................................................................................20
4.1.1 ARP T able......................................................................................... 24

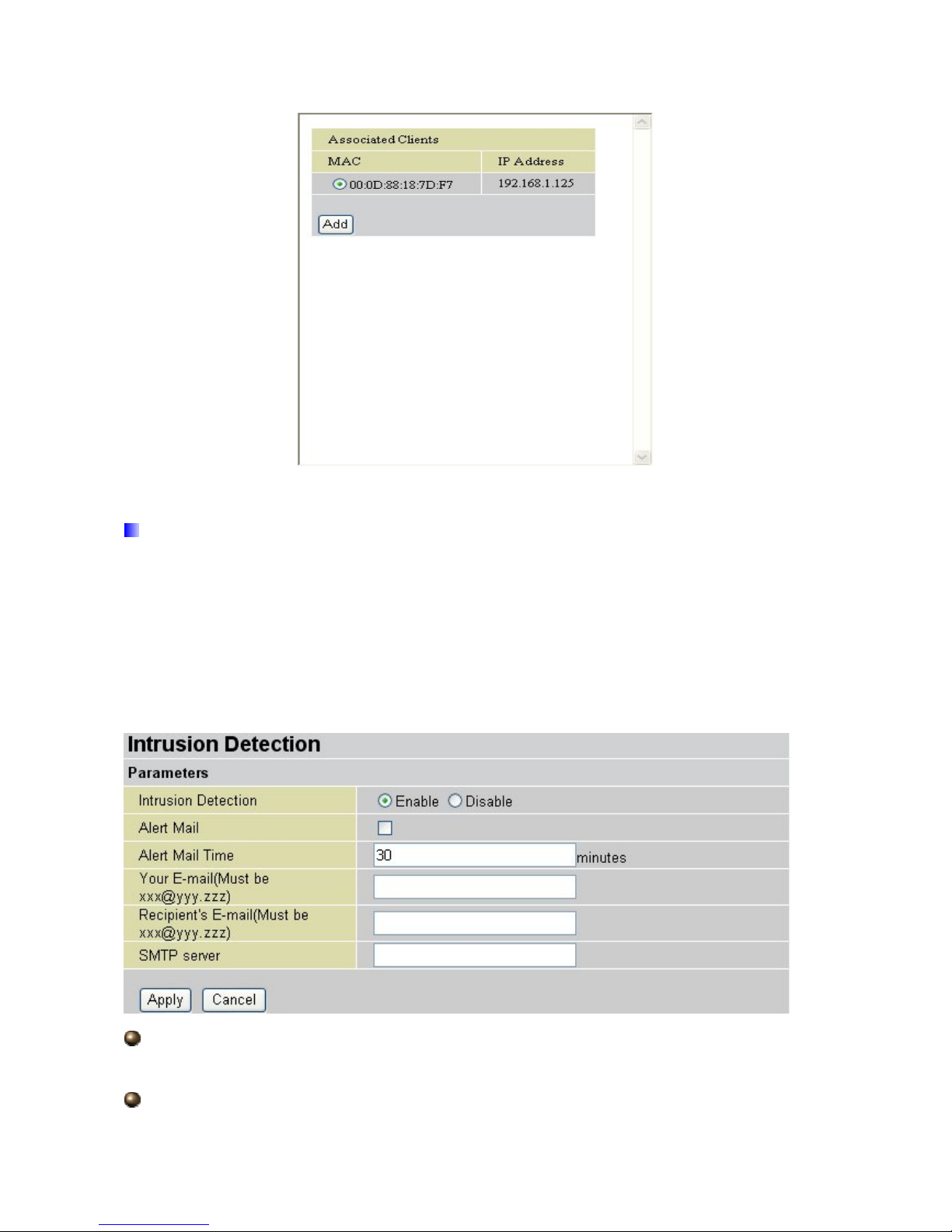

4.1.2 Wireless Association ...................................................................... 25
4.1.3 Routing Table................................................................................... 26
4.1.4 DHCP Table ...................................................................................... 27
4.1.5 System Log......................................................................................28

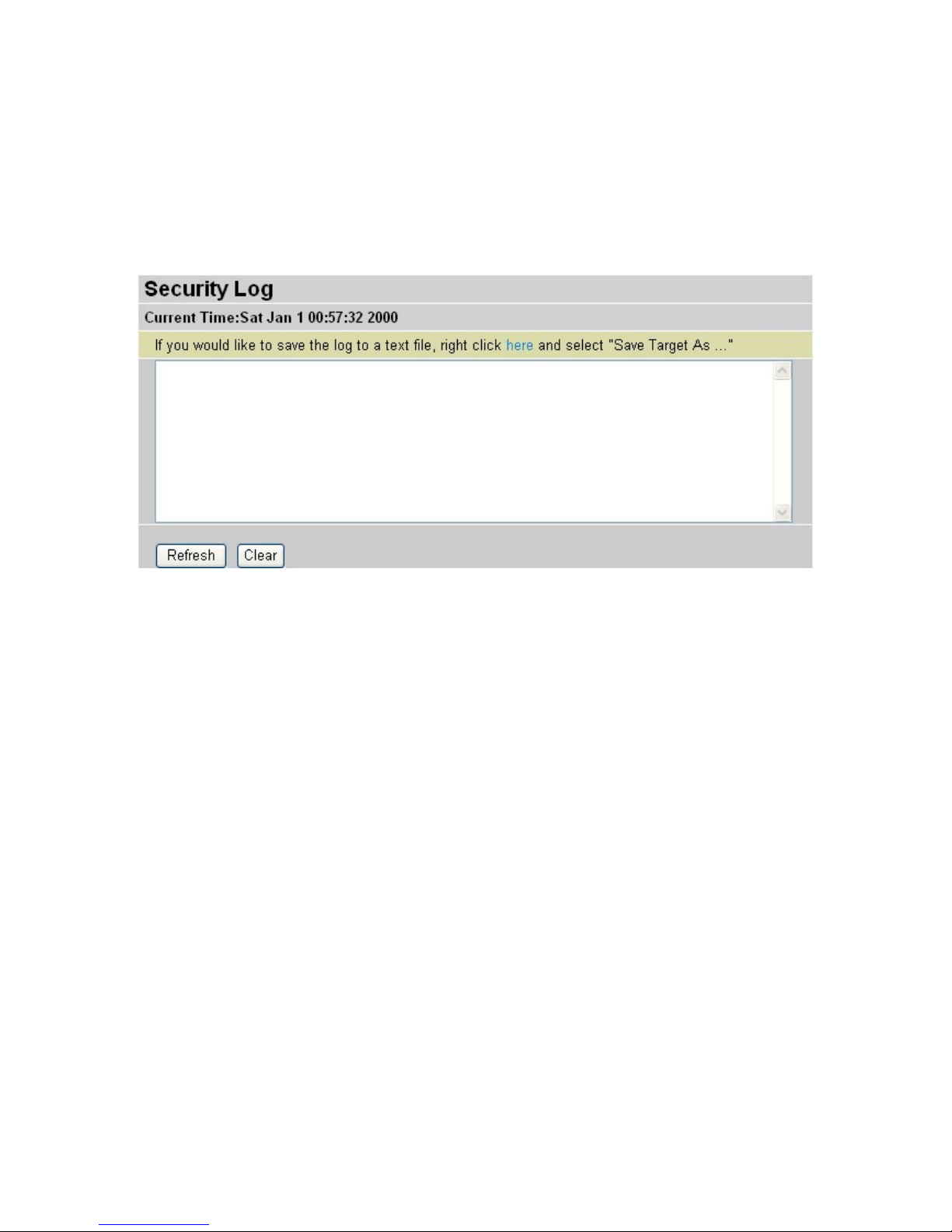

4.1.6 Security Log.....................................................................................29

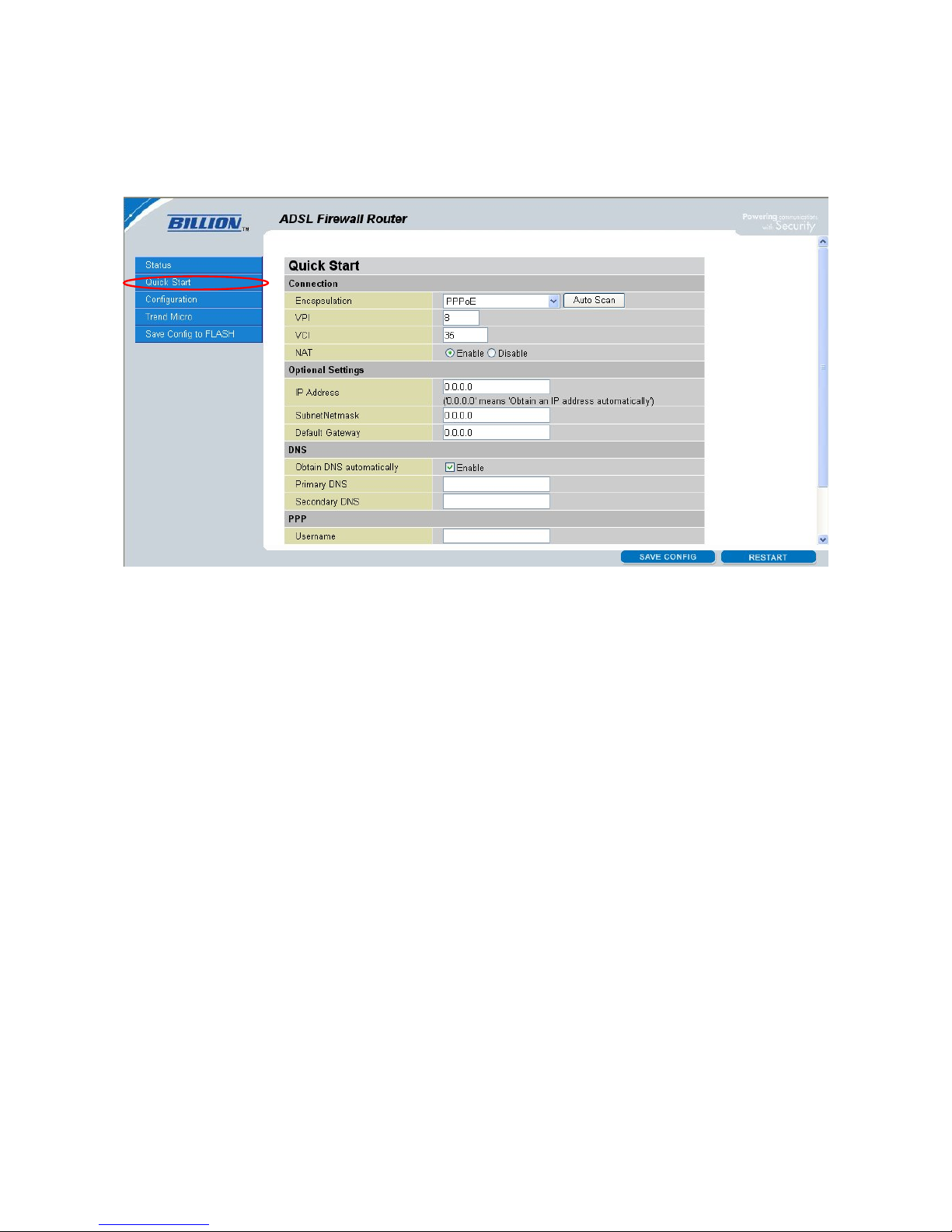

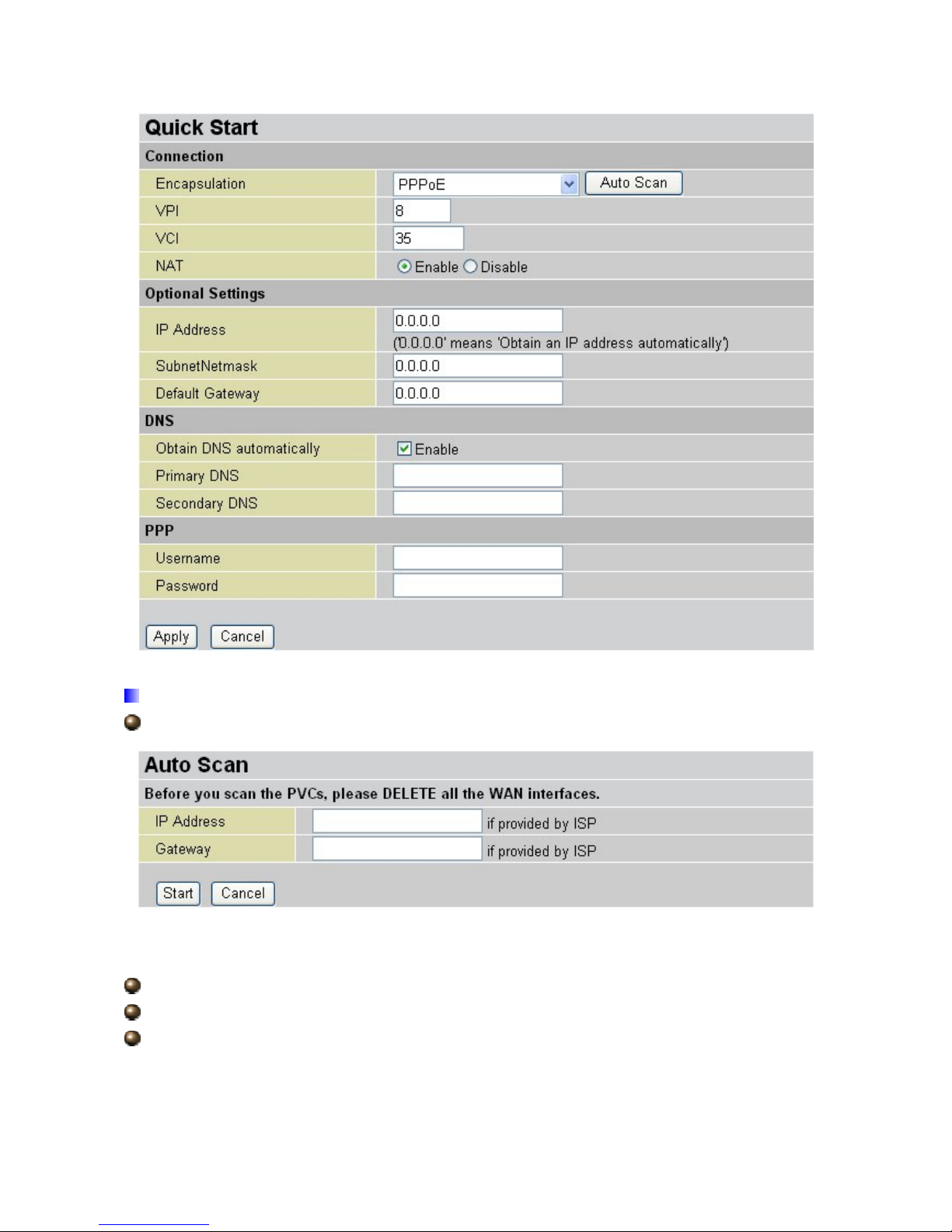

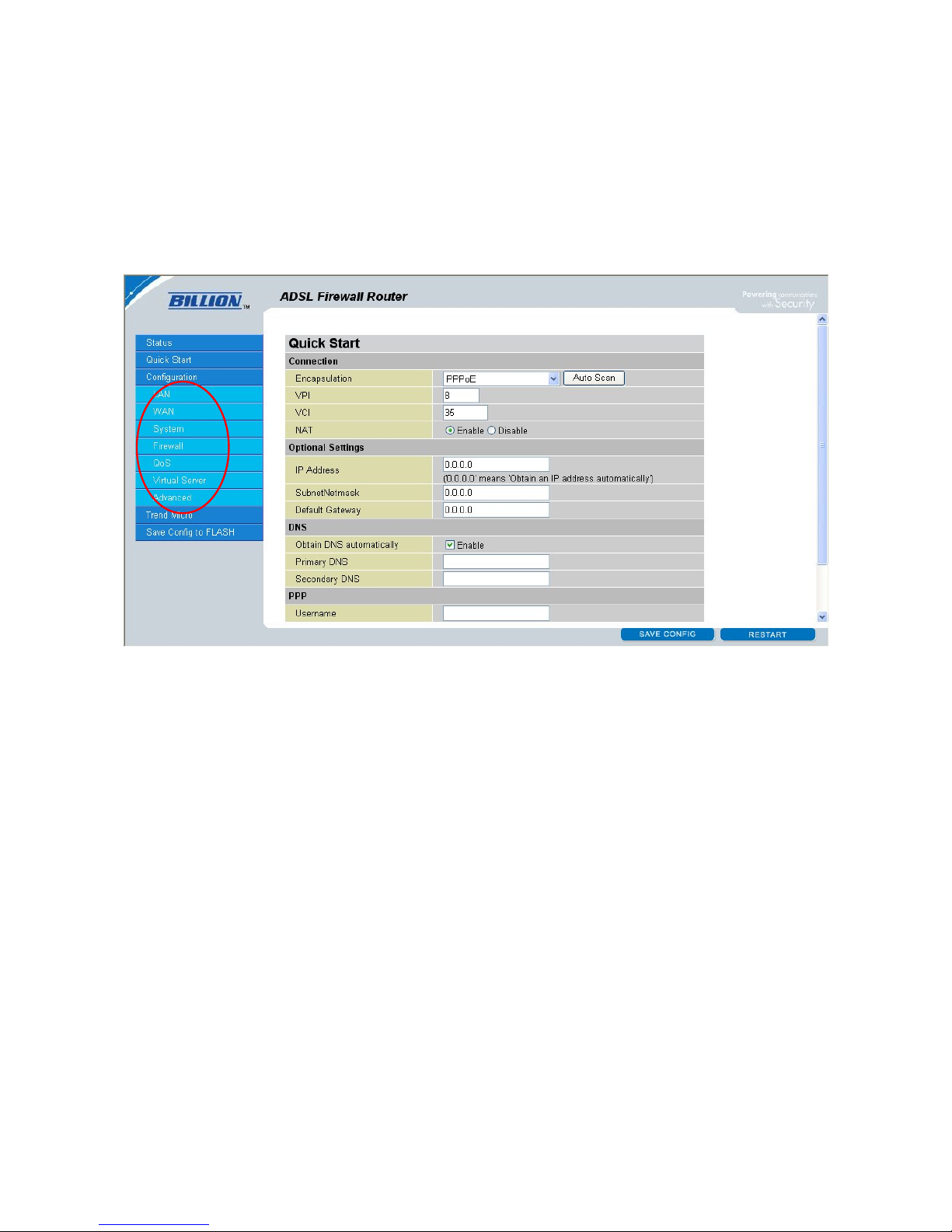

4.2 Quick Start .......................................................................................... 30
4.3 Configuration...................................................................................... 33

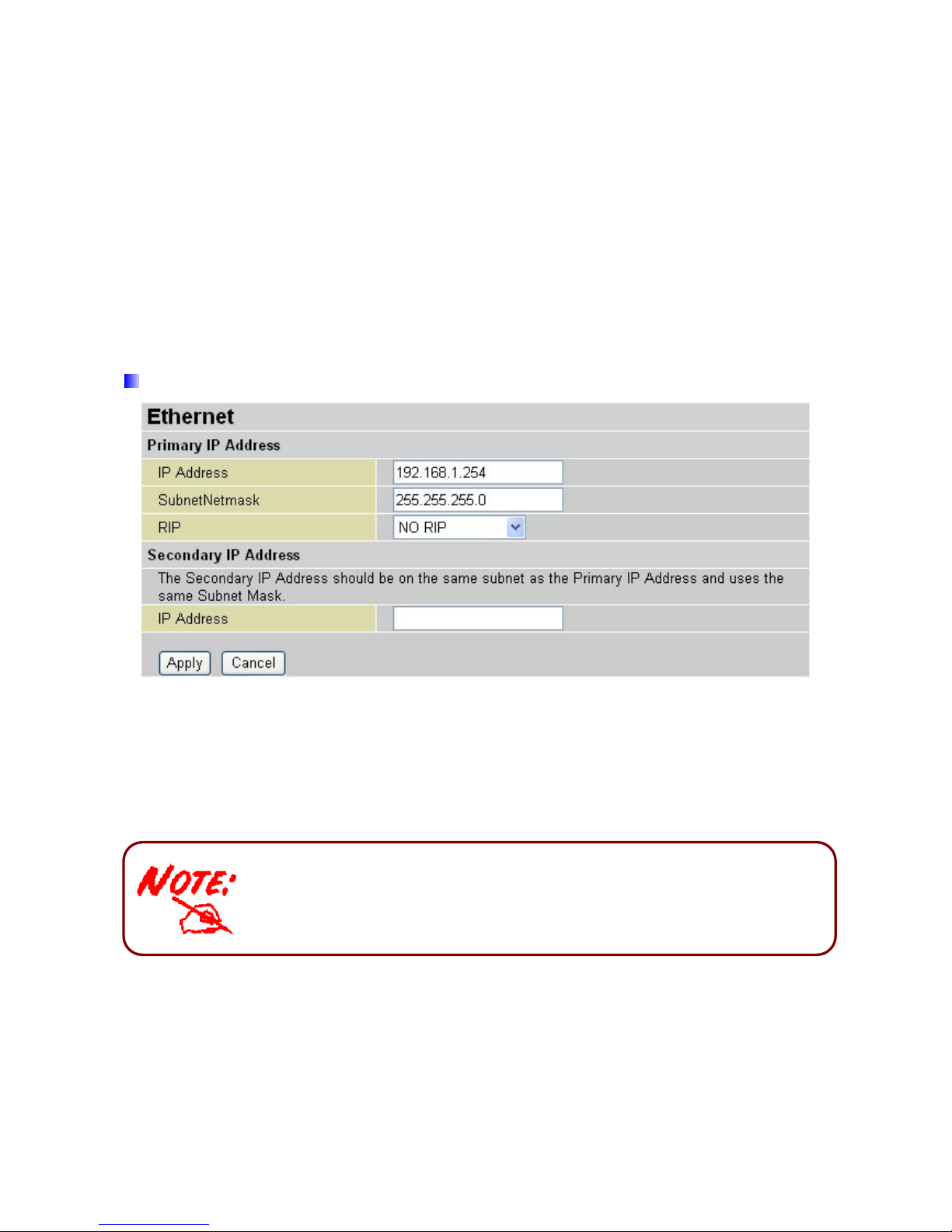

4.3.1 LAN (Local Area Network) .............................................................. 34

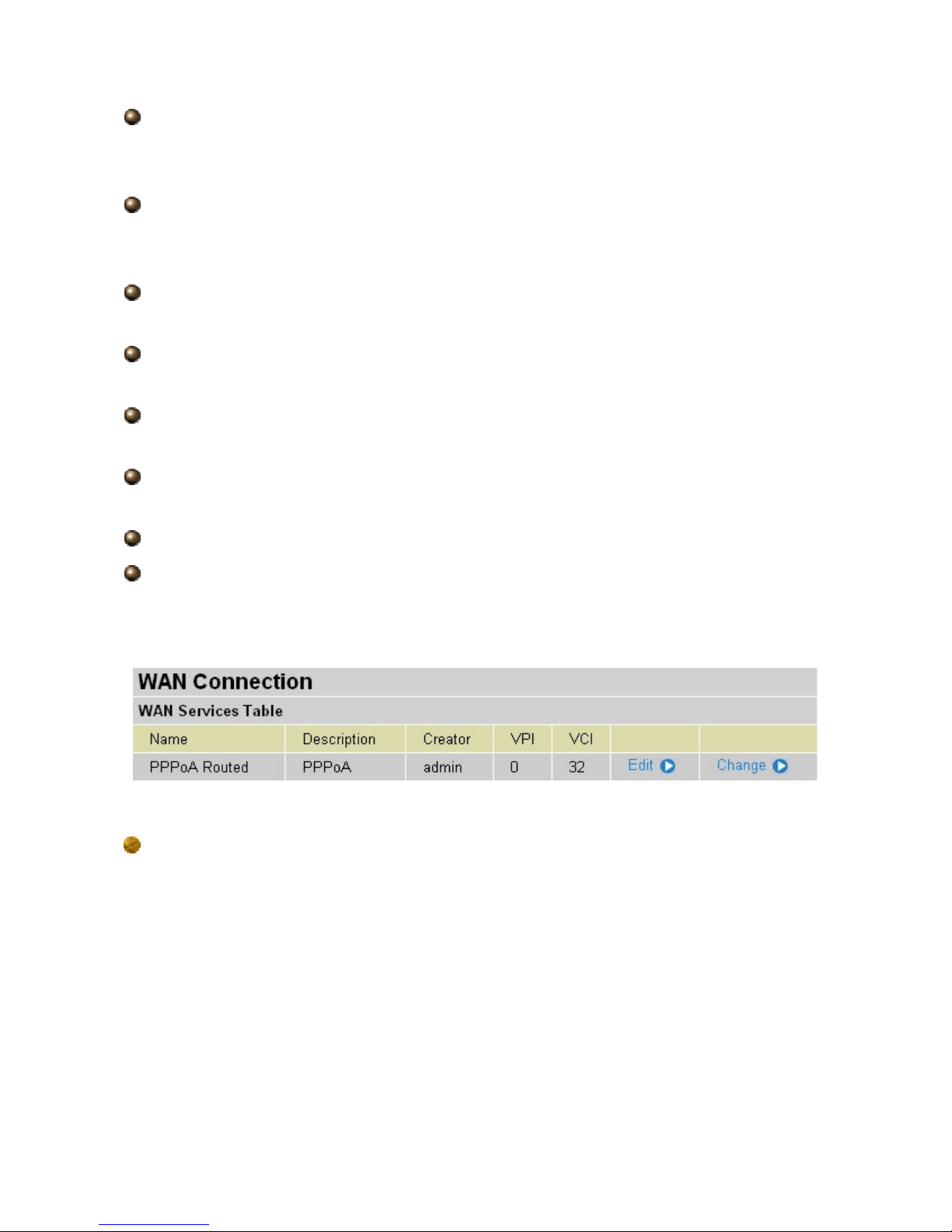

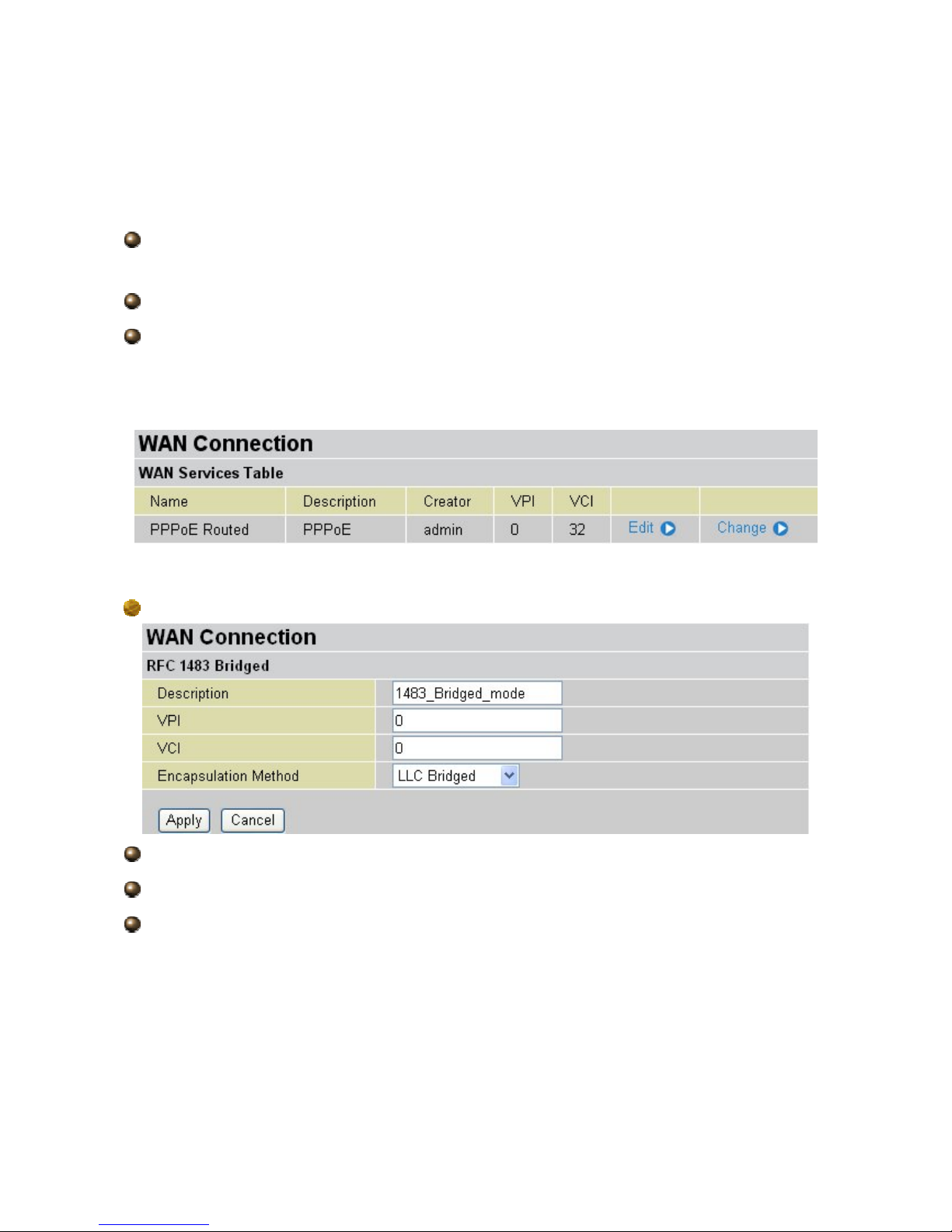

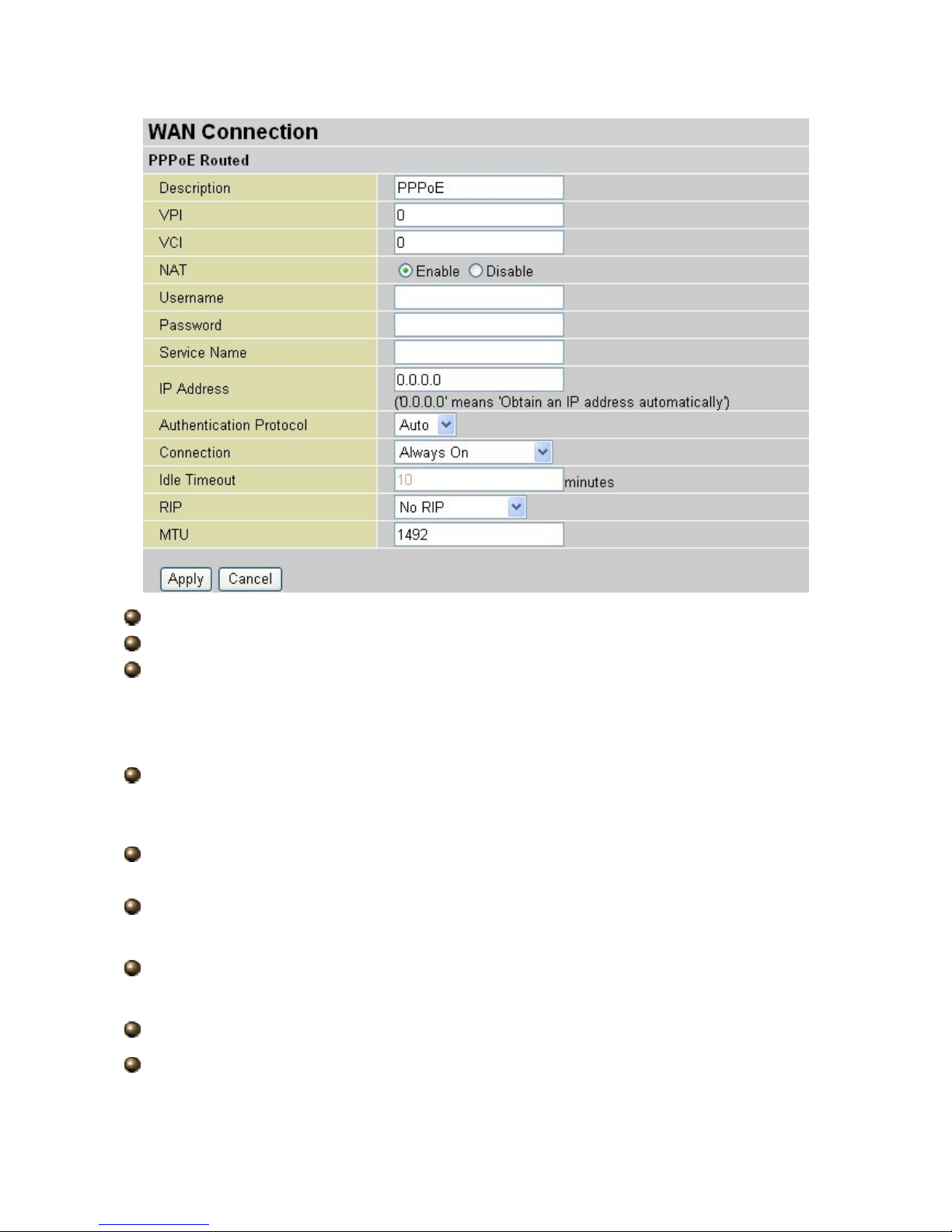

4.3.2 WAN (Wide Area Network) .............................................................. 40
4.3.3 System.............................................................................................. 47

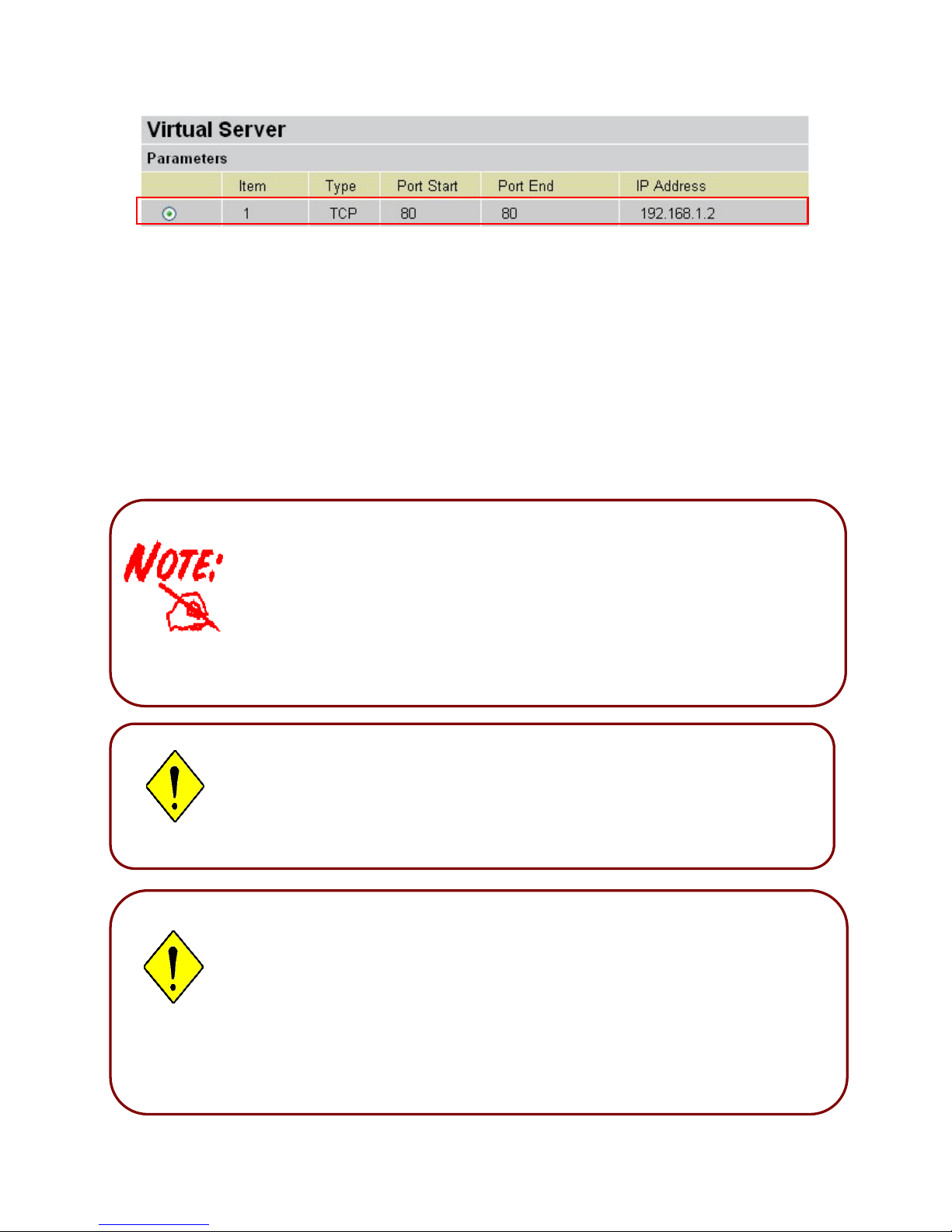

4.3.6 Virtual Server................................................................................... 74
4.3.7 Advanced ......................................................................................... 78
4.4 Trend Micro......................................................................................... 90
4.4.3 Getting Started with Trend Micro Security Services..................... 95
4.5 Save Configuration to Flash.............................................................111
4.6 Restart............................................................................................... 112
Chapter 5............................................................................................. 113
Appendix.............................................................................................. 115
Chapter 1
Introduction
1.1 Introducing the myGuard 7202(G)
Thank you for purchasing the myGuard 7202(G) ADSL Router by Billion. Your new router is an all-in-one unit that combines an ADSL modem, ADSL router and Ethernet network switch to provide everything you need to get the machines on your network connected to the Internet over an ADSL broadband connection.
The myGuard 7202(G) router complies with ADSL2+ standards for deployment worldwide and supports downstream rates of up to 24 Mbps and upstream rates of up to 1 Mbps. Designed for small office, home office and residential users, the myGuard router enables even faster Internet connections. You can enjoy ADSL services and broadband multimedia applications such as interactive gaming, video streaming and real-time audio much easier and faster than ever before.

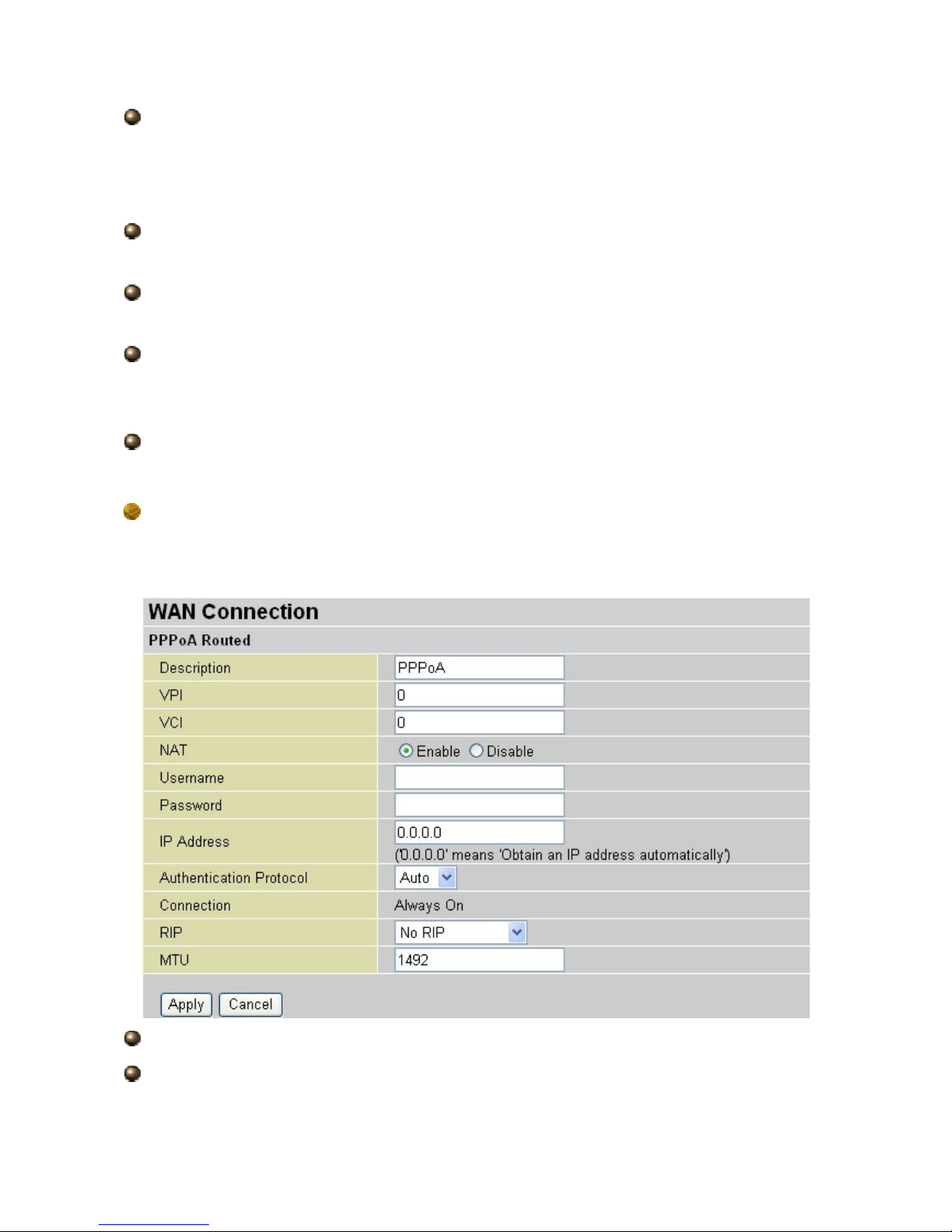

The myGuard 7202(G) supports PPPoA (RFC 2364 – PPP (Point-to-Point Protocol) over A TM Adaptation Layer 5), RFC 1483 encapsulation over ATM (bridged or routed), PPP over Ethernet (RFC 2516), and IPoA (RFC1577) to establish a connection with your ISP. Your new router also supports VC-based and LLC-based multiplexing.
The perfect solution for connecting a small group of PCs to a high-speed broadband Internet connection, the myGuard 7202(G) allows multiple users to have high-speed Internet access simultaneously.
Your new myGuard router also serves as an Internet firewall, protecting your network from access by outside users. Not only does it provide a natural firewall function with Network Address Translation (NAT), it also provides rich firewall features to secure your network. All incoming data packets are monitored and filtered. You can also configure your new router to block internal users from accessing the Internet.
The myGuard 7202(G) provides two levels of security support. First, it masks LAN IP
1
addresses making them invisible to outside users on the Internet, so it is much more difficult for a hacker to target a machine on your network. Second, it can block and redirect certain ports to limit the services that outside users can access. To ensure that games and other Internet applications run properly, you can open specific ports for outside users to access internal services on your network.
The Integrated DHCP (Dynamic Host Control Protocol) client and server services allow multiple users to get IP addresses automatically when the myGuard router boots up. Simply set local machines as a DHCP client to accept a dynamically assigned IP address from the DHCP server and reboot. Each time a local machine is powered up; the router recognizes it and assigns an IP address to instantly connect it to the
LAN.
For advanced users, Virtual Service (port forwarding) functions allow the product to provide limited visibility to local machines with specific services for outside users. You can set an ISP (Internet Service Provider) provided IP address on the myGuard 7202(G) and then you can reroute specific services to individual computers on your local network. For instance, a dedicated web server can be connected to the Internet via the myGuard router and then incoming requests for web pages that are received by the router can be rerouted to your dedicated local web server, even though the server now has a different IP address. Virtual Server can also be used to re-task services to multiple servers. For instance, you can set the myGuard router to allow separated FTP, Web, and Multiplayer game servers to share the same Internet-visible IP address while still protecting the servers and LAN users from hackers.
2
1.2 Features
Express Internet Access – ADSL2/2+ capable
The myGuard 7202(G) complies with ADSL worldwide standards. Supporting downstream rates of 8Mbps with ADSL, the myGuard router is capable of up to 12/24 Mbps with ADSL2/2+, and upstream rates of up to 1 Mbps. Users enjoy not only high-speed ADSL services but also broadband multimedia applications such as interactive gaming, video streaming and real-time audio which are easier and faster than ever. The myGuard router is compliant with Multi-Mode standard (ANSI T1.413, Issue 2; G.dmt (ITU G.992.1); G. hs (ITU G994.1); G.dmt.bis (ITU G.992.3); and G.dmt.bisplus (ITU G.992.5)
Trend Micro powered Vulnerability Assessment Service
After activation, the Vulnerability Assessment service help s protect your PC and entire home network by scanning weak points and generating a security report. The report shows where your PC is vulnerable and advises you how to focus your efforts more effectively to prevent viruses and other threats from damaging your PC.
Trend Micro powered Security Services
Offering a 60-day FREE evaluation period, Trend Micro powered Security Services provide Anti-Virus, Anti-Spam, and Parental Controls on a subscription basis. For extra protection, parents or caregivers can pre-define or block user access to website categories, such as pornography, violence or others, a list which is dynamically updated by the security service provider. To take advantage of the full Trend Micro powered Security Services, you can purchase the package on-line and continue to use it for one year.
Fast Ethernet Switch
A 4-port 10/100Mbps fast Ethernet switch is built-in with automatic switching between MDI and MDI-X for 10Base-T and 100Base-TX ports, with auto dection allowing you to use either straight or cross-over Ethernet cables.
Multi-Protocol to Establish a Connection The myGuard router supports PPPoA (RFC 2364 - PPP over ATM Adaptation Layer 5), RFC 1483 encapsulation over ATM (bridged or routed), PPP over Ethernet (RFC 2516) and IPoA (RFC1577) to establish a connection with an ISP. The router also supports VC-based and LLC-based multiplexing.
Quick Installation Wizard A web-based GUI and quick installation wizard help you easily install the myGuard 7202(G). Enter your ISP’s information and begin browsing the Internet immediately.
Universal Plug and Play (UPnP) and UPnP NAT Traversal This protocol is used to enable simple and robust connectivity among stand-alone devices
3
and PCs from many different vendors, and it makes setting up a network simple and affordable. UPnP architecture leverages TCP/IP and the Web to enable proximity networking in addition to control and data transfer among networked devices. With this feature enabled, you can seamlessly connect to Net Meeting or MSN Messenger.
Network Address Translation Network Address Translation (NAT) allows multiple users to access outside resources such as the Internet simultaneously with one IP address/one Internet access account. Many application layer gateways (ALG) are supported such as web browser, ICQ, FTP, Telnet, E-mail, News, Net2phone, Ping, NetMeeting, IP phone and others.

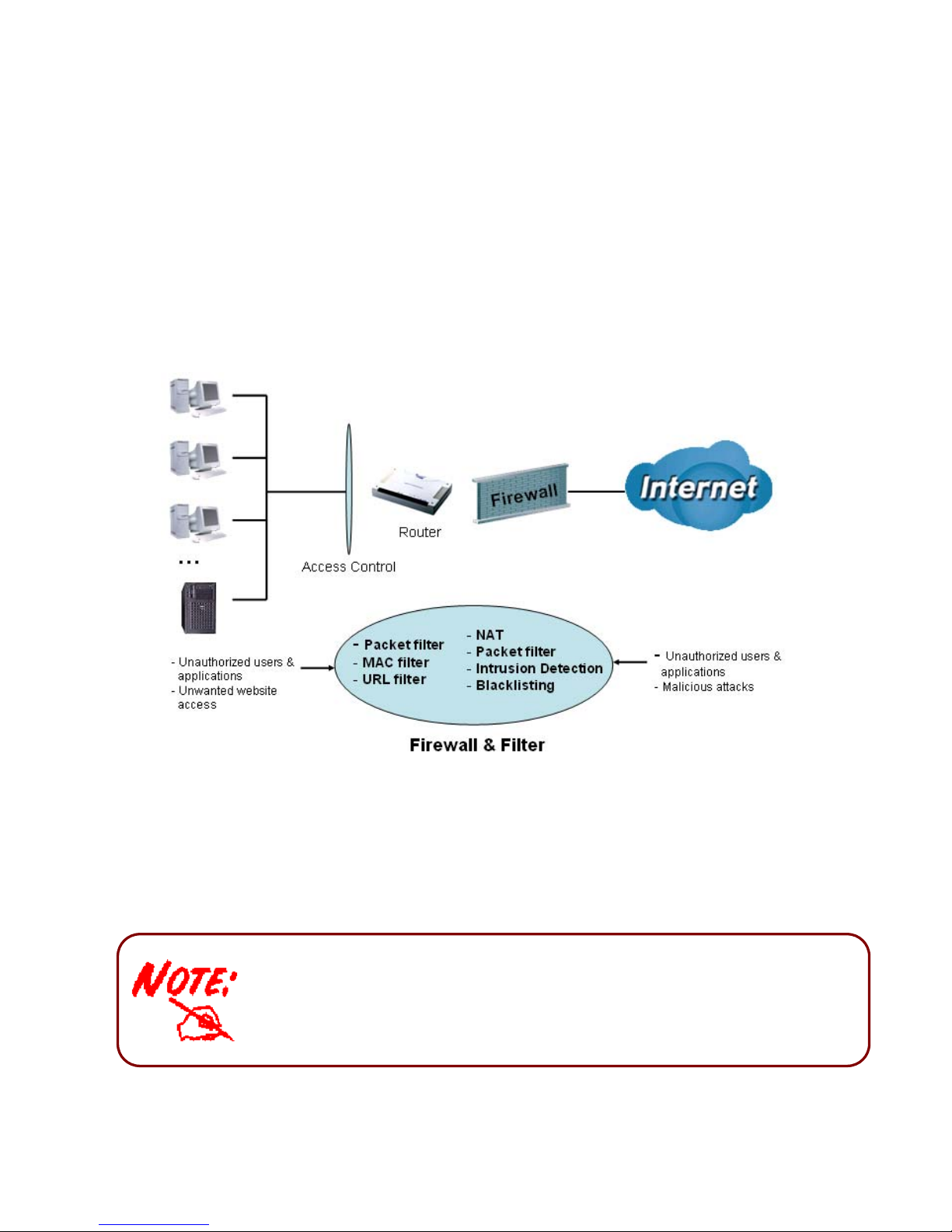

Firewall NAT technology supports simple firewalls and provides options for blocking access from the Internet, like Telnet, FTP, TFTP, WEB, SNMP and IGMP.

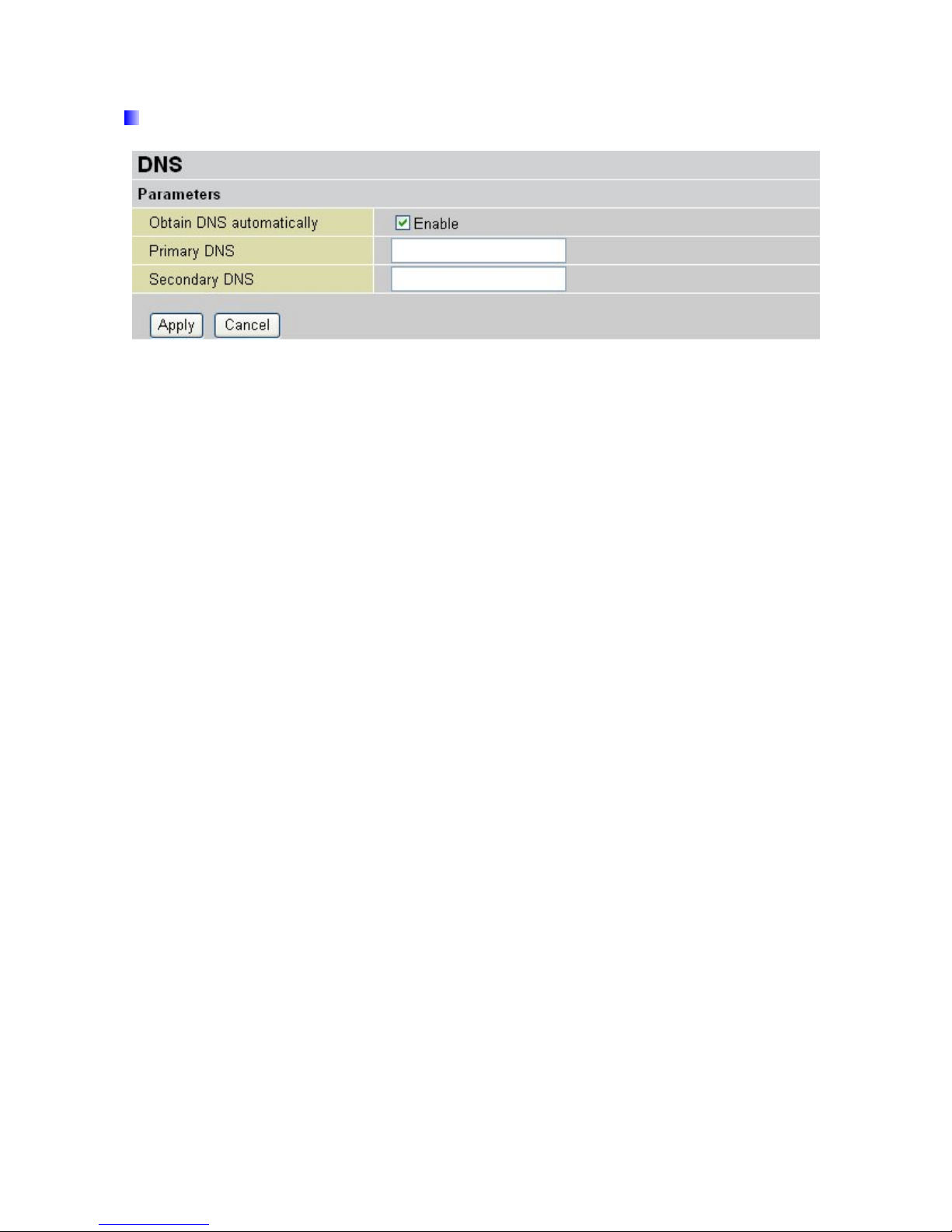

Domain Name System Relay Domain Name System (DNS) relay provides an easy way to map a domain name with a user-friendly name such as www.billion.com with an IP address. When a local machine sets its DNS server to the router’s IP address, every DNS conversion request packet from the PC to this router is forwarded to the real DNS on the outside network.

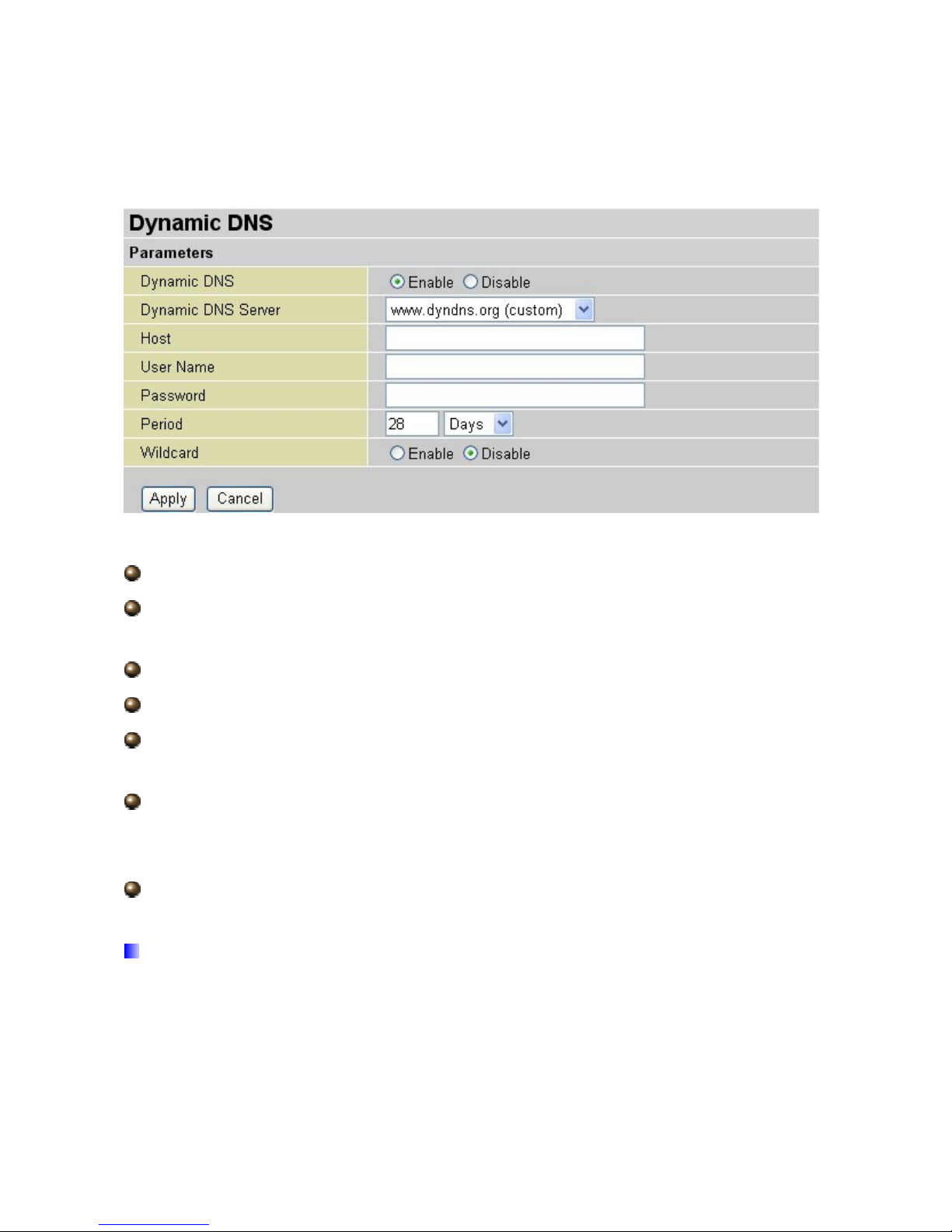

Dynamic Domain Name System (DDNS) The Dynamic DNS service allows you to alias a dynamic IP address to a static hostname. This dynamic IP address is the WAN IP address. To use the service, you must first apply for an account from a DDNS service such as http://www.dyndns.org/.
PPP over Ethernet (PPPoE)
The myGuard 7202(G) provides an embedded PPPoE client function to establish a connection. You get greater access speed without changing the operation concept, while sharing the same ISP account and paying for one access account. No PPPoE client software is required for the local computer. Automatic Reconnect and Disconnect Timeout (Idle Timer) functions are also provided.

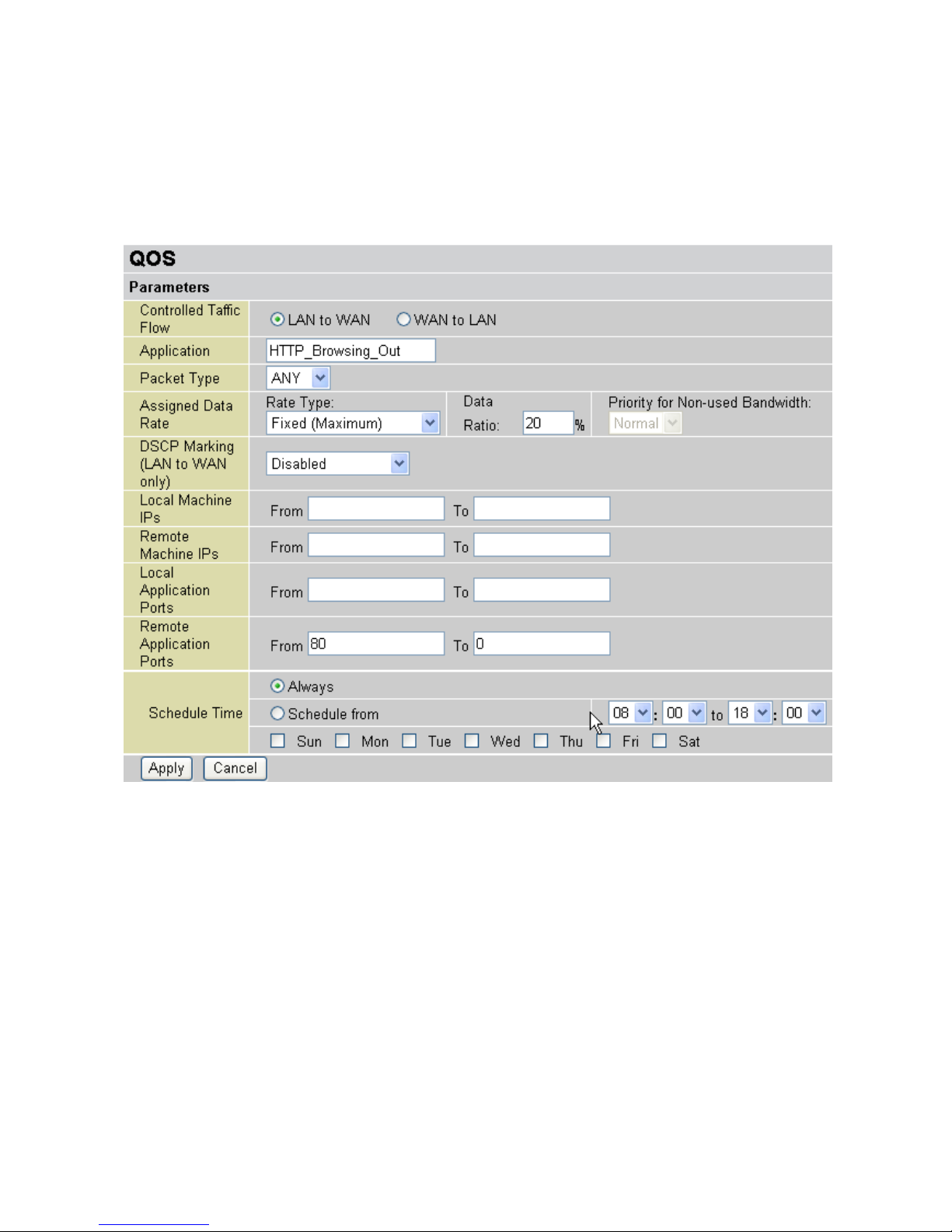

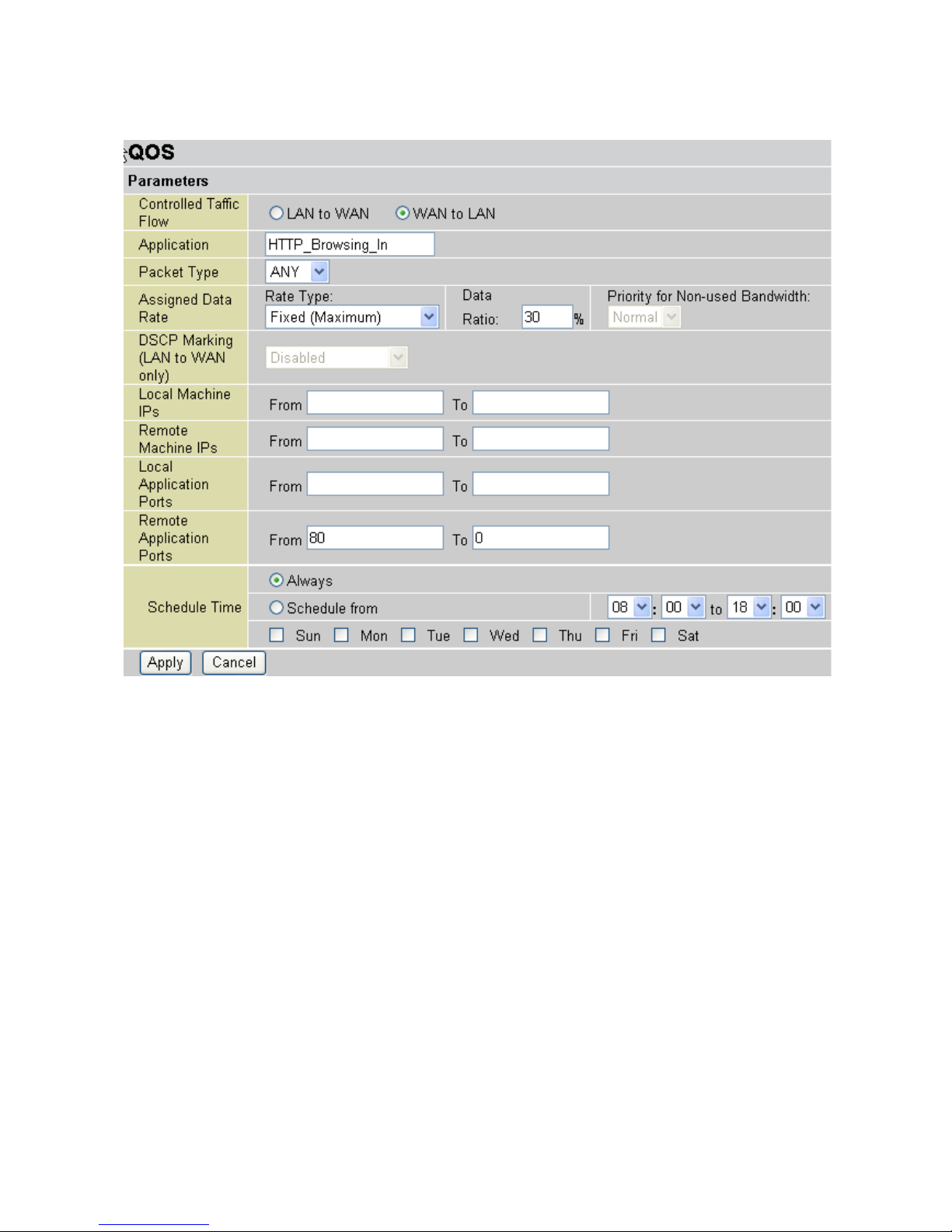

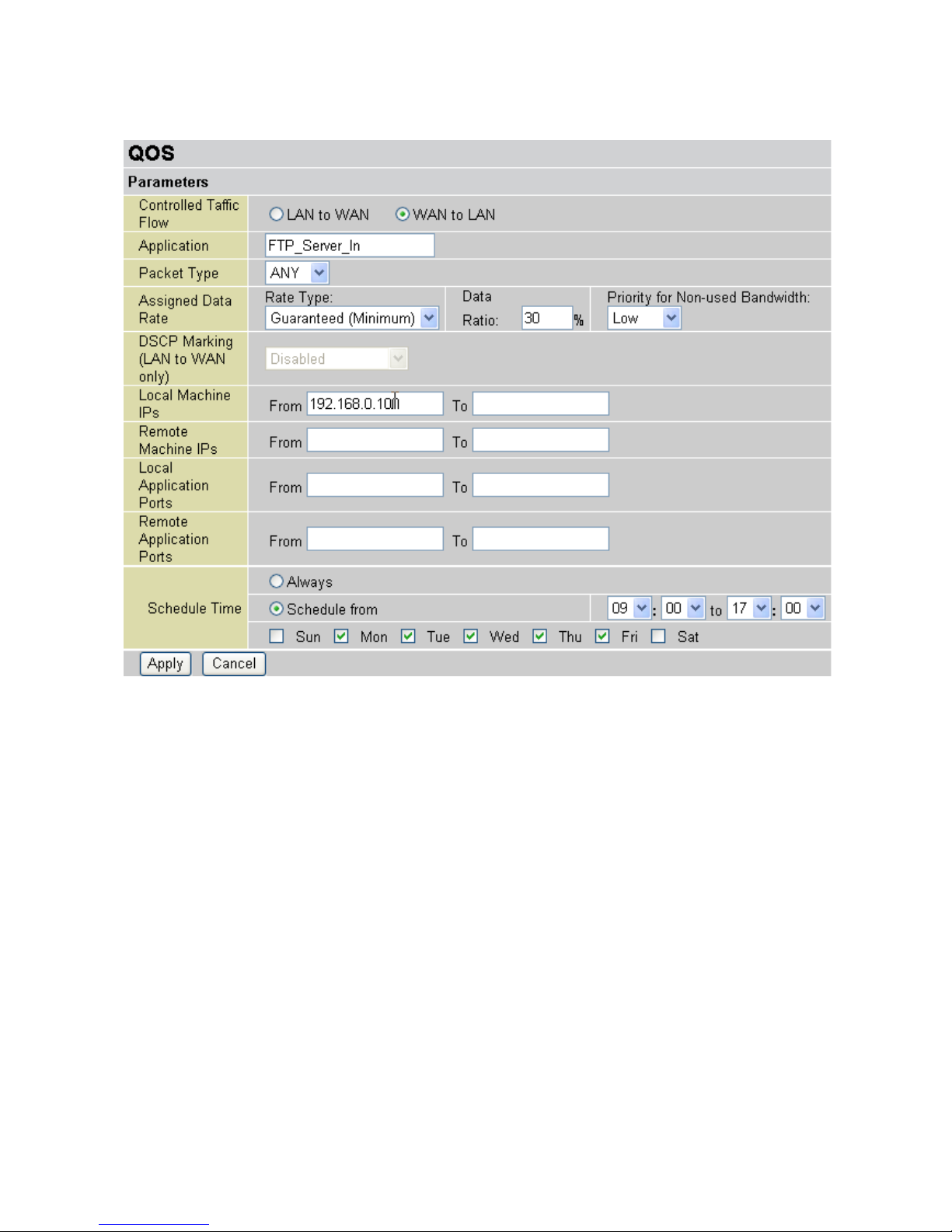

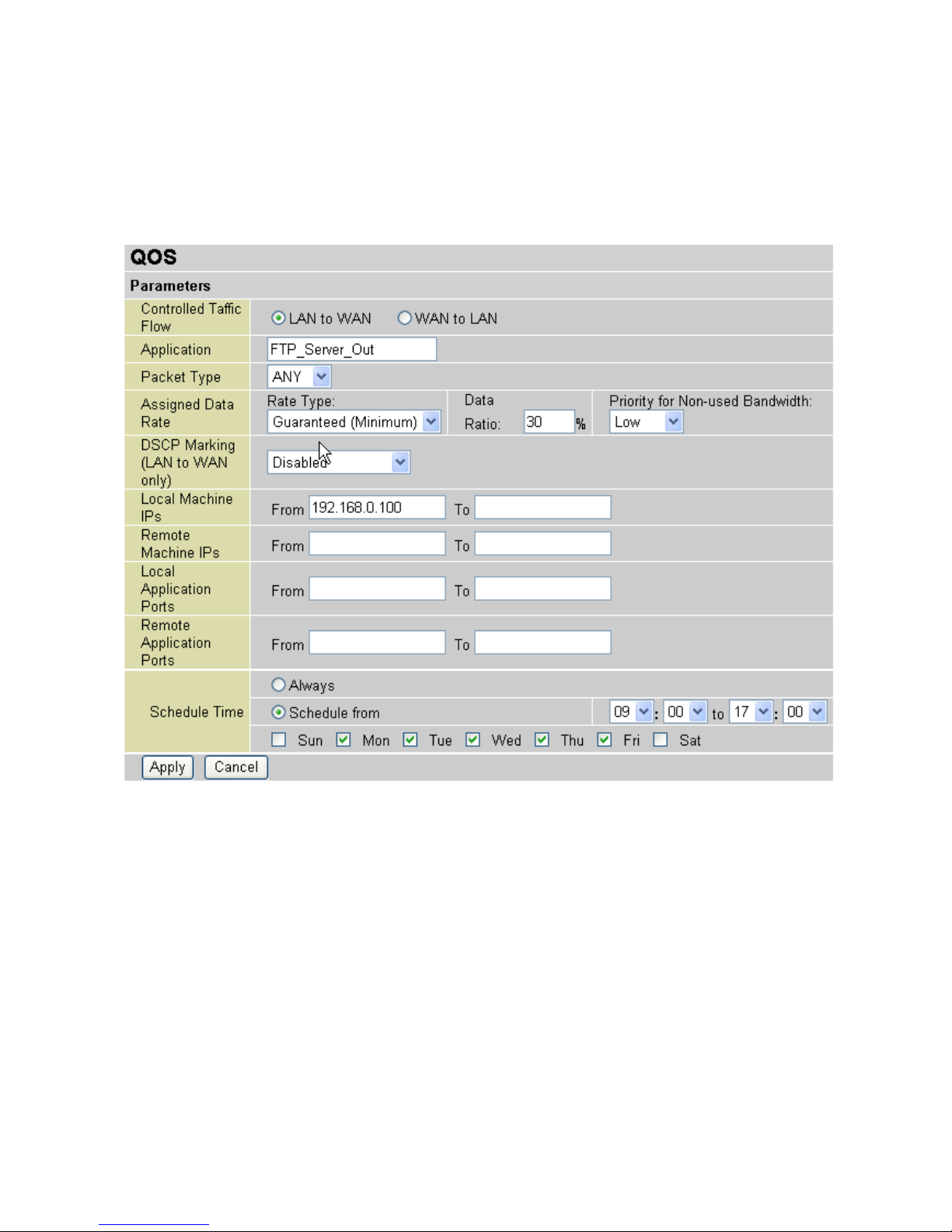

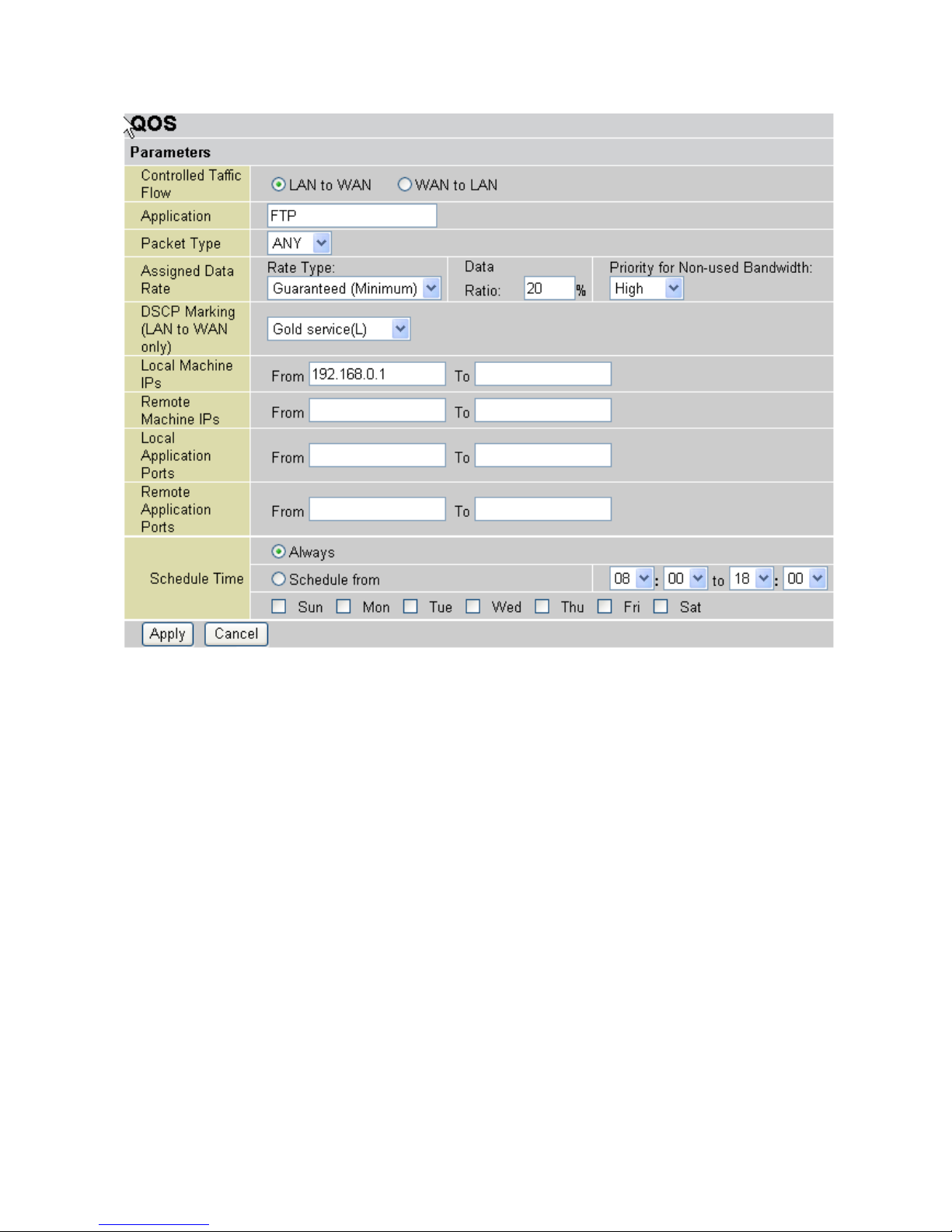

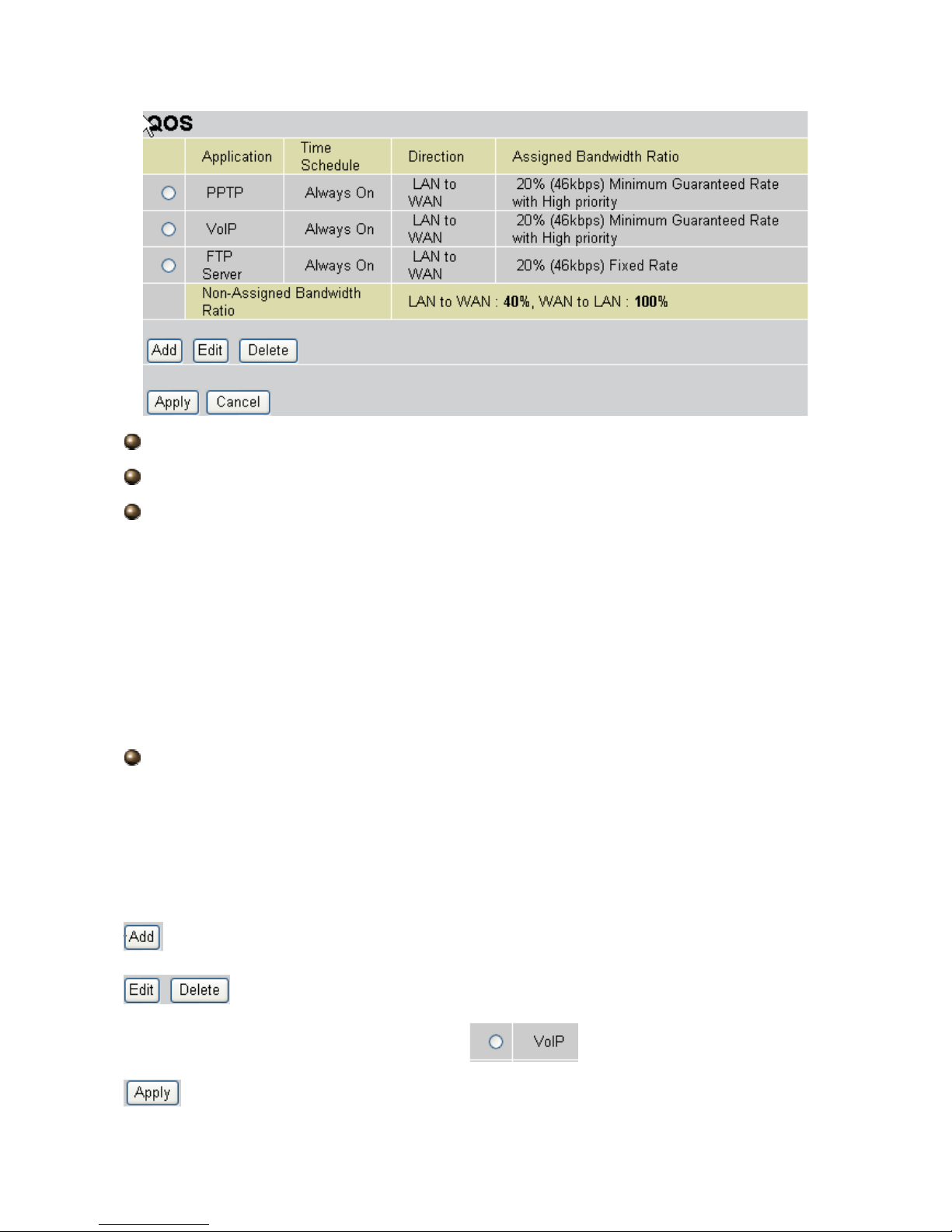

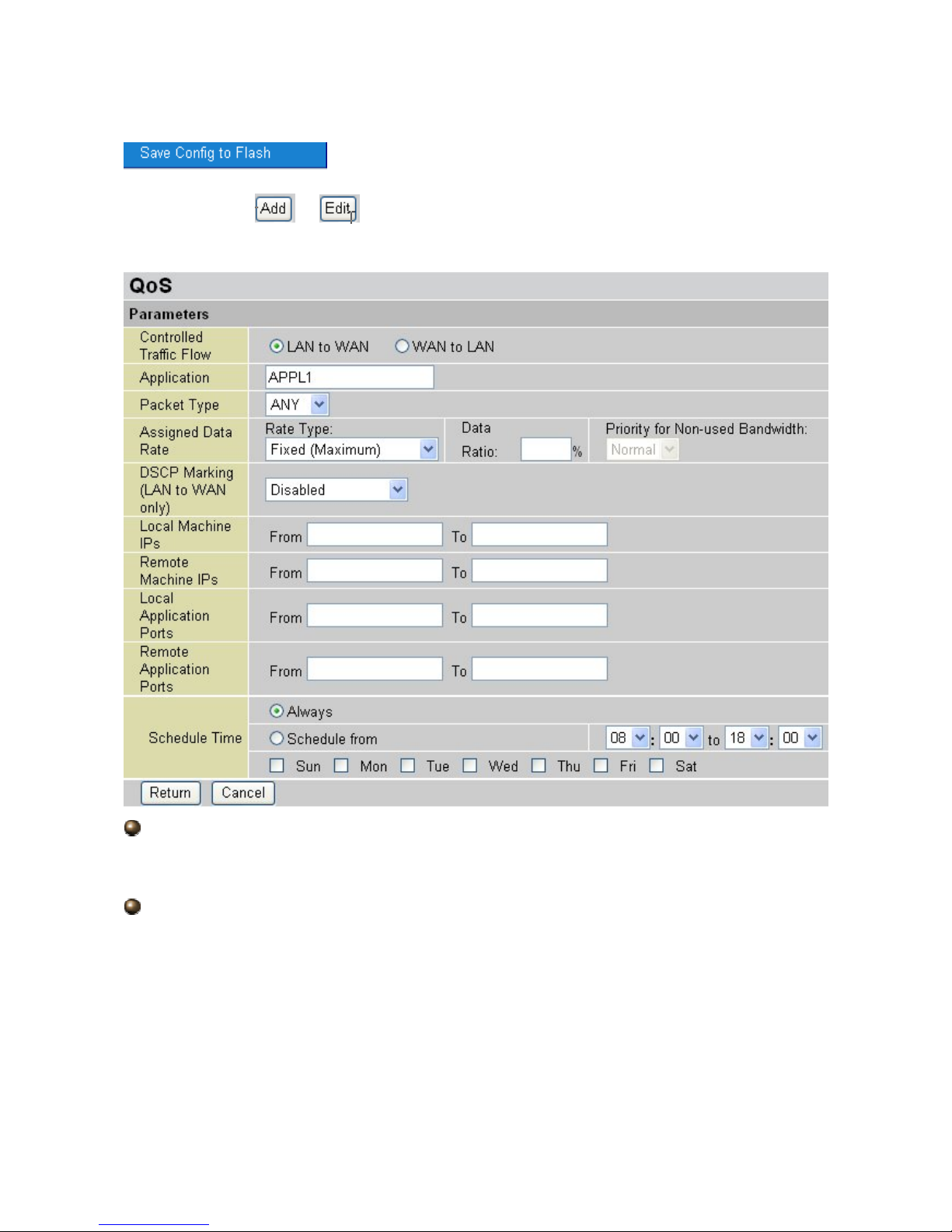

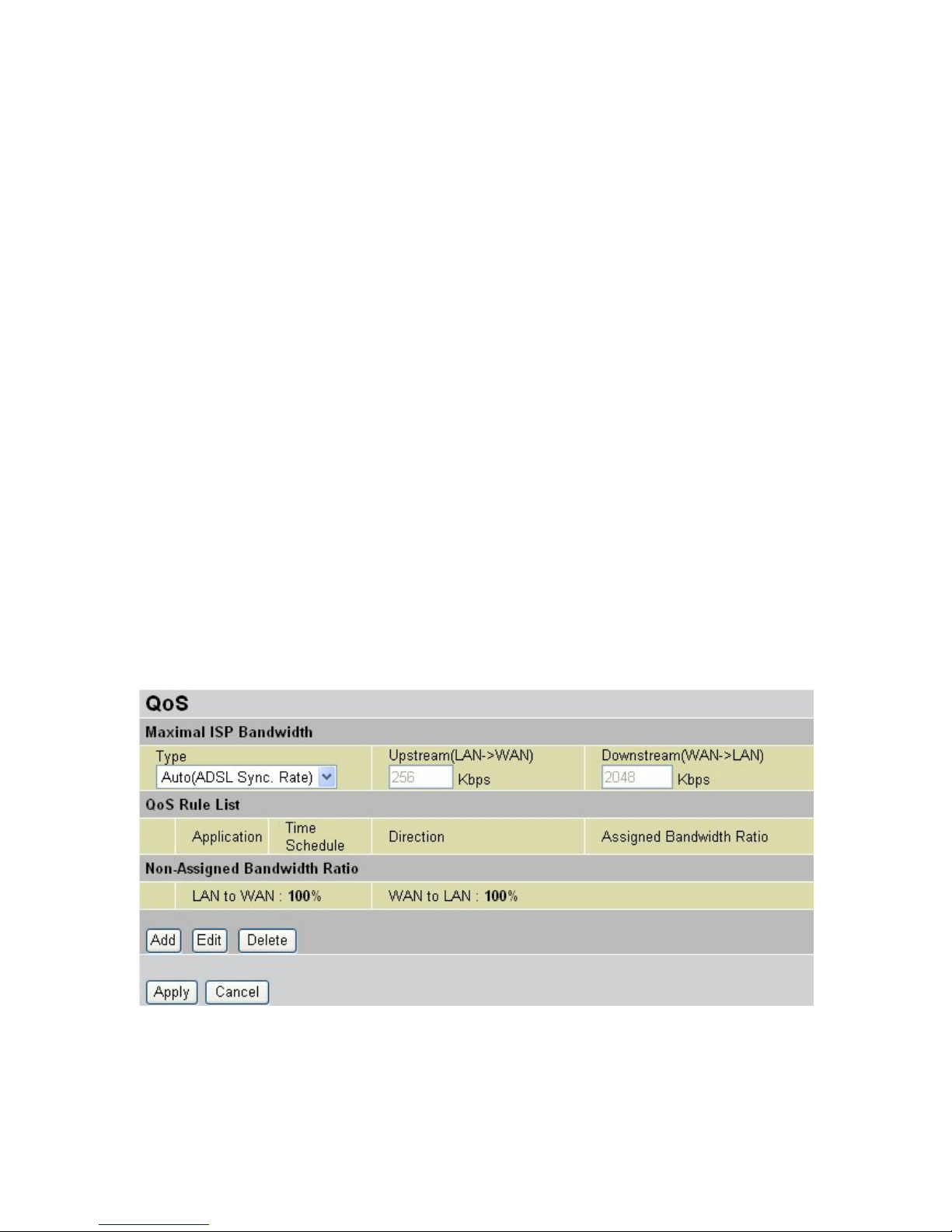

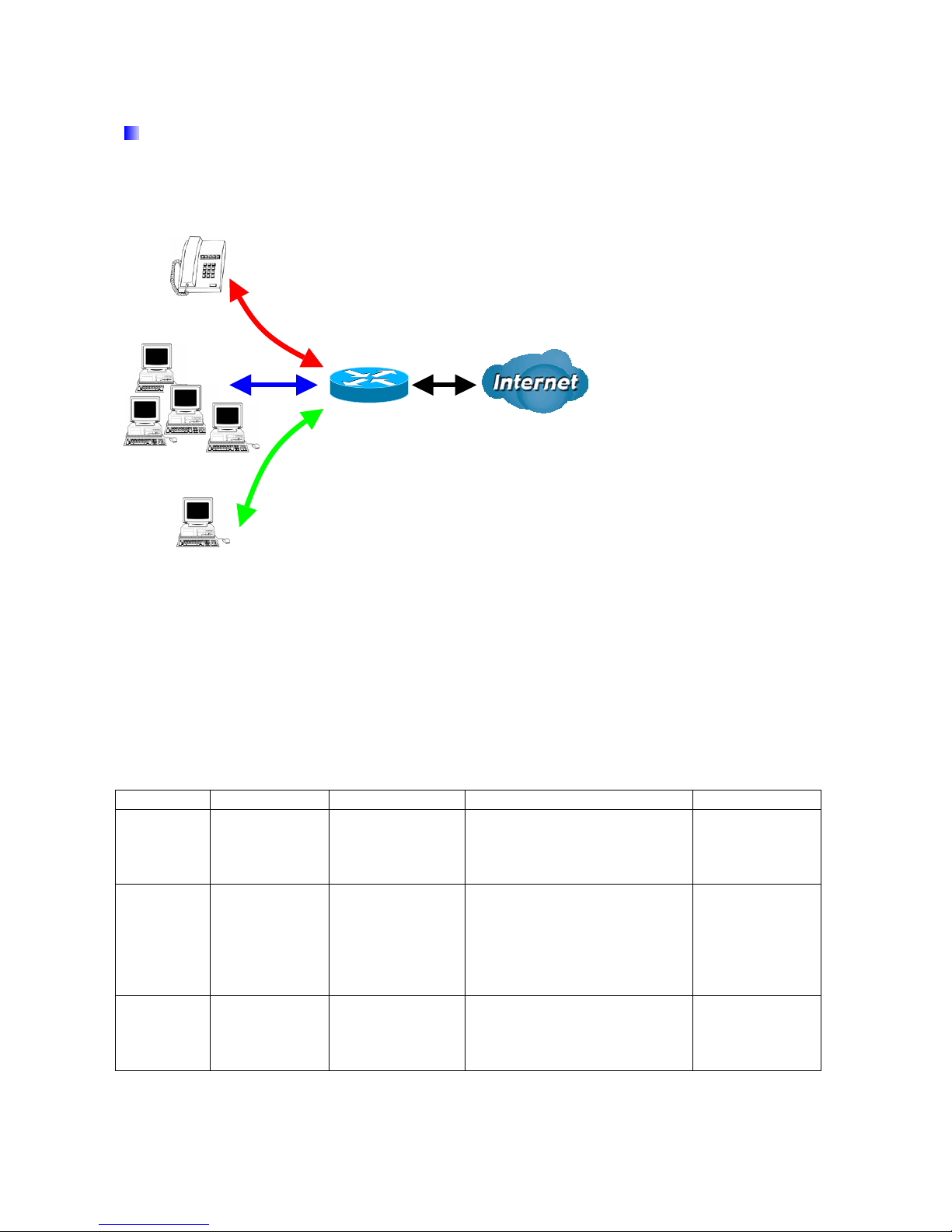

Quality of Service (QoS)
QoS gives you full control over which types of outgoing data traffic should be given priority by the router, ensuring important data like gaming packets, customer information, or management information move through the router ay lightning speed, even under heavy load. The QoS features are configurable by source IP address, destination IP address, protocol, and port. You can throttle the speed at which different types of outgoing data pass through the router, to ensure P2P users don’t saturate upload bandwidth, or office browsing doesn’t bring client web serving to a halt. In addition, or alternatively, you can simply change the priority of different types of upload data and let the router sort out the actual speeds.
4

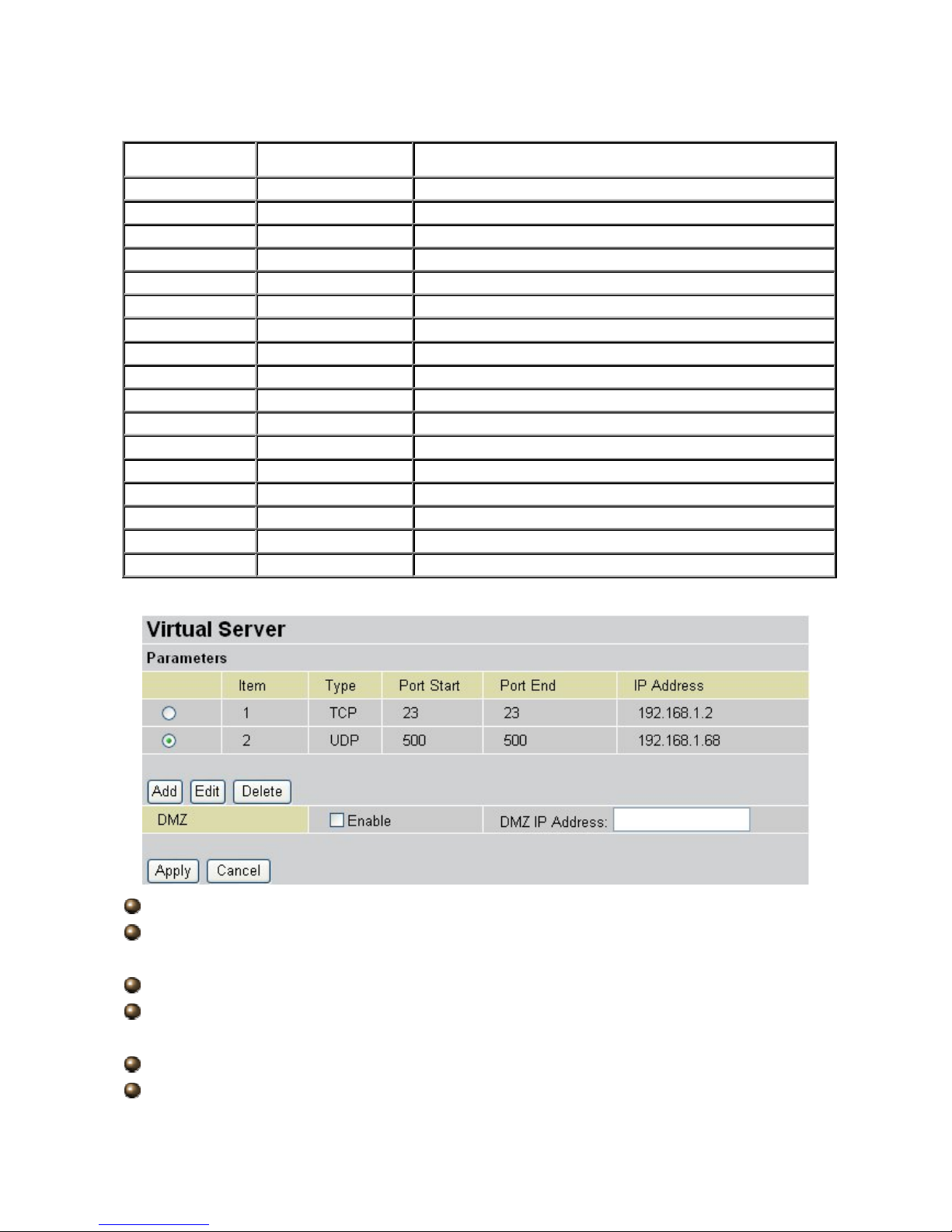

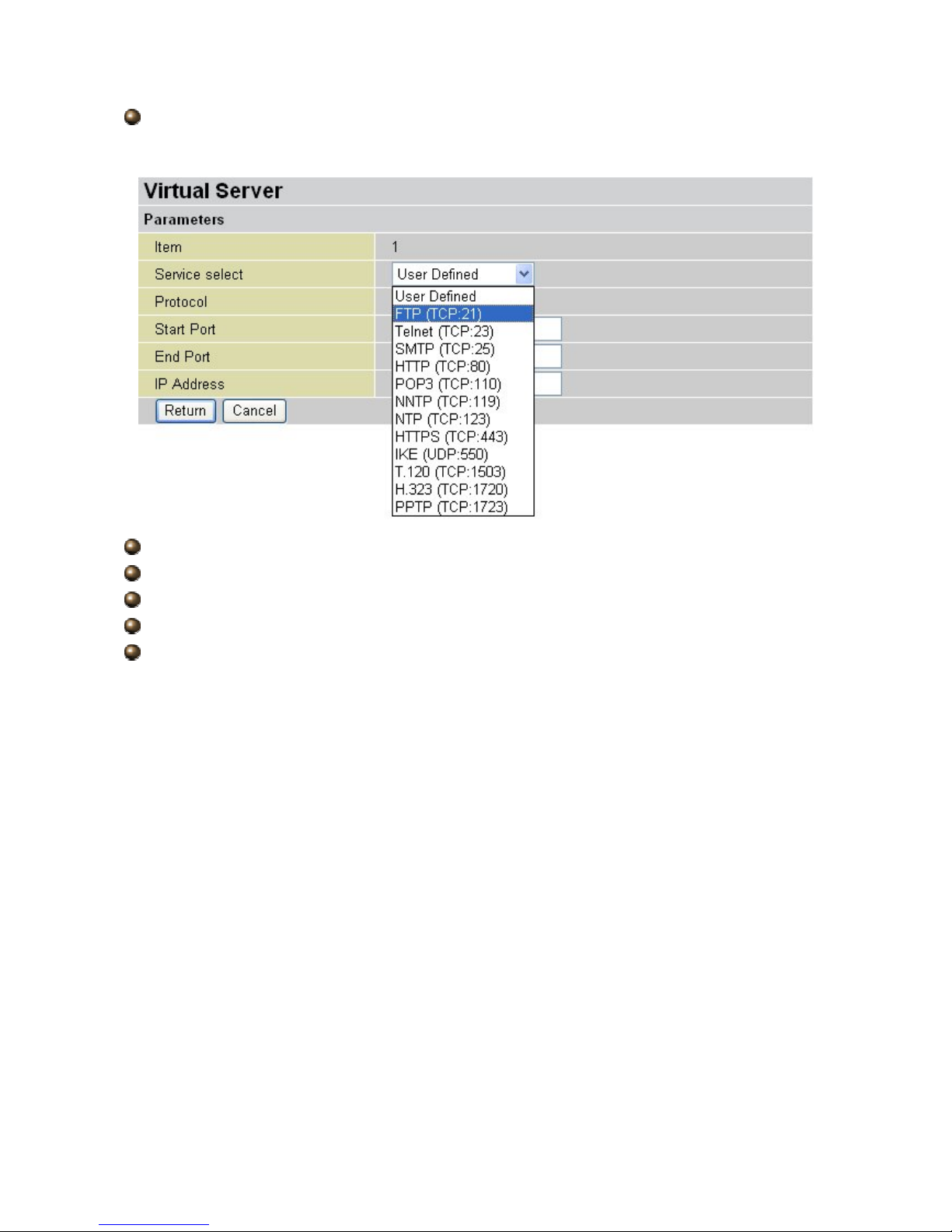

Virtual Server:
You can specify which services are visible to outside users. The myGuard router detects an incoming service request and forwards it to the specific local computer for handling. For example, you can assign a PC in a LAN to act as a Web server inside and expose it to the outside network. Outside users can browse inside the web server directly while it is protected by NAT. A DMZ host setting is also provided for local computers exposed to the outside Internet network.
Dynamic Host Configuration Protocol (DHCP) Client and Server On a WAN site, the DHCP client obtains an IP address from the Internet Service Provider (ISP) automatically. On a LAN site, the DHCP server allocates a range of client IP addresses, including subnet masks and DNS IP addresses and distributes them to local computers. This provides an easy way to manage the local IP network.

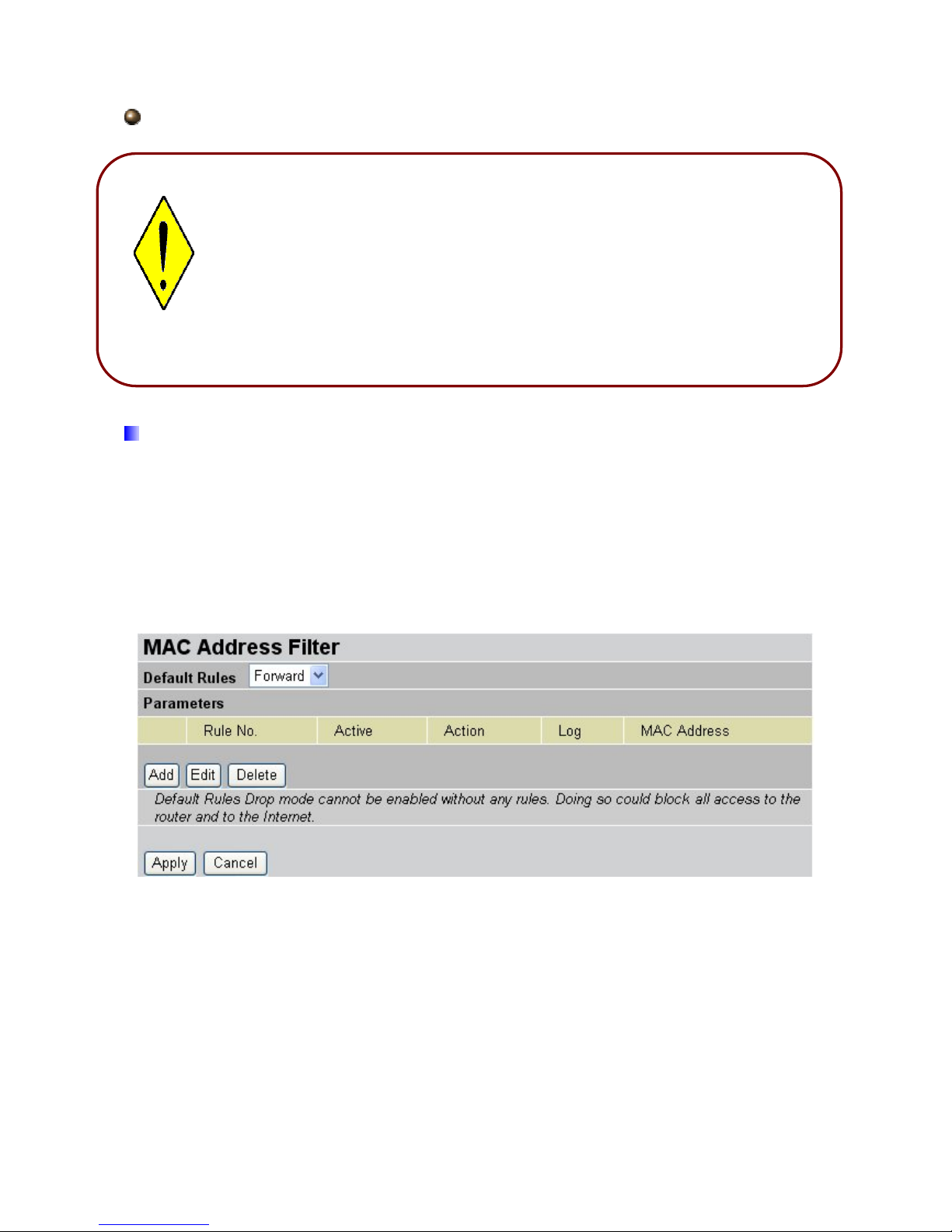

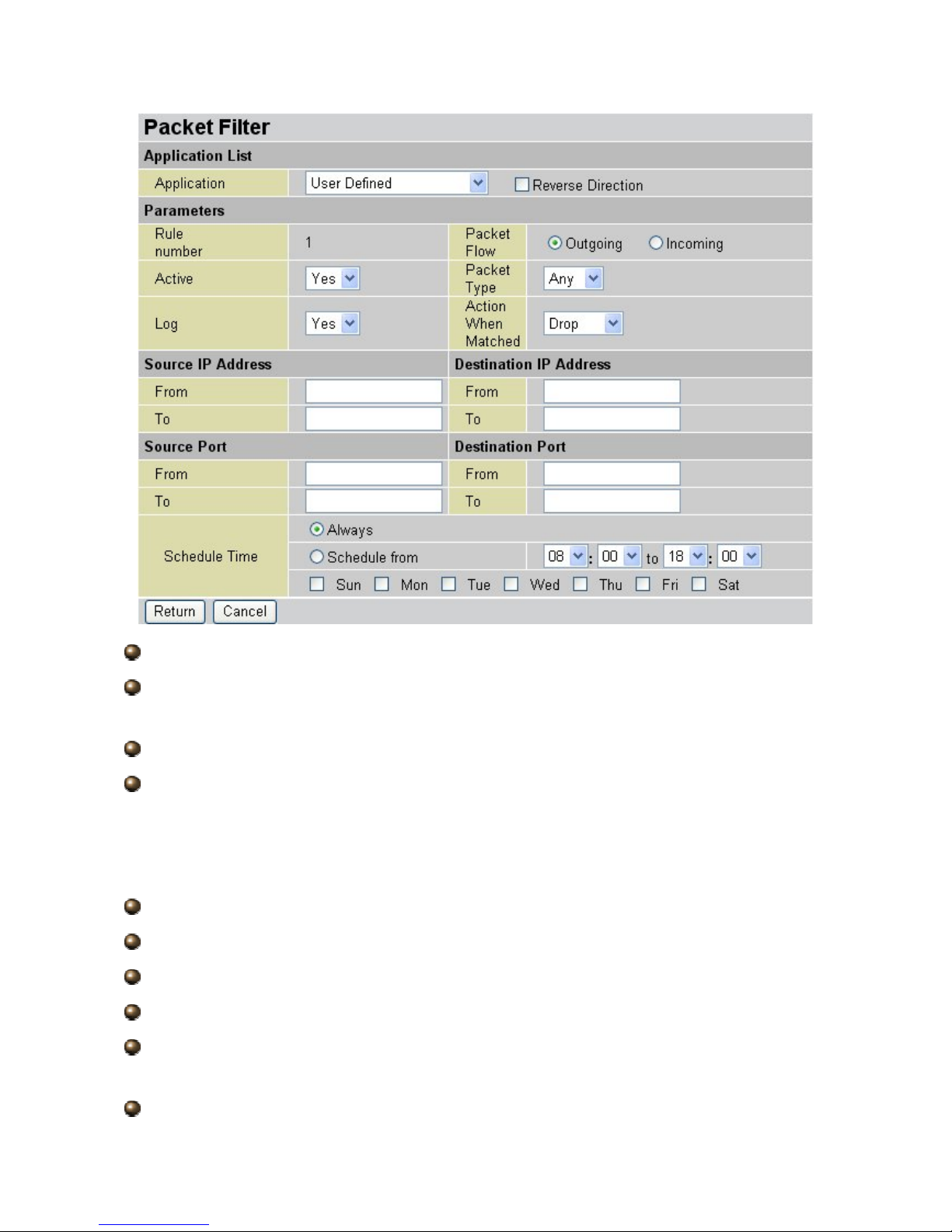

Rich Packet Filtering
This feature filters the packet based on IP addresses as well as Port numbers. Filtering packets to and from the Internet provides a higher level of security control.

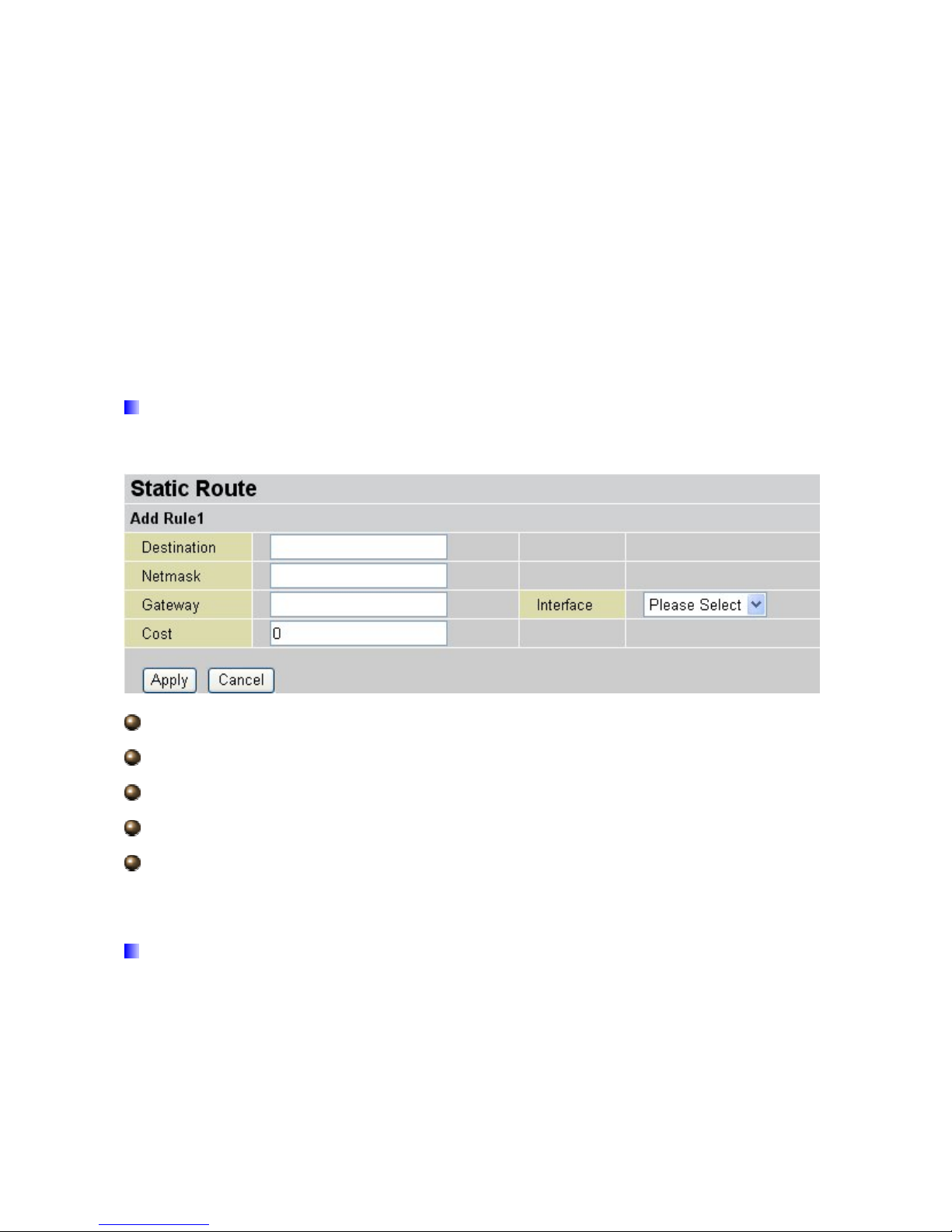

Static and RIP1/2 Routing An easy static routing table or RIP1/2 routing protocol supports routing capability.
Simple Network Management Protocol (SNMP) SNMP allows convenient remote management of the router.
Web-based GUI A web-based GUI offers easy configuration and management. User-friendly and with on-line help, it also supports remote management capability for remote users to configure and manage this product.
Firmware Upgradeable You can upgrade the myGuard router with the latest firmware through its web-based GUI.
5
1.3 Applications of the myGuard 7202(G)
6
Chapter 2
Product Overview
2.1 Important Notes
Warning
Do not open or repair the case yourself. If the myGuard
7202(G) is too hot, turn off the power immediately and have it repaired at a qualified service center.
Avoid using this product and all accessories outdoors.
Do not use the myGuard 7202(G) in high humidity or high
temperatures.
Do not use the same power s ource for the myGuard 7202(G)
as other equipment.
Place the myGuard 7202(G) on a stable surface. Only use the power adapter that comes with the package. Using
a different voltage rating power adaptor may damage the router.
2.2 Package Contents
myGuard 7202(G) ADSL Router
CD-ROM containing the online manual
RJ-11 ADSL/telephone Cable (1.8M)
Ethernet (CAT-5 LAN) Cable (2M Straight)
AC-DC power adapter (12V DC, 1A)
Quick Start Guide (105*150mm)
7
2.3 The Front LEDs
myGuard 7202
myGuard 7202G
LED Description
1 PPP : Steady glow when there is a PPPoA / PPPoE connection.
2 ADSL:
Lights when successfully connected to an ADSL DSLAM
(linesync).
3
LAN Port 1-4:
Steady glow when connected to an Ethernet device. Glows green for 100Mbps; Orange for 10Mbps. Blinking light when data is Transmitted / Received.
4
WLAN (7202G only)
Lit green when the wireless connection is established. Flashes when sending/receiving data.
5 SYS : Lights when the system is ready.
6 PWR : Lights when the power is ON.
8
2.4The Rear Ports
myGuard 7202
myGuard 7202G
Port Description
1 PWR
Connect the supplied power adapter to this jack.
2 RESET
After the myGuard router is powered on, press this recessed button using the end of paper clip or other small pointed object to reset the router or to restore it to factory default settings.
1. Recovery procedures for non-working routers (e.g. after a failed firmware upgrade flash):
Hold the Emergency/Failure Recovery Button on the back of the modem in. Keep this button held in and turn on the modem. Once the lights on the modem have stopped flashing, release the Emergency/Failure Recovery Button. The modem's emergency-reflash web interface will then be accessible via http://192.168.1.254/ where you can upload a firmware image to restore the modem to a functional state. Please note that the modem will only respond via its web interface at this address, and will not respond to ping requests from your PC or to telnet connections.
2. Recovery procedures for a lost web interface password: After turning the router on press the Emergency/Failure
Recovery Button on the back of the modem, and hold the button in until all lights on the modem flash and it reboots with factory default settin
g
s. The login will be reset to admin and the
9
password will be reset to admin, and the modem will be accessible via its default IP address at http://192.168.1.254/
3
LAN
Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the four LAN ports when connecting to a PC or an office/home network of 10Mbps or 100Mbps.
4
ADSL
Connect the supplied RJ-11 (telephone) cable to this port when connecting to the ADSL/telephone network.
5
Power Switch
Power ON/OFF switch.
The detail instruction in Emergency/Failure Recovery Button
1. Recovery procedures for non-working routers (e.g. after a failed firmware upgrade flash): Hold the Emergency/Failure Recovery Button on the back of the modem in. Keep this button held in and turn on the modem. Once the lights on the modem have stopped flashing, release the Emergency/Failure Recovery Button. The modem's emergency-reflash web interface will then be accessible via
http://192.168.1.254/ where you can upload a firmware
image to restore the modem to a functional state. Please note that the modem will only respond via its web interface at this address, and will not respond to ping requests from your PC or to telnet connections.
2. Recovery procedures for a lost web interface password: After turning the router on press the Emergency/Failure Recovery Button on the back of the modem, and hold the button in until all lights on the modem flash and it reboots with factory default settings. The login will be reset to admin and the p assword will be reset to admin, and the modem will be accessible via its default IP address at http://192.168.1.254/
Before powered on the router to enter the recovery process. please configure the IP address of the PC as 192.168.1.1 and process step by step.
1. Power the router off.
2. Hold the " Emergency/Failure Recovery Button”.
3. Power on the router. Then Router's IP will reset to Default (Say
192.168.1.254)
4. Download the firmware.
10
2.5 Cabling
One of the most common causes of problems is bad cabling or ADSL line(s). Make sure that all connected devices are turned on. On the front of the product is a bank of LEDs. Verify that the LAN Link and ADSL line LEDs are lit. If they are not, verify that you are using the proper cables.
Ensure that all other devices connected to the same telephone line as your Billion router (e.g. telephones, fax machines, analog modems) have a line filter connected between them and the wall socket (unless you are using a Central Splitter or Central Filter installed by a qualified and licensed electrician), and ensure that all line filters are correctly installed and the right way around. Missing line filters or line filters installed the wrong way around can cause problems with your ADSL connection, including frequent disconnections.
11
Chapter 3
Installation
You can configure the myGuard 7202(G) router through the convenient and user-friendly interface of a web browser. Most popular operating systems such as Linux and Windows 98/NT/2000/XP/Me include a web browser as a standard application.
3.1 Before Configuration
PCs must have a properly installed Ethernet interface and connect to the router directly or through an external repeater hub. In addition, PCs must have TCP/IP installed and configured to obtain an IP address through a DHCP server or a fixed IP address that must be in the same subnet as the router. The default IP address of the router is 192.168.1.254 and the subnet mask is 255.255.255.0 (i.e. any attached PC must be in the same subnet, and have an IP address in the range of 192.168.1.1 to 192.168.1.253). The easiest way is to configure the PC to obtain an IP address automatically from the router using DHCP. If you encounter any problems accessing the router’s web interface you are advised to uninstall any kind of software firewall on your PCs, as they can cause problems accessing the
192.168.1.254 IP address of the router.
Please follow the steps below for installation on your PC’s network environment. First of all, check your PC’s network components. The TCP/IP protocol stack and Ethernet network adapter must be installed. If not, please refer to your Windows-related or other operating system manuals.
A
ny TCP/IP capable workstation can be used to communicate with o
r
through the myGuard 7202(G). To configure other types of workstations, please consult the manufacturer’s documentation.
12
Configuring a PC in Windows XP
1. Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network Connections
2. Double-click Local Area Connection.
3. In the Local Area Connection Status window, click Properties.
4. Select Internet Protocol (TCP/IP) and click Properties.
5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio
buttons.
6. Click OK to finish the configuration.
13
Configuring a PC in Windows 2000
1. Go to Start / Settings / Control Panel.
In the Control Panel, double-click on
Network and Dial-up Connections.
2. Double-click Local Area Connection.
3. In the Local Area Connection Status window click Properties.
4. Select Internet Protocol (TCP/IP) and click Properties.
5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio
buttons.
6. Click OK to finish the configuration.
14
Configuring PC in Windows 98/Me
1.Go to Start / Settings / Control Panel.
In the Control Panel, double-click on
Network and choose the Configuration tab.
2.Select TCP/IP ->NE2000 Compatible,
or the name of your Network Interface Card (NIC) in your PC.
3.Select the Obtain an IP address automatically radio button.
4.Then select the DNS Configuration tab.
5.Select the Disable DNS radio button and click OK to finish the configuration.
15
Configuring PC in Windows NT4.0
1.Go to Start / Settings / Control Panel. In
the Control Panel, double-click on
Network and choose the Protocols tab.
2.Select TCP/IP Protocol and click Properties.
3.Select the Obtain an IP address from a DHCP server radio button and click OK.
16

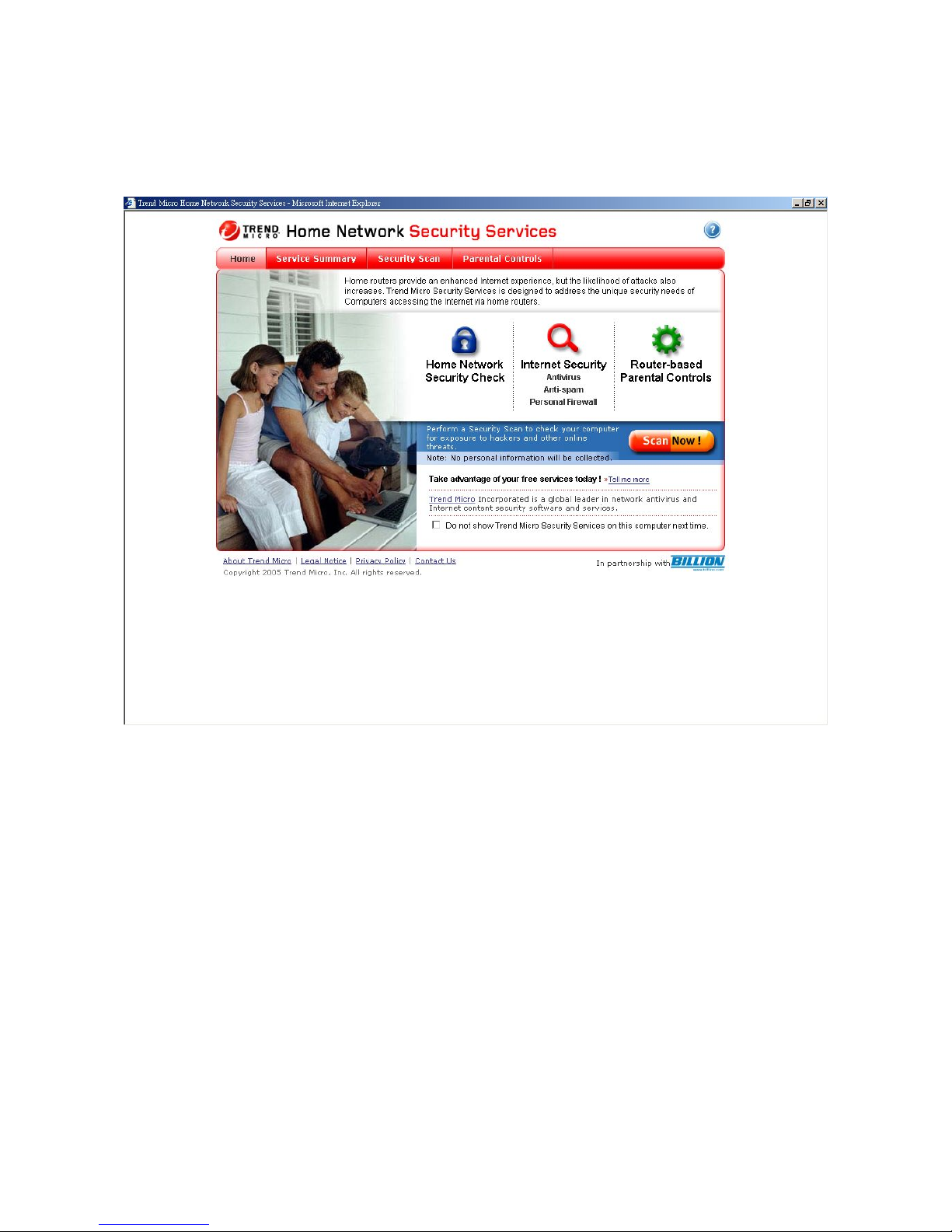

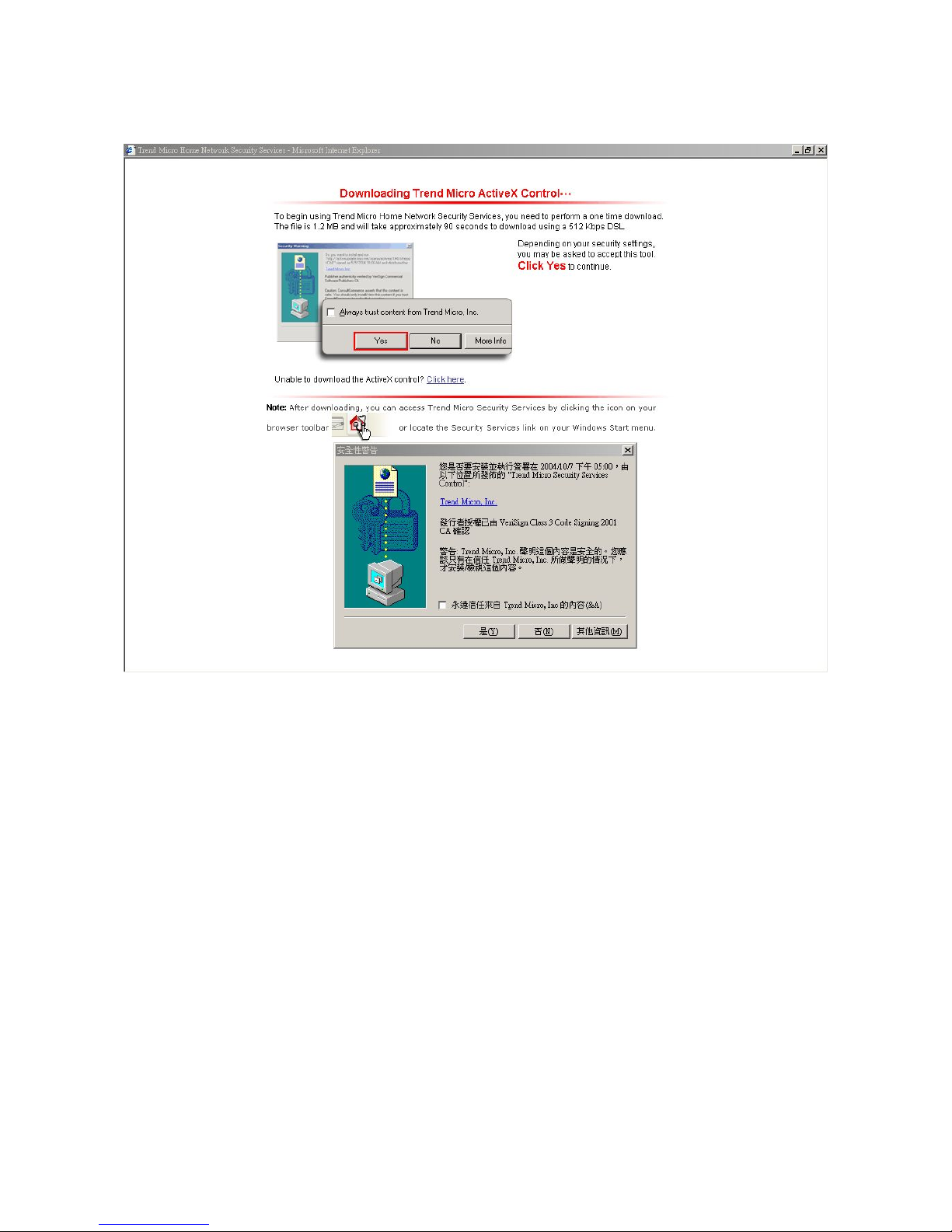

3.2 Activating Trend Micro Security Services
Activate Trend Micro Security Services and receive enhanced protection for your PCs.
Available Services Before Activation Af ter Activation
Security Scan Vulnerability reports
60-day evaluation version Unlimited use.
Virus Scan Personal Firewall Spyware Protection Parental Controls
Not available. 60-day evaluation version with
option to purchase for one-year use.
To activate Trend Micro Security Services, follow the steps below: Step 1: Register your Trend Micro account Step 2: Validate the Registration Email. You will receive a Serial number for your 60-day
trial of Trend Micro Internet Security. Step 3: Install Trend Micro Internet Security (named TIS 11.35 Package).
*Important: you may download the software through the Internet or from the included CD in a folder called Trend Micro Internet Security Software.
Refer to the TMSS Quick Start Card for quick setup information and check the Trend Micro Internet Security user’s manual for more information.
17
3.3 Factory Default Settings
Before configuring the myGuard 7202(G) router, you need to know the following default settings.
Web Interface:
Username: admin Password: admin
LAN Device IP Settings:
IP Address: 192.168.1.254
Subnet Mask: 255.255.255.0
ISP setting in WAN site:
PPPoE

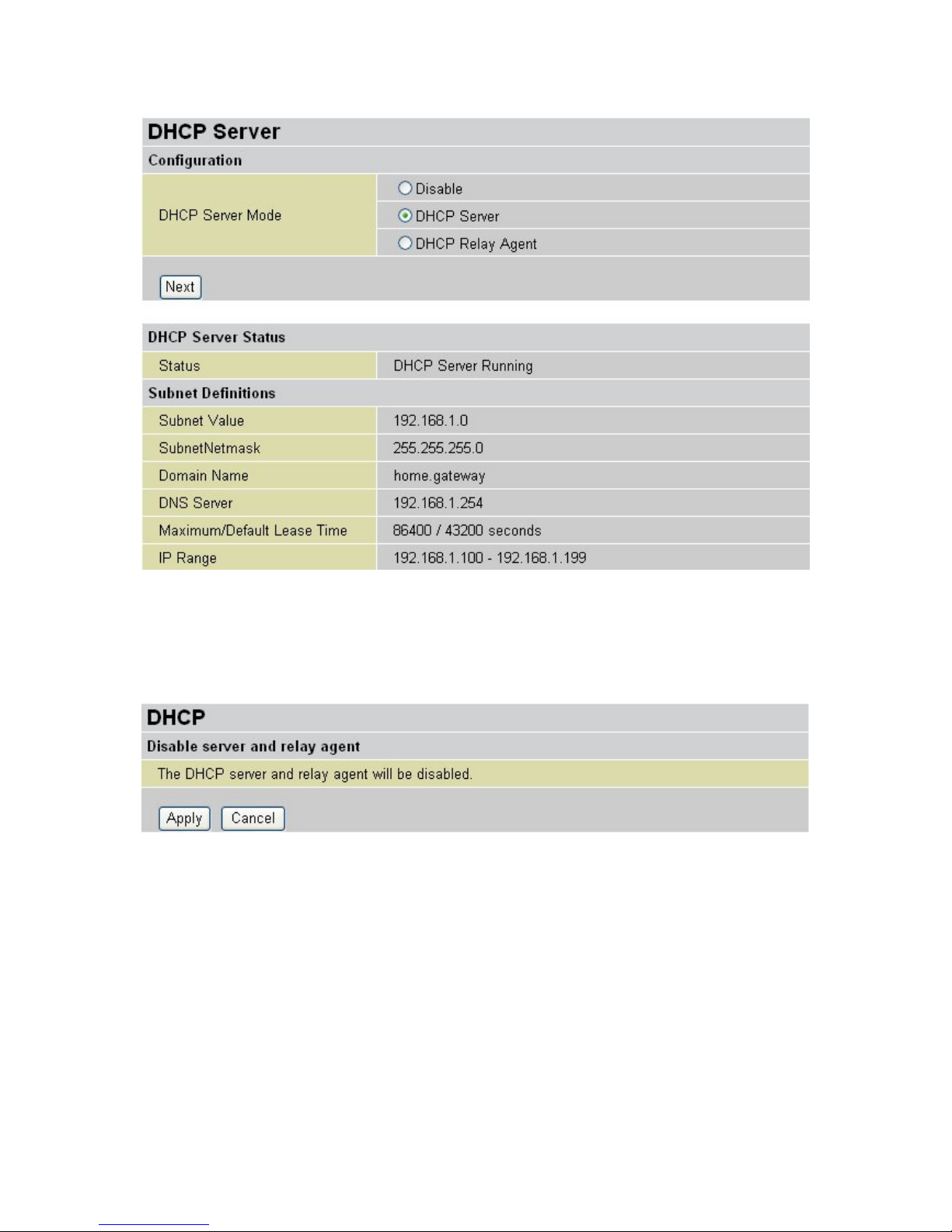

DHCP Server:
DHCP server is enabled. Start IP Address: 192.168.1.100
IP pool counts: 100
3.3.1 Username and Password
The default username and password are “admin” and “admin” respectively.
A
ttention
To reset the router or to restore it to factory default settings press the Reset button using the end of paper clip or other small pointed object.
1. To perform Failure recovery for a dead router: Simply hold the Reset button when powering on the router and
download an application if necessary.
2. To perform recovery in case of a misplaced Password: Hold the Reset button until the LEDs all turn Off, turn On and then turn
Off. The router performs configuration factory reset and the route
r
reboots. You can then access the router from the web GUI.
18
3.4 LAN and WAN Port Addresses
The parameters of LAN and WAN ports are preset at the factory. The default values are shown below.
LAN Port WAN Port
IP address
192.168.1.254
Subnet Mask
255.255.255.0
DHCP server function
Enabled
IP addresses for distribution to PCs
100 IP addresses continuing from
192.168.1.100 through
192.168.1.199
The PPPoE function is enabled to automatically get the WAN port configuration from the ISP, but you have to set the username and password first.
3.5 Configuring with your Web Browser
Open your web browser, enter the IP address of your router, which by default is
192.168.1.254, and click “Go”, a user name and password window prompt appears. The default username and password are “admin” and “admin”.
Congratulations! You have successfully logged on to your myGuard 7202(G) ADSL Router!
19
Chapter 4
Configuration
Once you have logged on to your myGuard 7202(G) ADSL Router via your web browser, you can begin to set it up according to your requirements. On the configuration homepage, the left navigation pane links you directly to the setup pages, which include:
Status (ARP Table, Wireless Association, Routing Table, DHCP Table, System Log,
Security Log)

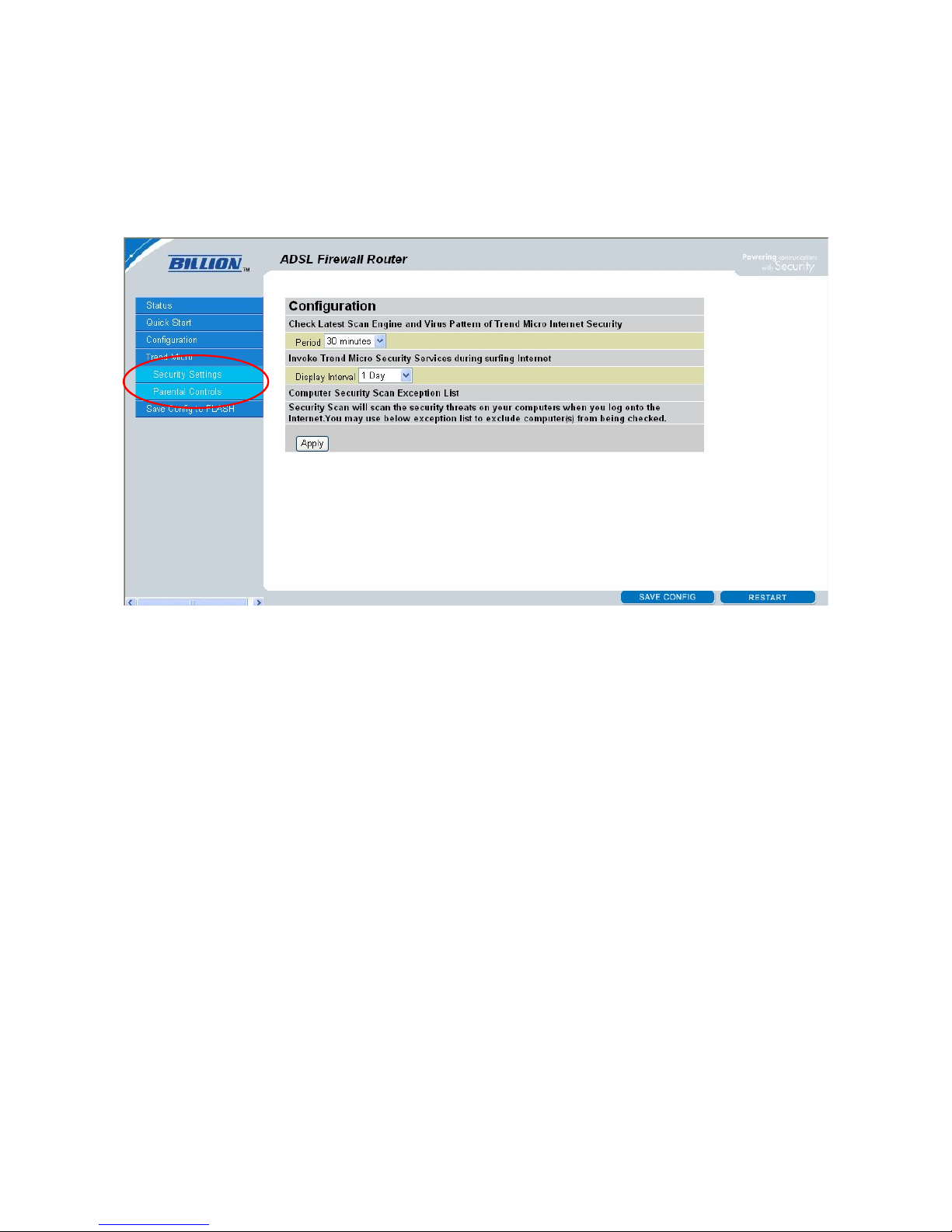

Quick Start Configuration (LAN, WAN, System, Firewall, QoS, Virtual Server and Advanced) TrendMicro (Security Setting and Parental Controls) Save Config to FLASH
The following sections provide an overview of the settings available for configuring your myGuard router by Billion.
20
4.1 Status
21
Device Information
Host Name: Provide a name for the router for identification purposes. Host Name lets
you change the router name.
System Up-Time: Records system up-time. Current time: Set the current time. See the Time Zone section for more information.
22
Hardware Version: Chipset version Software Version: Firmware version LAN MAC Address: The LAN MAC address
WAN MAC Address: The WAN MAC address Home URL: Connects to the Home Website.
LAN
IP Address: LAN port IP address. Sub Net Mask: LAN port IP subnet mask.
DHCP Server: LAN port DHCP role - Server, Relay or None.
WAN
IP WAN: Name of the WAN connection. VPI/VCI: Virtual Path Identifier and Virtual Channel Identifier Connection: Selects “Disconnected” or “Connected” IP Address: WAN port IP address.
Net mask: WAN port IP subnet mask. Gateway: The IP address of the default gateway.
Port Status：User can look up for your connected condition
23
4.1.1 ARP T able

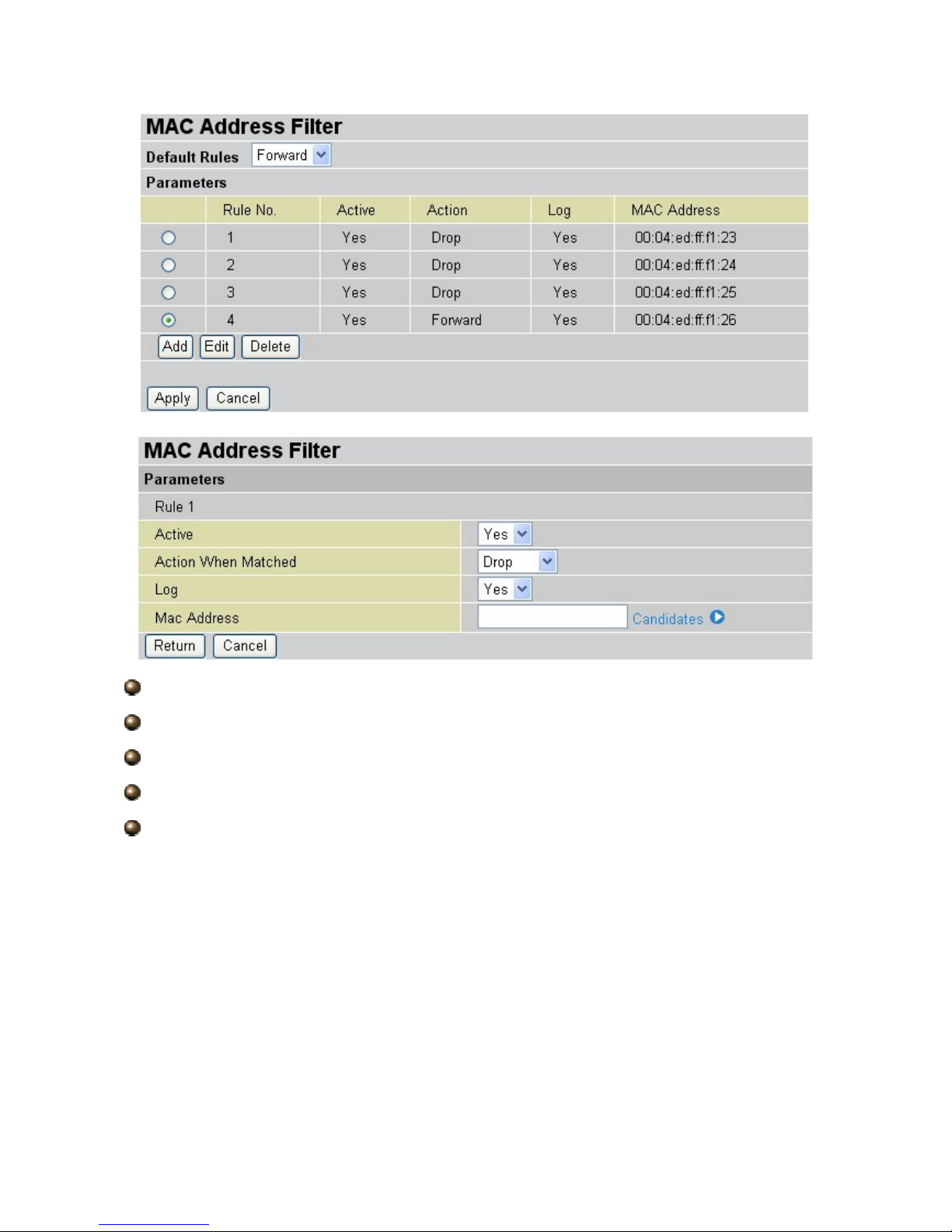

The router’s ARP (Address Resolution Protocol) Table shows the mapping of Internet (IP) addresses to Ethernet (MAC) addresses. This is a quick way to determine the MAC address of the network interface of your PCs to use with the router’s Firewall – MAC Address Filter function. See the Firewall section of this manual for more information.
IP Address: A list of IP addresses of devices on your LAN (Local Area Network). MAC Address: MAC (Media Access Control) address for each device on your LAN. Interface: The interface name (on the router) that this IP Address connects to. Static: Static status of the ARP table entry:
“no” for dynamically-generated ARP table entries
“yes” for static ARP table entries added by the user
24
4.1.2 Wireless Association
IP Address: It is IP Address of wireless client that join this network. MAC: The MAC address of wireless client.
25
4.1.3 Routing Table
Routing Table:
#: Item number Destination: IP address of the destination network. Netmask: The destination netmask address. Gateway/Interface: IP address of the gateway or existing interface that this route uses. Cost: The cost of transmission for routing purposes. The number need not be precise,
but it must be between 0 and 65535.
Interface: Select the interface through which packets are forwarded.
26
4.1.4 DHCP Table
Leased: DHCP assigned IP addresses information. IP Address: IP addresses of devices on your LAN (Local Area Network). MAC Address: The MAC Address that you want to assign the fixed IP address Client Host Name: Expired IP addresses information Register Time: Register time information
27
4.1.5 System Log
Display system logs accumulated up to the present time. Y ou can trace historical information with this function.
28
Loading...
+ 87 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
