CHAPTER 1: INTRODUCTION ...............................................................................................................................................1
INTRODUCTION TO YOUR ROUTER.....................................................................................................................................1
FEATURES ................................................................................................................................................................................1
CHAPTER 2: INSTALLING THE ROUTER ...........................................................................................................................3
IMPORTANT NOTE FOR USING THIS ROUTER ...................................................................................................................3
PACKAGE CONTENTS .............................................................................................................................................................3
THE FRONT LEDS ...................................................................................................................................................................4

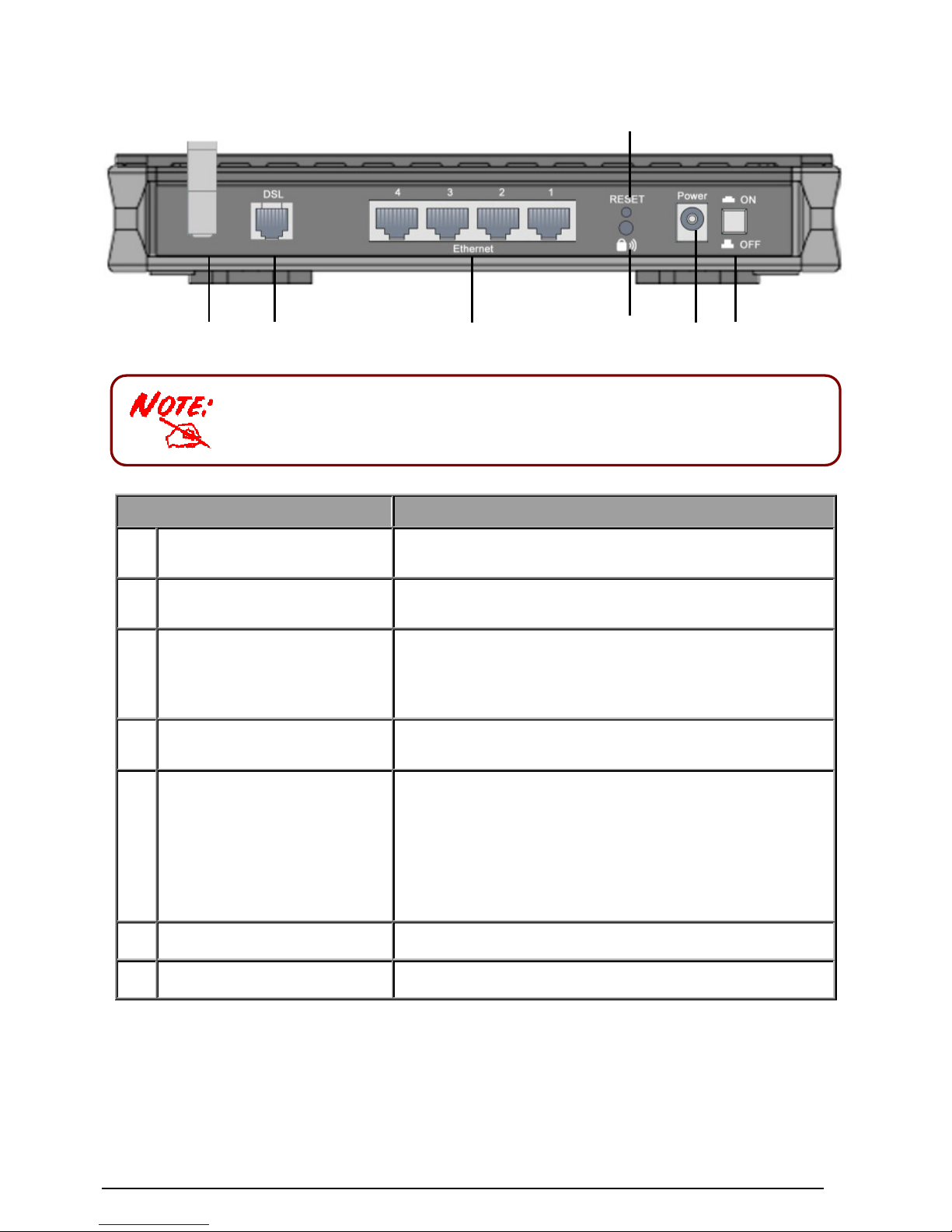

THE REAR PORTS ....................................................................................................................................................................5
CABLING ..................................................................................................................................................................................6
CHAPTER 3: BASIC INSTALLATION ....................................................................................................................................7
CONNECTING YOUR ROUTER ..............................................................................................................................................8
FACTORY DEFAULT SETTINGS ............................................................................................................................................ 13

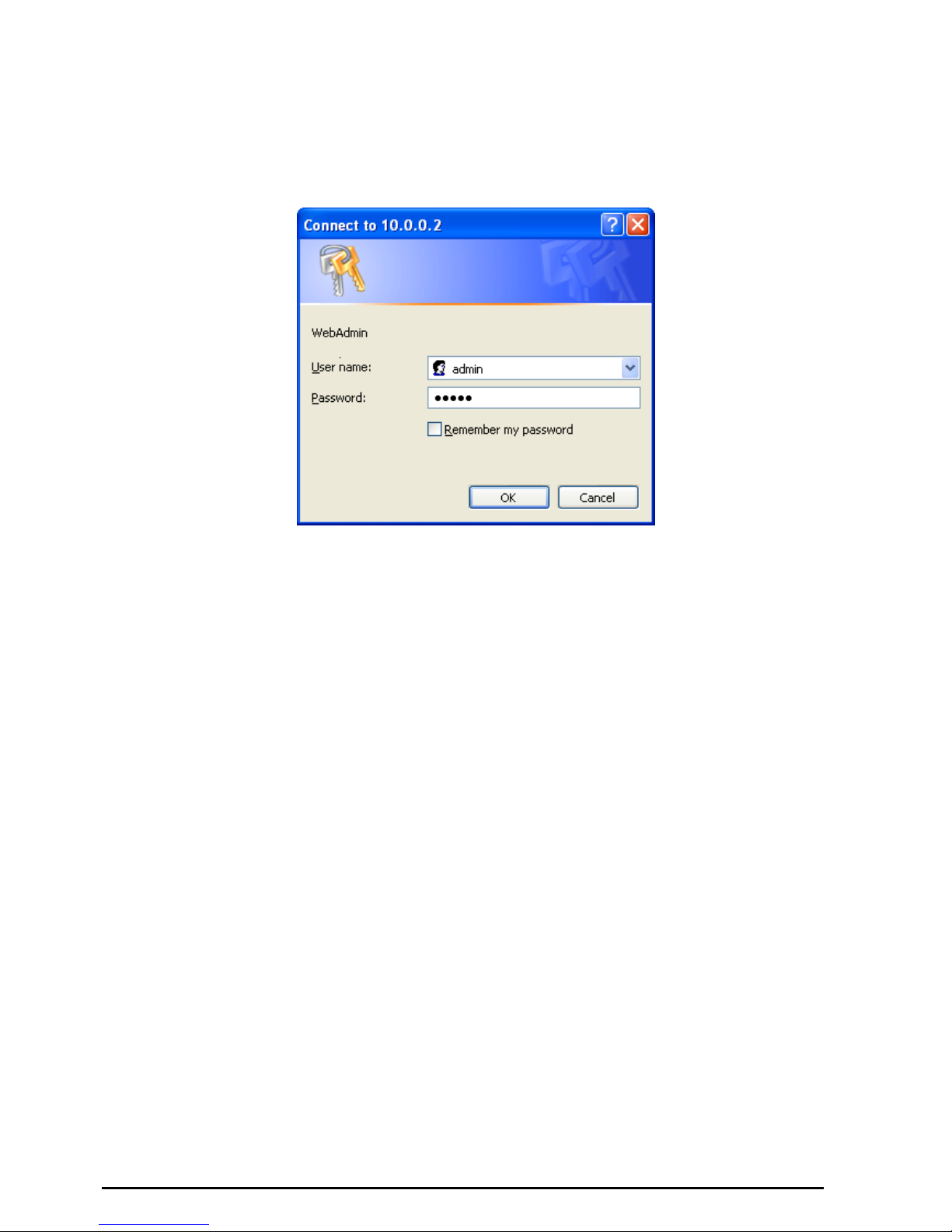

Web Interface (Username and Password) .......................................................................................................................... 13
Device LAN IP settings ....................................................................................................................................................... 13
ISP setting in WAN site ....................................................................................................................................................... 13
DHCP server ...................................................................................................................................................................... 13
LAN and WAN Port Addresses ............................................................................................................................................ 13
INFORMATION FROM YOUR ISP ........................................................................................................................................ 14
CONFIGURING WITH YOUR WEB BROWSER .................................................................................................................... 15
CHAPTER 4: CONFIGURATION .......................................................................................................................................... 16

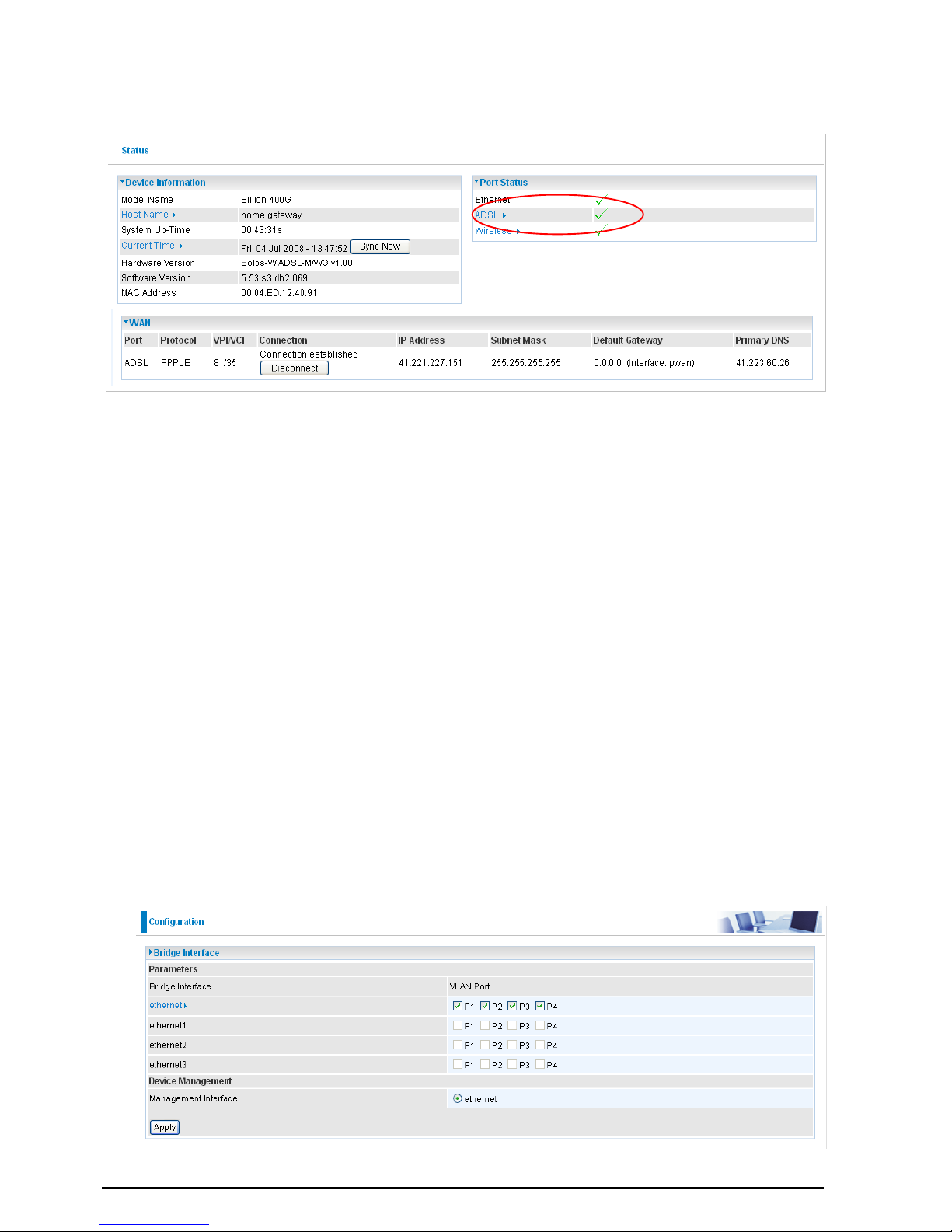

STATUS ................................................................................................................................................................................... 17
ADSL Status ........................................................................................................................................................................ 17
ARP Table ........................................................................................................................................................................... 17
DHCP Table........................................................................................................................................................................ 18
Routing Table ...................................................................................................................................................................... 18
NAT Sessions ...................................................................................................................................................................... 19
UPnP Portmap ................................................................................................................................................................... 19
Email Status ........................................................................................................................................................................ 19
Event Log ............................................................................................................................................................................ 20
Error Log ............................................................................................................................................................................ 20
Diagnostic .......................................................................................................................................................................... 20

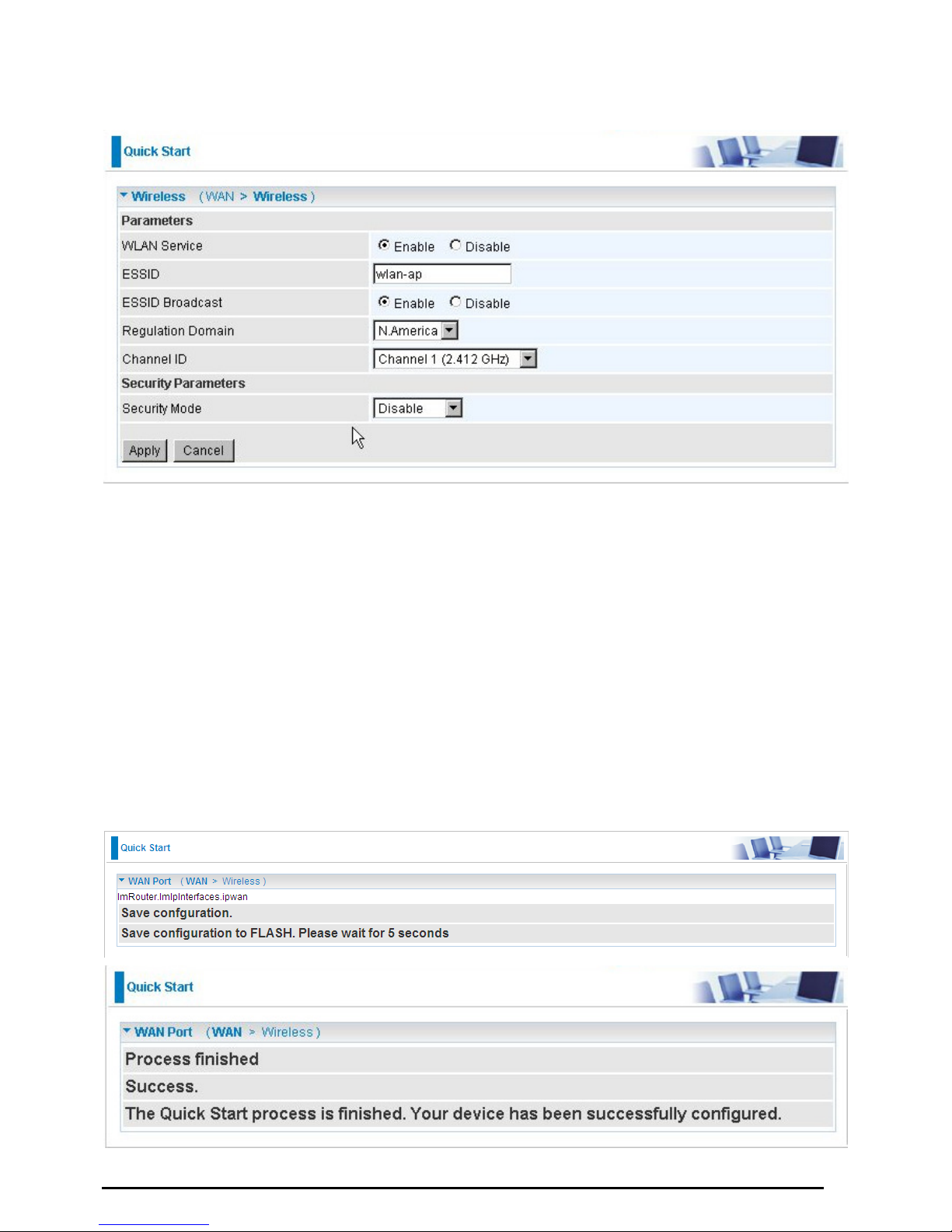

QUICK START ........................................................................................................................................................................ 21
CONFIGURATION ................................................................................................................................................................. 24
LAN - Local Area Network ................................................................................................................................................. 24
Bridge Interface ............................................................................................................................................................. 24

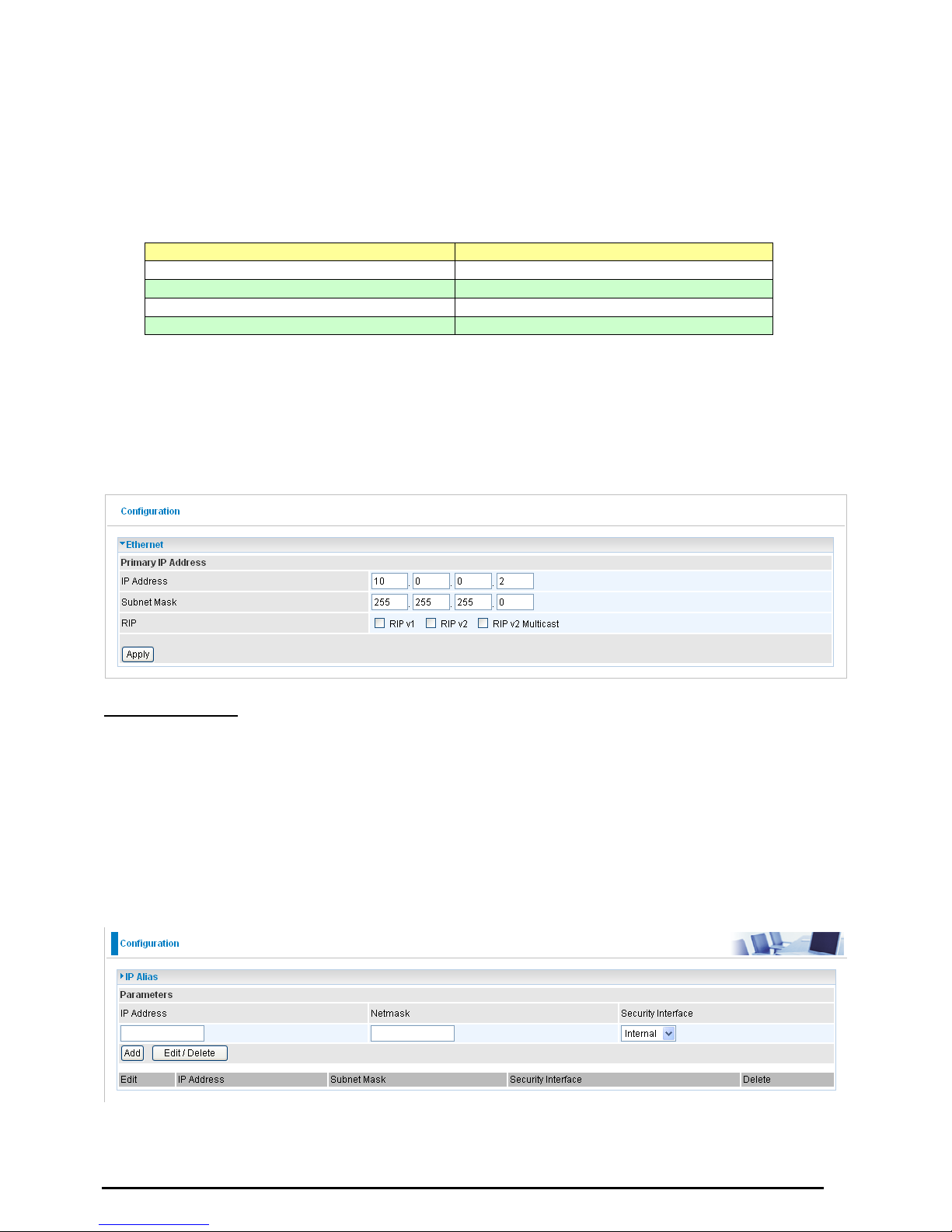

Ethernet .......................................................................................................................................................................... 25
IP Alias ........................................................................................................................................................................... 25

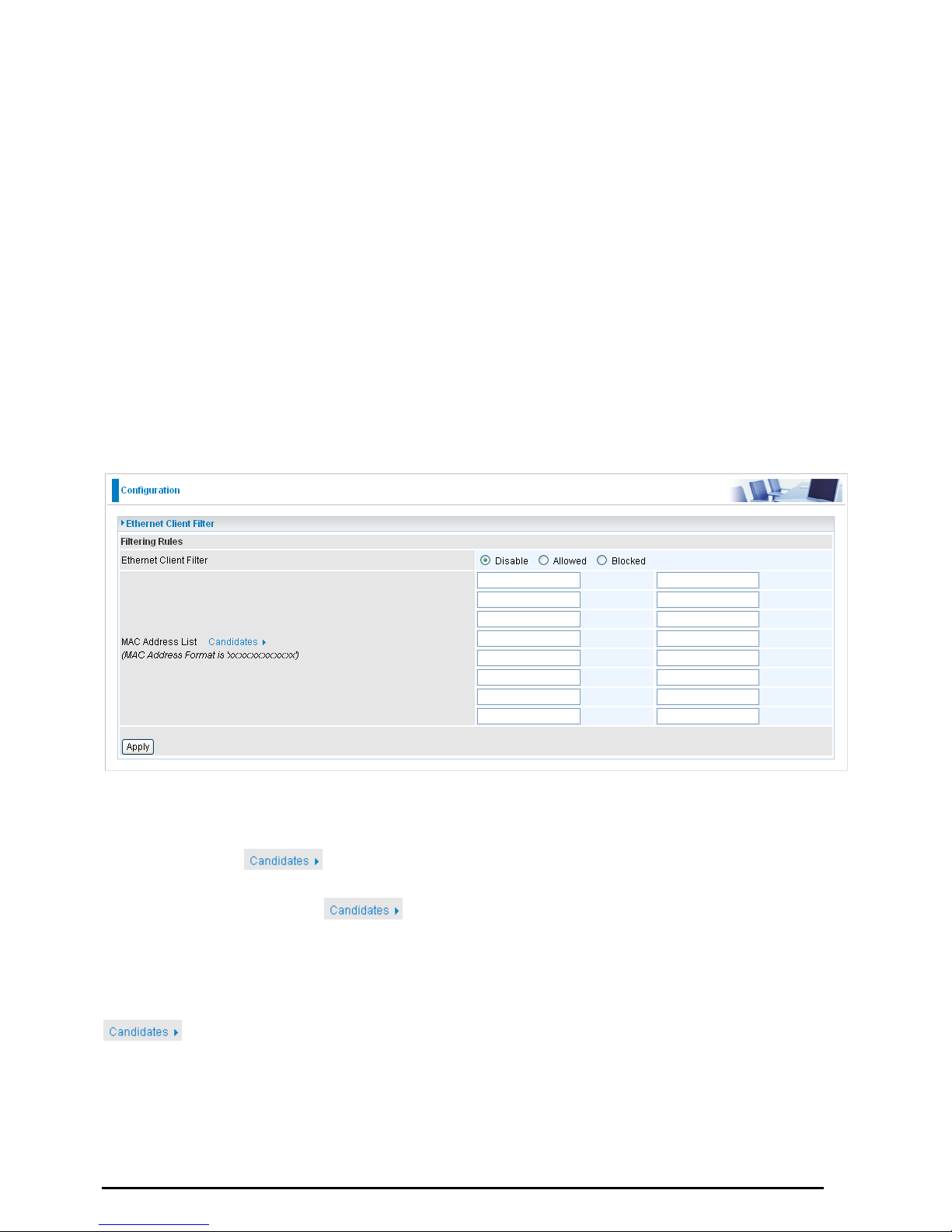

Ethernet Client Filter ..................................................................................................................................................... 26
Wireless ......................................................................................................................................................................... 27

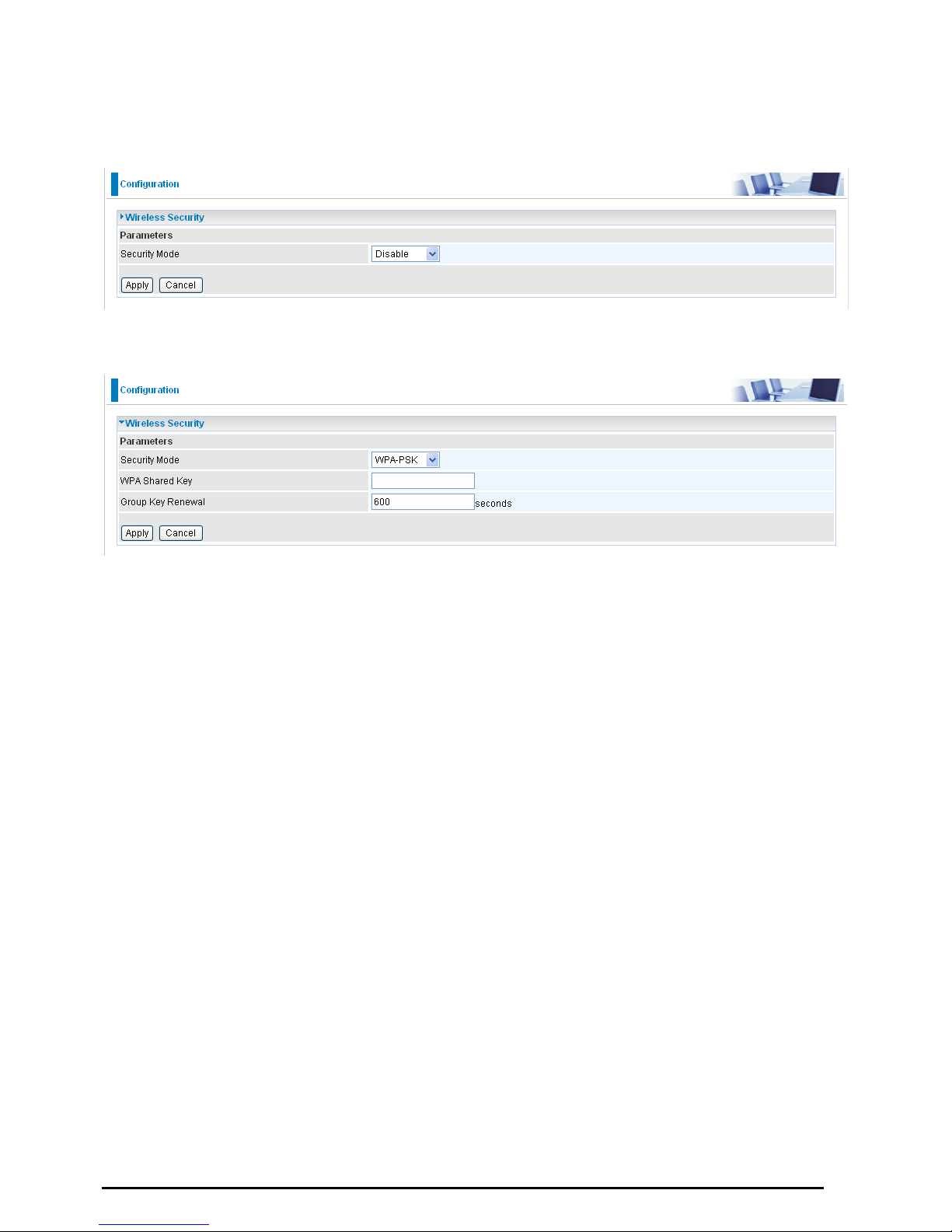

Wireless Security ........................................................................................................................................................... 29

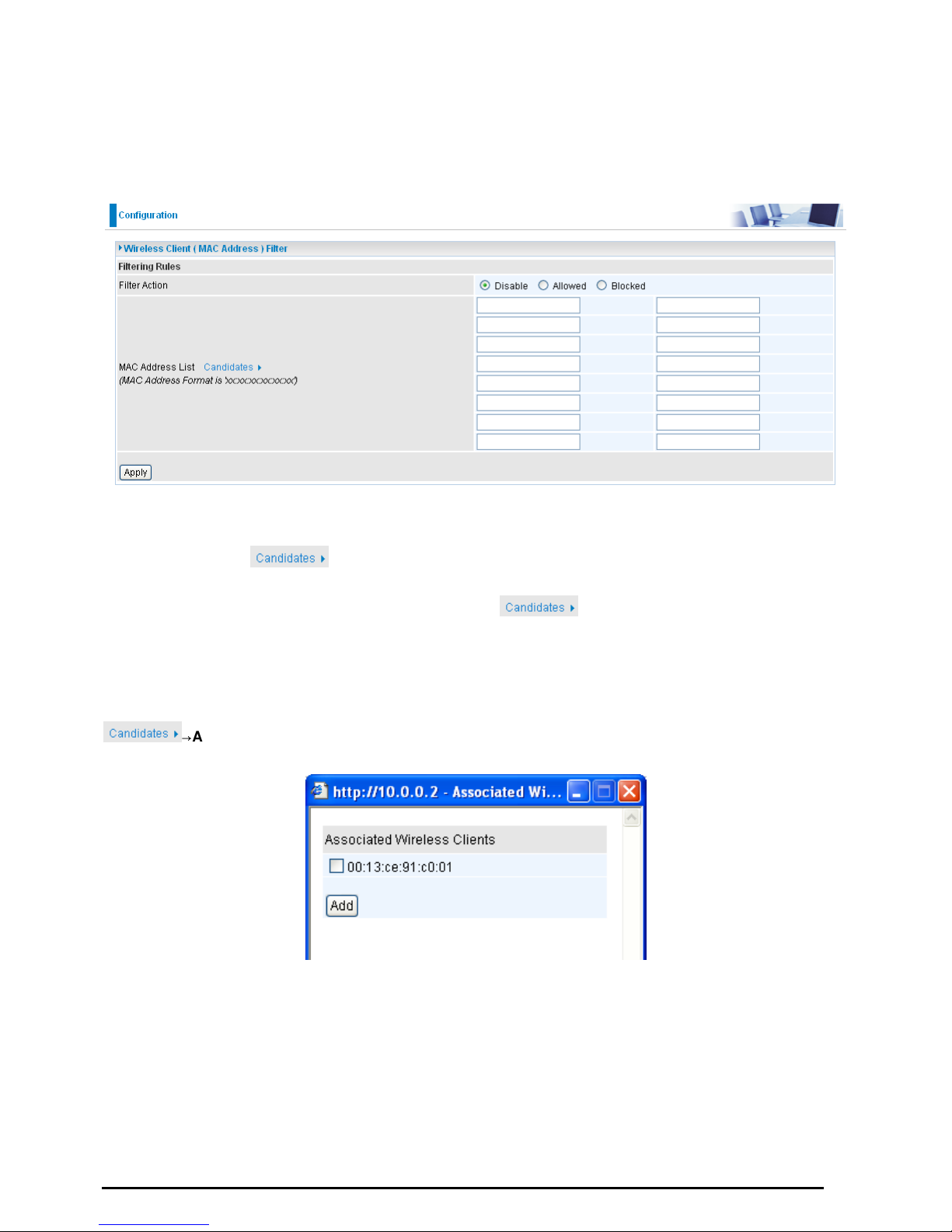

Wireless Client / MAC Address Filter ........................................................................................................................... 31

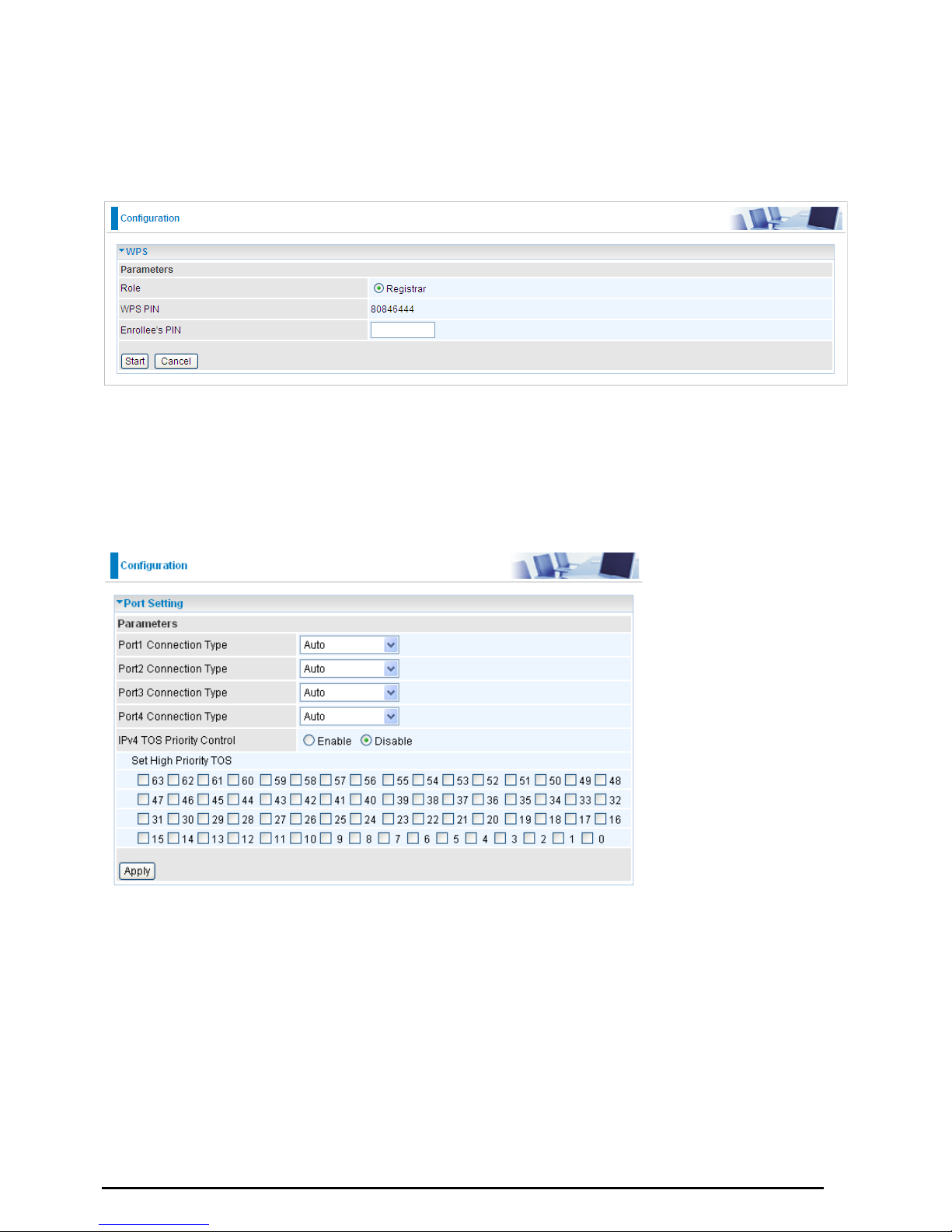

WPS ............................................................................................................................................................................... 32
Port Setting .................................................................................................................................................................... 32

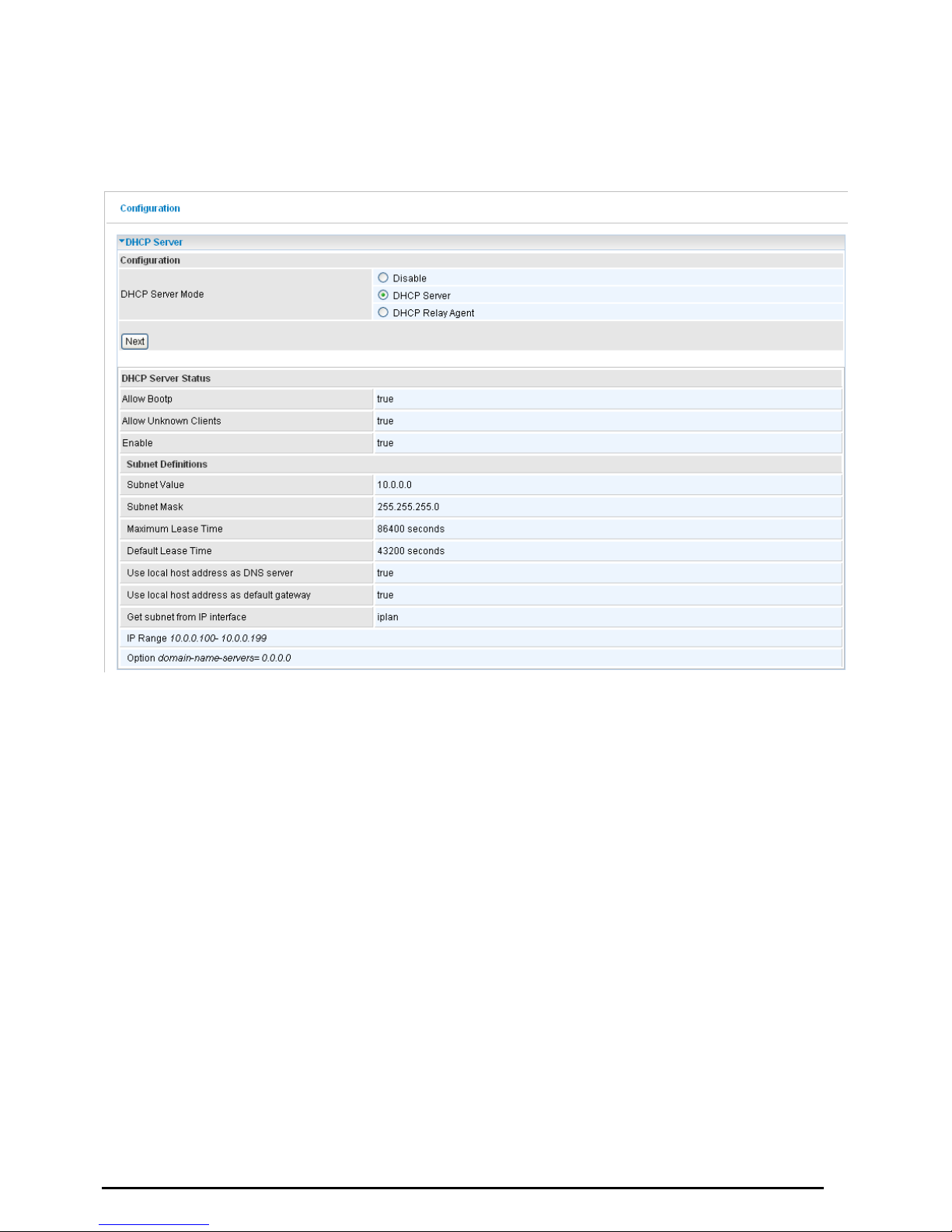

DHCP Server ................................................................................................................................................................. 33
WAN - Wide Area Network .................................................................................................................................................. 34

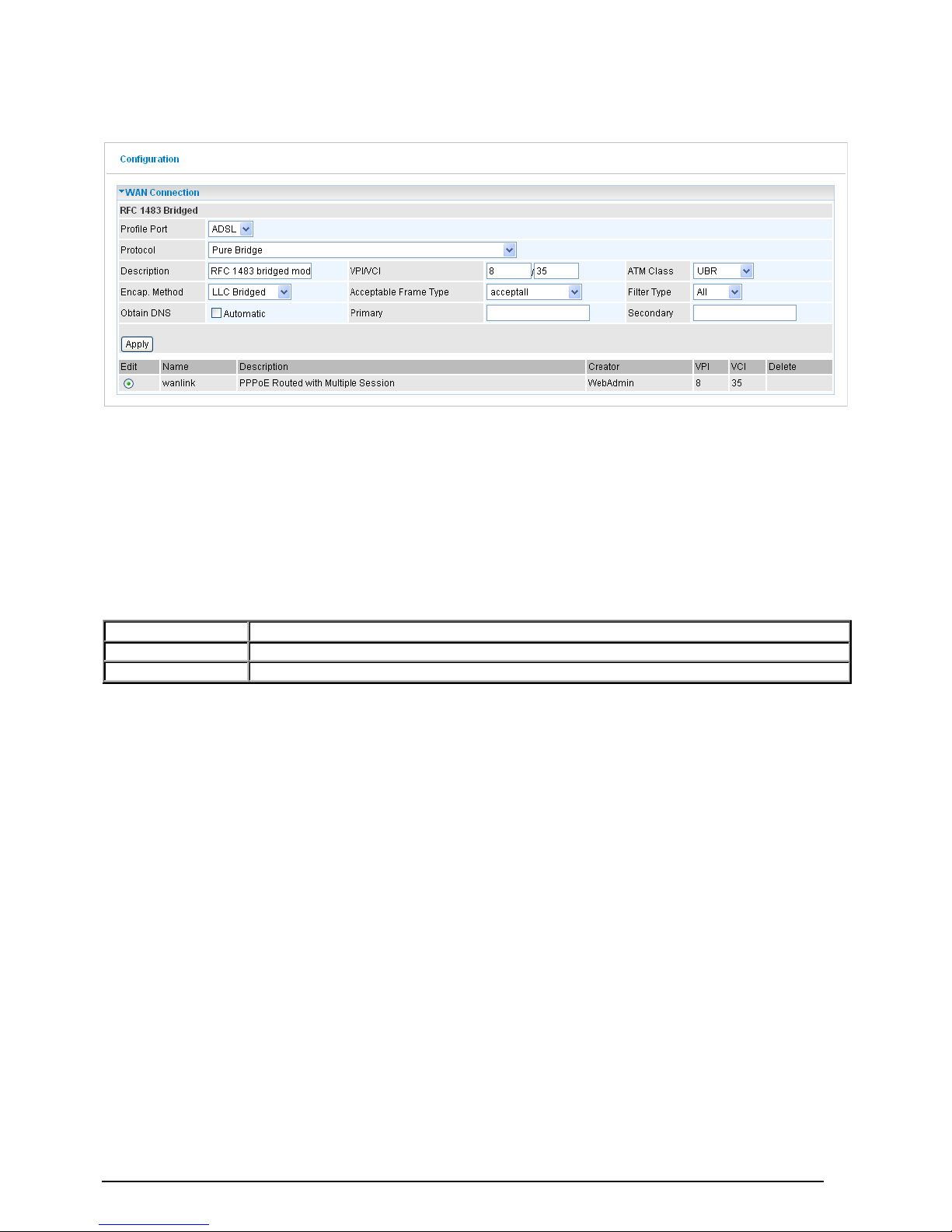

WAN Profile .................................................................................................................................................................. 34
ADSL Mode ................................................................................................................................................................... 40
System ................................................................................................................................................................................. 41
Time Zone ...................................................................................................................................................................... 41

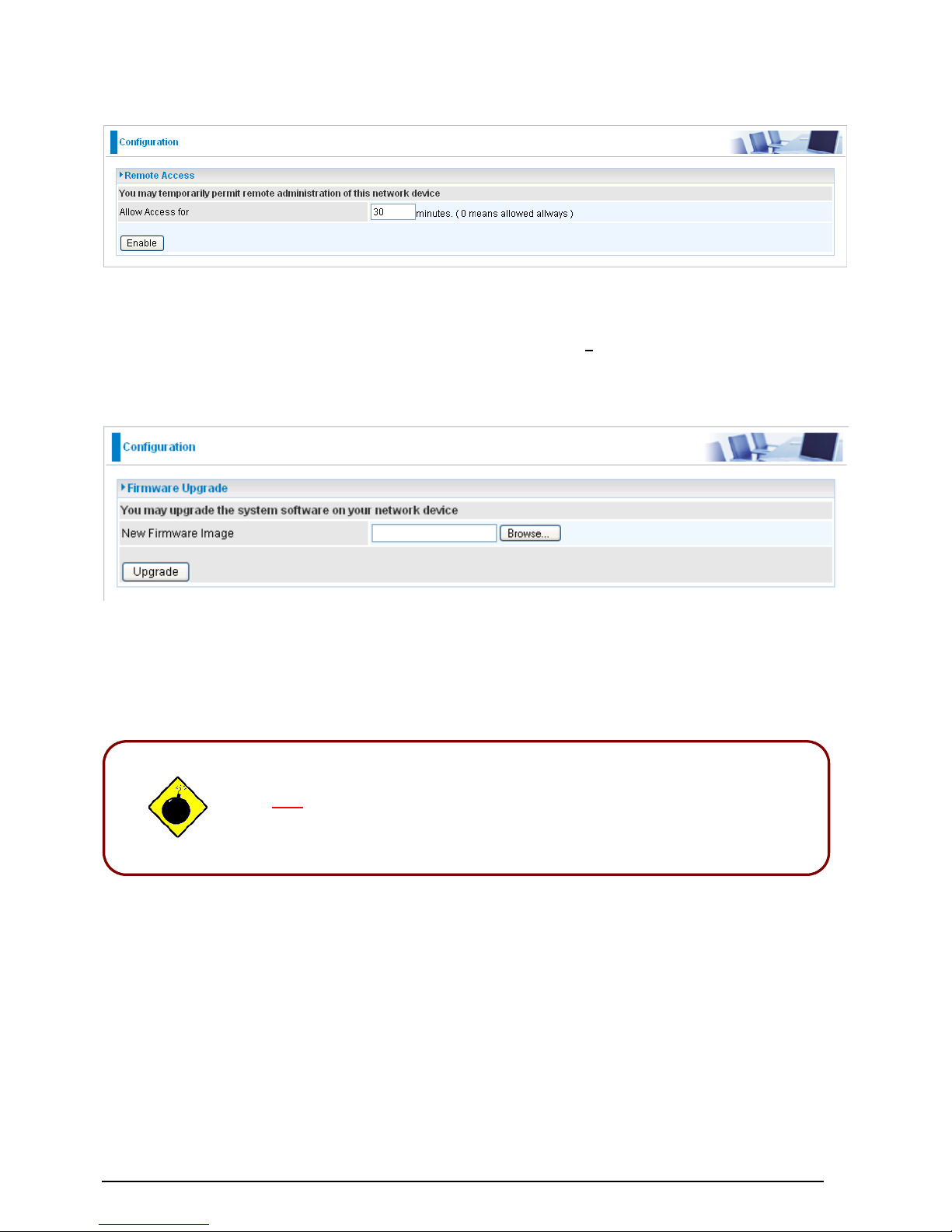

Remote Access ............................................................................................................................................................... 42
Firmware Upgrade ......................................................................................................................................................... 42
Table of Contents ii

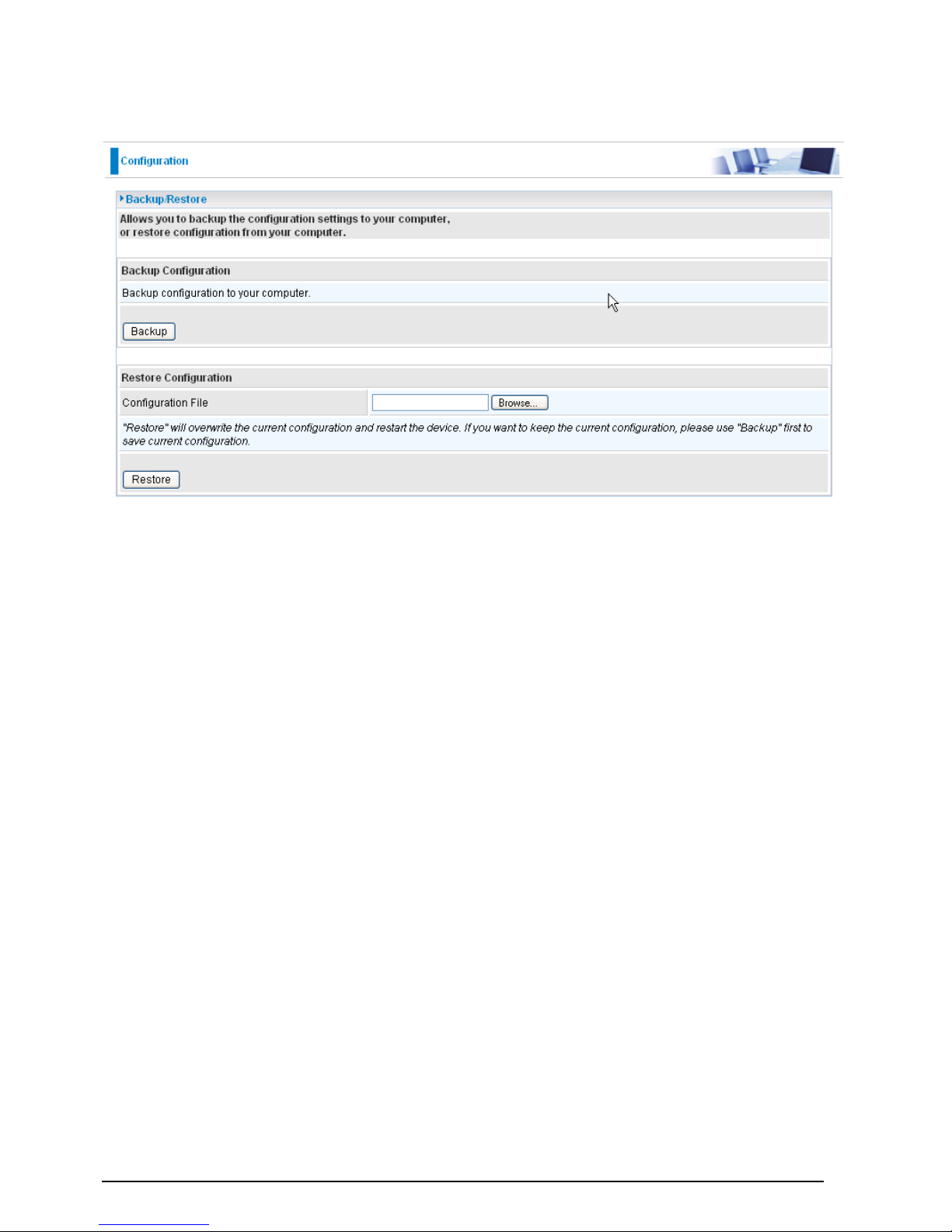

Backup / Restore ............................................................................................................................................................ 43
Restart Router ................................................................................................................................................................ 44
User Management .......................................................................................................................................................... 44

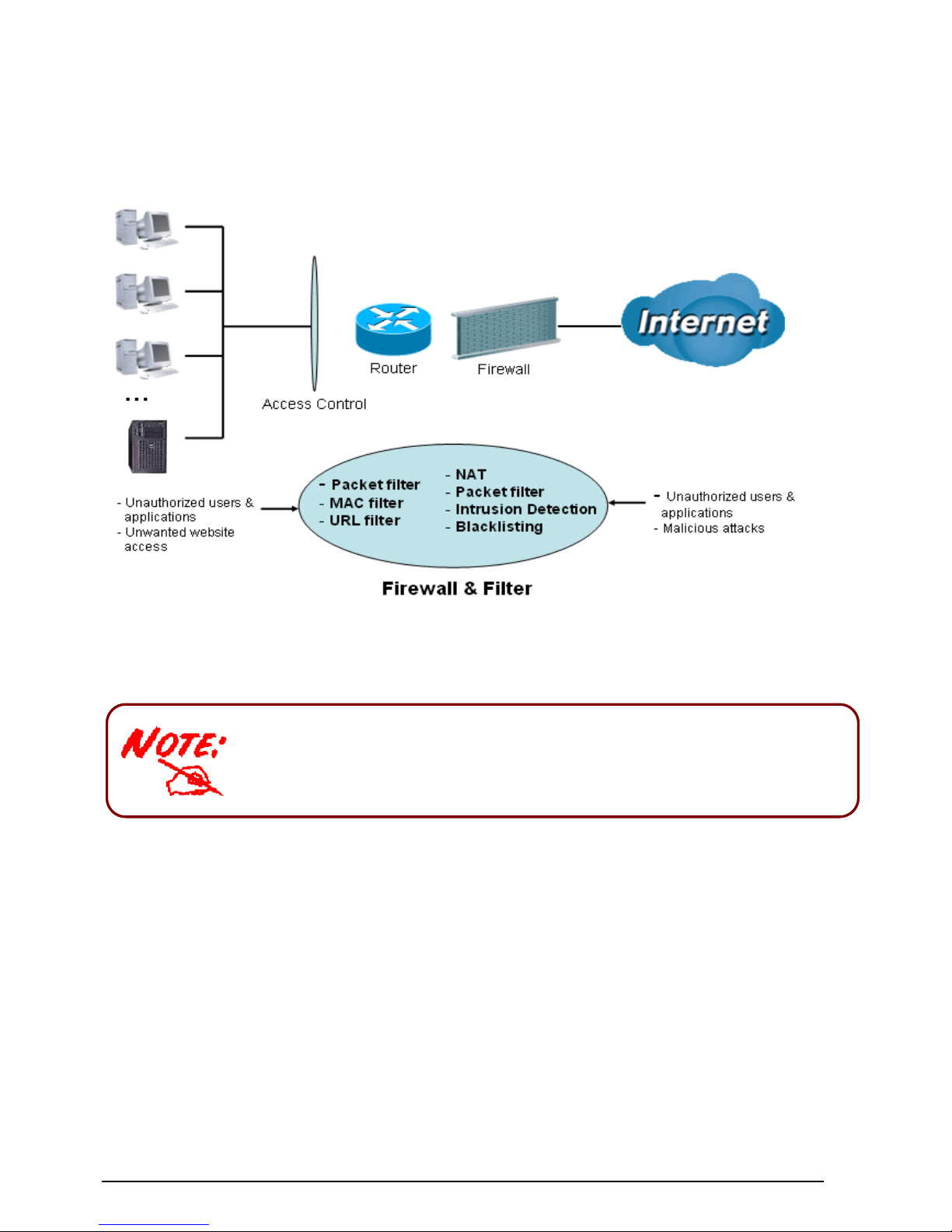

Firewall and Access Control .............................................................................................................................................. 46

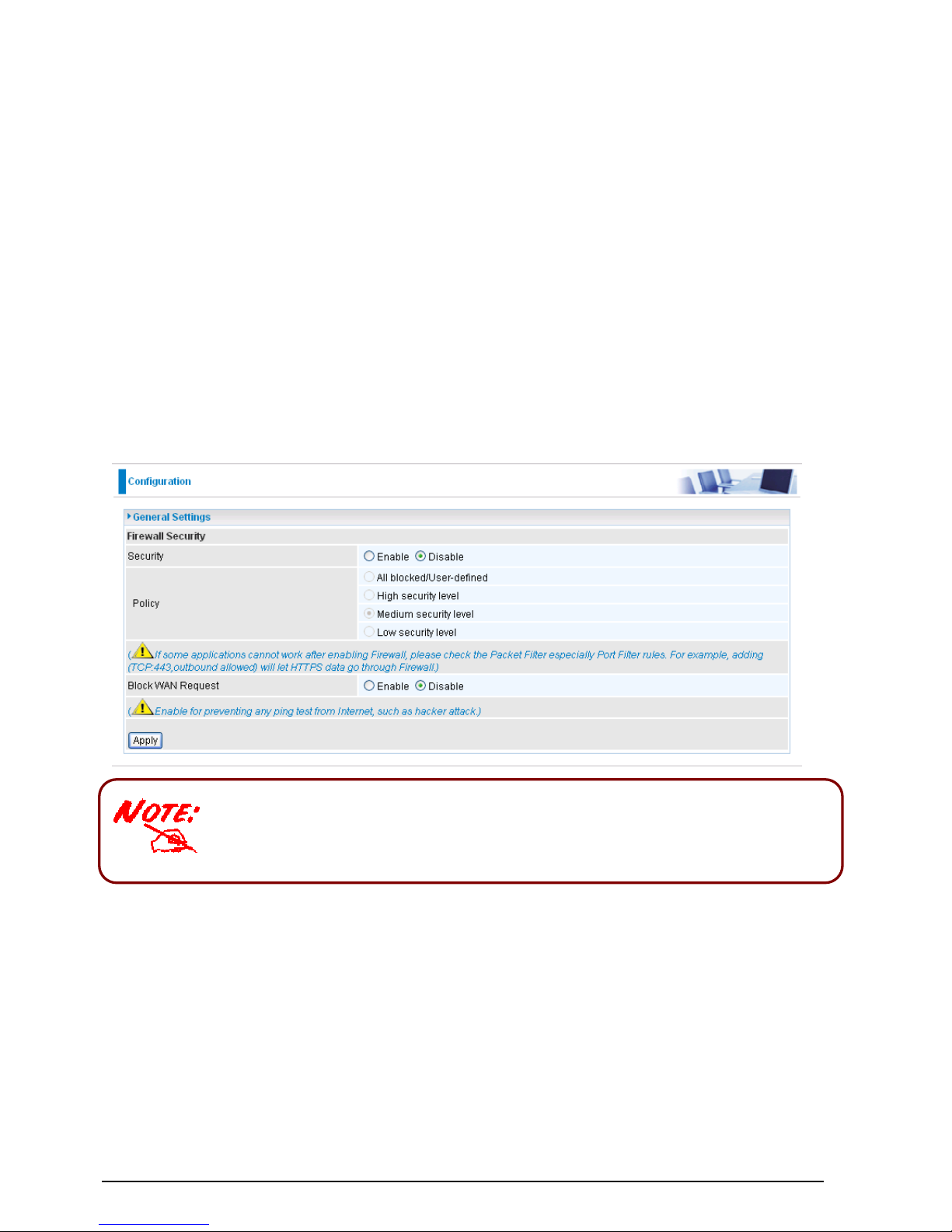

General Settings ............................................................................................................................................................. 47
(Changed the format only.) ............................................................................................................................................ 47

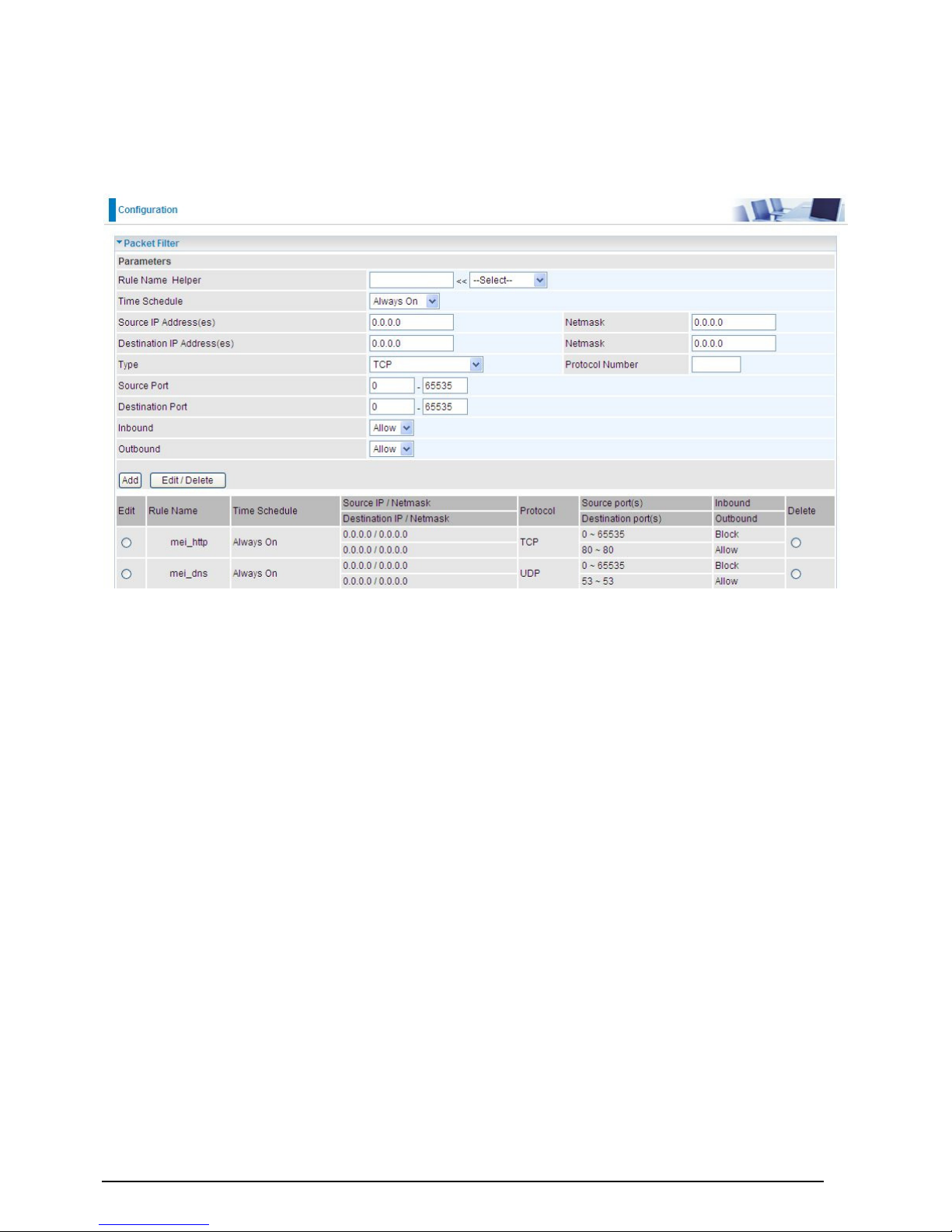

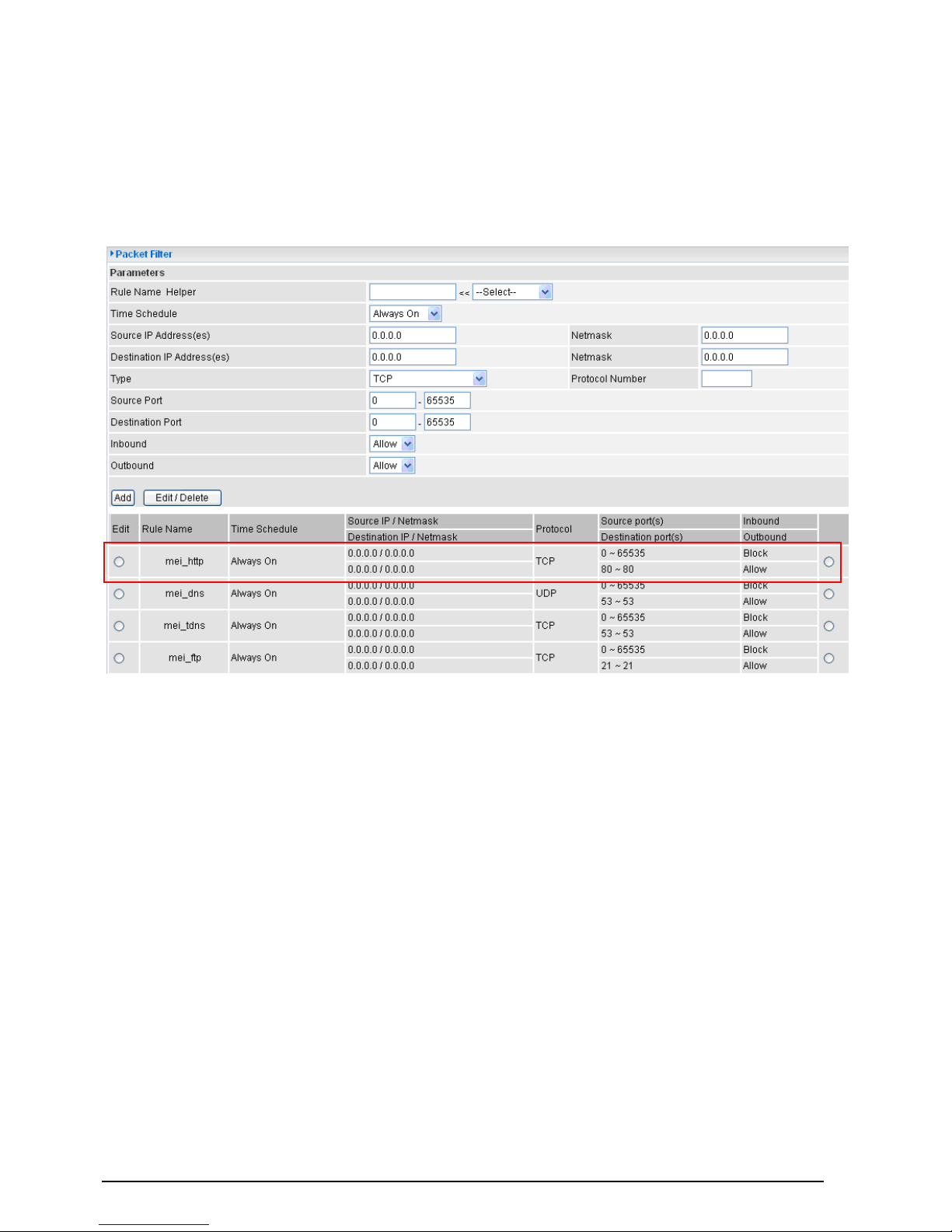

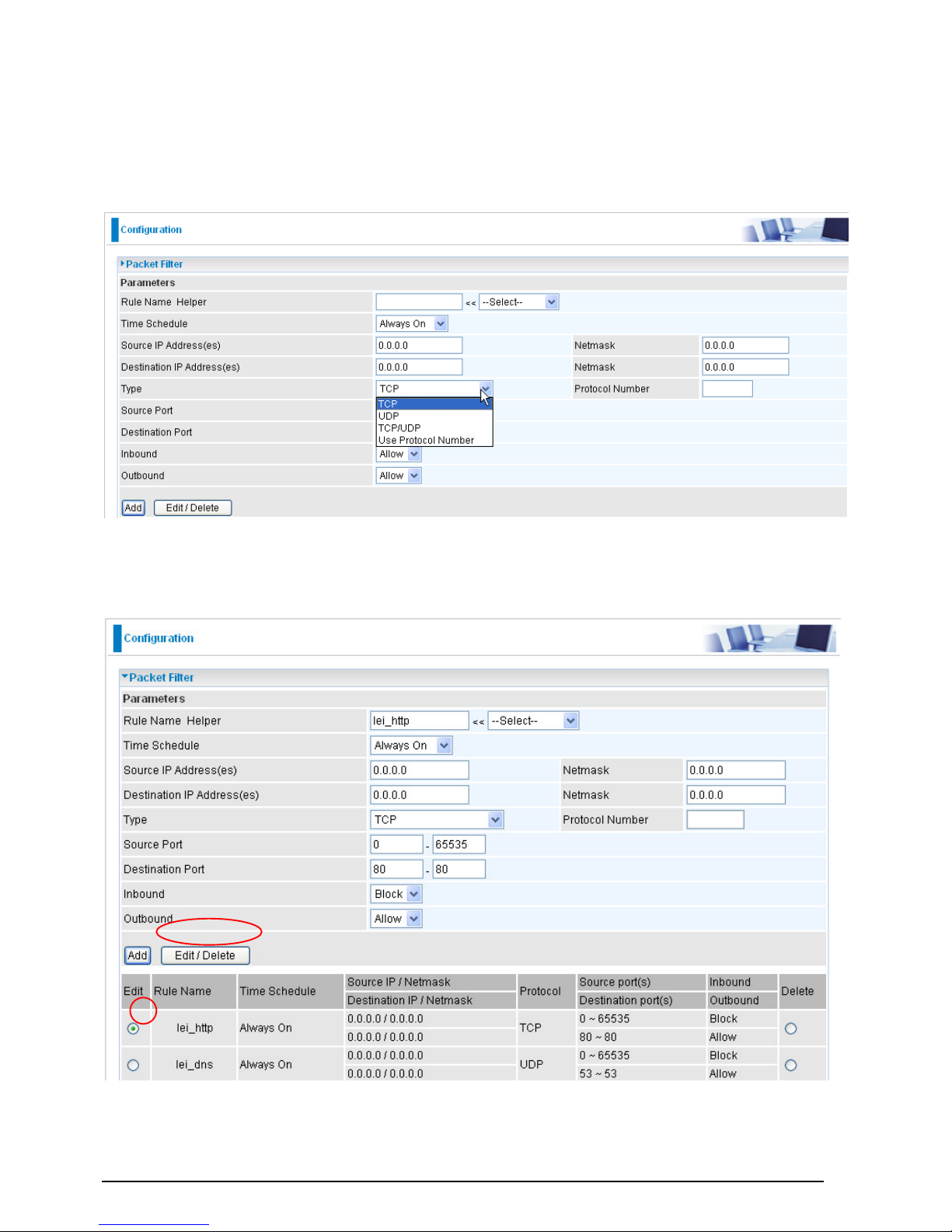

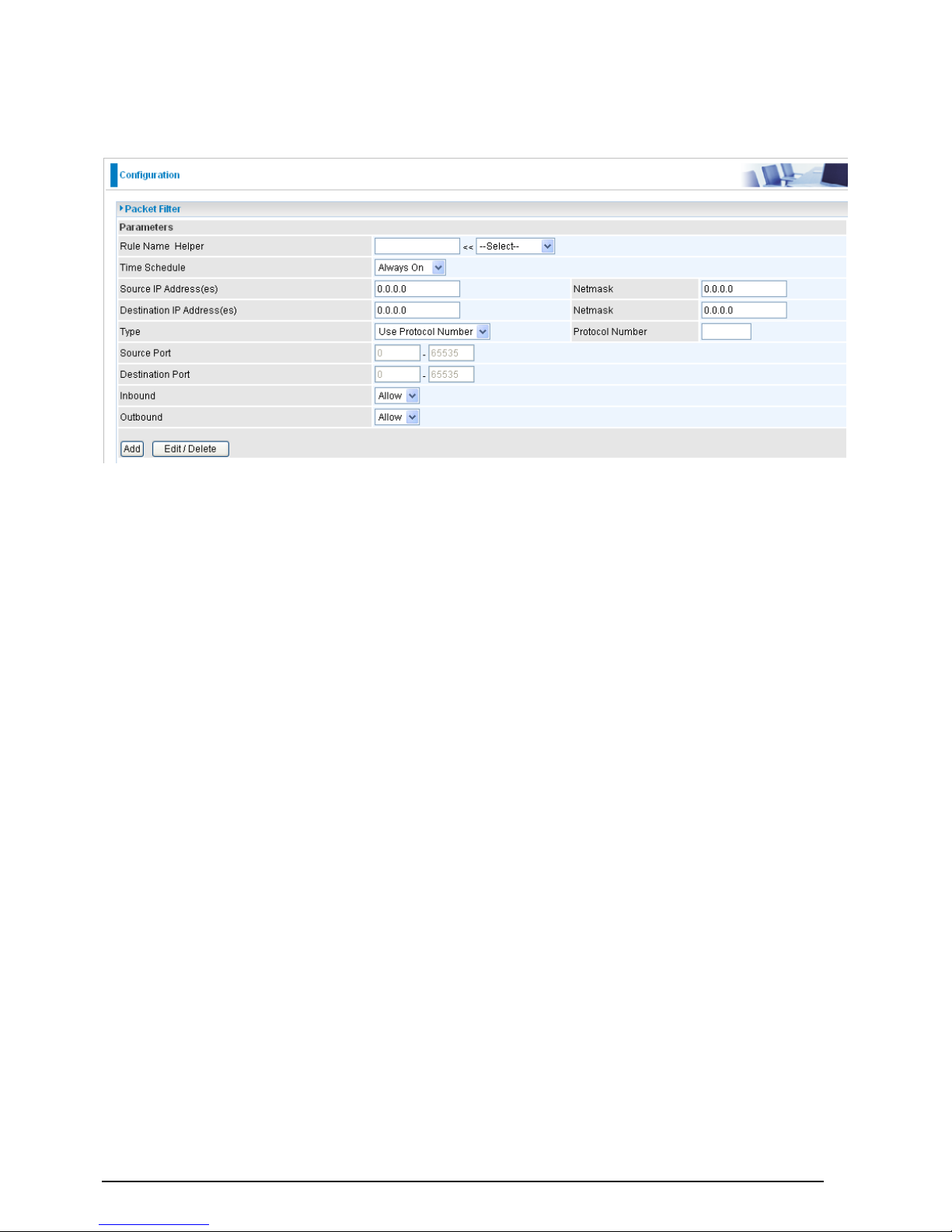

Packet Filter ................................................................................................................................................................... 48
Intrusion Detection ........................................................................................................................................................ 55

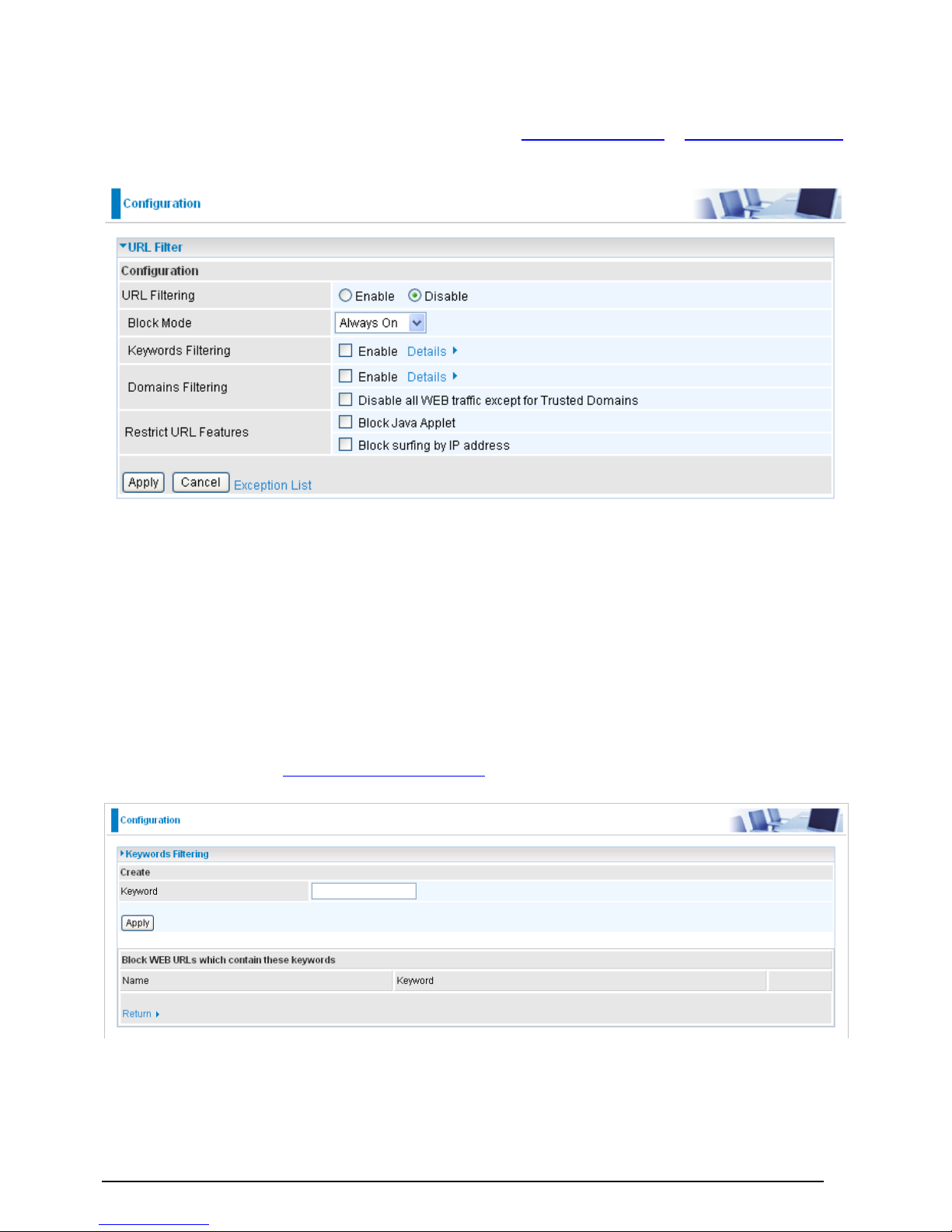

URL Filter ...................................................................................................................................................................... 58

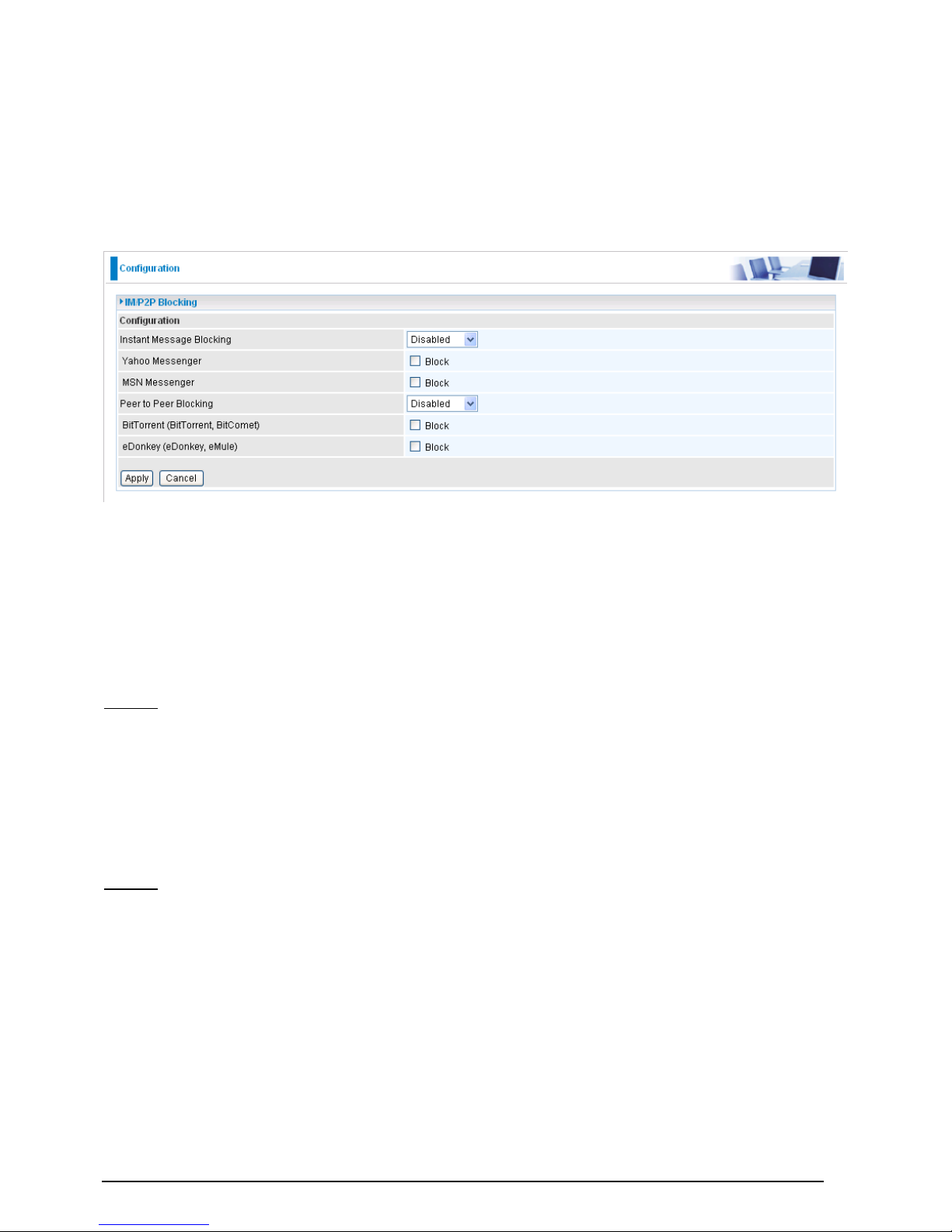

IM / P2P Blocking ......................................................................................................................................................... 60
Firewall Log................................................................................................................................................................... 61
QoS - Quality of Service ..................................................................................................................................................... 61

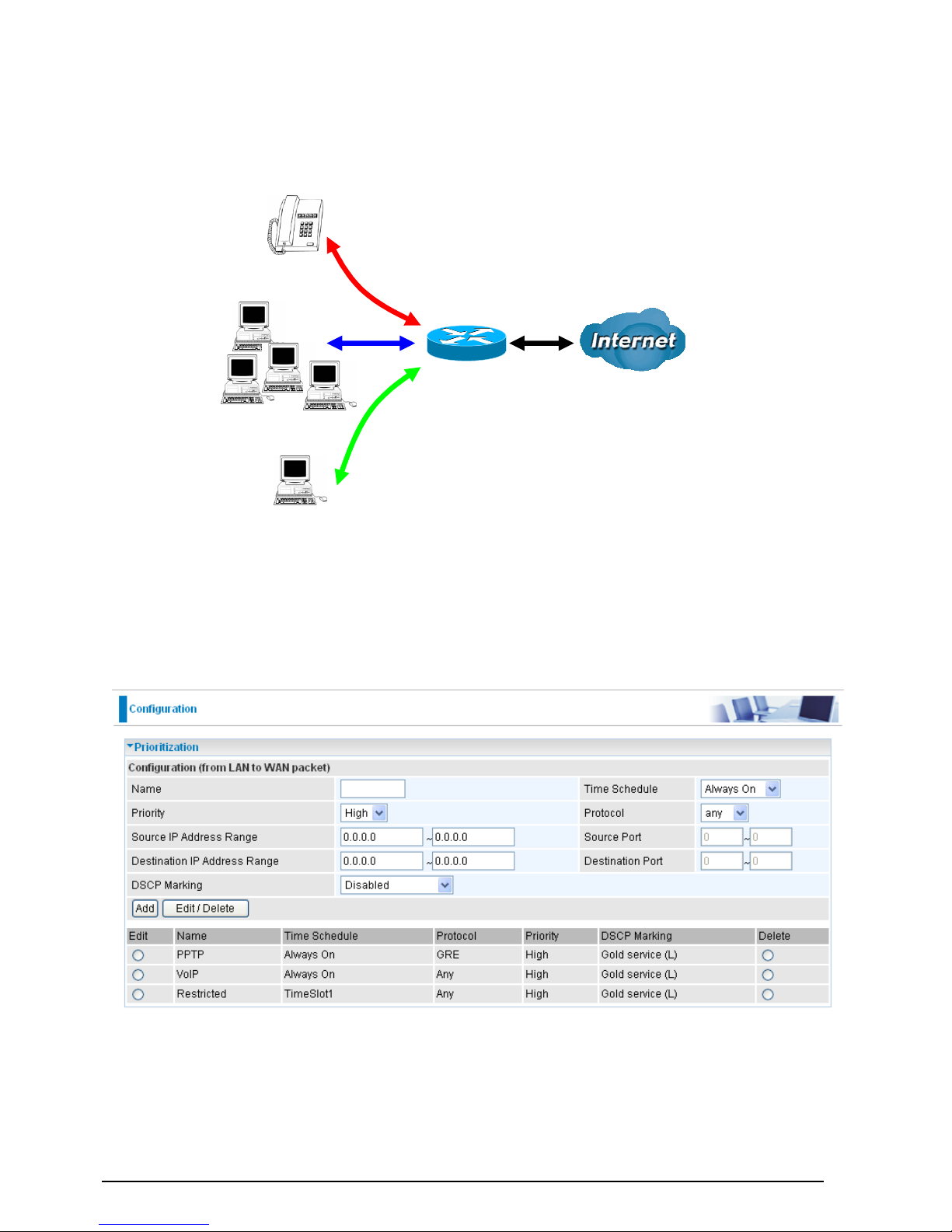

Prioritization .................................................................................................................................................................. 61

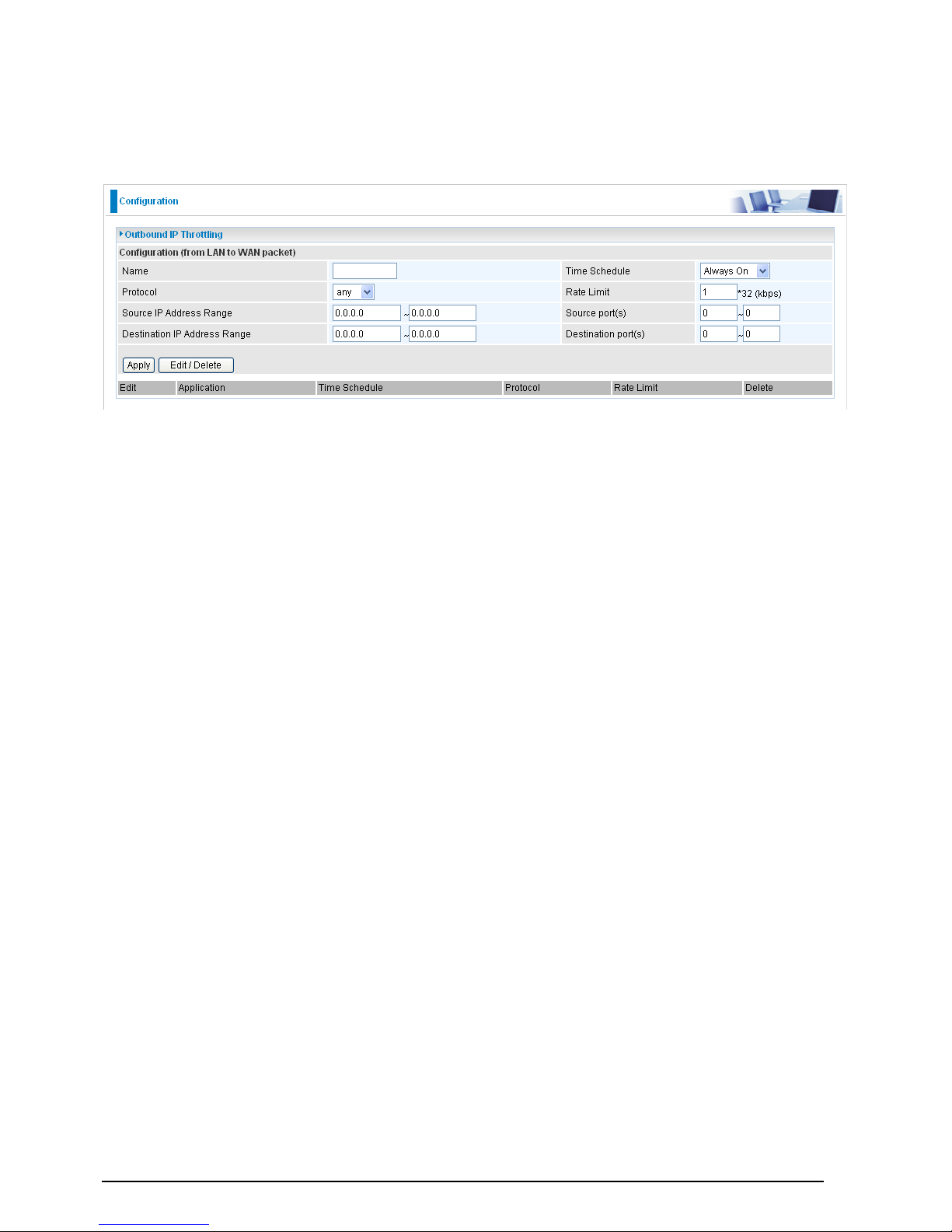

Outbound IP Throttling (LAN to WAN) ........................................................................................................................ 63
Inbound IP Throttling (WAN to LAN) ........................................................................................................................... 64
Virtual Server (known as Port Forwarding) ....................................................................................................................... 69

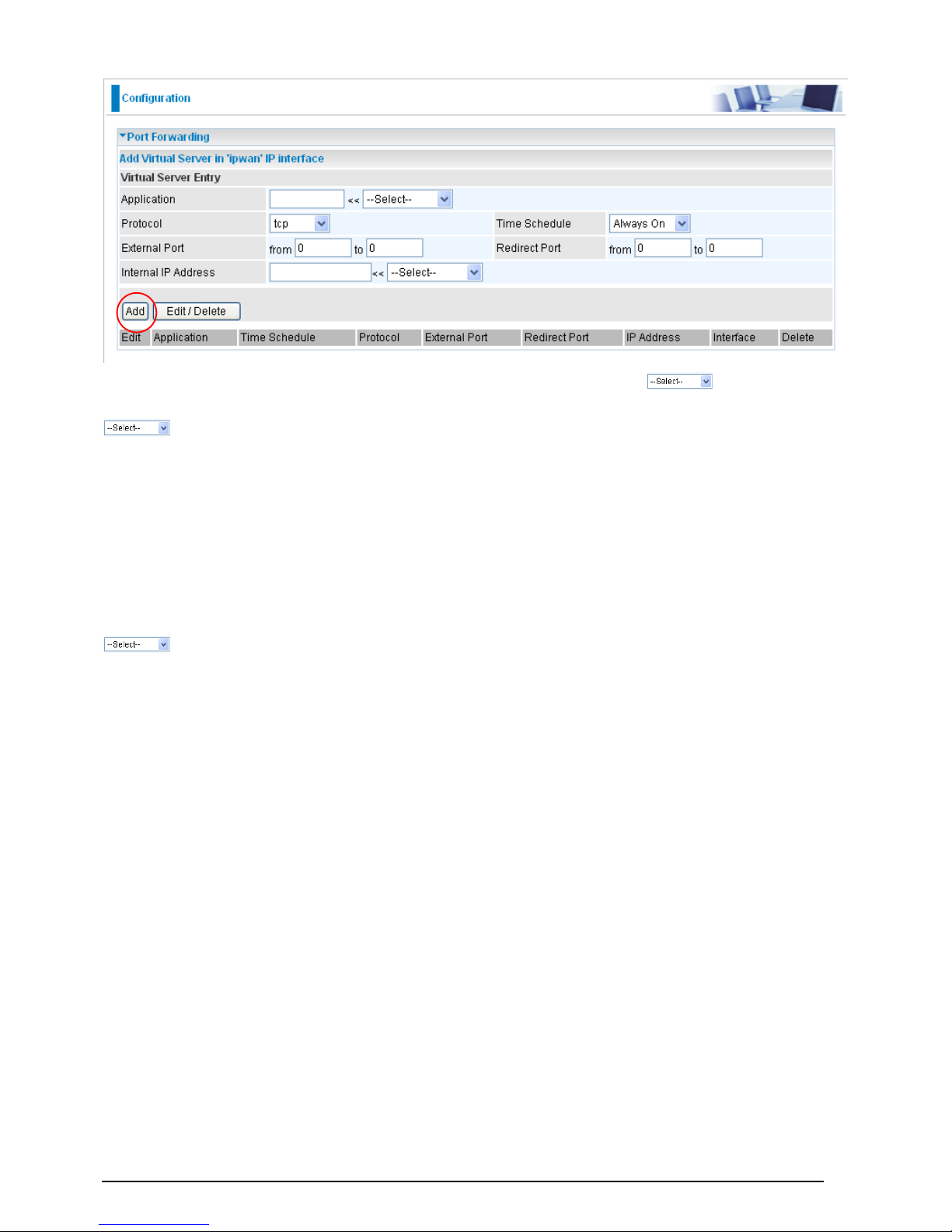

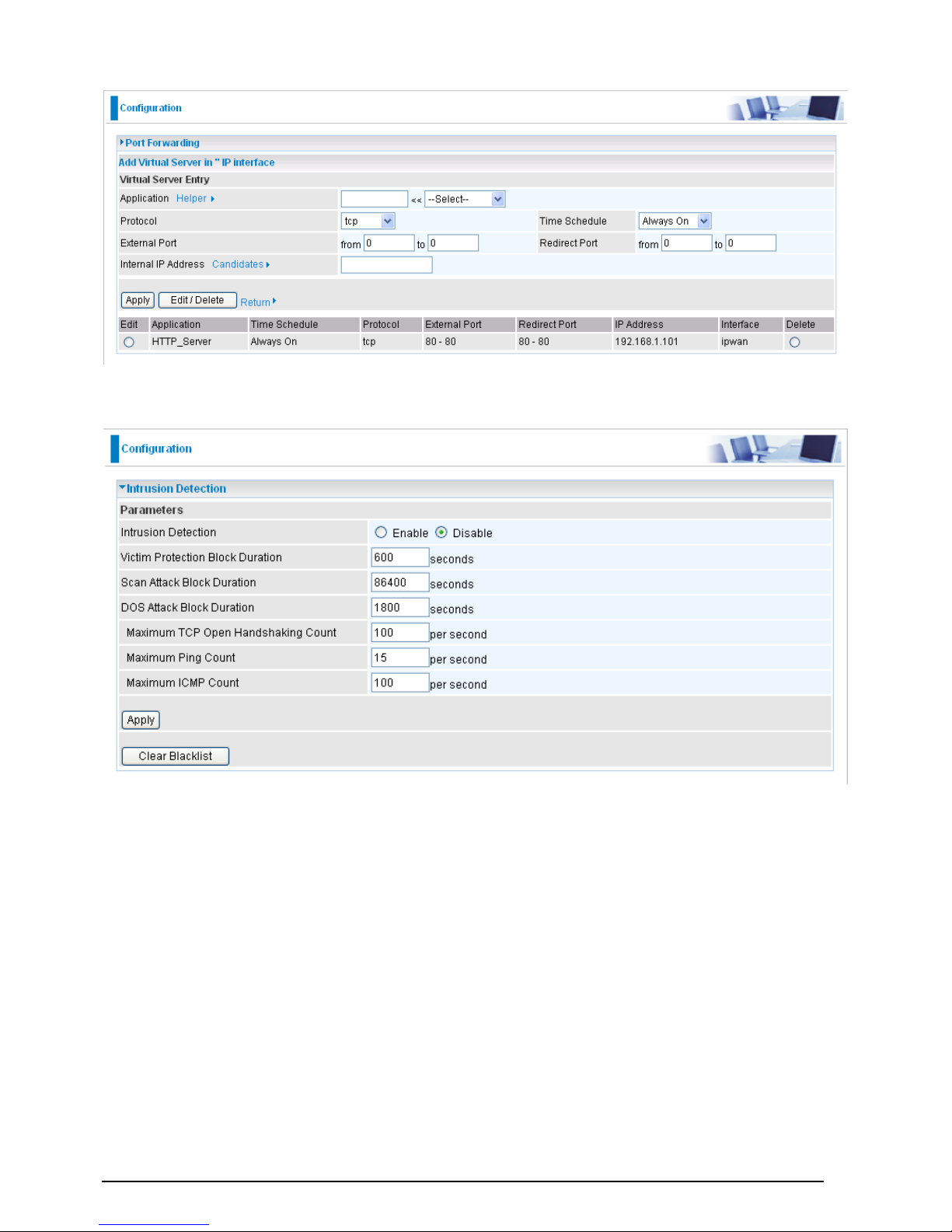

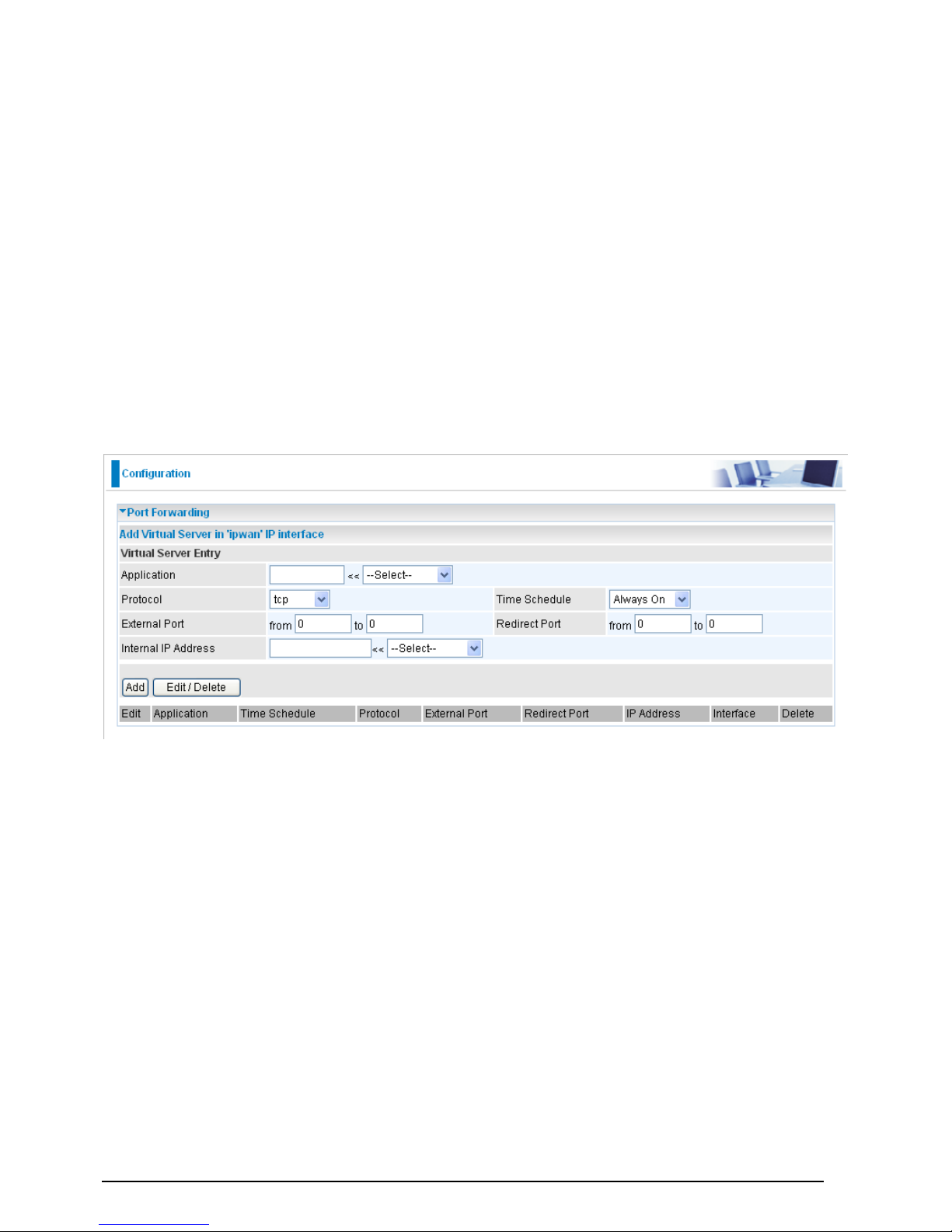

Add Virtual Server ......................................................................................................................................................... 69

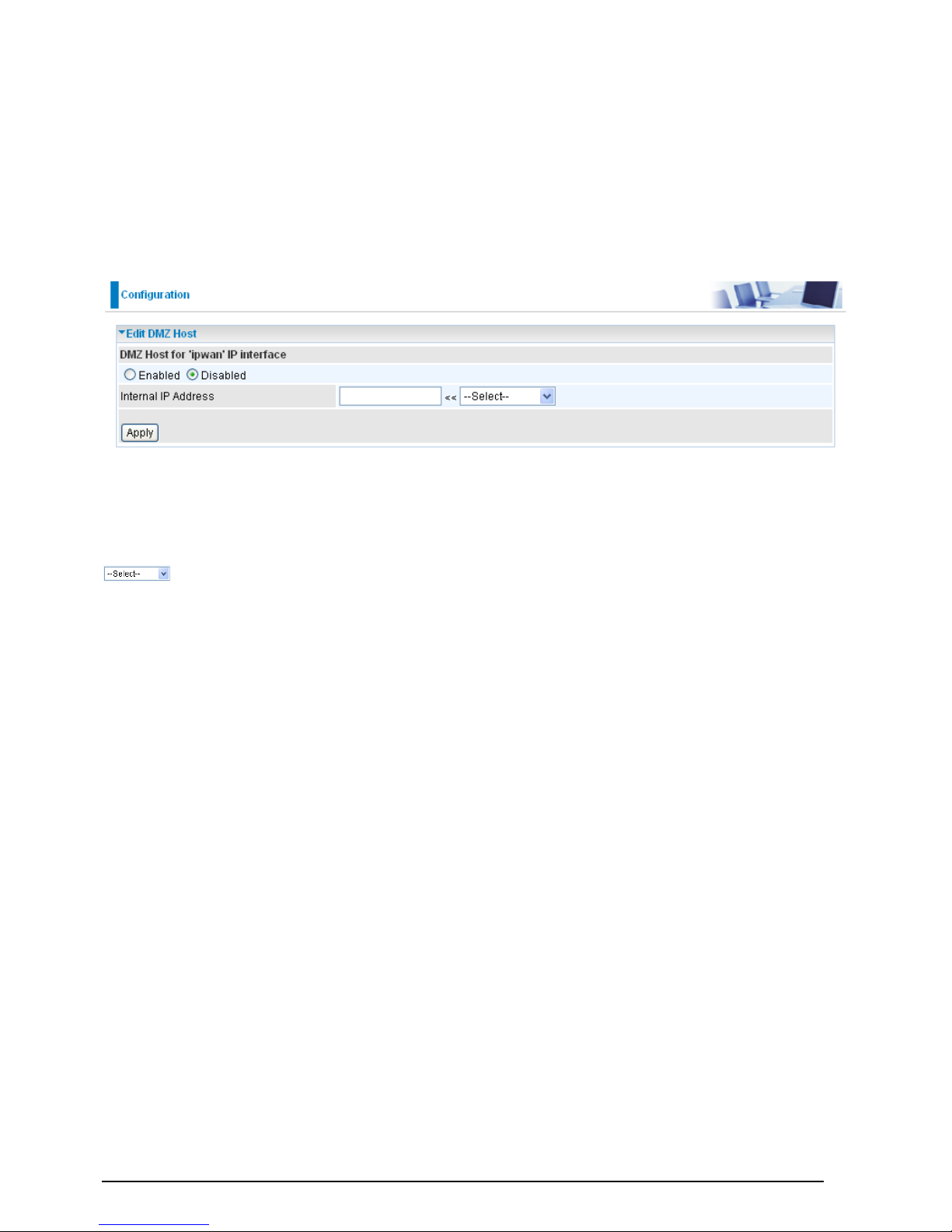

Edit DMZ Host .............................................................................................................................................................. 71
Edit DMZ Host .............................................................................................................................................................. 72

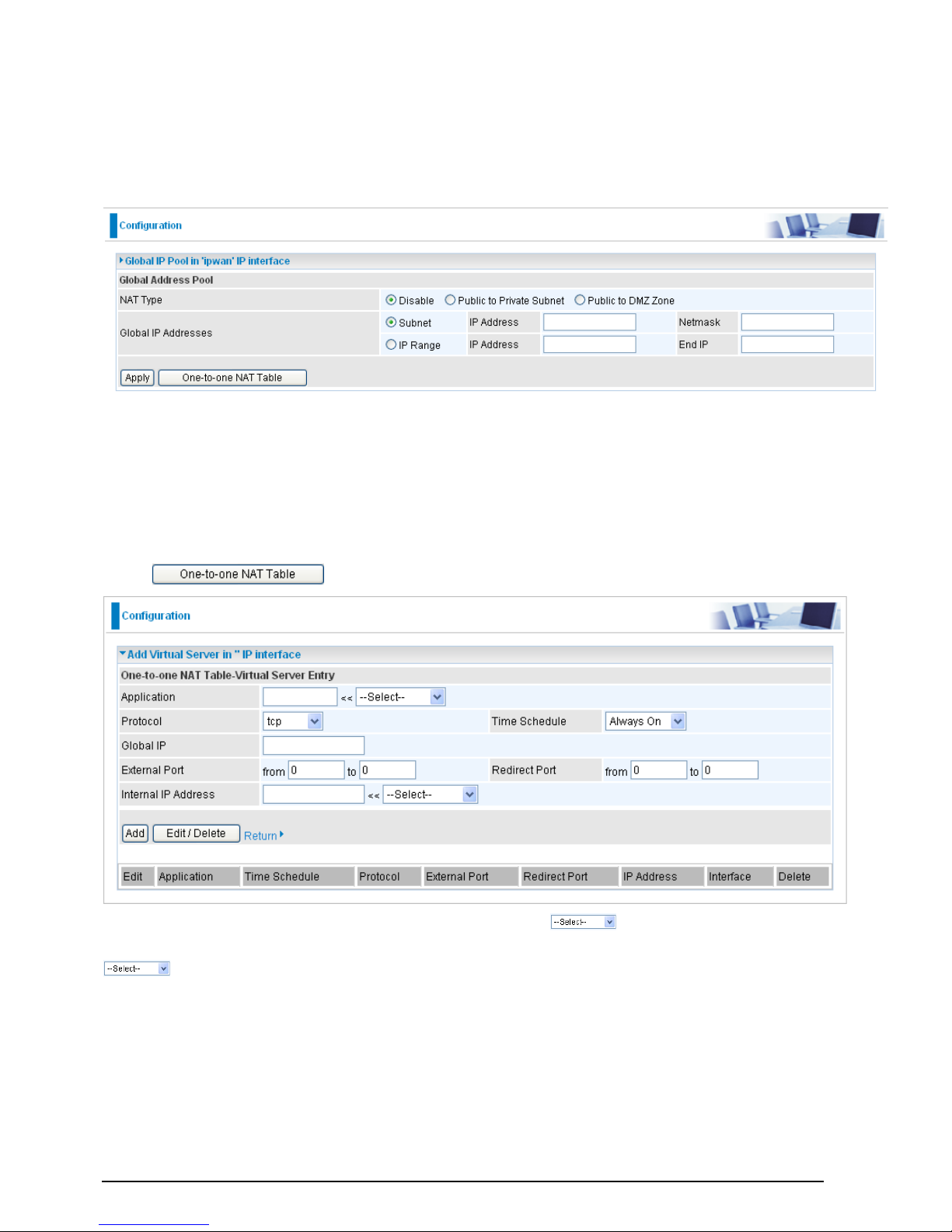

Edit One-to-One NAT (Network Address Translation) .................................................................................................. 73
Time Schedule ..................................................................................................................................................................... 75
Configuration of Time Schedule .................................................................................................................................... 76
Advanced ............................................................................................................................................................................ 77
Static Route .................................................................................................................................................................... 77

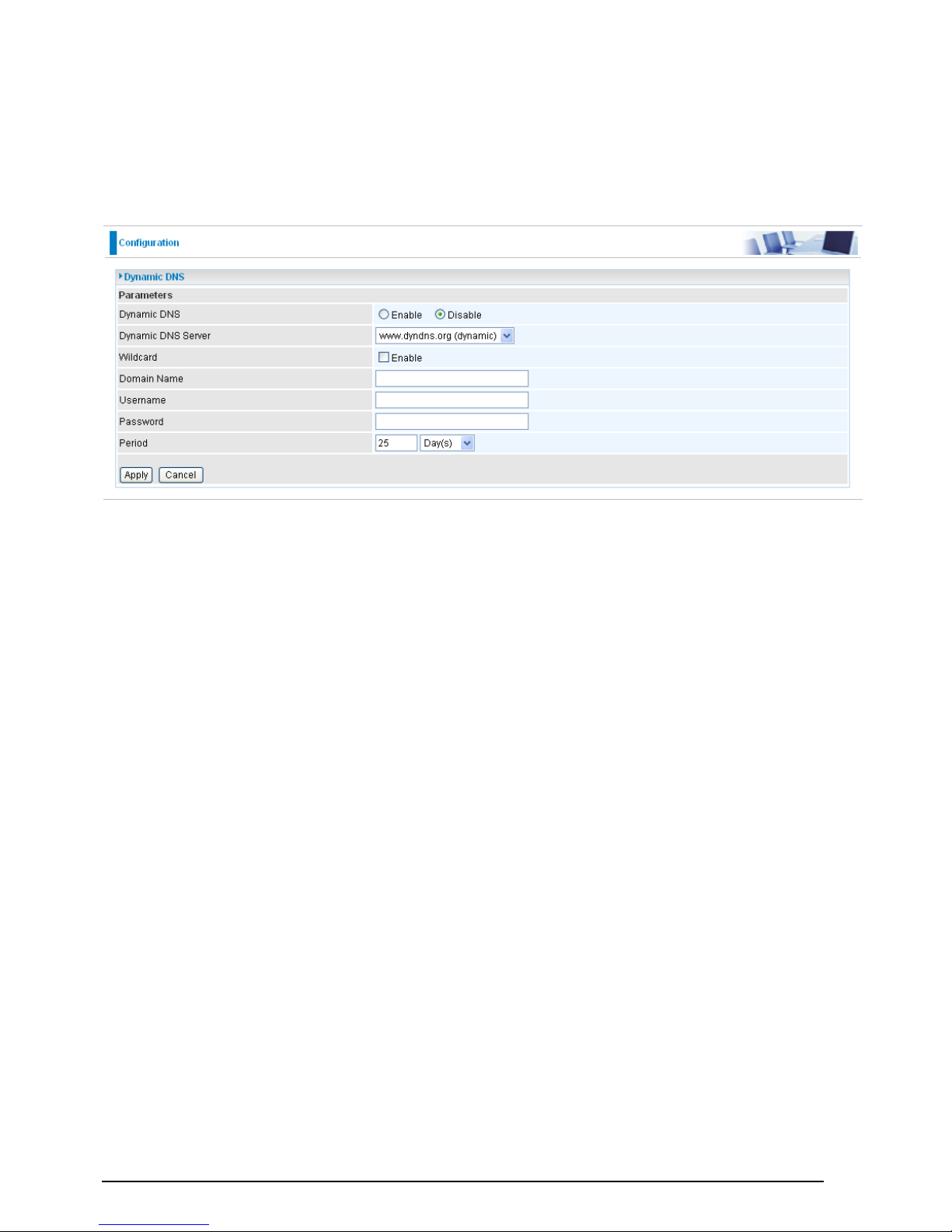

Dynamic DNS ................................................................................................................................................................ 78

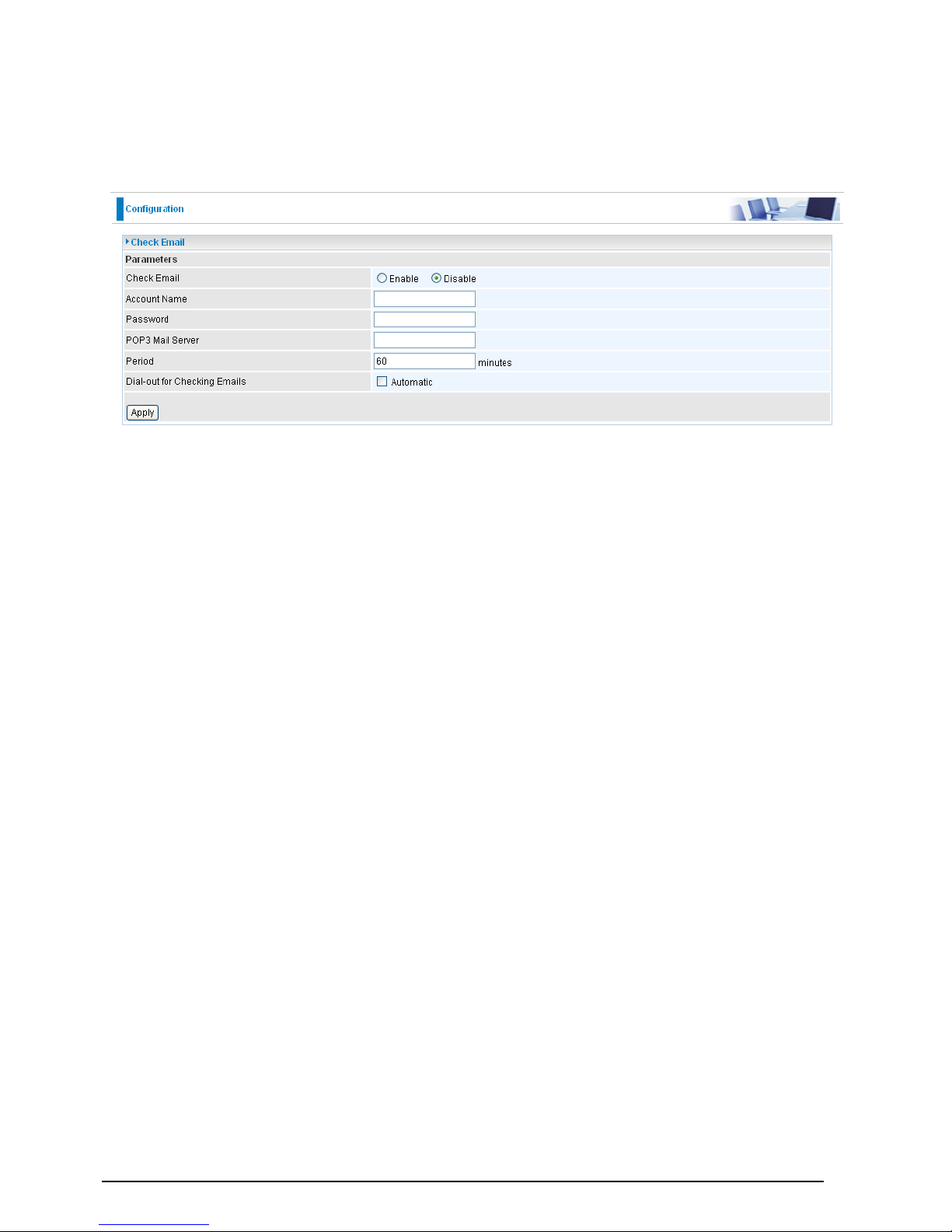

Check Email................................................................................................................................................................... 79

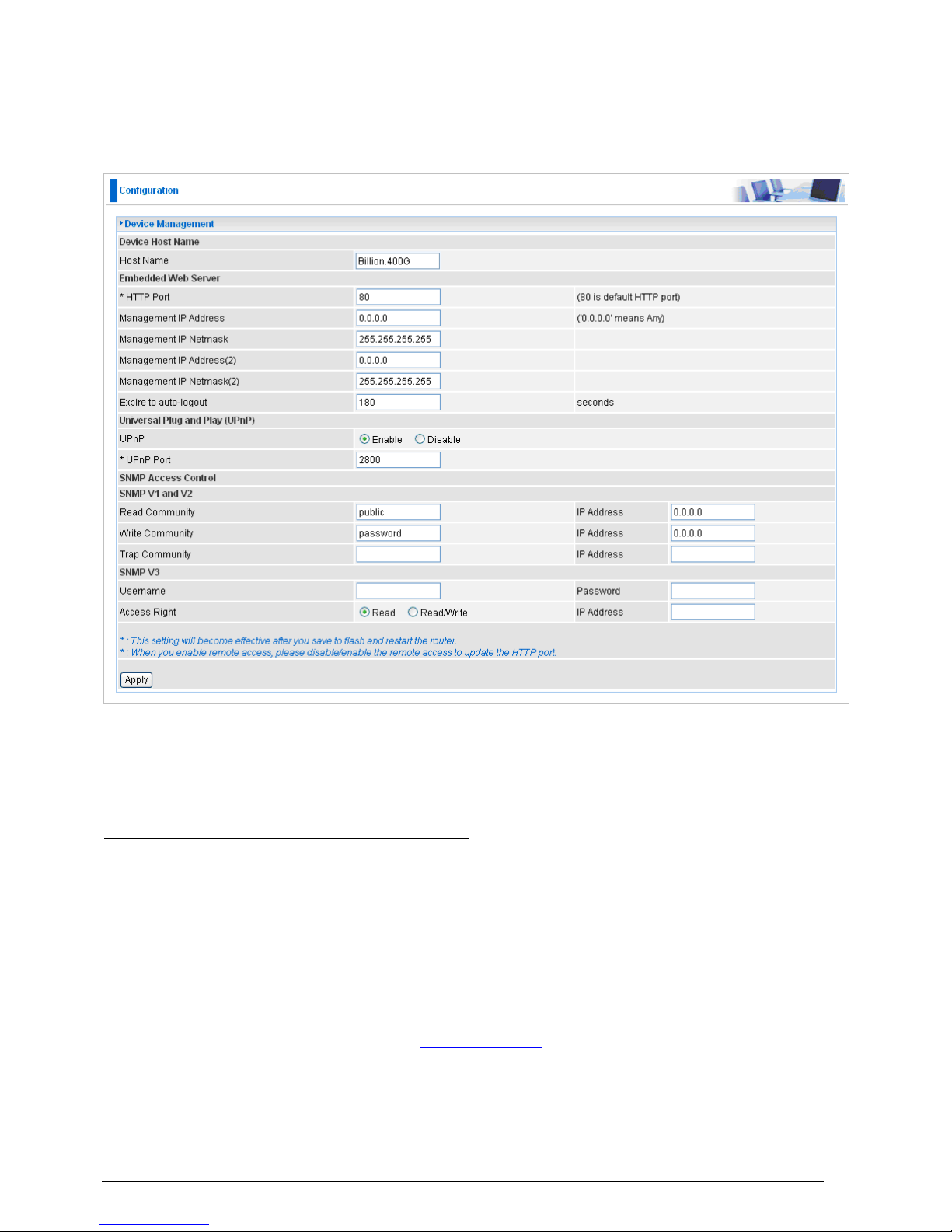

Device Management ...................................................................................................................................................... 80
IGMP ............................................................................................................................................................................. 83
VLAN Bridge ................................................................................................................................................................ 83
LOGOUT ................................................................................................................................................................................. 83
CHAPTER 5: TROUBLESHOOTING .................................................................................................................................... 84
PROBLEMS STARTING UP THE ROUTER ........................................................................................................................... 84
PROBLEMS WITH THE WAN INTERFACE ........................................................................................................................... 84
PROBLEMS WITH THE LAN INTERFACE ............................................................................................................................ 84
CONTACT TELKOM ADSL SUPPORT .................................................................................................................................. 85
CONTACT SIZWEBROADBAND FOR ROUTER SUPPORT ................................................................................................. 85
Billion 400G Router
Chapter 1: Introduction
1
Chapter 1: Introduction
Introduction to your Router
Your Billion 400G router is an “all-in-one” ADSL router,
combining an ADSL
2/2+
modem/router and network
switch
, providing everything you need to you connected to the Internet using your ADSL connection.
Features
Express Internet Access
The router complies with ADSL worldwide standards. It supports downstream rate up to 12/24 Mbps with
ADSL2/2+, 8Mbps with ADSL. Users enjoy not only high-speed ADSL services but also broadband
multimedia applications such as interactive gaming, video streaming and real-time audio much easier and
faster than ever. It is compliant with Multi-Mode standard (ANSI T1.413, Issue 2; G.dmt (ITU G.992.1); G.lite
(ITU G.992.2); G.hs (ITU G994.1); G.dmt.bis (ITU G.992.3); G.dmt.bis.plus (ITU G.992.5)).
802.11g Wireless AP with WPA Support
With integrated 802.11g Wireless Access Point in the router, the device offers a quick and easy access
among wired network, wireless network and broadband connection (ADSL) with single device simplicity, and
as a result, mobility to the users. In addition to 54 Mbps 802.11g data rate, it also interoperates backward with
existing 802.11b equipment. The Wireless Protected Access (WPA1 and WPA2) and Wireless Encryption
Protocol (WEP) supported features enhance the security level of data protection and access control via
Wireless LAN.
Fast Ethernet Switch
A 4-port 10/100Mbps fast Ethernet switch is built in with automatic switching between MDI and MDI-X for
10Base-T and 100Base-TX ports. An Ethernet straight or crossover cable can be used directly for auto
detection.
Multi-Protocol to Establish a Connection
It supports PPPoA, RFC 1483 encapsulation over ATM (bridged or routed), PPP over Ethernet (RFC 2516),
and IPoA to establish a connection with the ISP. The product also supports VC-based and LLC-based
multiplexing.
Furthermore the device supports multiple PPPoE connections on the same PVC to allow for
smart traffic separation.
Quick Installation Wizard
The router can be setup and managed by using the easy setup wizard software included on the CD or the
GUI (Graphical User Interface) imbedded on the router accessed using the router’s LAN IP address and a
standard web-browser application like Internet Explorer.
Universal Plug and Play (UPnP) and UPnP NAT Traversal
This protocol is used to enable simple and robust connectivity among stand-alone devices and PCs from
many different vendors. It makes network simple and affordable for users. UPnP architecture leverages
TCP/IP and the Web to enable seamless proximity networking in addition to control and data transfer
among networked devices. With this feature enabled, users can now connect to Net meeting or MSN
Messenger seamlessly.
Network Address Translation (NAT)
Allows multi-users to access outside resources such as the Internet simultaneously with one IP address/one
Internet access account. Many application layer gateways (ALG) are supported such as web browser, ICQ,
FTP, Telnet, E-mail, News, Net2phone, Ping, NetMeeting, IP phone and others.
SOHO Firewall Security with DoS and SPI
Along with the built-in NAT natural firewall feature, the router also provides advanced hacker pattern-filtering
protection. It can automatically detect and block Denial of Service (DoS) attacks. The router is built with
Stateful Packet Inspection (SPI) to determine if a data packet is allowed through the firewall to the private
LAN.
Billion 400G Router
Chapter 1: Introduction
2
Domain Name System (DNS) Relay
It provides an easy way to map the domain name (a friendly name for users such as www.yahoo.com) and
IP address. When a local machine sets its DNS server with this router’s IP address, every DNS conversion
request packet from the PC to this router will be forwarded to the real DNS in the outside network.
Dynamic Domain Name System (DDNS)
The Dynamic DNS service allows you to alias a dynamic WAN IP address to a static hostname.
For
example, to use the service, you must first apply for an account from a DDNS service like
http://www.dyndns.org/. More than 5 DDNS servers are supported.
Quality of Service (QoS)
QoS gives you full control over which types of outgoing data traffic should be given priority by the router,
ensuring important data like gaming packets, customer information, or management information move
through the router ay lightning speed, even under heavy load. The QoS features are configurable by source
IP address, destination IP address, protocol, and port. You can throttle the speed at which different types of
outgoing data pass through the router, to ensure P2P users don’t saturate upload bandwidth, or office
browsing doesn’t bring client web serving to a halt. In addition, or alternatively, you can simply change the
priority of different types of upload data and let the router sort out the actual speeds.

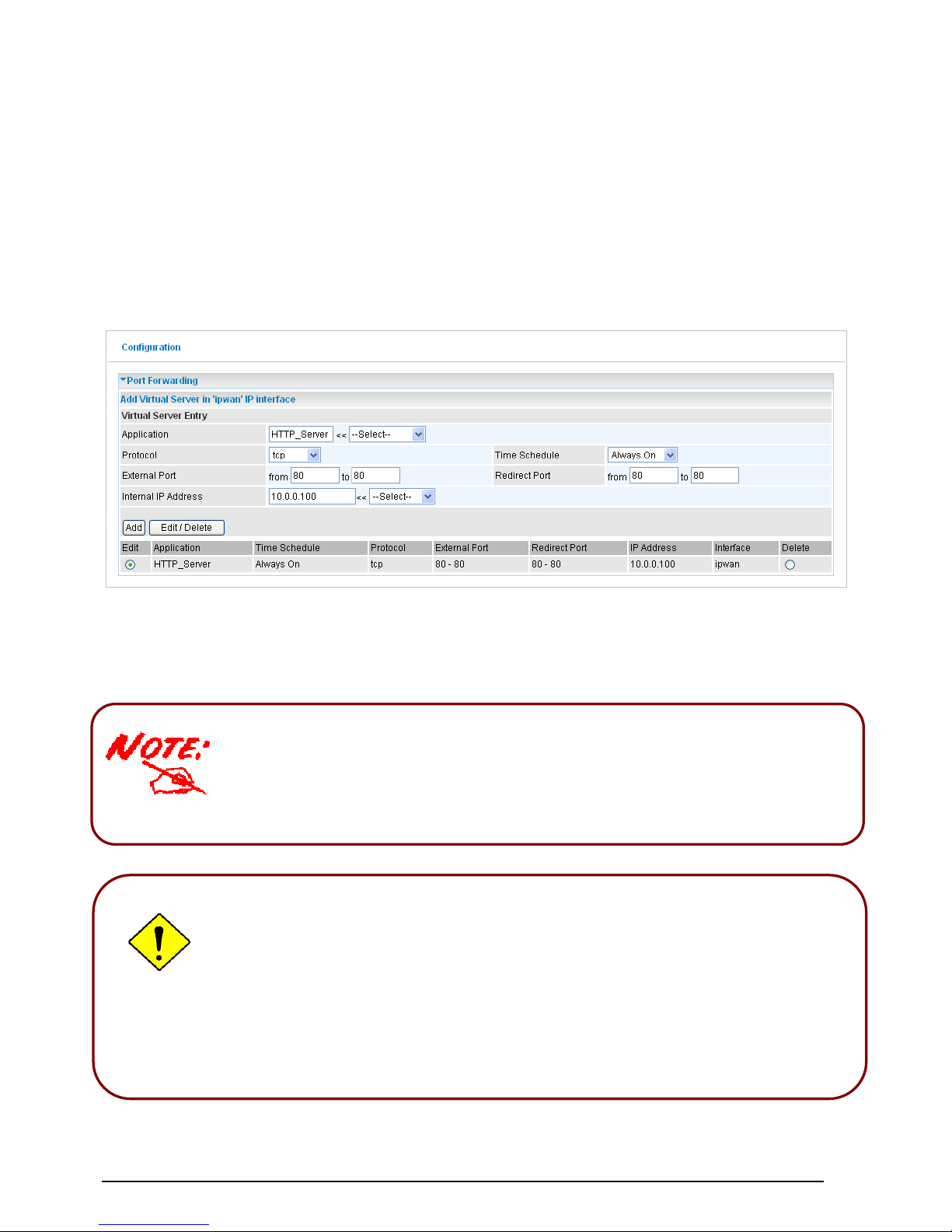

Virtual Server (“port forwarding”)
Users can specify some services to be visible from outside users. The router can detect incoming service
requests and forward either a single port or a range of ports to the specific local computer to handle it. For
example, a user can assign a PC in the LAN acting as a WEB server inside and expose it to the outside
network. Outside users can browse inside web servers directly while it is protected by NAT. A DMZ host
setting is also provided to a local computer exposed to the outside network, Internet.
Rich Packet Filtering
Not only filters the packet based on IP address, but also based on Port numbers. It will filter packets from and
to the Internet, and also provides a higher level of security control.
Dynamic Host Configuration Protocol (DHCP) Client and Server
In the WAN site, the DHCP client can get an IP address from the Internet Service Provider (ISP) automatically.
In the LAN site, the DHCP server can allocate a range of client IP addresses and distribute them including IP
address, subnet mask as well as DNS IP address to local computers. It provides an easy way to manage the
local IP network.
Static and RIP1/2 Routing
It has routing capability and supports easy static routing table or RIP1/2 routing protocol.
Simple Network Management Protocol (SNMP)
It is an easy way to remotely manage the router via SNMP.
Web based GUI
The routers’ web based GUI is used for configuration and management. It is user-friendly and comes with
on-line help. It also supports remote management capability for remote users to configure and manage the
router.
Firmware Upgradeable
Device can be upgraded to the latest firmware through the WEB based GUI.
Rich Management Interfaces
It supports flexible management interfaces with local console port, LAN port, and WAN port. Users can use
terminal applications through the console port to configure and manage the device, or Telnet, WEB GUI, and
SNMP through LAN or WAN ports to configure and manage the device.
TR-069 management is also
supported, but is normally implemented by Telkom or your ISP.
Billion 400G Router
Chapter 2: Installing the router
3
Chapter 2: Installing the Router
Important note for using this router
Package Contents
• Billion 400G Router
• CD-ROM containing this online manual
• 2 x RJ-11 ADSL/telephone Cable
• Ethernet (CAT-5 LAN) Cable
• Console tool kit
• Integrated surge and AC-DC power adapter (12VDC, 1.2A)
• A detachable antenna
• ADSL Micro filter
• ADSL Splitter
• Quick Start Guide
Do not use this router
under
high humidity or high temperatures.
Do not use the same power source for this router as other equipment.
Do not open or repair the case by yourself. If this router is too hot, turn
off the power immediately and have it repaired at a qualified service
center.
Avoid using this product and all accessories outdoors.
Warning
Place this router on a stable surface.
Only use the power adapter that comes with the package.
Using a different voltage rating power adaptor may damage this router.
Attention
Billion 400G Router
Chapter 2: Installing the router
4
The Front LEDs
LED Meaning
1 Power
Lit when power is ON.
If lit red it means the system has failed to load. Restart the device or
contact router support.
2
LAN Port
1X — 4X
(RJ-45 connector)
Lit when connected to an Ethernet device.
Green for 100Mbps; Orange for 10Mbps.
Flashing
when data is Transmitted / Received.
3 Wireless
Green when the wireless connection is established.
Flashing when sending/receiving data.
4 Mail Lit and flashing periodically when there are emails in the Inbox.
5 ADSL
Lit Green when the device is successfully connected to an ADSL DSLAM
(“line synch”).
6 Internet
Lit red when WAN port fails to get IP address.
Lit green when WAN port gets IP address successfully.
1
2 4 5 6 3
Billion 400G Router
Chapter 2: Installing the router
5
The Ethernet
Port #
4 can be
used as a
console
port
. You need a special console
tool which already includes in the package to connect with LAN port 4 and PC’s
RS-232 port (9-pin serial port).
The Rear Ports
Port
1
Antenna Connect the detachable antenna to this port.
2
ADSL
Use the supplied RJ-11 (“telephone”) cable to connect this
port to
the ADSL/telephone wall jack.
3
LAN
1X — 4X
(RJ-45 connector)
To connect your router to a PC or an office/home network of
10Mbps or 100Mbps use a UTP Ethernet cable (Cat-5 or Cat-5e)
and connect to one of the LAN ports.
Caution:
Port 4 can be either a LAN or a Console port at any time but
not simultaneously.
4 WPS
Press the WPS button to trigger Wi-Fi Protected Setup function.
5 RESET
When the router is turned on
the reset button is used to:
Reset the router: press for 1-3 seconds
.
Restore
factory default
settings: press for
6 – 8
seconds, and
power cycle the router:
(useful if you cannot l
ogin to the router
or have forgotten your Username/Password.)
Caution:
After pressing the RESET button for 6 - 8 seconds, be sure
you power cycle the device.
If the RESET button is pressed for more than 10 seconds, the device
will need to be power cycled before normal operation can be resumed.
6
Power
Connect the supplied power adapter to this jack.
7
Power Switch
Power ON/OFF switch
3 1 2
4
6 7
5
Billion 400G Router
Chapter 2: Installing the router
6
Cabling
One of the most common causes of problems is the bad cabling or ADSL line(s). Make sure that all connected
devices are turned on. On the front of the product is a bank of LEDs. Verify that the LAN Link and ADSL line LEDs
are lit. If they are not, verify that you are using the proper cables.
Ensure that all other devices connected to the same telephone line as your router (e.g. telephones, fax machines,
analogue modems) have a line filter connected between them and the wall socket (unless you are using a Central
Splitter or Central Filter installed by a qualified and licensed electrician), and ensure that all line filters are correctly
installed and the right way around. Missing line filters or line filters installed the wrong way around can cause
problems with your ADSL connection, including causing frequent disconnections.
Billion 400G Router
Chapter 3: Basic Installation
7
Any TCP/IP capable workstation can be used to communicate with or
through the router. To configure other types of workstations, please
consult the manufacturer’s documentation.
Chapter 3: Basic Installation
The router can be configured with your web browser. A web browser is included as a standard application in the
following operating systems: Linux, Mac OS, Windows 98/NT/2000/XP/Me, etc. The product provides an easy and
user-friendly interface for configuration.
Please check your PC’s network components. The TCP/IP protocol stack and Ethernet network adapter must be
installed. If not, please refer to your Windows-related or other operating system manuals.
You can connect your computer to the router either through an external hub/switch or directly. However, please
ensure that your computer has a properly installed Ethernet interface prior to connecting it to the router. You
ought to configure your Computers to obtain an IP address through a DHCP server or you can set them up with a
fixed IP address that must be in the same subnet as the router. The default IP address of the router is 10.0.0.2
and the subnet mask is 255.255.255.0 (i.e. any attached Computer must be in the same subnet, and have an IP
address in the range of 10.0.0.1 to10.0.0.254). The best and easiest way is to configure the PC to get an IP
address automatically from the router using DHCP. If you encounter any problem accessing the router’s web
interface it may also be advisable to temporarily remove any kind of software firewall on your Computer’s as
they can cause problems accessing the 10.0.0.2 IP address of the router. Users should always make their own
decisions on how to best protect their network.
Please follow the steps below for your PC’s network environment installation.
Billion 400G Router
Chapter 3: Basic Installation
8
Connecting Your Router
1. Connect the power adapter as illustrated below
and power on the device, m
ake sure that the PWR LED is
lit
steadily.
2.
Connect your network or computer to the router using the LAN (Local Area Network)
cable.
3.
Connect the ADSL/telephone (
ADSL)
cable to the router’s DSL port as illustrated below.
Billion 400G Router
Chapter 3: Basic Installation
9

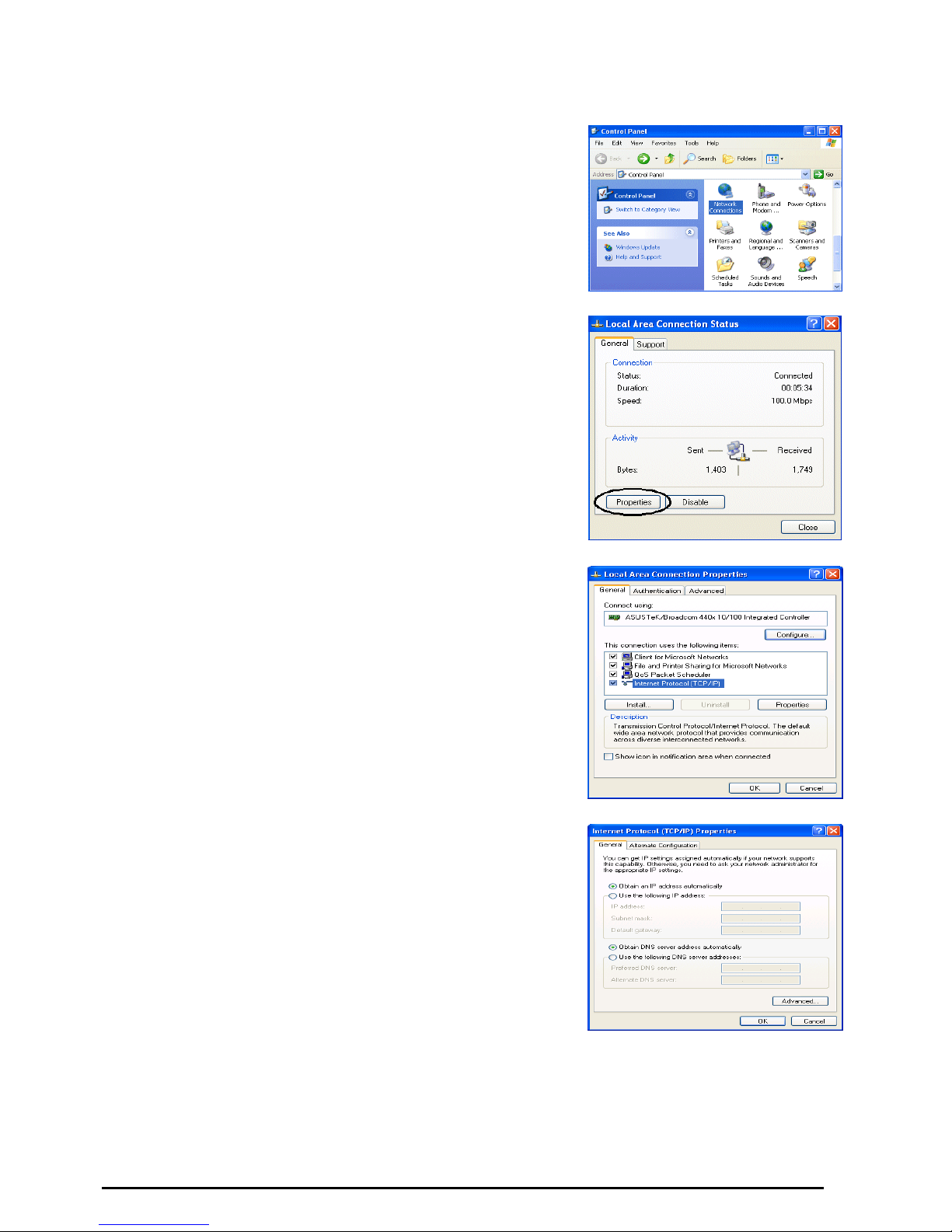

Configuring PCs in Windows in Window XP
1. Go to Start / Control Panel (in Classic View). In the Control Panel,
double-click Network Connections.
2. Double-click Local Area Connection. (See Figure 3.1)
3. In the LAN Area Connection Status window, click Properties.
(See Figure 3.2)
4. Select Internet Protocol (TCP/IP) and click Properties. (See
Figure 3.3)
5. Select the Obtain an IP address automatically and Obtain DNS
server address automatically radio buttons. (See Figure 3.4)
6. Click OK to finish the configuration.
Figure 3.1: LAN Area Connection
Figure 3.2: LAN Connection Status
Figure 3.3: TCP / IP
Figure 3.4: IP Address & DNS
Configuration
Billion 400G Router
Chapter 3: Basic Installation
10
Configuring PCs in Windows 2000
1.
Go to Start / Settings / Control Panel. In the Control Panel,
double-click Network and Dial-up Connections.
2.
Double-click Local Area (“LAN”) Connection. (See Figure 3.5)
3.
In the LAN Area Connection Status window, click Properties.
(See Figure 3.6)
4.
Select Internet Protocol (TCP/IP) and click Properties. (See
Figure 3.7)
5.
Select the Obtain an IP address automatically and Obtain DNS
server address automatically radio buttons. (See Figure 3.8)
6.
Click OK to finish the configuration.
Figure 3.5: LAN Area Connection
Figure 3.6: LAN Connection Status
Figure 3.7: TCP / IP
Figure 3.8: IP Address & DNS
Configuration
Billion 400G Router
Chapter 3: Basic Installation
11
Configuring PC in Windows 95/98/ME
1. Go to Start / Settings / Control Panel. In the Control Panel,
double-click Network and choose the Configuration tab.
2. Select TCP / IP -> NE2000 Compatible, or the name of any
Network Interface Card (NIC) in your PC. (See Figure 3.9)
3. Click Properties.
4. Select the IP Address tab. In this page, click the Obtain an IP
address automatically radio button. (See Figure 3.10)
5. Then select the DNS Configuration tab. (See Figure 3.11)
6. Select the Disable DNS radio button and click OK to finish the
configuration.
Figure 3.9: TCP / IP
Figure 3.10: IP Address
Figure 3.11: DNS Configuration
Billion 400G Router
Chapter 3: Basic Installation
12
Configuring PC in Windows NT4.0
1.
Go to Start / Settings / Control Panel. In the Control Panel,
double-click Network and choose the Protocols tab.
2.
Select TCP/IP Protocol and click Properties. (See Figure 3.12)
3.
Select the Obtain an IP address from a DHCP server radio button
and click OK. (See Figure 3.13)
Figure 3.12: TCP / IP
Figure 3.13: IP Address
Billion 400G Router
Chapter 3: Basic Installation
13
Factory Default Settings
Before configuring your, you need to know the following default settings.
Web Interface (Username and Password)
Username: admin
Password: admin
The default username and password are “admin” and “admin” respectively.
Device LAN IP settings
IP Address: 10.0.0.2
Subnet Mask: 255.255.255.0
ISP setting in WAN site
PPPoE
DHCP server
DHCP server is enabled.
Start IP Address: 10.0.0.100
IP pool counts: 100
LAN and WAN Port Addresses
The parameters of LAN and WAN ports are pre-set in the factory. The default values are shown below.
LAN Port
WAN Port
IP address
10.0.0.2
The
WAN protocol has been
pre-selected and set by Telkom
for automated service
deployment and delivery.
Subnet Mask
255.255.255.0
DHCP server function
Enabled
IP addresses for distribution
to PCs
100 IP addresses continuing from
10.0.0.100 through 10.0.0.199
Attention
If you ever forget the username/password to login to the router, you may press the
RESET button for 6 – 8 seconds to restore the factory default settings.
Caution: After pressing the RESET button for more than 6 seconds, to be sure you power
cycle the device again.
Attention
Billion 400G Router
Chapter 3: Basic Installation
14
Information from your ISP
Telkom ADSL connections use PPPoE, and automatically assign a WAN IP address to your router. The following
information is provided should you wish to connect to an alternative ISP.
Gather the information as illustrated in the following table and keep it for reference.

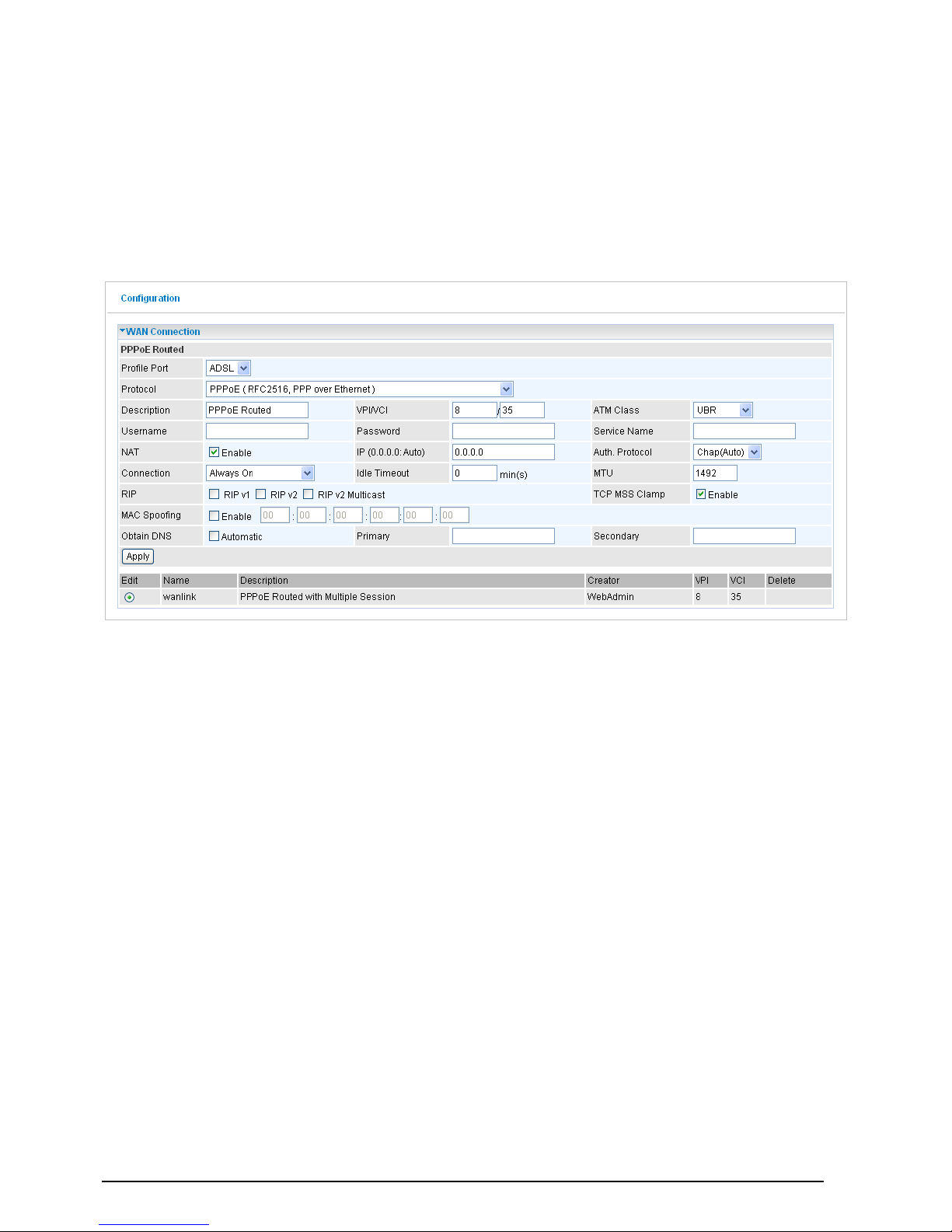

PPPoE
VPI/VCI, VC / LLC-based multiplexing, Username, Password, Service Name, and
Domain Name System (DNS) IP address (this is automatically set by the Telkom
network but be set manually should this be required).
PPPoE
(Multisession)
VPI/VCI, VC / LLC-based multiplexing, Username, Password, Service Name,
Domain Name System (DNS) IP address and multiple-sessions on the same PVC.
PPPoE / PPPoE
with Pass-through
VPI/VCI, VC / LLC-based multiplexing, Username, Password, Service Name, and
Domain Name System (DNS) IP address (this is automatically set by the Telkom
network
but be set manually should this be required). In addition, additional WAN
address can be assigned using PPPoE dialer.
PPPoA
VPI/VCI, VC / LLC-based multiplexing, Username, Password and Domain Name
System (DNS) IP address (it can be automatically assigned by your ISP when you
connect or be set manually).
RFC 1483 Bridged
VPI/VCI, VC / LLC-based multiplexing to use Bridged Mode.

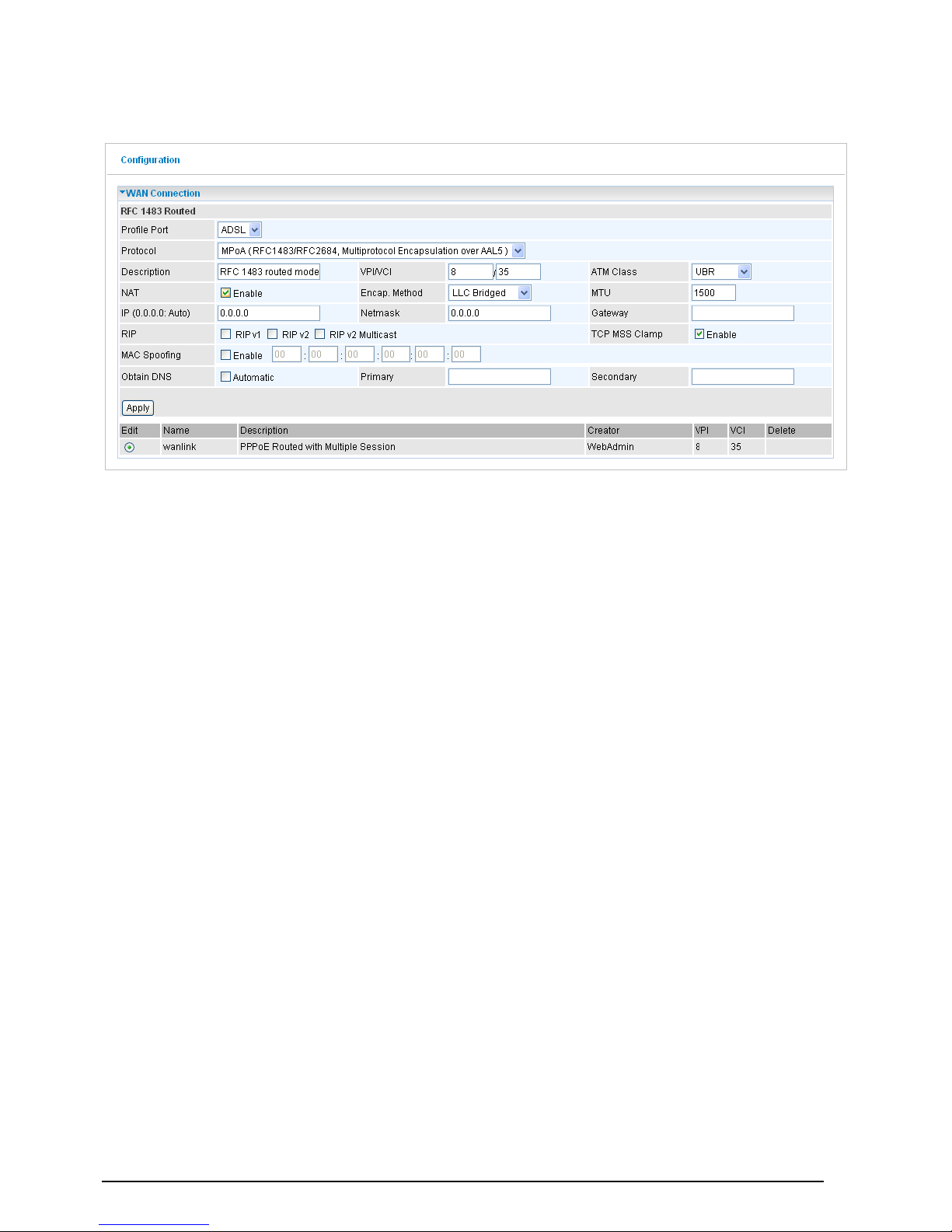

RFC 1483 Routed
VPI/VCI,
VC /
LLC-based
multiplexing,
IP
address,
Subnet
mask,
Gateway address,
and
Domain
Name
System
(DNS)
IP
address
(it
is
a
fixed
IP address).

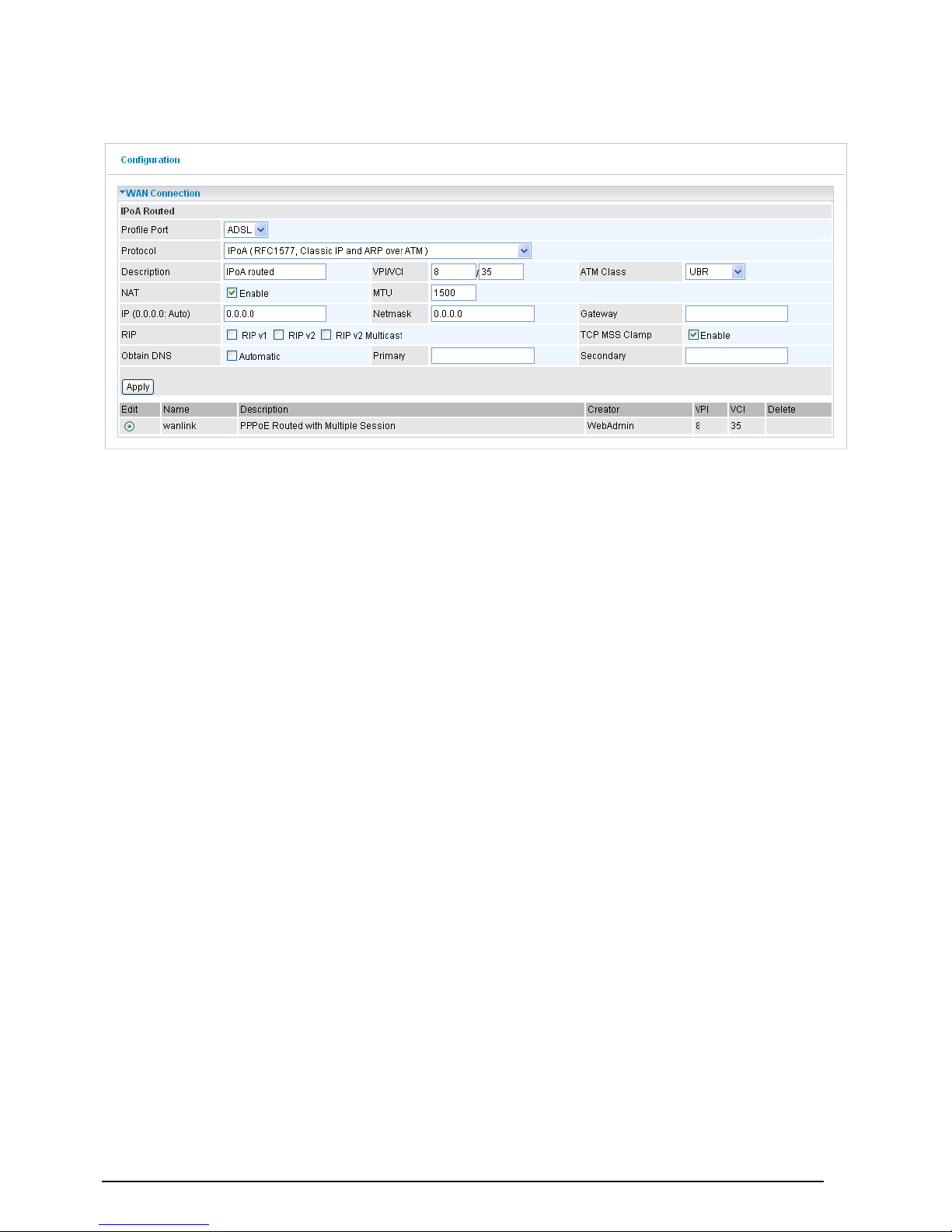

IPoA Routed
(IP over ATM)
VPI/VCI,
VC /
LLC-based
multiplexing,
IP
address,
Subnet
mask,
Gateway address,
and
Domain
Name
System
(DNS)
IP
address
(it
is
a
fixed
IP address).
Billion 400G Router
Chapter 3: Basic Installation
15
Configuring with your Web Browser
Open your web browser, enter the IP address of your router, which by default is 10.0.0.2, and click “Go”, a user
name and password window prompt will appear. The default username and password are “admin” and
“admin” respectively. (See Figure 3.14)
Figure 3.14: User name & Password Prompt Window
Congratulations! You are now successfully logged on to the Router!
Billion 400G Router
Chapter 4: Configuration
16
Chapter 4: Configuration
At the configuration homepage, the left navigation pane where bookmarks are provided links you directly to the
desired setup page, including:
Status
- ADSL Status
- ARP Table
- DHCP Table
- Routing Table
- NAT Sessions
- UPnP Portmap
- Email Status
- Event Log
- Error Log
- Diagnostic
Quick Start
Configuration
- LAN
- WAN
- System
- Firewall
- VPN
- QoS
- Virtual Server
- Time Schedule
- Advanced
Language (provides user interface in English and French languages)
Billion 400G Router
Chapter 4: Configuration
17
Status
ADSL Status
This section displays the ADSL overall status, which shows a number of helpful information such as DSP firmware
version.
ARP Table
This section displays the router’s ARP (Address Resolution Protocol) Table, which shows the mapping of Internet
(IP) addresses to Ethernet (MAC) addresses. This is useful as a quick way of determining the MAC address of the
network interface of your PCs to use with the router’s Firewall – MAC Address Filter function. See the Firewall
section of this manual for more information on this feature.
IP Address: A list of IP addresses of devices on your LAN (Local Area Network).
MAC Address: The MAC (Media Access Control) addresses for each device on your LAN.
Interface: The interface name (on the router) that this IP Address connects to.
Static: Static status of the ARP table entry:
“no” for dynamically-generated ARP table entries.
“yes” for static ARP table entries added by the user.
Billion 400G Router
Chapter 4: Configuration
18
DHCP Table
Leased: The DHCP assigned IP addresses information.
Expired: The expired IP addresses information.
Permanent: The fixed host mapping information
Leased Table
IP Address: The IP address that assigned to client.
MAC Address: The MAC address of client.
Client Host Name: The Host Name (Computer Name) of client.
Expiry: The current lease time of client.
Routing Table
Routing Table
Valid: It indicates a successful routing status.
Destination: The IP address of the destination network.
Netmask: The destination Netmask address.
Gateway/Interface: The IP address of the gateway or existing interface that this route will use.
Cost: The number of hops counted as the cost of the route.
RIP Routing Table
Destination: The IP address of the destination network.
Netmask: The destination Netmask address.
Gateway: The IP address of the gateway that this route will use.
Cost: The number of hops counted as the cost of the route.
Billion 400G Router
Chapter 4: Configuration
19
NAT Sessions
This section lists all current NAT sessions between interface of types external (WAN) and internal (LAN).
UPnP Portmap
The section lists all port-mapping established using UPnP (Universal Plug and Play. See the Advanced section of
this manual for more details on UPnP and the router’s UPnP configuration options.
Email Status
Details and status for the Email Account you have configured the router to check. Please see the Advanced section
of this manual for details on this function.
Billion 400G Router
Chapter 4: Configuration
20
Event Log
This page displays the router’s Event Log entries. Major events are logged to this window, such as when the router’s
ADSL connection is disconnected, as well as Firewall events when you have enabled Intrusion or Blocking Logging
in the Configuration – Firewall section of the interface. Please see the Firewall section of this manual for more
details on how to enable Firewall logging.
Error Log
Any errors encountered by the router (e.g. invalid names given to entries) are logged to this window.
Diagnostic
It tests the connection to computer(s) which is connected to LAN ports and also the WAN Internet connection. If
PING www.google.com is shows as FAIL and the rest show as PASS, you ought to check your PC’s DNS settings
is set correctly.
Billion 400G Router
Chapter 4: Configuration
21
Quick Start
1. Click Quick Start. Select the connect mode you want. There are two options you can choose, ADSL. Select
ADSL from Connect Mode drop-down menu, and click Continue.
2. If your ADSL line is not ready, you need to check your ADSL line has been set or not.
3. If your ADSL line is ready, the screen appears ADSL Line is Ready. Choose Auto radio button and click Apply. It
will automatically scan the recommended mode for you. Manually mode makes you to set the ADSL line by manual.
(If you choose Manually, you will directly go to step 5.)
Billion 400G Router
Chapter 4: Configuration
22
4. The list below has different mode applied for your choice. Choose 0/33/PPPoE(Recommended) and click Apply.
5. Please enter “Username” and “Password” as supplied by your ISP(Internet Service Provider) and click Apply to
continue.
Profile Port: Select the connection mode. There isADSL.
Encapsulation: Select the encapsulation mode. The default mode is PPPoE.
VPI/VCI: Enter the VPI and VCI information provided by your ISP.
Username: Enter the username provided by your ISP.
Password: Enter the password provided by your ISP.
Service Name: This item is for identification purposes. If it is required, your ISP provides you the information.
Authentication Protocol: Default is Auto. Your ISP advises on using Chap or Pap.
IP Address: Your WAN IP address. Leave this at 0.0.0.0 to obtain automatically an IP address from your ISP.
Billion 400G Router
Chapter 4: Configuration
23
6. Configure the Wireless LAN setting.
WLAN Service: Default setting is set to Enable. If you want to use wireless, both 802.11g and 802.11b device in
your network, you can select Enable.
ESSID: The ESSID is the unique name of a wireless access point (AP) to be distinguished from another. For
security propose, change to a unique ID name to the AP which is already built-in to the router’s wireless interface. It
is case sensitive and must not excess 32 characters. Make sure your wireless clients have exactly the ESSID as the
device, in order to get connected to your network.
ESSID Broadcast: It is function in which transmits its ESSID to the air so that when wireless client searches for a
network, router can then be discovered and recognized. Default setting is Enable.
Enable: When Enable is selected, you can allow anybody with a wireless client to be able to locate the
Access Point (AP) of your router.
Disable: Select Disable if you do not want broadcast your ESSID. When select Disable, no one will be
able to locate the Access Point (AP) of your router.
Channel ID: Select the ID channel that you would like to use.

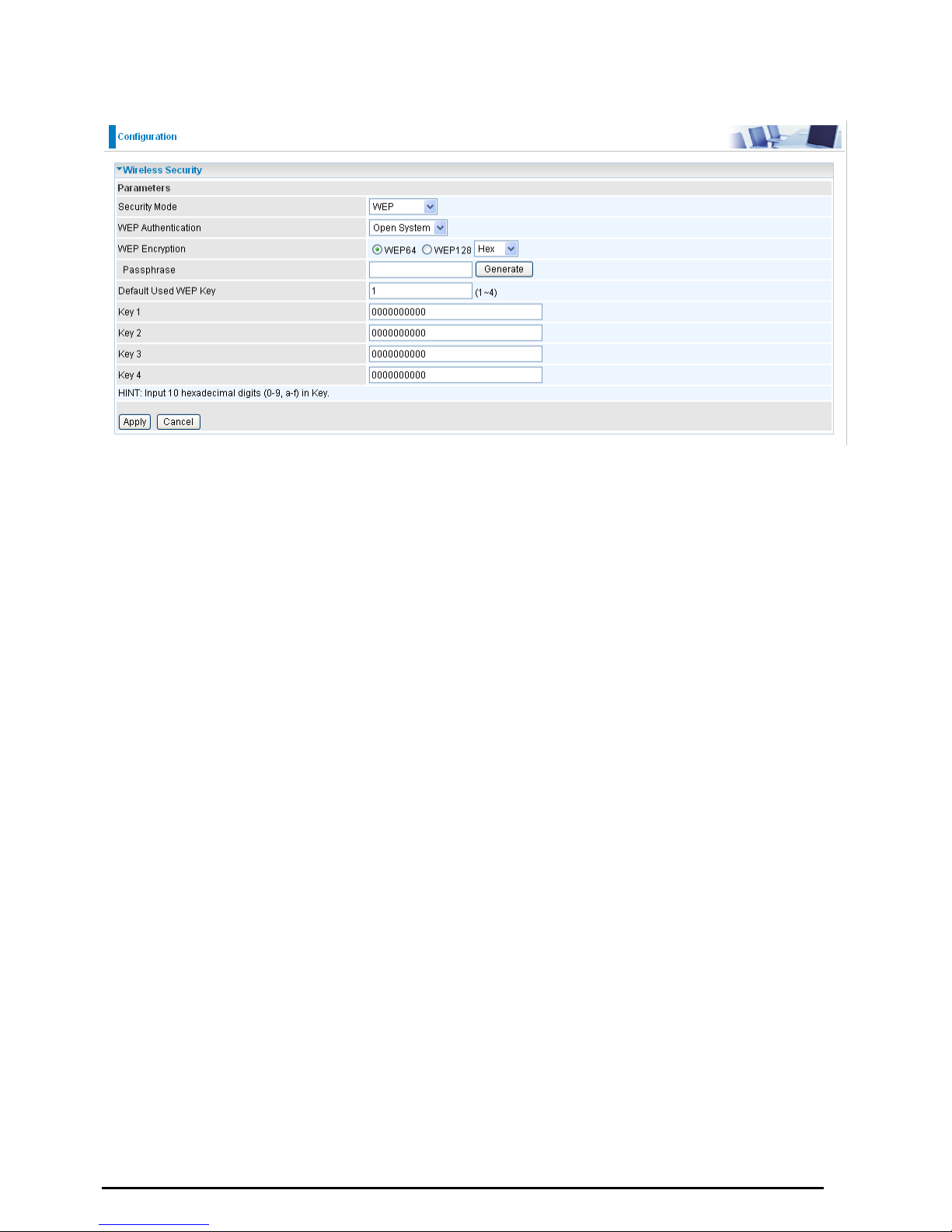

Security Mode: You can disable or enable with WPA or WEP for protecting wireless network. The default mode of
wireless security is Disable.
7. Wait for the configuration.
Billion 400G Router
Chapter 4: Configuration
24
8. When ADSL is synchronic, it will appear “check”.
Configuration
When you click this item, you get following sub-items to configure the ADSL router.
- LAN, WAN, System, Firewall, VPN, QoS, Virtual Server, Time Schedule and Advanced
These functions are described below in the following sections.
LAN - Local Area Network
Here are the items within the LAN section:
Bridge Interface
Ethernet
IP Alias
Ethernet Client Filter
Wireless
Wireless Security
Wireless Client Filter
WPS
Port Settings
DHCP Server
Bridge Interface
Loading...
